Multi-information display
The multi-information display presents the driver with a variety of vehi-
cle data.
● Menu icons
Displays the following informa-
tion when an icon is selected.
( P. 171)
Some of the information may be
displayed automatically
depending on the situation.
Drive information
Select to display various drive data. ( P. 171)
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display (if equipped)
Select to enable selection of an audio source or track on the m eter
using the meter control switches.
Driving assist system information (if equipped)
Select to display the operational status of the following syste ms:
• LTA (Lane Tracing Assist) ( P. 387)
• Dynamic radar cruise control with full-speed range ( P. 410)
• RSA (Road Sign Assist) ( P. 402)
Warning message display
Select to display warning messages and measures to be taken if a
malfunction is detected. ( P. 692)
Display contents

1752. Instrument cluster
2
Instrument cluster
C-HR_HV_OM_Europe_OM10720E

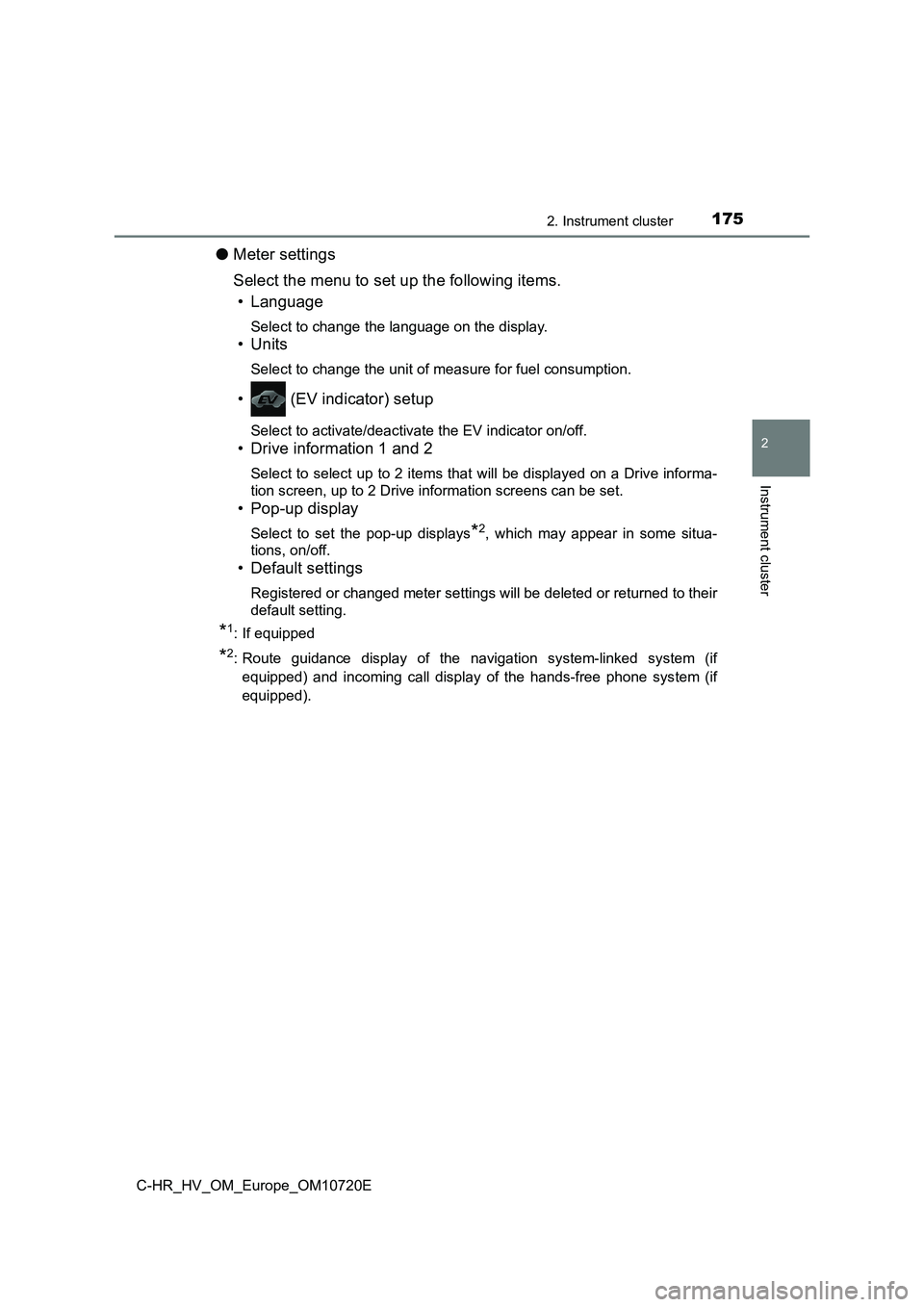

●Meter settings
Select the menu to set up the following items.
• Language
Select to change the language on the display.
•Units
Select to change the unit of measure for fuel consumption.
• (EV indicator) setup
Select to activate/deactivate the EV indicator on/off.
• Drive information 1 and 2
Select to select up to 2 items that will be displayed on a Driv e informa-
tion screen, up to 2 Drive information screens can be set.
• Pop-up display
Select to set the pop-up displays*2, which may appear in some situa-
tions, on/off.
• Default settings
Registered or changed meter settings will be deleted or returne d to their
default setting.
*1: If equipped
*2: Route guidance display of the navigation system-linked system (if
equipped) and incoming call display of the hands-free phone sys tem (if
equipped).

1772. Instrument cluster
2
Instrument cluster
C-HR_HV_OM_Europe_OM10720E
■ Meter brightness adjustment
The meter brightness level can be adjusted when the tail lights are on. How-
ever, when the surroundings are bright (daytime, etc.), the bri ghtness level
may not be adjustable.
■ G Monitor
■ Arrow guide navigation (vehicles with navigation system)
The following item is displayed.
G-force display
Displays the current G-force state.
The arrow guide navigation appears only
while route guidance of the navigation
system is being performed. When a turn
approaches, the distance to the turn and
the turn direction are displayed.
Turn direction
The image shown may differ from the
actual intersection.
Distance to the next turn

179
2
2. Instrument cluster
Instrument cluster
C-HR_HV_OM_Europe_OM10720E
Energy monitor/consumption screen
Multi-information display
Navigation/multimedia system
screen (if equipped)
Meter control switches
The energy monitor can be used to check the vehicle drive statu s,
hybrid system operation status and energy regeneration status.
■Display procedure
Multi-information display
Press “<” or “>” of the meter control switches and select , and
then press “ ” or “” to select the energy monitor display.
Navigation/multimedia system screen (type A) (vehicles without
navigation system)
Press the “MENU” button.
Select “Info” on the “Menu” screen.
If a screen other than energy monitor is displayed, select “Ene rgy”.
Navigation/multimedia system screen (type A) (vehicles with navi-
gation system)
Press the “MENU” button.
Select “Info” on the “Menu” screen.
Select “ECO” on the “Information” screen.
If a screen other than energy monitor is displayed, select “Ene rgy”.
You can view the status of your vehicle on the multi-information
display and the navigation/multimedia system screen (if
equipped).
Energy monitor
1
2
1
2
3

1802. Instrument cluster
C-HR_HV_OM_Europe_OM10720E
Navigation/multimedia system screen (type B)
Select on the main menu.
Select “Energy flow”.
■Reading the display
The arrows will appear in accordance with the energy flow. When
there is no energy flow, arrows will not be displayed.
The color of the arrows will change as follows
Green or blue: When the hybrid battery (traction battery) is re generated
or charged.
Yellow: When the hybrid battery (traction battery) is in use.
Red: When the gasoline engine is in use.
Multi-information display
Gasoline engine
Hybrid battery (traction battery)
Tires
The image shows all the arrows as an example. The actual displa y will
vary depending on conditions.
Navigation/multimedia system screen (type A) (if equipped)
Gasoline engine
Electric motor (traction motor)
Hybrid battery (traction battery)
Front tires
Rear tires
The image shows all the arrows as an example. The actual displa y will
vary depending on conditions.
1
2

1812. Instrument cluster
2
Instrument cluster
C-HR_HV_OM_Europe_OM10720E
Navigation/multimedia system screen (type B) (if equipped)
Gasoline engine
Hybrid battery (traction battery)
Electric motor (traction motor)
Front tires
Rear tires
The image shows all the arrows as an example. The actual displa y will
vary depending on conditions.
■ Color of the hybrid battery (traction battery) on the display
It will be green or blue when the hybrid battery (traction batt ery) is being
charged, and yellow when the hybrid battery (traction battery) is being used.
■ Remaining charge amount warning of hybrid battery (traction battery)
● The buzzer sounds intermittently when the hybrid battery (traction battery)
remains without charging while the shift lever is in N, or the remaining
charge amount drops below a certain level. If the remaining cha rge amount
drops further, the buzzer sounds continuously.
● When a warning message is shown on the multi-information display and the
buzzer sounds, follow the instructions displayed on the screen to perform
troubleshooting.
■ Color of the gasoline engine on the multimedia system screen
It will be blue when the engine is warming up, and it will turn to orange when
the warming up is finished.

1822. Instrument cluster
C-HR_HV_OM_Europe_OM10720E
Navigation/multimedia system screen (vehicles without navigation
system)
Press the “MENU” button.
Select “Info” on the “Menu” screen.
If a screen other than the desired one is displayed, select “Tr ip information”
or “History” on the screen.
Navigation/multimedia system screen (vehicles with navigation s ys-
tem)
Press the “MENU” button.
Select “Info” on the “Menu” screen.
Select “ECO” on the “Information” screen.
If a screen other than the desired one is displayed, select “Tr ip information”
or “History” on the screen.
■Trip information
Resetting the consumption
data
Average vehicle speed since
the hybrid system was
started
Elapsed time since the hybrid
system was started
Fuel consumption in the past
15 minutes
Cruising range ( P. 183)
Regenerated energy in the past 15 minutes
One symbol indicates 30 Wh. Up to 5 symbols are shown.
Current fuel consumption
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the power
switch was last turned to ON mode. Use the displayed average fu el
consumption as a reference.
These images are examples only, and may vary slightly from actu al condi-
tions.
Fuel consumption (type A) (if equipped)
1
2
1
2
3

1832. Instrument cluster
2
Instrument cluster
C-HR_HV_OM_Europe_OM10720E
■History
Resetting the history data
Best recorded fuel consump-
tion
Latest fuel consumption
Previous fuel consumption
record
Vehicles without navigation sys-
tem:
Displays the daily average fuel
consumption. (Instead of the
date, “Trip 1” through “Trip 5” will
be displayed.)
Vehicles with navigation system:
Displays the daily average fuel consumption.
Updating the latest fuel consumption data
The average fuel consumption history is divided by color into p ast
averages and the average fuel consumption since the last time
updated. Use the displayed average fuel consumption as a refer-
ence.
These images are examples only, and may vary slightly from actu al condi-
tions.
■ Updating the history data
Update the latest fuel consumption by selecting “Clip” to measu re the current
fuel consumption again.
■ Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■ Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumptio n. As a
result, the actual distance that can be driven may differ from that displayed.
