2022 SUZUKI GRAND VITARA sensor

3-59
OPERATING YOUR VEHICLE
54P00-01E
If dirt is detected on the radar sensor
cover, the radar brake support system will
stop functioning and the radar brake sup-
port system warning light (3) will come on,
and “RADAR BRAKE SUPPORT: NOT
ACTIVE BY SENSOR.” message (4) will
appear.
54P000340
NOTE:
The system may not function properly if
there is any snow or water on the radar
sensor cover.
(3)
(4)
WA R N I N G
• Always keep the sensor cover sur-
face clean. When it is dirty, wipe it
down with a soft cloth that will not
scratch the cover. Also, when the
following things are covering or
attached to the sensor cover, they
will be detected as dirt and the
radar will either take more time to
detect things or it will not detect
things at all. If this happens, the
system will not function normally
and unexpected accidents may
occur.
– Plastic bags (transparent, semi-
transparent, colored or metal-
coated)
– Rain, snow, etc.
• Observe the following instructions
in order to keep the radar sensor
functioning properly. If mishandled,
the radar sensor cannot accurately
detect a vehicle in front of you, the
system will not function properly
and unexpected accidents may
occur.
– Do not strike the radar sensor
forcefully. If there is a minor
crash and the radar sensor is
damaged or hindered, have it
inspected by an authorized
SUZUKI dealer.
(Continued)
WA R N I N G
(Continued)
– Do not stick or affix anything to
the sensor cover, not even clear
items.
– Do not do any customizing, coat-
ing or applying of non-genuine
SUZUKI parts to the radiator grill
or front bumper. For repairs and
parts replacement, contact an
authorized SUZUKI dealer.
– Do not remove or disassemble
the radar sensor or any sur-
rounding parts.
– Do not sit on or lean against the
front bumper.
– When using a high pressure car
washer, do not point the nozzle
at, or around, the sensor cover.
– Do not push other vehicle or
objects with the front bumper
when you pull out of a parking
area.

3-60
OPERATING YOUR VEHICLE
54P00-01E
When dirt is detected on the sensor
cover
If the message (4) does not disappear,
perform the following procedure.
1) Find a safe place to park and change
the ignition switch to “LOCK” position or
the ignition mode to “LOCK” (OFF) by
pressing the engine switch.
2) Clean the sensor cover with a soft
cloth.
3) Change the ignition switch to “ON”
position or the ignition mode to “ON” by
pressing the engine switch.
4) Check that the message (4) appears for
about 3 seconds and then disappears.
• If you clean the sensor cover and drive
the vehicle, but the message (4) appears
again, there might be another problem.
Contact an authorized SUZUKI dealer
for further assistance.NOTE:
In the following situations, the radar brake
support system warning light (3) may come
on, the message (4) may appear and the
radar brake support system may be deacti-
vated automatically, even if there is no dirt
on the sensor cover.
• In a tunnel
• A road where there are concrete walls
on both sides
• A road where there are metal fences on
one side
• Around overpasses or grade separated
crossings
• When there is bad weather such as
heavy rain or snow
• A road where there are puddles
In these situations, the radar brake support
system is stop functioning temporarily,
because millimeter-waves emanating from
the radar sensor cause diffused reflection
and a position of the vehicle in front of you
cannot be detected correctly.
If you drive the vehicle for about 2 minutes
after the above situations have improved,
these indicator and message will turn off
and the radar brake support system will
turn back on.

3-62
OPERATING YOUR VEHICLE
54P00-01E
Warning and indicator
messageMaster warning
indicator lightSound Cause and remedy
54P000359
Blinks Beep (one time from interior
buzzer)The radar brake support system is disabled
temporarily because dirt is detected on the
sensor cover, or millimeter-waves from the
radar sensor cause diffused reflection.
If the message does not disappear for a
while, wipe the sensor cover with a soft
cloth.

3-64
OPERATING YOUR VEHICLE
54P00-01E
Parking sensors (if equipped)
61MM0A192
(1) Symbol representing an obstacle detected by parking sensor*
* This symbol shows that an obstacle is located on the right rear of vehicle.
• The parking sensor system uses ultrasonic sensors to detect obstacles near the front
and/or rear bumpers. If obstacles are sensed while you are parking or moving the vehi-
cle slowly, the system warns you by sounding a buzzer and displaying symbols repre-
senting the obstacles on the information display in the instrument cluster.
• The system emits an ultrasonic wave and the relevant sensor detects the return of the
wave reflected by an obstacle. The system measures the time taken by the ultrasonic
wave to reach the obstacle and return from it, from which it determines the obstacle’s
position.
(1)
EXAMPLE
WA R N I N G
• The parking sensor warns you of
obstacles with buzzers and by
showing you the location of the
obstacles on the information dis-
play. However, you still have to
drive with particular care.
• The sensors can detect obstacles
only within a limited area and only
when the vehicle is moving within a
limited speed range. So, in tricky
areas, you must move the vehicle
slowly while checking around it
using your direct vision or rearview
mirrors. There is increased risk of
an accident if you control the vehi-
cle relying only on the parking sen-
sor.

3-65
OPERATING YOUR VEHICLE
54P00-01E
Sensor locations (if equipped)
On front bumper
54P000313
(1) Front center sensors (2 places)
(2) Front corner sensors (2 places)On rear bumper
54P000314
(3) Rear center sensors (2 places)
(4) Rear corner sensors (2 places)(1)(1)
(2)(2)
EXAMPLE
NOTICE
• Avoid hitting the sensor areas or
directing the nozzle of a high-pres-
sure car washer onto the sensor
areas. Otherwise, the sensors may
be damaged.
• If the bumper hits a hard object, the
sensors on it may not work prop-
erly. If this occurs, have the sen-
sors inspected by an authorized
SUZUKI dealer.
(3)(3)
(4) (4)
EXAMPLE

3-66
OPERATING YOUR VEHICLE
54P00-01E
Working sensors
The sensors work depending on the gearshift lever position and parking brake lever posi-
tion as follows:
Gearshift lever position R N, 1st – 5th or 6th Parking brake lever
Front sensors
(if equipped)Center Off On Release
Corner On On No relation
Rear sensorsCenter On Off No relation
Corner On Off No relationApproximate areas where obstacles can
be detected
54P000368
• An obstacle within about 20 cm (8 in)
from a sensor or just below a sensor is
not detectable.
• The sensors can detect an obstacle up
to about 1 m (3 ft) from the front of the
vehicle, or about 1.5 m (5 ft) from the
rear of vehicle.
EXAMPLE

3-67
OPERATING YOUR VEHICLE
54P00-01E
NOTE:
• Thin poles or obstacles lower than the
sensors may become undetectable as
the vehicle moves closer to them even if
they have been detected from longer
distances.
• The system may calculate the distance
to a road sign or similar obstacle to be
shorter than the actual distance.
WA R N I N G
• Under the following conditions, the
parking sensor system may not
work normally because the sensors
cannot detect obstacles correctly.
– Sensors are covered with mud,
ice or other materials. (Such
materials must be removed for
normal operation.)
– Sensors are wet from water
splashes or heavy rain.
– Sensors are covered by a hand,
sticker, accessory, etc.
– There is an accessory or other
object attached within the sen-
sor’s sensing area.
– Items such as tow hooks, com-
mercially available corner poles,
radio antenna, etc. are installed
on the bumper.
– The height of the bumper is
changed due to alteration to the
suspension or other causes.
– The sensor areas are extremely
hot from direct sunlight or cold
due to freezing weather.
– The vehicle is on a rough sur-
face, slope, gravel road or grass
field.
– The vehicle is at a steep angle.
(Continued)
WA R N I N G
(Continued)
– Sensors have intercepted ultra-
sonic noise from another vehi-
cle’s horn, engine, air braking
system (large vehicles), or park-
ing sensor.
– Obstacles are too close to the
sensors.
– Sensors are at an angle to a
highly reflective object such as
glass. (Ultrasonic waves are not
reflected back from the obstacle.)
• Sensors may not be able to cor-
rectly detect the following types of
obstacles:
– Objects made of a thin material
such as wire netting and ropes
– Square-shaped curbstones or
other objects with sharp edges
– Tall objects with a large upper
part such as a road sign
– Low-profile objects such as curb-
stones
– Sound-absorbing objects such
as cotton and snow

3-68
OPERATING YOUR VEHICLE
54P00-01E

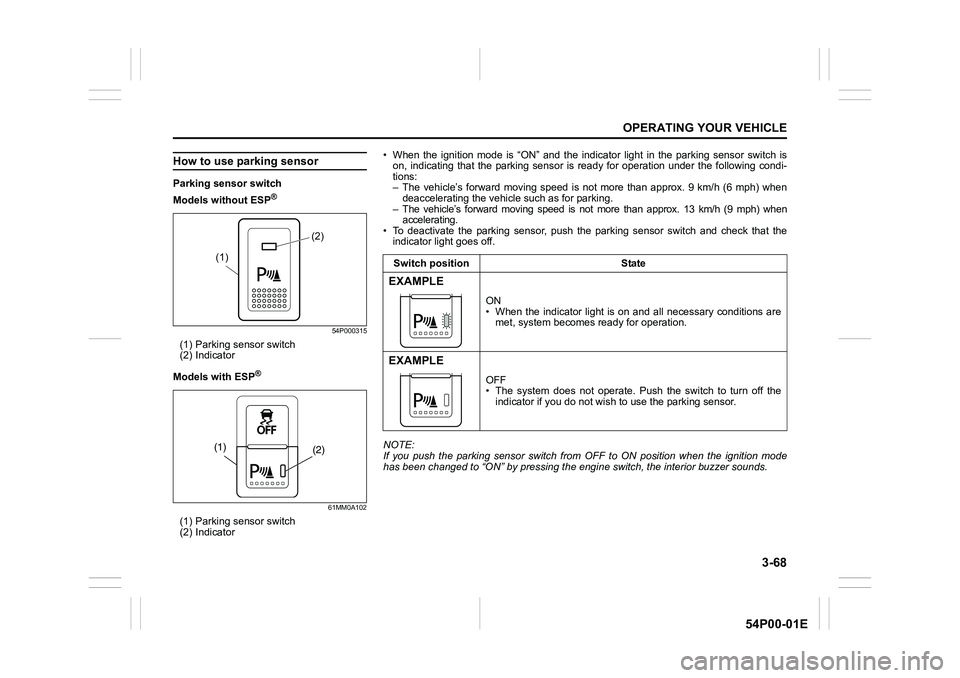

How to use parking sensor
Parking sensor switch
Models without ESP
®
54P000315
(1) Parking sensor switch
(2) Indicator
Models with ESP
®
61MM0A102
(1) Parking sensor switch
(2) Indicator
(2)
(1)
(2) (1)
• When the ignition mode is “ON” and the indicator light in the parking sensor switch is
on, indicating that the parking sensor is ready for operation under the following condi-
tions:
– The vehicle’s forward moving speed is not more than approx. 9 km/h (6 mph) when
deaccelerating the vehicle such as for parking.
– The vehicle’s forward moving speed is not more than approx. 13 km/h (9 mph) when
accelerating.
• To deactivate the parking sensor, push the parking sensor switch and check that the
indicator light goes off.
NOTE:
If you push the parking sensor switch from OFF to ON position when the ignition mode
has been changed to “ON” by pressing the engine switch, the interior buzzer sounds.Switch position State
EXAMPLE
ON
• When the indicator light is on and all necessary conditions are
met, system becomes ready for operation.
EXAMPLE
OFF
• The system does not operate. Push the switch to turn off the
indicator if you do not wish to use the parking sensor.
