2-87
BEFORE DRIVING
54P00-01E
NOTE:
• When you operate the four-mode 4WD system (if equipped), the information display may show messages other than those in the
above chart. Refer to “Four-mode 4WD system (if equipped)” in “OPERATING YOUR VEHICLE” section for details.
• If your vehicle is equipped with a parking sensor system, the information display also indicates warning and indicator messages
related to the system. For information on these messages, refer to “Parking sensors (if equipped)” in “OPERATING YOUR VEHICLE”
section.
• If your vehicle is equipped with the radar brake support system, the information display also indicates warning and indicator messages
related to the system. For information on these messages, refer to “Radar brake support system (if equipped)” in “OPERATING YOUR
VEHICLE” section.
• If your vehicle is equipped with the adaptive cruise control system, the information display also indicates warning and indicator mes-
sages related to the system. For information on these messages, refer to “Adaptive cruise control system (if equipped)” in “OPERAT-
ING YOUR VEHICLE” section.Warning and indicator
messageMaster warning
indicator lightSound Cause and remedy
61MM0A180
Blinks Beep (one time from interior
buzzer) If this message is displayed, have your
vehicle inspected by an authorized SUZUKI
dealer.

2-96
BEFORE DRIVING
54P00-01E
Radar brake support system indica-tor light (if equipped)
54P000255
When the ignition switch is turned to “ON”
position or the engine switch is pressed to
change the ignition mode to “ON”, this light
comes on briefly so you can check that the
light is working.
When the brake support system is acti-
vated, this light blinks rapidly.
In the following situations, this light will come
on and the radar brake support system will
stop functioning when the ignition switch is
in “ON” position or the ignition mode is “ON”.
• When there is a problem with the radar
brake support system. In this case, you
should have the system inspected by an
authorized SUZUKI dealer.
• When dirt is detected on the surface of
the radar sensor cover. In this case,
clean the cover.
• When there is a problem with the ABS or
ESP
®. The ABS warning light or the
ESP® warning light will also come on.• When there is a problem with the brake
control systems.
For details, refer to “Radar brake support
system (if equipped)” in “OPERATING
YOUR VEHICLE” section.
Radar brake support system OFF indicator light (if equipped)
54P000254
When the ignition switch is turned to “ON”
position or the engine switch is pressed to
change the ignition mode to “ON”, this light
comes on briefly so you can check that the
light is working.
In the following situations, this light will come
on and the radar brake support system will
stop functioning when the ignition switch is
in “ON” position or the ignition mode is “ON”.
• When the radar brake support OFF
switch is pushed and held to turn off the
radar brake support system.
• When the ESP
® OFF switch is pushed to
turn off the ESP® systems (other than
ABS), the ESP® OFF indicator light will
also come on.
For details, refer to “Radar brake support
system (if equipped)” in “OPERATING
YOUR VEHICLE” section.

2-104
BEFORE DRIVING
54P00-01E

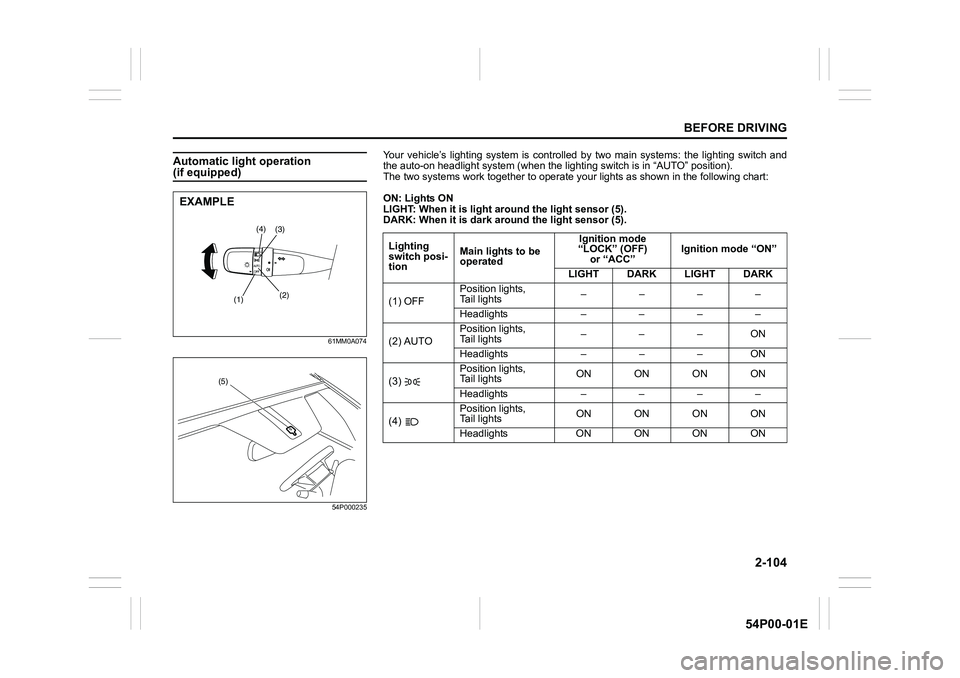

Automatic light operation (if equipped)
61MM0A074
54P000235
(3)(4)
(2)
(1)
EXAMPLE
(5)
Your vehicle’s lighting system is controlled by two main systems: the lighting switch and
the auto-on headlight system (when the lighting switch is in “AUTO” position).
The two systems work together to operate your lights as shown in the following chart:
ON: Lights ON
LIGHT: When it is light around the light sensor (5).
DARK: When it is dark around the light sensor (5).
Lighting
switch posi-
tionMain lights to be
operatedIgnition mode
“LOCK” (OFF)
or “ACC”Ignition mode “ON”
LIGHT DARK LIGHT DARK
(1) OFFPosition lights,
Tail lights––––
Headlights – – – –
(2) AUTOPosition lights,
Tail lights–––ON
Headlights – – – ON
(3) Position lights,
Tail lightsON ON ON ON
Headlights – – – –
(4) Position lights,
Tail lightsON ON ON ON
Headlights ONONONON

2-105
BEFORE DRIVING
54P00-01E

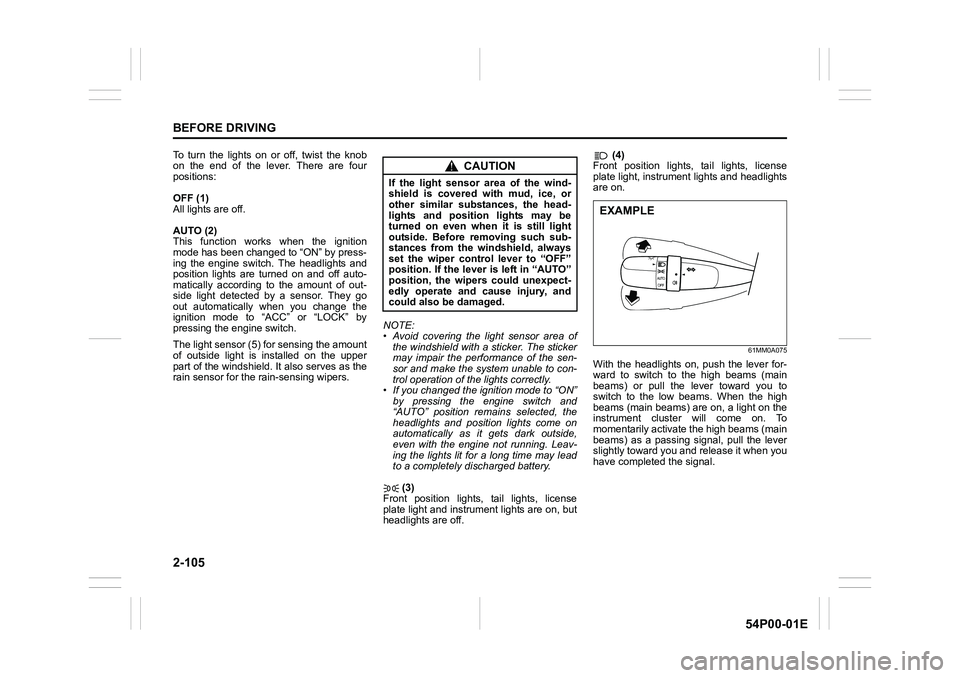

To turn the lights on or off, twist the knob
on the end of the lever. There are four
positions:
OFF (1)
All lights are off.
AUTO (2)
This function works when the ignition
mode has been changed to “ON” by press-
ing the engine switch. The headlights and
position lights are turned on and off auto-
matically according to the amount of out-
side light detected by a sensor. They go
out automatically when you change the
ignition mode to “ACC” or “LOCK” by
pressing the engine switch.
The light sensor (5) for sensing the amount
of outside light is installed on the upper
part of the windshield. It also serves as the
rain sensor for the rain-sensing wipers.NOTE:
• Avoid covering the light sensor area of
the windshield with a sticker. The sticker
may impair the performance of the sen-
sor and make the system unable to con-
trol operation of the lights correctly.
• If you changed the ignition mode to “ON”
by pressing the engine switch and
“AUTO” position remains selected, the
headlights and position lights come on
automatically as it gets dark outside,
even with the engine not running. Leav-
ing the lights lit for a long time may lead
to a completely discharged battery.
(3)
Front position lights, tail lights, license
plate light and instrument lights are on, but
headlights are off. (4)
Front position lights, tail lights, license
plate light, instrument lights and headlights
are on.
61MM0A075
With the headlights on, push the lever for-
ward to switch to the high beams (main
beams) or pull the lever toward you to
switch to the low beams. When the high
beams (main beams) are on, a light on the
instrument cluster will come on. To
momentarily activate the high beams (main
beams) as a passing signal, pull the lever
slightly toward you and release it when you
have completed the signal.
CAUTION
If the light sensor area of the wind-
shield is covered with mud, ice, or
other similar substances, the head-
lights and position lights may be
turned on even when it is still light
outside. Before removing such sub-
stances from the windshield, always
set the wiper control lever to “OFF”
position. If the lever is left in “AUTO”
position, the wipers could unexpect-
edly operate and cause injury, and
could also be damaged.
EXAMPLE

2-106
BEFORE DRIVING
54P00-01E
Auto-on headlight system
54P000236
The auto-on headlight system automati-
cally turns on all lights that are operated by
the lighting control lever on the steering
column, when the following three condi-
tions are all met.
Conditions for auto-on headlight system
operation:
1) It is dark around the light sensor (5).
2) The lighting control lever is in “AUTO”
position.
3) You press the engine switch to change
the ignition mode to “ON”.
This system is operated by a signal from
the light sensor (5) on the windshield. Do
not cover the sensor (5). Otherwise, the
system will not work correctly.NOTE:
The light sensor reacts even to infrared
rays, so it may operate incorrectly when
there are strong infrared rays.
Reprogramming the automatic light
function
The following settings of the automatic
light function can be customized to your
preference. Please contact an authorized
SUZUKI dealer if you want the function
reprogrammed.
Sensitivity of the light sensor
The amount of outside light needed to turn
the lights on and off is pre-set at the fac-
tory. The sensitivity of the light sensor can
be adjusted so that the lights are turned on
and off when it is:
• lighter outside than the pre-set condition,
or
• darker outside than the pre-set conditionRain-triggered automatic lighting oper-
ation
The setting of the auto-on headlight sys-
tem can be changed to make it turn on the
headlights:
• when the rain sensor senses heavy rain-
fall
• when the rain sensor senses light and
heavy rainfall (in coordination with rain-
sensing wiper operation), or
• independently from rain-sensing wiper
operation.
Light reminder buzzer
The interior buzzer continuously beeps if
you open the driver’s door without turning
off the headlights and position lights. This
function is triggered under the following
condition:
The headlights and/or position lights are
on even after the ignition switch is turned
off, or the engine switch is pressed to
change the ignition mode to “LOCK”
(OFF).
The buzzer stops sounding when you turn
off the headlights and position lights.
NOTE:
A message is indicated on the information
display in the instrument cluster while the
buzzer is sounding.
WA R N I N G
It takes about 5 seconds for the light
sensor to react to a change in light-
ing conditions. To help avoid an acci-
dent due to reduced visibility, turn on
your headlights before driving into a
tunnel, parking structure, etc.

2-111
BEFORE DRIVING
54P00-01E
Move the lever up and hold it to “MIST”
position, the windshield wipers will turn on
continuously at low speed.
61MM0A080
If the lever is equipped with “INT TIME”
control, turn the control forward or back-
ward to adjust the intermittent wiper opera-
tion to the desired interval.
Windshield wipers with rain sens-ing function (if equipped)
61MM0A081
Press the engine switch to change the igni-
tion mode to “ON”. To turn the rain-sensing
wipers on, move the lever down to one of
the three operating positions. In “AUTO”
position (if provided), the wipers automati-
cally operate when the wiper system
senses rain or snow. In “LO” position, the
wipers operate at a steady low speed. In
“HI” position, the wipers operate at a
steady high speed. To turn off the wipers,
move the lever back to “OFF” position.
Move the lever up and hold it to “MIST”
position; the wipers will operate continu-
ously at low speed for as long as you hold
the lever in “MIST” position.
61MM0A082
If the control lever has on “AUTO” position,
you can change the system’s sensitivity to
rain/snow by turning the knob of the con-
trol lever increased sensitivity or backward
for decreased sensitivity.
54P000243
(1) Rain sensor
EXAMPLEEXAMPLE
EXAMPLE
(1)

2-112
BEFORE DRIVING
54P00-01E
NOTE:
• Under the following conditions, the rain
sensor may not be able to sense rain or
snow correctly, and thus the rain-sensing
wiper function may not work or may work
incorrectly. (Use a position other than
“AUTO” under these conditions.)
– Rain or snow does not hit the rain sen-
sor area of the windshield, or the snow
is not of a type that is able to be
detected by the sensor.
– The rain sensor area is covered with
mud, ice or other similar substance.
You should remove any foreign sub-
stance.– There were already raindrops on the
windshield before starting rain-sensing
wiper operation. You should remove
the raindrops by operating the wipers
under manual control.
– The rain sensor is hotter than 80°C
(176°F) in the sun or lower than –10°C
(14°F) in freezing weather. (The wip-
ers do not operate under this condi-
tion.)
– The windshield is coated with a water-
repellent substance, which causes
raindrops to run down quickly. This will
give a clearer view and the wipers
may seem to operate too frequently. In
this case, decrease the system’s sen-
sitivity.
– The sensor area is covered with a
sticker.
– The wiper blades are damaged. You
should replace them.
• The following conditions may indicate
problems with the rain-sensing wiper
system. If your system exhibits any of
the following conditions, have it
inspected by an authorized SUZUKI
dealer.
– Rainfall/snowfall rate varies but the
wiping interval remains constant.
– Rain/snow is falling but the wipers do
not operate.Reprogramming the rain-sensing wiper
function
“AUTO” position operation of the rain-
sensing wiper function can be customized
to your preference by reprogramming its
setting as follows. Please contact an
authorized SUZUKI dealer for this customi-
zation.
Full-automatic wiping (factory setting)
The system automatically selects the most
appropriate of the following wiping modes:
no wiping, intermittent wiping, low-speed
wiping or high-speed wiping.
Semi-automatic wiping
The system automatically selects the most
appropriate of the following wiping modes:
intermittent wiping, low-speed wiping or
high-speed wiping. (The wipers do not stop
automatically.)
Intermittent wiping
The wipers operate only in the intermittent
wiping mode. The wiping interval can be
changed with the knob on the control lever.
CAUTION
• Observe the following instructions
when the wiper lever is set to
“AUTO” position with the engine
switch in “ON” mode. Otherwise,
the wipers could unexpectedly
operate and cause injury, and could
also be damaged.
– Do not touch or wipe the rain
sensor area of the windshield
with a cloth.
– Do not hit the windshield or rain
sensor.
• Set the wiper control lever to “OFF”
position before washing the vehicle
in an automatic car wash or clean-
ing the windshield.

OPERATING YOUR VEHICLE
3
54P00-01E
60G408
OPERATING YOUR VEHICLE
Exhaust gas warning .......................................................... 3-1
Daily inspection checklist .................................................. 3-1
Engine oil consumption ..................................................... 3-2
Ignition switch
(vehicle without keyless push start system) .................... 3-3
Engine switch
(vehicle with keyless push start system) .......................... 3-5
Keyless push start system (if equipped) .......................... 3-6
Parking brake lever ............................................................. 3-10
Pedal ..................................................................................... 3-11
Starting engine
(vehicle without keyless push start system) .................... 3-12
Starting engine
(vehicle with keyless push start system) .......................... 3-14
Using transaxle ................................................................... 3-19
Gearshift indicator .............................................................. 3-21
Four-mode 4WD system (if equipped) .............................. 3-23
ENG A-STOP system
(engine auto stop start system) (if equipped) .................. 3-29
Adaptive cruise control system (if equipped) .................. 3-32
Cruise control (if equipped) ............................................... 3-42
Speed limiter (if equipped) ................................................. 3-45
Radar brake support system (if equipped) ....................... 3-47
Emergency stop signal (ESS) (if equipped) ...................... 3-63
Parking sensors (if equipped) ............................................ 3-64
Rearview camera (if equipped) .......................................... 3-71
Braking ................................................................................. 3-74
Electronic stability program (ESP®) ................................. 3-76
Tire pressure monitoring system (TPMS) (if equipped) .. 3-83
