2022 SUBARU BRZ tire size

Tire Information
396
▽Maximum permissible infla-
tion pressure
The maximum cold inflation pres-
sure to which this tire may be
inflated. For example, “350 kPa (51
PSI) MAX. PRESS”
▽ Maximum load rating
The load rating at the maximum
permissible weight load for this tire.
For example, “MAX. LOAD 615 kg
(1,356 LBS) @ 350 kPa (51 PSI)
MAX. PRESS.”
▽ Construction type
Applicable construction of this tire.
For example, “TUBELESS STEEL
BELTED RADIAL” ▽
Construction
The generic name of each cord
material used in the plies (both
sidewall and tread area) of this tire.
For example, “PLIES: TREAD 2
STEEL + 2 POLYESTER + 1
NYLON SIDEWALL 2 POLY-
ESTER”
▽Uniform Tire Quality
Grading (UTQG)
For details, refer to
"Uniform Tire
Quality Grading Standards" 
P406.
■Recommended Tire Inflation
Pressure▼ Recommended cold tire infla-
tion pressure
For the recommended cold tire infla-
tion pressure for your vehicle’s tires,
refer to
"Tires" 
P385. ▼
Vehicle placard
The vehicle placard is affixed to the
driver’s side B-pillar.
Example:
WARNING
Maximum load rating applies
only to the tire, not to the vehi-
cle. Putting a load rated tire on
any vehicle does not mean the
vehicle can be loaded up to
the tire’s rated load.
B02109
XX
D00155
TIRE
PNEU
FRONT AVANT PXXX/XXRXX XXXKPA, XXPSI
REAR
ARRI¨RE PXXX/XXRXX XXXKPA, XXPSI
TXXX/XXDXX XXXKPA, XXPSI
SPARE
DE SECOURS SIZE
DIMENSIONS COLD TIRE PRESSURE
PRESSION DES
PNEUS  FROID
TIRE AND LOADING INFORMATION
RENSEIGNEMENTS SUR LES PNEUS ET LE CHARGEMENT
SEE OWNERS MANUAL FOR ADDITIONAL
INFORMATION
VOIR LE MANUEL DE LUSAGER
POUR PLUS DE
RENSEIGNEMENTSFRONT
AVANT REAR
ARRI¨RE
SEATING CAPACITY
NOMBRE DE PLACES
TOTAL
XX
X
The combined weight of occupants and cargo should never exceed XXXkg or \
XXXlbs.
Le poids total des occupants et du chargement ne doit jamais dØpasser\
XXXkg ou XXXlb.
A4600BEscusenvhch13.fm 396 ページ ２０２１年７月９日　金曜日　午後４時３９分

Tire Information
397
Consumer Information and Reporting Safety Defects13
– CONTINUED –
The vehicle placard shows original
tire size, recommended cold tire
inflation pressure on each tire at
maximum loaded vehicle weight,
seating capacity and loading infor-
mation.
▼Adverse safety consequences
of under-inflation
Driving at high speeds with exces-
sively low tire pressures can cause
the tires to flex severely and to
rapidly become hot. A sharp
increase in temperature could
cause tread separation, and failure
of the tire(s). Possible resulting loss
of vehicle control could lead to an
accident.
▼ Measuring and adjusting air
pressure to achieve proper
inflation
Check and, if necessary, adjust the
pressure of each tire (including the
spare) at least once a month and
before any long journey. Check the
tire pressures when the tires are
cold. Use a pressure gauge to adjust the tire pressures to the
specific values. Driving even a short
distance warms up the tires and
increases the tire pressures. Also,
the tire pressures are affected by
the outside temperature. It is best to
check tire pressure outdoors before
driving the vehicle. When a tire
becomes warm, t
he air inside it
expands, causing the tire pressure
to increase. Be careful not to
mistakenly release air from a warm
tire to reduce its pressure.
■ Glossary of Tire TerminologyAccessory weight
The combined weight (in excess of
those standard items which may be
replaced) of automatic transmis-
sion, power steering, power brakes,
power windows, power seats, radio,
and heater, to the extent that these
items are available as factory-
installed equipment (whether
installed or not).
 Bead
The part of the tire that is made of
steel wires, wrapped or reinforced by ply cords and that is shaped to fit
the rim.

Bead separation
A breakdown of the bond between
components in the bead.
 Bias ply tire
A pneumatic tire in which the ply
cords that extend to the beads are
laid at alternate an gles substantially
less than 90 degrees to the
centerline of the tread.
 Carcass
The tire structure, except tread and
sidewall rubber which, when
inflated, bears the load.
 Chunking
The breaking away of pieces of the
tread or sidewall.
 Cold tire pressure
The pressure in a tire that has been
driven less than 1 mile or has been
standing for three hours or more.
 Cord
The strands forming the plies in the
tire.
A4600BEscusenvhch13.fm 397 ページ ２０２１年７月９日　金曜日　午後４時３９分

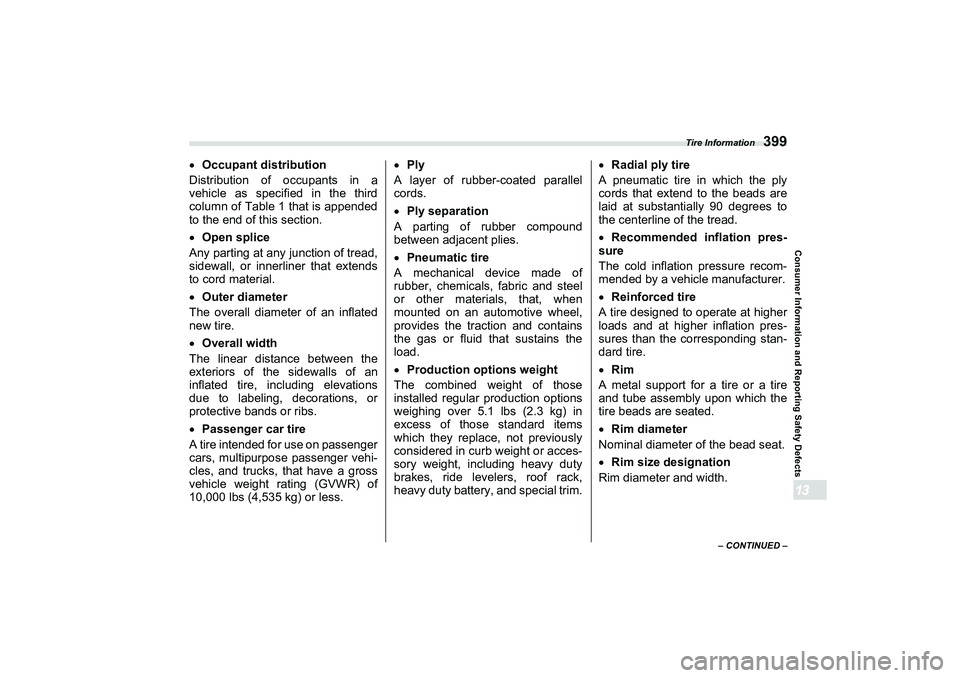

Tire Information
399
Consumer Information and Reporting Safety Defects13
– CONTINUED –
Occupant distribution
Distribution of occupants in a
vehicle as specified in the third
column of Table 1 that is appended
to the end of this section.
 Open splice
Any parting at any junction of tread,
sidewall, or innerliner that extends
to cord material.
 Outer diameter
The overall diameter of an inflated
new tire.
 Overall width
The linear distance between the
exteriors of the sidewalls of an
inflated tire, including elevations
due to labeling, decorations, or
protective bands or ribs.
 Passenger car tire
A tire intended for use on passenger
cars, multipurpose passenger vehi-
cles, and trucks, that have a gross
vehicle weight rating (GVWR) of
10,000 lbs (4,535 kg) or less. 
Ply
A layer of rubber-coated parallel
cords.
 Ply separation
A parting of rubber compound
between adjacent plies.
 Pneumatic tire
A mechanical device made of
rubber, chemicals, fabric and steel
or other materials, that, when
mounted on an automotive wheel,
provides the traction and contains
the gas or fluid that sustains the
load.
 Production options weight
The combined weight of those
installed regular production options
weighing over 5.1 lbs (2.3 kg) in
excess of those standard items
which they replace, not previously
considered in curb weight or acces-
sory weight, including heavy duty
brakes, ride levelers, roof rack,
heavy duty battery, and special trim. 
Radial ply tire
A pneumatic tire in which the ply
cords that extend to the beads are
laid at substantially 90 degrees to
the centerline of the tread.
 Recommended inflation pres-
sure
The cold inflation pressure recom-
mended by a vehicle manufacturer.
 Reinforced tire
A tire designed to operate at higher
loads and at higher inflation pres-
sures than the corresponding stan-
dard tire.
 Rim
A metal support for a tire or a tire
and tube assembly upon which the
tire beads are seated.
 Rim diameter
Nominal diameter of the bead seat.
 Rim size designation
Rim diameter and width.
A4600BEscusenvhch13.fm 399 ページ ２０２１年７月９日　金曜日　午後４時３９分
