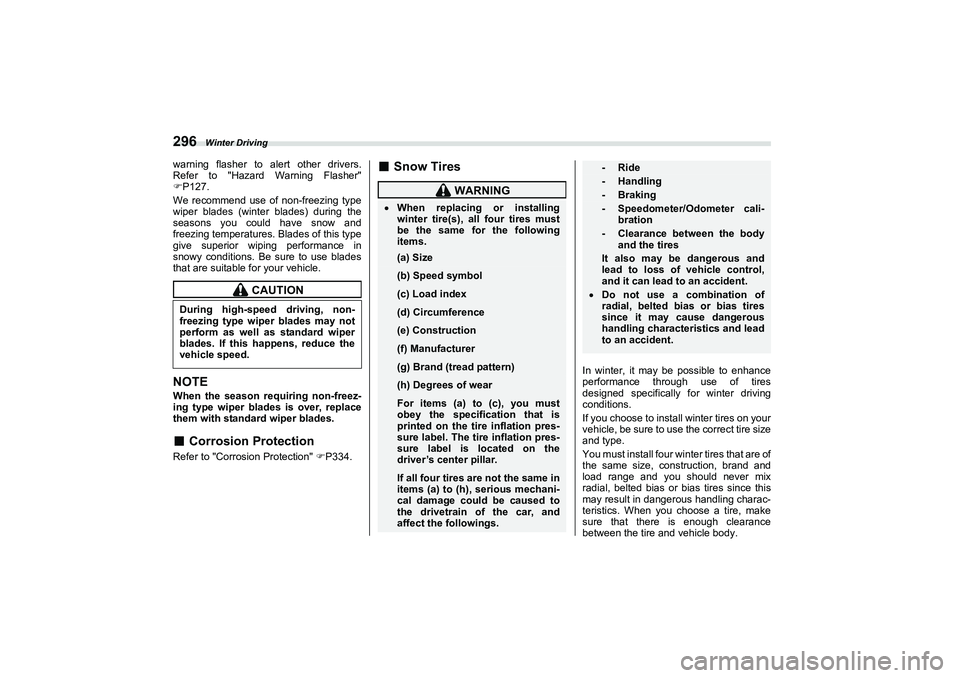

Winter Driving
296warning flasher to alert other drivers.
Refer to "Hazard Warning Flasher"
P127.
We recommend use of non-freezing type
wiper blades (winter blades) during the
seasons you could have snow and
freezing temperatures. Blades of this type
give superior wiping performance in
snowy conditions. Be sure to use blades
that are suitable for your vehicle.NOTEWhen the season requiring non-freez-
ing type wiper blades is over, replace
them with standard wiper blades.■
Corrosion Protection
Refer to "Corrosion Protection" P334.
■
Snow Tires
In winter, it may be possible to enhance
performance through use of tires
designed specifically for winter driving
conditions.
If you choose to install winter tires on your
vehicle, be sure to use the correct tire size
and type.
You must install four winter tires that are of
the same size, construction, brand and
load range and you should never mix
radial, belted bias or bias tires since this
may result in dangerous handling charac-
teristics. When you choose a tire, make
sure that there is enough clearance
between the tire and vehicle body.
CAUTION
During high-speed driving, non-
freezing type wiper blades may not
perform as well as standard wiper
blades. If this happens, reduce the
vehicle speed.
WARNING
 When replacing or installing
winter tire(s), all four tires must
be the same for the following
items.
(a) Size(b) Speed symbol(c) Load index(d) Circumference(e) Construction(f) Manufacturer(g) Brand (tread pattern)(h) Degrees of wearFor items (a) to (c), you must
obey the specification that is
printed on the tire inflation pres-
sure label. The ti re inflation pres-
sure label is located on the
driver’s center pillar.If all four tires are not the same in
items (a) to (h), serious mechani-
cal damage could be caused to
the drivetrain of the car, and
affect the followings.
- Ride- Handling- Braking- Speedometer/Odometer cali-
bration- Clearance between the bodyand the tires
It also may be dangerous and
lead to loss of vehicle control,
and it can lead to an accident.
 Do not use a combination of
radial, belted bias or bias tires
since it may cause dangerous
handling characteristics and lead
to an accident.
B5=B8.ERRN 26 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Loading Your Vehicle
297
Driving Tips8
– CONTINUED –
Remember to drive with care at all times
regardless of the type of tires on your
vehicle.■
Tire Chains
NOTE
When tire chains cannot be used, use
of another type of traction device
(such as spring chains) may be
acceptable if use on your vehicle is
recommended by the device manufac-
turer, taking into account tire size and
road conditions. Follow the device
manufacturer’s instructions, espe-
cially regarding maximum vehicle
speed.
To help avoid damage to your vehicle,
drive slowly, readjust or remove the
device if it is contacting your vehicle,
and do not spin your wheels. Damage
caused to your vehicle by use of a
traction device is not covered under
warranty.
Make certain that any traction device
you use is an SAE class S device, and use it on the rear wheels only. Always
use the utmost care when driving with
a traction device. Overconfidence
because you are using a traction
device could easily lead to a serious
accident.
■
Rocking the Vehicle
If you must rock the v
ehicle to free it from
snow, sand, or mud, depress the acceler-
ator pedal slightly and move the shift
lever/select lever back and forth between
“1” (MT model)/“D” (AT model) and “R”
repeatedly. Do not race the engine. For
the best possible traction, avoid spinning
the wheels when trying to free the vehicle.
When the road surface is extremely slip-
pery, you can obtain better traction by
starting the vehicle with the transmission
in 2nd than in 1st (MT models).
If your vehicle is a AT model, Snow mode
can be used. For details about how to use
the mode, refer to "Driving Mode Select
Switch (If Equipped)" P241.
8-9. Loading Your Vehicle
CAUTION
Tire chains cannot be used on your
vehicle because of the lack of clear-
ance between the tires and vehicle
body.
WARNING
Never allow passengers to ride on a
folded rear seatback or in the trunk.
Doing so may result in serious
injury.
WARNING
 Never stack luggage or other
cargo higher than the top of the
seatback because it could tumble
forward and injure passengers in
the event of a sudden stop or
accident. Keep luggage or cargo
low, as close to the floor as
possible.
100094
B5=B8.ERRN 2 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Tires and Wheels
359
Maintenance and Service11
– CONTINUED –
(5.6°C) between the temperature in the
garage and the temperature outside. By
way of example, the following table shows
the required tire pressures that corre-
spond to various outside temperatures
when the temperature in the garage is
60°F (15.6°C).
Example:
Tire size: 215/40R18 85Y
Standard tire pressures:
Front: 35 psi (240 kPa, 2.4 kgf/cm
2)
Rear: 35 psi (240 kPa, 2.4 kgf/cm2)
Garage temperature: 60°F (15.6°C)
Example:
Tire size: 215/45R17 87W
Standard tire pressures:
Front: 35 psi (240 kPa, 2.4 kgf/cm2)
Rear: 35 psi (240 kPa, 2.4 kgf/cm2)
Garage temperature: 60°F (15.6°C) If the low tire pressure warning light illumi-
nates when you drive the vehicle in cold
outside air after adjusting the tire pres-
sures in a warm garage, re-adjust the tire
pressures using the method described
above. Then, increase the vehicle speed
to at least 25mph (40km/h) and check to
see that the low tire pressure warning light
goes off a few minutes later. If the low tire
pressure warning light does not go off, the
tire pressure monito
ring system may not
be functioning normally. In this event, go
to a SUBARU dealer to have the system
inspected as soon as possible.
While the vehicle is driven, friction
between tires and the road surface
causes the tires to warm up. After illumi-
nation of the low tire pressure warning
light, any increase in the tire pressures
caused by an increase in the outside air
temperature or by an increase in the
temperature in the tires can cause the low
tire pressure warning light to go off. System resetting is
necessary when the
wheels are changed (for example, a
switch to snow tires) and new TPMS
valves are installed on the newly fitted
wheels. Have this work performed by a
SUBARU dealer following wheel replace-
ment.
It may not be possible to install TPMS
valves on certain wheels that are on the
market. Therefore, if you change the
wheels (for example, a switch to snow
tires), use wheels that have the same part
number as the standard-equipment
wheels. Without four operational TPMS
valve/sensors on the wheels, the TPMS
will not fully function and the warning light
in the instrument panel will illuminate
steadily after blinking for approximately
one minute.
When a tire is replaced, adjustments are
necessary to ensure continued normal
operation of the tire pressure monitoring
system. As with wheel replacement,
therefore, you s hould have the work
performed by a SUBARU dealer.
Outside
temperature Adjusted pressure
[psi (kPa, kgf/cm
2)]
Front Rear
30°F ( −1°C) 38 (260, 2.6) 38 (260, 2.6)
10°F ( −12°C) 40 (275,
2.75) 40 (275,
2.75)
− 10°F
( − 23°C) 42 (290, 2.9) 42 (290, 2.9)
Outside
temperature Adjusted pressure
[psi (kPa, kgf/cm
2)]
Front Rear
30°F ( −1°C) 38 (260, 2.6) 38 (260, 2.6)
10°F ( −12°C) 40 (275,
2.75) 40 (275,
2.75)
− 10°F
( − 23°C) 42 (290, 2.9) 42 (290, 2.9)
B5=B8.ERRN 35 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Tires and Wheels
361
Maintenance and Service11
– CONTINUED –
– A tire goes flat repeatedly or
cannot be properly repaired
due to the size or location of a
cut or other damage
If you are not su re, consult with
your SUBARU dealer.
 Any tires over 6 years old must
be checked by a qualified techni-
cian even if they have seldom or
never been used or damage is
not obvious.
■
Tire Pressures and Wear
Maintaining the correct tire pres-
sures helps to maximize the tires’
service lives and is essential for
good running performance. Check
and, if necessary, adjust the pres-
sure of each tire and the spare (if
equipped) at least once a month
and before any long journey. Tire inflation pressure label
Check the tire pressures when the
tires are cold. Use a pressure gauge
to adjust the tire pressures to the
values shown on the tire inflation
pressure label. The tire inflation
pressure label is located on the
center pillar on the driver’s side.
Driving even a short distance
warms up the tires and increases
the tire pressures. Also, the tire
pressures are affected by the
outside temperature. It is best to
check tire pressure outdoors before
driving the vehicle.
When a tire becomes warm, the air
inside it expands, causing the tire pressure to increase. Be careful not
to mistakenly release air from a
warm tire to reduce its pressure.
NOTE
The air pressure in a tire
increases by approximately 4.3
psi (30 kPa, 0.3 kgf/cm
2) when the
tire becomes warm.
 The tires are considered cold
when the vehicle has been
parked for at least 3 hours or has
been driven less than 1 mile (1.6
km).
Incorrect tire pressures detract from
controllability and ride comfort, and
they cause the tires to wear abnor-
mally.
 Correctly inflated tires (tread
worn evenly)
B02109
WARNING
Do not let air out of warm tires
to adjust pressure. Doing so
will result in low tire pressure.
B5=B8.ERRN 361 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

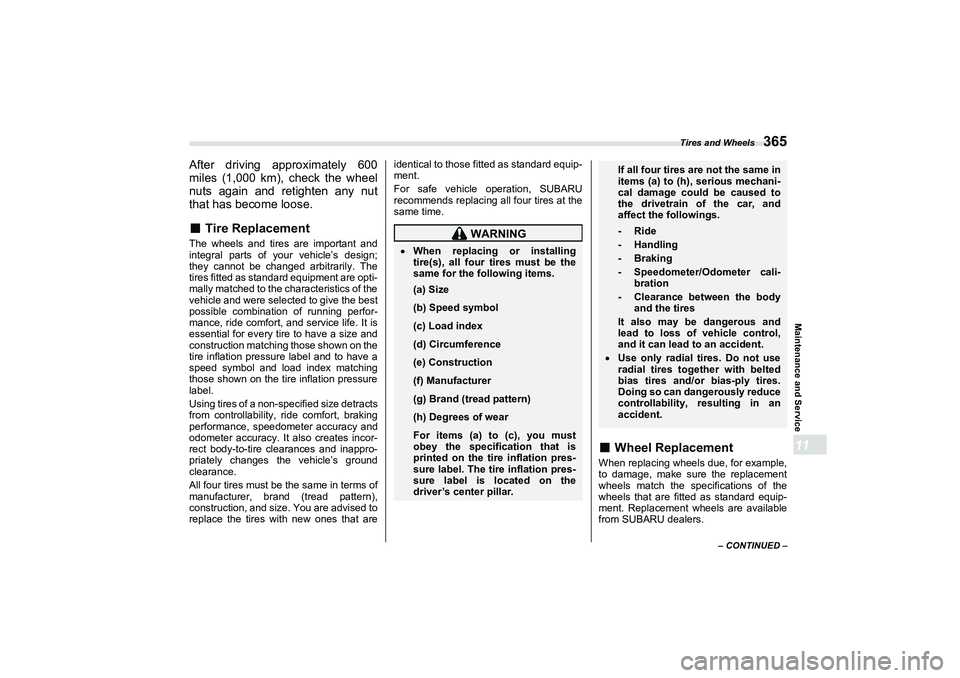

Tires and Wheels
365
Maintenance and Service11
– CONTINUED –
After driving approximately 600
miles (1,000 km), check the wheel
nuts again and retighten any nut
that has become loose.■
Tire Replacement
The wheels and tires are important and
integral parts of your vehicle’s design;
they cannot be changed arbitrarily. The
tires fitted as standard equipment are opti-
mally matched to the characteristics of the
vehicle and were selected to give the best
possible combination of running perfor-
mance, ride comfort, and service life. It is
essential for every tire to have a size and
construction matching those shown on the
tire inflation pressure label and to have a
speed symbol and load index matching
those shown on the tire inflation pressure
label.
Using tires of a non-specified size detracts
from controllability, ride comfort, braking
performance, speedometer accuracy and
odometer accuracy. It also creates incor-
rect body-to-tire clearances and inappro-
priately changes the vehicle’s ground
clearance.
All four tires must be the same in terms of
manufacturer, brand (tread pattern),
construction, and size. You are advised to
replace the tires with new ones that are identical to those fitted as standard equip-
ment.
For safe vehicle operation, SUBARU
recommends replacing all four tires at the
same time.
■
Wheel Replacement
When replacing wheels due, for example,
to damage, make sure the replacement
wheels match the specifications of the
wheels that are fitted as standard equip-
ment. Replacement wheels are available
from SUBARU dealers.
WARNING

When replacing or installing
tire(s), all four tires must be the
same for the following items.
(a) Size(b) Speed symbol(c) Load index(d) Circumference(e) Construction(f) Manufacturer(g) Brand (tread pattern)(h) Degrees of wearFor items (a) to (c), you must
obey the specification that is
printed on the tire inflation pres-
sure label. The tire inflation pres-
sure label is located on the
driver’s center pillar.
If all four tires are not the same in
items (a) to (h), serious mechani-
cal damage could be caused to
the drivetrain of the car, and
affect the followings.- Ride- Handling- Braking- Speedometer/Odometer cali- bration- Clearance between the bodyand the tires
It also may be dangerous and
lead to loss of vehicle control,
and it can lead to an accident.
 Use only radial tires. Do not use
radial tires together with belted
bias tires and/or bias-ply tires.
Doing so can dangerously reduce
controllability, resulting in an
accident.
B5=B8.ERRN 365 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Specifications
385
Specifications12
– CONTINUED –
■
Electrical System
■Tires
*1: If equipped
*2: This torque is equivalent to applying approximately 88 to 110 lbf (40 to 50 kgf) at the end of the wheel nut wrench. If you have tightened the wheel nuts by yourself, have the tightening torque checked at the nearest automotive service facility as soon as possible. For the wh eel nut tightening
procedure, refer to "Changing a Flat Tire"  P303.■
Brake Pedal
in (mm)
*: Minimum value when pedal is operated with a force of 67.4 lbf (300 N, 30.6 kgf) while the engine is running.
Battery type
U.S. spec and Canada spec models
75D23L
Except U.S. spec and Canada spec models 55D23L
Alternator 12 V-150 A
Spark plugs ZXE27HBR8 (DENSO)
Tire size 215/45R17 87W215/40R18 85Y
Wheel size 17 × 7 1/2J18 × 7 1/2J
Pressure Front
35 psi (240 kPa, 2.4 kgf/cm
2)
Rear
Spare tire
*1
Size ―215/40R18 85Y
Pressure ―
35 psi (240 kPa, 2.4 kgf/cm
2)
Wheel nut tightening torque 88.5 lbf·ft (120 N·m, 12.2 kgf·m)
*2
Pedal clearance2.91 (74)*
Pedal free play 0.02 - 0.05 (0.5 - 1.5)
B5=B8.ERRN 35 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

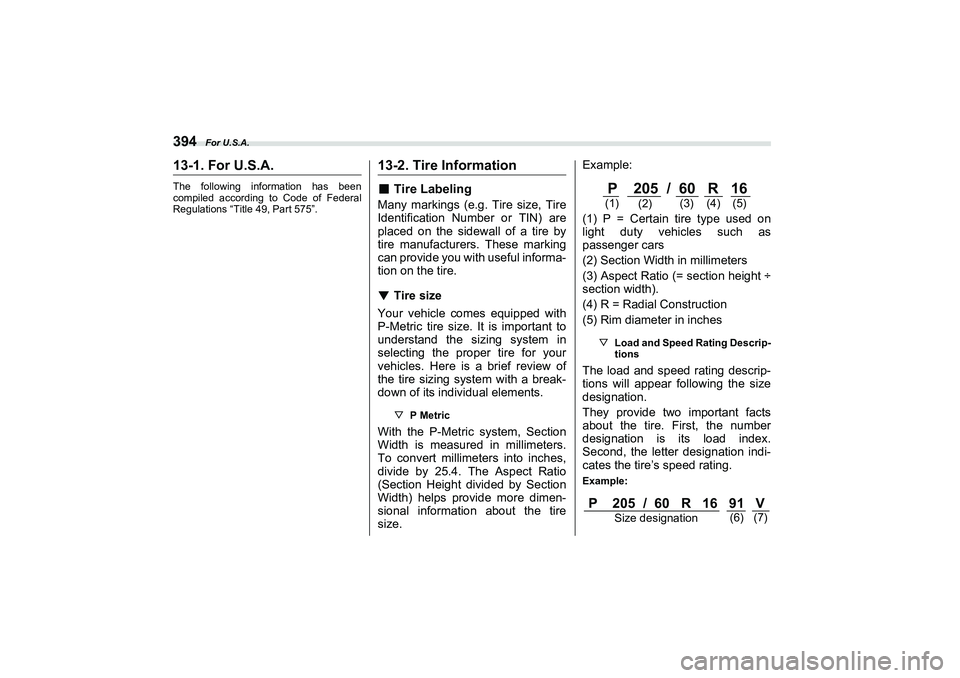

For U.S.A.
39413-1. For U.S.A.The following information has been
compiled according to Code of Federal
Regulations “Title 49, Part 575”.
13-2. Tire Information■Tire LabelingMany markings (e.g . Tire size, Tire
Identification Number or TIN) are
placed on the sidewall of a tire by
tire manufacturers. These marking
can provide you with useful informa-
tion on the tire.
▼ Tire size
Your vehicle comes equipped with
P-Metric tire size. It is important to
understand the sizing system in
selecting the proper tire for your
vehicles. Here is a brief review of
the tire sizing system with a break-
down of its individual elements.
▽ P Metric
With the P-Metric system, Section
Width is measured in millimeters.
To convert millimeters into inches,
divide by 25.4. The Aspect Ratio
(Section Height divided by Section
Width) helps provide more dimen-
sional information about the tire
size. Example:
(1) P = Certain tire type used on
light duty vehicles such as
passenger cars
(2) Section Width in millimeters
(3) Aspect Ratio (= section height ÷
section width).
(4) R = Radial Construction
(5) Rim diameter in inches
▽
Load and Speed Rating Descrip-
tions
The load and speed rating descrip-
tions will appear following the size
designation.
They provide two important facts
about the tire. First, the number
designation is its load index.
Second, the letter designation indi-
cates the tire’s speed rating.Example:
P 205 / 60 R 16(1)
(2) (3) (4) (5)
P 205 / 60 R 16 91 V
Size designation (6) (7)
A4600BEscusenvhch13.fm 394 ページ ２０２１年７月９日　金曜日　午後４時３９分

Tire Information
395
Consumer Information and Reporting Safety Defects13
– CONTINUED –

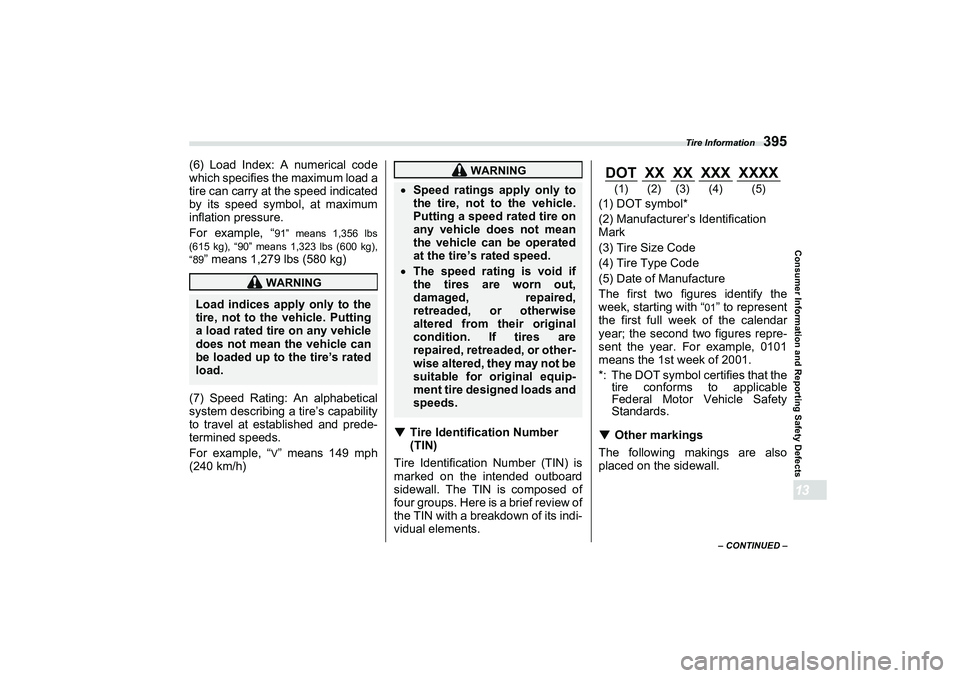

(6) Load Index: A numerical code
which specifies the maximum load a
tire can carry at the speed indicated
by its speed symbol, at maximum
inflation pressure.
For example, “
91” means 1,356 lbs
(615 kg), “90” means 1,323 lbs (600 kg),
“89
” means 1,279 lbs (580 kg)
(7) Speed Rating: An alphabetical
system describing a tire’s capability
to travel at established and prede-
termined speeds.
For example, “
V” means 149 mph
(240 km/h) ▼
Tire Identification Number
(TIN)
Tire Identification Number (TIN) is
marked on the intended outboard
sidewall. The TIN is composed of
four groups. Here is a brief review of
the TIN with a breakdown of its indi-
vidual elements. (1) DOT symbol*
(2) Manufacturer’s Identification
Mark
(3) Tire Size Code
(4) Tire Type Code
(5) Date of Manufacture
The first two figures identify the
week, starting with “
01” to represent
the first full week of the calendar
year; the second two figures repre-
sent the year. For example, 0101
means the 1st week of 2001.
*: The DOT symbol certifies that the tire conforms to applicable
Federal Motor Vehicle Safety
Standards.
▼ Other markings
The following makings are also
placed on the sidewall.
WARNING
Load indices apply only to the
tire, not to the vehicle. Putting
a load rated tire on any vehicle
does not mean the vehicle can
be loaded up to the tire’s rated
load.
WARNING
 Speed ratings apply only to
the tire, not to the vehicle.
Putting a speed rated tire on
any vehicle does not mean
the vehicle can be operated
at the tire’s rated speed.The speed rating is void if
the tires are worn out,
damaged, repaired,
retreaded, or otherwise
altered from their original
condition. If tires are
repaired, retreaded, or other-
wise altered, they may not be
suitable for original equip-
ment tire designed loads and
speeds.
DOT XX XX XXX XXXX
(2)(1) (3) (4) (5)
A4600BEscusenvhch13.fm 395 ページ ２０２１年７月９日　金曜日　午後４時３９分
