Starting and Stopping Engine
230When the warm-up is completed, the
engine speed lowers automatically.
On rare occasions, it may be difficult
to start the engine depending on the
fuel and the usage condition (repeated
driving of a distance in which the
engine has not warmed up suffi-
ciently). In such a case, it is recom-
mended that you change to a different
brand of fuel.
 On rare occasions, transient
knocking may be heard from the
engine when the accelerator is oper-
ated rapidly such as a rapid start-up
and a rapid acceleration. This is not a
malfunction.
 The engine starts more easily when
the headlights, air conditioner and rear
window defogger are turned off.■
Starting Engine NOTE

When pressing the push-button
ignition switch while depressing the
clutch pedal (MT models) or the brake
pedal (AT models): - The engine starter operates for a
maximum of 10 seconds and after
starting the engine, the starter stops
automatically.
- The engine can be started
regardless of the power status.
 If the engine does not start, check
the security indicator light. Then press
the push-button ignition switch
without depressing the clutch pedal
WARNING
 There are some general precau-
tions when starting the engine.
Carefully read the precautions
described in "General Precau-
tions When Starting Engine"

P229.
If the steering lock cannot be
released after the engine has
started, never drive the vehicle.
The steering is still locked, and it
may result in an accident.
CAUTION
If a system malfunction warning
message is displayed on the
combination meter, there may be
a malfunction with the vehicle.
Contact a SUBARU dealer imme-
diately.If a steering lock warning
message is displayed on the
combination me ter after the
engine has started, it means that
the steering is still locked. While
moving the steering wheel right
and left, depress the brake pedal,
and press the push-button igni-
tion switch.
 Do not continue pressing the
push-button ignition switch for
more than 10 seconds. Doing so
could cause a malfunction. If the
engine does not start, stop
pressing the push-button ignition
switch. Instead, press the push-
button ignition switch without
depressing the clutch pedal (MT
models) or the brake pedal (AT
models) to switch the power
status to “OFF”. Wait 10 seconds,
and then press the push-button
ignition switch to start the
engine.
B5=B8.ERRN 230 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Starting and Stopping Engine
231
Starting and Operating7
– CONTINUED –
(MT models) or the brake pedal (AT
models) to switch the power to “OFF”.- If the light had illuminated, try to
start the engine again.
- If the light had been off, press the
push-button igniti on switch while
depressing the clutch pedal (MT
models) or the brake pedal (AT
models) more forcefully.
 The engine start procedures may
not function depending on the radio
wave conditions around the vehicle. In
such a case, refer to "Starting Engine"
P326.
 If the vehicle battery is discharged,
the steering cannot be unlocked.
Charge the battery.
 Until the engine is warmed up suffi-
ciently, the engine speed will be main-
tained high. The engine speed will
decrease as the engine warms up.
 Do not shift the select lever (AT
models) while the starter is cranking.
1) Push-button ignition switchWhen the push-button ignition switch is
pressed while depressing the clutch pedal
(MT models) or the brake pedal (AT
models), the engine will start. The starting
procedure for the engine is as follows.
▼
MT models
1. Carry the access key fob, and sit in the
driver’s seat.
2. Apply the parking brake.
3. Shift the shift lever to neutral.
4. Depress the brake pedal and clutch
pedal.
5. While depressing the clutch pedal,
press the push-button ignition switch.
NOTEIn case the engine does not start by
the normal engine start procedure,
move the shift lever to the neutral
position, and switch the power to
“ACC”. Depress the clutch pedal, and
press the push-button ignition switch
for at least 15 seconds. The engine
may start. Only use this engine start
procedure in case of emergency.
▼
AT models
1. Carry the access key fob, and sit in the
driver’s seat.
2. Apply the parking brake.
3. Make sure the select lever is in the “P”
position. The engine can also start when
the select lever is in the “N” position,
however, for safety reasons, start in the
“P” position.
4. Depress the brake pedal.
5. While depressing the brake pedal,
press the push-button ignition switch.
NOTE In case the engine does not start by
the normal engine start procedure,
move the select lever to the “P” posi-
tion, and switch th e power to “ACC”.
Depress the brake pedal, and press the
push-button ignition switch for at least
15 seconds. The engine may start. Only
1
702836
B5=B8.ERRN 231 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Starting and Stopping Engine
232use this engine start procedure in case
of emergency.
When the engine is not started, the
brake pedal may feel stiff. In such a
case, depress the brake pedal more
forcefully than usual. Press the push-
button ignition switch to start the
engine.■
Stopping Engine
1. Stop the vehicle completely.
2. Move the shift lever to neutral (MT
models) or select leve r to the “P” position
(AT models).
3. Press the push-button ignition switch.
The engine will stop, and the power will be
switched off.
NOTEAlthough you can stop the engine by
operating the push -button ignition
switch, do not stop the engine during
driving except in an emergency.■
When Access Key Fob Does
Not Operate Properly
Refer to "Access Key Fob – If Access Key
Fob Does Not Operate Properly" P325.■
Steering Lock
After stopping the engine and any door is
opened, the steering wheel will be locked
due to the steering lock function.
When the engine is restarted, the steering
lock will be automatically released.
WARNING
 Do not touch the push-button
ignition switch during driving.
When the push-button ignition
switch is operated as follows, the
engine will stop.–The switch is pressed and held
for 2 seconds or longer.–The switch is pressed briefly 3
times or more in succession.
When the engine stops, the brake
booster will not function. A
greater foot pressure will be
required on the brake pedal.The power steering system will
not operate either. A greater
force will be required to steer,
and it may result in an accident.
If the engine stops during driving,
do not operate the push-button
ignition switch or open any of the
doors until the vehicle is stopped
in a safe location. It is dangerous
because the steering lock may be
activated. Stop the vehicle in a
safe place, and contact a
SUBARU dealer immediately.
CAUTION
For AT models:Do not stop the engine while the
select lever is in a position other
than the “P” position.If the engine is stopped while the
select lever is in a position other
than the “P” position, the power
will be in “ACC”. If the vehicle is
left in this cond ition, the battery
may be discharged.
B5=B8.ERRN 232 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

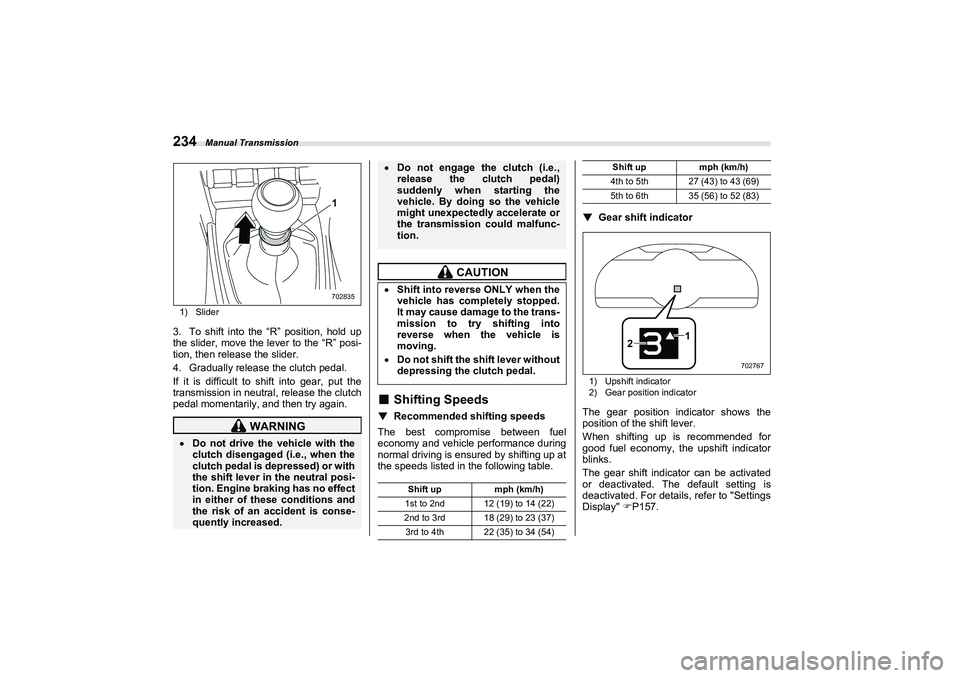

Manual Transmission
2341) Slider3. To shift into the “R” position, hold up
the slider, move the lever to the “R” posi-
tion, then release the slider.
4. Gradually release the clutch pedal.
If it is difficult to shift into gear, put the
transmission in neutral, release the clutch
pedal momentarily, and then try again.
■
Shifting Speeds
▼
Recommended shifting speeds
The best compromise between fuel
economy and vehicle performance during
normal driving is ensured by shifting up at
the speeds listed in the following table. ▼
Gear shift indicator1) Upshift indicator
2) Gear position indicatorThe gear position indicator shows the
position of the shift lever.
When shifting up is recommended for
good fuel economy, the upshift indicator
blinks.
The gear shift indicator can be activated
or deactivated. The default setting is
deactivated. For details, refer to "Settings
Display"
P157.
WARNING
 Do not drive the vehicle with the
clutch disengaged (i.e., when the
clutch pedal is depressed) or with
the shift lever in the neutral posi-
tion. Engine braking has no effect
in either of these conditions and
the risk of an accident is conse-
quently increased.
1702835
Do not engage the clutch (i.e.,
release the clutch pedal)
suddenly when starting the
vehicle. By doing so the vehicle
might unexpectedly accelerate or
the transmission could malfunc-
tion.
CAUTION
Shift into reverse ONLY when the
vehicle has completely stopped.
It may cause damage to the trans-
mission to try shifting into
reverse when the vehicle is
moving.Do not shift the shift lever without
depressing the clutch pedal.
Shift up mph (km/h)
1st to 2nd 12 (19) to 14 (22)
2nd to 3rd 18 (29) to 23 (37) 3rd to 4th 22 (35) to 34 (54)
4th to 5th 27 (43) to 43 (69)
5th to 6th 35 (56) to 52 (83) Shift up
mph (km/h)
1
2
702767
B5=B8.ERRN 234 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

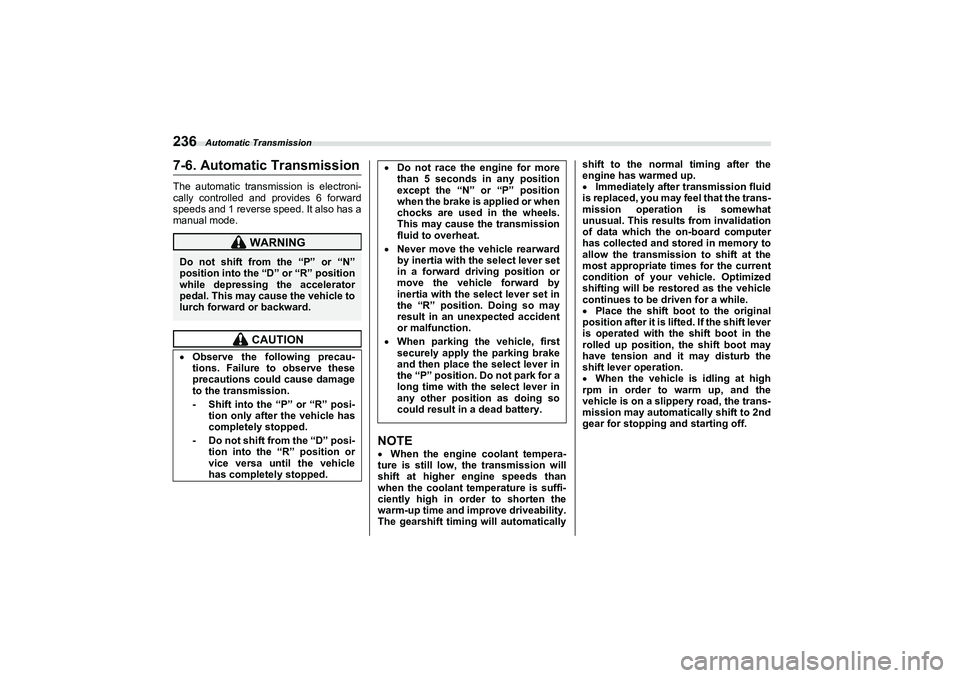

Automatic Transmission
2367-6. Automatic TransmissionThe automatic transmission is electroni-
cally controlled and provides 6 forward
speeds and 1 reverse speed. It also has a
manual mode.
NOTEWhen the engine coolant tempera-
ture is still low, the transmission will
shift at higher engine speeds than
when the coolant temperature is suffi-
ciently high in order to shorten the
warm-up time and improve driveability.
The gearshift timing will automaticallyshift to the normal timing after the
engine has warmed up.

Immediately after transmission fluid
is replaced, you may feel that the trans-
mission operation is somewhat
unusual. This results from invalidation
of data which the on-board computer
has collected and stored in memory to
allow the transmission to shift at the
most appropriate times for the current
condition of your vehicle. Optimized
shifting will be restored as the vehicle
continues to be driven for a while.
 Place the shift boot to the original
position after it is lifted. If the shift lever
is operated with the shift boot in the
rolled up position, the shift boot may
have tension and it may disturb the
shift lever operation.
 When the vehicle is idling at high
rpm in order to warm up, and the
vehicle is on a slippery road, the trans-
mission may automatically shift to 2nd
gear for stopping and starting off.
WARNING
Do not shift from the “P” or “N”
position into the “D” or “R” position
while depressing the accelerator
pedal. This may cause the vehicle to
lurch forward or backward.
CAUTION
 Observe the following precau-
tions. Failure to observe these
precautions could cause damage
to the transmission.
- Shift into the “P” or “R” posi-
tion only after the vehicle has
completely stopped.- Do not shift from the “D” posi- tion into the “R” position or
vice versa until the vehicle
has completely stopped.
Do not race the engine for more
than 5 seconds in any position
except the “N” or “P” position
when the brake is applied or when
chocks are used in the wheels.
This may cause the transmission
fluid to overheat.Never move the vehicle rearward
by inertia with the select lever set
in a forward driving position or
move the vehicle forward by
inertia with the select lever set in
the “R” position. Doing so may
result in an unexpected accident
or malfunction.When parking the vehicle, first
securely apply the parking brake
and then place the select lever in
the “P” position. Do not park for a
long time with the select lever in
any other position as doing so
could result in a dead battery.
B5=B8.ERRN 236 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Automatic Transmission
237
Starting and Operating7
– CONTINUED –
■
Select Lever : Shift with the brake pedal depressed
and push-button ignition switch in the “ON”
position. When shifting between “P” and “D”,
depress the brake pedal and securely stop
the vehicle before shifting.
The select lever has four positions, “P”,
“R”, “N”, “D” and also has a manual gate
for using the manual mode.NOTETo protect the engine while the select
lever is in the “P” or “N” position, the
engine is controlled so that the engine
speed may not become too high even
if the accelerator pedal is depressed
hard. ▼
P (Park)
This position is for parking the vehicle and
starting the engine. In this position, the
transmission is me chanically locked to
prevent the vehicle from rolling freely.
When you park the vehicle, first apply the
parking brake, then shift into the “P” posi-
tion. Do not hold the vehicle with only the
mechanical friction of the transmission.
To shift the select lever from the “P” to any
other position, you should depress the
brake pedal fully then move the select
lever. This prevents the vehicle from
lurching when it is started.
▼R (Reverse)
This position is for backing the vehicle. To
shift from the “N” to “R” position, stop the
vehicle completely then move the lever to
the “R” position.
▼N (Neutral)
This position is for restarting a stalled
engine. In this position, the transmission is
neutral, meaning that the wheels and
transmission are not locked. Therefore,
the vehicle will roll freely, even on the
slightest incline unless the parking brake
or foot brake is applied. ▼
D (Drive)
This position is for normal driving. The
transmission shifts automatically into a
suitable gear according to the vehicle
speed and the acceleration you require.
Also, while driving up and down a hill, the
transmission assists and controls the
driving performance and engine braking
while corresponding to the road grade.
When more acceleration is required in “D”
position, depress the accelerator pedal
fully to the floor and hold that position. The
transmission will automatically downshift.
When you release the pedal, the transmis-
sion will return to the original gear posi-
tion.
To use the manual mode, move the lever
from this position into the manual gate.
If one of the shift paddles behind the
steering wheel is operated while driving in
the “D” position, the transmission will
temporarily switch to the manual mode. In
this mode, you can shift into any gear
702768
WARNING
Do not drive the vehicle with the
select lever in the “N” (neutral)
position. Engine braking has no
effect in this condition and the risk
of an accident is consequently
increased.
B5=B8.ERRN 23 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Automatic Transmission
239
Starting and Operating7
– CONTINUED –
▼

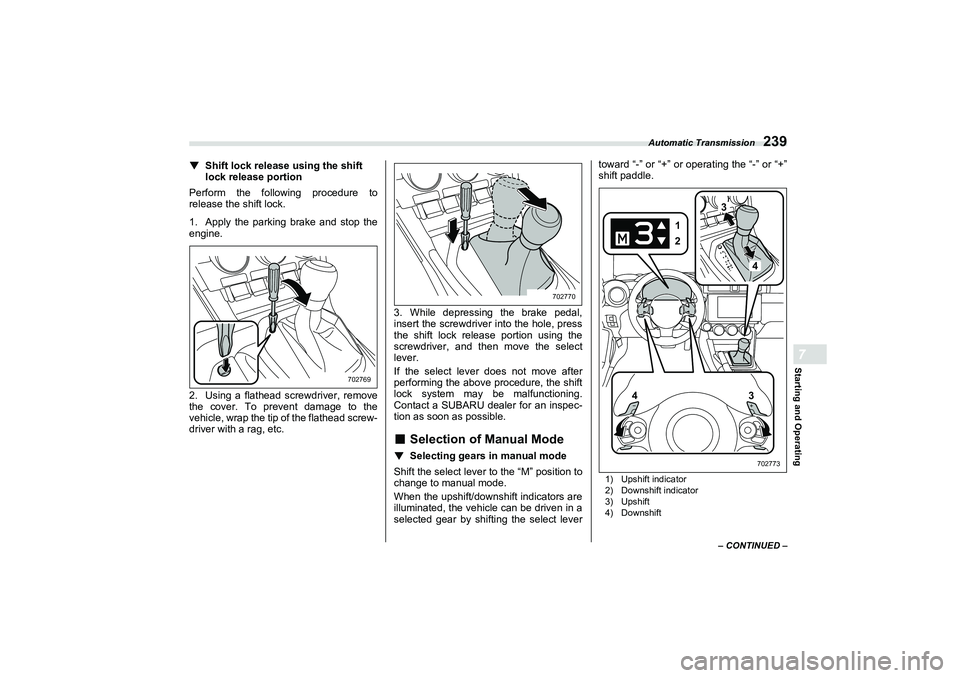

Shift lock release using the shift
lock release portion
Perform the following procedure to
release the shift lock.
1. Apply the parking brake and stop the
engine.
2. Using a flathead screwdriver, remove
the cover. To prevent damage to the
vehicle, wrap the tip of the flathead screw-
driver with a rag, etc. 3. While depressing the brake pedal,
insert the screwdriver into the hole, press
the shift lock release portion using the
screwdriver, and th
en move the select
lever.
If the select lever does not move after
performing the above procedure, the shift
lock system may be malfunctioning.
Contact a SUBARU dealer for an inspec-
tion as soon as possible.
■
Selection of Manual Mode
▼
Selecting gears in manual mode
Shift the select lever to the “M” position to
change to manual mode.
When the upshift/downshift indicators are
illuminated, the vehicle can be driven in a
selected gear by shif ting the select lever toward “-” or “+” or operating the “-” or “+”
shift paddle.
1) Upshift indicator
2) Downshift indicator
3) Upshift
4) Downshift
702769
702770
1
3
4
2
3
4702773
B5=B8.ERRN 23 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Driving Mode Select Switch (If Equipped)
241
Starting and Operating7
– CONTINUED –
gravel covered road), you can start off
from a standstill safely and easily by first
selecting Snow mode.
Always apply the foot or parking brake
when the vehicle is stopped in the “D” or
“R” position.
 Make sure to apply the parking brake
when parking your vehicle. Do not hold
the vehicle with only the transmission.
 Do not keep the vehicle in a stationary
position on an uphill grade by using the
“D” position. Use the brake instead.
 The engine may, on rare occasions,
knock when the vehicle rapidly acceler-
ates or rapidly pulls away from a standstill.
This phenomenon does not indicate a
malfunction.

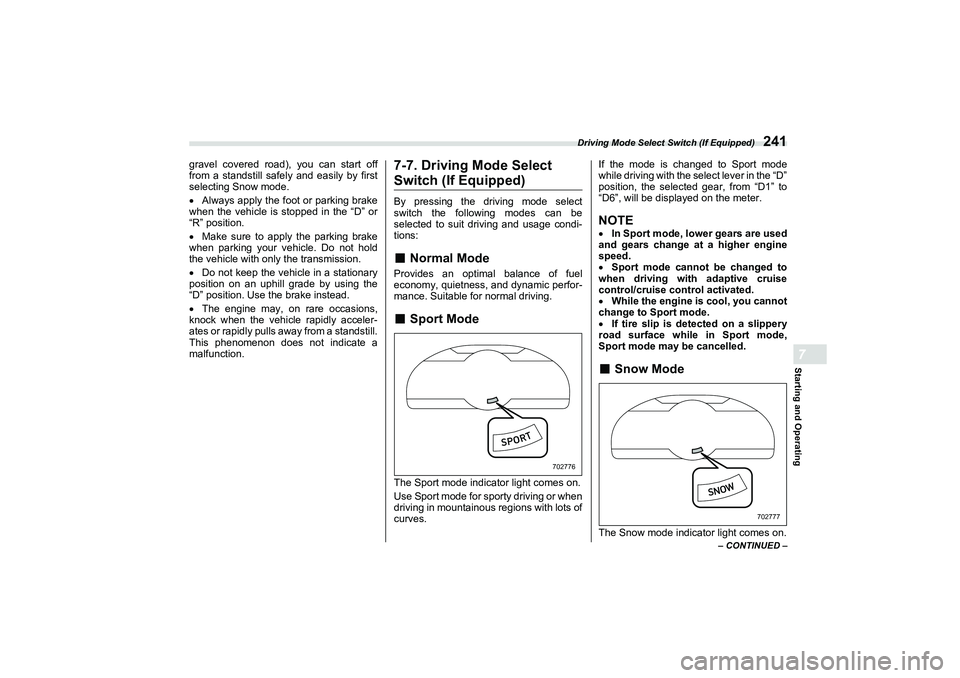

7-7. Driving Mode Select Switch (If Equipped)By pressing the driving mode select
switch the following modes can be
selected to suit driving and usage condi-
tions:■
Normal Mode
Provides an optimal balance of fuel
economy, quietness, and dynamic perfor-
mance. Suitable for normal driving.■
Sport Mode
The Sport mode indicator light comes on.
Use Sport mode for sporty driving or when
driving in mountainous regions with lots of
curves. If the mode is changed to Sport mode
while driving with the select lever in the “D”
position, the selected gear, from “D1” to
“D6”, will be displayed on the meter.
NOTE
In Sport mode, lower gears are used
and gears change at a higher engine
speed.
 Sport mode cannot be changed to
when driving with adaptive cruise
control/cruise control activated.
 While the engine is cool, you cannot
change to Sport mode.
 If tire slip is detected on a slippery
road surface while in Sport mode,
Sport mode may be cancelled.■
Snow Mode
The Snow mode indicator light comes on.
702776
702777
B5=B8.ERRN 241 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
