Starting and Stopping Engine
231
Starting and Operating7
– CONTINUED –
(MT models) or the brake pedal (AT
models) to switch the power to “OFF”.- If the light had illuminated, try to
start the engine again.
- If the light had been off, press the
push-button igniti on switch while
depressing the clutch pedal (MT
models) or the brake pedal (AT
models) more forcefully.
 The engine start procedures may
not function depending on the radio
wave conditions around the vehicle. In
such a case, refer to "Starting Engine"
P326.
 If the vehicle battery is discharged,
the steering cannot be unlocked.
Charge the battery.
 Until the engine is warmed up suffi-
ciently, the engine speed will be main-
tained high. The engine speed will
decrease as the engine warms up.
 Do not shift the select lever (AT
models) while the starter is cranking.
1) Push-button ignition switchWhen the push-button ignition switch is
pressed while depressing the clutch pedal
(MT models) or the brake pedal (AT
models), the engine will start. The starting
procedure for the engine is as follows.
▼
MT models
1. Carry the access key fob, and sit in the
driver’s seat.
2. Apply the parking brake.
3. Shift the shift lever to neutral.
4. Depress the brake pedal and clutch
pedal.
5. While depressing the clutch pedal,
press the push-button ignition switch.
NOTEIn case the engine does not start by
the normal engine start procedure,
move the shift lever to the neutral
position, and switch the power to
“ACC”. Depress the clutch pedal, and
press the push-button ignition switch
for at least 15 seconds. The engine
may start. Only use this engine start
procedure in case of emergency.
▼
AT models
1. Carry the access key fob, and sit in the
driver’s seat.
2. Apply the parking brake.
3. Make sure the select lever is in the “P”
position. The engine can also start when
the select lever is in the “N” position,
however, for safety reasons, start in the
“P” position.
4. Depress the brake pedal.
5. While depressing the brake pedal,
press the push-button ignition switch.
NOTE In case the engine does not start by
the normal engine start procedure,
move the select lever to the “P” posi-
tion, and switch th e power to “ACC”.
Depress the brake pedal, and press the
push-button ignition switch for at least
15 seconds. The engine may start. Only
1
702836
B5=B8.ERRN 231 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Starting and Stopping Engine
232use this engine start procedure in case
of emergency.
When the engine is not started, the
brake pedal may feel stiff. In such a
case, depress the brake pedal more
forcefully than usual. Press the push-
button ignition switch to start the
engine.■
Stopping Engine
1. Stop the vehicle completely.
2. Move the shift lever to neutral (MT
models) or select leve r to the “P” position
(AT models).
3. Press the push-button ignition switch.
The engine will stop, and the power will be
switched off.
NOTEAlthough you can stop the engine by
operating the push -button ignition
switch, do not stop the engine during
driving except in an emergency.■
When Access Key Fob Does
Not Operate Properly
Refer to "Access Key Fob – If Access Key
Fob Does Not Operate Properly" P325.■
Steering Lock
After stopping the engine and any door is
opened, the steering wheel will be locked
due to the steering lock function.
When the engine is restarted, the steering
lock will be automatically released.
WARNING
 Do not touch the push-button
ignition switch during driving.
When the push-button ignition
switch is operated as follows, the
engine will stop.–The switch is pressed and held
for 2 seconds or longer.–The switch is pressed briefly 3
times or more in succession.
When the engine stops, the brake
booster will not function. A
greater foot pressure will be
required on the brake pedal.The power steering system will
not operate either. A greater
force will be required to steer,
and it may result in an accident.
If the engine stops during driving,
do not operate the push-button
ignition switch or open any of the
doors until the vehicle is stopped
in a safe location. It is dangerous
because the steering lock may be
activated. Stop the vehicle in a
safe place, and contact a
SUBARU dealer immediately.
CAUTION
For AT models:Do not stop the engine while the
select lever is in a position other
than the “P” position.If the engine is stopped while the
select lever is in a position other
than the “P” position, the power
will be in “ACC”. If the vehicle is
left in this cond ition, the battery
may be discharged.
B5=B8.ERRN 232 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

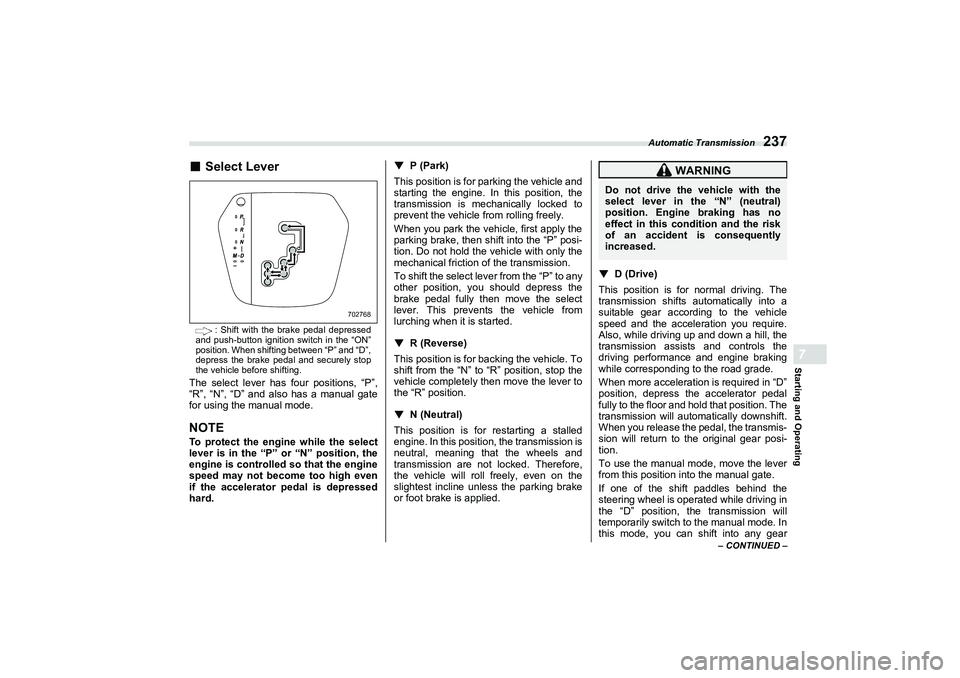

Automatic Transmission
237
Starting and Operating7
– CONTINUED –
■
Select Lever : Shift with the brake pedal depressed
and push-button ignition switch in the “ON”
position. When shifting between “P” and “D”,
depress the brake pedal and securely stop
the vehicle before shifting.
The select lever has four positions, “P”,
“R”, “N”, “D” and also has a manual gate
for using the manual mode.NOTETo protect the engine while the select
lever is in the “P” or “N” position, the
engine is controlled so that the engine
speed may not become too high even
if the accelerator pedal is depressed
hard. ▼
P (Park)
This position is for parking the vehicle and
starting the engine. In this position, the
transmission is me chanically locked to
prevent the vehicle from rolling freely.
When you park the vehicle, first apply the
parking brake, then shift into the “P” posi-
tion. Do not hold the vehicle with only the
mechanical friction of the transmission.
To shift the select lever from the “P” to any
other position, you should depress the
brake pedal fully then move the select
lever. This prevents the vehicle from
lurching when it is started.
▼R (Reverse)
This position is for backing the vehicle. To
shift from the “N” to “R” position, stop the
vehicle completely then move the lever to
the “R” position.
▼N (Neutral)
This position is for restarting a stalled
engine. In this position, the transmission is
neutral, meaning that the wheels and
transmission are not locked. Therefore,
the vehicle will roll freely, even on the
slightest incline unless the parking brake
or foot brake is applied. ▼
D (Drive)
This position is for normal driving. The
transmission shifts automatically into a
suitable gear according to the vehicle
speed and the acceleration you require.
Also, while driving up and down a hill, the
transmission assists and controls the
driving performance and engine braking
while corresponding to the road grade.
When more acceleration is required in “D”
position, depress the accelerator pedal
fully to the floor and hold that position. The
transmission will automatically downshift.
When you release the pedal, the transmis-
sion will return to the original gear posi-
tion.
To use the manual mode, move the lever
from this position into the manual gate.
If one of the shift paddles behind the
steering wheel is operated while driving in
the “D” position, the transmission will
temporarily switch to the manual mode. In
this mode, you can shift into any gear
702768
WARNING
Do not drive the vehicle with the
select lever in the “N” (neutral)
position. Engine braking has no
effect in this condition and the risk
of an accident is consequently
increased.
B5=B8.ERRN 23 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Vehicle Stability Control (VSC)/TRAC System
249
Starting and Operating7
– CONTINUED –
The vehicle or steering wheel
shakes to a small degree.
 An operating noise from the engine
compartment is heard briefly when
starting the engine and when driving
off after starting the engine.
 The brake pedal seems to jolt when
driving off after starting the engine.■
Vehicle Stability Control
(VSC) System Monitor
Refer to "Vehicle Stability Control (VSC)
Warning Light/Vehicle Stability Control
(VSC) Operation Indicator Light" P142
and "Vehicle Stability Control (VSC) OFF
Indicator Light" P143.■
Vehicle Stability Control
(VSC) OFF Switch
▼
Disabling the TRAC System
If the vehicle gets stuck in mud, dirt or
snow, the TRAC system may reduce
power from the engine to the wheels.
Pressing “ ” to turn the system off
may make it easier for you to rock the
vehicle in order to free it. In this case, the
brake LSD function remains on. To turn
the TRAC system off, quickly press and
release the button. The TRAC OFF indi-
cator light will come on. Press the button
again to turn the system back on. Press the Vehicle St
ability Control (VSC)
OFF switch to deactivate the TRAC
system. Creating adequate driving wheel
slip by deactivating the TRAC system may
help to recover from the loss of traction.
Use the Vehicle Stability Control (VSC)
OFF switch as necessary.
 A standing start on a steeply sloping
road with a snowy, gravel-covered, or
otherwise slippery surface
 Extrication of the vehicle when its
wheels are stuck in mud or deep snow ▼
Turning Off both
Vehicle Stability
Control (VSC) and TRAC Systems
To turn the Vehicle Stability Control (VSC)
systems and TRAC system off, press and
hold “ ” for more than 3 seconds
while the vehicle is stopped. The TRAC
OFF indicator light and the Vehicle
Stability Control (VSC) OFF indicator light
will come on. Howeve r, on vehicles with
an automatic transmission, the brake LSD
function will remain on. Press the button
again to turn the systems back on. With
the Vehicle Stability Control (VSC) system
and TRAC system dea ctivated, traction
and stability enhanc ement offered by
Vehicle Stability Control (VSC) system
and TRAC system is unavailable. There-
fore you should not deactivate the Vehicle
702785
702831
B5=B8.ERRN 24 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

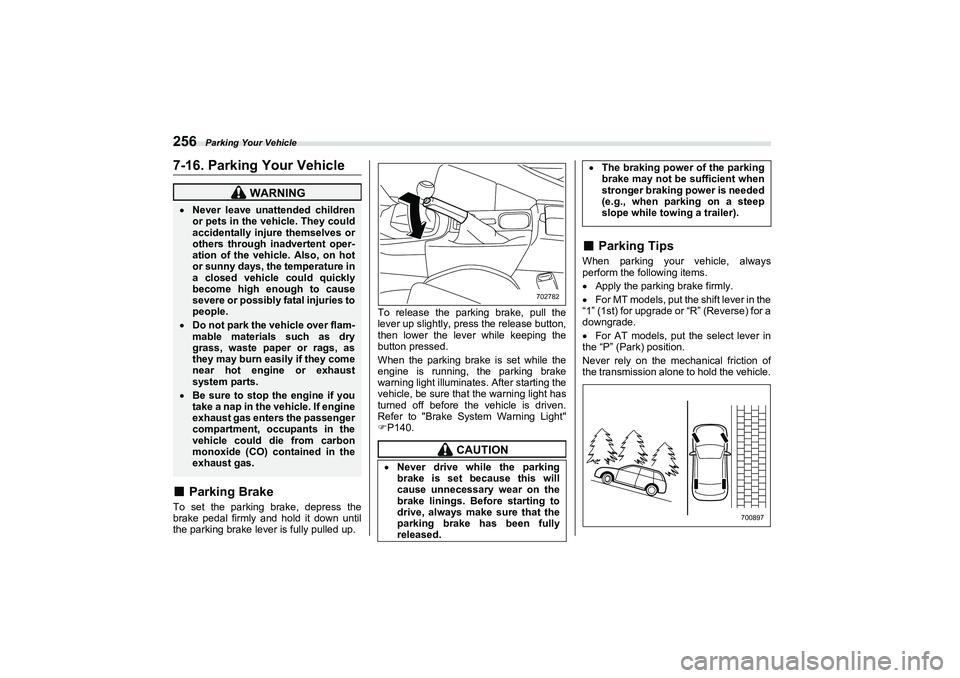

Parking Your Vehicle
2567-16. Parking Your Vehicle■
Parking Brake
To set the parking brake, depress the
brake pedal firmly and hold it down until
the parking brake lever is fully pulled up.To release the parking brake, pull the
lever up slightly, press the release button,
then lower the lever while keeping the
button pressed.
When the parking brake is set while the
engine is running, the parking brake
warning light illuminates. After starting the
vehicle, be sure that the warning light has
turned off before the vehicle is driven.
Refer to "Brake System Warning Light"

P140.
■
Parking Tips
When parking your vehicle, always
perform the following items.
 Apply the parking brake firmly.
 For MT models, put the shift lever in the
“1” (1st) for upgrade or “R” (Reverse) for a
downgrade.
 For AT models, put the select lever in
the “P” (Park) position.
Never rely on the mechanical friction of
the transmission alone to hold the vehicle.
WARNING
 Never leave unattended children
or pets in the vehicle. They could
accidentally injure themselves or
others through inadvertent oper-
ation of the vehicle. Also, on hot
or sunny days, the temperature in
a closed vehicle could quickly
become high enough to cause
severe or possibly fatal injuries to
people.Do not park the vehicle over flam-
mable materials such as dry
grass, waste paper or rags, as
they may burn easily if they come
near hot engine or exhaust
system parts.Be sure to stop the engine if you
take a nap in the vehicle. If engine
exhaust gas enters the passenger
compartment, occupants in the
vehicle could die from carbon
monoxide (CO) contained in the
exhaust gas.
CAUTION
Never drive while the parking
brake is set because this will
cause unnecessary wear on the
brake linings. Before starting to
drive, always make sure that the
parking brake has been fully
released.
702782
The braking power of the parking
brake may not be sufficient when
stronger braking power is needed
(e.g., when parking on a steep
slope while towing a trailer).
700897
B5=B8.ERRN 256 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

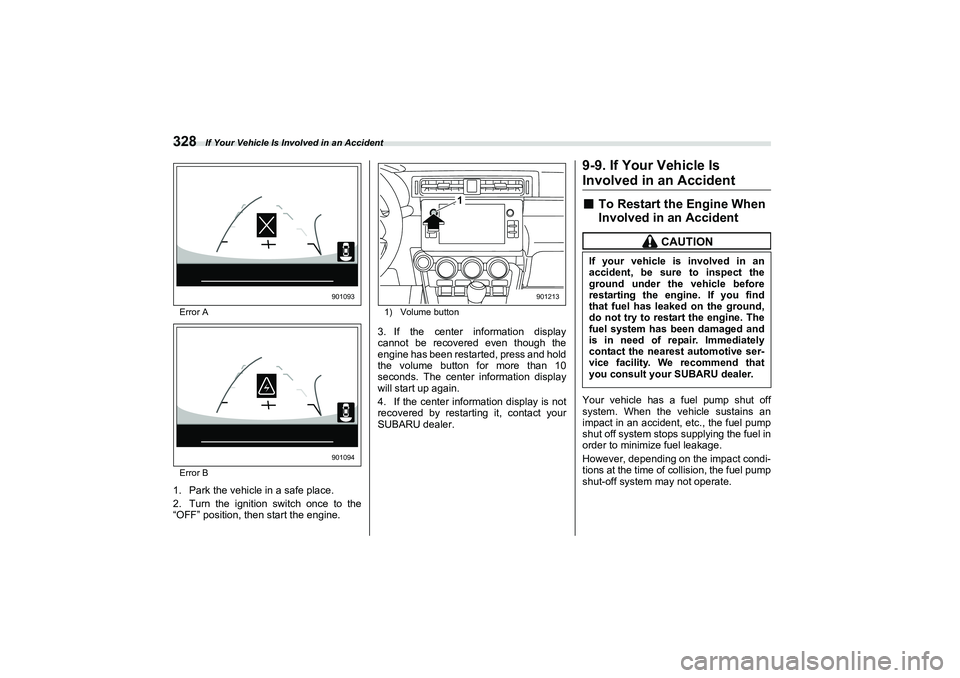

If Your Vehicle Is Involved in an Accident
328Error A
Error B1. Park the vehicle in a safe place.
2. Turn the ignition switch once to the
“OFF” position, then start the engine.
1) Volume button3. If the center information display
cannot be recovered even though the
engine has been restarted, press and hold
the volume button for more than 10
seconds. The center information display
will start up again.
4. If the center information display is not
recovered by restarting it, contact your
SUBARU dealer.
9-9. If Your Vehicle IsInvolved in an Accident■
To Restart the Engine When
Involved in an Accident
Your vehicle has a fuel pump shut off
system. When the vehicle sustains an
impact in an accident, etc., the fuel pump
shut off system stops supplying the fuel in
order to minimize fuel leakage.
However, depending on the impact condi-
tions at the time of collision, the fuel pump
shut-off system may not operate.
901093901094
1
901213
CAUTION
If your vehicle is involved in an
accident, be sure to inspect the
ground under the vehicle before
restarting the engine. If you find
that fuel has leaked on the ground,
do not try to rest art the engine. The
fuel system has been damaged and
is in need of repair. Immediately
contact the nearest automotive ser-
vice facility. We recommend that
you consult your SUBARU dealer.
B5=B8.ERRN 32 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Maintenance Precautions
340NOTESUBARU does not endorse the use of
non-SUBARU approved flushing sys-
tems and strongly advises against per-
forming these services on a SUBARU
vehicle. Non-SUBARU approved flush-
ing systems use chemicals and/or sol-
vents which have not been tested or
approved by SUBARU. SUBARU war-
ranties do not cover any part of the
vehicle which is damaged by adding or
applying chemicals and/or solvents
other than those approved or recom-
mended by SUBARU.
■
Before Checking or
Servicing in the Engine
Compartment
■
When Checking or Servicing
in the Engine Compartment
Do not tamper wi th the wiring of
the SRS airbag system or seatbelt
pretensioner system, or attempt
to take its connectors apart, as
that may activate the system or it
can render it inoperative. NEVER
use a circuit tester for these
wiring. If your SRS airbag or
seatbelt pretensioner needs
service, consult your nearest
SUBARU dealer. Check the inside of the engine
compartment to see if there are
any cloths and tools left. If they
are left inside, they may be a
cause of malfunction and fire.
WARNING
Always stop the engine and apply
the parking brake to prevent the
vehicle from moving.Always let the engine cool down.
Engine parts become very hot
when the engine is running and
remain hot for some time after the
engine is stopped.Do not spill engine oil, engine
coolant, brake fluid or any other
fluid on hot engine components.
This may cause a fire.When the ignition switch is in the
“ON” position, the cooling fan
may operate suddenly even when
the engine is stopped. If your
body or clothes come into
contact with a rotating fan, that
could result in serious injury. To
avoid risk of injury, always turn
the push-button i gnition switch to
the “OFF” position and confirm
that the operation indicator on
the switch is turn ed off. Then take
the access key fob out from the
vehicle.
 Before performing any servicing
on a vehicle equipped with a
remote engine start system
temporarily place that system in
the service mode to prevent it
from unexpectedly starting the
engine.
B02092
B5=B8.ERRN 340 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Index
416NNavigation system-linked display .........................................P156
New vehicle break-in driving ...... ..........................................P290OOdometer .............................................................................P128
Oil filter .................................................................................P347
Oil level
Differential gear ...............................................................P353
Engine .............................................................................P346
Manual transmission........................................................P353
Oil pressure warning light.....................................................P137
One-touch lane change ................. .......................................P182
Outside Mirrors .............................................................................P194
Mirror defogger ................................................................P185
Overheating engine ..............................................................P319PParking Brake ...............................................................................P256
Brake stroke ....................................................................P357
Tips ..................................................................................P256
Periodic inspections .............................................................P292
Petrol fuel .............................................................................P223
PIN code Access ..................................................................P100
Power
Door locking switch..........................................................P112 Outlets ............................................................................ P215
Outside mirrors ............................................................... P194
Steering .......................................................................... P243
Steering warning light ..................................................... P141
Window switches ............................................................ P117
Windows ......................................................................... P116
Power and torque curve ...................................................... P155
Precautions against vehicle modification ...................... P46, P89
Preparing to drive ................................................................ P228
Push-button Ignition switch ................................................................. P125
Starting and stopping engine .......................................... P229
RRear Cross Traffic Alert (RCTA).......................................... P269
Rear seat ............................................................................... P37Folding down .................................................................... P37
Rear seatbelt warning light .................................................. P133
Rear view camera .................... ........................................... P263
Rear window Defogger ......................................................................... P185
Recommended Brake fluid ....................................................................... P383
Clutch fluid ............................................................ P355, P383
Differential gear oil ............... ........................................... P383
Engine oil ........................................................................ P381
Manual transmission oil ......................................... ......... P383
Spark plugs ..................................................................... P385
Refueling ............................................................................. P224
B5=B8.ERRN 416 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
