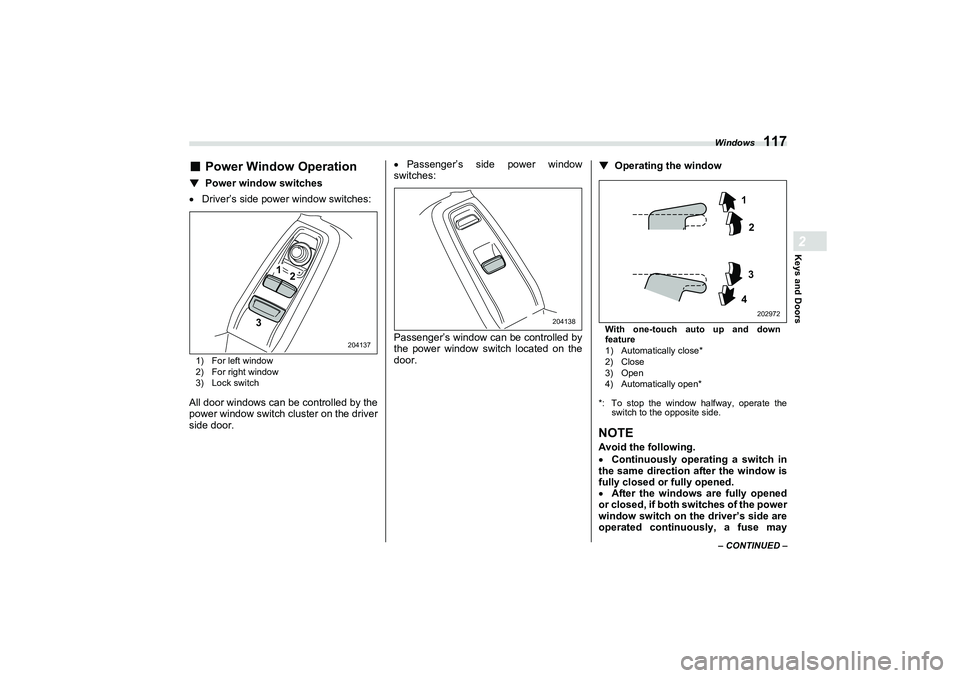

Power Window Operation
▼
Power window switches
 Driver’s side power window switches:1) For left window
2) For right window
3) Lock switchAll door windows can be controlled by the
power window switch cluster on the driver
side door. 
Passenger’s side power window
switches:
Passenger’s window can be controlled by
the power window switch located on the
door. ▼
Operating the windowWith one-touch auto up and down
feature
1) Automatically close*
2) Close
3) Open
4) Automatically open*
*: To stop the window halfway, operate the switch to the opposite side.NOTEAvoid the following.
Continuously operating a switch in
the same direction after the window is
fully closed or fully opened.
 After the windows are fully opened
or closed, if both switches of the power
window switch on the driver’s side are
operated continuously, a fuse may
1
2
3
204137
204138
202972
1 2
3
4
B5=B8.ERRN 11 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

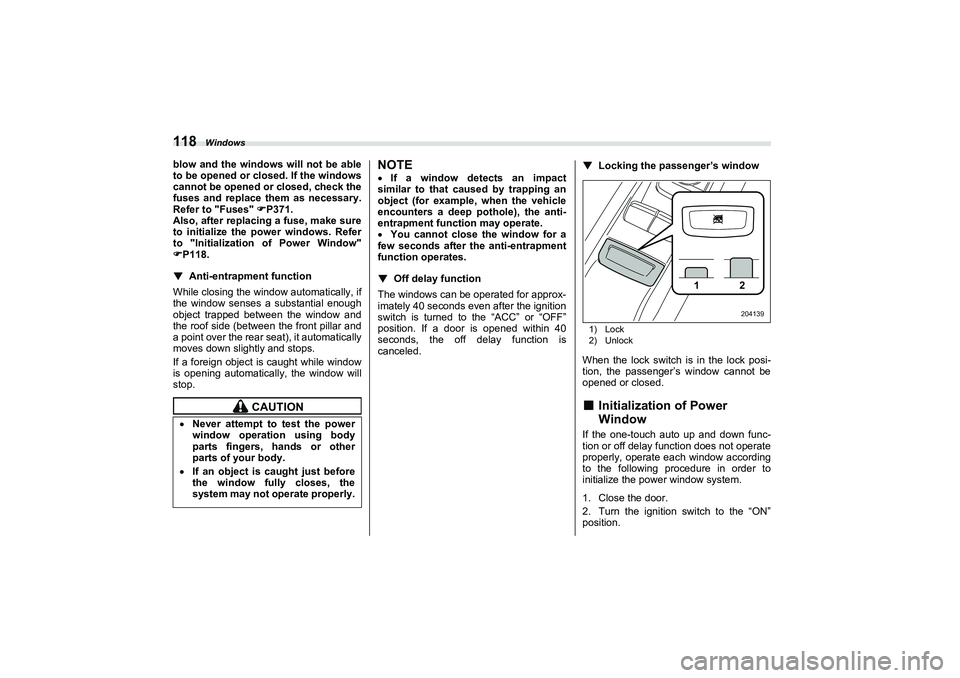

Windows
118blow and the windows will not be able
to be opened or closed. If the windows
cannot be opened or closed, check the
fuses and replace them as necessary.
Refer to "Fuses" 
P371.
Also, after replacing a fuse, make sure
to initialize the power windows. Refer
to "Initialization of Power Window"

P118.
▼Anti-entrapment function
While closing the window automatically, if
the window senses a substantial enough
object trapped between the window and
the roof side (between the front pillar and
a point over the rear seat), it automatically
moves down slightly and stops.
If a foreign object is caught while window
is opening automatical ly, the window will
stop.
NOTE If a window detects an impact
similar to that caused by trapping an
object (for example, when the vehicle
encounters a deep pothole), the anti-
entrapment func tion may operate.
 You cannot close the window for a
few seconds after the anti-entrapment
function operates.
▼
Off delay function
The windows can be operated for approx-
imately 40 seconds even after the ignition
switch is turned to the “ACC” or “OFF”
position. If a door is opened within 40
seconds, the off delay function is
canceled. ▼
Locking the passenger’s window1) Lock
2) UnlockWhen the lock switch is in the lock posi-
tion, the passenger’s window cannot be
opened or closed.■
Initialization of Power
Window
If the one-touch aut
o up and down func-
tion or off delay function does not operate
properly, operate each window according
to the following procedure in order to
initialize the pow er window system.
1. Close the door.
2. Turn the ignition switch to the “ON”
position.
CAUTION
 Never attempt to test the power
window operation using body
parts fingers, hands or other
parts of your body.If an object is caught just before
the window fully closes, the
system may not operate properly.
12
204139
B5=B8.ERRN 11 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

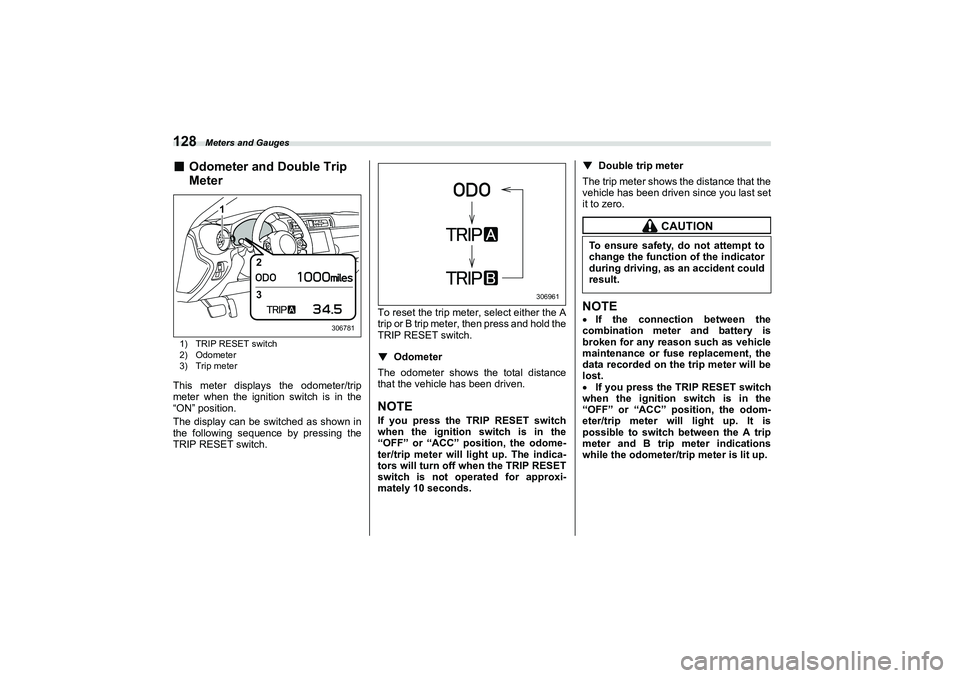

Meters and Gauges
128■
Odometer and Double Trip
Meter1) TRIP RESET switch
2) Odometer
3) Trip meterThis meter displays the odometer/trip
meter when the ignition switch is in the
“ON” position.
The display can be switched as shown in
the following sequence by pressing the
TRIP RESET switch.To reset the trip meter, select either the A
trip or B trip meter, then press and hold the
TRIP RESET switch.
▼
Odometer
The odometer shows the total distance
that the vehicle has been driven.
NOTEIf you press the TRIP RESET switch
when the ignition switch is in the
“OFF” or “ACC” po sition, the odome-
ter/trip meter will light up. The indica-
tors will turn off when the TRIP RESET
switch is not operated for approxi-
mately 10 seconds. ▼
Double trip meter
The trip meter shows the distance that the
vehicle has been driven since you last set
it to zero.
NOTE If the connection between the
combination meter and battery is
broken for any reason such as vehicle
maintenance or fuse replacement, the
data recorded on the trip meter will be
lost.
 If you press the TRIP RESET switch
when the ignition switch is in the
“OFF” or “ACC” position, the odom-
eter/trip meter will light up. It is
possible to switch between the A trip
meter and B trip meter indications
while the odometer/trip meter is lit up.
1
23
306781
306961
CAUTION
To ensure safety, do not attempt to
change the function of the indicator
during driving, as an accident could
result.
B5=B8.ERRN 12 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

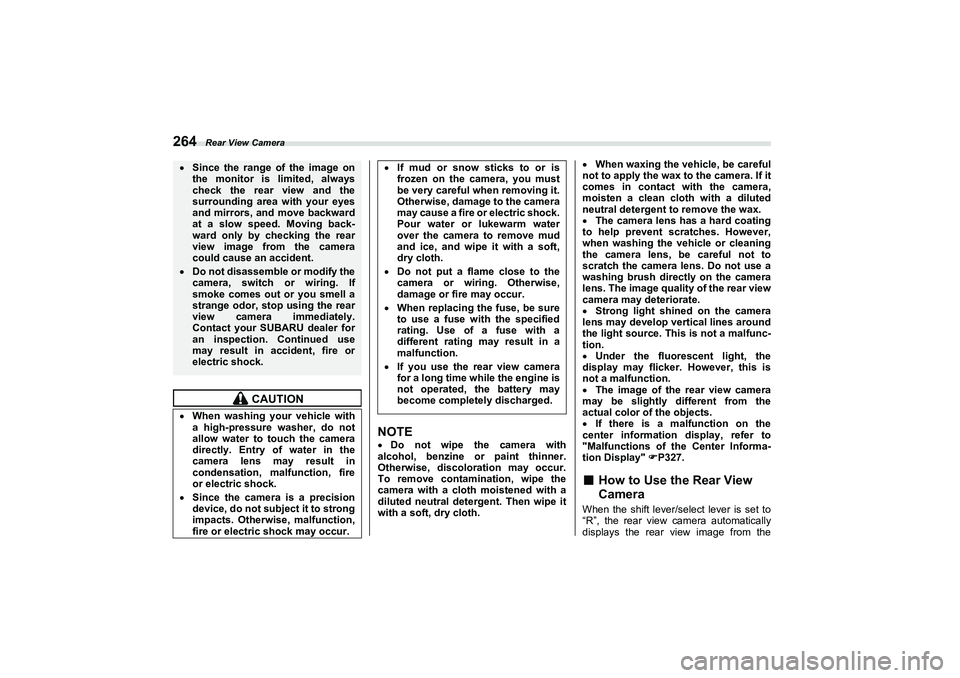

Rear View Camera
264
NOTEDo not wipe the camera with
alcohol, benzine or paint thinner.
Otherwise, discoloration may occur.
To remove contamination, wipe the
camera with a cloth moistened with a
diluted neutral detergent. Then wipe it
with a soft, dry cloth. 
When waxing the vehicle, be careful
not to apply the wax to the camera. If it
comes in contact with the camera,
moisten a clean cloth with a diluted
neutral detergent to remove the wax.
 The camera lens has a hard coating
to help prevent scratches. However,
when washing the vehicle or cleaning
the camera lens, be careful not to
scratch the camera lens. Do not use a
washing brush directly on the camera
lens. The image quality of the rear view
camera may deteriorate.
 Strong light shined on the camera
lens may develop vertical lines around
the light source. This is not a malfunc-
tion.
 Under the fluoresc ent light, the
display may flicker. However, this is
not a malfunction.
 The image of the rear view camera
may be slightly different from the
actual color of the objects.
 If there is a malfunction on the
center information display, refer to
"Malfunctions of th e Center Informa-
tion Display" 
P327.
■
How to Use the Rear View
Camera
When the shift lever/select lever is set to
“R”, the rear view camera automatically
displays the rear view image from the
Since the range of the image on
the monitor is limited, always
check the rear view and the
surrounding area with your eyes
and mirrors, and move backward
at a slow speed. Moving back-
ward only by checking the rear
view image from the camera
could cause an accident. Do not disassemble or modify the
camera, switch or wiring. If
smoke comes out or you smell a
strange odor, stop using the rear
view camera immediately.
Contact your SUBARU dealer for
an inspection. Continued use
may result in accident, fire or
electric shock.
CAUTION
When washing your vehicle with
a high-pressure washer, do not
allow water to touch the camera
directly. Entry of water in the
camera lens may result in
condensation, malfunction, fire
or electric shock.Since the camera is a precision
device, do not subject it to strong
impacts. Otherwise, malfunction,
fire or electric shock may occur.
If mud or snow sticks to or is
frozen on the camera, you must
be very careful when removing it.
Otherwise, damage to the camera
may cause a fire or electric shock.
Pour water or lukewarm water
over the camera to remove mud
and ice, and wipe it with a soft,
dry cloth.Do not put a flame close to the
camera or wiring. Otherwise,
damage or fire may occur.When replacing the fuse, be sure
to use a fuse with the specified
rating. Use of a fuse with a
different rating may result in a
malfunction.If you use the rear view camera
for a long time wh ile the engine is
not operated, the battery may
become completely discharged.
B5=B8.ERRN 264 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Maintenance and Service11
Maintenance and Service
11-1. Maintenance Schedule .....................................339
11-2. Maintenance Precautions.................................339
Before Checking or Servicing in the Engine
Compartment ..............................................................340
When Checking or Servicing in the Engine Compartment ..............................................................340
When Checking or Servicing in the Engine Compartment While the Engine Is Running ............341
11-3. Maintenance Tips ..............................................341
Removing and Reinstalling Clips................................341
11-4. Engine Hood ......................................................343
11-5. Engine Compartment Overview.......................345
11-6. Engine Oil ..........................................................346
Engine Oil Consumption..............................................346
Checking the Oil Level .................................................346
Changing the Oil and Oil Filter ....................................347
Recommended Grade and Viscosity ..........................347
Synthetic Oil..................................................................348
11-7. Cooling System .................................................348
Cooling Fan, Hose and Connections ..........................348
Engine Coolant .............................................................349
11-8. Air Cleaner Element ..........................................350
Replacing the Air Cleaner Element .............................350
11-9. Spark Plugs .......................................................352
Recommended Spark Plugs ........................................352
11-10. Drive Belt .........................................................352
11-11. Automatic Transmission Fluid ......................352
Recommended Grade and Viscosity ..........................352
11-12. Differential Gear Oil ........................................353
Recommended Grade and Viscosity ..........................353
11-13. Manual Transmission Oil ...............................353
Recommended Grade and Viscosity ..........................353
11-14. Brake Fluid ......................................................353
Checking the Fluid Level ............................................ 353
Recommended Brake Fluid ........................................ 354
11-15. Clutch Fluid (MT models) ...............................354
Checking the Fluid Level ............................................ 354
Recommended Clutch Fluid ....................................... 355
11-16. Brake Booster .................................................355
11-17. Brake Pedal .....................................................356
11-18. Clutch Pedal (MT models) ..............................356
11-19. Replacement of Brake Pad and Lining..........356
Breaking-in of New Brake Pads and Linings ............ 357
11-20. Parking Brake Stroke ......................................357
11-21. Tires and Wheels ............................................358
Types of Tires .............................................................. 358
Tire Pressure Monito ring System (TPMS)
(If Equipped)............................................................... 358
Tire Inspection ............................................................. 360
Tire Pressures and Wear............................................. 361
Wheel Balance ............................................................. 363
Wear Indicators ............................................................ 363
Rotational Direction of Tires....................................... 364
Tire Rotation................................................................. 364
Tire Replacement ...... ........................................... ........ 365
Wheel Replacement ..................................................... 365
11-22. Alloy Wheels ....................................................366
11-23. Windshield Washer Fluid ...............................366
11-24. Replacement of Wiper Blades........................367
Windshield Wiper Blade Assembly ............................ 368
Windshield Wiper Blade Rubber ................................ 369
11-25. Battery ..............................................................370
11-26. Fuses ................................................................371
11-27. Installation of Acce ssories ............................373
B5=B8.ERRN 33 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Engine Compartment Overview
345
Maintenance and Service11
11-5. Engine Compartment Overview
19
3
2
11
8
10
4
6
7
5
B02096
1) Battery (page 370)
2) Clutch fluid reservoir (MT models)(page 354)
3) Brake fluid reservoir (page 353)
4) Windshield washer tank (page 366)
5) Engine oil filler cap (page 346)
6) Air cleaner case (page 350)
7) Engine oil filter (page 347)
8) Engine oil level gauge (page 346)
9) Engine coolant reservoir (page 349)
10) Radiator cap (page 349)
11) Main fuse box (page 371)
B5=B8.ERRN 345 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Cooling System
349
Maintenance and Service11
– CONTINUED –
Check the fuse and replace it if necessary.
Refer to "Fuses" P371. If the fuse is not
blown, have the cooling system checked
by your SUBARU dealer.
If the frequent addition of coolant is neces-
sary between vehicle service visits, it is
recommended that you have your vehicle
inspected by an authorized SUBARU
dealer to check for leaks, damage, or
looseness.■
Engine Coolant
▼

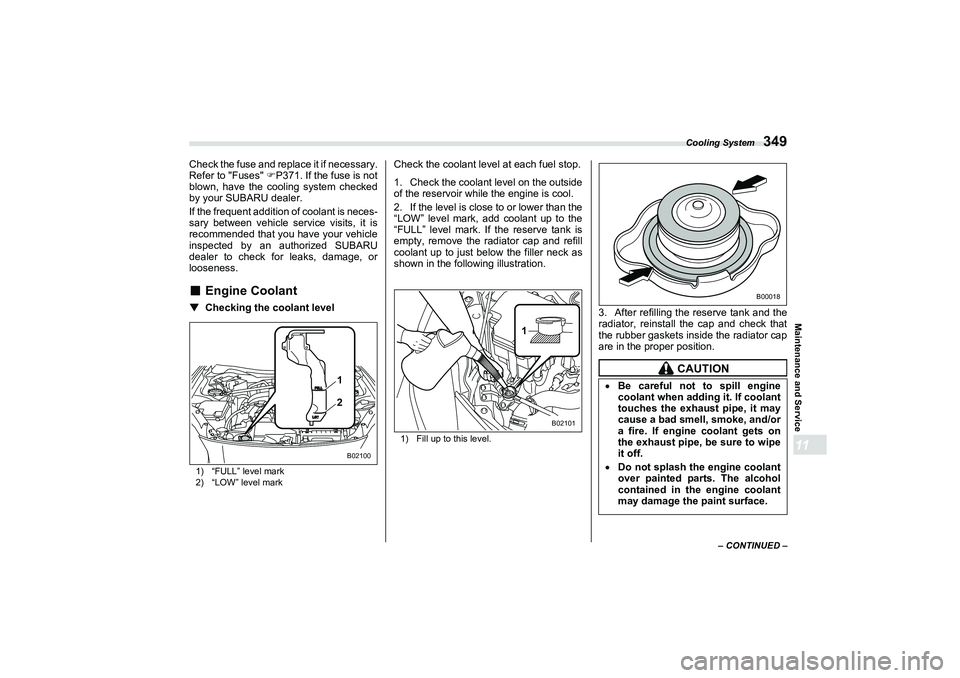

Checking the coolant level1) “FULL” level mark
2) “LOW” level mark
Check the coolant level at each fuel stop.
1. Check the coolant level on the outside
of the reservoir while the engine is cool.
2. If the level is close to or lower than the
“LOW” level mark, add coolant up to the
“FULL” level mark. If the reserve tank is
empty, remove the radiator cap and refill
coolant up to just below the filler neck as
shown in the following illustration.
1) Fill up to this level.
3. After refilling the reserve tank and the
radiator, reinstall t he cap and check that
the rubber gaskets in side the radiator cap
are in the proper position.
12B02100
1
B02101
CAUTION
 Be careful not to spill engine
coolant when adding it. If coolant
touches the exhaust pipe, it may
cause a bad smell, smoke, and/or
a fire. If engine coolant gets on
the exhaust pipe, be sure to wipe
it off.Do not splash the engine coolant
over painted parts. The alcohol
contained in the engine coolant
may damage the paint surface.
B00018
B5=B8.ERRN 34 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分

Fuses
371
Maintenance and Service11
– CONTINUED –
It is unnecessary to periodically check the
battery fluid level or periodically refill with
distilled water.
11-26. FusesNOTEFuse rating and using circuit are
described on the fuse box cover.
The fuses are designed to melt during an
overload to prevent damage to the wiring
harness and electrical equipment. The
fuses are located in two fuse boxes.
One is located under the instrument panel
behind the fuse box cover on the driver’s
seat side. To remove the cover, pull it out.
 To lessen the risk of sparks,
remove rings, metal watchbands,
and other metal jewelry. Never
allow metal tools to contact the
positive battery terminal and
anything connected to it WHILE
you are at the same time in
contact with any other metallic
portion of the vehicle because a
short circuit will result. Keep everyone including children
away from the battery.Charge the battery in a well-venti-
lated area.Battery posts, terminals, and
related accessories contain lead
and lead compounds, chemicals
known to the State of California to
cause cancer and reproductive
harm. Batteries also contain
other chemicals known to the
State of California to cause
cancer. Wash hands after
handling.
CAUTION
Never use more than 10 amperes
when charging the battery because
it will shorten battery life.
CAUTION
Never replace a fuse with one hav-
ing a higher rating or with material
other than a fuse because serious
damage or a fire could result.
B02117
B5=B8.ERRN 31 ページ ２０２１年７月５日　月曜日　午後>1時>1>1分
