2022 PEUGEOT 308 boot

186

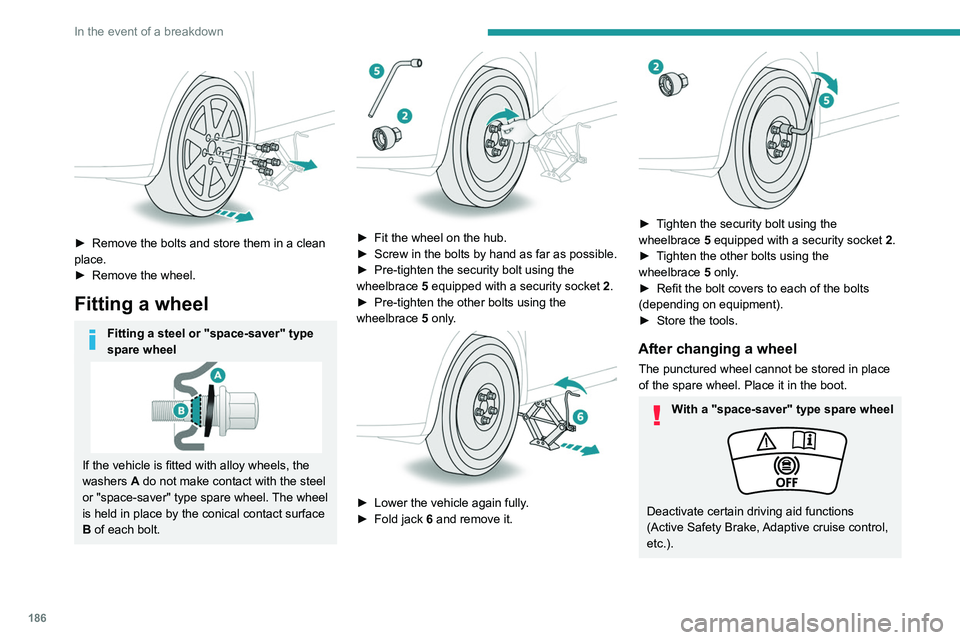

In the event of a breakdown


► Remove the bolts and store them in a clean
place.
►

Remove the wheel.
Fitting a wheel
Fitting a steel or "space-saver" type
spare wheel
If the vehicle is fitted with alloy wheels, the
washers A do not make contact with the steel
or "space-saver" type spare wheel. The wheel
is held in place by the conical contact surface
B of each bolt.


► Fit the wheel on the hub.
► Screw in the bolts by hand as far as possible.
►

Pre-tighten the security bolt using the
wheelbrace


5
equipped with a security socket
2
.
►

Pre-tighten the other bolts using the
wheelbrace


5
only.


► Lower the vehicle again fully .
► Fold jack 6 and remove it.


► Tighten the security bolt using the
wheelbrace 5 equipped with a security socket 2 .
►

T
ighten the other bolts using the
wheelbrace

5
only.
►

Refit the bolt covers to each of the bolts
(depending on equipment).
►


Store the tools.
After changing a wheel
The punctured wheel cannot be stored in place
of the spare wheel. Place it in the boot.
With a "space-saver" type spare wheel
Deactivate certain driving aid functions
(Active Safety Brake, Adaptive cruise control,
etc.).

191
In the event of a breakdown

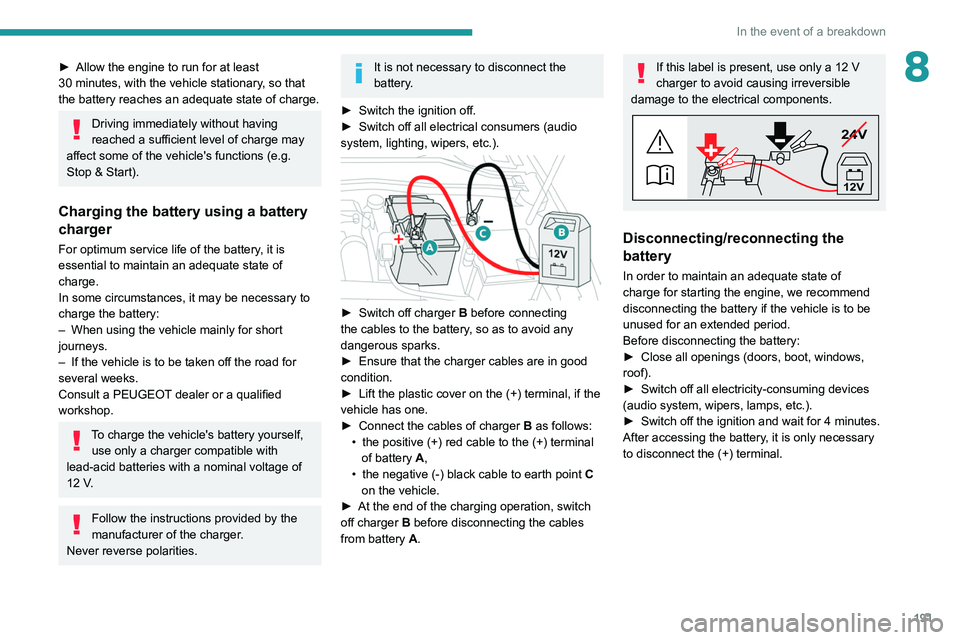

8► Allow the engine to run for at least
30 minutes, with the vehicle stationary, so that
the battery reaches an adequate state of charge.
Driving immediately without having
reached a sufficient level of charge may
affect some of the vehicle's functions (e.g.
Stop & Start).
Charging the battery using a battery
charger
For optimum service life of the battery, it is
essential to maintain an adequate state of
charge.
In some circumstances, it may be necessary to
charge the battery:
–

When using the vehicle mainly for short
journeys.
–


If the vehicle is to be taken off the road for
several weeks.
Consult a PEUGEOT

dealer or a qualified
workshop.
To charge the vehicle's battery yourself, use only a charger compatible with
lead-acid batteries with a nominal voltage of
12

V.
Follow the instructions provided by the
manufacturer of the charger.
Never reverse polarities.
It is not necessary to disconnect the
battery.
►

Switch the ignition off.
►


Switch off all electrical consumers (audio
system, lighting, wipers, etc.).


► Switch off charger B before connecting
the cables to the battery, so as to avoid any
dangerous sparks.
►

Ensure that the charger cables are in good
condition.
►


Lift the plastic cover on the (+) terminal, if the
vehicle has one.
►


Connect the cables of charger B

as follows:
•

the positive (+) red cable to the (+) terminal
of battery

A,
•

the negative (-) black cable to earth point C


on the vehicle.
►

At the end of the charging operation, switch
off charger B

before disconnecting the cables
from battery A.
If this label is present, use only a 12 V
charger to avoid causing irreversible
damage to the electrical components.
24V
12V
Disconnecting/reconnecting the
battery
In order to maintain an adequate state of
charge for starting the engine, we recommend
disconnecting the battery if the vehicle is to be
unused for an extended period.
Before disconnecting the battery:
►

Close all openings (doors, boot, windows,
roof).
►


Switch off all electricity-consuming devices
(audio system, wipers, lamps, etc.).
►


Switch off the ignition and wait for 4
minutes.
After accessing the battery, it is only necessary
to disconnect the (+) terminal.

223
Alphabetical index
A
ABS 32
Accelerated charging unit (Wallbox)
154–155
Accessories

29
Active LED Vision

26, 28
Active Safety Brake

135–137
AdBlue®

18, 124
AdBlue® tank

125
Additive, Diesel

171–172
Adjusting headlamps

25
Adjusting head restraints

20
Adjusting seat

44–45
Adjusting the air distribution

53–55
Adjusting the air flow

53–55
Adjusting the height and reach of
the steering wheel

24
Adjusting the lumbar support

21
Adjusting the seat angle

21
Adjusting the temperature

30
Adjusting the time

169
Advice on care and maintenance

104, 127
Advice on driving

7, 97–98
Airbags

37, 39, 41
Airbags, curtain

87–88
Airbags, front

87–88, 41
Airbags, lateral

87–88
Air conditioning

52–53, 31
Air conditioning, automatic

32
Air conditioning, dual-zone automatic

29
Air intake

55–56
Air vents

28
Alarm 38–39
Amplifier, audio
36
Anti-lock braking system (ABS)

32
Antitheft / Immobiliser

16
Applications

24–25
Armrest, front

36
Armrest, rear

38
Assistance call

79–80
Assistance, emergency braking

33, 88
Audible warning

30
Audio streaming (Bluetooth)

166
B
Battery, 12 V 118, 123, 189–193
Battery, ancillaries
140
Battery, charging

140, 142, 144
Battery, remote control

20
Blanking screen (snow shield)

11 7
Blind

28
BlueHDi

18, 122, 130
Bluetooth (hands-free)

163
Bluetooth (telephone)

212–213
Bodywork

128
Bonnet

168–169
Boot

34–35, 24, 42
Brake discs

172–173
Brake lamps

139
Brakes

172–173
Braking

57
Braking assistance system

81–82
Braking, automatic emergency 135–137
Braking, dynamic emergency
103–104
Bulbs (changing)

187–188
C
Capacity, fuel tank 102
Care of the bodywork
128
Central locking

18
Changing a bulb

187–188
Changing a fuse

140
Changing a wheel

131, 135
Changing a wiper blade

33
Changing the remote control battery

20
Charge level indicator (Rechargeable
hybrid)

20
Charger, induction

35
Charger, wireless

35
Charging cable

107
Charging cable (Rechargeable
hybrid)

154–155, 111
Charging connector (Rechargeable
hybrid)

105, 159–160
Charging flap (Rechargeable
hybrid)

105, 159–160
Charging the traction battery
(Rechargeable hybrid)

20, 103, 159–160
CHECK

20
Checking the engine oil level

18
Checking the levels

169–171

224
Alphabetical index
Checking tyre pressures
(using the kit)
132, 134
Checks

120, 171–173
Checks, routine

171–173
Child lock

47
Children

36, 91–93
Children (safety)

47
Child seats

36, 88–91
Child seats, conventional

42, 44, 46
Child seats, i-Size

44, 46
Child seats, ISOFIX

91–93, 46
Cleaning (advice)

104, 176–178
Closing the boot

17, 21
Closing the doors

30–31, 21
Collision Risk Alert

135–136
Configuration, vehicle

10, 23
Connection, Bluetooth

212–213
Connectivity

168
Consumption figures

23
Container, AdBlue®

125
Control, emergency boot release

21
Control, emergency door

19
Control, heated seats

46–47
Controls, steering mounted

105–106
Control stalk, lighting

67–68
Control stalk, wipers

73–75
Control unit

154–156, 111
Courtesy lamp, front

37
Courtesy lamps

37
Cruise control

117–118, 120–122
Cruise control, adaptive

117–118, 122–123Cruise control by speed limit
recognition
117–118
D
Date (setting) 169
Daytime running lamps
25
Deactivating the passenger airbag

38, 41
Deadlocking

15, 17
Deferred charging

24, 112
Deferred charging (Rechargeable
hybrid)

24–25, 105, 110
Defrosting

24, 32
Defrosting, front

32
Demisting

24, 32
Demisting, front

32
Demisting, rear

32
Demisting, rear screen

32
Diagnosis, vehicle

20
Dials and gauges

9
Digital instrument panel

9
Dimensions

153
Dipstick

18, 121
Direction indicators

25, 139
Display screen, instrument panel

10–11
Domestic charging

107
Domestic charging (Rechargeable hybrid)

111
Doors

21
Drive Assist Plus

122–123
Driver’s attention warning

138–139
Driving

43–44, 97–98, 65
Driving abroad 29
Driving aids camera (warnings)
64
Driving aid shortcuts

66
Driving aids (recommendations)

64
Driving economically

7
Driving modes

107–108
Driving positions (storing)

22
Dynamic stability control (DSC)

33
E
EBFD 32
Eco-driving (advice)
7
ECO mode

59
Economy mode

11 8
Electronic brake force distribution (EBFD)

32
Emergency braking assistance (EBA)

33
Emergency call

79–80
Emergency switching off

101–102
Emergency warning lamps

29, 130
Emissions control system, SCR

19, 124
Energy economy mode

11 8
Energy flows

23
Energy recovery

20, 57
Engine

124
Engine compartment

168–169
Engine, Diesel

102, 120, 130
Engine, petrol

60, 120
Engines

148
Environment

7, 20
e-Save function (energy reserve)

24

225
Alphabetical index
ESC (electronic stability control) 32
Expanded traffic sign recognition
69
Exterior lighting

27
F
Fatigue detection 138–139
Favourite driving functions
66
Filling the AdBlue® tank

122, 125
Filling the fuel tank

151–152
Filter, air

123
Filter, oil

123
Filter, particle

171–172
Filter, passenger compartment

28, 123
Fitting a wheel

185–186
Fitting roof bars

11 6
Fittings, boot

39
Fittings, interior

34
Fittings, rear

38
Flap, charging

11 2
Flap, fuel filler

151–152
Flashing indicators

25
Flat bed (recovery)

146
Floor, boot, adjustable

41
Fluid, brake

122
Fluid, engine coolant

122
Foglamps, rear

24, 139
Folding the rear seats

50–52
Frequency (radio)

166
Fuel

7, 102
Fuel consumption

7, 20
Fuel tank 151–152
Fuses
140
G
Gauge, fuel 102
Gearbox, automatic
105–107, 60, 123, 140
Gearbox, manual

55, 60, 123
Gear lever

55
Gear lever, manual gearbox

55
Gear shift indicator ~ Gear efficiency
indicator

61
Glove box

34
H
Hands-free access 36–37
Hands-free tailgate
36–37
Hazard warning lamps

29, 130
Headlamp adjustment

25
Headlamps, automatic dipping

70–71
Headlamps, automatic illumination

26
Headlamps, halogen

25
Headlamps, main beam

27
Head restraints, front

20
Head restraints, rear

50–52
Heated steering wheel

24
Heating

28
Heating, programmable

24, 33
Hi-Fi system

36
High voltage 103
Hill start assist
60
Histogramme, fuel consumption

24–25
Horn

30
I
Ignition 52, 168
Ignition on
52
Ignition switch

99–100
Immobiliser, electronic

49
Indicator, AdBlue® range

18
Indicator, coolant temperature

18
Indicator, engine oil level

18
Indicators, direction

25
Inflating tyres

124, 154
Inflating tyres and accessories
(using the kit)

132, 134
Information, vehicle

9, 171
Infrared camera

65
Instrument panel

9, 21, 65
Instrument panel, matrix

9
Instrument panels

9
ISOFIX mountings

42, 44, 46
J
Jack 180–181, 135
Jump starting
141

226
Alphabetical index
K
Key 14, 16, 19
Key, electronic
30–31
Keyless Entry and Starting

29–30, 100–101
Key not recognised

101–102
Key with remote control

14, 98–99
Kit, hands-free

163
Kit, puncture repair

180–181
Kit, temporary puncture repair

180–183
L
Labels 6
Labels, identification
153
Lamp, boot

42
Lamps, parking

25
Lamps, rear

139
Lams with Full LED technology

26, 28
Lane assist

122–123, 127–129
Lane departure warning active

90
Leather (care)

129
LEDs - Light-emitting diodes

25, 139
Level, AdBlue®

122
Level, brake fluid

122
Level, Diesel additive

171–172
Level, engine coolant

18, 122
Level, engine oil

18, 121
Levels and checks

169–171
Level, screenwash fluid

31, 122
Light-emitting diodes - LEDs

25, 139
Lighting dimmer 21
Lighting, exterior
24, 27
Lighting, guide-me home

16, 26
Lighting, interior

61–62
Lighting, mood

38
Lighting, welcome

69–70
Loading

11 6
Load reduction mode

119
Locating your vehicle

15
Locking

28–30
Locking from the inside

18
Locking the doors

18
Log, alerts

20
Long-distance blind spot monitoring

93
Long objects, transporting

38
Low fuel level

102
Lumbar

21
M
Mains socket (domestic network) 154–155
Maintenance (advice)
104, 127
Maintenance, routine

65, 122, 124
Manoeuvring aids (recommendations)

64
Map reading lamps

37
Markings, identification

153
Massage function

23
Massage, multi-point

23
Mat

37, 65
Menu short cuts

23
Mirror, rear view

25
Mirrors, door 48–49, 32, 93
Mirror, vanity
34
Misfuel prevention

103
Mobile application

24, 33, 110, 112
Motor, electric

108–109, 103, 152
Motorised tailgate

22, 24
Mountings, ISOFIX

42, 44, 46
N
Net, high load retaining 40
Net, luggage retaining
39
O
Obstacle detection 94
Oil change
121
Oil consumption

121
OIl, engine

121
On-board tools

42, 179–181
Opening the bonnet

168–169
Opening the boot

17, 21
Opening the doors

17, 21
Opening the windows

14
P
Pads, brake 123
Paint
128, 153

228
Alphabetical index
Settings, equipment 10, 23
Shield, snow
11 7
Sidelamps

25, 139
Silent vehicle warning sound
(Rechargeable hybrid)

30
Ski flap

38
Smartphone

24, 35
Snow chains

63, 118
Snow screen

11 7
Socket, 12 V accessory

34, 41
Speakers

36
Speed adjustment during cornering

82
Speed limiter

117–120
Speed limit recognition

66, 68
Speedometer

9, 65
Sport mode

108–109
Spotlamps, side

27
Stability control (ESC)

32, 34
Starting a Diesel engine

102
Starting the engine

50, 52
Starting the vehicle

99–100, 57
Starting using another battery

52, 141
State of charge, battery

23
Station, radio

214–215
Stay, bonnet

120
Steering wheel

65
Steering wheel, adjustment

24
Stickers, customising ~ Stickers,
expressive

128
Stopping the vehicle

99–101, 106–107
Stop & Start

22, 29, 32, 110–111,
102, 119, 123, 143
Storage

34, 36, 62–63Storage box 42
Storage wells
39, 42
Storing driving positions

22
Stowing rings

39
Sunshine sensor

28
Sun visor

34
Suspension

124
Switching off the engine

50
Synchronising the remote control

20
T
Tables of engines 152
Tailgate
21
Tank, fuel

151–152
Technical data

152
Telephone

212–213, 216–217
Temperature, coolant

18
Time (setting)

169
Tool box

42
Tools

179–181
Topping-up AdBlue®

125
Top Tether (fixing)

42, 44, 46
Total distance recorder

21
Touch screen

23–25, 33
Touch-sensitive reading lamps

37
Towball, quickly detachable

162–165
Towbar

34, 112
Towbar with quickly detachable
towball

162–165
Towed loads

148, 152
Towing another vehicle

145, 147
Traction battery charge 107
Traction battery (Rechargeable
hybrid)

20, 152–153, 110
Traction control (ASR)

33
Trailer

34, 112
Trailer stability assist (TSA)

34
Trajectory control systems

32
Triangle, warning

130
Trip computer

22–23
Trip distance recorder

21
Tyres

124, 154
Tyre under-inflation detection

62, 133
U
Under-inflation (detection) 62
Unlocking
14, 17
Unlocking from the inside

18
Unlocking the boot

15, 17
Unlocking the doors

18
Unlocking the tailgate

15, 17
Updating the time

169
V
Vehicle data recording and privacy 171
Ventilation
28
Visibility

32
Visiopark 1

96
Visiopark 1 - Visiopark 2

97
