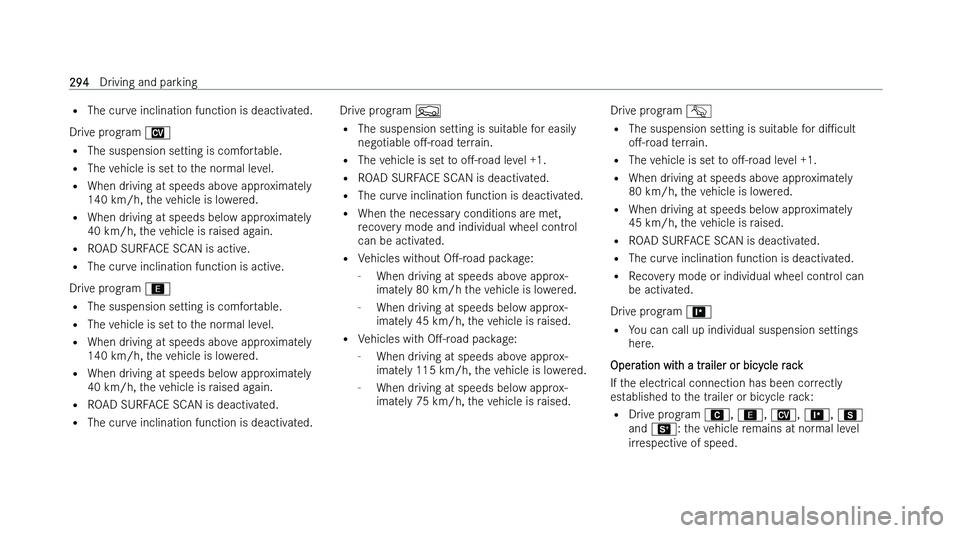

The cur ve inclination function is deactivated.
Drive program 1
= The suspension setting is comfortable.
= The vehicle is set to the normal level.
= When driving at speeds above approximately
140 km/h, the vehicle is lowered.
= When driving at speeds below approximately
40 km/h, the vehicle is raised again.
= ROAD SURFACE SCAN is active.
= The curve inclination function is active.
Drive program
= The suspension setting is comfortable.
= The vehicle is set to the normal level.
= When driving at speeds above approximately
140 km/h, the vehicle is lowered.
= When driving at speeds below approximately
40 km/h, the vehicle is raised again.
= ROAD SURFACE SCAN is deactivated.
= The curve inclination function is deactivated. Drive program
F
= The suspension se
tting is suitable for easily
negotiable oM-road terrain.
= The vehicle is set to oM-road level +1.
= ROAD SURFACE SCAN is deactivated.
= The curve inclination function is deactivated.
= When the necessary conditions are met,
recovery mode and individual wheel control
can be activated.
= Vehicles without OM-road package:
- When driving at speeds above approx-
imately 80 km/h the vehicle is lowered.
- When driving at speeds below approx-
imately 45 km/h, the vehicle is raised.
= Vehicles with OM-road package:
- When driving at speeds above approx-
imately 115 km/h, the vehicle is lowered.
- When driving at speeds below approx-
imately 75 km/h, the vehicle is raised. Drive program
G
= The suspension se
tting is suitable for diPcult
oM-road terrain.
= The vehicle is set to oM-road level +1.
= When driving at speeds above approximately
80 km/h, the vehicle is lowered.
= When driving at speeds below approximately
45 km/h, the vehicle is raised.
= ROAD SURFACE SCAN is deactivated.
= The curve inclination function is deactivated.
= Recovery mode or individual wheel control can
be activated.
Drive program = You can call up individual suspension settings
here.
Operation with a trailer or bicycle rack
If the electrical connection has been correctly
established to the trailer or bicycle rack:
= Drive program A, , 1, , C
and B: the vehicle remains at normal level
irrespective of speed. 294
Driving and parking

=

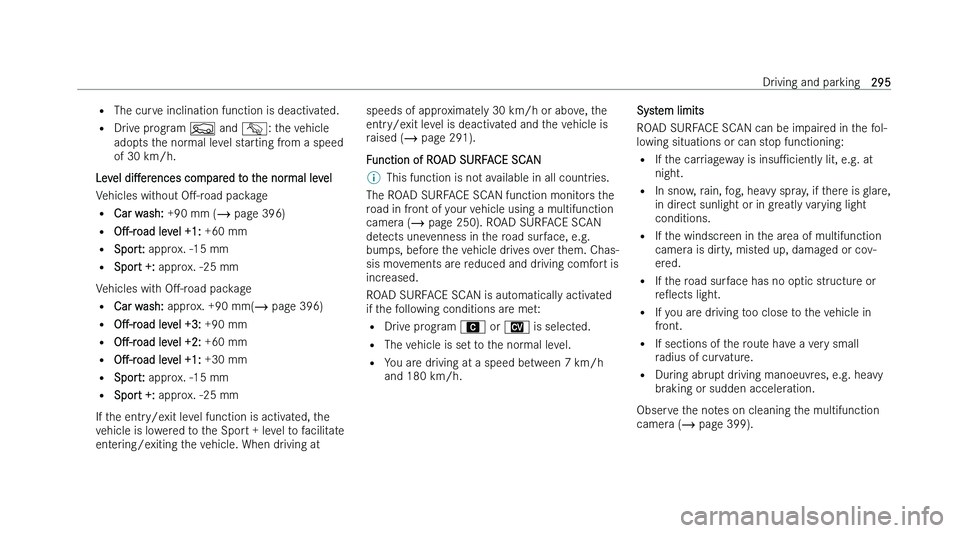

The cur ve inclination function is deactivated.
= Drive program F and G: the vehicle
adopts the normal level starting from a speed
of 30 km/h.
Level diMerences compared to the normal level
Vehicles without OM-road package
= Car wash: +90 mm ( page 396)
= OM-road level +1: +60 mm
= Sport: approx. -15 mm
= Sport +: approx. -25 mm
Vehicles with OM-road package
= Car wash: approx. +90 mm(  page 396)
= OM-road level +3: +90 mm
= OM-road level +2: +60 mm
= OM-road level +1: +30 mm
= Sport: approx. -15 mm
= Sport +: approx. -25 mm
If the entry/exit level function is activated, the
vehicle is lowered to the Sport + level to facilitate
entering/exiting the vehicle. When driving at speeds of approximately 30 km/h or above, the
entr y/exit level is deactivated and the vehicle is
raised (  page 291).
Function of ROAD SURFACE SCAN % This function is not available in all countries.
The ROAD SURFACE SCAN function monitors the
r
oad in front of your vehicle using a multifunction
camera (  page 250). ROAD SURFACE SCAN
detects unevenness in the road surface, e.g.
bumps, before the vehicle drives over them. Chas-
sis movements are reduced and driving comfort is
increased.
ROAD SURFACE SCAN is automatically activated
if the following conditions are met:
= Drive program A or 1 is selected.
= The vehicle is set to the normal level.
= You are driving at a speed between 7 km/h
and 180 km/h. System limits
R

OAD SURFACE SCAN can be impaired in the fol-
lowing situations or can stop functioning:
= If the carriageway is insuPciently lit, e.g. at
night.
= In snow, rain, fog, heavy spray, if there is glare,
in direct sunlight or in greatly varying light
conditions.
= If the windscreen in the area of multifunction
camera is dirty, misted up, damaged or cov-
ered.
= If the road surface has no optic structure or
reOects light.
= If you are driving too close to the vehicle in
front.
= If sections of the route have a very small
radius of curvature.
= During abrupt driving manoeuvres, e.g. heavy
braking or sudden acceleration.
Observe the notes on cleaning the multifunction
camera (  page 399). Driving and parking
295

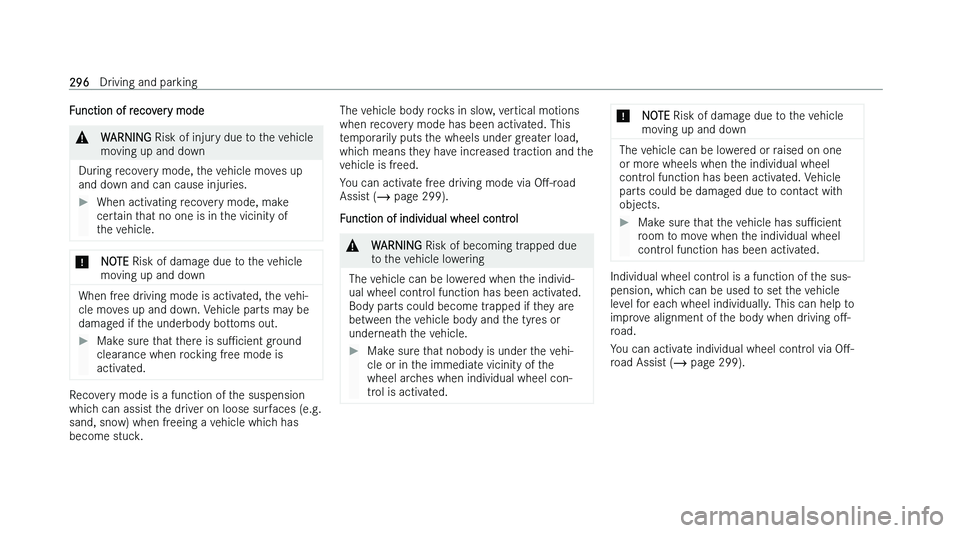

Function of recovery mode
&
WARNING Risk of injur y due to the vehicle
moving up and down
During recovery mode, the vehicle moves up
and do
wn and can cause injuries.
When activating recovery mode, make
cer

tain that no one is in the vicinity of
the vehicle. *
NOTE Risk of damag
e due to the vehicle
moving up and down When free driving mode is activated, the vehi-
cle mo

ves up and down. Vehicle parts may be
damaged if the underbody bottoms out.
Make sure that there is suPcient g
round
clearance when rocking free mode is
activated. Recovery mode is a function of the suspension
whic

h can assist the driver on loose surfaces (e.g.
sand, snow) when freeing a vehicle which has
become stuck. The vehicle body rocks in slow, vertical motions
when r
ecovery mode has been activated. This
temporarily puts the wheels under greater load,
which means they have increased traction and the
vehicle is freed.
You can activate free driving mode via OM-road
Assist ( page 299).
Function of individual wheel control &
WARNING Risk of becoming tr
apped due
to the vehicle lowering
The vehicle can be lowered when the individ-
ual wheel contr
ol function has been activated.
Body parts could become trapped if they are
between the vehicle body and the tyres or
underneath the vehicle.
Make sure that nobody is under the vehi-
cle or in t
he immediate vicinity of the
wheel arches when individual wheel con-
trol is activated. *
NOTE Risk of damag
e due to the vehicle
moving up and down The vehicle can be lowered or raised on one
or mor
e wheels when the individual wheel
control function has been activated. Vehicle
parts could be damaged due to contact with
objects.
Make sure that the vehicle has suPcient
r
oom to move when the individual wheel
control function has been activated. Individual wheel control is a function of the sus-
pension, whic
h can be used to set the vehicle
level for each wheel individually. This can help to
improve alignment of the body when driving oM-
road.
You can activate individual wheel control via OM-
road Assist (  page 299). 296
Driving and parking

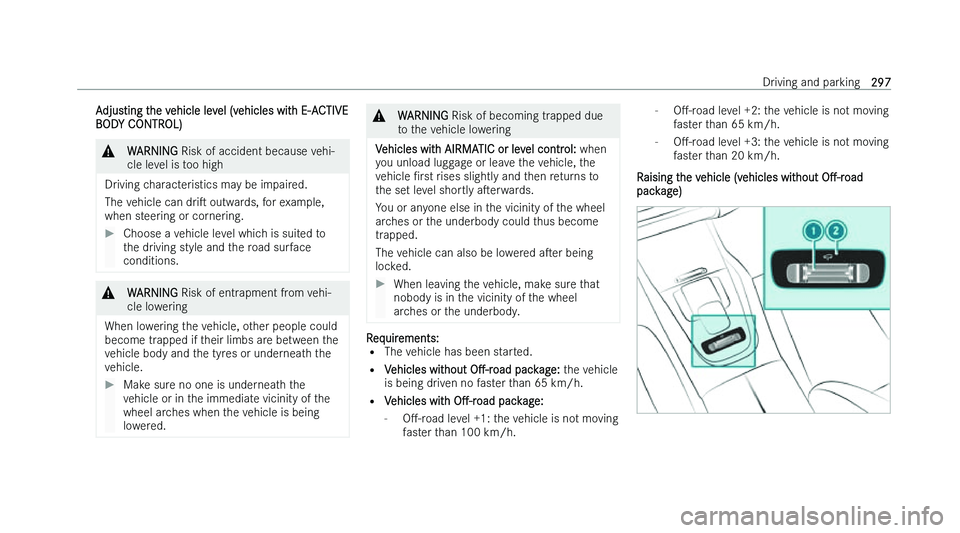

Adjusting the vehicle level (vehicles with E-ACTIVE
BOD
Y CONTROL) &
WARNING Risk of accident because v
ehi-
cle level is too high
Driving characteristics may be impaired.
The v
ehicle can dris outwards, for example,
when steering or cornering.
Choose a vehicle level which is suited to
t

he driving style and the road surface
conditions. &
WARNING Risk of entr
apment from vehi-
cle lowering
When lowering the vehicle, other people could
become tr
apped if their limbs are between the
vehicle body and the tyres or underneath the
vehicle.
Make sure no one is underneath the
v

ehicle or in the immediate vicinity of the
wheel arches when the vehicle is being
lowered. &
WARNING Risk of becoming tr
apped due
to the vehicle lowering
Vehicles with AIRMATIC or level control: when
y
ou unload luggage or leave the vehicle, the
vehicle Nrst rises slightly and then returns to
the set level shortly aserwards.
You or anyone else in the vicinity of the wheel
arches or the underbody could thus become
trapped.
The vehicle can also be lowered aser being
locked.
When leaving the vehicle, make sure that
nobody is in t
he vicinity of the wheel
arches or the underbody. Requirements:
= The v

ehicle has been started.
= Vehicles without OM-road package: the vehicle
is being driven no faster than 65 km/h.
= Vehicles with OM-road package:
- OM-road level +1: the vehicle is not moving
faster than 100 km/h. -
OM-r
oad level +2: the vehicle is not moving
faster than 65 km/h.
- OM-road level +3: the vehicle is not moving
faster than 20 km/h.
Raising the vehicle (vehicles without OM-road
package) Driving and parking
297


Push rocker switch 1 f orwards.
Indicator lamp 2 Oashes while the vehicle is
being raised and lights up continuously when
it has Nnished rising.
Your selection is saved. The oM-r
oad level set
remains stored even aser the ignition has been
switched oM.
The vehicle is lowered again in the following situa-
tions:
= When driving faster than 80 km/h.
= When driving brieOy between 65 km/h and
80 km/h.
= Aser selecting a diMerent drive program using
the DYNAMIC SELECT switch.
The vehicle is adjusted to the height of the active
drive program.
Lowering the vehicle (vehicles without OM-road
package)
Pull rocker switch 1.
The v
ehicle is adjusted to the height of the
active drive program.
Operation with a trailer or bicycle rack If the electrical connection has been correctly
es

tablished to the trailer or bicycle rack:
= From approx. 30 km/h: oM-road level +1 can
be selected, regardless of drive program.
= From approx. 30 km/h: the vehicle is adjusted
to normal level, regardless of drive program.

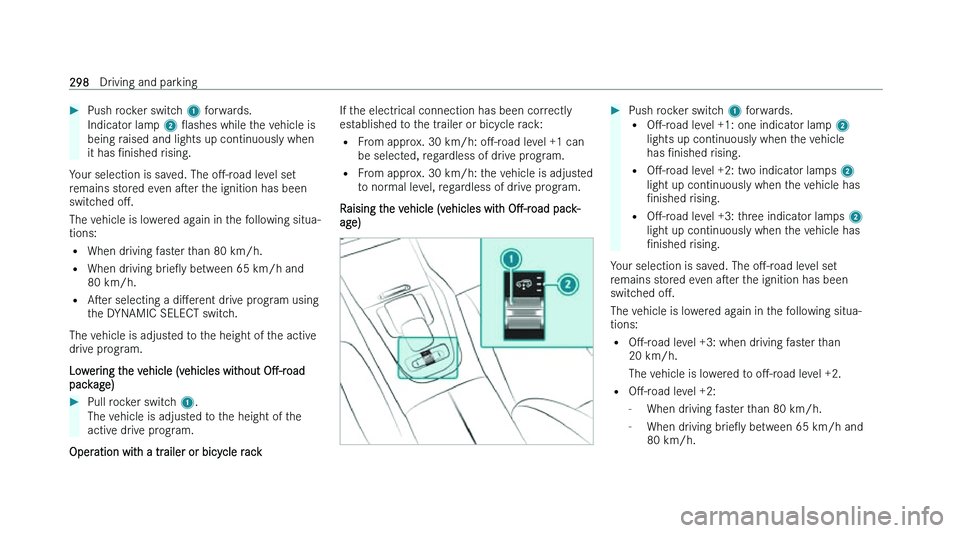

Raising the vehicle (vehicles with OM-road pack-
age)
Push rocker switch 1 f orwards.
= OM-road level +1: one indicator lamp 2
lights up continuously when the vehicle
has Nnished rising.
= OM-road level +2: two indicator lamps 2
light up continuously when the vehicle has
Nnished rising.
= OM-road level +3: three indicator lamps 2
light up continuously when the vehicle has
Nnished rising.
Your selection is saved. The oM-r
oad level set
remains stored even aser the ignition has been
switched oM.
The vehicle is lowered again in the following situa-
tions:
= OM-road level +3: when driving faster than
20 km/h.
The vehicle is lowered to oM-road level +2.
= OM-road level +2:
- When driving faster than 80 km/h.
- When driving brieOy between 65 km/h and
80 km/h. 298
Driving and parking

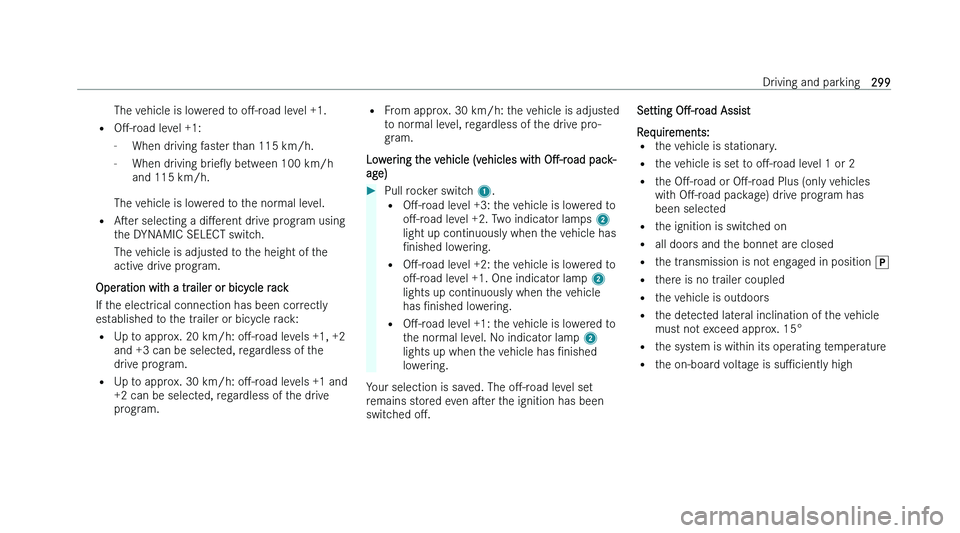

The vehicle is lowered to
oM-r oad level +1.
= OM-road level +1:
- When driving faster than 115 km/h.
- When driving brieOy between 100 km/h
and 115 km/h.
The vehicle is lowered to the normal level.
= Aser selecting a diMerent drive program using
the DYNAMIC SELECT switch.
The vehicle is adjusted to the height of the
active drive program.
Operation with a trailer or bicycle rack
If the electrical connection has been correctly
established to the trailer or bicycle rack:
= Up to approx. 20 km/h: oM-road levels +1, +2
and +3 can be selected, regardless of the
drive program.
= Up to approx. 30 km/h: oM-road levels +1 and
+2 can be selected, regardless of the drive
program. =
F rom approx. 30 km/h: the vehicle is adjusted
to normal level, regardless of the drive pro-
gram.
Lowering the vehicle (vehicles with OM-road pack-
age)
Pull rocker switch 1.
= OM-r

oad level +3: the vehicle is lowered to
oM-road level +2. Two indicator lamps 2
light up continuously when the vehicle has
Nnished lowering.
= OM-road level +2: the vehicle is lowered to
oM-road level +1. One indicator lamp 2
lights up continuously when the vehicle
has Nnished lowering.
= OM-road level +1: the vehicle is lowered to
the normal level. No indicator lamp 2
lights up when the vehicle has Nnished
lowering.
Your selection is saved. The oM-r
oad level set
remains stored even aser the ignition has been
switched oM. Setting
OM-r
oad Assist
Requirements:
= the vehicle is stationary.
= the vehicle is set to oM-road level 1 or 2
= the OM-road or OM-road Plus (only vehicles
with OM-road package) drive program has
been selected
= the ignition is switched on
= all doors and the bonnet are closed
= the transmission is not engaged in position j
= there is no trailer coupled
= the vehicle is outdoors
= the detected lateral inclination of the vehicle
must not exceed approx. 15°
= the system is within its operating temperature
= the on-board voltage is suPciently high Driving and parking
299

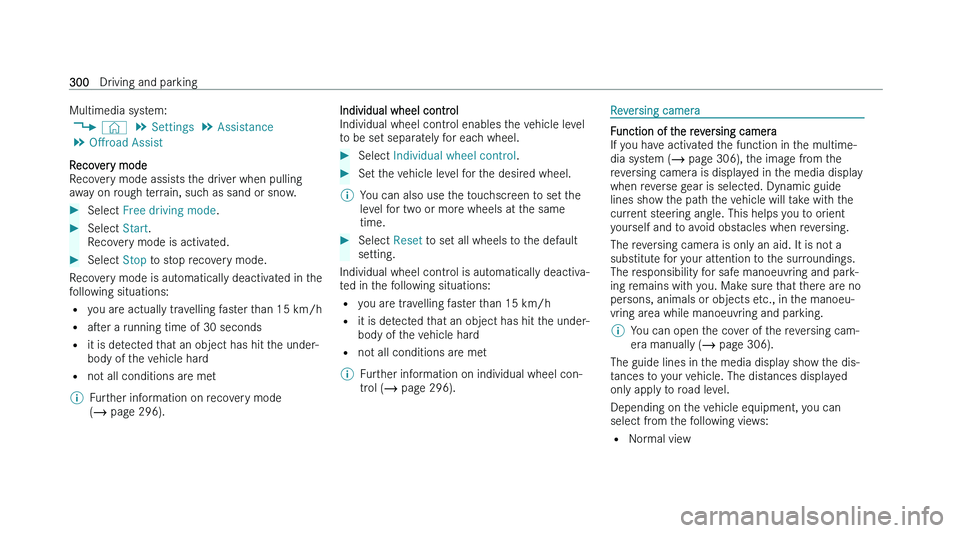

Multimedia system:
4 © 5
Settings 5
Assistance
5 Offroad Assist
R
ecovery mode
Recovery mode assists the driver when pulling
away on rough terrain, such as sand or snow.
Select Free driving mode .
Select Start .
R
ecovery mode is activated.
Select Stop t
o stop recovery mode.
Recovery mode is automatically deactivated in the
f
ollowing situations:
= you are actually travelling faster than 15 km/h
= aser a running time of 30 seconds
= it is detected that an object has hit the under-
body of the vehicle hard
= not all conditions are met
% Further information on recovery mode
(  pag

e 296). Individual wheel control
Individual wheel contr

ol enables the vehicle level
to be set separately for each wheel.
Select Individual wheel control .
Set the vehicle level for the desired wheel.
% You can also use the touchscreen to set the
le
vel for two or more wheels at the same
time.
Select Reset t
o set all wheels to the default
setting.
Individual wheel control is automatically deactiva-
t
ed in the following situations:
= you are travelling faster than 15 km/h
= it is detected that an object has hit the under-
body of the vehicle hard
= not all conditions are met
% Further information on individual wheel con-
tr

ol (  page 296). Reversing camera
Function of the reversing camera
If y

ou have activated the function in the multime-
dia system ( page 306), the image from the
reversing camera is displayed in the media display
when reverse gear is selected. Dynamic guide
lines show the path the vehicle will take with the
current steering angle. This helps you to orient
yourself and to avoid obstacles when reversing.
The reversing camera is only an aid. It is not a
substitute for your attention to the surroundings.
The responsibility for safe manoeuvring and park-
ing remains with you. Make sure that there are no
persons, animals or objects etc., in the manoeu-
vring area while manoeuvring and parking.
% You can open the cover of the reversing cam-
er
a manually (  page 306).
The guide lines in the media display show the dis-
t
ances to your vehicle. The distances displayed
only apply to road level.
Depending on the vehicle equipment, you can
select from the following views:

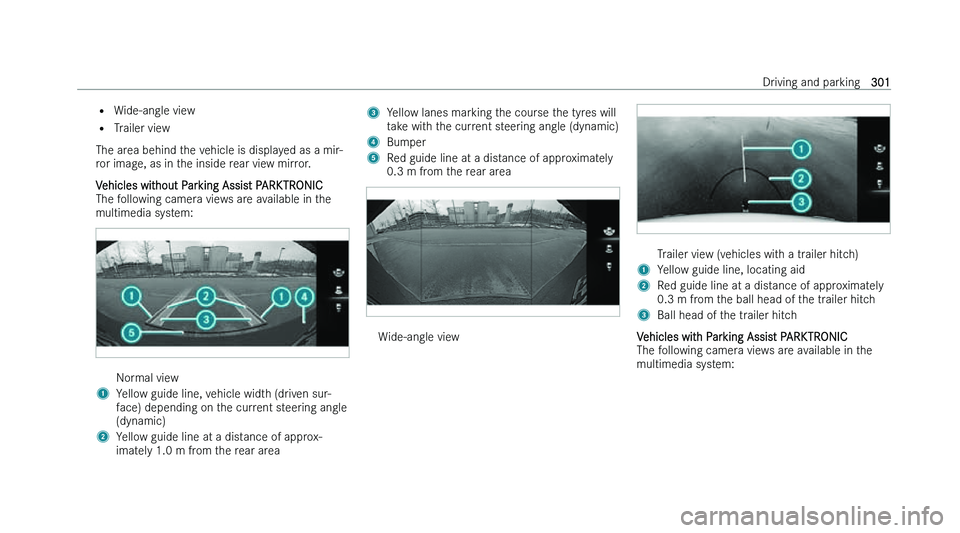

= Normal view 300
Driving and parking

=
W ide-angle view
= Trailer view
The area behind the vehicle is displayed as a mir-
ror image, as in the inside rear view mirror.
Vehicles without Parking Assist PARKTRONIC
The following camera views are available in the
multimedia system: Normal view
1 Yellow guide line, vehicle width (driven sur-
f
ace) depending on the current steering angle
(dynamic)
2 Yellow guide line at a distance of approx-
imat

ely 1.0 m from the rear area 3
Yellow lanes marking the course the tyres will
t

ake with the current steering angle (dynamic)
4 Bumper
5 Red guide line at a distance of approximately
0.3 m fr
om the rear area Wide-angle view Trailer view (vehicles with a trailer hitch)
1 Yellow guide line, locating aid
2 Red guide line at a distance of approximately
0.3 m fr
om the ball head of the trailer hitch
3 Ball head of the trailer hitch
Vehicles with Parking Assist PARKTRONIC
The f
ollowing camera views are available in the
multimedia system: Driving and parking
301
