2022 MERCEDES-BENZ GLC COUPE Owners Manual

Syst
Syst
em limits
em limits

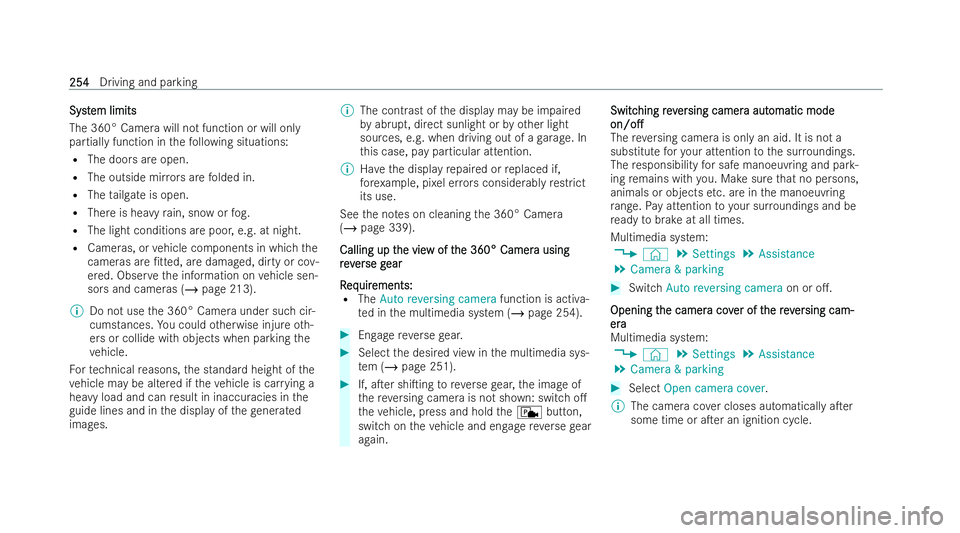

The 360° Came rawill not function or will only
partial lyfunction in thefo llowing situations:
R The doors are open.
R The outside mir rors are folded in.
R The tailgate is open.
R There is heavy rain, snow or fog.
R The light conditions are poo r,e.g. at night.
R Cameras, or vehicle components in which the
cameras are /tted, are damaged, dirty or co v-
ered. Obser vethe information on vehicle sen-
sors and cameras (/ page 213).
% Do not use the 360° Camera under such cir-
cumstances. You could otherwise injure oth-
ers or collide with objects when parking the
ve hicle.
Fo rte ch nical reasons, the standard height of the
ve hicle may be altered if theve hicle is car rying a
heavy load and can result in inaccu racies in the
guide lines and in the display of thege nerated
ima ges. %
The cont rast of the display may be impaired
by abrupt, direct sunlight or by other light
sources, e.g. when driving out of a garage . In
th is case, pay particular attention.
% Have the display repaired or replaced if,
fo re xamp le, pixel er rors considerably restrict
its use.
See the no tes on cleaning the 360° Camera
(/ page 339).
Calling up t
Calling up t he vie
he view of t
w of the 360° Camer
he 360° Camer a using
a using
rev
rev er
erse g
se g ear
ear
R
R eq
eq uir
uir ements:
ements:
R The Auto reversing camera function is activa-
te d in the multimedia system (/ page 254). #
Engage reve rsege ar. #
Select the desired view in the multimedia sys-
te m (/ page 251). #
If, aTer shiTing toreve rsege ar, the image of
th ere ve rsing camera is not shown: switch o.
th eve hicle, press and hold thec button,
switch on theve hicle and engage reve rsege ar
again. Switc
Switc hingrev
hing rever
ersing camer
sing camer a aut
a automatic mode
omatic mode
on/o.
on/o.
The reve rsing camera is only an aid. It is not a
substitute foryo ur attention tothe sur roundings.
The responsibility for safe manoeuvring and par k-
ing remains with you. Make sure that no persons,
animals or objects etc. are in the manoeuvring
ra nge. Pay attention toyour sur roundings and be
re ady tobrake at all times.
Multimedia system: 4 © 5
Settings 5
Assistance
5 Camera & parking #
Switch Auto reversing camera on or o..
Opening t Opening t he camer he camera cov
a cover of t
er of t herev
he rever
ersing cam-
sing cam-
era
era
Multimedia system:
4 © 5
Settings 5
Assistance
5 Camera & parking #
Select Open camera cover.
% The camera co ver closes automatically aTer
some time or aTer an ignition cycle. 254 254
Driving and parking

P
P
ar
ar king Assis
king Assis t P
t PARK
ARK TR
TRONIC
ONIC F
F
unction of P
unction of P ar
arking Assis
king Assis t P
t P ARK
ARK TR
TRONIC
ONIC

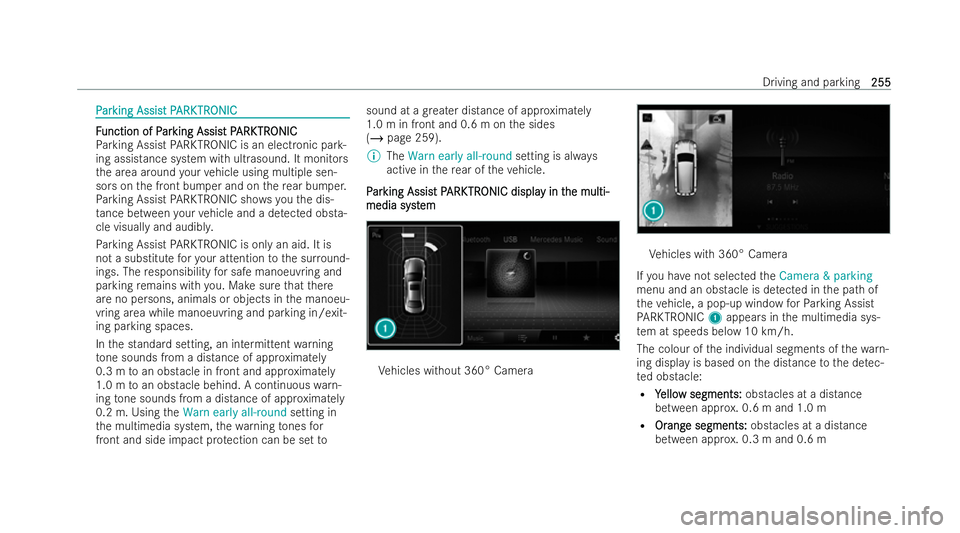

Pa rking Assist PARKTRONIC is an electronic par k-
ing assistance system with ultrasound. It monitors
th e area around your vehicle using multiple sen-
sors on the front bumper and on there ar bumper.
Pa rking Assist PARKTRONIC show syo uth e dis-
ta nce between your vehicle and a de tected obs ta-
cle visual lyand audib ly.
Pa rking Assist PARKTRONIC is only an aid. It is
not a substitute foryo ur attention tothe sur round-
ings. The responsibility for safe manoeuvring and
parking remains with you. Make sure that there
are no persons, animals or objects in the manoeu-
vring area while manoeuvring and parking in/exit-
ing parking spaces.
In the standard setting, an intermittent warning
to ne sounds from a distance of app roximately
0.3 m toan obs tacle in front and appr oximately
1.0 m toan obs tacle behind. A continuous warn-
ing tone sounds from a distance of app roximately
0.2 m. Using theWarn early all-round setting in
th e multimedia system, thewa rning tones for
front and side impact pro tection can be set tosound at a
greater distance of appr oximately
1.0 m in front and 0.6 m on the sides
(/ page 259).
% The Warn early all-round setting is always
active in there ar of theve hicle.
P
P ar ar king Assis
king Assis t P
t PARK
ARK TR
TRONIC displa
ONIC displa y in t
y in the multi-
he multi-
media syst
media syst em
em Ve
hicles without 360° Camera Ve
hicles with 360° Camera
If yo u ha venot selected theCamera & parking
menu and an obstacle is de tected in the path of
th eve hicle, a pop-up wind ow forPa rking Assist
PA RKTRONIC 1appears in the multimedia sys-
te m at speeds below 10 km/h.
The colour of the individual segments of thewa rn-
ing display is based on the distance tothe de tec-
te d obstacle:
R Y
Y ello
ello w segments:
w segments: obstacles at a distance
between appr ox. 0.6 m and 1.0 m
R Or
Or ang
ang e segments:
e segments: obstacles at a distance
between appro x. 0.3 m and 0.6 m Driving and parking
255
255

R
R
Red segments:
ed segments: obstacles at a very short dis-
ta nce of app rox. 0.3 m or less
Sy
Sy st
stem limits
em limits
Pa rking Assist PARKTRONIC does not necessarily
ta ke into account thefo llowing obstacles:
R Obstacles below the de tection range, e.g. per-
sons, animals or objects.
R Obstacles abo vethe de tection range, e.g.
ove rhanging loads, overhangs or loading
ra mp s of lor ries.
The sensors must be free of dirt, ice and slush.
Otherwise, they may not function cor rectl y.Clean
th e sensors regula rly, taking care not toscratch
or damage them(/ page 213).
V
V ehicles wit
ehicles wit h tr
h trailer hitc
ailer hitc h:
h:Parking Assist
PA RKTRONIC is deactivated forth ere ar zone
when you establish an electrical connection
between your vehicle and a trailer. Pr
Pr oblems wit
oblems wit h P
h P ar
arking Assis
king Assis t P
t PARK
ARK TR
TRONIC
ONIC Example:
vehicles with 360° Camera
When rear segments 1or all- round segments
2 light up red and theé symbol appears in
th e Instrument Displa y,Pa rking Assist
PA RKTRONIC may ha vebeen deactivated due to
signal inter fere nce. Start theve hicle again and
ch eck if Parking Assist PARKTRONIC is working at
a di.erent location. If a
warning tone also sounds for appr oximately
two seconds everytime theve hicle is star ted, it
may be due toone of thefo llowing causes:
R The sensor
The sensor s ar
s are dir
e dir ty
ty:
:clean the sensors and
obser vethe no tes on care of vehicle parts
(/ page 339).
R P Par ar king Assis
king Assis t P
t PARK
ARK TR
TRONIC has been deacti-
ONIC has been deacti-
v
v at
at ed due t
ed due t o a malfunction:
o a malfunction: restart theve hi-
cle. If the problem persists, consult a quali/ed
specialist workshop.
F
F unction of t
unction of t he passiv
he passive side im
e side impact prot
pact pr otection
ection
Pa ssive side impact pr otection is an additional
Pa rking Assist PARKTRONIC function which warns
th e driver about obstacles at the side of theve hi-
cle. A warning is issued when obstacles are
de tected between the front and rear de tection
ra nge. In order for an object on the side tobe
de tected, the sensors in the front and rear
bumper must /rst de tect the object while you are
driving past it.
During the parking procedure or manoeuvring,
objects are de tected as theve hicle drives past. If
yo u steer in the direction of a de tected obs tacle
and there is a risk of a lateral collision, a warning 256
256
Driving and parking

is issued and
the segments light up in colour in
th e displa y.

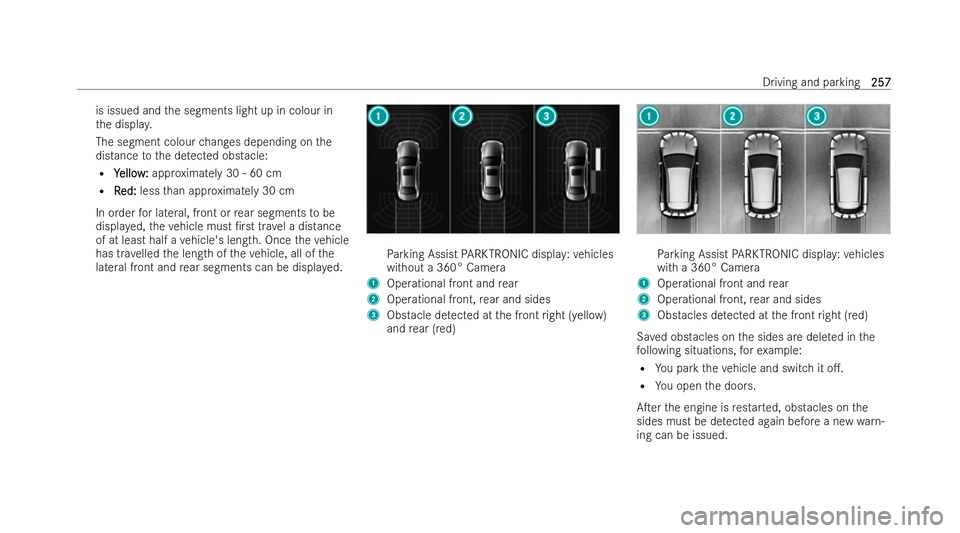

The segment colour changes depending on the
distance tothe de tected obs tacle:
R Y
Y ellow
ellow :
:appr oximately 30 - 60 cm
R R
Red:
ed: less than appr oximately 30 cm
In order for lateral, front or rear segments tobe
displa yed, theve hicle must /rst tr avel a distance
of at least half a vehicle's length. Once theve hicle
has tr avelled the length of theve hicle, all of the
lateral front and rear segments can be displ ayed. Pa
rking Assist PARKTRONIC displa y:vehicles
without a 360° Camera
1 Operational front and rear
2 Operational front, rear and sides
3 Obstacle de tected at the front right (yellow)
and rear (red) Pa
rking Assist PARKTRONIC displa y:vehicles
with a 360° Camera
1 Operational front and rear
2 Operational front, rear and sides
3 Obstacles de tected at the front right (red)
Sa ved obstacles on the sides are dele ted in the
fo llowing situations, forex ample:
R You park theve hicle and switch it o..
R You open the doors.
ATer the engine is restar ted, obstacles on the
sides must be de tected again before a new warn-
ing can be issued. Driving and parking
257
257

Syst
Syst
em limits
em limits

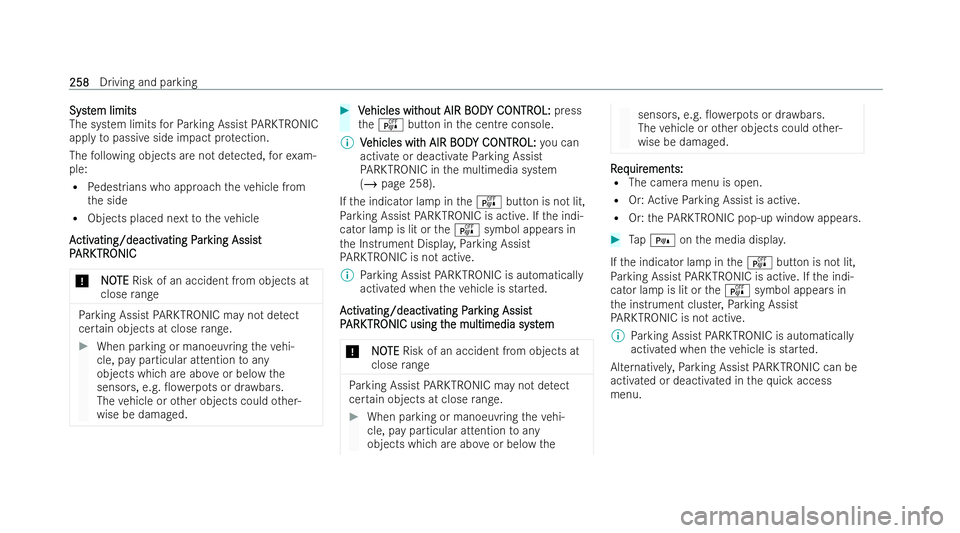

The system limits forPa rking Assist PARKTRONIC
app lyto passive side impact pr otection.
The following objects are not de tected, forex am-
ple:
R Pedest rians who approach theve hicle from
th e side
R Objects placed next totheve hicle
A
A ctiv
ctiv ating/deactiv
ating/deactiv ating P
ating Par
arking Assist
king Assist
P
P ARK
ARK TR
TRONIC
ONIC
* NO
NOTE
TERisk of an accident from objects at
close range Pa
rking Assist PARKTRONIC may not de tect
cer tain objects at close range. #
When parking or manoeuvring theve hi-
cle, pay particular attention toany
objects which are abo veor below the
senso rs, e.g. 0o werpots or dr awbars.
The vehicle or other objects could other-
wise be damaged. #
V
V ehicles wit
ehicles wit hout AIR BOD
hout AIR BOD Y C
Y CONTR
ONTR OL:
OL:press
th eé button in the centre console.
% V
Vehicles wit
ehicles wit h AIR BOD
h AIR BODY C
Y CONTR
ONTR OL:
OL:you can
activate or deactivate Parking Assist
PA RKTRONIC in the multimedia system
(/ page 258).
If th e indicator lamp in theé button is not lit,
Pa rking Assist PARKTRONIC is active. If the indi-
cator lamp is lit or theé symbol appears in
th e Instrument Displa y,Pa rking Assist
PA RKTRONIC is not active.
% Parking Assist PARKTRONIC is automatically
activated when theve hicle is star ted.
A
A ctiv
ctiv ating/deactiv
ating/deactiv ating P
ating Par
arking Assist
king Assist
P
P ARK
ARK TR
TRONIC using t
ONIC using t he multimedia syst
he multimedia syst em
em
* NO
NOTE
TERisk of an accident from objects at
close range Pa
rking Assist PARKTRONIC may not de tect
cer tain objects at close range. #
When parking or manoeuvring theve hi-
cle, pay particular attention toany
objects which are abo veor below the senso
rs, e.g. 0o werpots or dr awbars.
The vehicle or other objects could other-
wise be damaged. R
R
eq
eq uir
uir ements:
ements:
R The camera menu is open.
R Or: Active Parking Assist is active.
R Or: thePA RKTRONIC pop-up wind owappears. #
Tap= onthe media displa y.
If th e indicator lamp in theé button is not lit,
Pa rking Assist PARKTRONIC is active. If the indi-
cator lamp is lit or theé symbol appears in
th e inst rument cluster, Parking Assist
PA RKTRONIC is not active.
% Parking Assist PARKTRONIC is automatically
activated when theve hicle is star ted.
Alternativel y,Pa rking Assist PARKTRONIC can be
activated or deactivated in thequ ick access
menu. 258
258
Driving and parking

Se
Se
tting t
tting t he w
he war
ar ning t
ning t ones of P
ones of P ar
arking Assist
king Assist
P
P ARK
ARK TR
TRONIC
ONIC
Multimedia system:
4 © 5
Settings 5
Assistance
5 Camera & parking
A
A djus
djusting t ting t he v
he volume of t
olume of t he w
he war
arning t
ning t ones
ones #
Select Warning tone volume. #
Set a value.
A
A djus
djusting t ting t he pitc
he pitc h of t
h of the w
he war
arning t
ning t ones
ones #
Select Warning tone pitch. #
Set a value.
Specifying t Specifying t he st he star
arting point f
ting point f or t
or the w
he w ar
arning t
ning t ones
ones
Yo u can specify whe ther thePa rking Assist
PA RKTRONIC warning tones should commence
when theve hicle is fu rther awa y from an obs tacle. #
Select Warn early all-round .#
Activate or deactivate the function.
A
A ctiv
ctiv ating/deactiv
ating/deactiv ating audio f
ating audio fadeout
adeout
Yo u can specify whe ther thevo lume of a media
source in the multimedia system is tobe reduced when
Parking Assist PARKTRONIC sounds a warn-
ing tone. #
Select Audio fadeout during warning tones . #
Activate or deactivate the function. A
A
ctiv
ctiv e P
e Par
ar king Assist
king Assist F
F
unction of A
unction of A ctiv
ctive P
e Par
arking Assist
king Assist
% The availability of this function is dependent
on the countr y.
Ac tive Parking Assist is an electronic parking
assistance system, which uses ultrasound with
th e assistance of there ve rsing camera and 360°
Camera. When you are driving forw ards up to
appr oximately 35 km/h, the system automatically
measures parking spaces on bo thsides of the
ve hicle.
As soon as all requ irements are met for sear ching
fo r parking spaces, theÇ display appears in
th e Instrument Displa y.
When Active Parking Assist has de tected parking
spaces, theÈ display appears in the Instru-
ment Displa y.The ar rows show on which side of th
ero ad de tected parking spaces are located.
They are then shown in the media displa y.
The parking space can be selected as desired.
Depending on the location of the parking space,
th e parking direction (rear wards or forw ards) can
also be selected as desired.
When Active Parking Assist is activated, the turn
signal indicators are activated based on the calcu-
lated path of your vehicle.
When you are entering or exiting a parking space,
th e procedure is assisted byacceleration, braking,
steering and gear changes.
Ac tive Parking Assist is only an aid. It is not a sub-
stitute foryo ur attention tothe sur roundings. The
re sponsibility for safe manoeuvring and parking
re mains with you. Make sure that no persons, ani-
mals or objects etc. are in the manoeuvring
ra nge.
Ac tive Parking Assist will be cancelled in thefo l-
lowing situations:
R Parking Assist PARKTRONIC is deactivated.
R You begin steering.
R You apply the parking brake. Driving and parking
259 259

R
You engage transmission position j.
R ESP ®
inter venes.
R You open the doors or theta ilgate while driv-
ing.
Syst
Syst em limits
em limits
If th eex terior lighting is malfunctioning, Active
Pa rking Assist is not available.
Objects located abo veor below the de tection
ra nge of the sensors, e.g. overhanging loads,
ove rhangs or loading ramp s of goods vehicles, or
th e borders of parking spaces, are not de tected
during measurement of the parking space. These
are also then not take n into account when calcu-
lating the parking procedure. In some circumstan-
ces, Active Parking Assist may therefore guide
yo u into the parking space incor rectl y. &
W
WARNI NG
ARNI NGRisk of accident due toobjects
located abo veor below the de tection
ra nge of Active Parking Assist
If th ere are objects abo veor below the de tec-
tion range, thefo llowing situations may arise:
R Active Parking Assist may steer too ear ly.
R The vehicle may not stop in front of these
objects.
There is a danger of collision! #
Inthese situations, do not use Active
Pa rking Assist. Extreme
weather conditions, suc has snow or
heavy rain, may lead toa parking space being
measured inaccuratel y.Pa rking spaces that are
partial lyoccupied bytrailer dr awbars might not be
identi/ed as such or be measured incor rectl y.
Only use Active Parking Assist on le vel, high-g rip
gr ound.
Do not use Active Parking Assist in thefo llowing
situations:
R Inextreme weather conditions suc has ice,
pac ked snow or in heavy rain. R
When transporting a load that pr otru des
be yond theve hicle.
R On steep uphill or downhill gradients of more
th an appr oximately 15 %.
R When snow chains are /tted.
R When a trailer or bicycle rack is attached.
R Directly aTer a tyre change or when spare
tyres are /tted.
R Ifth e tyre pressure is too low or too high.
R Ifth e suspension is out of alignment, e.g. aTer
bottoming out on a kerb.
Ac tive Parking Assist may also display parking
spaces that are not suitable for parking, suc has:
R Parking spaces where parking is prohibited.
R Parking spaces on unsuitable sur faces.
P
P ar
ar king wit
king wit h A
h Activ
ctiv e P
e P ar
arking Assist
king Assist
% Depending on theve hicle's equipment, the
button may also be located at a di.erent posi-
tion in the centre console. 260 260
Driving and parking

#

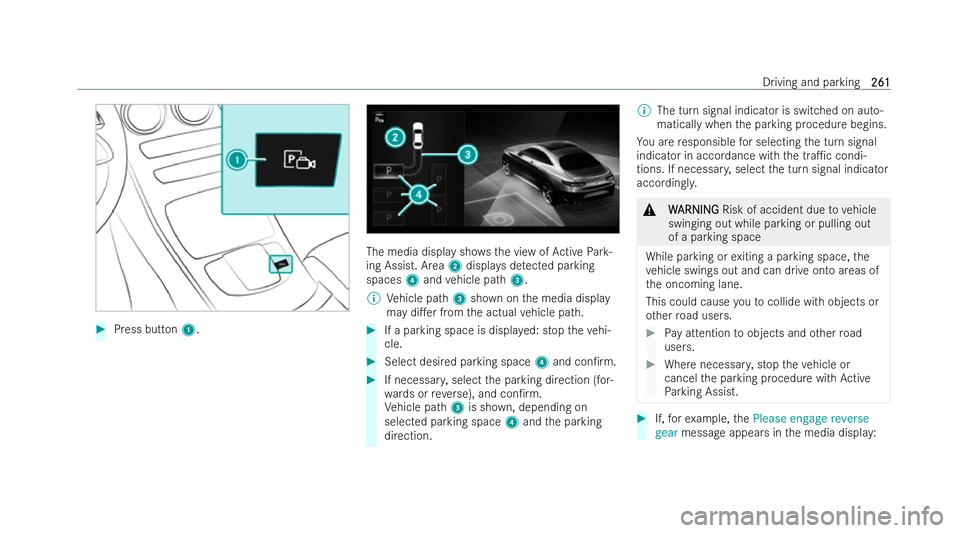

Press button 1. The media display sh
owsth e view of Active Park-
ing Assist. Area 2displa ysdetected parking
spaces 4and vehicle path 3.
% Vehicle path 3shown on the media display
may di.er from the actual vehicle path. #
If a parking space is displ ayed: stop theve hi-
cle. #
Select desired parking space 4and con/rm. #
If necessar y,select the parking direction (for-
wa rds or reve rse), and con/ rm.
Ve hicle path 3is shown, depending on
selected parking space 4and the parking
direction. %
The turn signal indicator is switched on auto-
matically when the parking procedure begins.
Yo u are responsible for selecting the turn signal
indicator in accordance with the tra1c condi-
tions. If necessar y,select the turn signal indicator
accordingl y. &
W
WARNI NG
ARNI NGRisk of accident due tovehicle
swinging out while parking or pulling out
of a parking space
While parking or exiting a parking space, the
ve hicle swings out and can drive onto areas of
th e oncoming lane.
This could cause youto collide with objects or
ot her road users. #
Pay attention toobjects and other road
users. #
Where necessar y,stop theve hicle or
cancel the parking procedure with Active
Pa rking Assist. #
If,forex ample, thePlease engage reverse
gear message appears in the media displa y: Driving and parking
261 261
