2022 MERCEDES-BENZ EQB SUV Owners Manual

%

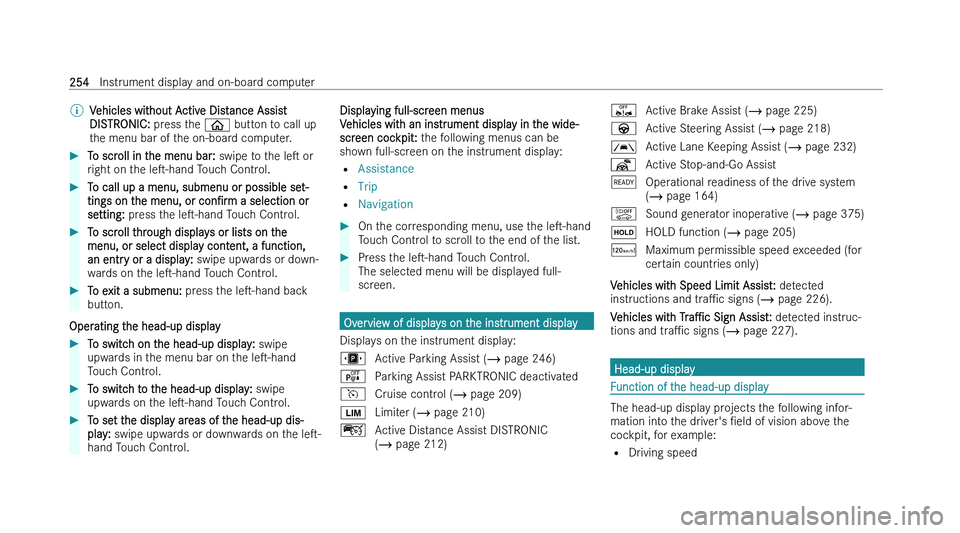

Vehicles without Active Distance Assist
DIS
TRONIC: press the

=
Inf ormation from the navigation system
= Information from the driving systems and driv-
ing safety systems
= Some warning messages
Depending on the vehicle's equipment, diMerent
content can be shown in the three areas of the
head-up display (  page 255).

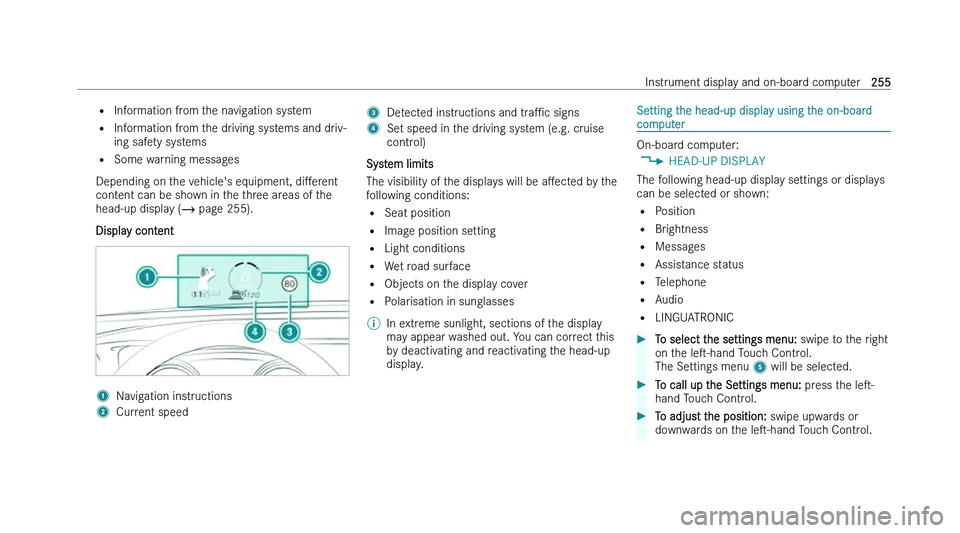

Display content 1
Navigation instructions
2 Current speed 3
Detected instructions and tr aPc signs
4 Set speed in the driving system (e.g. cruise
contr

ol)
System limits
The visibility of t
he displays will be aMected by the
following conditions:
= Seat position
= Image position setting
= Light conditions
= Wet road surface
= Objects on the display cover
= Polarisation in sunglasses
% In extreme sunlight, sections of the display
ma
y appear washed out. You can correct this
by deactivating and reactivating the head-up
display. Setting the head-up display using the on-board
com

puter On-board computer:
4 HEAD-UP DISPLAY
The f

ollowing head-up display settings or displays
can be selected or shown:
= Position
= Brightness
= Messages
= Assistance status
= Telephone
= Audio
= LINGUATRONIC
To select the settings menu: swipe t
o the right
on the les-hand Touch Control.
The Settings menu 5 will be selected.
To call up the Settings menu: pr
ess the les-
hand Touch Control.
To adjust the position: swipe upw
ards or
downwards on the les-hand Touch Control. Instrument display and on-board computer
255


To adjust the brightness: swipe t o the les or
right on the les-hand Touch Control.
Setting messages, assistance status, telephone,
audio and LIN
GUATRONIC
Press the les-hand T
ouch Control.
The list of setting options will be displayed.
Swipe upwards or downwards on the les-hand
T
ouch Control.
To choose settings: pr
ess the les-hand Touch

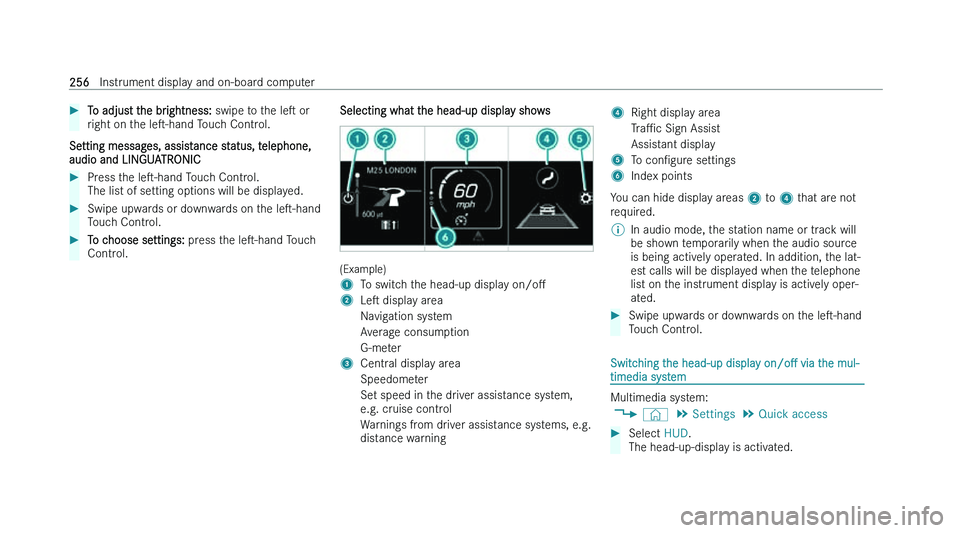

Control. Selecting what the head-up display shows (Example)
1
To switch the head-up display on/oM
2 Les displa
y area
Navigation system
Average consumption
G-meter
3 Central display area
Speedometer
Set speed in the driver assistance system,
e.g. cr
uise control
Warnings from driver assistance systems, e.g.
dis
tance warning 4
Right display area
TraPc Sign Assis
t
Assistant display
5 To conNgur
e settings
6 Index points
You can hide display areas 2 t
o 4 that are not
required.
% In audio mode, the station name or track will
be sho
wn temporarily when the audio source
is being actively operated. In addition, the lat-
est calls will be displayed when the telephone
list on the instrument display is actively oper-
ated.
Swipe upwards or downwards on the les-hand
T
ouch Control. Switching the head-up display
on/oM via t
he mul-
timedia system Multimedia system:
4 © 5
Settings 5
Quick access
Select HUD.
The head-up-displa

y is activated.256
Instrument display and on-board computer

Overview and operation
Notes on the MBUX multimedia system
&
WARNING Risk of dis traction from infor-
mation systems and communications
equipment
If you operate information systems and com-
munication de
vices integrated in the vehicle
when driving, you could be distracted from the
traPc situation. This could also cause you to
lose control of the vehicle.
Only operate this equipment when the
tr

aPc situation permits.
If you cannot be sure of this, stop the
v
ehicle whilst paying attention to road
and traPc conditions and operate the
equipment with the vehicle stationary. You must observe the legal requirements for the
countr

y in which you are currently driving when
operating the multimedia system.
Depending on the equipment, the scope of func-
tion and pr
oduct designation of your MBUX multi-
media system may diMer from the description and images in this Owner's Manual. For example,
r
oute guidance with augmented reality is not avail-

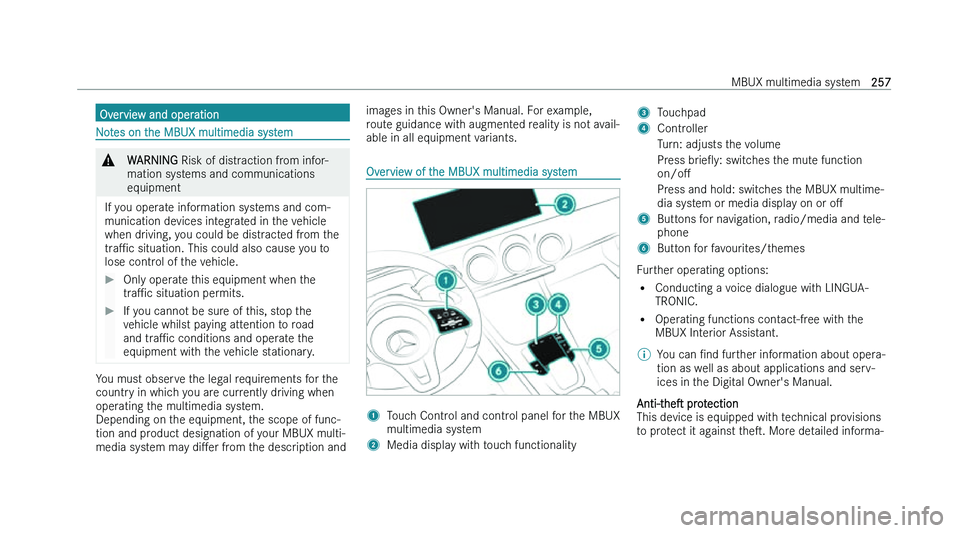

able in all equipment variants. Overview of the MBUX multimedia system
1
Touch Control and control panel for the MBUX
multimedia sy

stem
2 Media display with touch functionality 3
Touchpad
4 Controller
Turn: adjusts the volume
Press br
ieOy: switches the mute function
on/oM
Press and hold: switches the MBUX multime-
dia sy
stem or media display on or oM
5 Buttons for navigation, radio/media and tele-
phone
6 Button for favourites/themes
Further operating options: = Conducting a v

oice dialogue with LINGUA-
TRONIC.
= Operating functions contact-free with the
MBUX Interior Assistant.
% You can Nnd fur
ther information about opera-
tion as well as about applications and serv-
ices in the Digital Owner's Manual.
Anti-thes pr
otection
This device is equipped with technical provisions
to protect it against thes. More detailed informa- MBUX multimedia system
257

tion about anti-t
hes protection can be obtained at

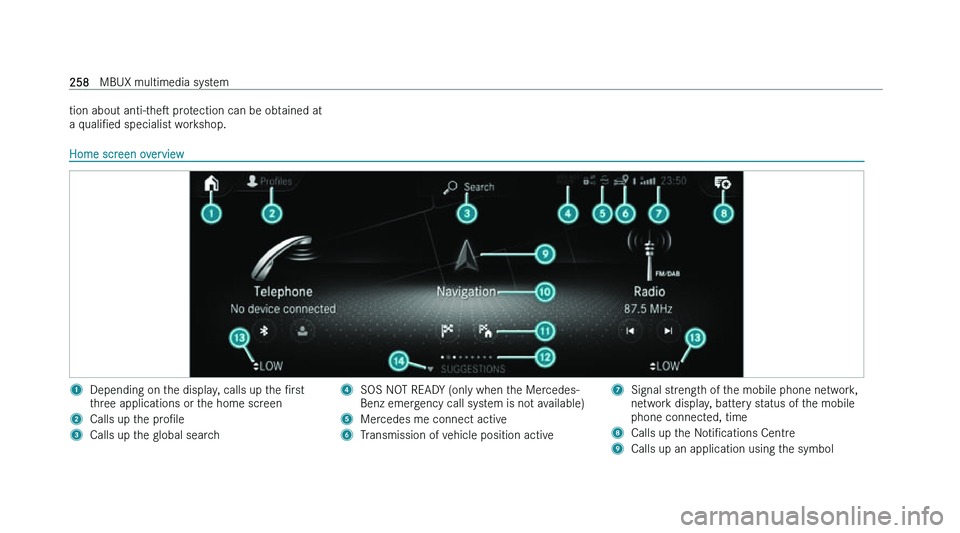

a qualiNed specialist workshop. Home screen overview
1
Depending on the display, calls up the Nr
st
three applications or the home screen
2 Calls up the pr
oNle
3 Calls up the global search 4
SOS NOT READY (only when the Mercedes-
Benz emer
gency call system is not available)
5 Mercedes me connect active
6 Transmission of vehicle position active 7
Signal strength of the mobile phone network,
ne twork display, battery status of the mobile
phone connected, time
8 Calls up the N
otiNcations Centre
9 Calls up an application using the symbol 258
MBUX multimedia system

A
Application and current information
B Quick-access, e.g. enter home address
C Index points and selected display area
D Calls up the air conditioning menu
E Calls up SUGGESTIONS , THEMES and
FAVOURITES
% If Mercedes me connect 5 is activ e , the
vehicle is linked with Mercedes me connect.
Vehicle data is then transmitted to the back
end system. What data is transmitted
depends on which services are activated. Fur-
ther details can be found in the Mercedes me
connect terms and conditions and data pro-
tection information. The function is country-
dependent.
If transmission of vehicle position 6 is
active , Mercedes me connect services have
been activated for this vehicle which access
the vehicle's geoposition. In which instances
the geoposition is transmitted depends on the
particular services. Further details can be
found in the Mercedes me connect terms and
conditions and data protection information.

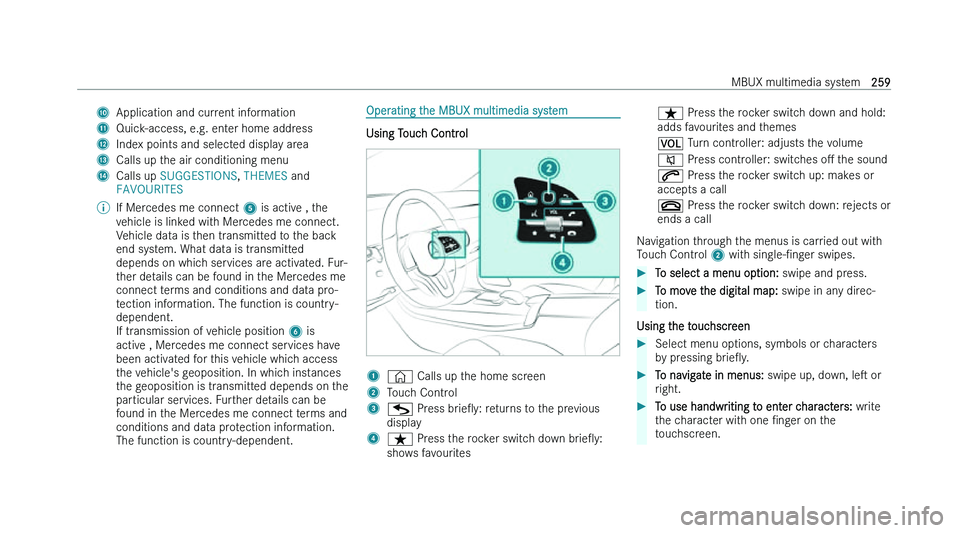

The function is country-dependent. Operating the MBUX multimedia system
Using Touch Control
1
© Calls up t
he home screen
2 Touch Control
3 ( Pr
ess brieOy: returns to the previous
display
4


To zoom in and out of the map: mo ve two Nn-
gers together or apart.
To call up the global menu: pr
ess and hold on
the touchscreen until the OPTIONS menu
appears.
% For more information on operation, please
r

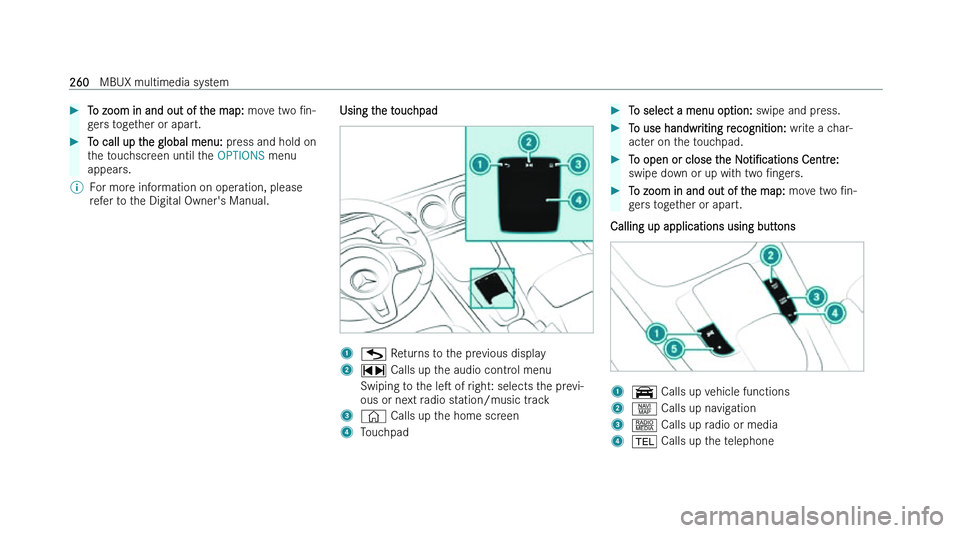

efer to the Digital Owner's Manual. Using the touchpad 1
( R
eturns to the previous display
2 _ Calls up t
he audio control menu
Swiping to the les of r
ight: selects the previ-
ous or next radio station/music track
3 © Calls up t
he home screen
4 Touchpad
To select a menu option: swipe and pr
ess.
To use handwriting recognition: wr
ite a char-
acter on the touchpad.
To open or close the N
otiNcations Centre:
swipe down or up with two Nngers.
To zoom in and out of the map: mo
ve two Nn-
gers together or apart.
Calling up applications using buttons 1
y Calls up v
ehicle functions
2 z Calls up na
vigation
3 ] Calls up r
adio or media
4 + Calls up t
he telephone260
MBUX multimedia system

5
