2022 MERCEDES-BENZ EQB SUV Owners Manual

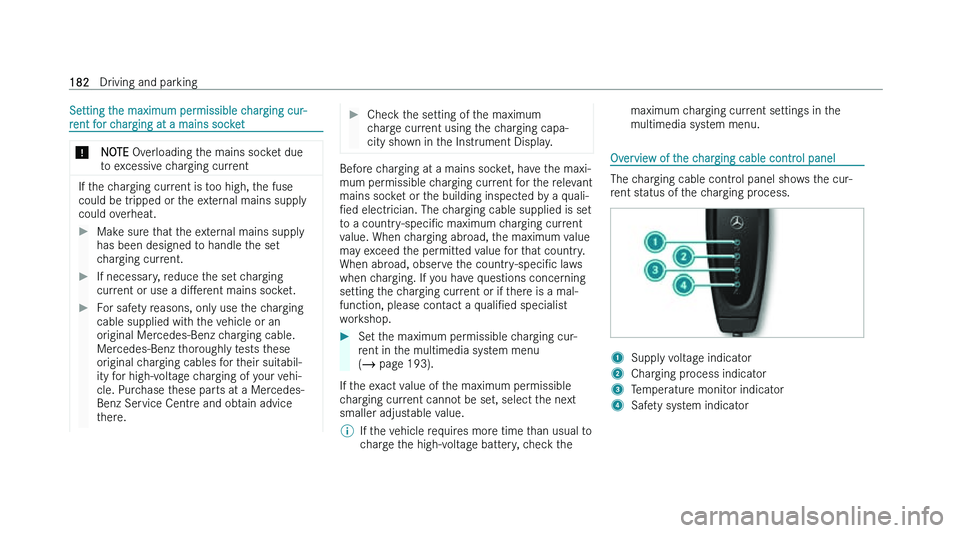

Setting the maximum permissible charging cur-
r
ent for charging at a mains socket *
NOTE Ov
erloading the mains socket due
to excessive charging current If the charging current is too high, the fuse
could be tr
ipped or the external mains supply
could overheat.
Make sure that the external mains supply
has been designed t

o handle the set
charging current.
If necessary, reduce the set charging
cur
rent or use a diMerent mains socket.
For safety reasons, only use the charging
cable supplied wit

h the vehicle or an
original Mercedes-Benz charging cable.
Mercedes-Benz thoroughly tests these
original charging cables for their suitabil-
ity for high-voltage charging of your vehi-
cle. Purchase these parts at a Mercedes-
Benz Service Centre and obtain advice
there.
Check the setting of the maximum
c
harge current using the charging capa-
city shown in the Instrument Display. Before charging at a mains socket, have the maxi-
mum per

missible charging current for the relevant
mains socket or the building inspected by a quali-
Ned electrician. The charging cable supplied is set
to a country-speciNc maximum charging current
value. When charging abroad, the maximum value
may exceed the permitted value for that country.
When abroad, observe the country-speciNc laws
when charging. If you have questions concerning
setting the charging current or if there is a mal-
function, please contact a qualiNed specialist
workshop.
Set the maximum permissible charging cur-
r

ent in the multimedia system menu
( page 193).
If the exact value of the maximum permissible
c
harging current cannot be set, select the next
smaller adjustable value.
% If the vehicle requires more time than usual to
c

harge the high-voltage battery, check the maximum charging current settings in the
multimedia sy

stem menu. Overview of the charging cable control panel
The charging cable control panel shows the cur-
r

ent status of the charging process. 1
Supply voltage indicator
2 Charging process indicator
3 Temperature monitor indicator

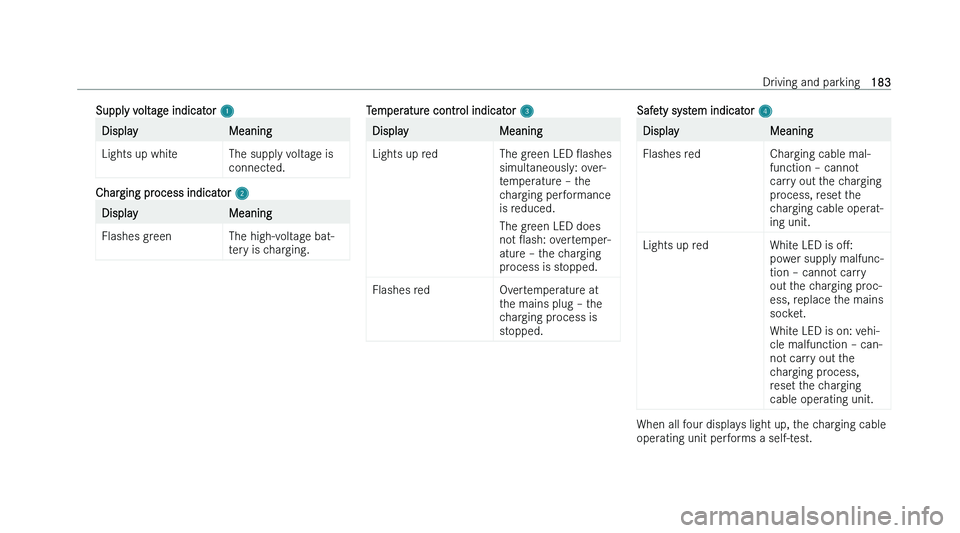

4 Safety system indicator 182
Driving and parking

Supply voltage indicator
1Display
Meaning
Lights up white The supply voltage is connected. Charging process indicator
2Display
Meaning
Flashes green The high-voltage bat- t
ery is charging. Temperature control indicator
3 Display
Meaning
Lights up red The green LED Oashes simult
aneously: over-
temperature !

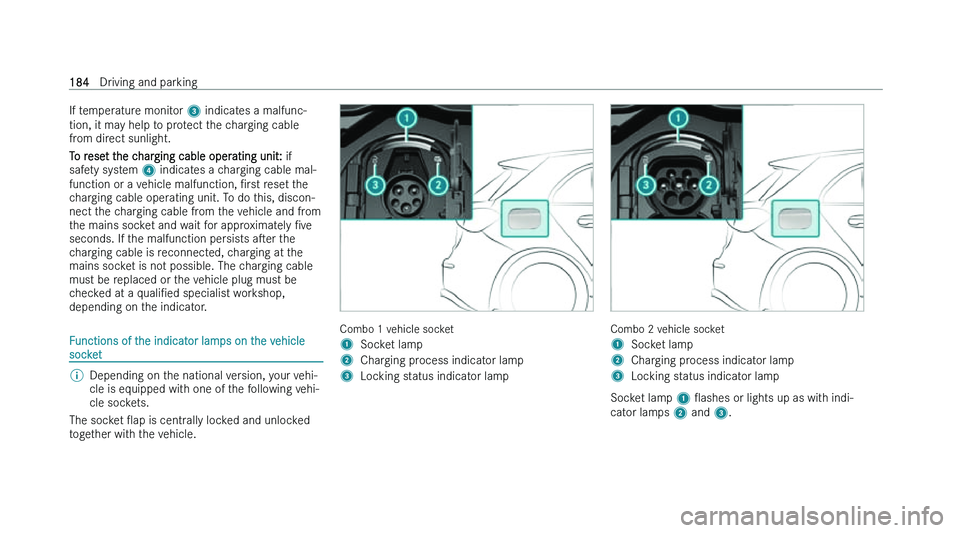

If temperature monitor 3 indicat
es a malfunc-
tion, it may help to protect the charging cable
from direct sunlight.
To reset the charging cable operating unit: if
safety system 4 indicates a charging cable mal-
function or a vehicle malfunction, Nrst reset the
charging cable operating unit. To do this, discon-
nect the charging cable from the vehicle and from
the mains socket and wait for approximately Nve
seconds. If the malfunction persists aser the
charging cable is reconnected, charging at the
mains socket is not possible. The charging cable
must be replaced or the vehicle plug must be
checked at a qualiNed specialist workshop,
depending on the indicator. Functions of the indicator lamps on the vehicle
soc

ket %
Depending on the national version, your vehi-
cle is eq
uipped with one of the following vehi-
cle sockets.
The socket Oap is centr
ally locked and unlocked
together with the vehicle. Combo 1 vehicle socket
1
Socket lamp
2 Charging process indicator lamp
3 Locking status indicator lamp Combo 2 vehicle socket
1
Socket lamp
2 Charging process indicator lamp
3 Locking status indicator lamp
Socket lamp 1 Oashes or lights up as wit
h indi-
cator lamps 2 and 3. 184
Driving and parking

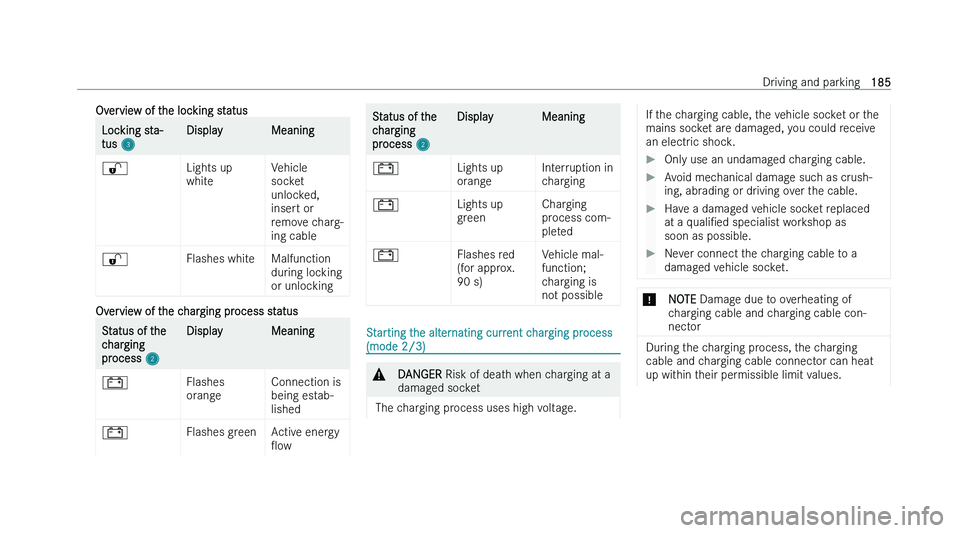

Overview of the locking status
Locking sta-
tus 3
Display Meaning
6 !

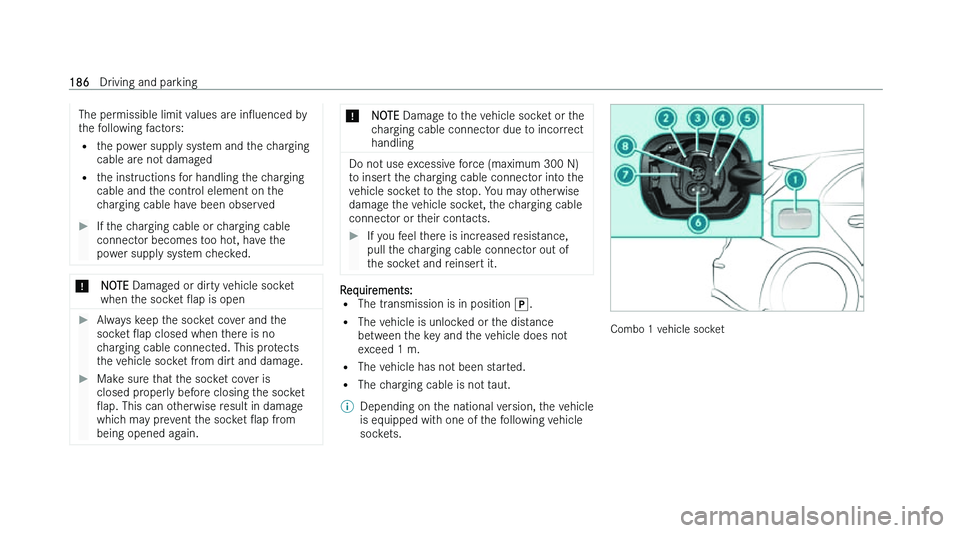

The permissible limit values are
inOuenced b y
the following factors:
= the power supply system and the charging
cable are not damaged
= the instructions for handling the charging
cable and the control element on the
charging cable have been observed
If the charging cable or charging cable
connect

or becomes too hot, have the
power supply system checked. *
NOTE Damag
ed or dirty vehicle socket
when the socket Oap is open
Always keep the socket cover and the
soc

ket Oap closed when there is no
charging cable connected. This protects
the vehicle socket from dirt and damage.
Make sure that the socket cover is
closed pr

operly before closing the socket
Oap. This can otherwise result in damage
which may prevent the socket Oap from
being opened again. *
NOTE Damag
e to the vehicle socket or the
charging cable connector due to incorrect
handling Do not use excessive force (maximum 300 N)
t
o insert the charging cable connector into the
vehicle socket to the stop. You may otherwise
damage the vehicle socket, the charging cable
connector or their contacts.
If you feel there is increased resistance,
pull t

he charging cable connector out of
the socket and reinsert it. Requirements:
= The tr

ansmission is in position j.
= The vehicle is unlocked or the distance
between the key and the vehicle does not
exceed 1 m.
= The vehicle has not been started.
= The charging cable is not taut.
% Depending on the national version, the vehicle
is eq

uipped with one of the following vehicle
sockets. Combo 1 vehicle socket186
Driving and parking

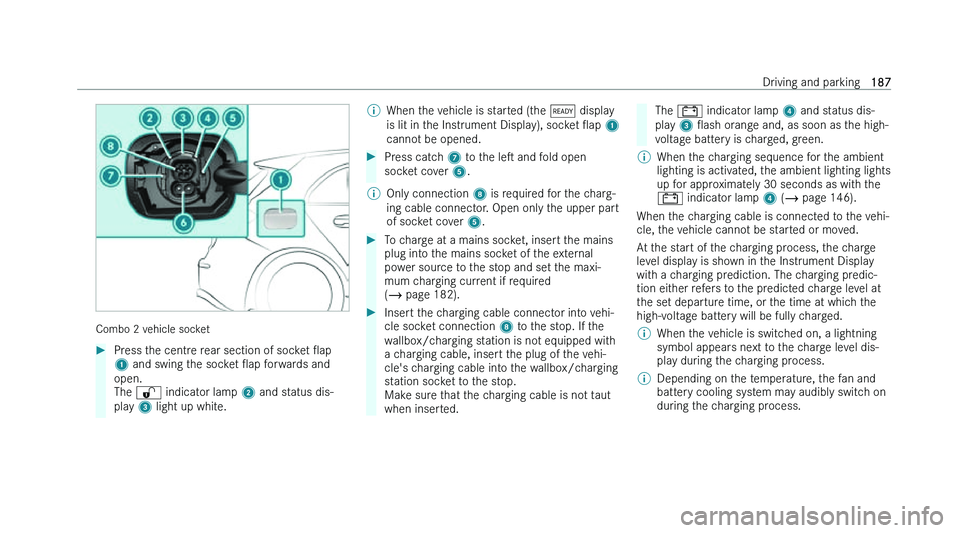

Combo 2 vehicle socket

Press the centre rear section of socket Oap
1 and swing t he socket Oap forwards and
open.
The 6 indicator lamp 2 and status dis-
play 3 light up white. %
When the vehicle is started (the õ displa
y
is lit in the Instrument Display), socket Oap 1
cannot be opened.
Press catch 7 t
o the les and fold open
socket cover 5.
% Only connection 8 is r
equired for the charg-
ing cable connector. Open only the upper part
of socket cover 5.
To charge at a mains socket, insert the mains
plug int
o the mains socket of the external
power source to the stop and set the maxi-
mum charging current if required
( page 182).
Insert the charging cable connector into vehi-
cle soc
ket connection 8 to the stop. If the
wallbox/charging station is not equipped with
a charging cable, insert the plug of the vehi-
cle's charging cable into the wallbox/charging
station socket to the stop.
Make sure that the charging cable is not taut
when inserted. The = indicat

or lamp 4 and status dis-
play 3 Oash orange and, as soon as the high-
voltage battery is charged, green.
% When the charging sequence for the ambient
lighting is activ
ated, the ambient lighting lights
up for approximately 30 seconds as with the
= indicator lamp 4 ( page 146).
When the charging cable is connected to the vehi-
cle, t
he vehicle cannot be started or moved.
At the start of the charging process, the charge
level display is shown in the Instrument Display
with a charging prediction. The charging predic-
tion either refers to the predicted charge level at
the set departure time, or the time at which the
high-voltage battery will be fully charged.
% When the vehicle is switched on, a lightning
symbol appear

s next to the charge level dis-
play during the charging process.
% Depending on the temperature, the fan and
batt

ery cooling system may audibly switch on
during the charging process. Driving and parking
187

%

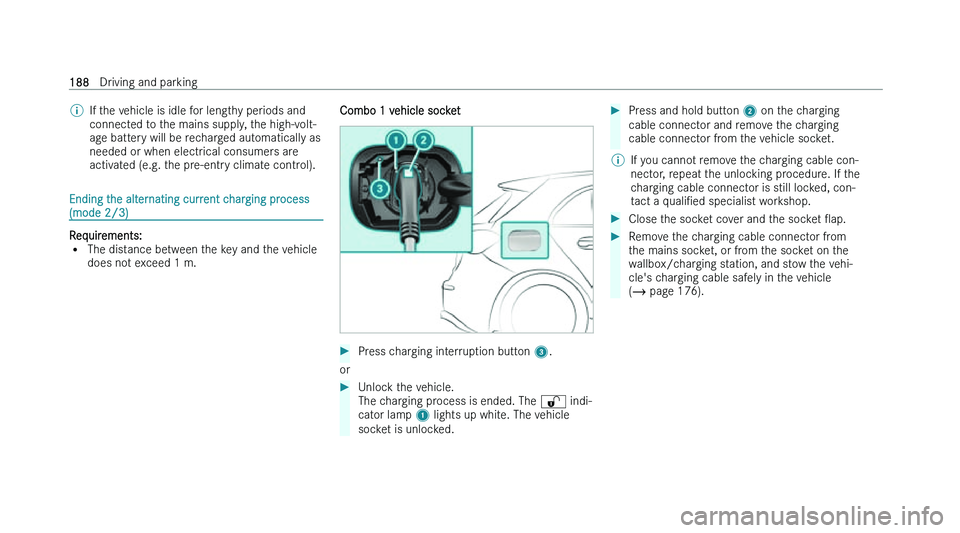

If the vehicle is idle for lengthy periods and
connect ed to the mains supply, the high-volt-
age battery will be recharged automatically as
needed or when electrical consumers are
activated (e.g. the pre-entry climate control). Ending the alternating current charging process
(mode 2/3)
Requirements:
= The dis

tance between the key and the vehicle
does not exceed 1 m. Combo 1 vehicle socket
Press charging interruption button 3.
or
Unlock the vehicle.
The c
harging process is ended. The 6 indi-
cator lamp 1 lights up white. The vehicle
socket is unlocked.
Press and hold button 2 on t
he charging
cable connector and remove the charging
cable connector from the vehicle socket.
% If you cannot remove the charging cable con-
nect
or, repeat the unlocking procedure. If the
charging cable connector is still locked, con-
tact a qualiNed specialist workshop.
Close the socket cover and the socket Oap.
Remove the charging cable connector from
t
he mains socket, or from the socket on the
wallbox/charging station, and stow the vehi-
cle's charging cable safely in the vehicle
( page 176). 188
Driving and parking

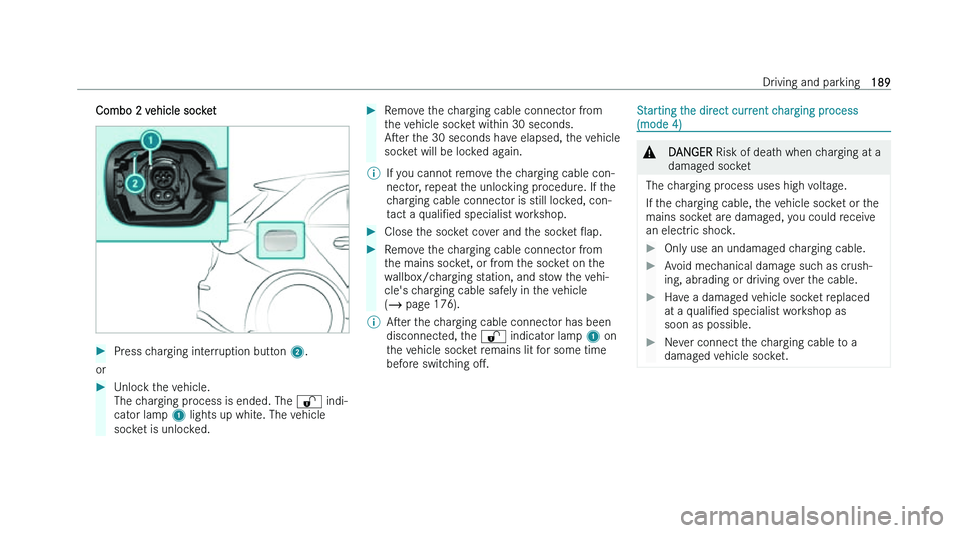

Combo 2 vehicle socket

Press charging interruption button 2.
or
Unlock the vehicle.
The c harging process is ended. The 6 indi-
cator lamp 1 lights up white. The vehicle
socket is unlocked.
Remove the charging cable connector from
t
he vehicle socket within 30 seconds.
Aser the 30 seconds have elapsed, the vehicle
socket will be locked again.
% If you cannot remove the charging cable con-
nect
or, repeat the unlocking procedure. If the
charging cable connector is still locked, con-
tact a qualiNed specialist workshop.
Close the socket cover and the socket Oap.
Remove the charging cable connector from
t
he mains socket, or from the socket on the
wallbox/charging station, and stow the vehi-
cle's charging cable safely in the vehicle
( page 176).
% Aser t
he charging cable connector has been
disconnected, the 6 indicator lamp 1 on
the vehicle socket remains lit for some time
before switching oM. Starting the direct current charging process
(mode 4)
&
DANGER Risk of deat
h when charging at a
damaged socket
The charging process uses high voltage.
If t
he charging cable, the vehicle socket or the
mains socket are damaged, you could receive
an electric shock.
Only use an undamaged charging cable.
Avoid mechanical damage such as crush-
ing, abr
ading or driving over the cable.
Have a damaged vehicle socket replaced
at a q

ualiNed specialist workshop as
soon as possible.
Never connect the charging cable to a
damag
ed vehicle socket. Driving and parking
