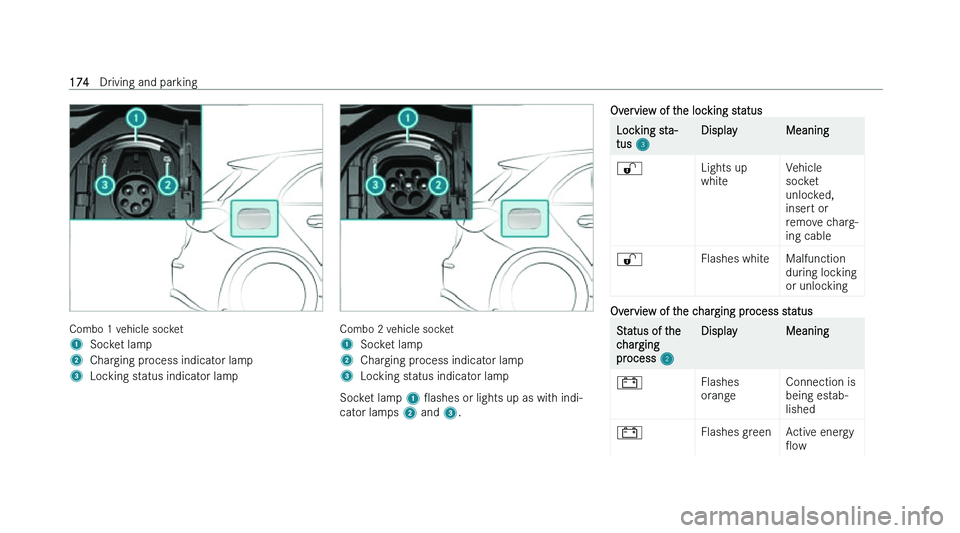

Combo 1 vehicle socket
1
Socket lamp
2 Charging process indicator lamp
3 Locking status indicator lamp Combo 2 vehicle socket
1
Socket lamp
2 Charging process indicator lamp
3 Locking status indicator lamp
Socket lamp 1 Oashes or lights up as wit h indi-
cator lamps 2 and 3. Overview of the locking status Locking sta-
tus 3
Display Meaning
6 !

Status of the
c
harging
process 2Display Meaning
= !

*

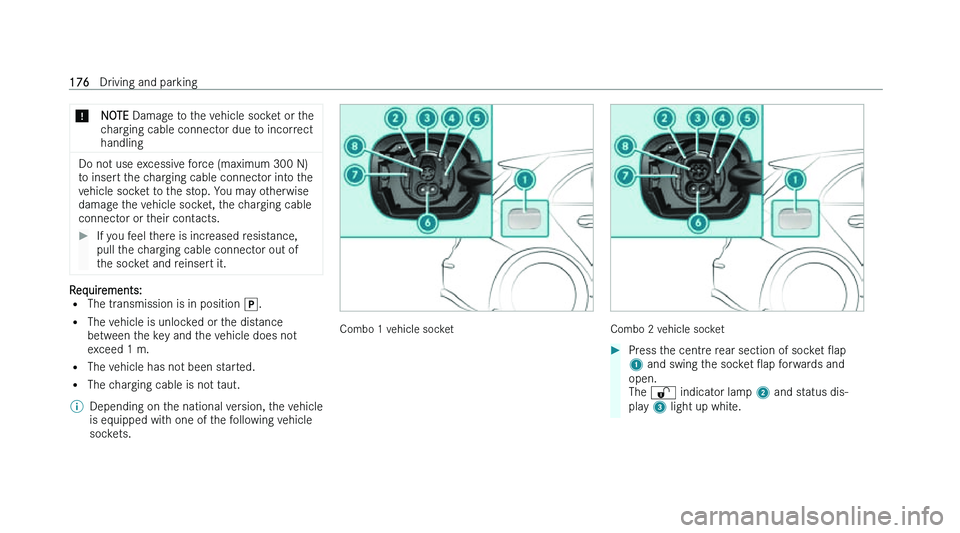

NOTE Damag e to the vehicle socket or the
charging cable connector due to incorrect
handling Do not use excessive force (maximum 300 N)
t
o insert the charging cable connector into the
vehicle socket to the stop. You may otherwise
damage the vehicle socket, the charging cable
connector or their contacts.
If you feel there is increased resistance,
pull t

he charging cable connector out of
the socket and reinsert it. Requirements:
= The tr

ansmission is in position j.
= The vehicle is unlocked or the distance
between the key and the vehicle does not
exceed 1 m.
= The vehicle has not been started.
= The charging cable is not taut.
% Depending on the national version, the vehicle
is eq

uipped with one of the following vehicle
sockets. Combo 1 vehicle socket Combo 2 vehicle socket

Press the centre rear section of socket Oap
1 and swing t
he socket Oap forwards and
open.
The 6 indicator lamp 2 and status dis-
play 3 light up white. 176
Driving and parking

%
When the vehicle is started (the õ displa y
is lit in the Instrument Display), socket Oap 1
cannot be opened.
Press catch 7 t
o the les and fold open
socket cover 5.
% Only connection 8 is r
equired for the charg-
ing cable connector. Open only the upper part
of socket cover 5.
To charge at a mains socket, insert the mains
plug int
o the mains socket of the external
power source to the stop and set the maxi-
mum charging current if required
( page 171).
Insert the charging cable connector into vehi-
cle soc
ket connection 8 to the stop. If the
wallbox/charging station is not equipped with
a charging cable, insert the plug of the vehi-
cle's charging cable into the wallbox/charging
station socket to the stop.
Make sure that the charging cable is not taut
when inserted. The = indicat

or lamp 4 and status dis-
play 3 Oash orange and, as soon as the high-
voltage battery is charged, green.
% When the charging sequence for the ambient
lighting is activ
ated, the ambient lighting lights
up for approximately 30 seconds as with the
= indicator lamp 4 ( page 135).
When the charging cable is connected to the vehi-
cle, t
he vehicle cannot be started or moved.
At the start of the charging process, the charge
level display is shown in the Instrument Display
with a charging prediction. The charging predic-
tion either refers to the predicted charge level at
the set departure time, or the time at which the
high-voltage battery will be fully charged.
% When the vehicle is switched on, a lightning
symbol appear

s next to the charge level dis-
play during the charging process.
% Depending on the temperature, the fan and
batt

ery cooling system may audibly switch on
during the charging process.
% If the vehicle is idle for lengthy periods and
connect
ed to the mains supply, the high-volt-
age battery will be recharged automatically as needed or when electrical consumers are
activ

ated (e.g. the pre-entry climate control). Ending the alternating current charging process
(mode 2/3)
Requirements:
= The dis

tance between the key and the vehicle
does not exceed 1 m. Driving and parking
177

Combo 1 vehicle socket

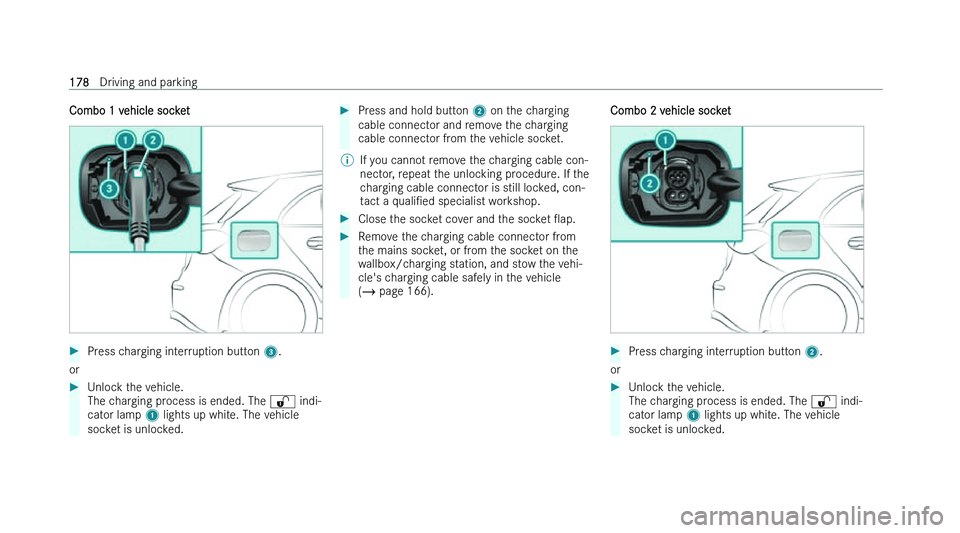

Press charging interruption button 3.
or
Unlock the vehicle.
The c harging process is ended. The 6 indi-
cator lamp 1 lights up white. The vehicle
socket is unlocked.
Press and hold button 2 on t
he charging
cable connector and remove the charging
cable connector from the vehicle socket.
% If you cannot remove the charging cable con-
nect
or, repeat the unlocking procedure. If the
charging cable connector is still locked, con-
tact a qualiNed specialist workshop.
Close the socket cover and the socket Oap.
Remove the charging cable connector from
t
he mains socket, or from the socket on the
wallbox/charging station, and stow the vehi-
cle's charging cable safely in the vehicle
( page 166). Combo 2 vehicle socket

Press charging interruption button 2.
or
Unlock the vehicle.
The c
harging process is ended. The 6 indi-
cator lamp 1 lights up white. The vehicle
socket is unlocked. 178
Driving and parking

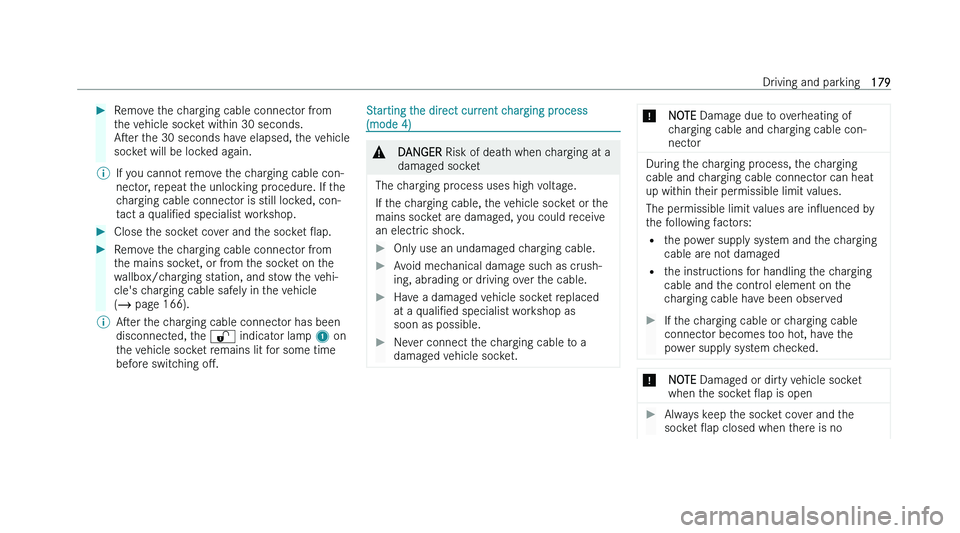

Remove the charging cable connector from
t he vehicle socket within 30 seconds.
Aser the 30 seconds have elapsed, the vehicle
socket will be locked again.
% If you cannot remove the charging cable con-
nect
or, repeat the unlocking procedure. If the
charging cable connector is still locked, con-
tact a qualiNed specialist workshop.
Close the socket cover and the socket Oap.
Remove the charging cable connector from
t
he mains socket, or from the socket on the
wallbox/charging station, and stow the vehi-
cle's charging cable safely in the vehicle
( page 166).
% Aser t
he charging cable connector has been
disconnected, the 6 indicator lamp 1 on
the vehicle socket remains lit for some time
before switching oM. Starting the direct current charging process
(mode 4)
&
DANGER Risk of deat
h when charging at a
damaged socket
The charging process uses high voltage.
If t
he charging cable, the vehicle socket or the
mains socket are damaged, you could receive
an electric shock.
Only use an undamaged charging cable.
Avoid mechanical damage such as crush-
ing, abr
ading or driving over the cable.
Have a damaged vehicle socket replaced
at a q

ualiNed specialist workshop as
soon as possible.
Never connect the charging cable to a
damag
ed vehicle socket. *
NOTE Damag
e due to overheating of
charging cable and charging cable con-
nector During the charging process, the charging
cable and c
harging cable connector can heat
up within their permissible limit values.
The permissible limit values are inOuenced by
the following factors:
= the power supply system and the charging
cable are not damaged
= the instructions for handling the charging
cable and the control element on the
charging cable have been observed
If the charging cable or charging cable
connect

or becomes too hot, have the
power supply system checked. *
NOTE Damag
ed or dirty vehicle socket
when the socket Oap is open

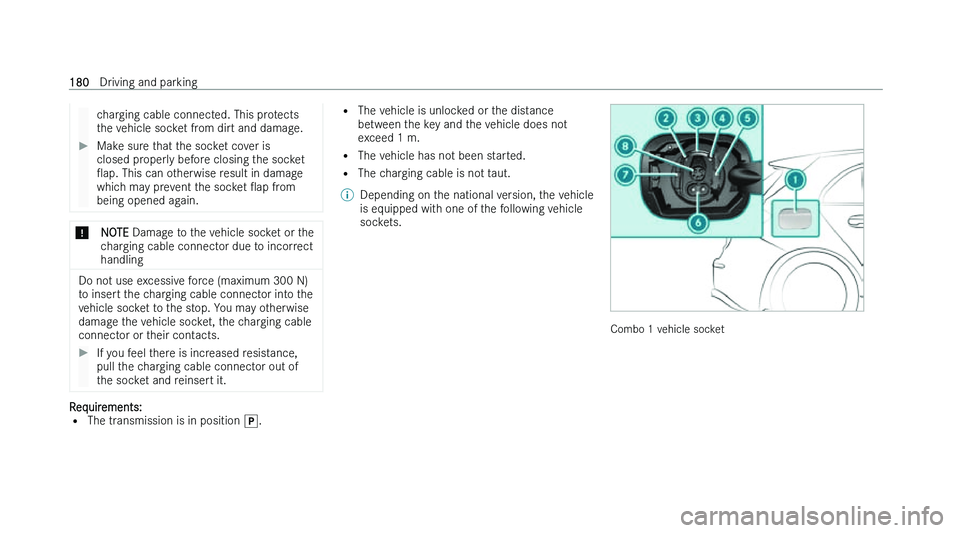

Always keep the socket cover and the
soc

ket Oap closed when there is no Driving and parking
179

charging cable connected. This protects
t he vehicle socket from dirt and damage.
Make sure that the socket cover is
closed pr

operly before closing the socket
Oap. This can otherwise result in damage
which may prevent the socket Oap from
being opened again. *
NOTE Damag
e to the vehicle socket or the
charging cable connector due to incorrect
handling Do not use excessive force (maximum 300 N)
t
o insert the charging cable connector into the
vehicle socket to the stop. You may otherwise
damage the vehicle socket, the charging cable
connector or their contacts.
If you feel there is increased resistance,
pull t

he charging cable connector out of
the socket and reinsert it. Requirements:
= The tr

ansmission is in position j.=
The v
ehicle is unlocked or the distance
between the key and the vehicle does not
exceed 1 m.
= The vehicle has not been started.
= The charging cable is not taut.
% Depending on the national version, the vehicle
is eq

uipped with one of the following vehicle
sockets. Combo 1 vehicle socket180
Driving and parking

Combo 2 vehicle socket

Press the centre rear section of socket Oap
1 and swing t he socket Oap forwards and
open.
The 6 indicator lamp 2 and status dis-
play 3 light up white. %

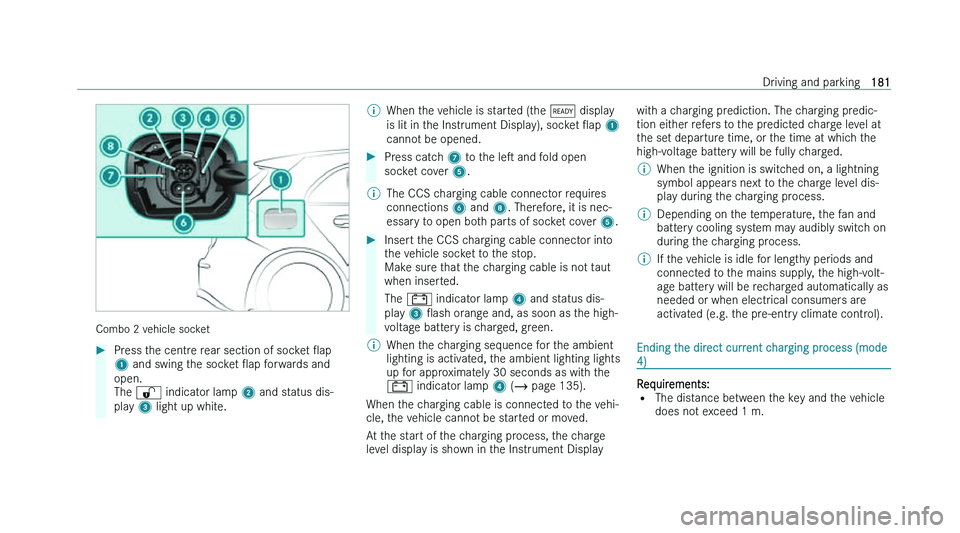

When the vehicle is started (the õ displa
y
is lit in the Instrument Display), socket Oap 1
cannot be opened.
Press catch 7 t
o the les and fold open
socket cover 5.
% The CCS charging cable connector requires
connections 6 and 8. Ther

efore, it is nec-
essary to open both parts of socket cover 5.
Insert the CCS charging cable connector into
t

he vehicle socket to the stop.
Make sure that the charging cable is not taut
when inserted.
The = indicator lamp 4 and status dis-
play 3 Oash orange and, as soon as the high-
voltage battery is charged, green.
% When the charging sequence for the ambient
lighting is activ
ated, the ambient lighting lights
up for approximately 30 seconds as with the
= indicator lamp 4 ( page 135).
When the charging cable is connected to the vehi-
cle, t
he vehicle cannot be started or moved.
At the start of the charging process, the charge
level display is shown in the Instrument Display with a charging prediction. The charging predic-
tion eit

her refers to the predicted charge level at
the set departure time, or the time at which the
high-voltage battery will be fully charged.
% When the ignition is switched on, a lightning
symbol appear

s next to the charge level dis-
play during the charging process.
% Depending on the temperature, the fan and
batt

ery cooling system may audibly switch on
during the charging process.
% If the vehicle is idle for lengthy periods and
connect
ed to the mains supply, the high-volt-
age battery will be recharged automatically as
needed or when electrical consumers are
activated (e.g. the pre-entry climate control). Ending the direct current charging process (mode
4)
Requirements:
= The dis

tance between the key and the vehicle
does not exceed 1 m. Driving and parking
181
