2022 MERCEDES-BENZ E-CLASS ESTATE display

R
Ifth e sensors are dirty, misted up, damaged or
co vered.
R Ifth e sensors are impaired due tointer fere nce
from other radar sources, e.g. strong radar
re 0ections in multi-s tore y car par ks.
R If a loss of tyre pressure or a defecti vetyre
has been de tected and displa yed.
R In complex tra1c situations where objects
cannot alw ays be clear lyidenti/ed.
R If pedestrians or vehicles mo vequickly into
th e sensor de tection range.
R If pedestrians are hidden by other objects.
R Ifth e typical outline of a pedestrian cannot be
distinguished from the background.
R If a pedestrian is not de tected as such, e.g.
due tospecial clo thing or other objects.
R Ifth e driver's seat belt is not fastened.
R On bends wi tha tight radius.
% The Active Brake Assist sensors adjust auto-
matical lywhile a cer tain distance is being
driven aTer theve hicle has been deli vered. Ac
tive Brake Assist is una vailable or only par-
tially available during thete ach-in process.
A A ctiv ctiv ating/deactiv
ating/deactiv ating A
ating Activ
ctive Br
e Br ak
ake Assist
e Assist
R
R eq
eq uir
uir ements:
ements:
R The vehicle is switched on.
Multimedia system: 4 © 5
Settings 5
Assistance
5 Active Brake Assist #
Select the desired setting.
Deactiv
Deactiv ating A
ating Activ
ctive Br
e Br ak
ake Assist
e Assist
% It is recommended that you alw ays lea ve
Ac tive Brake Assist acti vated. #
Select Off.
The distance warning function, the autono-
mous braking function and Evasive Steering
Assist are deactivated.
The system is switched on again the next time
th eve hicle is star ted.
% IfAc tive Brake Assist is deactivated, theæ
symbol appears in the status bar of the Instru-
ment Displa y. T T
r
ra1c
a1c Sign Assist
Sign Assist F
F
unction of
unction of Tr
Tr a1c
a1c Sign Assist
Sign Assist
Tr a1c Sign Assist de tects tra1c signs with the
multifunction camera (/ page 231). It assists
yo uby displaying de tected speed limits and over-
ta king restrictions in the Instrument Displa y.
Obser vethe no tes on driving systems and your
re sponsibility; you may otherwise failto recognise
dangers (/ page 231).
Since Tra1c Sign Assist also uses the data stored
in the navigation system, it can update the display
in thefo llowing situations without de tecting tra1c
signs.
If th e system de tects that you are driving onto a
section of road in the wrong direction of tr avel, it
triggers a warning.
The camera also de tects tra1c signs with a
re striction indicated byan additional sign (e.g.
when wet). These are only displa yed if a restric-
tion applies or if the system cannot clear lyde ter-
mine whe ther there striction applies. Driving and pa
rking
259 259

W
W
ar
ar ning when t
ning when t he maximum per
he maximum per missible speed is
missible speed is
ex
ex ceeded
ceeded

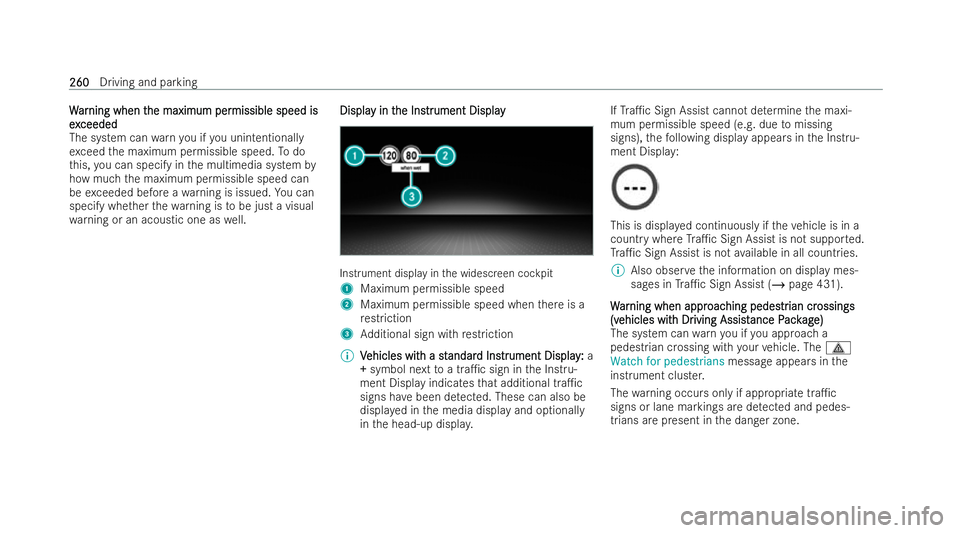

The system can warnyou if you unintentionally
ex ceed the maximum permissible speed. Todo
th is, you can specify in the multimedia system by
how much the maximum permissible speed can
be exceeded before a warning is issued. You can
specify whe ther thewa rning is tobe just a visual
wa rning or an acoustic one as well. Displa
Displa
y in t
y in the Ins
he Instr trument Display
ument Display Instrument display in
the widescreen cockpit
1 Maximum permissible speed
2 Maximum permissible speed when there is a
re striction
3 Additional sign with restriction
% V
Vehicles wit
ehicles wit h a st
h a standar
andar d Ins
d Instrtrument Display
ument Display: :a
+
+ symbol next toa tra1c sign in the Instru-
ment Display indicates that additional tra1c
signs ha vebeen de tected. These can also be
displa yed in the media display and optionally
in the head-up displa y. If
Tra1c Sign Assist cann otdeterm ine the maxi-
mum permissible speed (e.g. due tomissing
signs), thefo llowing display appears in the Instru-
ment Displa y: This is displa
yed continuously if theve hicle is in a
country where Tra1c Sign Assist is not suppor ted.
Tr a1c Sign Assist is not available in all countries.
% Also obser vethe information on display mes-
sages in Tra1c Sign Assist (/ page 431).
W
W ar
ar ning when appr
ning when appr oac
oaching pedes
hing pedes tr
trian cr
ian cr ossings
ossings
(v
(v ehicles wit
ehicles wit h Dr
h Driving Assist
iving Assist ance P
ance Pack
ackag
age)
e)
The system can warnyou if you approach a
pedestrian crossing with your vehicle. The ¯
Watch for pedestrians message appears inthe
inst rument cluster.
The warning occurs only if appropriate tra1c
signs or lane markings are de tected and pedes-
trians are present in the danger zone. 260
260
Driving and parking

Syst
Syst
em limits
em limits
The system may be impaired or may not function
pa rticular lyin thefo llowing situations:
R Ifth ere is poor visibility, e.g. due toinsu1cient
illumination of thero ad, highly variable shade
conditions, rain, sno w,fog or heavy spr ay.
R Ifth ere is glare, e.g. from oncoming tra1c,
direct sunlight or re0ections.
R Ifth ere is dirt on the windscreen in the vicinity
of the multifunction camera or if the camera is
misted up, damaged or obscured.
R Ifth e tra1c signs are hard todetect, e.g. due
to dirt, snow or insu1cient lighting, or
because they are co vered.
R Ifth e information in the navigation system's
digital map is incor rect or out-of-date.
R If signs are ambiguous, e.g. road signs in road-
wo rks or in adjacent lanes.
R Ifyo u turn sharply when passing tra1c signs
outside the camera's /eld of vision. Se Se
tting
tting Tr
Tra1c
a1c Sign Assist
Sign Assist
R
R eq
eq uir
uir ements:
ements:
R Onl
Only v
y vehicles wit
ehicles wit h Dr
h Driving Assist
iving Assist ance P
ance Pack
ackag
age:
e:
Ac tive Distance Assist DISTRONIC and ECO
Assist must be acti vatedfo rth e automatic
adoption of speed limits.
Multimedia system: 4 © 5
Settings 5
Assistance
5 Traffic Sign Assist
A
A ctiv
ctiv ating or deactiv
ating or deactiv ating aut
ating automatic adop
omatic adop tion of
tion of
speed limits (onl
speed limits (onl y v
y vehicles wit
ehicles wit h Dr
h Driving Assist
iving Assist ance
ance
P
P ack
ack ag
age)
e) #
Select Adopt limit. #
Switch the function on or o..
The speed limits de tected byTra1c Sign
Assist are automatically adop tedby Active
Distance Assist DISTRONIC.
% If one of thefo llowing systems is activated,
th e de tected speed can be manually adop ted
as the speed limit:
R Active Distance Assist DISTRONIC
R Cruise control R
Variable limi ter
Fu rther information about Active Distance
Assist DISTRONIC: (/ page 245).
Displa
Displa ying det
ying det ect
ected
edtr
tr a1c
a1c signs in t
signs in t he media dis-
he media dis-
play
play #
Select Display in head unit . #
Switch the function on or o..
Se
Se tting t
tting t he type of w
he type of w ar
arning
ning #
Select Visual & audible ,Visual orOff.
Se Se tting t tting t he w
he war
arning t
ning t hr
hreshold
eshold
This value de term ines the speed at which a warn-
ing is issued when exceeded. #
Select Warning threshold. #
Set the desired speed. Blind Spo
Blind Spo
t Assis
t Assist and At and A ctiv
ctive Blind Spo
e Blind Spo t Assis
t Assist witht with
e
e xit w
xit w ar
arning
ning F
F
unction of Blind Spo
unction of Blind Spo t Assis
t Assist and At and A ctiv
ctive Blind
e Blind
Spo
Spo t Assis
t Assist wit t with e
h exit w
xit w ar
arning
ning
Blind Spot Assist and Active Blind Spot Assist use
two lateral, rear-facing radar sensors tomonitor Driving and parking
261
261

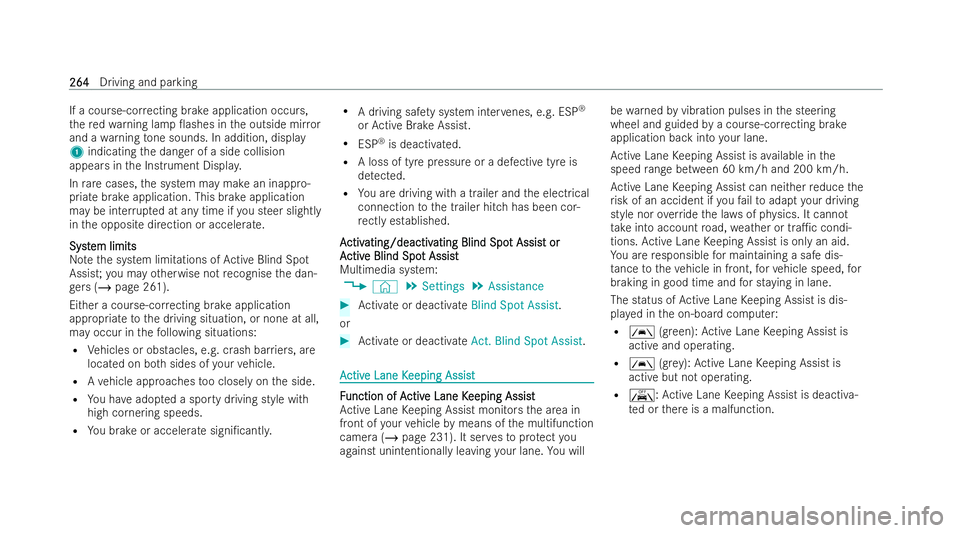

If a course-cor
recting brake application occurs,
th ere dwa rning lamp 0ashes in the outside mir ror
and a warning tone sounds. In addition, display
1 indicating the danger of a side collision
appears in the Instrument Displa y.
In rare cases, the system may make an inappro-
priate brake application. This brake application
may be inter rupted at any time if you steer slightly
in the opposite direction or accelerate.
Syst
Syst em limits em limits
No tethe system limitations of Active Blind Spot
Assist; you may otherwise not recognise the dan-
ge rs ( / page 261).
Either a course-cor recting brake application
appropriate tothe driving situation, or none at all,
may occur in thefo llowing situations:
R Vehicles or obs tacles, e.g. crash bar riers, are
located on bo thsides of your vehicle.
R Ave hicle approaches too closely on the side.
R You ha veadop ted a sporty driving style with
high cornering speeds.
R You brake or accelerate signi/cant ly.R
A driving sa fety system inter venes, e.g. ESP ®
or Active Brake Assist.
R ESP ®
is deactivated.
R A loss of tyre pressure or a defective tyre is
detected.
R You are driving with a trailer and the electrical
connection tothe trailer hitch has been cor-
re ctly es tablished.
A
A ctiv ctiv ating/deactiv
ating/deactiv ating Blind Spo
ating Blind Spo t Assis
t Assist ort or
A
A ctiv
ctiv e Blind Spo
e Blind Spo t Assist
t Assist
Multimedia system:
4 © 5
Settings 5
Assistance #
Activate or deactivate Blind Spot Assist.
or #
Activate or deactivate Act. Blind Spot Assist . A
A
ctiv
ctiv e Lane K
e Lane K eeping Assist
eeping Assist F
F
unction of A
unction of A ctiv
ctive Lane K
e Lane K eeping Assist
eeping Assist
Ac tive Lane Keeping Assist monitors the area in
front of your vehicle bymeans of the multifunction
camera (/ page 231). It ser vesto protect you
against unintentionally leaving your lane. You will be
warned byvibration pulses in the steering
wheel and guided bya course-co rrecting brake
application back into your lane.
Ac tive Lane Keeping Assist is available in the
speed range between 60 km/h and 200 km/h.
Ac tive Lane Keeping Assist can neither reduce the
ri sk of an accident if youfa ilto adapt your driving
style nor override the la wsof ph ysics. It cannot
ta ke into account road, weather or tra1c condi-
tions. Active Lane Keeping Assist is only an aid.
Yo u are responsible for maintaining a safe dis-
ta nce totheve hicle in front, forve hicle speed, for
braking in good time and for st aying in lane.
The status of Active Lane Keeping Assist is dis-
pla yed in the on-board computer:
R Ã (gre en): Active Lane Keeping Assist is
active and operating.
R Ã (gre y): Active Lane Keeping Assist is
active but not operating.
R ·: Active Lane Keeping Assist is deactiva-
te d or there is a malfunction. 264
264
Driving and parking

Re
quirements:

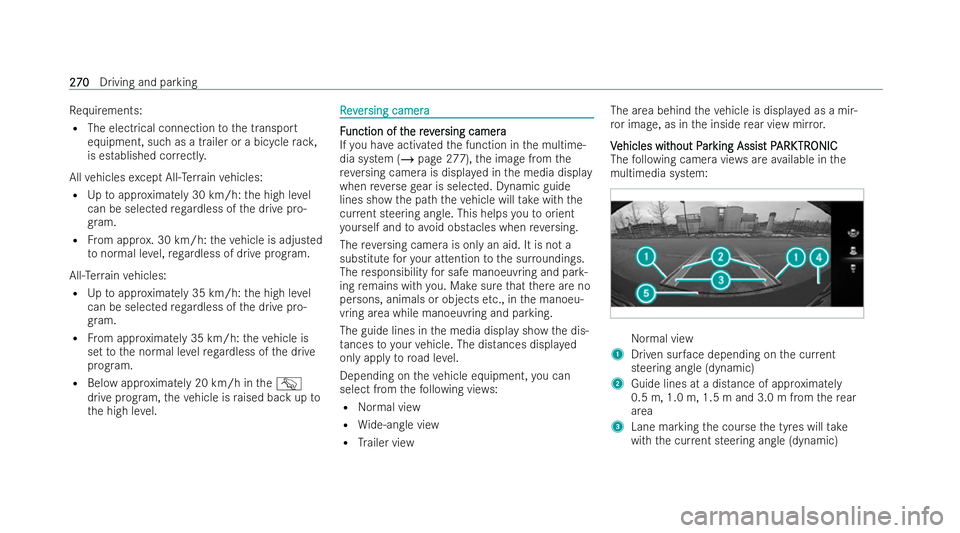

R The electrical connection tothe transport
equipment, such as a trailer or a bicycle rack,
is established cor rectl y.
All vehicles except All -Ter rain vehicles:
R Uptoappr oximately 30 km/h: the high le vel
can be selected rega rdless of the drive pro-
gr am.
R From appr ox. 30 km/h: theve hicle is adjusted
to normal le vel,re ga rdless of drive prog ram.
All- Terrain vehicles:
R Uptoappr oximately 35 km/h: the high le vel
can be selected rega rdless of the drive pro-
gr am.
R From appr oximately 35 km/h: theve hicle is
set tothe normal le velre ga rdless of the drive
prog ram.
R Below appr oximately 20 km/h in theG
drive prog ram, theve hicle is raised back up to
th e high le vel. R
R
e
ev
ver
er sing camera
sing camera F
F
unction of t
unction of t herev
he rever
ersing camera
sing camera
If yo u ha veactivated the function in the multime-
dia system (/ page 277),the image from the
re ve rsing camera is displa yed in the media display
when reve rsege ar is selected. Dynamic guide
lines show the path theve hicle will take with the
cur rent steering angle. This helps youto orient
yo urself and toavo id obstacles when reve rsing.
The reve rsing camera is only an aid. It is not a
substitute foryo ur attention tothe sur roundings.
The responsibility for safe manoeuvring and par k-
ing remains with you. Make sure that there are no
persons, animals or objects etc., in the manoeu-
vring area while manoeuvring and parking.
The guide lines in the media display show the dis-
ta nces toyour vehicle. The dis tances displa yed
only apply toroad le vel.
Depending on theve hicle equipment, you can
select from thefo llowing vie ws:
R Normal view
R Wide-angle view
R Trailer view The area behind
theve hicle is displ ayed as a mir-
ro r image, as in the inside rear view mir ror.
V
V ehicles wit ehicles wit hout P
hout Par
arking Assis
king Assist P t PARK
ARK TR
TRONIC
ONIC
The following camera vie wsare available in the
multimedia system: Normal view
1 Driven sur face depending on the cur rent
steering angle (dynamic)
2 Guide lines at a distance of app roximately
0.5 m, 1.0 m, 1.5 mand 3.0 m from there ar
area
3 Lane marking the course the tyres will take
with the cur rent steering angle (dynamic) 270
270
Driving and parking

5

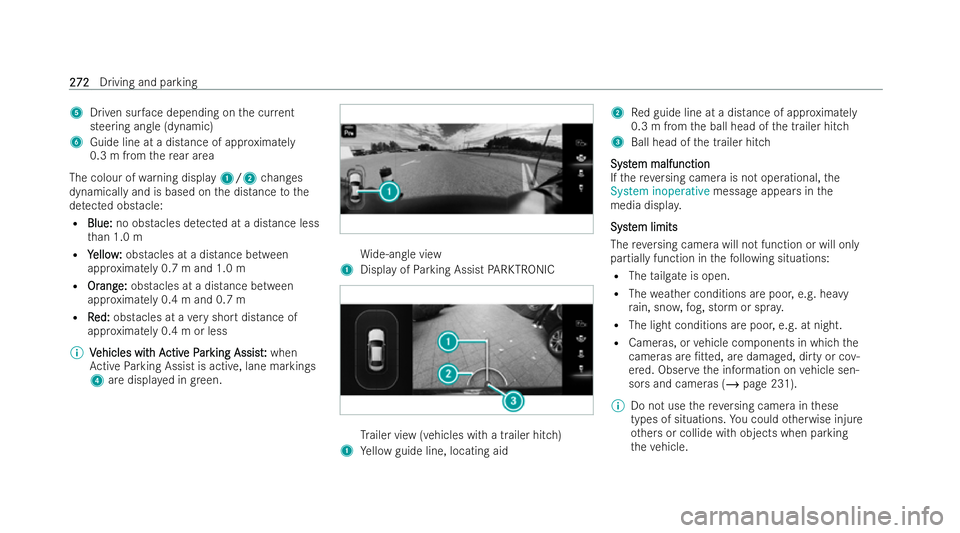

Driven sur face depending on the cur rent
steering angle (dynamic)
6 Guide line at a distance of app roximately
0.3 m from there ar area
The colour of warning display 1/2changes
dynamically and is based on the distance tothe
de tected obs tacle:
R Blue:
Blue: no obs tacles de tected at a dis tance less
th an 1.0 m
R Y
Yellow
ellow :
:obs tacles at a dis tance between
app roximately 0.7 m and 1.0 m
R Or
Or ang
ang e:
e:obstacles at a dis tance between
app roximately 0.4 m and 0.7 m
R R
Red:
ed: obstacles at a very short dis tance of
app roximately 0.4 m or less
% V
Vehicles wit
ehicles wit h A
h Activ
ctiv e P
e Par
arking Assist
king Assist: :when
Ac tive Parking Assist is active, lane markings
4 are displa yed in green. Wi
de-angle view
1 Display of Parking Assist PARKTRONIC Tr
ailer view (vehicles with a trailer hitch)
1 Yellow guide line, locating aid 2
Red guide line at a distance of appr oximately
0.3 m from the ball head of the trailer hitch
3 Ball head of the trailer hitch
Syst
Syst em malfunction
em malfunction
If th ere ve rsing camera is not operational, the
System inoperative message appears in the
media displa y.
Syst
Syst em limits
em limits
The reve rsing camera will not function or will only
partially function in thefo llowing situations:
R The tailgate is open.
R The weather conditions are poor, e.g. heavy
ra in, sno w,fog, storm or spr ay.
R The light conditions are poo r,e.g. at night.
R Cameras, or vehicle components in which the
cameras are /tted, are damaged, dirty or co v-
ered. Obser vethe information on vehicle sen-
sors and cameras (/ page 231).
% Do not use there ve rsing camera in these
types of situations. You could otherwise injure
ot hers or collide with objects when parking
th eve hicle. 272
272
Driving and parking

%
The cont rast of the display may be impaired
by direct sunlight or by other light sources,
e.g. when driving out of a garage . In this case,
pay particular attention.
% Have the display repaired or replaced if,
fo re xamp le, pixel er rors considerably restrict

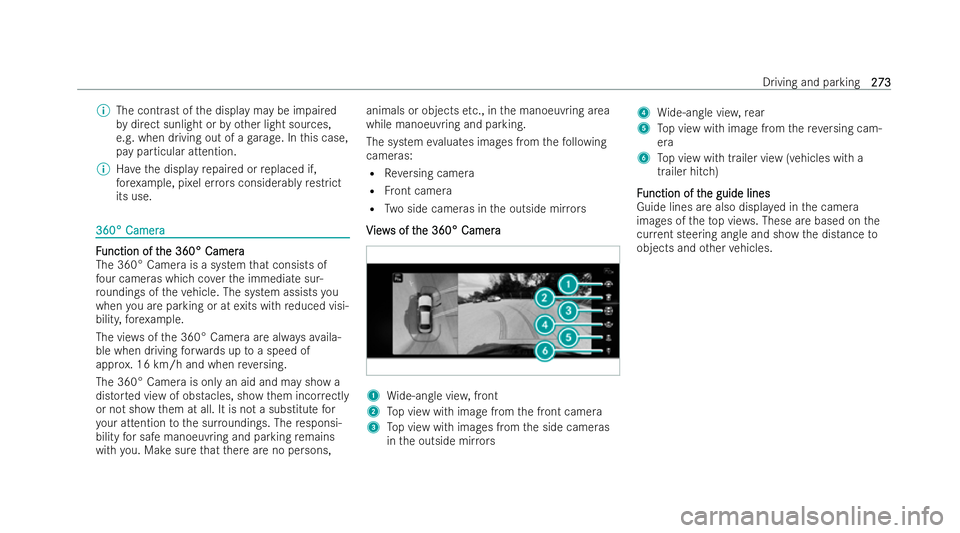

its use. 360° Came
ra
360° Camera F
F
unction of t
unction of t he 360° Camera
he 360° Camera
The 360° Camera is a system that consists of
fo ur cameras which co verth e immediate sur-
ro undings of theve hicle. The system assists you
when you are parking or at exits with reduced visi-
bility, fore xa mpl e.
The vie wsofthe 360° Camera are alw aysav aila-
ble when driving forw ards up toa speed of
appr ox. 16 km/h and when reve rsing.
The 360° Camera is only an aid and may show a
distor ted view of obstacles, show them incor rectly
or not show them at all. It is not a substitute for
yo ur attention tothe sur roundings. The responsi-
bility for safe manoeuvring and parking remains
with you. Make sure that there are no persons, animals or objects
etc., in the manoeuvring area
while manoeuvring and parking.
The system evaluates images from thefo llowing
cameras:
R Reversing camera
R Front camera
R Two side cameras in the outside mir rors
V
View iew s of t
s of t he 360° Camera he 360° Camera 1
Wide-angle vie w,front
2 Top view with image from the front camera
3 Top view with images from the side cameras
in the outside mir rors 4
Wide-angle vie w,rear
5 Top view with image from there ve rsing cam-
era
6 Top view with trailer view (vehicles with a
trailer hitch)
F
F unction of t
unction of t he guide lines
he guide lines
Guide lines are also displa yed in the camera
images of theto p vie ws. These are based on the
cur rent steering angle and sh owthe distance to
objects and other vehicles. Driving and parking
273
273

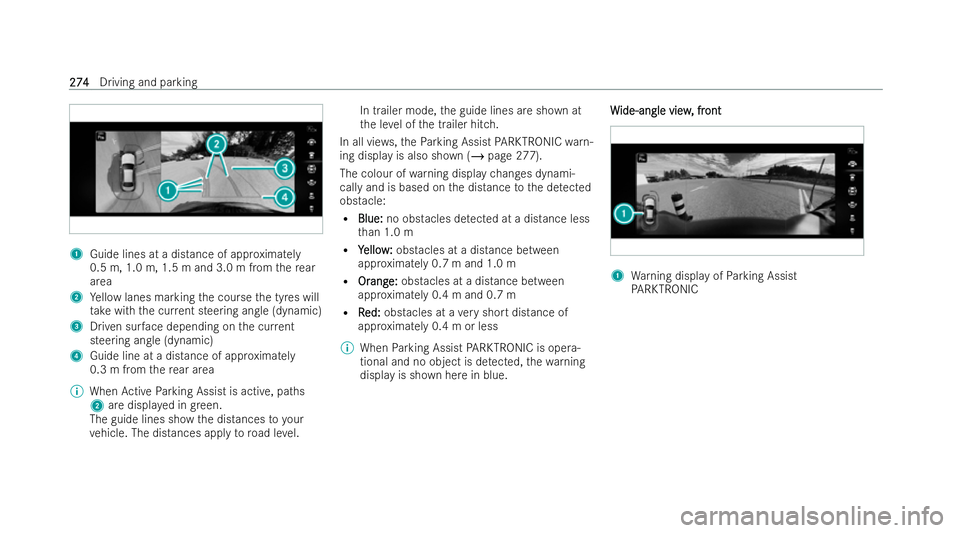

1
Guide lines at a dis tance of app roximately
0.5 m, 1.0 m, 1.5 mand 3.0 m from there ar
area
2 Yellow lanes marking the course the tyres will
ta ke with the cur rent steering angle (dynamic)
3 Driven sur face depending on the cur rent
steering angle (dynamic)
4 Guide line at a distance of app roximately
0.3 m from there ar area
% When Active Parking Assist is active, paths
2 are displa yed in green.
The guide lines show the distances toyour
ve hicle. The dis tances app lyto road le vel. In trailer mode,
the guide lines are shown at
th e le vel of the trailer hitch.
In all vie ws,th ePa rking Assist PARKTRONIC warn-
ing display is also shown (/ page 277).
The colour of warning display changes dynami-
cally and is based on the distance tothe de tected
obs tacle:
R Blue:
Blue: no obs tacles de tected at a dis tance less
th an 1.0 m
R Y
Yellow
ellow :
:obs tacles at a dis tance between
approximately 0.7 m and 1.0 m
R Or
Orang
ang e:
e:obstacles at a distance between
app roximately 0.4 m and 0.7 m
R R
Red:
ed: obstacles at a very short dis tance of
app roximately 0.4 m or less
% When Parking Assist PARKTRONIC is ope ra-
tional and no object is de tected, thewa rning
display is shown here in blue. W
W
ide-angle view
ide-angle view , fr
, front
ont 1
Warning display of Parking Assist
PA RKTRONIC 274
274
Driving and parking
