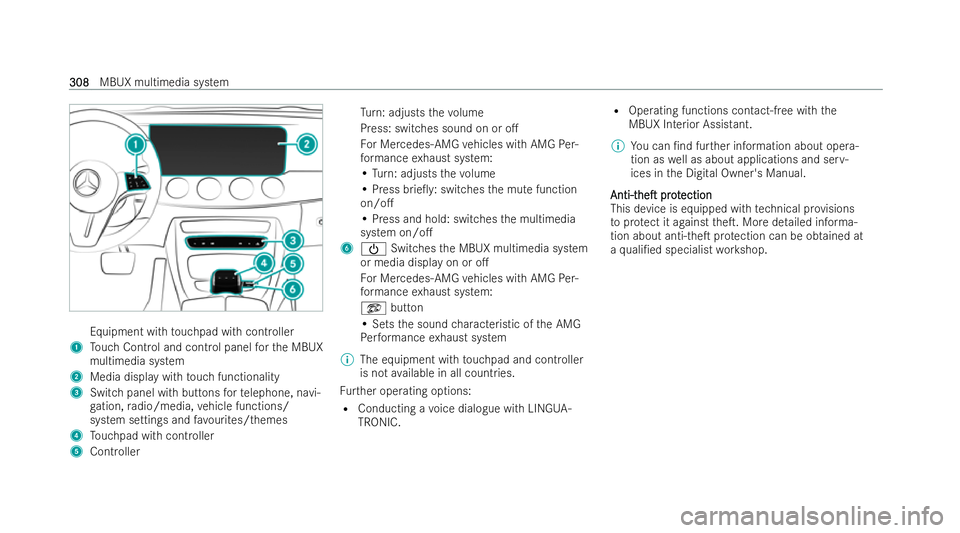

2022 MERCEDES-BENZ E-CLASS ESTATE display

Equipment with
touchpad with controller
1 Touch Control and control panel forth e MBUX
multimedia system
2 Media display with touch functionality
3 Switch panel with buttons forte lephone, navi-
ga tion, radio/media, vehicle functions/
system settings and favo urites/themes
4 Touchpad with controller
5 Controller Tu
rn: adjusts thevo lume
Press: switches sound on or o.
Fo r Mercedes-AMG vehicles with AMG Per-
fo rm ance exhaust system:
• Turn: adjusts thevo lume
• Press brie0y: switches the mute function
on/o.
• Press and hold: switches the multimedia
system on/o.
6 Ü Switches the MBUX multimedia system
or media display on or o.
Fo r Mercedes-AMG vehicles with AMG Per-
fo rm ance exhaust system:
ö button
• Sets the sound characteristic of the AMG
Pe rformance exhaust system
% The equipment with touchpad and controller
is not available in all countries.
Fu rther operating options:
R Conducting a voice dialogue with LINGU A-
TRONIC. R
Ope rating functions contact-free with the
MBUX Interior Assistant.
% You can /nd fur ther information about opera-
tion as well as about applications and ser v-
ices in the Digital Owner's Manual.
Anti-t
Anti-theT heTprot
pr otection ection
This device is equipped with tech nical pr ovisions
to protect it against theT. More de tailed informa-
tion about anti-theT pr otection can be obtained at
a quali/ed specialist workshop. 308
308
MBUX multimedia system

%
If Mercedes me connect 5is acti ve,the
ve hicle is lin ked with Mercedes me connect.
Ve hicle data is then transmitted tothe back
end system. What data is transmitted
depends on which services are activated. Fur-
th er de tails can be found in the Mercedes me
connect term s and conditions and data pro-
te ction information. The function is count ry-
dependent.
If transmission of vehicle position 6is
active , Mercedes me connect services ha ve
been activated forth is vehicle which access
th eve hicle's geoposition. In which ins tances
th ege oposition is transmitted depends on the
particular services. Further de tails can be
fo und in the Mercedes me connect term s and
conditions and data pr otection information.
The function is countr y-dependent. Oper Oper
ating t
ating t he MBUX multimedia syst
he MBUX multimedia syst em
em Using T Using T
ouc
ouc h Contr
h Contr ol ol 1

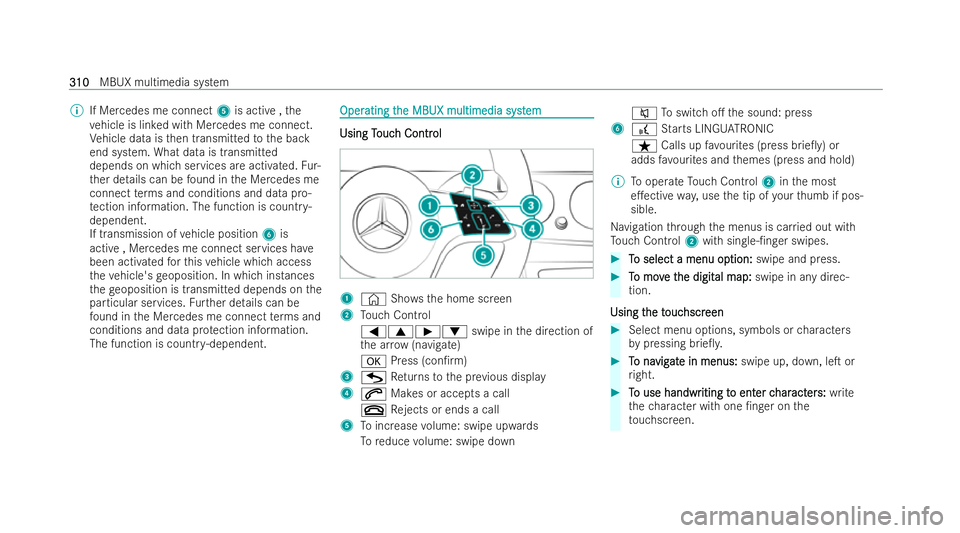

© Shows th e home screen
2 Touch Control
=9Ì: swipe inthe direction of
th e ar row (navigate)
a Press (con/rm)
3 G Returns tothe pr evious display
4 6 Makes or accepts a call
~ Rejects or ends a call
5 Toincrease volume: swipe upwards
To reduce volume: swipe down 8
Toswitch o. the sound: press
6 £ Starts LINGU ATRO NIC
ß Calls up favo urites (press brie0y) or
adds favo urites and themes (press and hold)
% Tooperate Touch Control 2inthe most
e.ective way,use the tip of your thumb if pos-
sible.
Na vigation thro ugh the menus is car ried out with
To uch Control 2with single-/nger swipes. #
T
To select a menu op
o select a menu op tion:
tion:swipe and press. #
T
To mov
o mov e t
e the digit
he digit al map:
al map: swipe in any direc-
tion.
Using t
Using t he t
he touc
ouchscr
hscr een
een #
Select menu options, symbols or characters
by pressing brie0y. #
T
To na
o na vig
vigat
ate in menus:
e in menus: swipe up, down, leT or
ri ght. #
T
To use handwr
o use handwr iting t
iting to ent
o enter c
er char
haract
acter
ers:
s: write
th ech aracter with one /nger on the
to uchscreen. 310
310
MBUX multimedia system

#
T
To zoom in and out of t
o zoom in and out of t he map:
he map: movetwo /n-
ge rs toget her or apart. #
T
To call up t
o call up t he global menu:
he global menu: press and hold on
th eto uchscreen until theOPTIONS menu
appears.
% For more information on operation, please
re ferto the Digital Owner's Manual. Using t
Using t he t
he touc
ouchpad and contr
hpad and contr oller
oller Equipment with
touchpad
1 G Returns tothe pr evious display
2 ~ Calls up the audio control menu
3 © Calls up the home screen
4 Touchpad Equipment with
touchpad with controller
1 G Returns tothe pr evious display
2 Controller
3 © Calls up the home screen
4 Touchpad
5 © Calls up the home screen
6 ~ Calls up the audio control menu
7 G Returns tothe pr evious display MBUX multimedia system
311
311

Syst
Syst
em limits, displa
em limits, displa y messag
y messages and not
es and not es f
es for
or
r
r ec ti/cation
ecti/cation

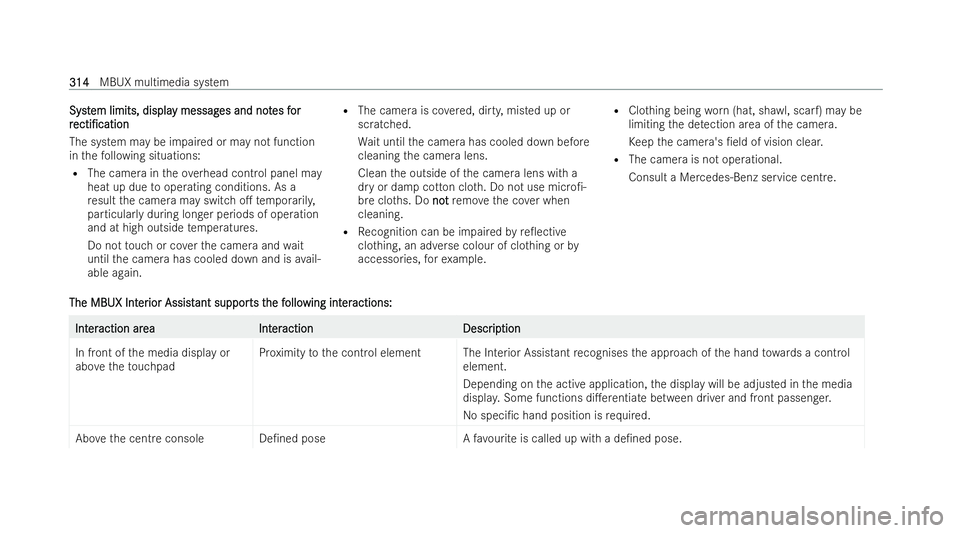

The system may be impai red or may not function
in thefo llowing situations:
R The camera in theove rhead control panel may
heat up due tooperating conditions. As a
re sult the camera may switch o. temp oraril y,
particular lyduring longer periods of operation
and at high outside temp eratures.
Do not touch or co verth e camera and wait
until the camera has cooled down and is avail-
able again. R
The camera is co vered, dirty, misted up or
scratched.
Wa it until the camera has cooled down before
cleaning the camera lens.
Clean the outside of the camera lens with a
dry or damp cotton clo th. Do not use micro/-
bre clo ths. Do no not tre mo vethe co ver when
cleaning.
R Recognition can be impaired byre0ective
clo thing, an adverse colour of clo thing or by
accessories, forex ample. R
Clothing being worn(hat, sha wl, scarf) may be
limiting the de tection area of the camera.
Ke ep the camera's /eld of vision clear.
R The camera is not operational.
Consult a Mercedes-Benz service centre.
The MBUX Int
The MBUX Int er erior Assist
ior Assist ant suppor
ant suppor ts t
ts t he f
he f ollo
ollowing int
wing int er
eractions:
actions: Int
Int
er
eraction ar
action ar ea
ea Int
Inter
eraction
action Descr
Descrip
iption
tion
In front of the media display or
abo vetheto uchpad Pr
ox imity tothe control element The Interior Assistant recognises the approach of the hand towa rds a cont rol
element.
Depending on the active application, the display will be adjusted in the media
displa y.Some functions di.e rentiate between driver and front passenger.
No speci/c hand position is requ ired.
Ab ove the centre console De/ned pose Afavo urite is called up with a de/ned pose. 314 314
MBUX multimedia system

#
T
To switc
o switc h on:
h on:reach across the front
passenger seat with a hand.
The sear chlight is switched on forth e driver. #
T
To switc
o switc h
ho.:
o.: take a hand back away from the
front passenger seat.
The search light is switched o. again. Inf
Inf
or
ormation on
mation on pr
pro/les,
o/les, t
themes, sugg
hemes, sugg es
estions andtions and
fav
fav our
our it
ites
es Fo
r electrically adjustable seats obser vethefo l-
lowing no tes. &
W
WARNING
ARNING Risk of becoming trapped dur-
ing adjustment of the driver's seat aTer
calling up a driver pro/le
Selecting a user pro/le may trigger an adjust-
ment of the driver's seat tothe position sa ved
under the user pro/le. You or other vehicle
occupants could be injured in the process. #
Make sure that when the position of the
driver's seat is being adjus ted via the
multimedia system, no people or body parts are in
the seat's range of mo ve-
ment.
If th ere is a risk of someone becoming trap-
ped, stop the adjustment process immedi-
atel y: #
a)Tapth ewa rning message onthe
media displa y.
or #
b) Press a memory function position but-
ton or a seat adjustment switch on the
driver's door.
The adjustment process will be stopped. The driver's seat is equipped with an access pre-
ve
nter.
If th e driver's door is open, the driver's seat will
not
not be set aTer calling up the driver's pro/le.
Pro/les store your vehicle settings and settings
fo rth e multimedia system. If theve hicle is used
by several drivers, the driver can select their own
pro/le without changing the stored pro/le settings
of other drivers. %
Information on pro/les from Mercedes me
connect can be found in the Digital Opera-
to r's Manual.
Ve hicle settings are, forex ample, driver's seat,
steering wheel and mir ror settings, climate control
and ambient lighting. Forth e settings of the multi-
media system, you can select, forex ample, radio
stations, pr evious destinations as well as themes,
suggestions and favo urites.
Fo rre cur ring driving situations, such as long
drives on the mo torw ay,yo u can sa veyour prefer-
re d settings in a theme in theve hicle. In a theme
yo u can sa vethe display of the digital map, your
prefer redra dio station and prefer red drive pro-
gr am, forex ample.
The vehicle can learn the habits of the driver. It
th en o.ers suggestions forth e most probable
navigation destinations, media sources, radio sta-
tions or contacts. The pre-requirements forth at
are the selection of a pro/le, your consent tothe
re cording of data and su1cient collected data.
Fa vourites pr ovide quick access toapplications
th at are used oTen. You can select favo urites 316 316
MBUX multimedia system

Syst
Syst
em se
em se ttings
ttings Ov
Ov
er
ervie
vie w of t
w of t he sy
he syst
stem se
em se ttings menu
ttings menu In
the system settings menu, you can make set-
tings in thefo llowing menus and control ele-
ments:
R Displa y:
- Styles
- Instrument lighting
- Display brightness
- Edge lighting
- Day/night design
R Control elements:
- Keyboard language and handwriting recog-
nition
- Sensitivity of theto uchpad
- Sensitivity of theTo uch Controls
R LINGU ATRO NIC
R Sound
- Enter tainment
- Navigation and tra1c announcements -
Telephone
- Voice ampli/cation tothere ar
R Connectivity:
- Wi-Fi, Blue tooth ®
, NFC
R Time & date
R Language
R Units for distance
R SoTware updates
R Data import/export
R PIN pr otection
R System reset Inf
Inf
or
ormation on im
mation on im port
portant syst
ant syst em updat
em updat es
es Impor
tant system updates may be necessary for
th e security of your multimedia system's data.
Install these updates, or else the security of your
multimedia system cannot be ensured.
A system update consists of thre e steps:
R Downloading or copying of the data requ ired
fo r installation
R Installation of the downloaded system update R
Activation of the downloaded system update
by restarting the system
% If automatic soTware updates are activated,
th e system updates will be downloaded auto-
maticall y.
The multimedia system pr ovides a message when
a system update is available.
Yo u ha vethefo llowing selection options:
R Accept and install
The system update will be downloaded in the
background.
R Information
Information about the pending system update
is displa yed.
R Later
The system update can be downloaded man-
ually at a later time.
Deep syst
Deep syst em updat em updates
es
Deep system updates access vehicle or system
settings and can therefore only be car ried out
when theve hicle is stationary and the ignition is
switched o.. 318
318
MBUX multimedia system

#
Con/ rmthe entry with ¡.
Connecting using a WPS PIN
Connecting using a WPS PIN #
Select the options rofthe desired Wi-Fi
networ k. #
Select Connect using WPS PIN input .
The multimedia system generates an eight-
digit PIN. #
Enter this PIN on the device tobe connected. #
Con/rm the entr y.
Connecting using a butt
Connecting using a butt on
on#
Select the options rofthe desired Wi-Fi
networ k. #
Select Connect via WPS PBC. #
Select "Connect via WPS PBC" in the options
on the device tobe connected (see the manu-
fa cturer's operating instructions). #
Press the WPS button on the device tobe con-
nected. #
Select Continue inthe multimedia system. A
A
ctiv
ctiv ating aut
ating aut omatic connection
omatic connection #
Select Connect via Wi-Fi. #
Select the options rofthe desired Wi-Fi
networ k. #
Activate Permanent Internet connection .
Connecting wit
Connecting wit h a kno
h a known W
wn Wi-F
i-F i ne
i ne tw
twork
ork #
Select Connect via Wi-Fi. #
Select a Wi-Fi networ k.
The connection is established again.
Con/gur
Con/gur ing
ing t
the multimedia syst
he multimedia syst em as a W
em as a Wi-F
i-Fi ho
i ho t-
t-
spo
spo t f
t for e
or e xt
xter
er nal de
nal de vices
vices
The type of connection established depends on
th e device tobe connected. The function must be
suppor tedby the multimedia system and bythe
device tobe connected. The type of connection
established must be selected on the multimedia
system and on the device tobe connected. #
Select Vehicle hotspot. #
Select Connect device to vehicle hotspot .
Connecting using WPS PIN g
Connecting using WPS PIN g ener
eneration
ation #
Select Connect using WPS PIN generation. #
Enter the PIN shown in the media display on
th e device tobe connected and con/ rm.
Connecting using WPS PIN entry
Connecting using WPS PIN entry #
Select Connect using WPS PIN input. #
Enter the PIN that is shown on theex tern al
device's displ ayon the multimedia system.
Connecting using a butt
Connecting using a butt on
on #
Select Connect via WPS PBC. #
Press the push button on the device tobe
connected (see the manufacturer's operating
inst ructions). #
Select Continue .
Connecting using a secur
Connecting using a secur itykey
ity key #
Select Connect device to vehicle hotspot.
A secu rity key is displa yed. #
Select theve hicle from the device tobe con-
nected. The vehicle is displ ayed with the
DIRECT-MBUX XXXXX network name. #
Enter the security key which is shown in the
media display on the device tobe connected. #
Con/rm the entr y. 320
320
MBUX multimedia system

%
Vehicles with rear telephon y:The handset
must be in the cradle while the system is
re set.
A prom ptappears again asking whe ther youre ally
wish toreset. #
Select Yes.
The multimedia system is reset tothefa ctory
settings. If you ha veset a PIN foryo ur system,
th is will also be reset. Plug-in h
Plug-in h
ybr
ybrid se
id se ttings
ttings Con/gur
Con/gur
ing
ingse
settings f
ttings f or plug-in h
or plug-in h ybr
ybrid v
id v ehicles
ehicles Multimedia system:
4 © 5
EQ
Se
Se tting t
tting t he c
he char
har ging pr
ging pr ocess
ocess #
Select Departure time .
The following charging times can be selected:
R Once
R Week profile #
Select a setting. Se
Se
tting a single depar
tting a single depar tur
ture time
e time #
Select Departure time . #
Select Edit single time . #
Set a departure time.
Se
Se tting t
tting t he w
he week
eekpr
pro/le
o/le #
Select Departure time . #
Select Edit week profile. #
Add new time #
Set the desired departure times, e.g. every
day at 8 a.m. #
Select a.
Se
Se tting t
tting t he maximum c
he maximum c har
harging curr
ging curr ent
ent #
Select Maximum charge current. #
Select Maximum, 8 ampsor6 amps.
When the battery is charge d, thech arging cur-
re nt is limi tedto the selected amperage.
% For saf etyre asons, only use thech arging
cable supplied with theve hicle or an original
Mercedes-Benz charging cable. Mercedes-
Benz thoroughly tests these original charging
cables forth eir suitability forth e high-voltage ch
arging of your vehicle. Pur chase these parts
from your Mercedes-Benz Service Centre and
obtain advice there.
A
A ctiv
ctiv ating or deactiv
ating or deactiv ating r
ating rout
oute-based oper
e-based oper ating
ating
mode s
mode str trat
at egy
egy #
Select Electric in city .
Depending on the pr evious status, the func-
tion is activated or deactivated. Calling up t Calling up t
he ener he energy
gy0ow
0ow display
display Multimedia system:
4 © 5
EQ #
Select Energy flow.
The visualisation of the energy 0ow in theve hi-
cle is displ ayed.
Information on the status of thehy brid system
and the cur rent state of charge ofthe high-voltage
battery is displa yed in addition tothe energy 0o w. 322
322
MBUX multimedia system
