2022 MERCEDES-BENZ E-CLASS CABRIOLET Owners Manual

R
R
aising t
aising t he v
he vehicle
ehicle #
Press but ton1.
Indica tor lamp 2lights up.
The vehicle is set tothe high le vel.
Yo ur selection is sa ved.
The vehicle is automatically lo wered again in the
fo llowing situations:
R When driving faster than 80 km/h. R
When driving between 60 km/h and 80 km/h
for appr oximately thre e minutes.
R ATer changing a drive prog ram using the
DY NAMIC SELECT switch.
The vehicle is adjusted tothe height of the last
active drive prog ram.
Low Low er
ering t
ing t he v
he vehicle
ehicle #
Press button 1.
Indicator lamp 2goes out. The vehicle is
adjusted tothe height of the active drive pro-
gr am.
Oper
Oper ation wit
ation wit h a tr
h a trailer or bicy
ailer or bicy cle r
cle rack
ack
If th e electrical connection tothe transport equip-
ment, such as a trailer or a bicycle rack , is es tab-
lished cor rectl y:
R Uptoappr oximately 30 km/h: the high le vel
can be selected rega rdless of the drive pro-
gr am.
R From appr ox. 30 km/h: theve hicle is adjusted
to normal le vel,re ga rdless of drive prog ram. R
R
e
ev
ver
er sing camera
sing camera F
F
unction of t
unction of t herev
he rever
ersing camera
sing camera
If yo u ha veactivated the function in the multime-
dia system (/ page 229),the image from the
re ve rsing camera is displa yed in the media display
when reve rsege ar is selected. Dynamic guide
lines show the path theve hicle will take with the
cur rent steering angle. This helps youto orient
yo urself and toavo id obstacles when reve rsing.
The reve rsing camera is only an aid. It is not a
substitute foryo ur attention tothe sur roundings.
The responsibility for safe manoeuvring and par k-
ing remains with you. Make sure that there are no
persons, animals or objects etc., in the manoeu-
vring area while manoeuvring and parking.
The guide lines in the media display show the dis-
ta nces toyour vehicle. The dis tances displa yed
only apply toroad le vel.
Depending on theve hicle equipment, you can
select from thefo llowing vie ws:
R Normal view
R Wide-angle view
R Trailer view 222 222
Driving and parking

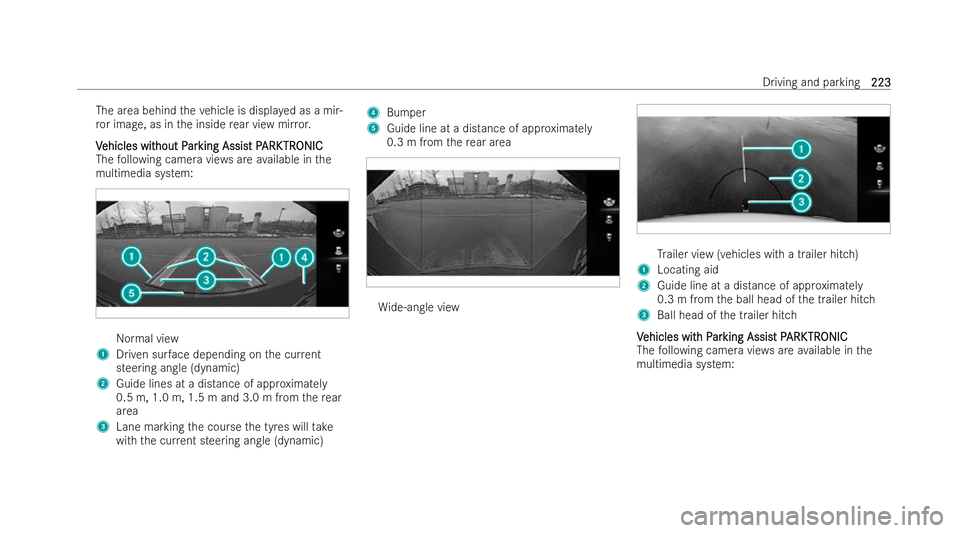

The area behind
theve hicle is displ ayed as a mir-
ro r image, as in the inside rear view mir ror.
V
V ehicles wit
ehicles wit hout P
hout Par
arking Assis
king Assist P t PARK
ARK TR
TRONIC
ONIC
The following camera vie wsare available in the
multimedia system: Normal view
1 Driven sur face depending on the cur rent
steering angle (dynamic)
2 Guide lines at a distance of app roximately
0.5 m, 1.0 m, 1.5 mand 3.0 m from there ar
area
3 Lane marking the course the tyres will take
with the cur rent steering angle (dynamic) 4
Bumper
5 Guide line at a distance of app roximately
0.3 m from there ar area Wi
de-angle view Tr
ailer view (vehicles with a trailer hitch)
1 Locating aid
2 Guide line at a dis tance of app roximately
0.3 m from the ball head of the trailer hitch
3 Ball head of the trailer hitch
V
V ehicles wit
ehicles wit h P
h Par
arking Assis
king Assist P t PARK
ARK TR
TRONIC
ONIC
The following camera vie wsare available in the
multimedia system: Driving and parking
223
223

Normal view
1 Yellow warning displa y:obstacles at a dis-
ta nce between app roximately 0.7 mand
1.0 m
2 Orange warning displa y:obstacles at a dis-
ta nce between app roximately 0.4 mand
0.7 m
3 Guide lines at a dis tance of app roximately
0.5 m, 1.0 m, 1.5 mand 3.0 m from there ar
area
4 Yellow lanes marking the course the tyres will
ta ke with the cur rent steering angle (dynamic) 5
Driven sur face depending on the cur rent
steering angle (dynamic)
6 Guide line at a distance of app roximately
0.3 m from there ar area
The colour of warning display 1/2changes
dynamically and is based on the distance tothe
de tected obs tacle:
R Blue:
Blue: no obs tacles de tected at a dis tance less
th an 1.0 m
R Y
Yellow
ellow :
:obs tacles at a dis tance between
app roximately 0.7 m and 1.0 m
R Or
Or ang
ang e:
e:obstacles at a dis tance between
app roximately 0.4 m and 0.7 m
R R
Red:
ed: obstacles at a very short dis tance of
app roximately 0.4 m or less
% V
Vehicles wit
ehicles wit h A
h Activ
ctiv e P
e Par
arking Assist
king Assist: :when
Ac tive Parking Assist is active, lane markings
4 are displa yed in green. Wi
de-angle view
1 Display of Parking Assist PARKTRONIC Tr
ailer view (vehicles with a trailer hitch)
1 Yellow guide line, locating aid 224
224
Driving and parking

2
Red guide line at a distance of appr oximately
0.3 m from the ball head of the trailer hitch
3 Ball head of the trailer hitch
Syst
Syst em malfunction
em malfunction
If th ere ve rsing camera is not operational, the
System inoperative message appears in the
media displa y.
Syst
Syst em limits
em limits
The reve rsing camera will not function or will only
partially function in thefo llowing situations:
R The boot lid is open.
R The weather conditions are poor, e.g. heavy
ra in, sno w,fog, storm or spr ay.
R The light conditions are poo r,e.g. at night.
R Cameras, or vehicle components in which the
cameras are /tted, are damaged, dirty or co v-
ered. Obser vethe information on vehicle sen-
sors and cameras (/ page 186).
% Do not use there ve rsing camera in these
types of situations. You could otherwise injure
ot hers or collide with objects when parking
th eve hicle. %
The cont rast of the display may be impaired
by direct sunlight or by other light sources,
e.g. when driving out of a garage . In this case,
pay particular attention.
% Have the display repaired or replaced if,
fo re xamp le, pixel er rors considerably restrict
its use. 360° Came
ra
360° Camera F
F
unction of t
unction of t he 360° Camera
he 360° Camera
The 360° Camera is a system that consists of
fo ur cameras which co verth e immediate sur-
ro undings of theve hicle. The system assists you
when you are parking or at exits with reduced visi-
bility, fore xa mpl e.
The vie wsofthe 360° Camera are alw aysav aila-
ble when driving forw ards up toa speed of
appr ox. 16 km/h and when reve rsing.
The 360° Camera is only an aid and may show a
distor ted view of obstacles, show them incor rectly
or not show them at all. It is not a substitute for
yo ur attention tothe sur roundings. The responsi-
bility for safe manoeuvring and parking remains
with you. Make sure that there are no persons, animals or objects
etc., in the manoeuvring area
while manoeuvring and parking.
The system evaluates images from thefo llowing
cameras:
R Reversing camera
R Front camera
R Two side cameras in the outside mir rors
V
View iew s of t s of t he 360° Camera
he 360° Camera 1
Wide-angle vie w,front
2 Top view with image from the front camera
3 Top view with images from the side cameras
in the outside mir rors Driving and parking
225
225

4
Wide-angle vie w,rear
5 Top view with image from there ve rsing cam-
era
6 Top view with trailer view (vehicles with a
trailer hitch)
F
F unction of t
unction of t he guide lines
he guide lines
Guide lines are also displa yed in the camera
images of theto p vie ws. These are based on the
cur rent steering angle and sh owthe distance to
objects and other vehicles. 1
Guide lines at a dis tance of app roximately
0.5 m, 1.0 m, 1.5 mand 3.0 m from there ar
area
2 Yellow lanes marking the course the tyres will
ta ke with the cur rent steering angle (dynamic)
3 Driven sur face depending on the cur rent
steering angle (dynamic)
4 Guide line at a distance of app roximately
0.3 m from there ar area
% When Active Parking Assist is active, paths
2 are displa yed in green.
The guide lines show the distances toyour
ve hicle. The dis tances app lyto road le vel. In trailer mode,
the guide lines are shown at
th e le vel of the trailer hitch.
In all vie ws,th ePa rking Assist PARKTRONIC warn-
ing display is also shown (/ page 229).
The colour of warning display changes dynami-
cally and is based on the distance tothe de tected
obs tacle:
R Blue:
Blue: no obs tacles de tected at a dis tance less
th an 1.0 m
R Y
Yellow
ellow :
:obs tacles at a dis tance between
approximately 0.7 m and 1.0 m
R Or
Or ang
ang e:
e:obstacles at a distance between
app roximately 0.4 m and 0.7 m
R R
Red:
ed: obstacles at a very short dis tance of
app roximately 0.4 m or less
% When Parking Assist PARKTRONIC is ope ra-
tional and no object is de tected, thewa rning
display is shown here in blue. 226
226
Driving and parking

W
W
ide-angle view
ide-angle view , fr
, front
ont 1
Warning display of Parking Assist
PA RKTRONIC T
T
op vie
op vie w wit
w with imag
h imag e fr
e from t
om t he fr
he fr ont camera
ont camera 1
Warning display of Parking Assist
PA RKTRONIC (/ page 229, 240)
2 Your vehicle from abo ve
3 Lane indicating thero ute theve hicle will take
at the cur rent steering angle
T
T op vie
op vie w wit
w with imag
h imag es fr
es from t
om t he side camer
he side camer as in
as in
t
t he outside mirr
he outside mirr ors
ors
The front and rear sides of theve hicle can be
seen in this vie w. T
T
op vie
op vie w tr
w trailer vie
ailer vie w — no tr
w — no tr ailer connect
ailer connect ed
ed
If yo u select trailer view and no trailer is coupled
to theve hicle, thefo llowing display appears: Driving and parking
227
227

1
Locating aid
2 Guide line at a distance of approximate ly
0.3 m from the ball head of the trailer hitch
3 Ball head of the trailer hitch
T
T op vie
op vie w tr
w trailer vie
ailer vie w — tr
w — trailer connect
ailer connect ed
ed
When the electrical connection is established
between theve hicle and the trailer, the display
ch anges tothe side camera vie w.
This view supports manoeuvring procedures with
a trailer. Syst
Syst
em limits
em limits
If th e system is not ready for operation, theSys-
tem inoperative message appears in the media
displa y.
The 360° Camera will not function or will only
partially function in thefo llowing situations:
R You are driving forw ards at a speed greater
th an appr oximately 16 km/h.
R The doors are open.
R An outside mir ror is not comple tely folded out.
R The boot lid is open.
R The weather conditions are poor, e.g. heavy
ra in, sno w,fog, storm or spr ay. R
The light conditions are poo r,e.g. at night.
R The camera lens is obstructed, dirty or misted
up.
R If cameras or vehicle components in which the
cameras are /tted are damaged. In this event,
ha ve the cameras, their positions and their
setting checked at a quali/ed specialist work-
shop.
% Do not use the 360° Camera under such cir-
cumstances. You could otherwise injure oth-
ers or collide with objects when parking the
ve hicle.
Fo rte ch nical reasons, the standard height of the
ve hicle may be altered if theve hicle is car rying a
heavy load and can result in inaccu racies in the
guide lines and in the display of thege nerated
ima ges.
The /eld of vision and other functions of the cam-
era system may be restric ted due toadditional
attachments on theve hicle (e.g. licence plate
brac ket, bicycle rack ). 228
228
Driving and parking

%
The cont rast of the display may be impaired
by abrupt, direct sunlight or by other light
sources, e.g. when driving out of a garage . In
th is case, pay particular attention.
% Have the display repaired or replaced if,
fo re xamp le, pixel er rors considerably restrict
its use.
See the no tes on cleaning the 360° Camera
(/ page 313).
Calling up t
Calling up t he vie
he view of t
w of the 360° Camer
he 360° Camer a using
a using
rev
rev er
erse g
se g ear
ear
R
R eq
eq uir
uir ements:
ements:
R The Auto reversing camera function is activa-
te d in the multimedia system (/ page 229).#
Engage reve rsege ar. #
Select the desired view in the multimedia sys-
te m (/ page 225). #
If, aTer shiTing toreve rsege ar, the image of
th ere ve rsing camera is not shown: switch o.
th eve hicle, press and hold thec button,
switch on theve hicle and engage reve rsege ar
again. Switc
Switc
hingrev
hing rever
ersing camer
sing camer a aut
a automatic mode
omatic mode
on/o.
on/o.
The reve rsing camera is only an aid. It is not a
substitute foryo ur attention tothe sur roundings.
The responsibility for safe manoeuvring and par k-
ing remains with you. Make sure that no persons,
animals or objects etc. are in the manoeuvring
ra nge. Pay attention toyour sur roundings and be
re ady tobrake at all times.
Multimedia system: 4 © 5
Settings 5
Assistance
5 Camera & parking #
Switch Auto reversing camera on or o..
Opening t Opening t he camer he camera cov
a cover of t
er of t herev
he rever
ersing cam-
sing cam-
era
era
Multimedia system:
4 © 5
Settings 5
Assistance
5 Camera & parking #
Select Open camera cover.
% The camera co ver closes automatically aTer
some time or aTer an ignition cycle. P P
ar
ar king Assis
king Assist P t PARK
ARK TR
TRONIC
ONIC F
F
unction of P
unction of P ar
arking Assis
king Assist P t PARK
ARK TR
TRONIC
ONIC
Pa rking Assist PARKTRONIC is an electronic par k-
ing assistance system which monitors the area
sur rounding your vehicle and sho wsyouth e dis-
ta nce between theve hicle and a de tected obs ta-
cle visual lyand audib ly.
Pa rking Assist PARKTRONIC is only an aid. It is
not a substitute foryo ur attention tothe sur round-
ings. The responsibility for safe manoeuvring and
parking remains with you. Make sure that there
are no persons, animals or objects in the manoeu-
vring area while manoeuvring and parking in/exit-
ing parking spaces.
The passive side impact pr otection also warnsyou
of obstacles tothe side. During the parking proce-
dure or manoeuvring, objects are de tected as the
ve hicle drives past. If you steer in the direction of
a de tected obs tacle and there is a risk of a lateral
collision, a warning is issued. In order for an
object on the side tobe de tected, the sensors in
th e front and rear bumper must /r stdetect the
object while you are driving past it. Driving and parking
229 229
