2022 MERCEDES-BENZ C-CLASS SALOON Owners Manual

=
The v ehicle is unlocked or the distance
between the key and the vehicle does not
exceed 1 m.
= The vehicle is switched oM. The

When the vehicle is switched on (the

Combo 1 vehicle socket

Combo 1 vehicle socket: pr ess charging inter-
ruption button 3.
The charging process is ended. The 6 indi-
cator lamp 1 lights up white. The vehicle
socket is unlocked.
Type 1 vehicle socket: unloc
k the vehicle.
The charging process is ended. The 6 indi-
cator lamp 1 lights up white. The vehicle
socket is unlocked.
Press and hold button 2 on t
he charging
cable connector and remove the charging
cable connector from the vehicle socket.
% If you cannot remove the charging cable con-
nect
or, repeat the unlocking procedure. If the
charging cable connector is still locked, con-
tact a qualiNed specialist workshop.
Close the socket cover and the socket Oap.
Remove the charging cable connector from
t
he mains socket, or from the socket on the
wallbox/charging station, and stow the vehi-
cle's charging cable safely in the vehicle
( page 204). Combo 2 vehicle socket

Combo 2 vehicle socket: pr
ess charging inter-
ruption button 2.
The charging process is ended. The 6 indi-
cator lamp 1 lights up white. The vehicle
socket is unlocked. 216
Driving and parking


Type 2 vehicle socket: unloc k the vehicle.
The charging process is ended. The 6 indi-
cator lamp 1 lights up white. The vehicle
socket is unlocked.
Remove the charging cable connector from
t
he vehicle socket within 30 seconds.
Aser the 30 seconds have elapsed, the vehicle
socket will be locked again.
% If you cannot remove the charging cable con-
nect
or, repeat the unlocking procedure. If the
charging cable connector is still locked, con-
tact a qualiNed specialist workshop.
Close the socket cover and the socket Oap.
Remove the charging cable connector from
t
he mains socket, or from the socket on the
wallbox/charging station, and stow the vehi-
cle's charging cable safely in the vehicle
( page 204).
% Aser t
he charging cable connector has been
disconnected, the 6 indicator lamp 1 on
the vehicle socket remains lit for some time
before switching oM. Starting the direct current charging process
(mode 4)
&
DANGER Risk of deat
h when charging at a
damaged socket
The charging process uses high voltage.
If t
he charging cable, the vehicle socket or the
mains socket are damaged, you could receive
an electric shock.
Only use an undamaged charging cable.
Avoid mechanical damage such as crush-
ing, abr
ading or driving over the cable.
Have a damaged vehicle socket replaced
at a q

ualiNed specialist workshop as
soon as possible.
Never connect the charging cable to a
damag
ed vehicle socket. *
NOTE Damag
e due to overheating of
charging cable and charging cable con-
nector During the charging process, the charging
cable and c
harging cable connector can heat
up within their permissible limit values.
The permissible limit values are inOuenced by
the following factors:
= the power supply system and the charging
cable are not damaged
= the instructions for handling the charging
cable and the control element on the
charging cable have been observed
If the charging cable or charging cable
connect

or becomes too hot, have the
power supply system checked. *
NOTE Damag
ed or dirty vehicle socket
when the socket Oap is open
Always keep the socket cover and the
soc

ket Oap closed when there is no Driving and parking
217

charging cable connected. This protects
t he vehicle socket from dirt and damage.
Make sure that the socket cover is
closed pr

operly before closing the socket
Oap. This can otherwise result in damage
which may prevent the socket Oap from
being opened again. *
NOTE Damag
e to the vehicle socket or the
charging cable connector due to incorrect
handling Do not use excessive force (maximum 300 N)
t
o insert the charging cable connector into the
vehicle socket to the stop. You may otherwise
damage the vehicle socket, the charging cable
connector or their contacts.
If you feel there is increased resistance,
pull t

he charging cable connector out of
the socket and reinsert it. Requirements:
= The tr

ansmission is in position j.=
The v
ehicle is unlocked or the distance
between the key and the vehicle does not
exceed 1 m.
= The vehicle is not switched on. The

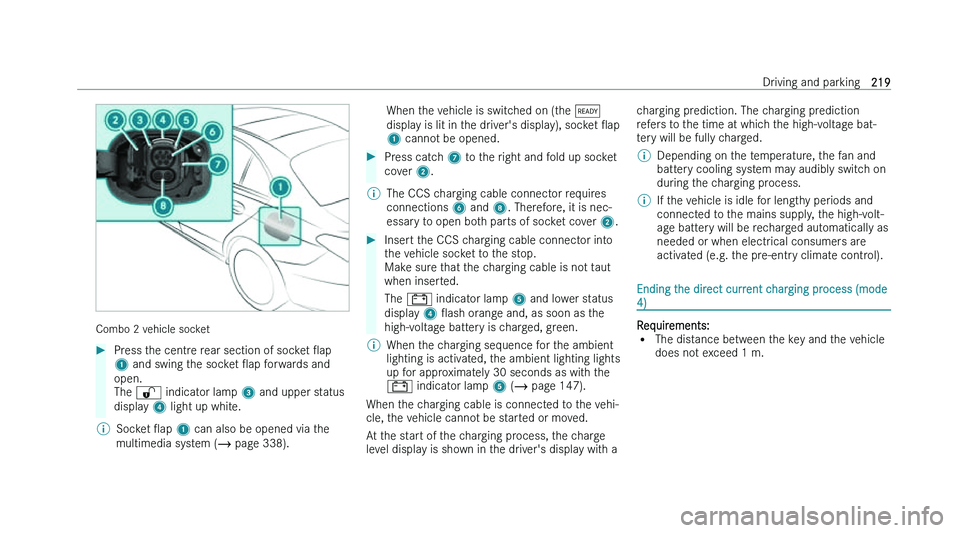

Combo 2 vehicle socket

Press the centre rear section of socket Oap
1 and swing t he socket Oap forwards and
open.
The 6 indicator lamp 3 and upper status
display 4 light up white.
% Socket Oap 1 can also be opened via t
he
multimedia system (  page 338). When the vehicle is switched on (the

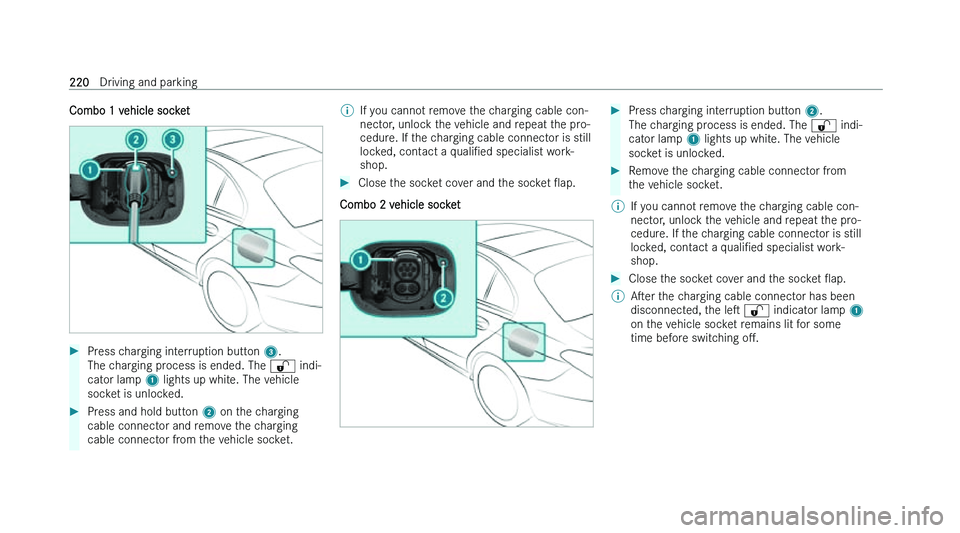

Combo 1 vehicle socket

Press charging interruption button 3.
The c harging process is ended. The 6 indi-
cator lamp 1 lights up white. The vehicle
socket is unlocked.
Press and hold button 2 on t
he charging
cable connector and remove the charging
cable connector from the vehicle socket. %
If you cannot remove the charging cable con-
nect
or, unlock the vehicle and repeat the pro-
cedure. If the charging cable connector is still
locked, contact a qualiNed specialist work-
shop.
Close the socket cover and the socket Oap.
Combo 2 vehicle socket
Press charging interruption button 2.
The c harging process is ended. The 6 indi-
cator lamp 1 lights up white. The vehicle
socket is unlocked.
Remove the charging cable connector from
t
he vehicle socket.
% If you cannot remove the charging cable con-
nect
or, unlock the vehicle and repeat the pro-
cedure. If the charging cable connector is still
locked, contact a qualiNed specialist work-
shop.
Close the socket cover and the socket Oap.
% Aser t
he charging cable connector has been
disconnected, the les 6 indicator lamp 1
on the vehicle socket remains lit for some
time before switching oM.220
Driving and parking

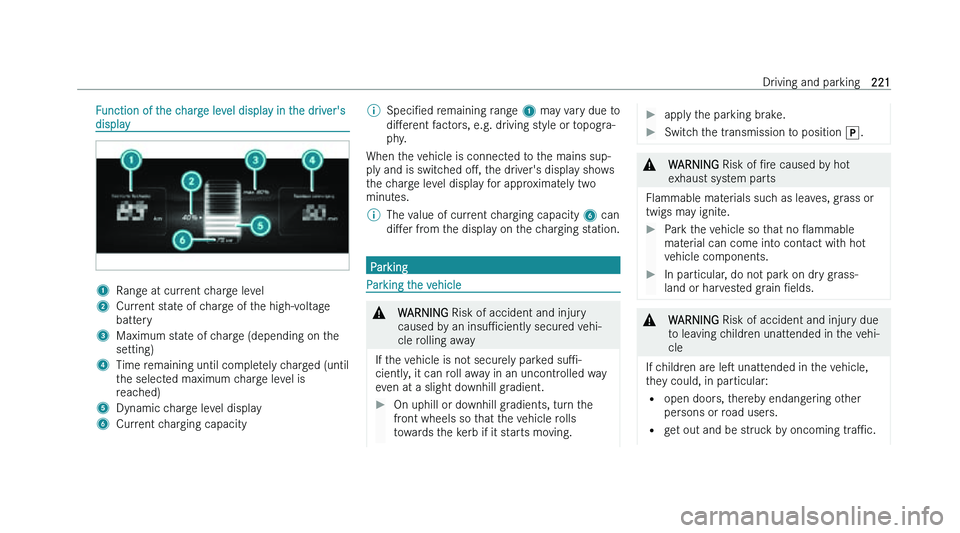

Function of the charge level display in the driver's
displa
y 1
Range at current charge level
2 Current state of charge of the high-voltage
batt

ery
3 Maximum state of charge (depending on the
se
tting)
4 Time remaining until completely charged (until
t

he selected maximum charge level is
reached)
5 Dynamic charge level display
6 Current charging capacity %
SpeciNed r
emaining range 1 may vary due to
diMerent factors, e.g. driving style or topogra-
phy.
When the vehicle is connected to the mains sup-
pl
y and is switched oM, the driver's display shows
the charge level display for approximately two
minutes.
% The value of current charging capacity 6 can
diMer fr

om the display on the charging station. Parking
Parking the vehicle
&
WARNING Risk of accident and injur
y
caused by an insuPciently secured vehi-
cle rolling away
If the vehicle is not securely parked suP-
cientl
y, it can roll away in an uncontrolled way
even at a slight downhill gradient.
On uphill or downhill gradients, turn the
fr

ont wheels so that the vehicle rolls
towards the kerb if it starts moving.
apply the parking brake.
Switch the transmission to position j. &
WARNING Risk of Nr
e caused by hot
exhaust system parts
Flammable materials such as leaves, grass or
twigs ma
y ignite.
Park the vehicle so that no Oammable
mat
erial can come into contact with hot
vehicle components.
In particular, do not park on dry grass-
land or har
vested grain Nelds. &
WARNING Risk of accident and injur
y due
to leaving children unattended in the vehi-
cle
If children are les unatt
ended in the vehicle,
they could, in particular:
= open doors, thereby endangering other
persons or road users.
= get out and be struck by oncoming traPc. Driving and parking
