2022 MERCEDES-BENZ C-CLASS ESTATE Owners Manual

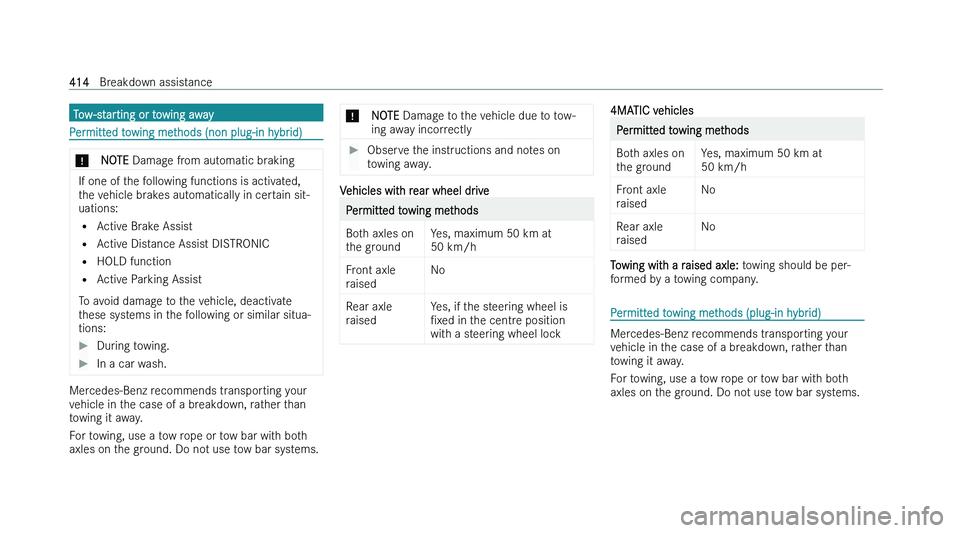

Tow-starting or towing away
Permitted towing methods (non plug-in hybrid)
*
NOTE Damag e from automatic braking If one of the following functions is activated,
t
he vehicle brakes automatically in certain sit-
uations:
= Active Brake Assist
= Active Distance Assist DISTRONIC
= HOLD function
= Active Parking Assist
To avoid damage to the vehicle, deactivate
these systems in the following or similar situa-
tions:
During towing.
In a car wash. Mercedes-Benz recommends transporting your
v
ehicle in the case of a breakdown, rather than
towing it away.
For towing, use a tow rope or tow bar with both
axles on the ground. Do not use tow bar systems. *
NOTE Damag
e to the vehicle due to tow-
ing away incorrectly
Observe the instructions and notes on
t

owing away. Vehicles with rear wheel drive
Permitted towing methods
Both axles on
t

he ground Yes, maximum 50 km at
50 km/h
Front axle
r
aised No
Rear axle
r
aised Yes, if the steering wheel is
Nx
ed in the centre position
with a steering wheel lock 4MATIC vehicles
Permitted towing methods
Both axles on
t

he ground Yes, maximum 50 km at
50 km/h
Front axle
r
aised No
Rear axle
r
aised No Towing with a raised axle:
t
owing should be per-
formed by a towing company. Permitted towing methods (plug-in hybrid)
Mercedes-Benz recommends transporting your
v
ehicle in the case of a breakdown, rather than
towing it away.
For towing, use a tow rope or tow bar with both
axles on the ground. Do not use tow bar systems. 414
Breakdown assistance

*

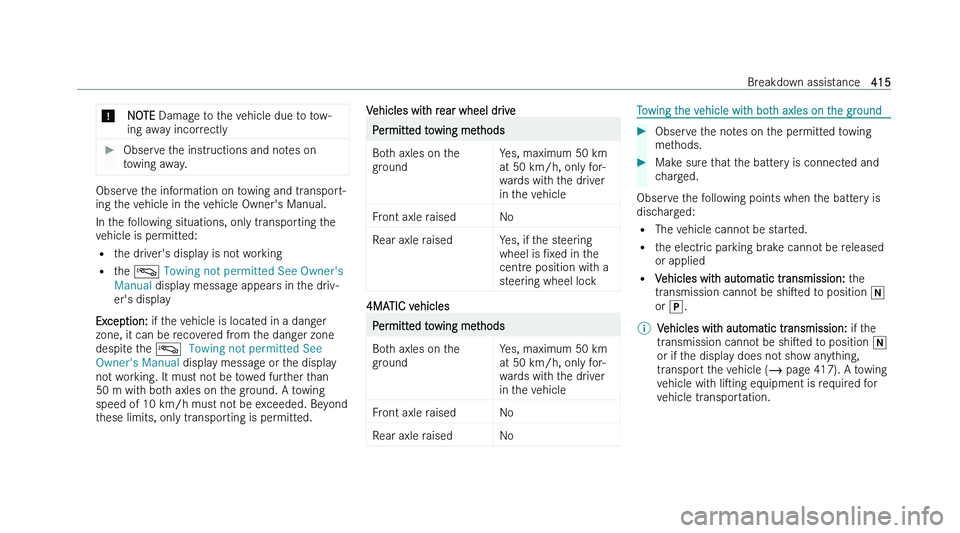

NOTE Damag e to the vehicle due to tow-
ing away incorrectly
Observe the instructions and notes on
t

owing away. Observe the information on towing and transport-
ing t

he vehicle in the vehicle Owner's Manual.
In the following situations, only transporting the
vehicle is permitted:
= the driver's display is not working
= the

*

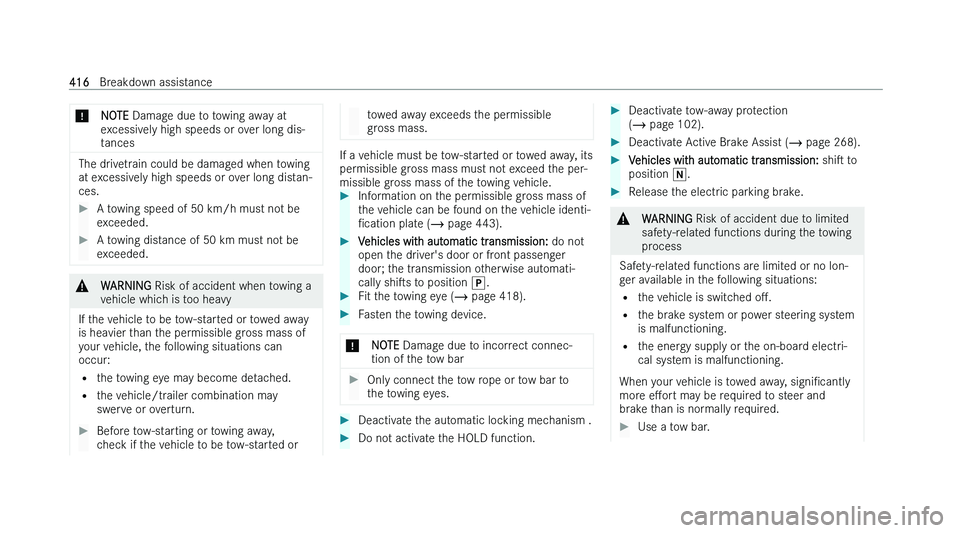

NOTE Damag e due to towing away at
excessively high speeds or over long dis-
tances The drivetrain could be damaged when towing
at e
xcessively high speeds or over long distan-
ces.
A towing speed of 50 km/h must not be
e

xceeded.
A towing distance of 50 km must not be
e

xceeded. &
WARNING Risk of accident when t
owing a
vehicle which is too heavy
If the vehicle to be tow-started or towed away
is hea
vier than the permissible gross mass of
your vehicle, the following situations can
occur:
= the towing eye may become detached.
= the vehicle/trailer combination may
swerve or overturn.
Before tow-starting or towing away,
c

heck if the vehicle to be tow-started or towed away exceeds the permissible
g

ross mass. If a vehicle must be tow-started or towed away, its
per

missible gross mass must not exceed the per-
missible gross mass of the towing vehicle.
Information on the permissible gross mass of
t

he vehicle can be found on the vehicle identi-
Ncation plate ( page 443).
Vehicles with automatic transmission: do no
t
open the driver's door or front passenger
door; the transmission otherwise automati-
cally shiss to position j.
Fit the towing eye ( pag
e 418).
Fasten the towing device.
* NOTE Damag
e due to incorrect connec-
tion of the tow bar
Only connect the tow rope or tow bar to
t
he towing eyes.
Deactivate the automatic locking mechanism .
Do not activate the HOLD function.
Deactivate tow-away protection
( pag

e 102).
Deactivate Active Brake Assist ( pag
e 268).
Vehicles with automatic transmission: shis t
o
position i.
Release the electric parking brake. &
WARNING Risk of accident due t
o limited
safety-related functions during the towing
process
Safety-related functions are limited or no lon-
g
er available in the following situations:
= the vehicle is switched oM.
= the brake system or power steering system
is malfunctioning.
= the energy supply or the on-board electri-
cal system is malfunctioning.
When your vehicle is towed away, signiNcantly
more eMort may be required to steer and
brake than is normally required.
Use a tow bar. 416
Breakdown assistance

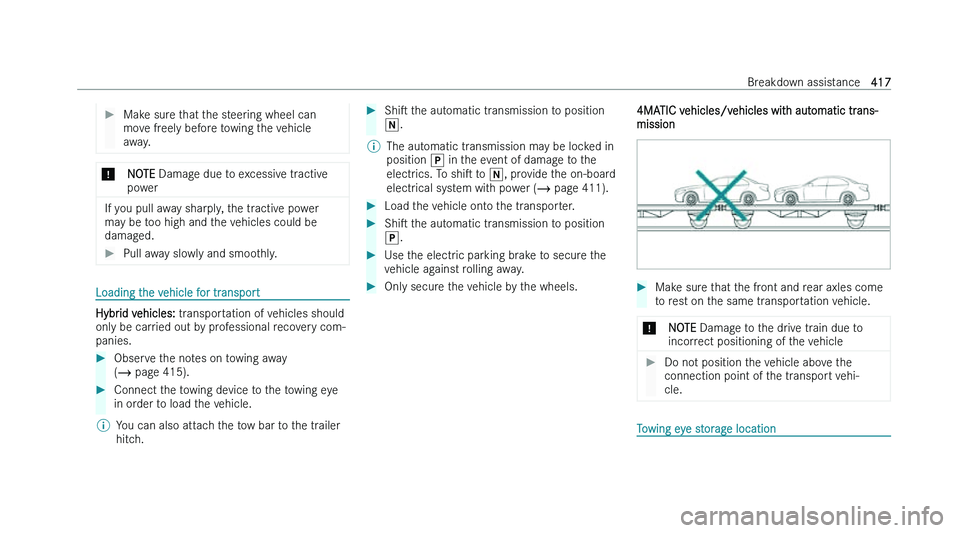

Make sure that the steering wheel can
mo
ve freely before towing the vehicle
away. *
NOTE Damag
e due to excessive tractive
power If you pull away sharply, the tractive power
ma

y be too high and the vehicles could be
damaged.
Pull away slowly and smoothly. Loading the vehicle for transport
Hybrid vehicles:
tr
ansportation of vehicles should
only be carried out by professional recovery com-
panies.
Observe the notes on towing away
( pag
e 415).
Connect the towing device to the towing eye
in or

der to load the vehicle.
% You can also attach the tow bar to the trailer
hitc
h.
Shis t
he automatic transmission to position
i.
% The automatic transmission may be locked in
position j in t
he event of damage to the
electrics. To shis to i, provide the on-board
electrical system with power ( page 411).
Load the vehicle onto the transporter.
Shis t
he automatic transmission to position
j.
Use the electric parking brake to secure the
v

ehicle against rolling away.
Only secure the vehicle by the wheels. 4MATIC vehicles/vehicles with automatic trans-
mission
Make sure that the front and rear axles come
t
o rest on the same transportation vehicle.
* NOTE Damag
e to the drive train due to
incorrect positioning of the vehicle
Do not position the vehicle above the
connection point of t

he transport vehi-
cle. Towing eye storage location Breakdown assistance
417

Plug-in hybrid
The towing eye
1 is locat ed in the service com-
partment.
Not plug-in hybrid The towing eye
1 is locat
ed under the load com-
partment Ooor in the load sill. Fitting and removing the towing eye

Press the mark on cover 1 in
wards and
remove.
Depending on the vehicle version, use a tool
(suc
has a screwdriver) to prise the cover out
of recess 2.
Screw in the towing eye clockwise as far as it
will go and tight

en.
Vehicles with a trailer hitch: v
ehicles with a trailer
hitch do not have a rear bracket for the towing
eye. Fasten the tow bar to the trailer hitch.
Make sure that cover 1 eng
ages in the
bumper when you remove the towing eye. 418
Breakdown assistance

*

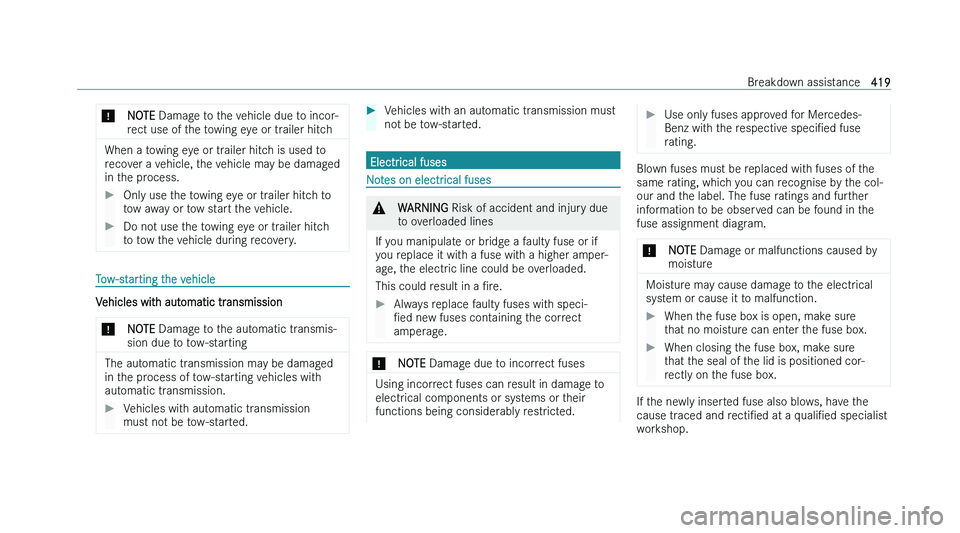

NOTE Damag e to the vehicle due to incor-
rect use of the towing eye or trailer hitch When a towing eye or trailer hitch is used to
r
ecover a vehicle, the vehicle may be damaged
in the process.
Only use the towing eye or trailer hitch to
t

ow away or tow start the vehicle.
Do not use the towing eye or trailer hitch
t

o tow the vehicle during recovery. Tow-starting the vehicle
Vehicles with automatic transmission
* NOTE Damag
e to the automatic transmis-
sion due to tow-starting The automatic transmission may be damaged
in t
he process of tow-starting vehicles with
automatic transmission.
Vehicles with automatic transmission
mus

t not be tow-started.
Vehicles with an automatic transmission must
no

t be tow-started. Electrical fuses
Notes on electrical fuses
&
WARNING Risk of accident and injur
y due
to overloaded lines
If you manipulate or bridge a faulty fuse or if
y
ou replace it with a fuse with a higher amper-
age, the electric line could be overloaded.
This could result in a Nre.
Always replace faulty fuses with speci-
Ned ne

w fuses containing the correct
amperage. *
NOTE Damag
e due to incorrect fuses Using incorrect fuses can result in damage to
electr
ical components or systems or their
functions being considerably restricted.
Use only fuses approved for Mercedes-
Benz wit

h the respective speciNed fuse
rating. Blown fuses must be replaced with fuses of the
same r

ating, which you can recognise by the col-
our and the label. The fuse ratings and further
information to be observed can be found in the
fuse assignment diagram.
* NOTE Damag
e or malfunctions caused by
moisture Moisture may cause damage to the electrical
sy
stem or cause it to malfunction.
When the fuse box is open, make sure
t

hat no moisture can enter the fuse box.
When closing the fuse box, make sure
t

hat the seal of the lid is positioned cor-
rectly on the fuse box. If the newly inserted fuse also blows, have the
cause tr
aced and rectiNed at a qualiNed specialist
workshop. Breakdown assistance
419

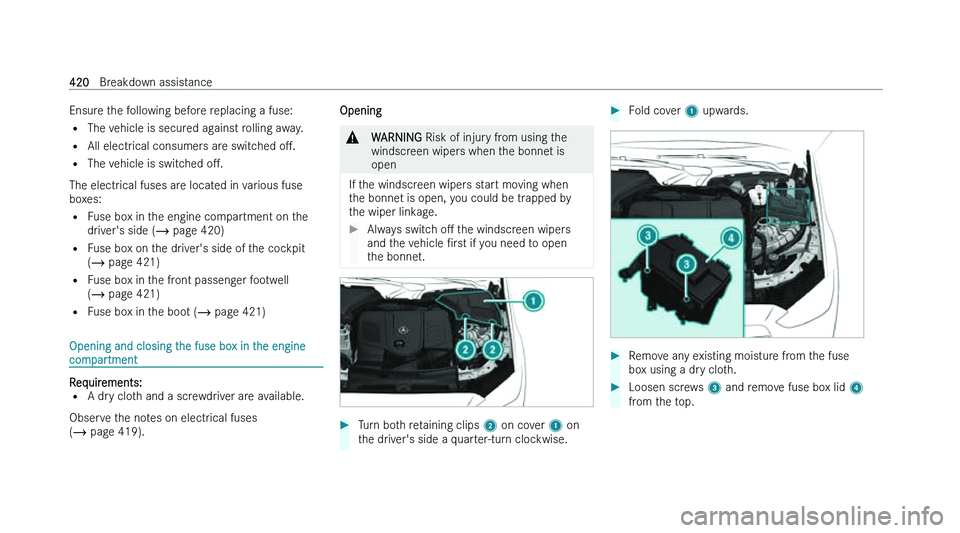

Ensure the following before replacing a fuse:
= The v
ehicle is secured against rolling away.
= All electrical consumers are switched oM.
= The vehicle is switched oM.
The electrical fuses are located in various fuse
boxes:
= Fuse box in the engine compartment on the
driver's side ( page 420)
= Fuse box on the driver's side of the cockpit
( page 421)
= Fuse box in the front passenger footwell
(  page 421)
= Fuse box in the boot ( page 421) Opening and closing the fuse box in the engine
com

partment Requirements:
= A dr

y cloth and a screwdriver are available.
Observe the notes on electrical fuses
(  page 419). Opening &
WARNING Risk of injur
y from using the
windscreen wipers when the bonnet is
open
If the windscreen wipers start moving when
t
he bonnet is open, you could be trapped by
the wiper linkage.
Always switch oM t
he windscreen wipers
and the vehicle Nrst if you need to open
the bonnet.
Turn both retaining clips 2 on co
ver 1 on
the driver's side a quarter-turn clockwise.
Fold cover 1 upw
ards.
Remove any existing moisture from the fuse
bo

x using a dry cloth.
Loosen screws 3 and r
emove fuse box lid 4
from the top. 420
Breakdown assistance

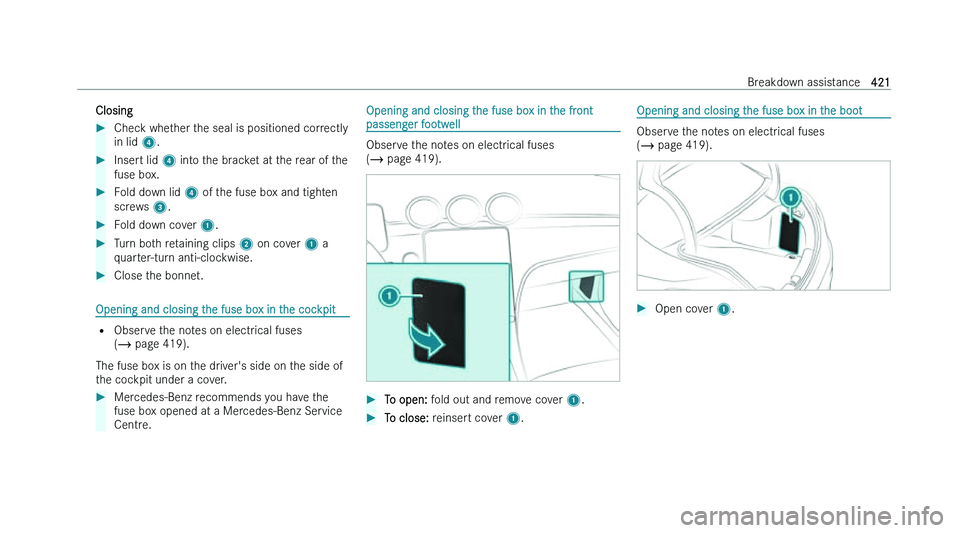

Closing

Check whether the seal is positioned correctly
in lid 4.
Insert lid 4 int o the bracket at the rear of the
fuse box.
Fold down lid 4 of t
he fuse box and tighten
screws 3.
Fold down cover 1.
Turn both retaining clips 2 on co
ver 1 a
quarter-turn anti-clockwise.
Close the bonnet. Opening and closing the fuse box in the cockpit
=
Obser
ve the notes on electrical fuses
( page 419).
The fuse box is on the driver's side on the side of
the cockpit under a cover.
Mercedes-Benz recommends you have the
fuse bo
x opened at a Mercedes-Benz Service
Centre. Opening and closing the fuse box in the front
passeng

er footwell Observe the notes on electrical fuses
(
 pag

e 419).
To open: f
old out and remove cover 1.
To close: r
einsert cover 1. Opening and closing the fuse box in the boot
Observe the notes on electrical fuses
(
 pag

e 419).
Open cover 1. Breakdown assistance
