2022 MERCEDES-BENZ C-CLASS ESTATE Owners Manual

*

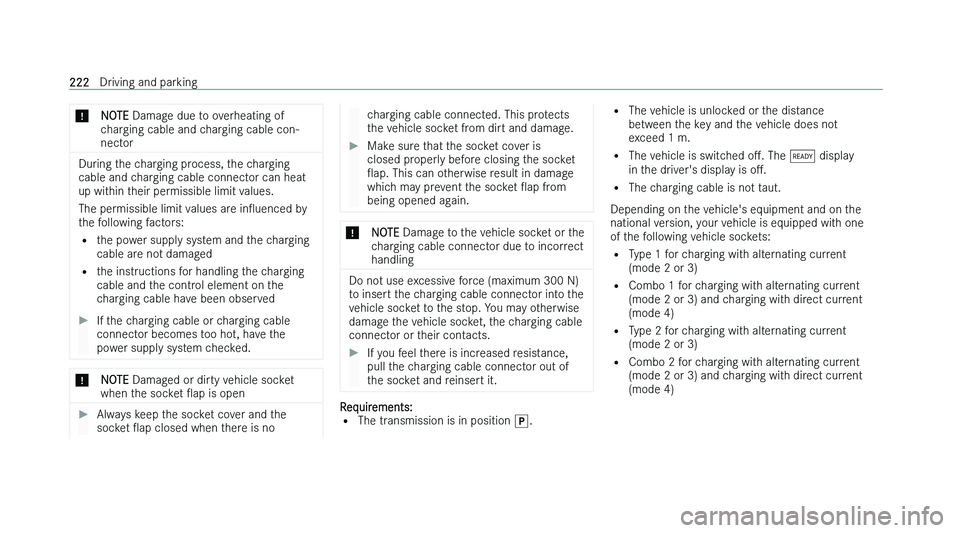

NOTE Damag e due to overheating of
charging cable and charging cable con-
nector During the charging process, the charging
cable and c
harging cable connector can heat
up within their permissible limit values.
The permissible limit values are inOuenced by
the following factors:
= the power supply system and the charging
cable are not damaged
= the instructions for handling the charging
cable and the control element on the
charging cable have been observed
If the charging cable or charging cable
connect

or becomes too hot, have the
power supply system checked. *
NOTE Damag
ed or dirty vehicle socket
when the socket Oap is open
Always keep the socket cover and the
soc

ket Oap closed when there is no charging cable connected. This protects
t
he vehicle socket from dirt and damage.
Make sure that the socket cover is
closed pr

operly before closing the socket
Oap. This can otherwise result in damage
which may prevent the socket Oap from
being opened again. *
NOTE Damag
e to the vehicle socket or the
charging cable connector due to incorrect
handling Do not use excessive force (maximum 300 N)
t
o insert the charging cable connector into the
vehicle socket to the stop. You may otherwise
damage the vehicle socket, the charging cable
connector or their contacts.
If you feel there is increased resistance,
pull t

he charging cable connector out of
the socket and reinsert it. Requirements:
= The tr

ansmission is in position j.=
The v
ehicle is unlocked or the distance
between the key and the vehicle does not
exceed 1 m.
= The vehicle is switched oM. The

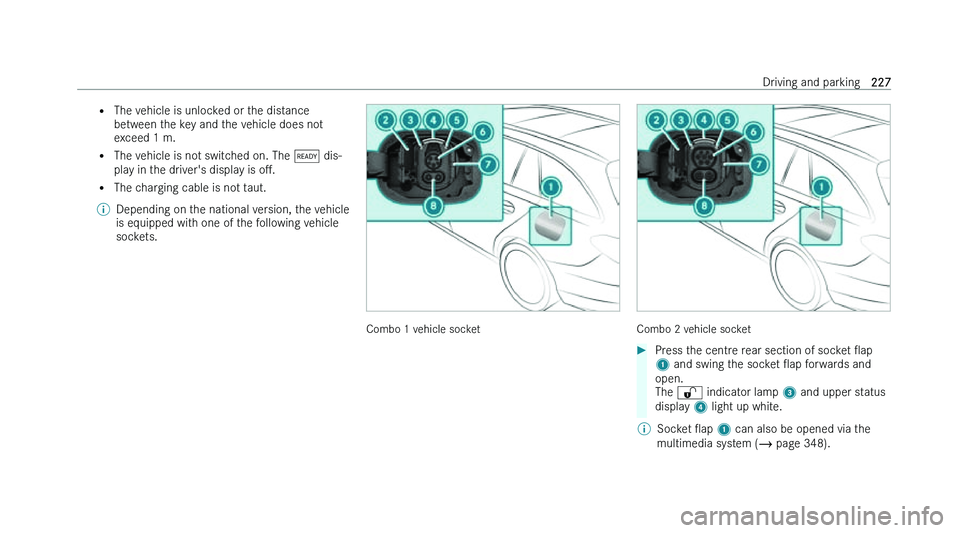

Combo 1 vehicle socket Combo 2 vehicle socket

Press the centre rear section of socket Oap
1 and swing t he socket Oap forwards and
open.
The 6 indicator lamp 3 and upper status
display 4 light up white.
% Socket Oap 1 can also be opened via t
he
multimedia system (  page 348). When the vehicle is switched on (the

%
When the charging sequence for the ambient
lighting is activ ated, the ambient lighting lights
up for approximately 30 seconds as with the
= indicator lamp 5 ( page 152).
When the charging cable is connected to the vehi-
cle, t
he vehicle cannot be started or moved.
At the start of the charging process, the charge
level display is shown in the driver's display with a
charging prediction. The charging prediction
refers to the time at which the high-voltage bat-
tery will be fully charged.
% Depending on the temperature, the fan and
batt

ery cooling system may audibly switch on
during the charging process.
% If the vehicle is idle for lengthy periods and
connect
ed to the mains supply, the high-volt-
age battery will be recharged automatically as
needed or when electrical consumers are
activated (e.g. the pre-entry climate control).
% The vehicle is equipped with an electrical fuse
whic
h protects it against overvoltage in the
mains supply. This electrical fuse may trip dur-
ing severe thunderstorms, for example, and
may cause the fuse in the building to trip or may interrupt the charging process. These
functions pr

otect the vehicle.
Aser the fuse in the building is switched on
again, the charging process resumes automat-
ically. Following an interruption in the power
supply without the fuse in the building being
tripped, it may take up to ten minutes for

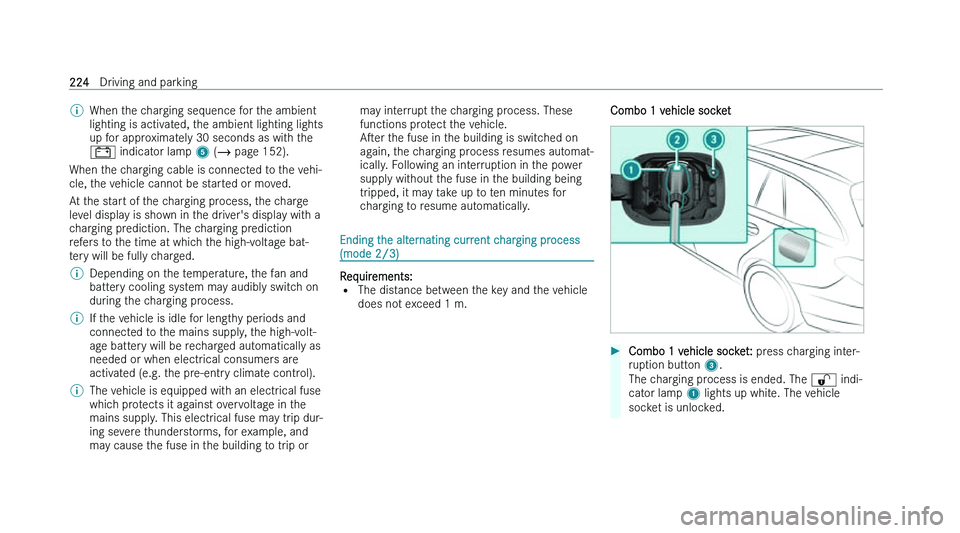

charging to resume automatically. Ending the alternating current charging process
(mode 2/3)
Requirements:
= The dis

tance between the key and the vehicle
does not exceed 1 m. Combo 1 vehicle socket

Combo 1 vehicle socket: pr
ess charging inter-
ruption button 3.
The charging process is ended. The 6 indi-
cator lamp 1 lights up white. The vehicle
socket is unlocked. 224
Driving and parking

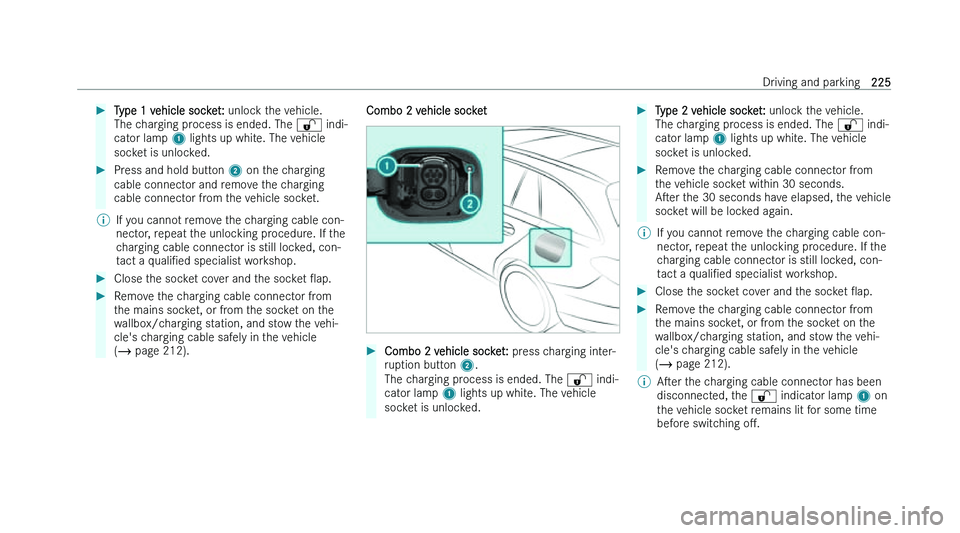

Type 1 vehicle socket: unloc k the vehicle.
The charging process is ended. The 6 indi-
cator lamp 1 lights up white. The vehicle
socket is unlocked.
Press and hold button 2 on t
he charging
cable connector and remove the charging
cable connector from the vehicle socket.
% If you cannot remove the charging cable con-
nect
or, repeat the unlocking procedure. If the
charging cable connector is still locked, con-
tact a qualiNed specialist workshop.
Close the socket cover and the socket Oap.
Remove the charging cable connector from
t
he mains socket, or from the socket on the
wallbox/charging station, and stow the vehi-
cle's charging cable safely in the vehicle
( page 212). Combo 2 vehicle socket

Combo 2 vehicle socket: pr
ess charging inter-
ruption button 2.
The charging process is ended. The 6 indi-
cator lamp 1 lights up white. The vehicle
socket is unlocked.
Type 2 vehicle socket: unloc
k the vehicle.
The charging process is ended. The 6 indi-
cator lamp 1 lights up white. The vehicle
socket is unlocked.
Remove the charging cable connector from
t
he vehicle socket within 30 seconds.
Aser the 30 seconds have elapsed, the vehicle
socket will be locked again.
% If you cannot remove the charging cable con-
nect
or, repeat the unlocking procedure. If the
charging cable connector is still locked, con-
tact a qualiNed specialist workshop.
Close the socket cover and the socket Oap.
Remove the charging cable connector from
t
he mains socket, or from the socket on the
wallbox/charging station, and stow the vehi-
cle's charging cable safely in the vehicle
( page 212).
% Aser t
he charging cable connector has been
disconnected, the 6 indicator lamp 1 on
the vehicle socket remains lit for some time
before switching oM. Driving and parking
225

Starting the direct current charging process
(mode 4)
&
DANGER Risk of deat h when charging at a
damaged socket
The charging process uses high voltage.
If t
he charging cable, the vehicle socket or the
mains socket are damaged, you could receive
an electric shock.
Only use an undamaged charging cable.
Avoid mechanical damage such as crush-
ing, abr
ading or driving over the cable.
Have a damaged vehicle socket replaced
at a q

ualiNed specialist workshop as
soon as possible.
Never connect the charging cable to a
damag
ed vehicle socket. *
NOTE Damag
e due to overheating of
charging cable and charging cable con-
nector During the charging process, the charging
cable and c
harging cable connector can heat
up within their permissible limit values.
The permissible limit values are inOuenced by
the following factors:
= the power supply system and the charging
cable are not damaged
= the instructions for handling the charging
cable and the control element on the
charging cable have been observed
If the charging cable or charging cable
connect

or becomes too hot, have the
power supply system checked. *
NOTE Damag
ed or dirty vehicle socket
when the socket Oap is open
Always keep the socket cover and the
soc

ket Oap closed when there is no charging cable connected. This protects
t
he vehicle socket from dirt and damage.
Make sure that the socket cover is
closed pr

operly before closing the socket
Oap. This can otherwise result in damage
which may prevent the socket Oap from
being opened again. *
NOTE Damag
e to the vehicle socket or the
charging cable connector due to incorrect
handling Do not use excessive force (maximum 300 N)
t
o insert the charging cable connector into the
vehicle socket to the stop. You may otherwise
damage the vehicle socket, the charging cable
connector or their contacts.
If you feel there is increased resistance,
pull t

he charging cable connector out of
the socket and reinsert it. Requirements:
= The tr

ansmission is in position j.226
Driving and parking

=
The v ehicle is unlocked or the distance
between the key and the vehicle does not
exceed 1 m.
= The vehicle is not switched on. The

When the vehicle is switched on (the

%
If you cannot remove the charging cable con-
nect or, unlock the vehicle and repeat the pro-
cedure. If the charging cable connector is still
locked, contact a qualiNed specialist work-
shop.
Close the socket cover and the socket Oap.
Combo 2 vehicle socket
Press charging interruption button 2.
The c harging process is ended. The 6 indi-
cator lamp 1 lights up white. The vehicle
socket is unlocked.
Remove the charging cable connector from
t
he vehicle socket.
% If you cannot remove the charging cable con-
nect
or, unlock the vehicle and repeat the pro-
cedure. If the charging cable connector is still
locked, contact a qualiNed specialist work-
shop.
Close the socket cover and the socket Oap.
% Aser t
he charging cable connector has been
disconnected, the les 6 indicator lamp 1
on the vehicle socket remains lit for some

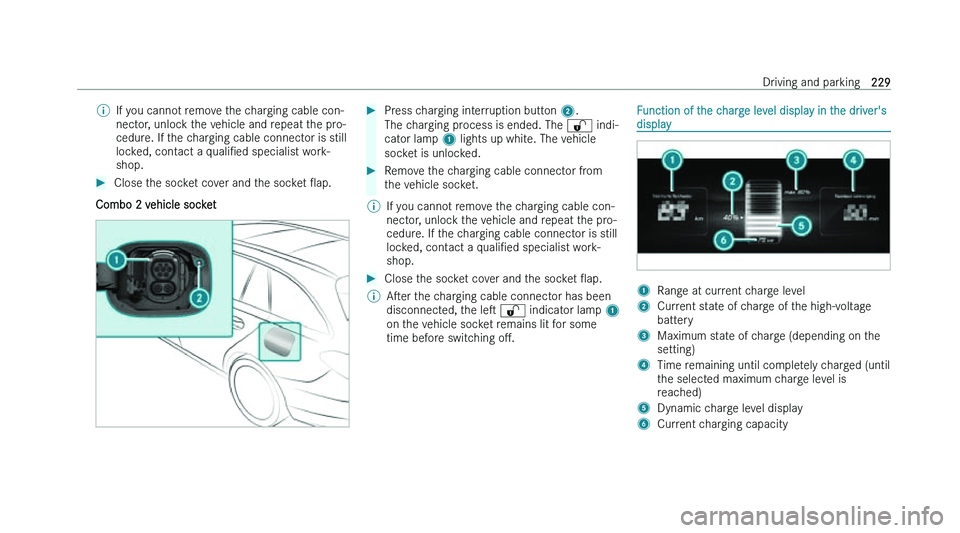

time before switching oM. Function of the charge level display in the driver's
displa

y 1
Range at current charge level
2 Current state of charge of the high-voltage
batt

ery
3 Maximum state of charge (depending on the
se
tting)
4 Time remaining until completely charged (until
t

he selected maximum charge level is
reached)
5 Dynamic charge level display
6 Current charging capacity Driving and parking
