▼Seat Belt Warning Light (Rear seat)
(Red)
If the rear seat belts are not fastened
while the power switch is switched
ON , the driver and the passenger are
alerted by the warning light.
The warning light operates even if there
is no passenger on the rear seat.
NOTE
If a rear seat belt is not fastened by a
certain period of time after the EV
system has been started, the warning
light turns o
ff.
Action to be taken
Fasten the seat belts.
▼ Low Washer Fluid Level Warning
Indication/Warning Light*
This warning light indicates that little
washer
fluid remains.
Action to be taken
Add washer fluid (page 6-13).
▼ Door-Ajar/Liftgate-Ajar Warning
Indication/Warning Light
The light turns on if any door/liftgate is
not closed securely.
Action to be taken
Close the door/liftgate securely.
▼ Tire Pressure Monitoring System
(TPMS) Warning Indication/
Warning Light (Turns on)
If a tire pressure decreases below the
speci
fied air pressure, the TPMS
warning light turns on.
At the same time, a message and the
tire pressure of each tire are displayed
on the multi-information display
alternately. In addition, the tire (s) with
low air pressure is displayed in yellow.
WARNING
Do not drive the vehicle at high
speeds if the TPMS warning light turns
on or flashes:
Driving the vehicle at high speeds
while the TPMS warning light is turned
on or flashing is dangerous because
the brake performance and the
steering wheel operability will be
reduced. If the vehicle is driven at high
speeds or the brakes are suddenly
applied, it could lead to an accident.
Gradually apply the brakes to lower the
vehicle's speed.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-30*Some models.
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Display*1*2ContentAction to be taken
Tra ffic Jam Assist Opera-
tion Canceled Drive
Safely This message is indicated when the
Tra
ffic Jam Assist (TJA) have been can-
celed other than by the driver. Have your vehicle inspected by an
Authorized Mazda Dealer.
Distance & Speed Alert
Operation Canceled
Drive Safely This message is indicated when the
Distance & Speed Alert (DSA) have
been canceled other than by the driv-
er.
Have your vehicle inspected by an
Authorized Mazda Dealer.
Cruise Control Opera-
tion Canceled. Drive
Safely This message is indicated when the
Cruise Control have been canceled
other than by the driver.
Have your vehicle inspected by an
Authorized Mazda Dealer.
Emergency Braking Acti-
vated. Depress Brake
Pedal to Hold Stop This message is indicated after the
Smart Brake Support (SBS) brakes op-
erate and when the SBS is canceled.
Depress the brake pedal.
Touch Key Fob to Push
Button Start Switch This message is indicated when the
key battery is weak (battery dead or
damaged key). Touch the key against power switch
to start the EV system.
Refer to Starting the EV System When
the Key Battery is Dead on page 4-6.
Depress Brake Pedal to
Start Vehicle This message is displayed when the
power switch is pressed without de-
pressing the brake pedal. To start the EV system, press the pow-
er switch with the brake pedal de-
pressed.
Check Shift Selector Lev-
er Position Displays in the following cases:
Selector lever is shifted to R posi-
tion while driving forward.
Selector lever is shifted to P posi-
tion while driving.
Selector lever is shifted to D posi-
tion while reversing.
Check the selector lever position.
Close Door and Fasten
Seat Belt This message is indicated when the
AUTOHOLD switch is pressed with
the driver’s seat belt unfastened or
the driver’s door open. Fasten the driver's seat belt and press
the AUTOHOLD switch with the driv-
er’s door closed.
Wiper Blades Must Be
on Windshield Before
Operating This message is indicated when the
power switch is switched ON with
the wiper arms at the service posi-
tions.
Return the wiper arms to the initial
positions.
Windshield Wiper Range
of Motion Reduced. Re-
move Obstruction(s) This message is indicated when there
is snow or dirt accumulation on the
windshield and the wiper operation
range is narrowed.
Remove foreign matter from the
windshield.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-34
MX
-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

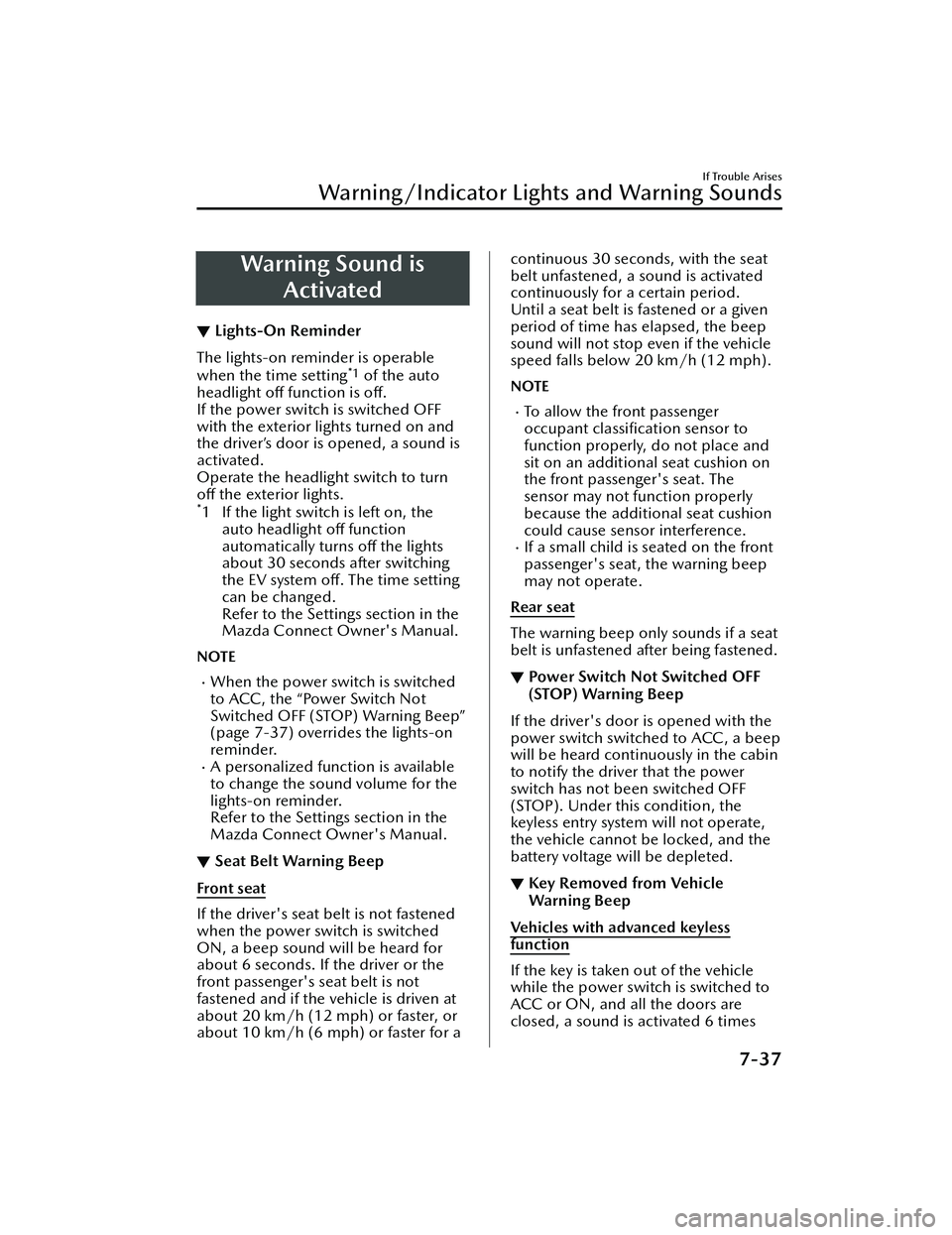

Warning Sound isActivated
▼Lights-On Reminder
The lights-on reminder is operable
when the time setting*1 of the auto
headlight o ff function is o ff.
If the power switch is switched OFF
with the exterior li ghts turned on and
the driver’s door is opened, a sound is
activated.
Operate the headlight switch to turn
o ff the exterior lights.
*1 If the light switch is left on, the
auto headlight o ff function
automatically turns off the lights
about 30 seconds after switching
the EV system off. The time setting
can be changed.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
NOTE
When the power switch is switched
to ACC, the “Power Switch Not
Switched OFF (STOP) Warning Beep”
(page 7-37) overrides the lights-on
reminder.
A personalized function is available
to change the sound volume for the
lights-on reminder.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
▼ Seat Belt Warning Beep
Front seat
If the driver's seat belt is not fastened
when the power switch is switched
ON, a beep sound will be heard for
about 6 seconds. If the driver or the
front passenger's seat belt is not
fastened and if the vehicle is driven at
about 20 km/h (12 mph) or faster, or
about 10 km/h (6 mph) or faster for a
continuous 30 seconds, with the seat
belt unfastened, a sound is activated
continuously for a certain period.
Until a seat belt is fastened or a given
period of time has elapsed, the beep
sound will not stop even if the vehicle
speed falls below 20 km/h (12 mph).
NOTE
To allow the front passenger
occupant classi
fication sensor to
function properly, do not place and
sit on an additional seat cushion on
the front passenger's seat. The
sensor may not function properly
because the additional seat cushion
could cause sensor interference.
If a small child is seated on the front
passenger's seat, the warning beep
may not operate.
Rear seat
The warning beep only sounds if a seat
belt is unfastened after being fastened.
▼ Power Switch Not Switched OFF
(STOP) Warning Beep
If the driver's door is opened with the
power switch switched to ACC, a beep
will be heard continuously in the cabin
to notify the driver that the power
switch has not been switched OFF
(STOP). Under this condition, the
keyless entry system will not operate,
the vehicle cannot be locked, and the
battery voltage will be depleted.
▼Key Removed from Vehicle
Warning Beep
Vehicles with advanced keyless
function
If the key is taken out of the vehicle
while the power switch is switched to
ACC or ON, and all the doors are
closed, a sound is activated 6 times
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-37
MX
-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

▼Brake System Warning Beep
A warning beep is activated if a
problem with the brake system occurs
and the brakes may not work as
intended. Decelerate the vehicle while
checking the safety of the surrounding
area, and park the vehicle in a safe
place. After stopping the vehicle,
contact an Authorized Mazda Dealer.
▼Brake Override Warning Beep
A warning beep is activated when the
accelerator pedal and brake pedal are
depressed at the same time while
driving. Only depress the brake pedal.
▼Shift Position Warning Beep
A warning sound is activated when the
selector lever position and the shift
position of the vehicle do not match.
Check the selector lever position.
▼Selector Lever Not In P or N
Reminder Warning Beep
A warning sound is activated if the
following operations are performed
while the selector lever is in a position
other than P.
The power switch is switched OFF
while the EV system is operating.
The driver’s seat belt is unfastened
and the driver’s door is opened.
Check the selector lever position.
▼ Electric Parking Brake (EPB)
War n in g Be ep
The warning buzzer is activated under
the following conditions:
The vehicle is driven with the parking
brake applied.
The Electric Parking Brake (EPB)
switch is pulled while the vehicle is
driven.
You attempt to start driving the
vehicle while the conditions for
releasing the Electric Parking Brake
(EPB) automatically have not been
met.
▼
AUTOHOLD Warning Beep
Message is displayed and beep sound
is activated simultaneously for about 5
seconds when using AUTOHOLD
function or when AUTOHOLD switch
is operated.
Because a problem with AUTOHOLD
function has occurred, AUTOHOLD
function does not operate even if
AUTOHOLD switch is operated.

If the message is displayed and the
beep sound is activated
simultaneously, have your vehicle
inspected at an Authorized Mazda
Dealer.
▼Vehicle Problem Warning Beep
If any of the following problems occur,
a warning beep is activated. Check the
information regarding the warning
indication in the instrument cluster or
on the center display.
Brake
fluid amount decreaseElectric Parking Brake (EPB) problemShift control system problemEV System problemCharging system problemApproaching vehicle audible system
problem
▼Reverse Position Warning Beep
The warning beep is activated when
the power switch is switched ON and
the selector lever is in the R position.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-39
MX
-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Event Data Recorder
(U.S.A. and Canada)
▼ Event Data Recorder
This vehicle is equipped with an event
data recorder (EDR). The main
purpose of an EDR is to record, in
certain crash or near crash-like
situations, such as an air bag
deployment or hitting a road obstacle,
data that will assist in understanding
how a vehicle’s systems performed.
The EDR is designed to record data
related to vehicle dynamics and safety
systems for a short period of time,
typically 30 seconds or less. The EDR in
this vehicle is designed to record such
data as:
How various systems in your vehicle
were operating;
Whether or not the driver and
passenger safety belts were buckled/
fastened;
How far (if at all) the driver was
depressing the accelerator and/or
brake pedal; and,
How fast the vehicle was traveling.
These data can help provide a better
understanding of the circumstances in
which crashes and injuries occur.
NOTE :
EDR data are recorded by your vehicle
only if a non-trivial crash or near
crash-like situation occurs; no data are
recorded by the EDR under normal
driving conditions and no personal
data (e.g., name, gender, age, and
crash location) are recorded. However,
other parties, such as law
enforcement, could combine the EDR
data with the type of personally
identifying data routinely acquired
during a crash investigation.
To read data recorded by an EDR,
special equipment is required, and
access to the vehicle or the EDR is
needed. In addition to the vehicle
manufacturer, other parties, such as
law enforcement, that have the special
equipment, can read the information if
they have access to the vehicle or the
EDR.

Mazda will not disclose any of the data
recorded in an EDR to a third party
unless:
A written agreement from the vehicle
owner or the lessee is obtained
O fficially requested by the police or
other law enforcement authorities
Used as a defense for Mazda in a
lawsuit, claim, or arbitration
Ordered by a judge or court
However, if necessary Mazda will:
Use the data for research on Mazda
vehicle performance, including
safety.
Disclose the data or the summarized
data to a third party for research
purposes without disclosing vehicle
or owner identi fication information.
Customer Information and Reporting Safety Defects
Event Data Recorder
8-17
MX-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Index
Compass display.................. 4-18
Dashboard illumination........ 4-14
Distance-to-full Discharge..... 4-16
High Voltage Battery Power
Gauge..................................4-14
High Voltage Battery Temperature
Gauge..................................4-13
Indication/indicator lights..... 4-21
Instantaneous Energy Efficiency .....
........................................... 4-17
i-ACTIVSENSE display........... 4-17
Message Display................... 4-18
Message indicated on multi-
information display............... 7-33
Multi-information display...... 4-11
Odometer............................ 4-13
Outside temperature
display................................. 4-15
Power Meter.......................... 4-9
Remaining High Voltage Battery
Power Indication.................. 4-16
Speedometer......................... 4-9
Trip meter............................ 4-13
Warning indication/warning
lights....................................4-19
Interior Care............................. 6-40 Active driving display
maintenance........................ 6-42
Cleaning the floor mats......... 6-42
Glass and Mirror
Maintenance........................ 6-42
Instrument panel top (Soft pad)
maintenance........................ 6-41
Leather upholstery
maintenance........................ 6-41
Panel and Cork Area
Maintenance........................ 6-42
Plastic part maintenance....... 6-41
Seat belt maintenance.......... 6-40
Upholstery and synthetic leather
maintenance........................ 6-40Vinyl upholstery
maintenance........................ 6-40
Interior Lights............................ 5-37 Luggage compartment light... 5-37
Map lights............................5-37
Overhead lights.................... 5-37
i-ACTIVSENSE........................... 4-68 Active safety technology........ 4-68
Adaptive Front Lighting System
(AFS)................................... 4-82
Blind Spot Monitoring
(BSM).................................. 4-87
Camera and sensors............. 4-69
Cruising & Traffic Support
(CTS)................................. 4-118
Distance & Speed Alert
(DSA).................................. 4-99
Driver Attention Alert
(DAA)................................ 4-100
Driver monitoring camera..... 4-81
Driver Monitoring (DM)...... 4-102
Emergency Lane Keeping
(ELK).................................. 4-129
Forward Sensing Camera
(FSC)................................... 4-71
Front camera/side cameras/rear
camera................................ 4-81
Front Cross Traffic Alert
(FCTA)............................... 4-104
Front radar sensor.................4-75
Front side radar sensor.......... 4-77
High Beam Control System
(HBC).................................. 4-83
i-ACTIVSENSE OFF Switch..... 4-70
i-ACTIVSENSE status symbol
(warning/risk avoidance support
system)................................ 4-69
Lane Departure Warning System
(LDWS)................................ 4-84
Lane-keep Assist System
(LAS)..................................4-127
10-5
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Index
Registering Your Vehicle in A Foreign
Country.................................... 8-14
Remaining High Voltage Battery
Power Warning Beep................. 7-38
ReplacementFuse..................................... 6-27
Key battery........................... 6-21
Light bulbs........................... 6-26
Tires.....................................6-24
Wheel.................................. 6-25
Wiper.................................. 6-14
Reverse Position Warning Beep... 7-39
Road Keep Assist.....................4-133
Rocking the Vehicle................... 3-57
S
Safety Defects, Reporting
(Canada).................................. 8-12
Safety Defects, Reporting
(U.S.A.).................................... 8-11
Scheduled Maintenance Canada.................................. 6-5
U.S.A. and Puerto Rico........... 6-4
Seats Driver's seat........................... 2-4
Driving position memory....... 2-10
Front passenger's seat........... 2-12
Front seat............................... 2-4
Head restraint...................... 2-18
Rear seat.............................. 2-15
Seat warmer......................... 2-21
Seat Belt System Automatic locking................ 2-28
Emergency locking................ 2-28
Extender.............................. 2-33
Pregnant women.................. 2-27
Seat belt precautions............ 2-26
Seat Belt Warning Beep............. 7-37
Security System Immobilizer system............... 3-54
Selector lever not in P reminder
warning beep............................ 7-39
Shift Control SystemDriving tips.......................... 4-32
Selector lever operation........ 4-28
Selector lever position
functions.............................. 4-26
Shift-lock system...................4-32
Shift Position Warning Beep....... 7-39
Smart Brake Support (SBS)....... 4-136 Stopping the Smart Brake Support
(SBS) system operation........4-143
Speci fications
Capacities.............................. 9-4
Charge System....................... 9-3
Dimensions............................ 9-4
Electrical system..................... 9-4
High Voltage Battery............... 9-3
Light bulbs............................. 9-5
Lubricant quality..................... 9-4
Tires.......................................9-5
Weights................................. 9-5
SRS Air Bags Driver and front passenger
occupant classification
system................................. 2-64
How the SRS air bags work.... 2-58
Limitations to SRS air bag...... 2-63
Monitoring........................... 2-69
SRS air bag deployment
criteria................................. 2-61
Supplemental restraint system
components......................... 2-57
Supplemental restraint system
(SRS) precautions................. 2-52
Steering Wheel Heated steering wheel.......... 2-23
Horn.................................... 4-46
Storage Compartments.............. 5-45 Center console..................... 5-46
Glove compartment..............5-45
10-8
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Index
Collision warning..................7-40
Door-ajar warning beep........ 7-40
Electric Parking Brake (EPB)
warning beep....................... 7-39
Excessive speed warning........7-40
Front Cross Traffic Alert (FCTA)
Warning Beep...................... 7-40
Key left-in-luggage compartment
warning beep (With the advanced
keyless function)................... 7-38
Key left-in-vehicle warning beep
(With the advanced keyless
function).............................. 7-38
Key removed from vehicle warning
beep.................................... 7-37
Lane departure warning
sound.................................. 7-40
Liftgate Door-lock Switch
Inoperable Warning Beep...... 7-38
Lights-on reminder............... 7-37
Low Lead-acid Battery Charge
Warning Sound.....................7-41
Mazda Radar Crui se Control with
Stop & Go function (MRCC with
Stop & Go function) system
warnings.............................. 7-40
Power switch not switched o ff
(STOP) warning beep............ 7-37
Rear Cross Traffic Alert (RCTA)
Warning Beep...................... 7-40
Remaining high voltage battery
power warning beep.............7-38
Reverse Position Warning
Beep.................................... 7-39
Seat belt warning beep......... 7-37
Selector Lever Not In P Reminder
Warning Beep...................... 7-39Shift position warning beep... 7-39
Touch sensor inoperable warning
beep (With the advanced keyless
function).............................. 7-38
Vehicle problem warning
beep.................................... 7-39
Warranty................................... 8-13
Weights...................................... 9-5
Windows Power windows.................... 3-49
Windshield Defroster Switch........ 5-6
Windshield Washer................... 4-43
Windshield Wipers.................... 4-41
Windshield Wipers Operate at High
Speed....................................... 7-44
Windshield Wiper De-icer..........4-45
Winter Driving...........................3-58
Wiper Replacing Rear Window Wiper
Blade................................... 6-17
Replacing windshield wiper
blades..................................6-15
0-9
360°View Monitor.................. 4-144How to use the system........ 4-151
Margin of error between road
surface on screen and actual road
surface............................... 4-169
Side view........................... 4-159
Top view/front view............4-154
Top view/front wide view.... 4-157
Top view/rear view............. 4-162
Top view/rear wide view..... 4-167
Types of images displayed on the
screen................................ 4-148
10-10
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07
