▼Distance-to-empty
This displays the approximate distance
you can travel on the remaining fuel
based on the fuel economy.
The distance-to-empty will be
calculated and displayed every second.

NOTE
Even though the distance-to-empty
display may indicate a sufficient
amount of remaining driving distance
before refueling is required, refuel as
soon as possible if the fuel level is
very low or the low fuel warning light
illuminates.
The display will not change unless
you add more than approximately 9
L (2.3 US gal, 1.9 Imp gal) of fuel.
The distance-to-empty is the
approximate remaining distance the
vehicle can be driven until all the
graduation marks in the fuel gauge
indicating the remaining fuel supply
disappear.
If there is no past fuel economy
information such as after first
purchasing your vehicle or the
information is deleted when the
battery cables are disconnected, the
actual distance-to empty/range may
differ from the amount indicated.
▼ Average Fuel Economy
This mode displays the average fuel
economy by calculating the total
traveled distance and the total fuel
consumption since the vehicle was
purchased or the past data was reset.
The average fuel economy is calculated
and displayed every 30 seconds.
The average fuel economy is also
displayed by a red arrow in the
instantaneous fuel economy display.

The average fuel economy can be reset
by pressing the INFO switch for 1.5
seconds or more. After the data is
cleared, the fuel consumption is
recalculated and the - - - L/100 km
(- - - mpg) for the 30 seconds prior to
it being displayed is indicated.
▼ Current Fuel Economy
This displays the current fuel economy
by calculating the amount of fuel
consumption and the distance
traveled.

M Hybrid
When Driving
Instrument Cluster and Display
4-26
Mazda3_8KH1-EA-21K_Edition1_new
2021-7-27 16:02:22

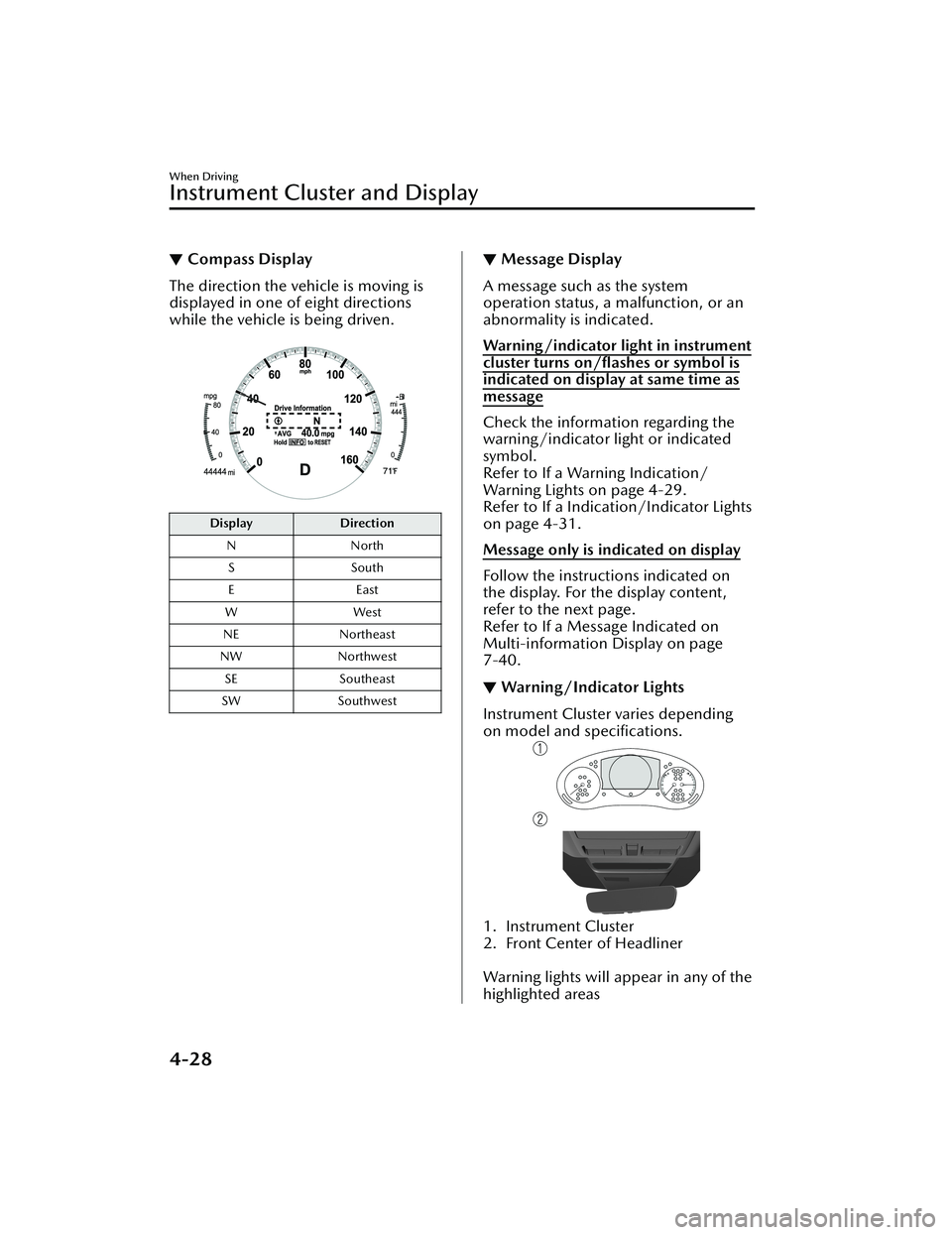

▼Compass Display
The direction the vehicle is moving is
displayed in one of eight directions
while the vehicle is being driven.

Display
Direction
N North
SS outh
EE ast
WW est
NE Northeast
NW Northwest
SE Southeast
SW Southwest
▼Message Display
A message such as the system
operation status, a malfunction, or an
abnormality is indicated.
Warning/indicator light in instrument
cluster turns on/flashes or symbol is
indicated on display at same time as
message
Check the information regarding the
warning/indicator light or indicated
symbol.
Refer to If a Warning Indication/
Warning Lights on page 4-29.
Refer to If a Indication/Indicator Lights
on page 4-31.
Message only is indicated on display
Follow the instructions indicated on
the display. For the display content,
refer to the next page.
Refer to If a Me
ssage Indicated on
Multi-information Display on page
7-40.
▼ Warning/Indicator Lights
Instrument Cluster varies depending
on model and specifications.
1. Instrument Cluster
2. Front Center of Headliner

Warning lights will appear in any of the
highlighted areas
When Driving
Instrument Cluster and Display
4-28
Mazda3_8KH1-EA-21K_Edition1_new
2021-7-27 16:02:22

▼Warning Indication/Warning Lights
These lights turn on or flash to notify th
e user of the system operation status or a
system malfunction.
Signal Warning Refer to
Brake System Warning Indication/Warning Light*17-27
ABS Warning Indication/Warning Light*1
Electronic
Brake Force
Distribution
System Warn- ing
7-28
ABS warning 7-30
Charging System Warning Indication/Warning Light*17-28
Engine Oil Warning Indication/Warning Light*17-28
High Engine Coolant Temperature Warning Indication 7-29
Power Steering Malfunction Indication/Indicator Light*17-29
Master Warning Indication 7-30
Brake Control System Warning Indication/Warning Light*17-30
Brake Override Warning Indication 7-31
Check Engine Indication/Light*17-31
(Amber)
*i-stop Warning Indication/Warning Light*17-31
*Automatic Transmission Warning Indication/Warning Light*17-31
When Driving
Instrument Cluster and Display
*Some models.4-29
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

SignalWarning Refer to
*AWD Warning Indication/Warning Light*17-32
Air Bag/Front Seat Belt Pretensioner System Warning Indication/
Warning Light*17-33
Tire Pressure Monitoring System (TPMS) Warning Indication/Warning
Light*1
Flashing
7-33
Tu r n s o n 7-37
(Red) KEY Warning Indication/Warning Light
*17-34
(Amber)
*High Beam Control System (HBC) Warning Indication/Warning
Light*17-35
i-ACTIVSENSE Warning Indication/Warning Light*17-35
Exterior Light Warning Indication/Warning Light*17-35
Low Fuel Warning Indication/Warning Light 7-35
Check Fuel Cap Warning Indication/Warning Light*17-36
Engine Oil Level Warning Indication/Warning Light*17-36
Seat Belt Warning Indication/Warning Light (Front seat) 7-36
(Red)Seat Belt Warning Light (Rear seat)
7-37
*Low Washer Fluid Level Warning Indication/Warning Light7-37
Door-Ajar Warning Indication
7-37
When Driving
Instrument Cluster and Display
4-30*Some models.
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

SignalWarning Refer to
*Trunk lid-Ajar Warning Indication 7-37
*Liftgate-Ajar Warning Indication7-37
Door-Ajar Warning Light
7-37
*1 The light turns on when the ignition is switched on for an operation check, and turns off a few
seconds later or when the engine is started. If the light does not turn on or remains turned on, have
the vehicle inspected at an Authorized Mazda Dealer.
▼ Indication/Indicator Lights
These lights turn on or flash to notify th
e user of the system operation status or a
system malfunction.
Signal Indicator Refer to
(Green)Seat Belt Indicator Light (Rear seat)
2-27
*Front Passenger Air Bag Deactivation Indicator Light2-71
Security Indicator LightImmobilizer
System3-43
Theft-Deterrent System
3-44
Malfunction 7-34
(Green) KEY Indicator Light
4-5
(Green)
*i-stop Indicator Light4-16
Wrench Indication/Indicator Light*14-35
When Driving
Instrument Cluster and Display
*Some models.4-31
Mazda3_8KH1-EA-21K_Edition1_new
2021-7-27 16:02:22

SignalIndicator Refer to
*Shift Position Indication 4-44
Lights-On Indicator Light
4-56
Headlight High-Beam Indicator LightHeadlight
High-Low Beam4-59
Flashing the Headlights 4-59
Turn Signal/Hazard Warning Indicator Lights Tu r n a n d
Lane-Change
Signals4-62
Hazard Warn- ing Flasher 4-70
Electric Parking Brake (EPB) Indication/Indicator Light*1*27-30
AUTOHOLD Active Indicator Light*14-84
*Mazda Radar Cruise Control with Stop & Go function (MRCC with
Stop & Go function) indicator Light 4-150
*Tra ffi c
Jam Assist (TJA) indicator Light 4-164
TCS/DSC Indication/Indicator Light*1
Tra c t i o n C o n -
trol System (TCS)4-89
Dynamic Sta- bility Control
(DSC)4-90
Tu r n s o n 7-33
DSC OFF Indicator Light*14-91
When Driving
Instrument Cluster and Display
4-32*Some models.
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

SignalIndicator Refer to
*Select Mode Indicator Light 4-93
(White)
i-ACTIVSENSE Status Symbol (Warning/Risk Avoidance Support Sys-
tem) 4-98
(Green)
(Amber)
i-ACTIVSENSE OFF Symbol (Warning/Risk Avoidance Support Sys-
tem)
4-98
(Green)
*High Beam Control System (HBC) Indicator Light
4-102
(White)
*Mazda Radar Cruise Control (MRCC) Standby Indication
4-135
*Mazda Radar Cruise Control with Stop & Go function (MRCC with
Stop & Go function) Standby Indication 4-145
*Tra ffi c
Jam Assist (TJA) Standby Indication 4-157
(Green)
*Mazda Radar Cruise Control (MRCC) Set Indication 4-135
*Mazda Radar Cruise Control with Stop & Go function (MRCC with
Stop & Go function) Set Indication 4-145
*Tra ffi c
Jam Assist (TJA) Set Indication 4-157
*Smart Brake Support (SBS) OFF Indicator Light*14-177
(White)
*Cruise Standby Indication 4-225
(Green)
*Cruise Set Indication
4-225
*1 The light turns on when the ignition is switched on for an operation check, and
turns off a few seconds later or when the en gine is started. If the light does not
When Driving
Instrument Cluster and Display
*Some models.4-33
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

Active Driving Display*
▼Active Driving Display
1. Display
2. Dust-proof sheet
WARNING
Always adjust the display brightness
and position with the vehicle stopped:
Adjusting the display brightness and position while driving the vehicle is dangerous
as doing so could distract your attention from the road ahead and lead to an
accident.
CAUTION
 Do not place beverages near the dust-proof sheet of the active driving display. If
water or other liquids are splashed on the dust-proof sheet, it could cause
damage.
 Do not place objects or apply stickers above the active driving display or to the
dust-proof sheet as they will cause interference.
NOTE
Wearing polarized sunglasses wi ll reduce the visibility of the active driving display
due to the characteristics of the display.
If the battery has been removed and re-insta lled or the battery voltage is low, the
adjusted position may deviate.
The display may be difficult to view or temporarily affected by weather conditions
such as rain, snow, light, and temperature.
If the audio system is removed, the active driving display cannot be operated.
