2022 MAZDA MODEL 3 SEDAN ECO mode

Thank you for choosing a Mazda. We at Mazda design and build vehicles with
complete customer satisfaction in mind.

To help ensure enjoyable and trouble-free operation of your Mazda, read this
manual carefully and follow its recommendations.

An Authorized Mazda Dealer knows your vehicle best. So when maintenance or
service is necessary, that's the place to go.

Our nationwide network of Mazda professionals is dedicated to providing you with
the best possible service.

We assure you that all of us at Mazda have an ongoing interest in your motoring
pleasure and in your full satisfaction with your Mazda product.
Mazda Motor CorporationHIROSHIMA, JAPAN

Important Notes About This Manual
Keep this manual in the glove compartment as a handy reference for the safe and enjoyable use of
your Mazda. Should you resell the vehicle, le ave this manual with it for the next owner.

All specifications and descriptions are accurate at the time of printing. Because improvement is a con-
stant goal at Mazda, we reserve the right to make changes in specifications at any time without notice
and without obligation.

Air Conditioner and the Environment
Your Mazda's genuine air conditioner is filled with a refrigerant that has been found not to damage
the earth's ozone layer. If the air conditioner does not operate properly, consult an Authorized Mazda
Dealer.
Perc h l o rate
Certain components of this vehicle such as [air ba g modules, seat belt pretensioners, lithium batteries,
…] may contain Perchlorate Material-- Special handling may apply for service or vehicle end of life dis-
posal. See
www.dtsc.ca.gov/hazardouswaste/perchlorate.

Please be aware that this manual applies to all models, equipment and options. As a result, you
may find some explanations for equipment not installed on your vehicle.

©2021 Mazda Motor CorporationJuly 2021(Print1)
A Word to Mazda Owners
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

▼Driving Position Memory (Power
Seat)*
The desired driving position can be
called up after programming the
position.
The following driving positions can be
programmed.
Driver’s seat position (seat slide,
height adjustment, front edge of seat
bottom, seat recline)
Refer to Adjusting the Driver's Seat
on page 2-5.
Active driving display (display
position, brightness level, display
information)
Refer to Active Driving Display on
page 4-36.
Outside mirror angle
Refer to Outside Mirrors on page
3-31.
A driving position can be programmed
to the following parts.
Position memory buttonTransmitter used for vehicle
NOTE
Lumbar support adjustment cannot
be programmed.
Programming
1. Make sure the parking brake is on.
2. (Automatic transmission)
Make sure the selector lever is in
the P position.
3. Switch the ignition ON.
4. Adjust the following parts to the desired conditions.
Driver's seatActive driving displayOutside mirrors
5. Press the SET button continuously
until a sound is activated.
1. 1 button
2. 2 button
3. SET button
6. Do the following operation within 5 seconds after the sound is activated
to program the driving position.
Programming to a position
memory button
Press the button you want to
program, either 1 or 2 button.
Programming to the transmitter
Press the unlock button on the
transmitter.
A sound is activated when the
operation is completed correctly.
NOTE
If you do not perform the operation
correctly, a sound indicating that the
programming has failed is activated.
If the angle of the outer mirrors only
changes a little, the angle of the
outer mirrors may not have been
programmed correctly.
If the angle of the outer mirrors is
adjusted close to the limits of its
range of motion, the driving position
can be successfully programmed, but
it may fail when calling up the
programmed driving position.
Essential Safety Equipment
Seats
*Some models.2-11
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

WARNING
Be careful when using the seat
warmer:
The heat from the seat warmer may be
too hot for the following people and
could cause a low-temperature burn.
Infants, small children, elderly
people, and physically challenged
people
 People with delicate skin
 People who are excessively fatigued
 People who are intoxicated
 People who have taken
sleep-inducing medicine such as
sleeping pills or cold medicine
Do not use the seat warmer with
anything having high
moisture-retention ability such as a
blanket or cushion on the seat:
The seat may be heated excessively
and cause a low-temperature burn.
Do not use the seat warmer even
when taking a short nap in the
vehicle:
The seat may be heated excessively
and cause a low-temperature burn.
Do not place heavy objects with sharp
projections on the seat, or insert
needles or pins into it:
This could cause the seat to become
excessively heated and result in injury
from a minor burn.
CAUTION
 Do not use organic solvents to clean
the seat. It may damage the seat
surface and the heater.
Heated Steering Wheel*
▼ Heated Steering Wheel
The grips on the left and right of the
steering wheel can be warmed up
when the ignition is switched ON.
While the heated steering wheel is
operating, the indicator light in the
heated steering wheel switch turns on.
1. Heated steering wheel switch
2. Heating area

Manual mode
The heated steering wheel operates for
about 30 minutes when the heated
steering wheel switch is pressed, and
then automatically turns off.
To turn the heated steering wheel off
manually, press the switch again.
Essential Safety Equipment
Seat Warmer/Heated Steering Wheel
*Some models.2-21
Mazda3_8KH1-EA-21K_Edition1_new
2021-7-27 16:02:22

Seat Belt Precautions
▼Seat Belt Precautions
Seat belts help to decrease the
possibility of severe injury during
accidents and sudden stops. Mazda
recommends that the driver and all
passengers always wear seat belts.
(Mexico)
All the seats have lap/shoulder belts.
These belts have retractors with inertia
locks that keep them out of the way
when not in use. The locks allow the
belts to remain comfortable on users,
but they will lock in position during a
collision.

(Except Mexico)
All of the seat belt retractors are
designed to keep the lap/shoulder
belts out of the way when not in use.
The driver's seat belt has no provisions
for child-restraint systems and has only
an emergency locking mode. The
driver may wear it comfortably, and it
will lock during a collision.
However, the front passenger's seat
and all rear lap/shoulder belt
retractors operate in two modes:
emergency locking mode, and for
child-restraint systems, automatic
locking mode. While we recommend
you put all children in the rear seats, if
you must use the front passenger seat
for a child, slide the front passenger
seat as far back as possible and make
sure any child-restraint system is
secured properly.
WARNING
Always wear your seat belt and make
sure all occupants are properly
restrained:
Not wearing a seat belt is extremely
dangerous. During a collision,
occupants not wearing seat belts could
hit someone or things inside the
vehicle or even be thrown out of the
vehicle. They could be seriously injured
or even killed. In the same collision,
occupants wearing seat belts would be
much safer.
Do not wear twisted seat belts:
Twisted seat belts are dangerous. In a
collision, the full width of the belt is
not available to absorb the impact.
This puts more force on the bones
beneath the belt, which could cause
serious injury or death. So, if your seat
belt is twisted, you must straighten the
seat belt to remove any twists and to
allow the full width of the belt to be
used.
Never use one seat belt on more than
one person at a time:
Using one seat belt for more than one
person at a time is dangerous. A seat
belt used in this way cannot spread the
impact forces properly and the two
passengers could be crushed together
and seriously injured or even killed.
Never use one belt for more than one
person at a time and always operate
the vehicle with each occupant
properly restrained.
Essential Safety Equipment
Seat Belt Systems
2-23
Mazda3_8KH1-EA-21K_Edition1_new
2021-7-27 16:02:22

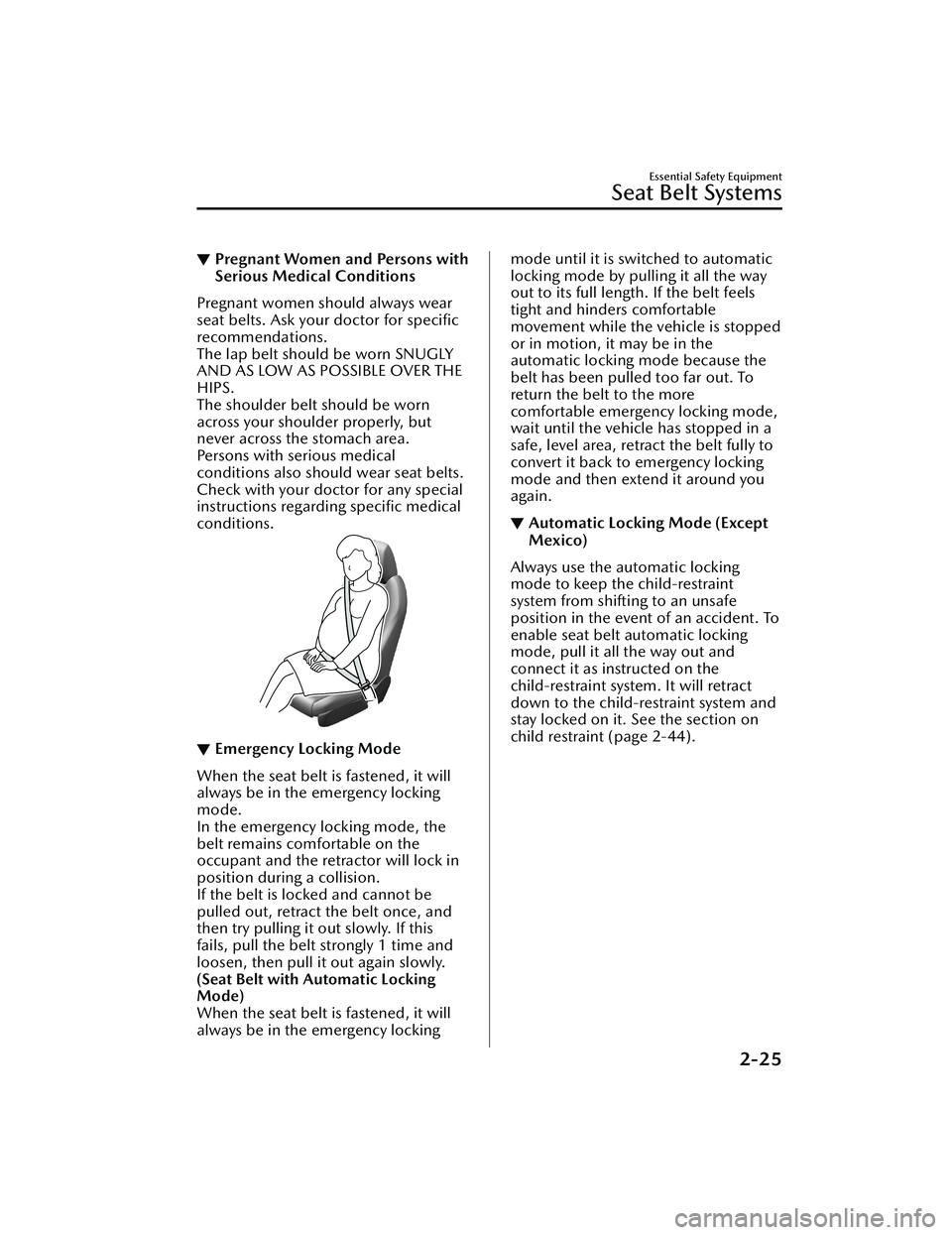

▼Pregnant Women and Persons with
Serious Medical Conditions
Pregnant women should always wear
seat belts. Ask your doctor for
specific
recommendations.
The lap belt should be worn SNUGLY
AND AS LOW AS POSSIBLE OVER THE
HIPS.
The shoulder belt should be worn
across your shoulder properly, but
never across the stomach area.
Persons with serious medical
conditions also should wear seat belts.
Check with your doctor for any special
instructions regarding specific medical
conditions.
▼ Emergency Locking Mode
When the seat belt is fastened, it will
always be in the emergency locking
mode.
In the emergency locking mode, the
belt remains comfortable on the
occupant and the retractor will lock in
position during a collision.
If the belt is locked and cannot be
pulled out, retract the belt once, and
then try pulling it out slowly. If this
fails, pull the belt strongly 1 time and
loosen, then pull it out again slowly.
(Seat Belt with Automatic Locking
Mode)
When the seat belt is fastened, it will
always be in the emergency locking
mode until it is switched to automatic
locking mode by pulling it all the way
out to its full length. If the belt feels
tight and hinders comfortable
movement while the vehicle is stopped
or in motion, it may be in the
automatic locking mode because the
belt has been pulled too far out. To
return the belt to the more
comfortable emergency locking mode,
wait until the vehicle has stopped in a
safe, level area, retract the belt fully to
convert it back to emergency locking
mode and then extend it around you
again.
▼
Automatic Locking Mode (Except
Mexico)
Always use the automatic locking
mode to keep the child-restraint
system from shifting to an unsafe
position in the event of an accident. To
enable seat belt automatic locking
mode, pull it all the way out and
connect it as instructed on the
child-restraint system. It will retract
down to the child-restraint system and
stay locked on it. See the section on
child restraint (page 2-44).
Essential Safety Equipment
Seat Belt Systems
2-25
Mazda3_8KH1-EA-21K_Edition1_new
2021-7-27 16:02:22

Front Seat Belt
Pretensioner and Load Limiting Systems
▼Front Seat Belt Pretensioner and
Load Limiting Systems
For optimum protection, the driver and
front passenger seat belts are
equipped with pretensioner and load
limiting systems. For both these
systems to work properly you must
wear the seat belt properly.

Pretensioners:
When a collision is detected, the
pretensioners deploy simultaneously
with the air bags.
For vehicles with the front passenger
occupant classification system, the
pretensioners deploy simultaneously
with the air bags when a roll-over is
also detected.
For deployment details, refer to the
SRS Air Bag Deployment Criteria (page
2-67).

The seat belt retractors remove slack
quickly as the air bags are expanding.
Any time the air bags and seat belt
pretensioners have
fired they must be
replaced.
A system malfunction or operation
conditions are indicated by a warning.
Refer to Air Bag/Front Seat Belt
Pretensioner System Warning
Indication/Warning Light on page
7-33.
(With Front Passenger Occupant
Classification System)
In addition, the pretensioner system
for the front passenger, like the front
and side passenger air bag , is designed
to only deploy in accordance with the
total seated weight on the front
passenger seat.
For details, refer to the front passenger
seat weight sensors (page 2-71).

Load limiter:
The load limiting system releases belt
webbing in a controlled manner to
reduce belt force on the occupant's
chest. While the most severe load on a
seat belt occurs in frontal collisions,
the load limiter has an automatic
mechanical function and can activate
in any accident mode with sufficient
occupant movement.
Even if the pretensioners have not
fired, the load limiting function must
be checked by an Authorized Mazda
Dealer.
WARNING
Wear seat belts only as recommended
in this owner's manual:
Incorrect positioning of the seat belts is
dangerous. Without proper
positioning, the pretensioner and load
limiting systems cannot provide
adequate protection in an accident
and this could result in serious injury.
For more details about wearing seat
belts, refer to "Fastening the Seat Belt"
(page 2-26).
Essential Safety Equipment
Seat Belt Systems
2-28
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

(5–Door)
1. Tether strap
2. Anchor bracket
3. Forward

Always install the head restraint and
adjust it to the appropriate position
after removing the child-restraint
system:
Driving with the head restraint
removed is dangerous as impact to the
occupant's head cannot be prevented
during emergency braking or in a
collision, which could result in a
serious accident, injury or death.
Refer to Head Restraints on page 2-17.
▼Using Automatic Locking Mode
(Except Mexico)
Follow these instructions when using a
child-restraint system, unless you are
attaching a LATCH-equipped
child-restraint system to the rear
LATCH lower anchors. Refer to “Using
LATCH Lower Anchor” (page 2-50).
NOTE
Follow the child-restraint system
manufacturer's instructions carefully. If
you are not sure whether you have a
LATCH system or tether, check in the
child-restraint system manufacturer's
instructions and follow them
accordingly. Depending on the type of
child-restraint system, it may use
LATCH system instead of seat belts or if
the belt goes across the child's chest,
may recommend against using
automatic locking mode.
1. Make sure the seatback is securely
latched by pushing it back until it is
fully locked.
2. Remove the head restraint. However, when installing a backless
booster seat, always install the
vehicle head restraint to the seat
where the backless booster seat is
installed.
Refer to Head Restraints on page
2-17.
3. Secure the child-restraint system with the lap portion of the lap/
shoulder belt. See the
manufacturer's instructions on the
child-restraint system for belt
routing instructions.
Essential Safety Equipment
Child Restraint
2-44
Mazda3_8KH1-EA-21K_Edition1_new 2021-7-27 16:02:22

Removing the luggage compartment
cover
This cover can be removed for more
room.
1. Remove the straps from the hooks.
2. Press the luggage compartmentcover upward from near the pins
and remove the luggage
compartment cover from the pins.
1. Pin

3. Lift the front end of the luggage compartment cover and remove it.
Inside Trunk Release
Lever (4-door)
*
▼Inside Trunk Release Lever
Your vehicle is equipped with an inside
trunk release lever that provides a
means of escape for children and
adults in the event they become locked
inside the trunk.

No matter how careful adults might be
with keys and locking their cars,
parents should be aware that children
may be tempted to play around
vehicles and use the trunk as a hiding
place.

Adults are advised to familiarize
themselves with the operation and
location of the inside trunk release
lever so that all children can be told
about it in an appropriate way, keeping
in mind that most vehicles do not have
such levers.
WARNING
Close the trunk lid, be sure the seat
backs are latched and do not allow
children to play inside the vehicle:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure.
Before Driving
Doors and Locks
3-24*Some models.
Mazda3_8KH1-EA-21K_Edition1_new
2021-7-27 16:02:22
