2022 LEXUS LS500 Owners Manual

8
LS500_QG_U

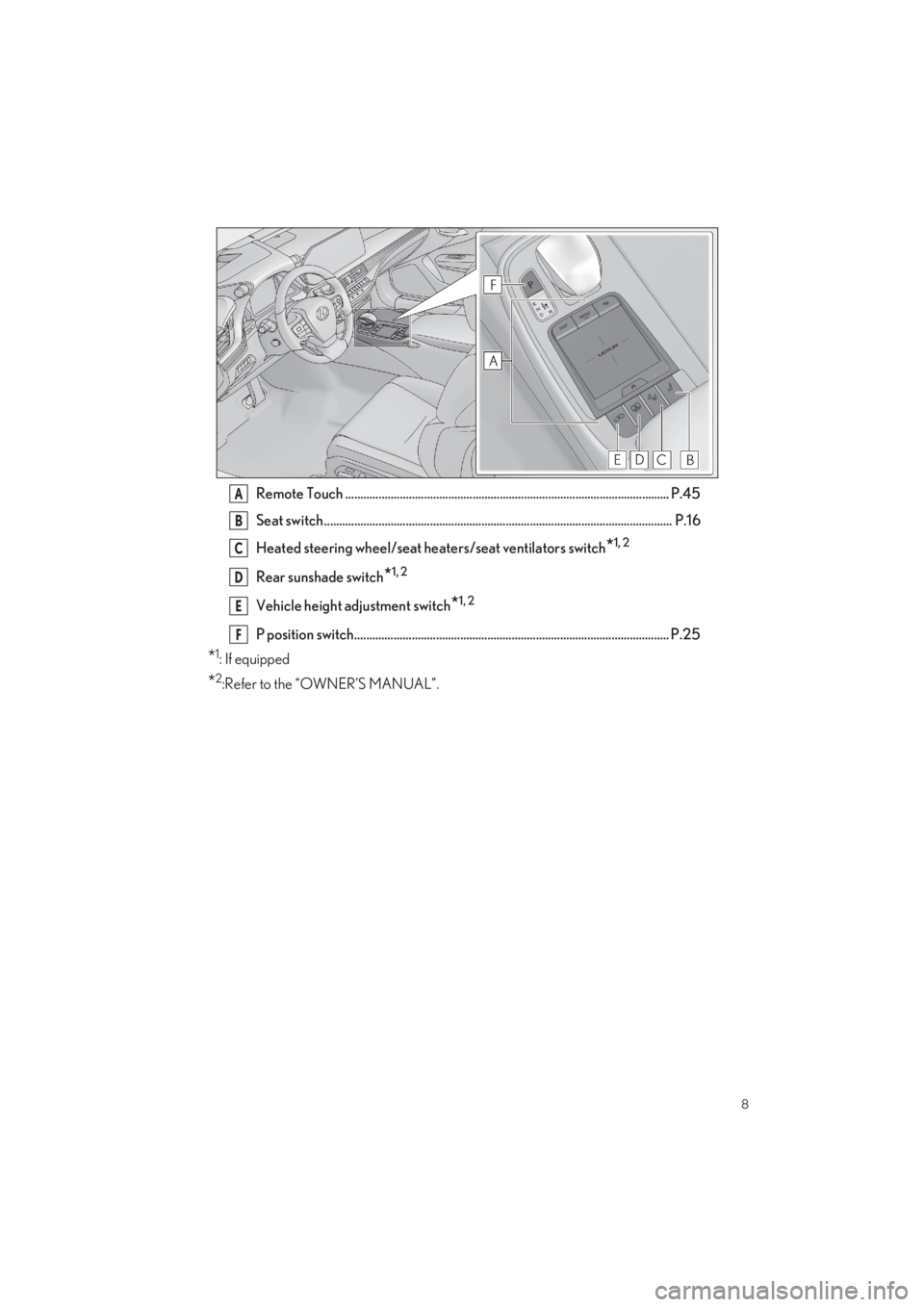

Remote Touch ........................................................................................................... P.45
Seat switch................................................................................................................... P .16
Heated steering wheel/seat he aters/seat ventilators switch*1, 2
Rear sunshade switch*1, 2
Vehicle height adjustment switch*1, 2
P position switch........................................................................................................ P.25
*1:If equipped
*2:Refer to the “OWNER’S MANUAL”.
A
B
C
D
E
F

9
LS500_QG_U
■Interior
SRS airbags*1
Floor mats ......................................................................................................................P.11
Front seats ................................................................................................................... P .16
Head restraints*1
Seat belts*1
Inside lock buttons ................................................................................................... P.88
Console box*1
Cup holders*1
Assist grips*1
Coat hooks*1
Rear Multi Operation Panel*1, 2
Rear seat entertainment system*2, 3
*1: Refer to the “OWNER’S MANUAL”.
*2:If equipped
*3:Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
A
B
C
D
E
F
G
H
I
J
K
L

10
LS500_QG_U
■Ceiling
Moon roof switches*1............................................................................................. P.90
Panoramic moon roof switches*1......................................................................... P.91
Personal lights*2
“SOS” button*1......................................................................................................... P.84
Auxiliary box*2
Vanity mirrors*2
Sun visors*2
Door-linked interior light switch*2
Inside rear view mirror*1, 2
Digital Rearview Mirror*1...................................................................................... P.21
Garage door opener buttons................................................................................ P.79
Interior light*2
*1:If equipped
*2:Refer to the “OWNER’S MANUAL”.
A
B
C
D
E
F
G
H
I
J

11
LS500_QG_U
Floor Mat Installation
1Insert the retaining hooks (clips) into
the floor mat eyelets.
2Turn the upper knob of each retaining
hook (clip) to secure the floor mats in
place.
Always align the marks .
The shape of the retaining hooks (clips) may di ffer from that shown in the illustration.
Floor Mat Installation
Use only floor mats designed specifically for vehicles of the same model and model year
as your vehicle. Fix them secu rely in place onto the carpet.
A

12
LS500_QG_U
Entering and Exiting
Electronic keys
• Operating the smart access system with
push-button start ( P.14)
• Operating the wireless remote control
function
Mechanical keys
Key number plate
Card key (electroni c key) (if equipped)
Operating the smart access system with
push-button start ( P.14)
Locks the doors
Unlocks the doors
Opens the windows*1 and moon
roof*1, 2 or panoramic moon roof
(press and hold)*1, 2
Opens the trunk
Sounds the alarm
*1: This setting must be customized at your
Lexus dealer.
*2:If equipped
Keys
The keys
A
B
C
D
Wireless remote control
A
B
C
D
E

13
LS500_QG_U
To take out the mechanical key, push the
release button and take the key out.
The mechanical key can only be inserted in
one direction, as th e key only has grooves
on one side. If the key cannot be inserted in
a lock cylinder, turn it over and re-attempt
to insert it.
After using the mechanic al key, store it in
the electronic key. Carry the mechanical
key together with the electronic key. If the
electronic key battery is depleted or the
entry function does not operate properly,
you will need the mechanical key.
Mechanical key

14
LS500_QG_U
1Grip the driver’s door handle to unlock
the door. Holding the driver’s door
handle for approximately 2 seconds
unlocks all the doors. Grip any passen-
ger door handle to unlock all the
doors.*
Make sure to touch the sensor on the back
of the handle.
The doors cannot be unlocked for 3 sec-
onds after the doors are locked.
*: The door unlock settings can be
changed.
2Touch the lock sensor (indentati on on the upper part of the door handle) to lock all the
doors.
Check that the door is securely locked.
Smart Access System with Push-button Start
The following operations can be performed simply by carrying the electronic key (includ-
ing the card key) on your person, for example in your pocket. The driver should always
carry the electronic key.
For details on starting the engine, see page 22.
Unlocking and locking the doors from the outside

15
LS500_QG_U
Press the button.
If the vehicle is equipped with a power trunk
opener and closer, the trunk lid will fully
open.
If the button is pressed while the trunk lid is
opening, the trunk lid will stop moving.
When all the doors are unlocked using one
of the following methods, the trunk can be
opened without the electronic key:
● Entry function
● Wireless remote control
● Door lock switches
● Automatic door unlocking system
● Mechanical key
Opening the trunk
For details on what to do when the electronic key does not operate properly, see page 99.
