Instrument Cluster Overview
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations . For more information on the instrument cluster, the LCD Warning Messages and the function of all indicator and warning lights, please refer to section 4 of the Owner ’s Manual .
This illustration is for demonstration purposes only . Some indicators and warning lights may not appear in illustration . On the vehicle, they may appear in the LCD .
3*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
INSTRUMENT CLUSTERINSTRUMENTCLUSTER

220200
20
20 12 0
1 40
40
10 0
60
80180
40 160
60 140
80 120
100
E
F
mi
RANGE
68
°cCRUISE 60 mi/h
EPB
ECO
MPH
electric
LV .3R ND
L H
2518 mi
4 *IF EQUIPPEDNIRO EV FEATURES & FUNCTIONS GUIDE
Indicators & Warning Lights
High Beam Indicator
Light ON Indicator
Front Fog Light Indicator*
Master Warning Light
For ward Safet y Warning Indicator
Lane Keeping Assist (LK A) Indicator*
Electronic Brakeforce Distribution (EBD) System Warning Indicator (Two separate indicators on Instrument Cluster lit at same time)
Immobilizer Indicator*
READY Indicator
ECO Mode Indicator
ECO+ Mode Indicator
SPORT Mode Indicator
EV Ser vice Warning Light
EV Temperature Warning*
Charging System Warning Indicator
Seat Belt Warning Indicator
Low Tire Pressure Light / Tire Pressure Monitoring System (TPMS) Malfunction Indicator*Electronic Stabilit y Control (ESC) Indicator / ESC Malfunction Indicator

Electronic Stabilit y Control (ESC) OFF Indicator
Parking Brake & Brake Fluid Warning Indicator
Electronic Power Steering (EPS) Warning Indicator
Airbag Warning Indicator
Anti-lock Braking System (ABS) Warning Indicator
Cruise Indicator*
(red color)
(yellow color)
Regenerative Brake Warning Indicator (Two separate indicators on Instrument Cluster lit at same time)
LED Headlamp Warning Indicator*
Charging Cable Connection Indicator
Power Down Warning Light
High Voltage Bat ter y Level Warning Light
12V Bat ter y
EPBElectronic Parking Brake (EPB)
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations
. For more information on the instrument cluster, the LCD Warning Messages and the function of all indicator and warning lights, please refer to section 4 of the Owner ’s Manual .
This illustration is for demonstration purposes only . Some indicators and warning lights may not appear in illustration . On the vehicle, they may appear in the LCD .
A
BC
INSTRUMENT CLUSTER
INSTRUMENTCLUSTER

5*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Ready indicator light – Illuminates when the vehicle is ready to drive . When the ready indicator light is blinking, a malfunction has occurred . Have an authorized Kia dealer address the concern as soon as possible .
EV Service warning light – Illuminates when there is a malfunction related to the electric vehicle control system . Have an authorized Kia dealer address the concern as soon as possible .
Power down warning light – Illuminates when the vehicle’s speed and per formance are limited for the safety of the electric vehicle .
Charging indicator light – Shows the charging status of the high-voltage battery . When charging, the red indicator turns on . The indicator turns off when not charging .
High-voltage battery level warning light – Illuminates when the high-voltage battery charge level is insufficient .
Regenerative brake warning lights (when both indicators are lit) – Illuminates when the regenerative brake system is not functioning correctly .
A State of Charge (SOC) gauge
The State of Charge gauge displays the high-voltage battery charge status .
•L (low) position on the gauge indicates that the driving battery energy is low
•H (high) position on the gauge indicates that the driving battery is fully charged
B Power / Charge Gauge
Niro EV ’s Power / Charge gauge provides information on the energy consumption rate of the vehicle and the charge status of the regenerative brakes .
•POWER – Shows the energy consumption rate of the vehicle when driving uphill or accelerating . The more electric energy used, the higher the gauge level
•CHARGE – Shows the charging status of the battery when it is being charged by the regenerative brakes . The more electric energy charged, the lower the gauge level
C Remaining Distance
Remaining Distance is the estimated distance the vehicle can be driven with the remaining high-voltage battery level . It is displayed differently according to the selected drive mode and Climate Control settings .
For more information, refer to the Owner ’s Manual .
Energy Consumption
There are several factors that contribute to your electric vehicle’s energy consumption, including maintenance of your vehicle, driving style, environmental conditions, vehicle weight and vehicle aerodynamics .
Below are tips on how to help reduce energy consumption:
•Keep your vehicle in good condition with regular maintenance
•Don’t “ride” the brake pedal
•Drive at a moderate speed, accelerating smoothly and at a moderate rate
•Keep tires inflated to the recommended pressure
•Travel lightly, without carrying unnecessary weight in your vehicle
•Ensure wheels are aligned correctly
•Avoid placing large or heavy items on roof racks
•Avoid hilly, winding or poorly maintained roads
For more information, refer to section 6 of the Owner ’s Manual .
Electric Vehicle (EV) Indicators
INSTRUMENT CLUSTERINSTRUMENTCLUSTER

6*IF EQUIPPEDNIRO EV FEATURES & FUNCTIONS GUIDE
Low Battery Warning – When the high-voltage battery level reaches 8% or less, this warning message appears on the LCD and the warning indicator light on the instrument cluster illuminates . Charge the high-voltage battery immediately .
Power limited due to low EV battery temperature. Charge battery – When the outside temperature is low and you turn the vehicle on or off, this warning message may appear on the LCD . If the battery level is low and the vehicle is parked outside for a long time, vehicle power may be limited . Charging battery before driving helps increase power .
Stop vehicle and check power supply – When there is a failure in the power supply system, this warning message appears on the LCD . Park the vehicle in a safe location and have it towed to the nearest Kia dealer for inspection .
EV Battery Overheated! Stop Vehicle – When the high-voltage battery temperature is too high, this warning message will appear on the LCD . Stop the vehicle and turn off the Power button so that the battery temperature decreases .
Charge immediately. Power limited – When the high-voltage battery level reaches 3% or less, this warning message appears on the LCD,
the warning indicator light on the instrument cluster illuminates and the power down warning light turns ON simultaneously .
The vehicle’s power will be reduced to minimize the energy consumption of the high-voltage battery . Charge the high-voltage battery immediately .
Power limited – This warning message appears when the vehicle’s power is limited due to the following reasons:
1 . When the high-voltage battery is below a
certain level, or voltage is decreasing
2 . When the temperature of the motor or high-voltage battery is too high or too low
3 . When there is a problem with the cooling system or a failure that may interrupt normal driving
Charge Warning Messages on LCD Display
REMINDERS:
•
When these warning messages are displayed, do not accelerate or star t the vehicle suddenly
•
All stored driving information (except Odometer and Range) is reset if the bat ter y is disconnected
Low EV BatteryEV Battery Overheated!Stop Vehicle
Power limiteddue to low EV batterytemperature .Charge battery
Stop vehicle andcheck power supplyCharge immediately .Power limited
Power limited
These illustrations are for demonstration purposes only . Some messages may appear differently . See your Owner ’s Manual for more information .
INSTRUMENT CLUSTER
INSTRUMENTCLUSTER

8†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDNIRO EV FEATURES & FUNCTIONS GUIDE
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Tire Pressure Monitoring System Video
QR CODE
The TPMS indicator functions as both Low Tire Pressure Light and TPMS Malfunction Indicator . The indicator will
illuminate if it detects one or more tires is significantly underinflated, the vehicle has a spare tire installed without TPMS
or the outside temperature becomes significantly lower .
The LCD screen in the instrument cluster will display the Low Tire Pressure indicator A showing which tire(s) is underinflated . Inflate tire(s) to specifications using an accurate digital tire pressure gauge to turn off Low Tire Pressure Light . See front driver ’s door jamb for PSI specification .
When there is a problem with the TPMS, the TPMS Malfunction Indicator will blink for approximately one minute then illuminate – see dealer for service .


14*

-PX
5JSF
1SFTTVSF
REMINDERS:
•
Check the recommended tire pressure label located on the left side of driver's door jamb, visible when the door is open
•
Consult your dealer for ser vice if Low Tire Pressure Light remains illuminated after inflating your tire(s)
Personal electronic devices (such as laptops, wireless chargers, remote star t systems, etc .) may inter fere with TPMS system, which may cause the Malfunction Warning Indicator (Check Engine Light) to illuminate .
For more information, refer to the Owner ’s Manual .
A

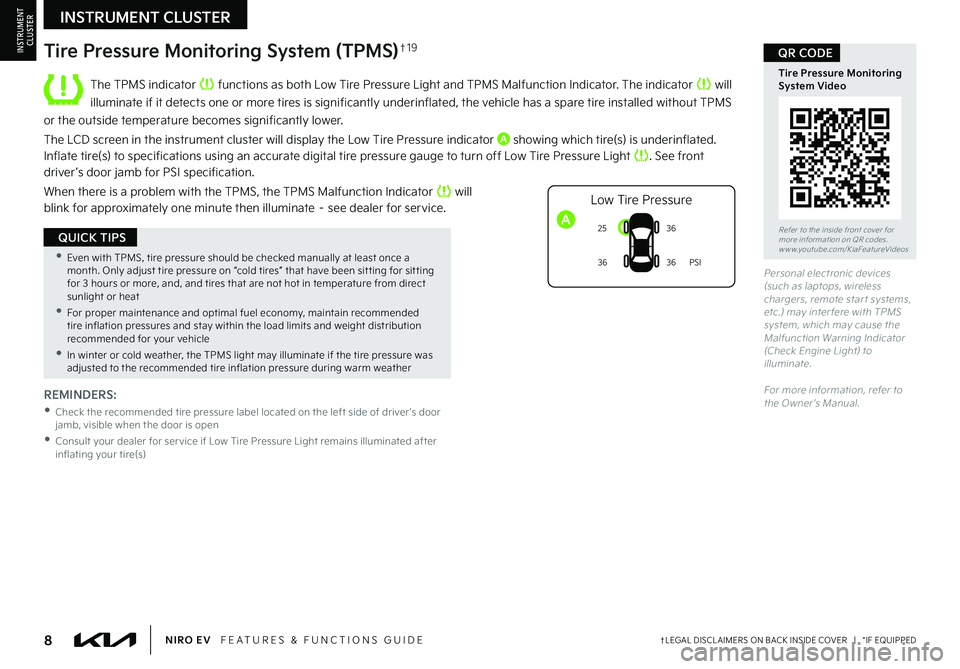

Tire Pressure Monitoring System (TPMS)†1 9
•Even with TPMS, tire pressure should be checked manually at least once a month . Only adjust tire pressure on “cold tires” that have been sit ting for sit ting for 3 hours or more, and, and tires that are not hot in temperature from direct sunlight or heat
•For proper maintenance and optimal fuel economy, maintain recommended tire inflation pressures and stay within the load limits and weight distribution recommended for your vehicle
•In winter or cold weather, the TPMS light may illuminate if the tire pressure was adjusted to the recommended tire inflation pressure during warm weather
QUICK TIPS
INSTRUMENT CLUSTER
INSTRUMENTCLUSTER

10*IF EQUIPPEDNIRO EV FEATURES & FUNCTIONS GUIDE
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Instrument Cluster’s LCD Display Video
QR CODETrip Modes / Trip Computer
The Trip Computer is a driver information system that displays information related to driving, such as Average and Instant accumulated info, drive info, driving style and energy flow . It appears on the display when the Engine Start/Stop button is in the ON position .
To cycle through the instrument cluster modes B, press the Mode button A .
When in the Trip Computer mode , press the Select/Reset (OK) button C to cycle through the screens . When displaying ACCUMUL ATED INFO or DRIVE INFO screens, press and hold the OK button C to reset to zero .
LCD Instrument Cluster Modes
Press Mode button A to scroll through different LCD Instrument Cluster Modes .
Trip Computer Mode: Displays driving information for consumption info, accumulated info, drive info, driving style and energy flow
Turn-by-Turn Mode*: Displays the route guidance, destination info
Driving Assist: Displays information for Lane Departure Warning, Lane Keeping Assist, Smart Cruise Control, Lane Following Assist*, Highway Driving Assist*, Driver Attention Warning (DAW) and TPMS
User Settings Mode: Change settings for driver assistance, doors, lights, sound, convenience, service interval, other, reset
Master Warning Mode: Displays warning messages related to the vehicle when one or more function is not operating normally
Your vehicle’s steering wheel but tons may differ from those in the illustrations .
Driving while distracted is dangerous and should be avoided . Drivers should remain at tentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving .
REMINDERS:
•
Appearance of Trip Computer display may differ as equipped
•
All stored driving information (except Odometer and Range) is reset if the bat ter y is disconnected
%3*7*/(
45:-&·
&DPOPNJDBM
·
/PSNBM
·
"HHSFTTJWF

$0/46.15*0/
*/'0·
"WFSBHF
&OFSHZ
$POTVNQUJPO·
*OTUBOU
&OFSHZ
$POTVNQUJPO
"$$6.6-"5&%
*/'0·
5SJQNFUFS·
"WFSBHF
&OFSHZ
$POTVNQUJPO·
5JNFS
%3*7&
*/'0·
5SJQNFUFS·
"WFSBHF
&OFSHZ
$POTVNQUJPO·
5JNFS
&/&3(:
'-08
Accumulated Info
T rip
Average
Ti mer 247.5
15.7
17:42mi
MPG
h
(But tons located on Steering Wheel – Type A shown)
CNCL RES
CRUISE
SETCNCLRES
CRUISE
SET
A
C
B
VEHICLE SETTINGS
VEHICLESETTINGS

11 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Vehicle & User Settings Video
Ambient, Mood & Theme Lighting Video
QR CODEUser Settings - Instrument Cluster
To enter the User Settings mode in the LCD Instrument Cluster Modes, press the Mode button A when the vehicle is at a standstill, Rotary Dial Shifter Knob in Park while the Engine Start/Stop button is in the ON position . Then select User Settings by pressing the Move/Reset (OK) button .
You can navigate the selections on the display by pressing the OK button B up/down, and then selecting the item by pressing the OK button B again .
Driver Assistance:
•Lane Safety
•Driver Attention Warning (DAW)
•Smart Cruise Control (SCC) Reaction
•Leading Vehicle Departure Alert
•Lane Following Assist
•Highway Driving Assist
•Highway Auto Curve Slowdown
•Forward Collision-Avoidance Assist
•Forward Collision Warning
•Blind-Spot Collision Warning Sound
•Rear Cross-Traffic Collision Warning
Door:
•Automatically Lock
•Automatically Unlock
•Two Press Unlock
Lights:
•One Touch Turn Signal
•Ambient Light Brightness
•Ambient Light Color
Sound:
•Parking Distance Warning-Forward Volume*
Convenience:
•Utility Mode
•Rear Occupant Alert
•Welcome Mirror/Light
•Wireless Charging System*
•Wiper/Lights Display*
•Auto Rear Wiper
•Smart Regeneration
•Icy Road Warning
Service Interval:
•Enable Service Interval
•Adjust Interval
•Reset
Other features:
•Aux . Battery Saver+
•Energy Consumption Reset
•Temperature Unit
•Tire Pressure Unit
Reset:
•Choosing reset will restore defaults for all User Settings menus
Driving while distracted is dangerous and should be avoided . Do not at tempt to change vehicle system set tings while driving .
(But tons located on Steering Wheel – Type B)
CNCLRES
CRUISE
SETCNCLRES
CRUISE
SET
A
B
VEHICLE SETTINGS
VEHICLESETTINGS
