Safety System
3-6
OQX039003L

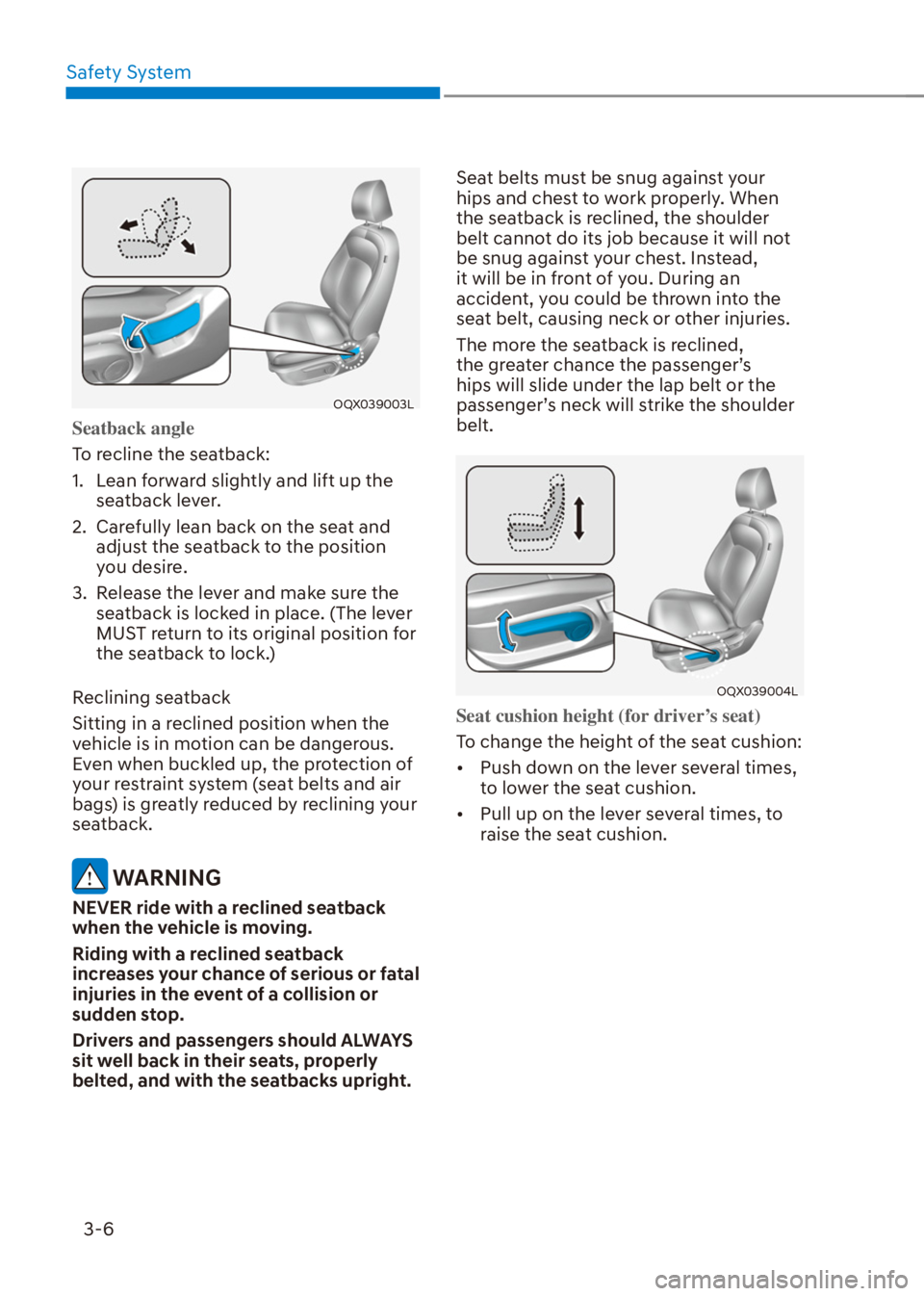

Seatback angle
To recline the seatback:
1. Lean forward slightly and lift up the
seatback lever.
2. Carefully lean back on the seat and
adjust the seatback to the position
you desire.
3. Release the lever and make sure the
seatback is locked in place. (The lever
MUST return to its original position for
the seatback to lock.)
Reclining seatback
Sitting in a reclined position when the
vehicle is in motion can be dangerous.
Even when buckled up, the protection of
your restraint system (seat belts and air
bags) is greatly reduced by reclining your
seatback.
WARNING
NEVER ride with a reclined seatback
when the vehicle is moving.
Riding with a reclined seatback
increases your chance of serious or fatal
injuries in the event of a collision or
sudden stop.
Drivers and passengers should ALWAYS
sit well back in their seats, properly
belted, and with the seatbacks upright.Seat belts must be snug against your
hips and chest to work properly. When
the seatback is reclined, the shoulder
belt cannot do its job because it will not
be snug against your chest. Instead,
it will be in front of you. During an
accident, you could be thrown into the
seat belt, causing neck or other injuries.
The more the seatback is reclined,
the greater chance the passenger’s
hips will slide under the lap belt or the
passenger’s neck will strike the shoulder
belt.
OQX039004L
Seat cushion height (for driver’s seat)
To change the height of the seat cushion:

[Push down on the lever several times,
to lower the seat cushion.

[Pull up on the lever several times, to
raise the seat cushion.

03
3-7
Seatback pocket (if equipped)
OQX039041L
The seatback pocket is provided on the
back of the front seatbacks.
WARNING
To prevent the Occupant Classification
System from malfunctioning:
Do not hang onto the front passenger’s
seatback.
CAUTION
Do not put heavy or sharp objects in the
seatback pockets. In an accident they
could come loose from the pocket and
injure occupants.
Rear Seats
Folding the rear seat
The rear seatbacks can be folded to
facilitate carrying long items or to
increase the luggage capacity of the
vehicle.
WARNING

[Never allow passengers to sit on top
of the folded down seatback while
the vehicle is moving. This is not a
proper seating position and no seat
belts are available for use. This could
result in serious injury or death in
case of an accident or sudden stop.

[Objects carried on the folded down
seatback should not extend higher
than the top of the front seatbacks.
This could allow cargo to slide
forward and cause injury or damage
during sudden stops.
To fold down the rear seatback:
1. Set the front seatback to the upright
position and if necessary, slide the
front seat forward.
OQX039012N
2. Lower the rear head restraints to
the lowest position by pushing and
holding the release button and
pushing down on the head restraint.

Safety System
3-8
OQX039013N

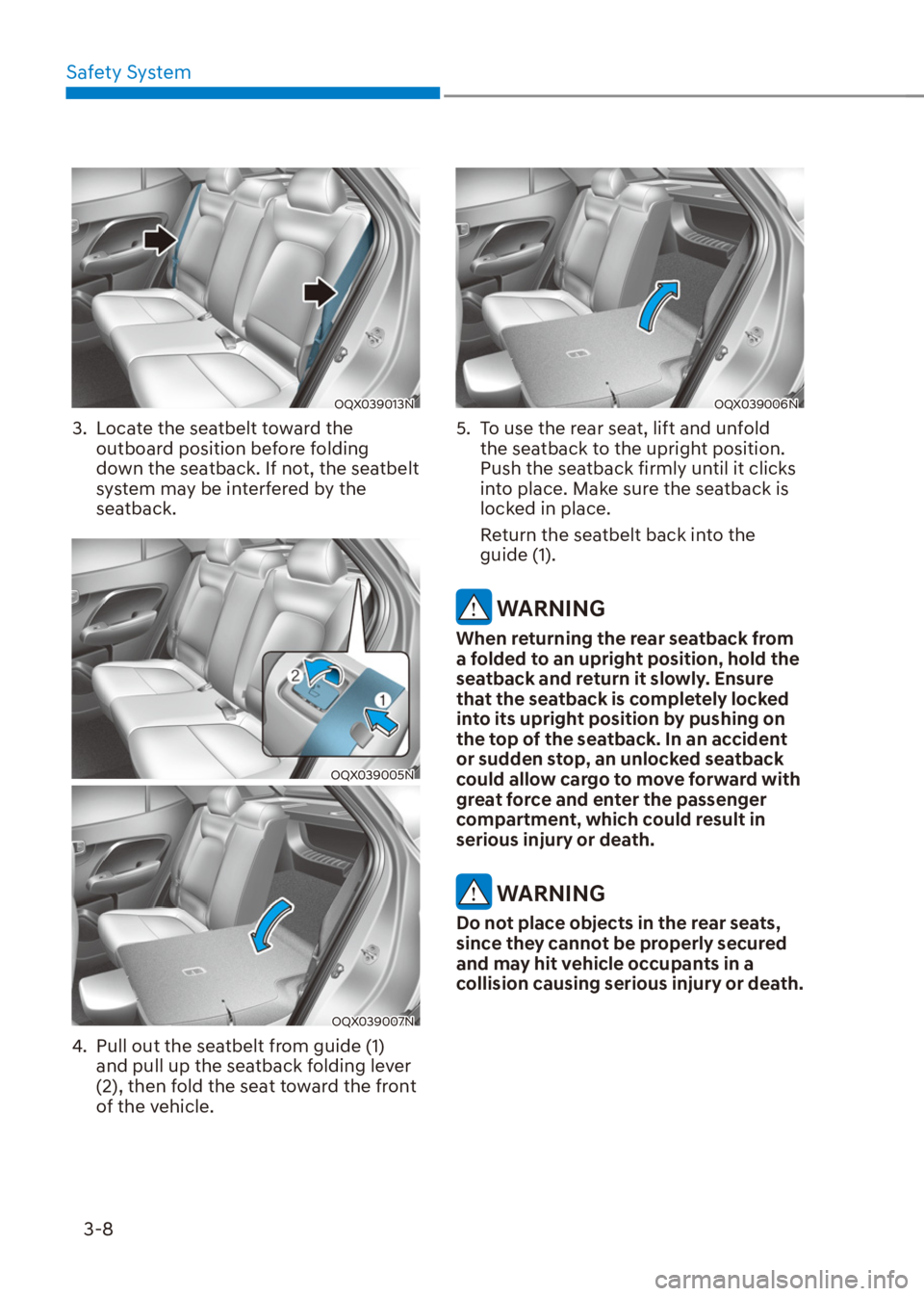

3. Locate the seatbelt toward the
outboard position before folding
down the seatback. If not, the seatbelt
system may be interfered by the
seatback.
OQX039005N
OQX039007N
4. Pull out the seatbelt from guide (1)
and pull up the seatback folding lever
(2), then fold the seat toward the front
of the vehicle.
OQX039006N
5. To use the rear seat, lift and unfold
the seatback to the upright position.
Push the seatback firmly until it clicks
into place. Make sure the seatback is
locked in place.
Return the seatbelt back into the
guide (1).
WARNING
When returning the rear seatback from
a folded to an upright position, hold the
seatback and return it slowly. Ensure
that the seatback is completely locked
into its upright position by pushing on
the top of the seatback. In an accident
or sudden stop, an unlocked seatback
could allow cargo to move forward with
great force and enter the passenger
compartment, which could result in
serious injury or death.
WARNING
Do not place objects in the rear seats,
since they cannot be properly secured
and may hit vehicle occupants in a
collision causing serious injury or death.

03
3-9
WARNING
Make sure the vehicle is off, the shift
lever is in P (Park), and the parking
brake is securely applied whenever
loading or unloading cargo. Failure to
take these steps may allow the vehicle
to move if the shift lever is inadvertently
moved to another position.
NOTICE

[Be careful when loading cargo
through the rear passenger seats
to prevent damage to the vehicle
interior.

[When cargo is loaded through the
rear passenger seats, ensure the
cargo is properly secured to prevent
it from moving while driving.

[Unsecured cargo in the passenger
compartment can cause damage
to the vehicle or injury to the
occupants.
Head Restraints
The vehicle’s front and rear seats
have adjustable head restraints. The
head restraints provide comfort for
passengers, but more importantly they
are designed to help protect passengers
from whiplash and other neck and spinal
injuries during an accident, especially in
a rear impact collision.
WARNING
To reduce the risk of serious injury or
death in an accident, take the following
precautions when adjusting your head
restraints:

[Always properly adjust the head
restraints for all passengers BEFORE
starting the vehicle.

[NEVER let anyone ride in a seat
with the head restraints removed or
reversed.
OLF034072N
Adjust the head restraints so the
middle of the head restraint is at the
same height as the height of the top
of the eyes.

[NEVER adjust the head restraint
position of the driver’s seat when the
vehicle is in motion.

[Adjust the head restraint as close to
the passenger’s head as possible. Do
not use a seat cushion that holds the
body away from the seatback.

[Make sure the head restraint locks
into position after adjusting it.
NOTICE
To prevent damage, NEVER hit or pull
on the head restraints.
CAUTION
When there are no occupants in the
rear seats, adjust the height of the head
restraint to the lowest position. The
rear seat head restraint can reduce the
visibility of the rear area.

Safety System
3-10

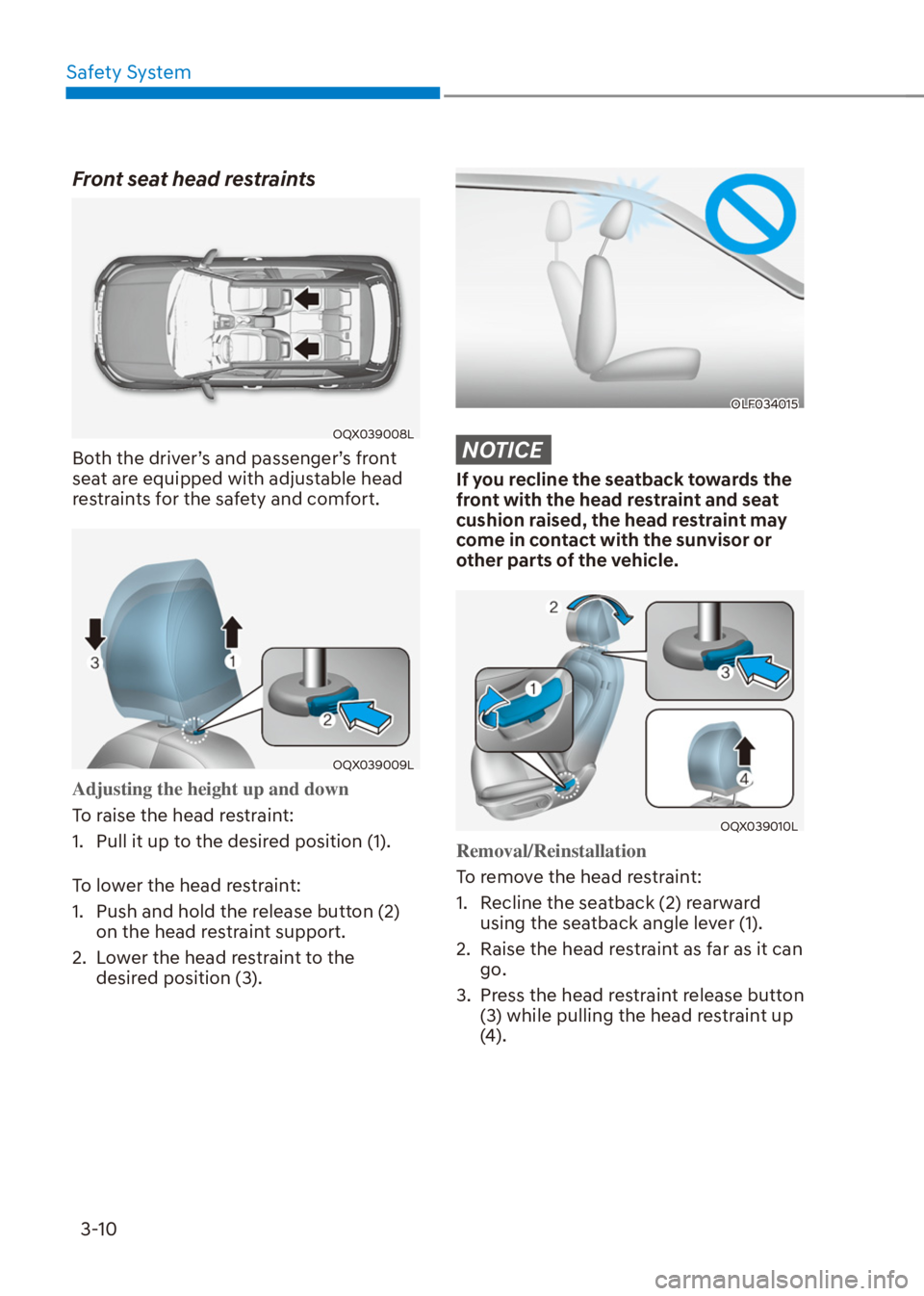

Front seat head restraints
OQX039008L
Both the driver’s and passenger’s front
seat are equipped with adjustable head
restraints for the safety and comfort.
OQX039009L
Adjusting the height up and down
To raise the head restraint:
1. Pull it up to the desired position (1).
To lower the head restraint:
1. Push and hold the release button (2)
on the head restraint support.
2. Lower the head restraint to the
desired position (3).
OLF034015
NOTICE
If you recline the seatback towards the
front with the head restraint and seat
cushion raised, the head restraint may
come in contact with the sunvisor or
other parts of the vehicle.
OQX039010L
Removal/Reinstallation
To remove the head restraint:
1. Recline the seatback (2) rearward
using the seatback angle lever (1).
2. Raise the head restraint as far as it can
go.
3. Press the head restraint release button
(3) while pulling the head restraint up
(4).

03
3-11
OQX039011L

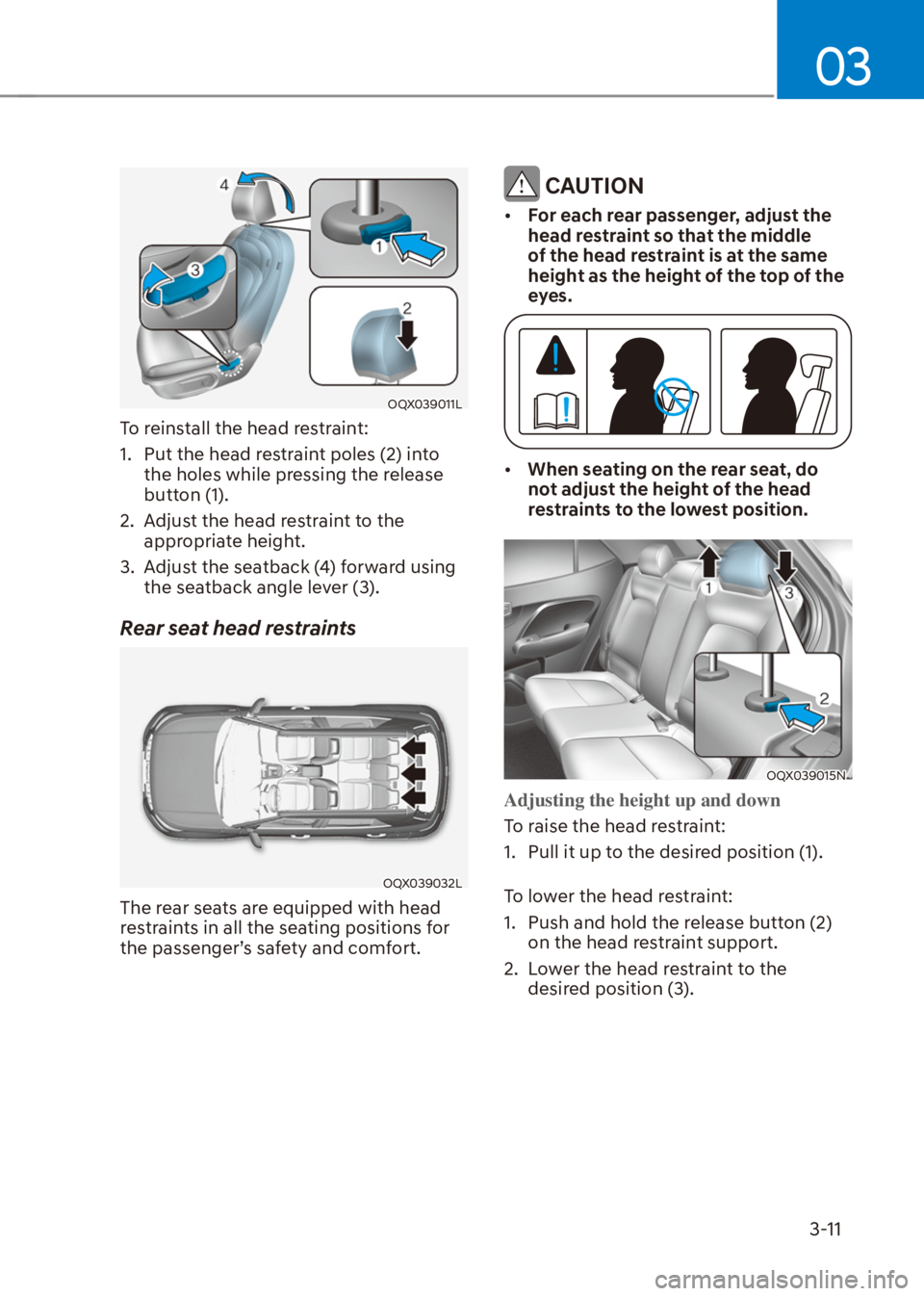

To reinstall the head restraint:
1. Put the head restraint poles (2) into
the holes while pressing the release
button (1).
2. Adjust the head restraint to the
appropriate height.
3. Adjust the seatback (4) forward using
the seatback angle lever (3).
Rear seat head restraints
OQX039032L
The rear seats are equipped with head
restraints in all the seating positions for
the passenger’s safety and comfort.
CAUTION

[For each rear passenger, adjust the
head restraint so that the middle
of the head restraint is at the same
height as the height of the top of the
eyes.

[When seating on the rear seat, do
not adjust the height of the head
restraints to the lowest position.
OQX039015N
Adjusting the height up and down
To raise the head restraint:
1. Pull it up to the desired position (1).
To lower the head restraint:
1. Push and hold the release button (2)
on the head restraint support.
2. Lower the head restraint to the
desired position (3).

Safety System
3-12
OQX039015N

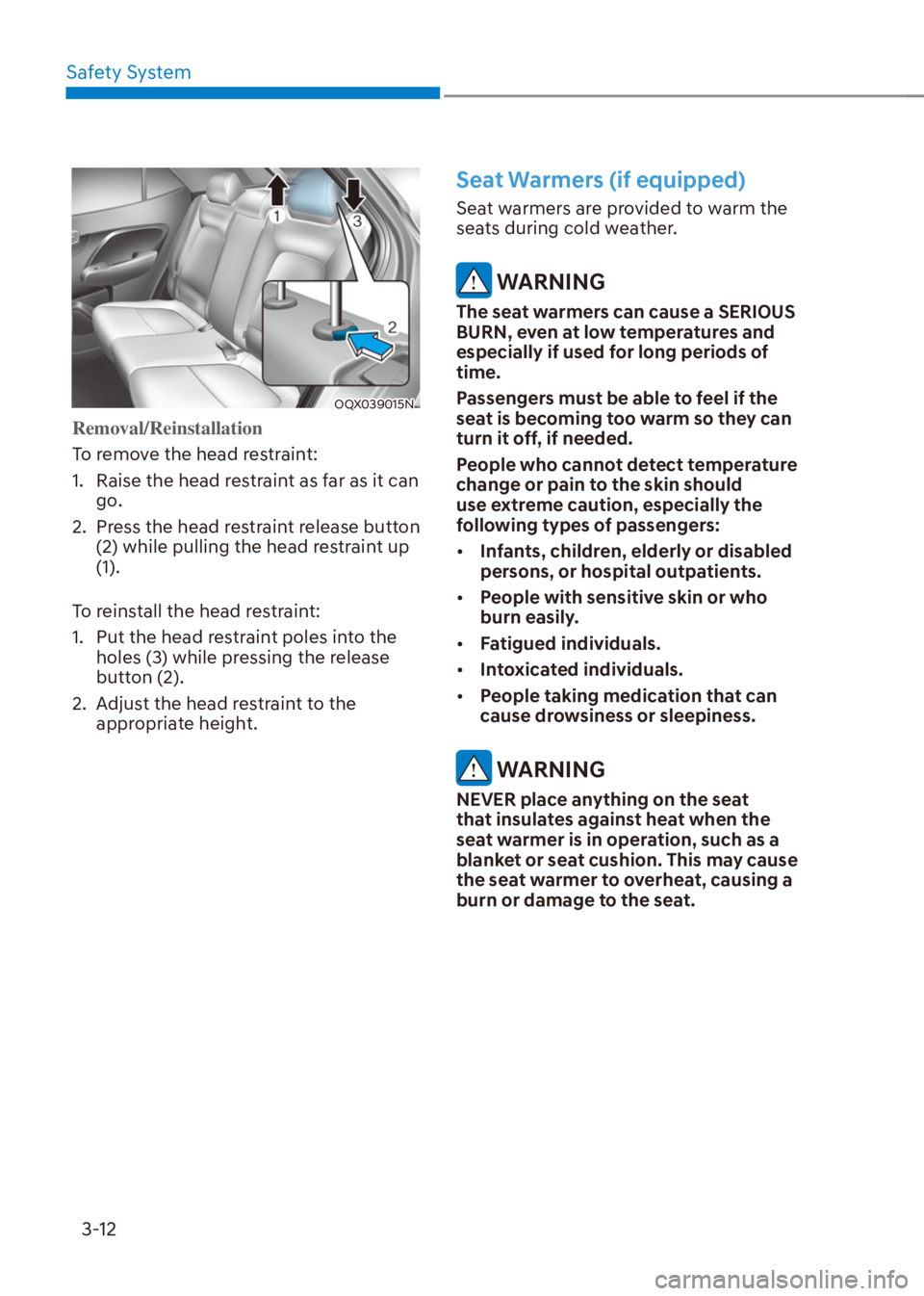

Removal/Reinstallation
To remove the head restraint:
1. Raise the head restraint as far as it can
go.
2. Press the head restraint release button
(2) while pulling the head restraint up
(1).
To reinstall the head restraint:
1. Put the head restraint poles into the
holes (3) while pressing the release
button (2).
2. Adjust the head restraint to the
appropriate height.
Seat Warmers (if equipped)
Seat warmers are provided to warm the
seats during cold weather.
WARNING
The seat warmers can cause a SERIOUS
BURN, even at low temperatures and
especially if used for long periods of
time.
Passengers must be able to feel if the
seat is becoming too warm so they can
turn it off, if needed.
People who cannot detect temperature
change or pain to the skin should
use extreme caution, especially the
following types of passengers:

[Infants, children, elderly or disabled
persons, or hospital outpatients.

[People with sensitive skin or who
burn easily.

[Fatigued individuals.

[Intoxicated individuals.

[People taking medication that can
cause drowsiness or sleepiness.
WARNING
NEVER place anything on the seat
that insulates against heat when the
seat warmer is in operation, such as a
blanket or seat cushion. This may cause
the seat warmer to overheat, causing a
burn or damage to the seat.

03
3-13

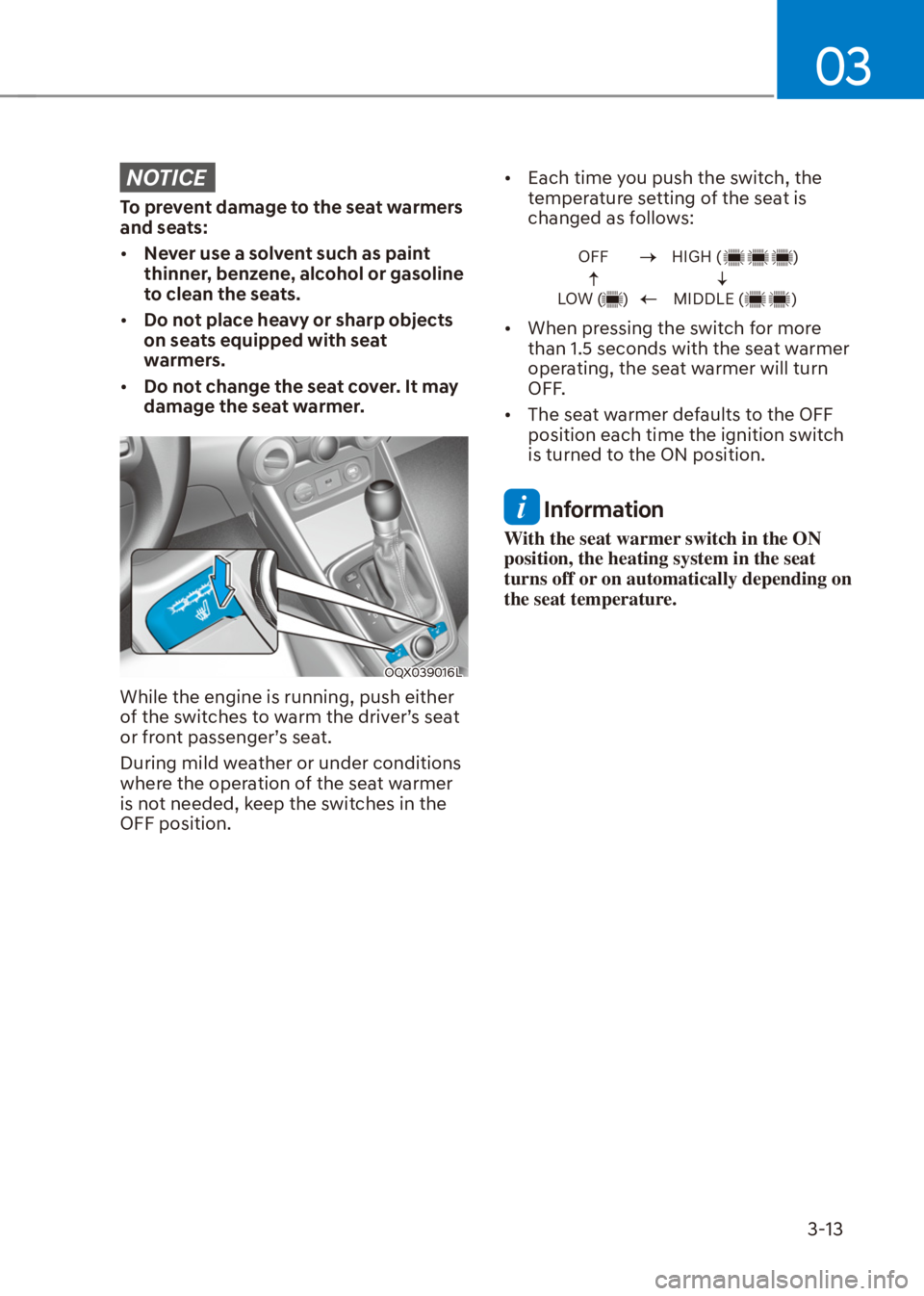

NOTICE
To prevent damage to the seat warmers
and seats:

[Never use a solvent such as paint
thinner, benzene, alcohol or gasoline
to clean the seats.

[Do not place heavy or sharp objects
on seats equipped with seat
warmers.

[Do not change the seat cover. It may
damage the seat warmer.
OQX039016L
While the engine is running, push either
of the switches to warm the driver’s seat
or front passenger’s seat.
During mild weather or under conditions
where the operation of the seat warmer
is not needed, keep the switches in the
OFF position.
[Each time you push the switch, the
temperature setting of the seat is
changed as follows:
OFF
LOW ( )HIGH ( )
MIDDLE ( )

[When pressing the switch for more
than 1.5 seconds with the seat warmer
operating, the seat warmer will turn
OFF.

[The seat warmer defaults to the OFF
position each time the ignition switch
is turned to the ON position.
Information
With the seat warmer switch in the ON
position, the heating system in the seat
turns off or on automatically depending on
the seat temperature.
