2022 HYUNDAI VENUE Owners Manual

06
6-37
OQX069012L

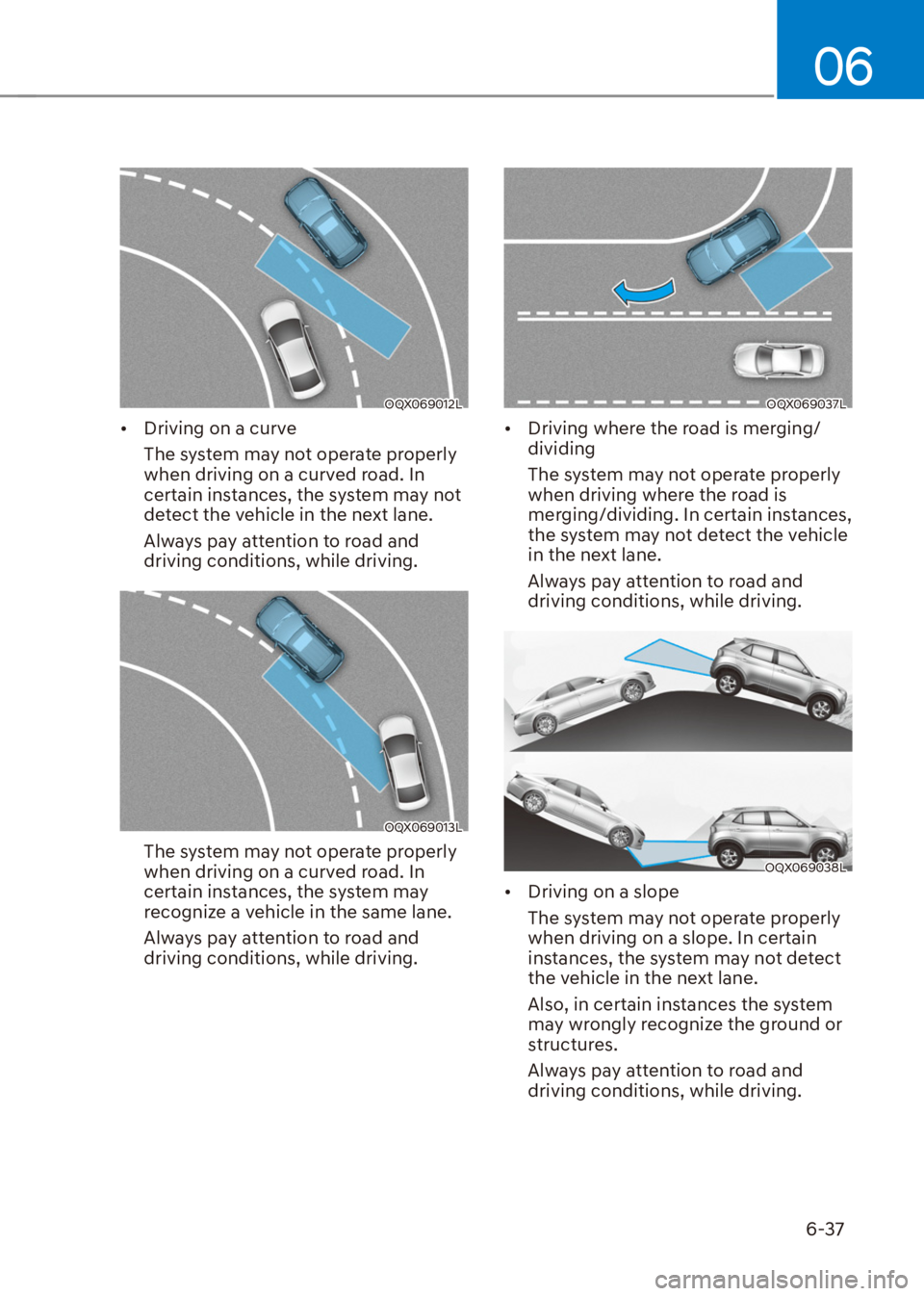

[Driving on a curve
The system may not operate properly
when driving on a curved road. In
certain instances, the system may not
detect the vehicle in the next lane.
Always pay attention to road and
driving conditions, while driving.
OQX069013L
The system may not operate properly
when driving on a curved road. In
certain instances, the system may
recognize a vehicle in the same lane.
Always pay attention to road and
driving conditions, while driving.
OQX069037L

[Driving where the road is merging/
dividing
The system may not operate properly
when driving where the road is
merging/dividing. In certain instances,
the system may not detect the vehicle
in the next lane.
Always pay attention to road and
driving conditions, while driving.
OQX069038L

[Driving on a slope
The system may not operate properly
when driving on a slope. In certain
instances, the system may not detect
the vehicle in the next lane.
Also, in certain instances the system
may wrongly recognize the ground or
structures.
Always pay attention to road and
driving conditions, while driving.

While Driving
6-38
OQX069014L

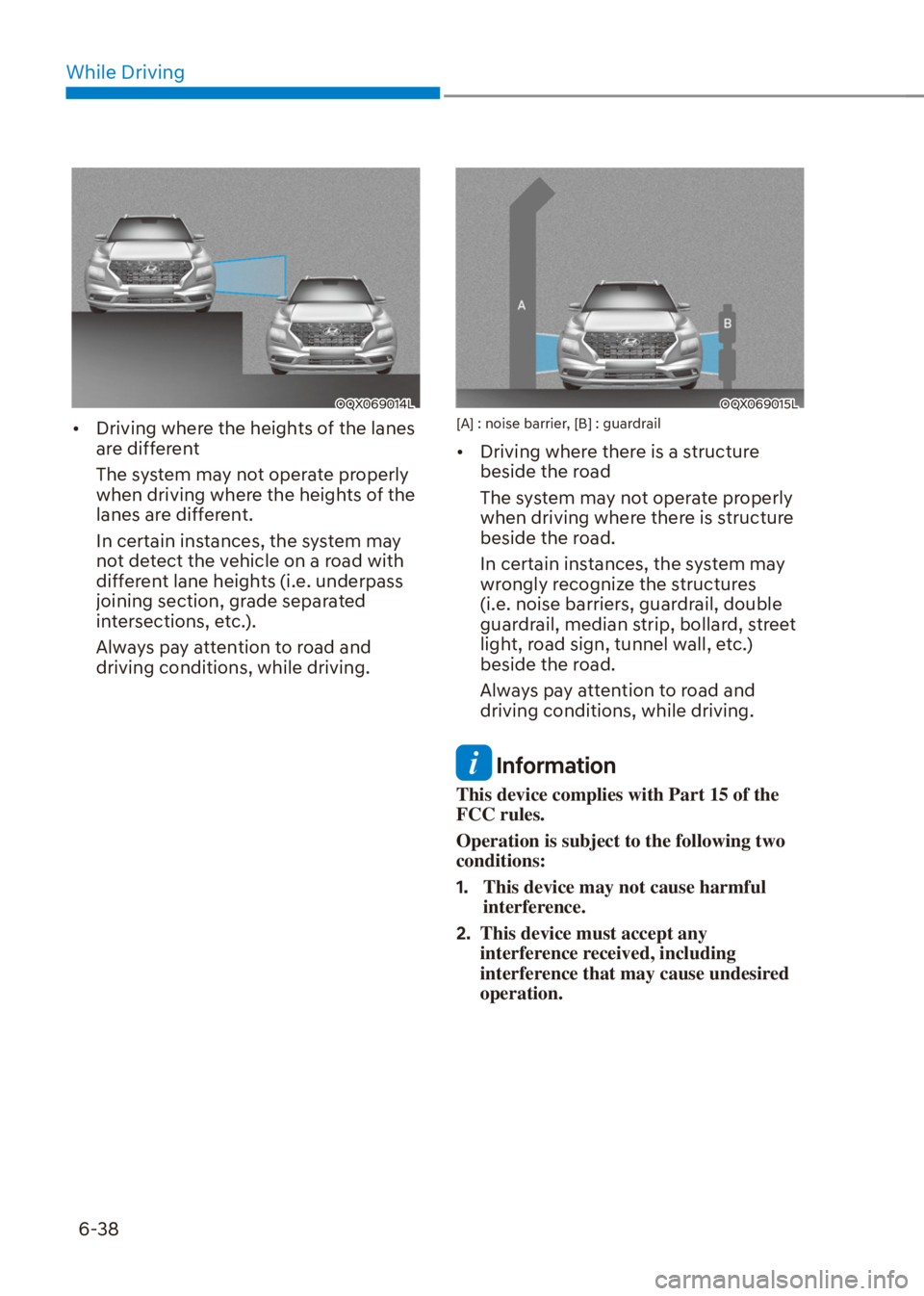

[Driving where the heights of the lanes
are different
The system may not operate properly
when driving where the heights of the
lanes are different.
In certain instances, the system may
not detect the vehicle on a road with
different lane heights (i.e. underpass
joining section, grade separated
intersections, etc.).
Always pay attention to road and
driving conditions, while driving.
OQX069015L[A] : noise barrier, [B] : guardrail

[Driving where there is a structure
beside the road
The system may not operate properly
when driving where there is structure
beside the road.
In certain instances, the system may
wrongly recognize the structures
(i.e. noise barriers, guardrail, double
guardrail, median strip, bollard, street
light, road sign, tunnel wall, etc.)
beside the road.
Always pay attention to road and
driving conditions, while driving.
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following two
conditions:
1. This device may not cause harmful
interference.
2. This device must accept any
interference received, including
interference that may cause undesired
operation.

06
6-39

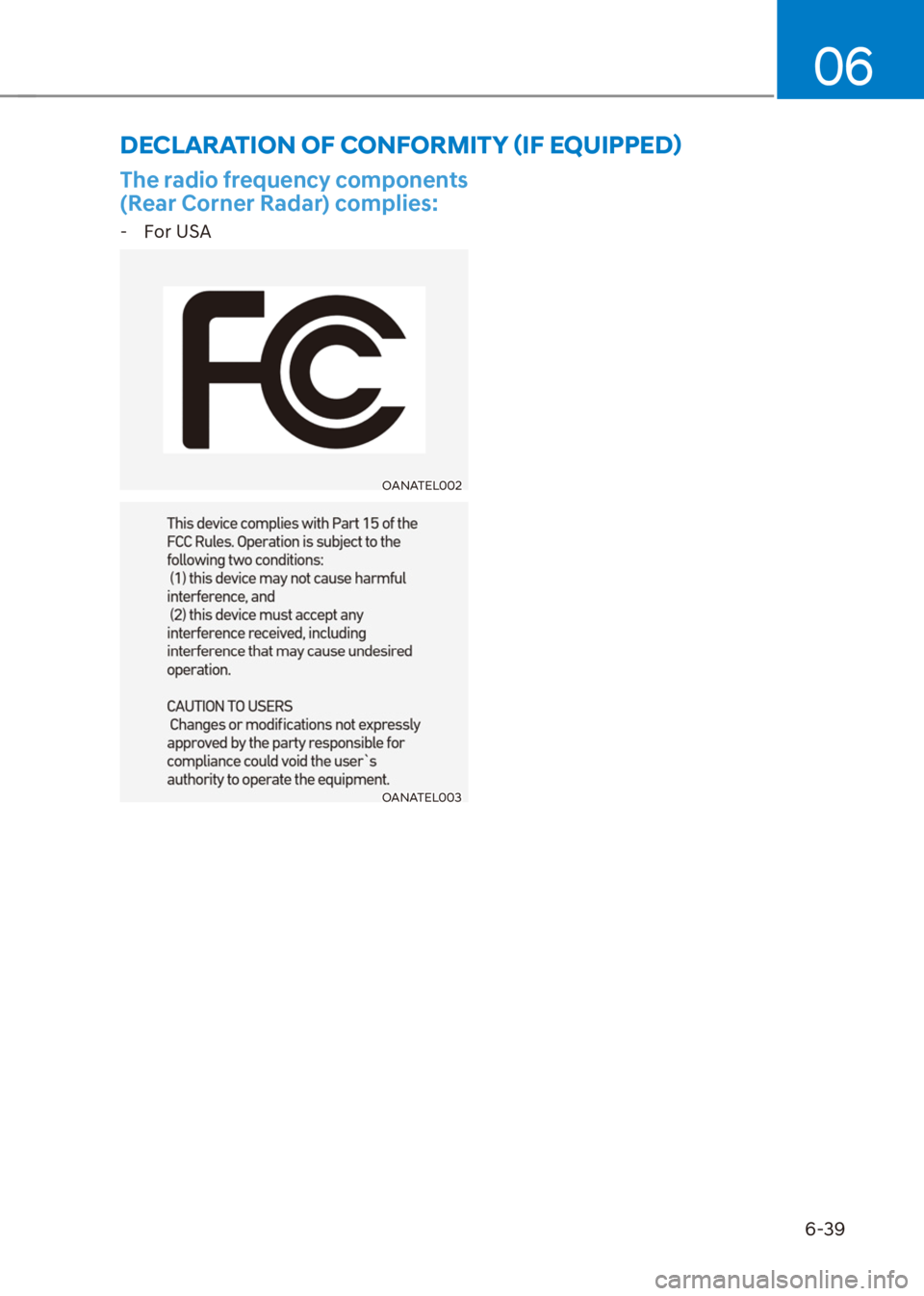

The radio frequency components
(Rear Corner Radar) complies:
- For USA
OANATEL002
OANATEL003
'(&/$5$7,212)&21)250,7<

While Driving
6-40

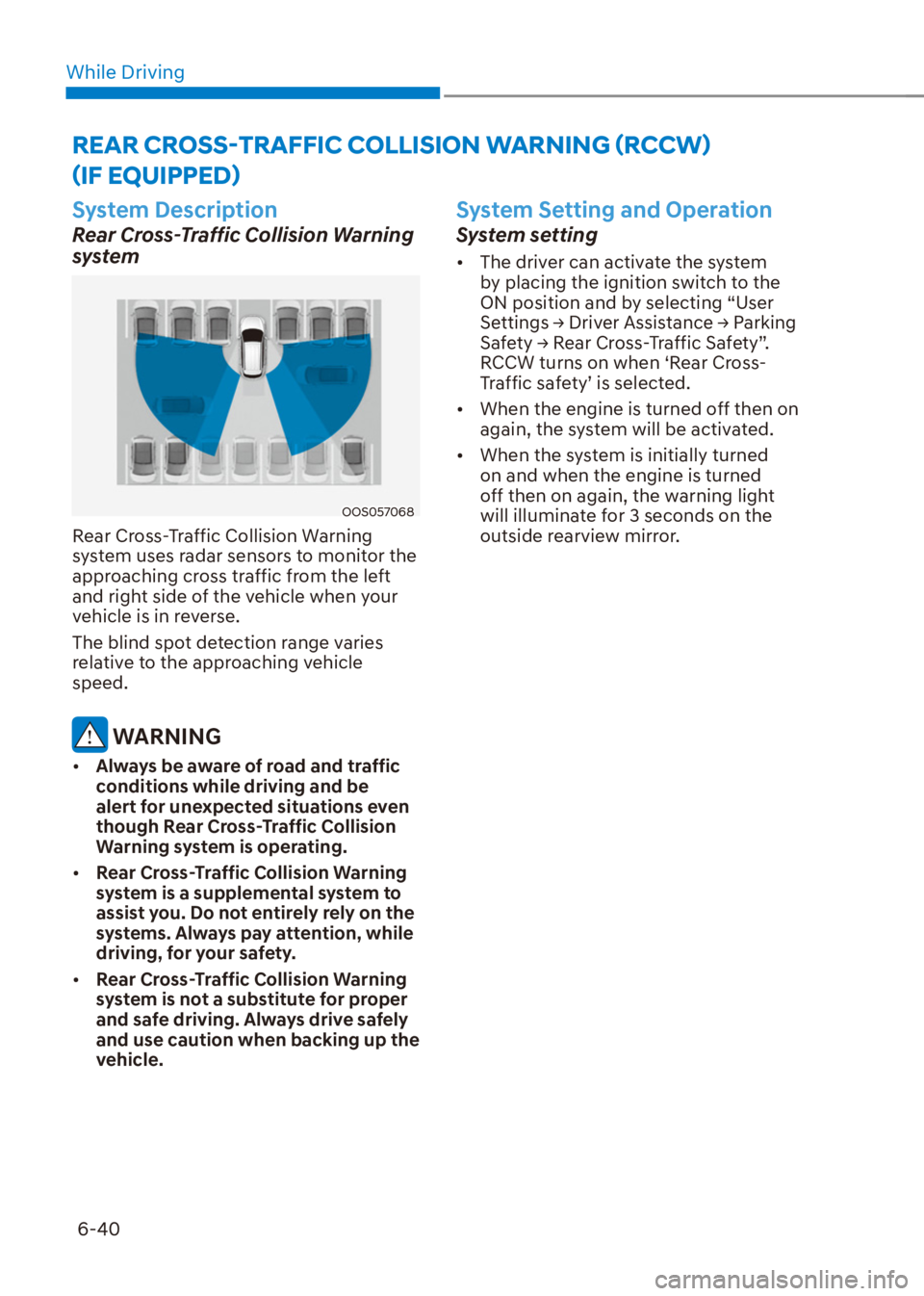

5($5&5266

06
6-41
OQX069078N

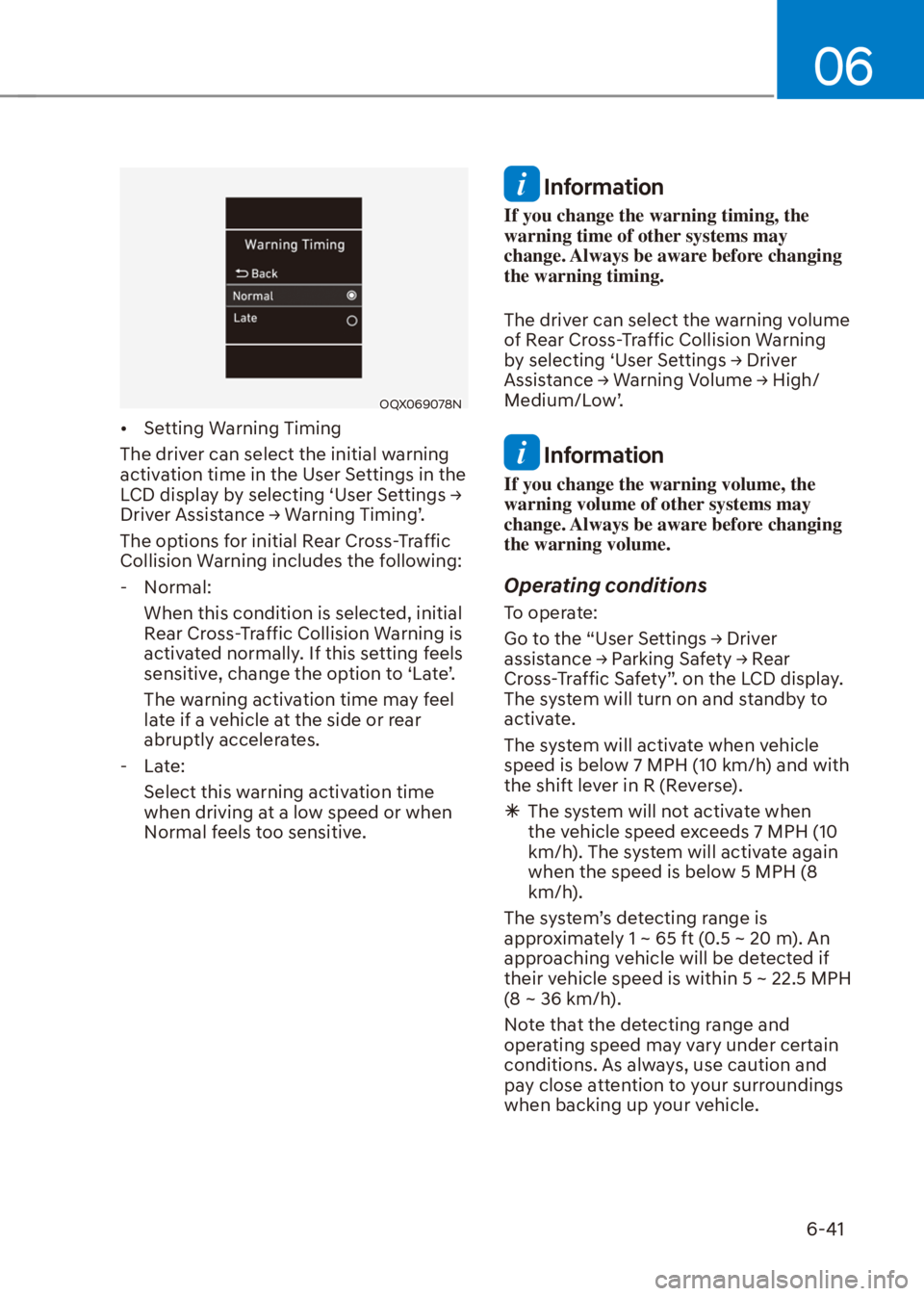

[Setting Warning Timing
The driver can select the initial warning
activation time in the User Settings in the
/&'GLVSOD\E\VHOHFWLQJ
S8VHU6HWWLQJV

While Driving
6-42

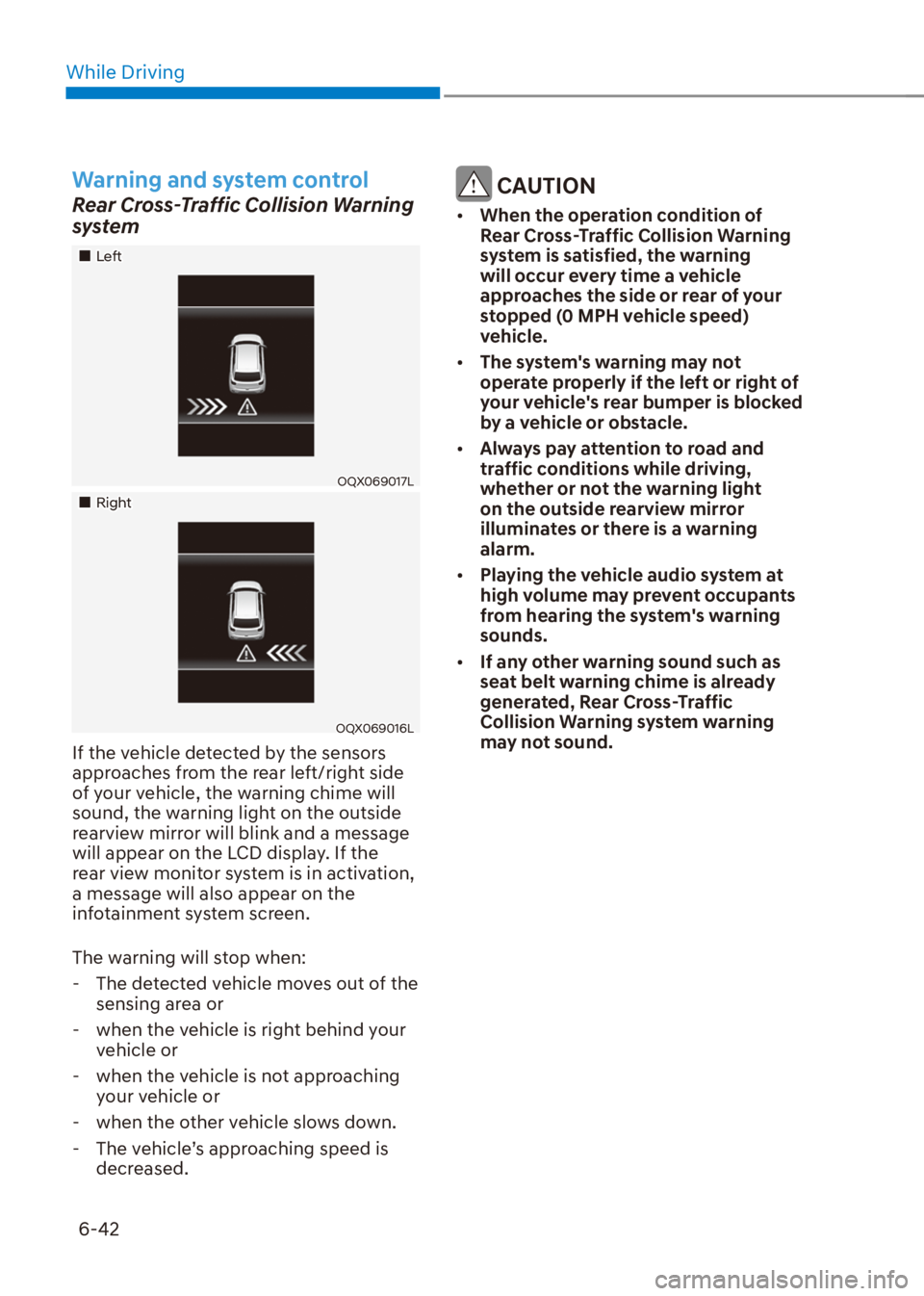

Warning and system control
Rear Cross-Traffic Collision Warning
system
„Left
OQX069017L
„Right
OQX069016L
If the vehicle detected by the sensors
approaches from the rear left/right side
of your vehicle, the warning chime will
sound, the warning light on the outside
rearview mirror will blink and a message
will appear on the LCD display. If the
rear view monitor system is in activation,
a message will also appear on the
infotainment system screen.
The warning will stop when:
- The detected vehicle moves out of the
sensing area or
- when the vehicle is right behind your
vehicle or
- when the vehicle is not approaching
your vehicle or
- when the other vehicle slows down.
- The vehicle’s approaching speed is
decreased.
CAUTION

[When the operation condition of
Rear Cross-Traffic Collision Warning
system is satisfied, the warning
will occur every time a vehicle
approaches the side or rear of your
stopped (0 MPH vehicle speed)
vehicle.

[The system's warning may not
operate properly if the left or right of
your vehicle's rear bumper is blocked
by a vehicle or obstacle.

[Always pay attention to road and
traffic conditions while driving,
whether or not the warning light
on the outside rearview mirror
illuminates or there is a warning
alarm.

[Playing the vehicle audio system at
high volume may prevent occupants
from hearing the system's warning
sounds.

[If any other warning sound such as
seat belt warning chime is already
generated, Rear Cross-Traffic
Collision Warning system warning
may not sound.

06
6-43
WARNING

[Drive safely even though the vehicle
is equipped with Rear Cross-Traffic
Collision Warning system. Do not
solely rely on the system but check
your surrounding when backing the
vehicle up.

[The driver is responsible for accurate
brake control.

[Always pay extreme caution while
driving. Rear Cross-Traffic Collision
Warning system may not operate
properly or unnecessarily operate
depending on traffic and driving
conditions.

[Rear Cross-Traffic Collision Warning
system is not a substitute for safe
driving practices, but a convenience
function only. It is the responsibility
of the driver to always drive
cautiously to prevent unexpected
and sudden situations from
occurring. Pay attention to the road
conditions at all times.

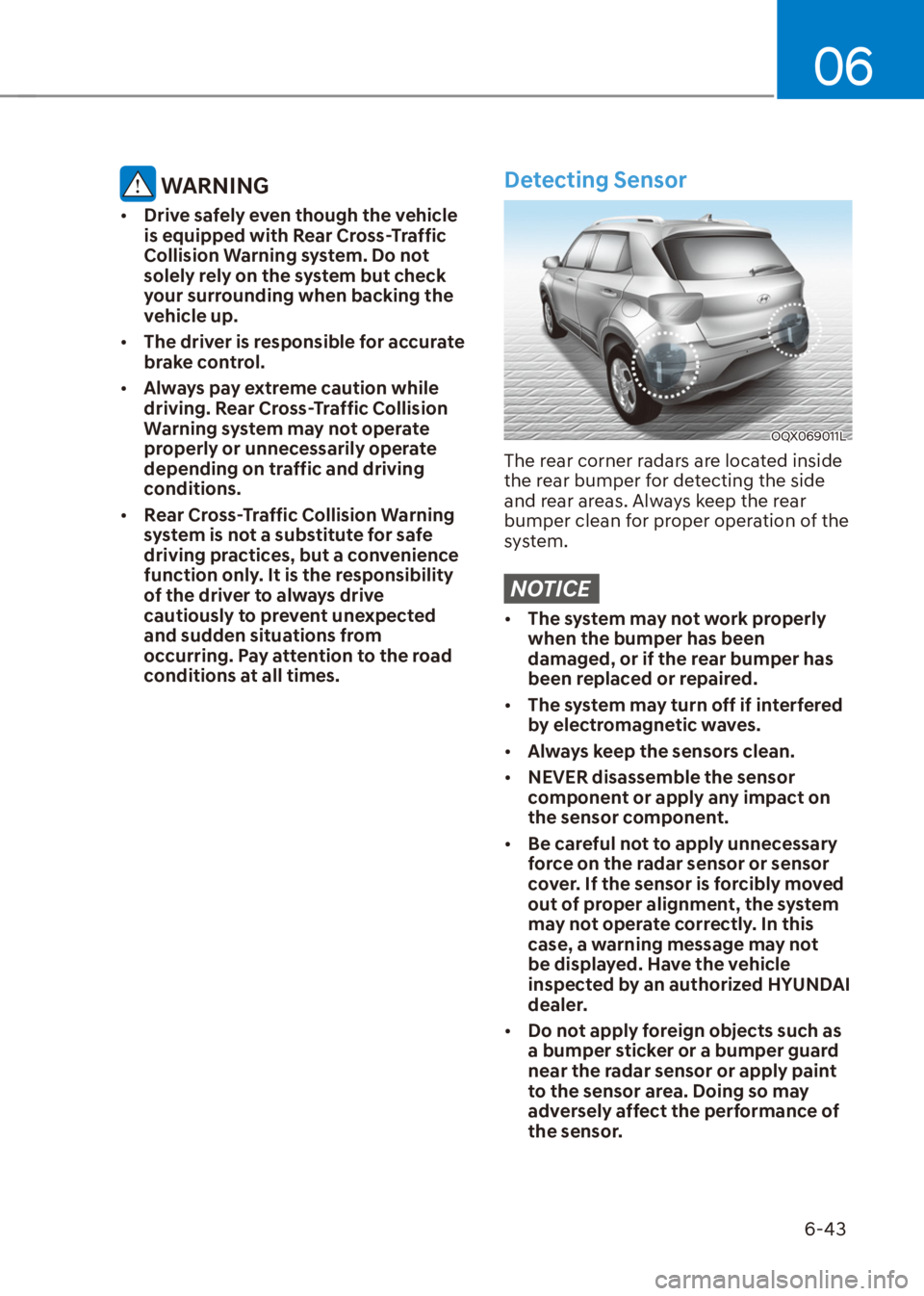

Detecting Sensor
OQX069011L
The rear corner radars are located inside
the rear bumper for detecting the side
and rear areas. Always keep the rear
bumper clean for proper operation of the
system.
NOTICE

[The system may not work properly
when the bumper has been
damaged, or if the rear bumper has
been replaced or repaired.

[The system may turn off if interfered
by electromagnetic waves.

[Always keep the sensors clean.

[NEVER disassemble the sensor
component or apply any impact on
the sensor component.

[Be careful not to apply unnecessary
force on the radar sensor or sensor
cover. If the sensor is forcibly moved
out of proper alignment, the system
may not operate correctly. In this
case, a warning message may not
be displayed. Have the vehicle
inspected by an authorized HYUNDAI
dealer.

[Do not apply foreign objects such as
a bumper sticker or a bumper guard
near the radar sensor or apply paint
to the sensor area. Doing so may
adversely affect the performance of
the sensor.

While Driving
6-44

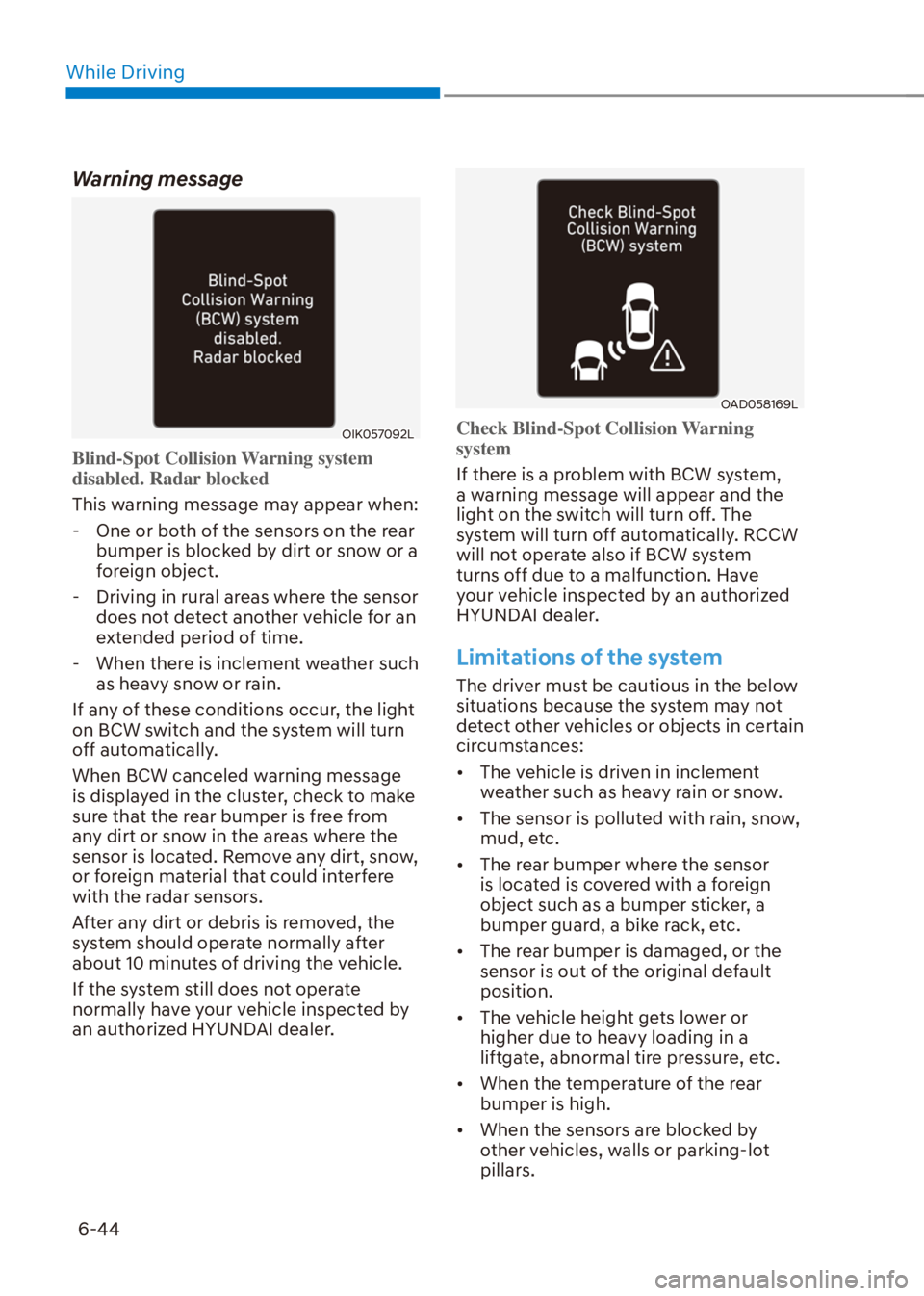

Warning message
OIK057092L
Blind-Spot Collision Warning system
disabled. Radar blocked
This warning message may appear when:
- One or both of the sensors on the rear
bumper is blocked by dirt or snow or a
foreign object.
- Driving in rural areas where the sensor
does not detect another vehicle for an
extended period of time.
- When there is inclement weather such
as heavy snow or rain.
If any of these conditions occur, the light
on BCW switch and the system will turn
off automatically.
When BCW canceled warning message
is displayed in the cluster, check to make
sure that the rear bumper is free from
any dirt or snow in the areas where the
sensor is located. Remove any dirt, snow,
or foreign material that could interfere
with the radar sensors.
After any dirt or debris is removed, the
system should operate normally after
about 10 minutes of driving the vehicle.
If the system still does not operate
normally have your vehicle inspected by
an authorized HYUNDAI dealer.
OAD058169L
Check Blind-Spot Collision Warning
system
If there is a problem with BCW system,
a warning message will appear and the
light on the switch will turn off. The
system will turn off automatically. RCCW
will not operate also if BCW system
turns off due to a malfunction. Have
your vehicle inspected by an authorized
HYUNDAI dealer.
Limitations of the system
The driver must be cautious in the below
situations because the system may not
detect other vehicles or objects in certain
circumstances:

[The vehicle is driven in inclement
weather such as heavy rain or snow.

[The sensor is polluted with rain, snow,
mud, etc.

[The rear bumper where the sensor
is located is covered with a foreign
object such as a bumper sticker, a
bumper guard, a bike rack, etc.

[The rear bumper is damaged, or the
sensor is out of the original default
position.

[The vehicle height gets lower or
higher due to heavy loading in a
liftgate, abnormal tire pressure, etc.

[When the temperature of the rear
bumper is high.

[When the sensors are blocked by
other vehicles, walls or parking-lot
pillars.
