2022 HYUNDAI VENUE Owners Manual

06
6-77

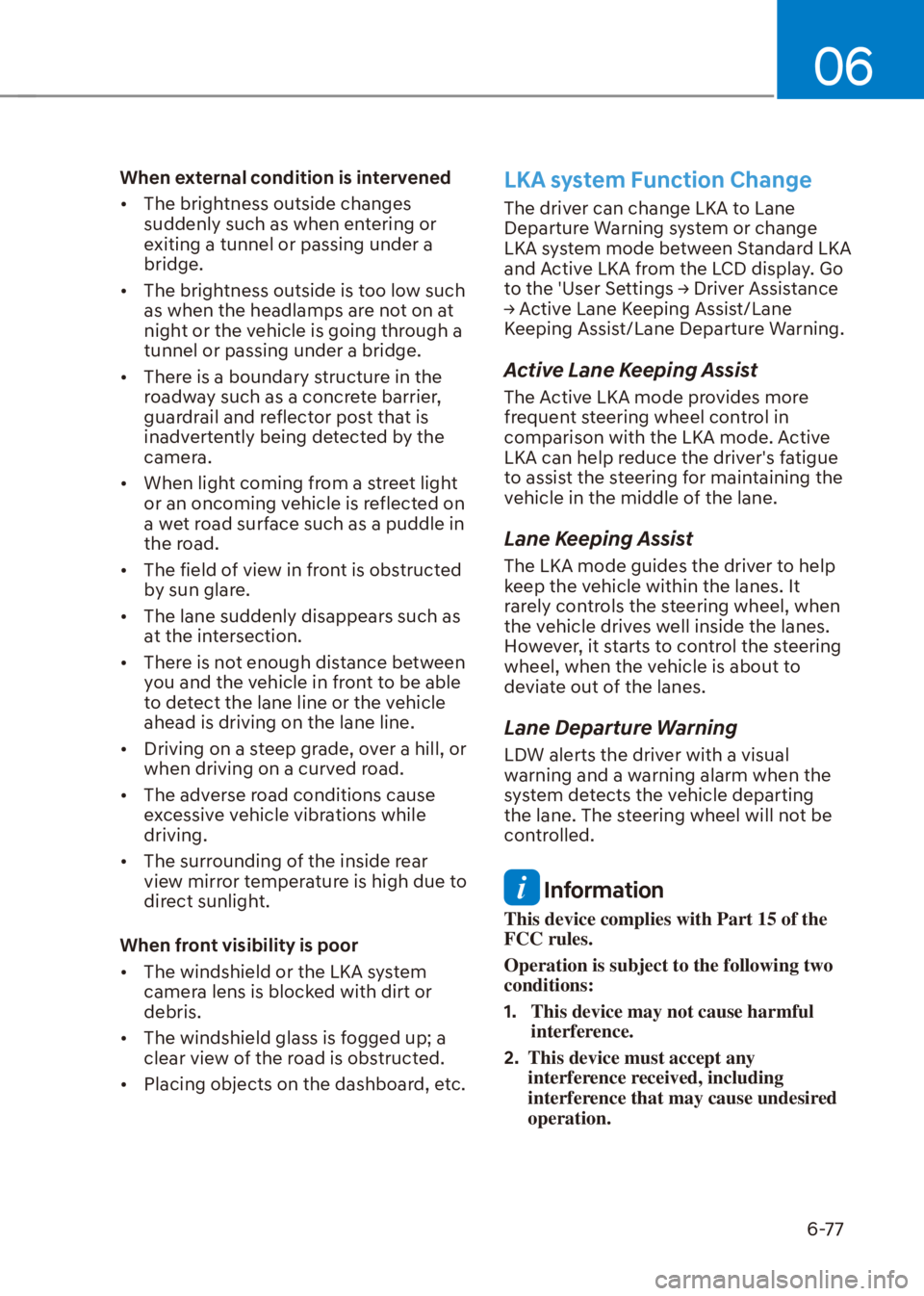

When external condition is intervened

[The brightness outside changes
suddenly such as when entering or
exiting a tunnel or passing under a
bridge.

[The brightness outside is too low such
as when the headlamps are not on at
night or the vehicle is going through a
tunnel or passing under a bridge.

[There is a boundary structure in the
roadway such as a concrete barrier,
guardrail and reflector post that is
inadvertently being detected by the
camera.

[When light coming from a street light
or an oncoming vehicle is reflected on
a wet road surface such as a puddle in
the road.

[The field of view in front is obstructed
by sun glare.

[The lane suddenly disappears such as
at the intersection.

[There is not enough distance between
you and the vehicle in front to be able
to detect the lane line or the vehicle
ahead is driving on the lane line.

[Driving on a steep grade, over a hill, or
when driving on a curved road.

[The adverse road conditions cause
excessive vehicle vibrations while
driving.

[The surrounding of the inside rear
view mirror temperature is high due to
direct sunlight.
When front visibility is poor

[The windshield or the LKA system
camera lens is blocked with dirt or
debris.

[The windshield glass is fogged up; a
clear view of the road is obstructed.

[Placing objects on the dashboard, etc.LKA system Function Change
The driver can change LKA to Lane
Departure Warning system or change
LKA system mode between Standard LKA
and Active LKA from the LCD display. Go
WRWKH
8VHU6HWWLQJV

While Driving
6-78
Driver Attention Warning System is
designed as a safety feature to help
reduce drowsy or inattentive driving.
DAW displays a bar graph that is
intended to represent the driver's
attention and fatigue while driving.
System Setting and Activation
System setting

[Driver Attention Warning system is
set to be on, when your vehicle is first
delivered to you from the factory.

[To turn ON Driver Attention Warning
system, turn on the engine, and
WKHQVHOHFW
8VHU6HWWLQJV

06
6-79

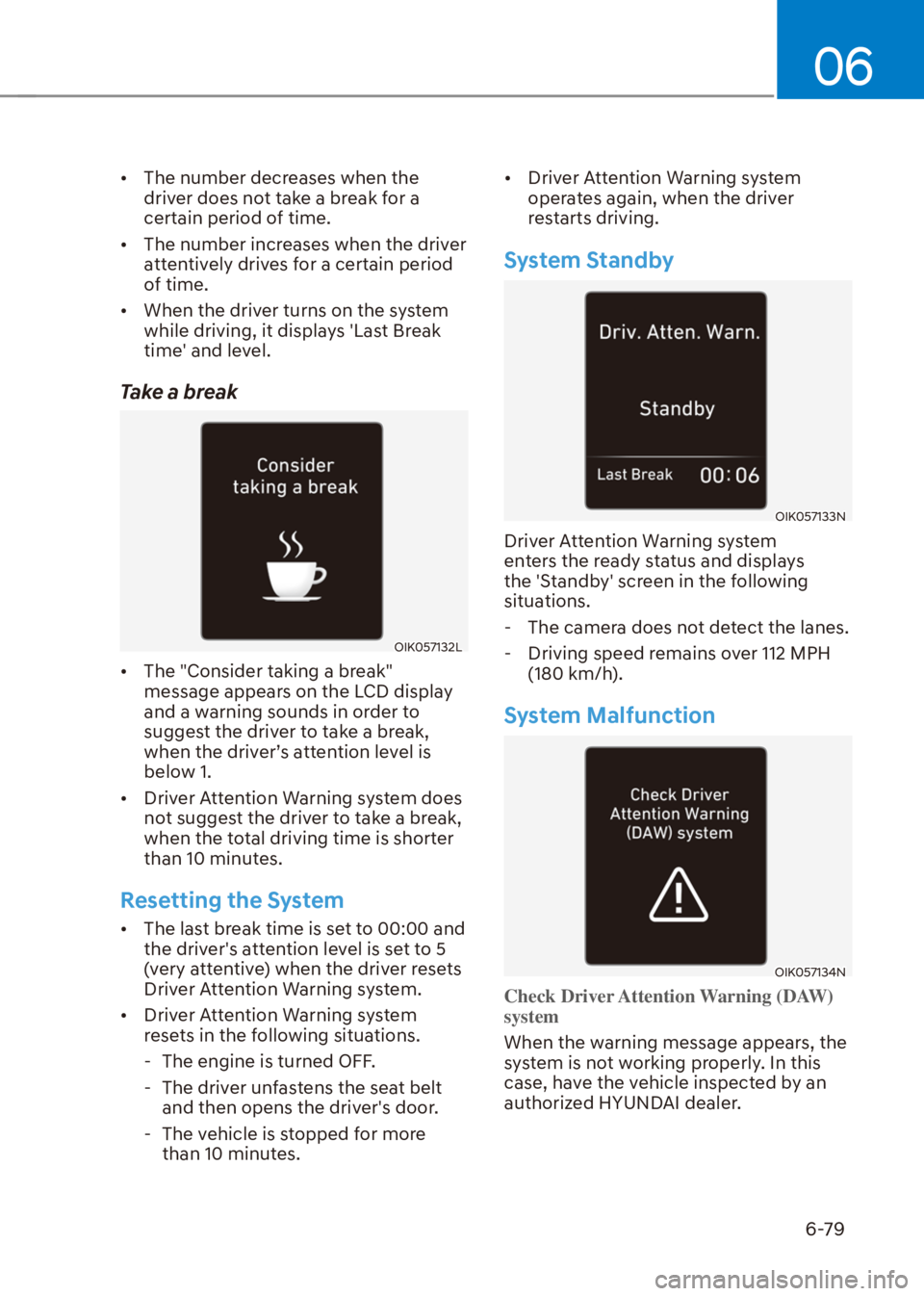

[The number decreases when the
driver does not take a break for a
certain period of time.

[The number increases when the driver
attentively drives for a certain period
of time.

[When the driver turns on the system
while driving, it displays 'Last Break
time' and level.
Take a break
OIK057132L

[The "Consider taking a break"
message appears on the LCD display
and a warning sounds in order to
suggest the driver to take a break,
when the driver’s attention level is
below 1.

[Driver Attention Warning system does
not suggest the driver to take a break,
when the total driving time is shorter
than 10 minutes.
Resetting the System

[The last break time is set to 00:00 and
the driver's attention level is set to 5
(very attentive) when the driver resets
Driver Attention Warning system.

[Driver Attention Warning system
resets in the following situations.
- The engine is turned OFF.
- The driver unfastens the seat belt
and then opens the driver's door.
- The vehicle is stopped for more
than 10 minutes.
[Driver Attention Warning system
operates again, when the driver
restarts driving.
System Standby
OIK057133N
Driver Attention Warning system
enters the ready status and displays
the 'Standby' screen in the following
situations.
- The camera does not detect the lanes.
- Driving speed remains over 112 MPH
(180 km/h).
System Malfunction
OIK057134N
Check Driver Attention Warning (DAW)
system
When the warning message appears, the
system is not working properly. In this
case, have the vehicle inspected by an
authorized HYUNDAI dealer.

While Driving
6-80

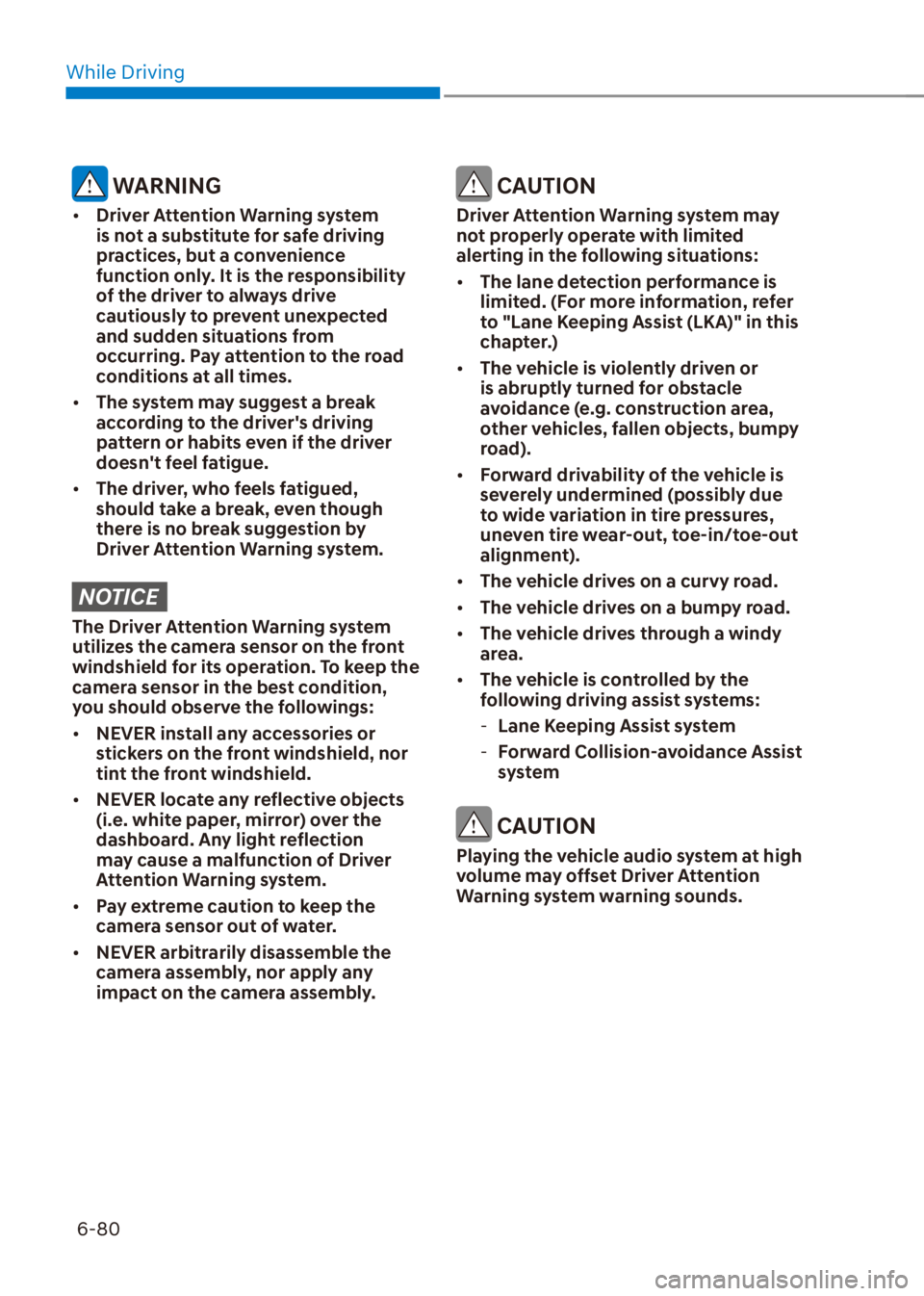

WARNING

[Driver Attention Warning system
is not a substitute for safe driving
practices, but a convenience
function only. It is the responsibility
of the driver to always drive
cautiously to prevent unexpected
and sudden situations from
occurring. Pay attention to the road
conditions at all times.

[The system may suggest a break
according to the driver's driving
pattern or habits even if the driver
doesn't feel fatigue.

[The driver, who feels fatigued,
should take a break, even though
there is no break suggestion by
Driver Attention Warning system.
NOTICE
The Driver Attention Warning system
utilizes the camera sensor on the front
windshield for its operation. To keep the
camera sensor in the best condition,
you should observe the followings:

[NEVER install any accessories or
stickers on the front windshield, nor
tint the front windshield.

[NEVER locate any reflective objects
(i.e. white paper, mirror) over the
dashboard. Any light reflection
may cause a malfunction of Driver
Attention Warning system.

[Pay extreme caution to keep the
camera sensor out of water.

[NEVER arbitrarily disassemble the
camera assembly, nor apply any
impact on the camera assembly.
CAUTION
Driver Attention Warning system may
not properly operate with limited
alerting in the following situations:

[The lane detection performance is
limited. (For more information, refer
to "Lane Keeping Assist (LKA)" in this
chapter.)

[The vehicle is violently driven or
is abruptly turned for obstacle
avoidance (e.g. construction area,
other vehicles, fallen objects, bumpy
road).

[Forward drivability of the vehicle is
severely undermined (possibly due
to wide variation in tire pressures,
uneven tire wear-out, toe-in/toe-out
alignment).

[The vehicle drives on a curvy road.

[The vehicle drives on a bumpy road.

[The vehicle drives through a windy
area.

[The vehicle is controlled by the
following driving assist systems:
-Lane Keeping Assist system
-Forward Collision-avoidance Assist
system
CAUTION
Playing the vehicle audio system at high
volume may offset Driver Attention
Warning system warning sounds.

06
6-81

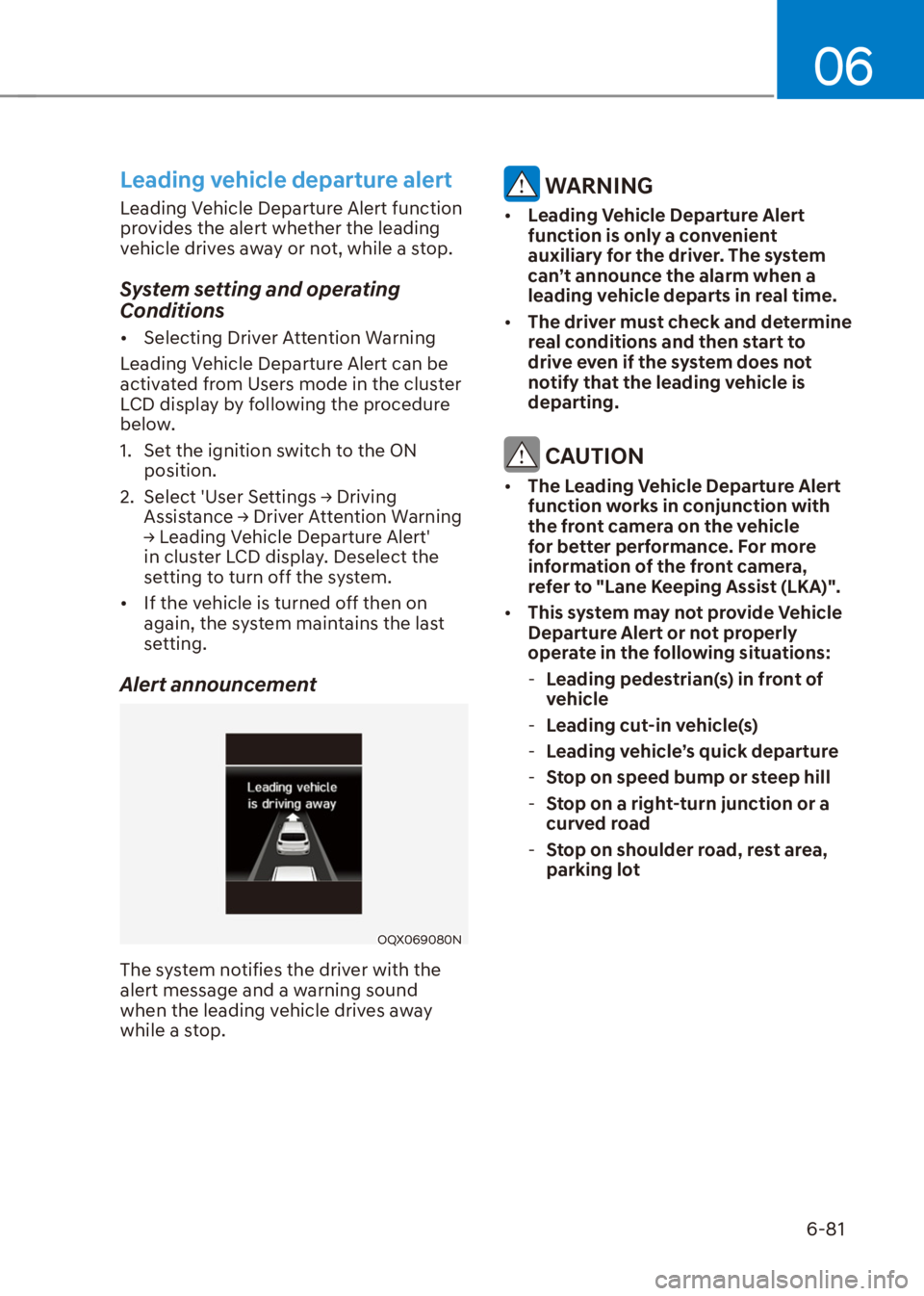

Leading vehicle departure alert
Leading Vehicle Departure Alert function
provides the alert whether the leading
vehicle drives away or not, while a stop.
System setting and operating
Conditions

[Selecting Driver Attention Warning
Leading Vehicle Departure Alert can be
activated from Users mode in the cluster
LCD display by following the procedure
below.
1. Set the ignition switch to the ON
position.
2. 6HOHFW
8VHU6HWWLQJV

While Driving
6-82

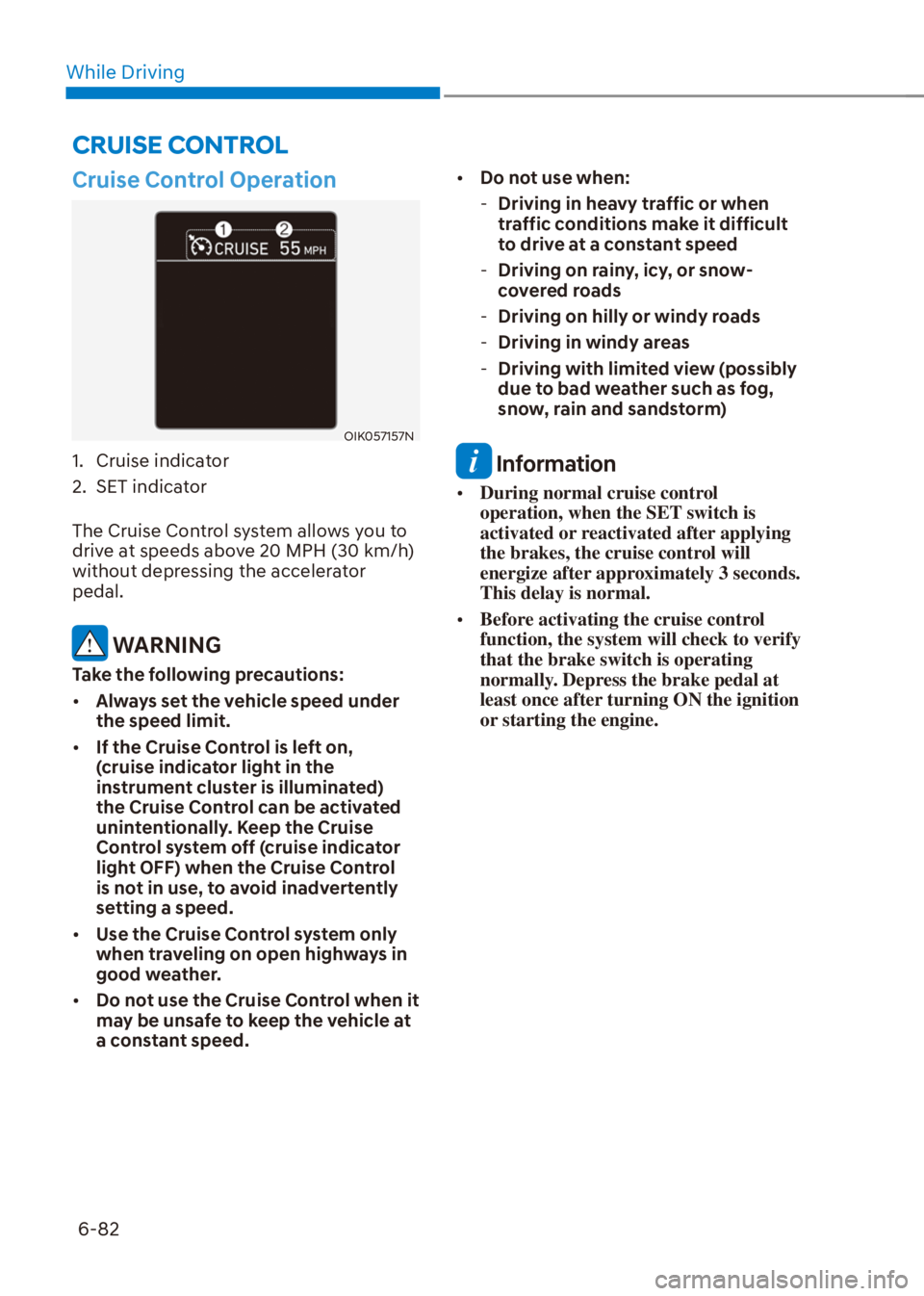

CRUISE CONTROL
Cruise Control Operation
OIK057157N
1. Cruise indicator
2. SET indicator
The Cruise Control system allows you to
drive at speeds above 20 MPH (30 km/h)
without depressing the accelerator
pedal.
WARNING
Take the following precautions:

[Always set the vehicle speed under
the speed limit.

[If the Cruise Control is left on,
(cruise indicator light in the
instrument cluster is illuminated)
the Cruise Control can be activated
unintentionally. Keep the Cruise
Control system off (cruise indicator
light OFF) when the Cruise Control
is not in use, to avoid inadvertently
setting a speed.

[Use the Cruise Control system only
when traveling on open highways in
good weather.

[Do not use the Cruise Control when it
may be unsafe to keep the vehicle at
a constant speed.
[Do not use when:
-Driving in heavy traffic or when
traffic conditions make it difficult
to drive at a constant speed
-Driving on rainy, icy, or snow-
covered roads
-Driving on hilly or windy roads
-Driving in windy areas
-Driving with limited view (possibly
due to bad weather such as fog,
snow, rain and sandstorm)
Information

[During normal cruise control
operation, when the SET switch is
activated or reactivated after applying
the brakes, the cruise control will
energize after approximately 3 seconds.
This delay is normal.

[Before activating the cruise control
function, the system will check to verify
that the brake switch is operating
normally. Depress the brake pedal at
least once after turning ON the ignition
or starting the engine.

06
6-83

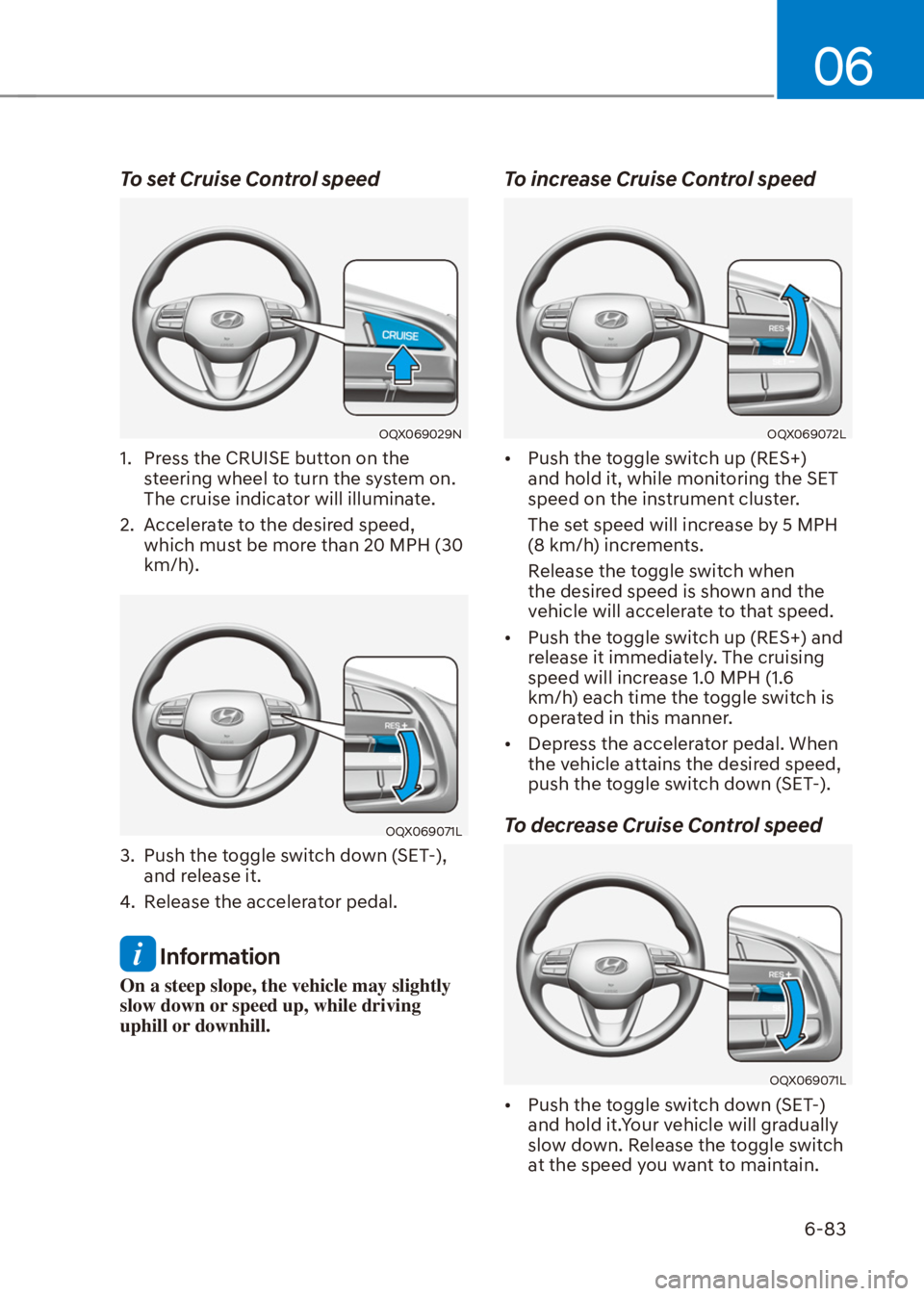

To set Cruise Control speed
OQX069029N
1. Press the CRUISE button on the
steering wheel to turn the system on.
The cruise indicator will illuminate.
2. Accelerate to the desired speed,
which must be more than 20 MPH (30
km/h).
OQX069071L
3. Push the toggle switch down (SET-),
and release it.
4. Release the accelerator pedal.
Information
On a steep slope, the vehicle may slightly
slow down or speed up, while driving
uphill or downhill.
To increase Cruise Control speed
OQX069072L

[Push the toggle switch up (RES+)
and hold it, while monitoring the SET
speed on the instrument cluster.
The set speed will increase by 5 MPH
(8 km/h) increments.
Release the toggle switch when
the desired speed is shown and the
vehicle will accelerate to that speed.

[Push the toggle switch up (RES+) and
release it immediately. The cruising
speed will increase 1.0 MPH (1.6
km/h) each time the toggle switch is
operated in this manner.

[Depress the accelerator pedal. When
the vehicle attains the desired speed,
push the toggle switch down (SET-).
To decrease Cruise Control speed
OQX069071L

[Push the toggle switch down (SET-)
and hold it.Your vehicle will gradually
slow down. Release the toggle switch
at the speed you want to maintain.

While Driving
6-84

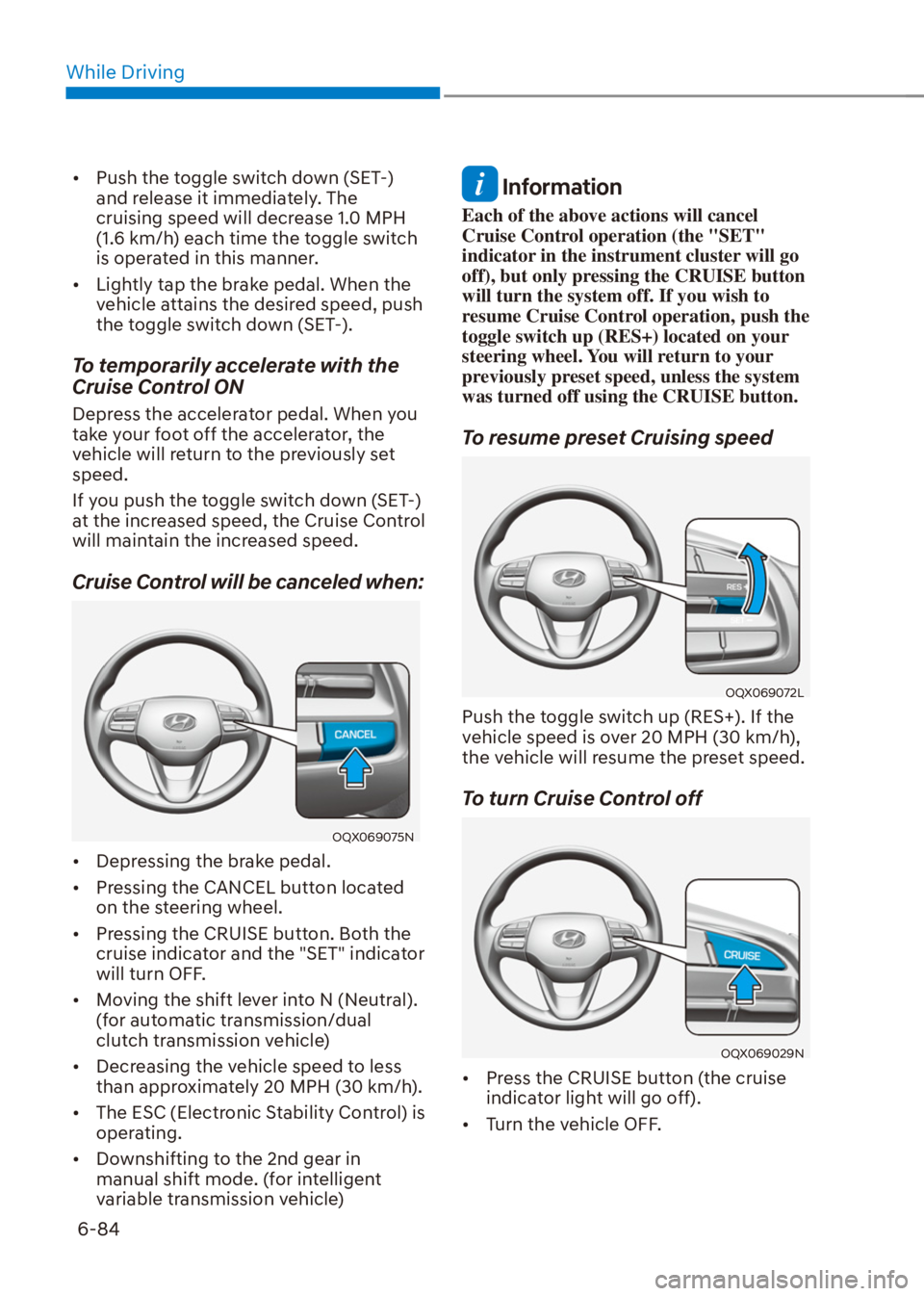

[Push the toggle switch down (SET-)
and release it immediately. The
cruising speed will decrease 1.0 MPH
(1.6 km/h) each time the toggle switch
is operated in this manner.

[Lightly tap the brake pedal. When the
vehicle attains the desired speed, push
the toggle switch down (SET-).
To temporarily accelerate with the
Cruise Control ON
Depress the accelerator pedal. When you
take your foot off the accelerator, the
vehicle will return to the previously set
speed.
If you push the toggle switch down (SET-)
at the increased speed, the Cruise Control
will maintain the increased speed.
Cruise Control will be canceled when:
OQX069075N

[Depressing the brake pedal.

[Pressing the CANCEL button located
on the steering wheel.

[Pressing the CRUISE button. Both the
cruise indicator and the "SET" indicator
will turn OFF.

[Moving the shift lever into N (Neutral).
(for automatic transmission/dual
clutch transmission vehicle)

[Decreasing the vehicle speed to less
than approximately 20 MPH (30 km/h).

[The ESC (Electronic Stability Control) is
operating.

[Downshifting to the 2nd gear in
manual shift mode. (for intelligent
variable transmission vehicle)
Information
Each of the above actions will cancel
Cruise Control operation (the "SET"
indicator in the instrument cluster will go
off), but only pressing the CRUISE button
will turn the system off. If you wish to
resume Cruise Control operation, push the
toggle switch up (RES+) located on your
steering wheel. You will return to your
previously preset speed, unless the system
was turned off using the CRUISE button.
To resume preset Cruising speed
OQX069072L
Push the toggle switch up (RES+). If the
vehicle speed is over 20 MPH (30 km/h),
the vehicle will resume the preset speed.
To turn Cruise Control off
OQX069029N

[Press the CRUISE button (the cruise
indicator light will go off).

[Turn the vehicle OFF.
