2022 HYUNDAI SANTA CRUZ display

8
Emergency Situations
Hazard Warning Flasher ................................................................................... 8-2
In Case of an Emergency While Driving .......................................................... 8-2
If the Engine Stalls while Driving................................................................................. 8-2
If the Engine Stalls at a Crossroad or Crossing .......................................................... 8-2
If you have a Flat Tire while Driving ............................................................................8-3
If the Engine will not Start ................................................................................ 8-3
Jump Starting ................................................................................................... 8-4
If the Engine Overheats .....................................................................................8-7
Tire Pressure Monitoring System (TPMS) ........................................................ 8-9
Check Tire Pressure ..................................................................................................... 8-9
Tire Pressure Monitoring System .............................................................................. 8-10
Low Tire Pressure Warning Light ................................................................................ 8-11
Low Tire Pressure Position and Tire Pressure Display .............................................. 8-11
TPMS Malfunction Indicator ...................................................................................... 8-12
Changing a Tire with TPMS ....................................................................................... 8-12
If you have a Flat Tire .......................................................................................8-14
Jack and Tools ............................................................................................................ 8-14
Removing and Storing the Spare Tire ....................................................................... 8-15
Changing Tires ............................................................................................................ 8-16
Storing the Flat Tire .................................................................................................... 8-21
Jack Label ................................................................................................................... 8-22
Towing ............................................................................................................. 8-23
Towing Service ........................................................................................................... 8-23
8. Emergency Situations

08
8-9
ONX4080004ONX4080004
ONX4OB081002ONX4OB081002
(1) Low Tire Pressure Telltale/TPMS
Malfunction Indicator
(2) Low Tire Pressure Warning Message
and Tire Pressure Display (Shown on
the LCD display)
Check Tire Pressure
ONX4OB081003ONX4OB081003
• You can check the tire pressure in the
Warning mode on the cluster.
Refer to the “LCD Display Modes” in
chapter 4.
• Tire pressure is displayed after a few
minutes of driving after initial engine
start up.
• If tire pressure is not displayed when
the vehicle is stopped, “Drive to
display” message will appear. After
driving, check the tire pressure.
• The displayed tire pressure values may
differ slightly from those measured
with a tire pressure gauge.
• You can change the tire pressure
measurement units in the User
Settings mode on the instrument
cluster.
- psi, kpa, bar (Refer to “LCD Modes”
in chapter 4).
7,5(35(6685(021,725,1*6<67(0

08
8-11
Low Tire Pressure
Warning Light
Low Tire Pressure Position and
Tire Pressure Display
ONX4OB081004ONX4OB081004
When the tire pressure monitoring
system warning indicators are
illuminated and a warning message
displayed on the cluster LCD display,
one or more of your tires is significantly
under-inflated. The Low Tire Pressure
Position Telltale will indicate which
tire is significantly underinflated by
illuminating the corresponding position
light.
If either telltale illuminates, immediately
reduce your speed, avoid hard cornering
and anticipate increased stopping
distances. You should stop and check
your tires as soon as possible. Inflate the
tires to the proper pressure as indicated
on the vehicle’s placard or tire inflation
pressure label located on the driver’s
side center pillar outer panel.If you cannot reach a service station or
if the tire cannot hold the newly added
air, replace the low pressure tire with the
spare tire.
The Low Tire Pressure Telltale will remain
on and the TPMS Malfunction Indicator
may blink for one minute and then
remain illuminated (when the vehicle
is driven approximately 10 minutes at
speed above 15.5 mph (25 km/h)) until
you have the low pressure tire repaired
and replaced on the vehicle.
CAUTION
In winter or cold weather, the Low Tire
Pressure Telltale may be illuminated if
the tire pressure was adjusted to the
recommended tire inflation pressure
in warm weather. It does not mean
your TPMS is malfunctioning because
the decreased temperature leads to a
proportional lowering of tire pressure.
When you drive your vehicle from a
warm area to a cold area or from a cold
area to a warm area, or the outside
temperature is greatly higher or lower,
you should check the tire inflation
pressure and adjust the tires to the
recommended tire inflation pressure.
WARNING
Low pressure damage
Significantly low tire pressure makes
the vehicle unstable and can contribute
to loss of vehicle control and increased
braking distances.
Continued driving on low pressure tires
can cause the tires to overheat and fail.

Emergency Situations
8-12
TPMS Malfunction
Indicator
The TPMS Malfunction Indicator
will illuminate after it blinks for
approximately one minute when there
is a problem with the Tire Pressure
Monitoring System.
Have the system checked by an
authorized HYUNDAI dealer as soon as
possible.
NOTICE
If there is a malfunction with the
TPMS, the individual tire pressures
in the cluster LCD display will not be
available. Have the system checked by
an authorized HYUNDAI dealer as soon
as possible.
NOTICE
The TPMS Malfunction Indicator may
illuminate after blinking for one minute
if the vehicle is near electric power
supply cables or radio transmitters
such as police stations, government
and public offices, broadcasting
stations, military installations, airports,
transmitting towers, etc.
Additionally, the TPMS Malfunction
Indicator may illuminate if snow chains
are used or electronic devices such as
computers, chargers, remote starters,
navigation, etc. This may interfere with
normal operation of the TPMS.
Changing a Tire with TPMS
If you have a flat tire, the Low Tire
Pressure and Position telltales will come
on. Have the flat tire repaired by an
authorized HYUNDAI dealer as soon as
possible or replace the flat tire with the
spare tire.
NOTICE
It is recommended that you do not
use a puncture-repairing agent not
approved by HYUNDAI dealer or the
equivalent specified for your vehicle to
repair and/or inflate a low pressure tire.
Tire sealant not approved by HYUNDAI
dealer or the equivalent specified for
your vehicle may damage the tire
pressure sensor.
The spare tire (if equipped) does not
come with a tire pressure monitoring
sensor. When the low pressure tire or
the flat tire is replaced with the spare
tire, the Low Tire Pressure Telltale will
remain on. Also, the TPMS Malfunction
Indicator will illuminate after blinking
for one minute if the vehicle is driven
at speed above 15.5 mph (25 km/h) for
approximately 10 minutes.
Once the original wheel equipped with
a tire pressure monitoring sensor is
reinflated to the recommended pressure
and reinstalled on the vehicle, the
Low Tire Pressure Telltale and TPMS
Malfunction Indicator will go off within a
few minutes of driving.

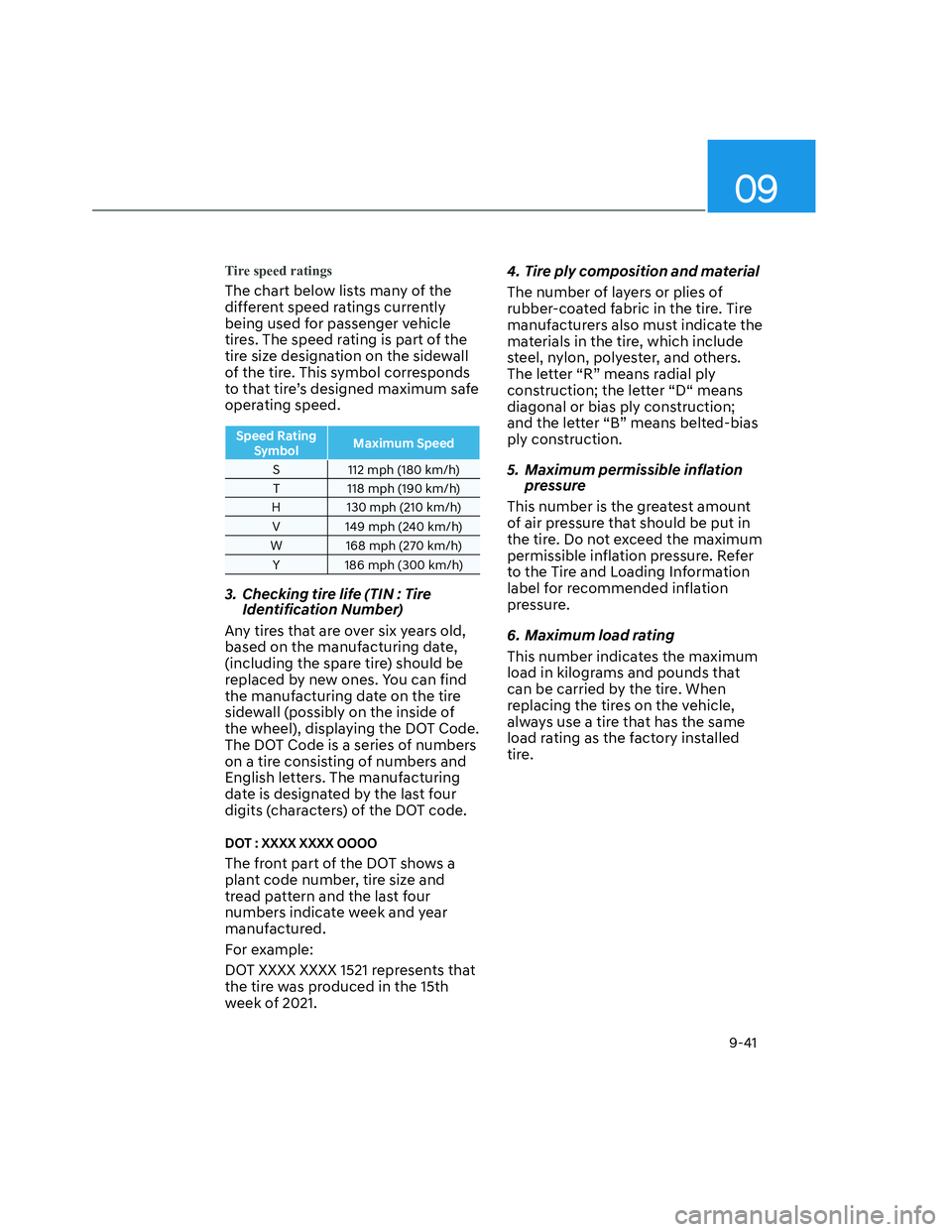

09
9-41
Tire speed ratings
The chart below lists many of the
different speed ratings currently
being used for passenger vehicle
tires. The speed rating is part of the
tire size designation on the sidewall
of the tire. This symbol corresponds
to that tire’s designed maximum safe
operating speed.
Speed Rating
SymbolMaximum Speed
S 112 mph (180 km/h)
T 118 mph (190 km/h)
H 130 mph (210 km/h)
V 149 mph (240 km/h)
W 168 mph (270 km/h)
Y 186 mph (300 km/h)
3. Checking tire life (TIN : Tire
Identification Number)
Any tires that are over six years old,
based on the manufacturing date,
(including the spare tire) should be
replaced by new ones. You can find
the manufacturing date on the tire
sidewall (possibly on the inside of
the wheel), displaying the DOT Code.
The DOT Code is a series of numbers
on a tire consisting of numbers and
English letters. The manufacturing
date is designated by the last four
digits (characters) of the DOT code.
DOT : XXXX XXXX OOOO
The front part of the DOT shows a
plant code number, tire size and
tread pattern and the last four
numbers indicate week and year
manufactured.
For example:
DOT XXXX XXXX 1521 represents that
the tire was produced in the 15th
week of 2021.4. Tire ply composition and material
The number of layers or plies of
rubber-coated fabric in the tire. Tire
manufacturers also must indicate the
materials in the tire, which include
steel, nylon, polyester, and others.
The letter “R” means radial ply
construction; the letter “D“ means
diagonal or bias ply construction;
and the letter “B” means belted-bias
ply construction.
5. Maximum permissible inflation
pressure
This number is the greatest amount
of air pressure that should be put in
the tire. Do not exceed the maximum
permissible inflation pressure. Refer
to the Tire and Loading Information
label for recommended inflation
pressure.
6. Maximum load rating
This number indicates the maximum
load in kilograms and pounds that
can be carried by the tire. When
replacing the tires on the vehicle,
always use a tire that has the same
load rating as the factory installed
tire.

I
I-7
Infotainment System .......................................................................................... 5-132
Antenna .......................................................................................................... 5-132
Bluetooth
®Wireless Technology .................................................................... 5-134
How Vehicle Radio Works ............................................................................. 5-135
Infotainment System ..................................................................................... 5-134
Steering Wheel Remote Controls ................................................................... 5-133
USB Port ........................................................................................................ 5-132
Voice Recognition .......................................................................................... 5-134
Infotainment System Vehicle Settings ................................................................. 4-42
Setting Your Vehicle ........................................................................................ 4-42
Instrument cluster .................................................................................................. 4-4
Gauges and Meters ............................................................................................. 4-5
Instrument Cluster Control ................................................................................. 4-5
LCD Display Messages for Vehicles Equipped with Smart Key ..................... 4-22
Transmission Shift Indicator .............................................................................. 4-9
Warning and Indicator Lights ............................................................................. 4-9
Instrument Panel Overview (I) .............................................................................. 2-5
Instrument Panel Overview (II) ............................................................................. 2-6
Intelligent speed limit assist (ISLA) ................................................................... 7-59
Intelligent Speed Limit Assist Malfunction and Limitations ........................... 7-62
Intelligent Speed Limit Assist Operation ......................................................... 7-60
Intelligent Speed Limit Assist Settings ............................................................ 7-59
Interior Features................................................................................................. 5-124
Clock .............................................................................................................. 5-129
Coat Hook ...................................................................................................... 5-130
Cup Holder ..................................................................................................... 5-124
Floor Mat Anchor(s) ....................................................................................... 5-130
Power Outlet................................................................................................... 5-125
Sunvisor.......................................................................................................... 5-125
USB Charger .................................................................................................. 5-126
Wireless Smart Phone Charging System ........................................................ 5-127
Interior Lights ...................................................................................................... 5-78
Front Lamps ..................................................................................................... 5-78
Glove Box Lamp .............................................................................................. 5-80
Interior Lamp AUTO OFF ............................................................................... 5-78
Rear Lamps ..................................................................................................... 5-79
Vanity Mirror Lamp ........................................................................................ 5-79
Welcome System ............................................................................................. 5-80
Interior Overview .................................................................................................. 2-4

Index
I-8
J
Jump Starting ......................................................................................................... 8-4
L
Lane Following Assist (LFA) ............................................................................ 7-100
Lane Following Assist Malfunction and Limitations ..................................... 7-103
Lane Following Assist Operation ................................................................... 7-101
Lane Following Assist Settings ...................................................................... 7-100
Lane Keeping Assist (LKA) ............................................................................... 7-30
Lane Keeping Assist Malfunction and Limitations .......................................... 7-34
Lane Keeping Assist Operation ........................................................................ 7-32
Lane Keeping Assist Settings .......................................................................... 7-30
LCD display......................................................................................................... 4-27
LCD Display Control ....................................................................................... 4-27
Trip Computer (Type A : 4.2” LCD) ................................................................ 4-38
Trip Computer (Type B : 10.25” LCD) ............................................................ 4-40
User Settings Mode .......................................................................................... 4-31
View Modes...................................................................................................... 4-28
Light Bulbs .......................................................................................................... 9-57
Headlamp, Position Lamp, Turn Signal Lamp,
Daytime Running Light (DRL) Replacement ................................................ 9-58
High Mounted Stop Lamp and Top Mounted Bed Lamp /
Side Mounted Bed Lamp Replacement ......................................................... 9-62
Interior light replacement ................................................................................. 9-63
License Plate Lamp Replacement .................................................................... 9-63
Rear Combination Lamp Replacement ............................................................ 9-60
Side Repeater Lamp Replacement ................................................................... 9-60
Lighting ............................................................................................................... 5-71
Exterior Lights.................................................................................................. 5-71
Luggage Compartment Features........................................................................ 5-114
Rail and cleat system ...................................................................................... 5-123
Sidewall Molded in Features .......................................................................... 5-117
Sidewall Side Storage .................................................................................... 5-121
Tie Down ........................................................................................................ 5-122
Tonneau Cover ............................................................................................... 5-114
Underbed Storage ........................................................................................... 5-119

Index
I-12
T
Theft-alarm System ............................................................................................. 5-37
Tire Pressure Monitoring System (TPMS) ............................................................ 8-9
Changing a Tire with TPMS............................................................................. 8-12
Check Tire Pressure............................................................................................ 8-9
Low Tire Pressure Position and Tire Pressure Display .................................... 8-11
Low Tire Pressure Warning Light .................................................................... 8-11
Tire Pressure Monitoring System ..................................................................... 8-10
TPMS Malfunction Indicator ........................................................................... 8-12
Tire Specification and Pressure Label ................................................................. 2-14
Tires and Wheels ....................................................................................... 2-10/ 9-35
All Season Tires ............................................................................................... 9-46
Check Tire Inflation Pressure ........................................................................... 9-36
Low Aspect Ratio Tires .................................................................................... 9-47
Recommended Cold Tire Inflation Pressures ................................................... 9-35
Summer Tires ................................................................................................... 9-46
Tire Care ........................................................................................................... 9-35
Tire Maintenance.............................................................................................. 9-39
Tire Replacement ............................................................................................. 9-38
Tire Rotation..................................................................................................... 9-37
Tire Sidewall Labeling ..................................................................................... 9-40
Tire Terminology and Definitions .................................................................... 9-43
Tire Traction ..................................................................................................... 9-39
Wheel Alignment and Tire Balance ................................................................. 9-38
Wheel Replacement.......................................................................................... 9-39
Towing ................................................................................................................. 8-23
Towing Service................................................................................................. 8-23
Trailer Towing ..................................................................................................... 6-64
Driving with a Trailer ....................................................................................... 6-69
Maintenance when Towing a Trailer ................................................................ 6-72
Trailer Towing - Important Information ........................................................... 6-65
Trailer Towing Equipment ............................................................................... 6-68
