2022 HYUNDAI SANTA CRUZ sunroof

4
High Beam Assist indicator light ..............................................................................4-21
Cruise Indicator Light ...............................................................................................4-21
Master warning light .................................................................................................4-21
LCD Display Messages for Vehicles Equipped with Smart Key ............................... 4-22
Shift to P ................................................................................................................... 4-22
Low key battery ........................................................................................................ 4-22
Press START button while turning wheel ............................................................... 4-22
Check steering wheel lock system ........................................................................ 4-22
Press brake pedal to start engine .......................................................................... 4-22
Key not in vehicle ..................................................................................................... 4-22
Key not detected ...................................................................................................... 4-22
Press START button again ...................................................................................... 4-22
Press START button with key .................................................................................. 4-23
Check BRAKE SWITCH fuse .................................................................................. 4-23
Shift to P or N to start engine ................................................................................ 4-23
Battery discharging due to external electrical devices ......................................... 4-23
Door, Hood, Tailgate open indicator ...................................................................... 4-24
Sunroof open indicator ............................................................................................ 4-24
Low tire pressure ..................................................................................................... 4-24
Lights ........................................................................................................................4-25
Wiper ........................................................................................................................ 4-25
Low washer fluid ...................................................................................................... 4-25
Low fuel .................................................................................................................... 4-25
Low engine oil .......................................................................................................... 4-25
Engine overheated ..................................................................................................4-26
Check headlight .......................................................................................................4-26
Check turn signal .....................................................................................................4-26
Check headlamp LED ..............................................................................................4-26

Instrument Cluster
4-24
Door, Hood, Tailgate open indicator
ONX4OB041003ONX4OB041003
This warning is displayed if any door or
hood or tailgate is left open. The warning
will indicate which door is open in the
display.
CAUTION
Before driving the vehicle, you should
confirm that the door/ hood/tailgate is
fully closed.
Also, check there is no door/hood/
tailgate open warning light or message
displayed on the instrument cluster.
Sunroof open indicator (if equipped)
ONX4OB041004ONX4OB041004
This warning is displayed if you turn off
the engine when the sunroof is open.
Close the sunroof securely before leaving
your vehicle.
Low tire pressure
ONX4OB041005ONX4OB041005
This warning message is displayed if the
tire pressure is low. The corresponding
tire on the vehicle will be illuminated.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.

5
Convenient Features
Accessing Your Vehicle ..................................................................................... 5-4Remote Key ...................................................................................................................5-4
Smart Key ......................................................................................................................5-7
Immobilizer System ................................................................................................... 5-14
Hyundai Digital Key ......................................................................................... 5-15
Door Locks ....................................................................................................... 5-32
Operating Door Locks From Outside the Vehicle .................................................... 5-32
Operating Door Unlocks from Inside the Vehicle .................................................... 5-34
Auto Door Lock/Unlock Features ..............................................................................5-36
Child-protector Rear Door Locks ..............................................................................5-36
Theft-alarm System .........................................................................................5-37
Rear Occupant Alert (ROA) ............................................................................ 5-38
Rear Occupant Alert Operation ................................................................................5-38
Steering Wheel ................................................................................................ 5-39
Electric Power Steering (EPS) ....................................................................................5-39
Tilt / Telescopic Steering .......................................................................................... 5-40
Heated Steering Wheel ............................................................................................. 5-40
Horn............................................................................................................................. 5-41
Mirrors ............................................................................................................. 5-42Inside Rearview Mirror ...............................................................................................5-42
Side View Mirrors ....................................................................................................... 5-52
Windows .......................................................................................................... 5-54
Power Windows .......................................................................................................... 5-55
Rear Sliding Window .................................................................................................5-58
Sunroof ............................................................................................................ 5-59Sunshade ....................................................................................................................5-59
Tilt Open/Close.......................................................................................................... 5-60
Slide open/close ........................................................................................................ 5-60
Automatic Reversal ................................................................................................... 5-61
Resetting the sunroof ................................................................................................5-62
Sunroof Open Warning ..............................................................................................5-63
Exterior Features ............................................................................................. 5-64Hood ........................................................................................................................... 5-64
Tailgate ........................................................................................................................5-65
Rear Bumper Steps ................................................................................................... 5-68
Fuel Filler Door .......................................................................................................... 5-68
5. Convenient Features

5
Lighting ............................................................................................................. 5-71Exterior Lights ............................................................................................................. 5-71
High Beam Assist (HBA) .................................................................................5-75High Beam Assist Settings ......................................................................................... 5-75
High Beam Assist Operation ...................................................................................... 5-76
High Beam Assist Malfunction and Limitations ....................................................... 5-77
Interior Lights .................................................................................................. 5-78Interior Lamp AUTO OFF ............................................................................................ 5-78
Front Lamps ................................................................................................................ 5-78
Rear Lamps ................................................................................................................ 5-79
Vanity Mirror Lamp .................................................................................................... 5-79
Glove Box Lamp ........................................................................................................ 5-80
Welcome System ...................................................................................................... 5-80
Wipers and Washers ....................................................................................... 5-82Windshield Wipers .....................................................................................................5-82
Windshield Washers .................................................................................................. 5-84
Manual Climate Control System .................................................................... 5-85Heating and Air Conditioning ................................................................................... 5-86
System Operation ...................................................................................................... 5-90
System Maintenance ................................................................................................. 5-91
Automatic Climate Control System ............................................................... 5-93Automatic Heating and Air Conditioning ................................................................ 5-94
Manual Heating and Air Conditioning ......................................................................5-95
Multi Air Mode ........................................................................................................... 5-101
System Operation ..................................................................................................... 5-102
System Maintenance ............................................................................................... 5-104
Windshield Defrosting And Defogging .........................................................5-106
Manual Climate Control System.............................................................................. 5-106
Automatic Climate Control System..........................................................................5-107
Rear window defroster ............................................................................................ 5-108
Climate Control Additional Features ............................................................5-109Auto Defogging System on Models with Automatic Temperature Control .......... 5-109
Auto Dehumidify ....................................................................................................... 5-110
Recirculating Air when washer fluid is used ............................................................. 5-111
Sunroof Inside Air Recirculation ................................................................................ 5-111
Automatic Controls for the Driver Based on Climate Control System Settings ..... 5-111

05
5-59
If your vehicle is equipped with a
sunroof, you can slide or tilt your sunroof
with the sunroof switch located on the
overhead console.
ONX4OB051051ONX4OB051051
The sunroof can only be operated when
the ignition switch or Engine Start/Stop
button is in the ON or START position.
The sunroof can be operated for
approximately 3 minutes after the
ignition switch or Engine Start/Stop
button is in the ACC or LOCK/OFF
position. However, if the front door is
open, the sunroof cannot be operated
even within the 3 minute period.
WARNING
• Never adjust the sunroof or sunshade
while driving. This could result in loss
of control and an accident that may
cause injury, or property damage.
• Do not leave the engine running
and the key in your vehicle with
unsupervised children. Unattended
children could operate the sunroof,
which could result in serious injury.
• Do not sit on the top of the vehicle. It
may cause injury or vehicle damage.
NOTICE
Do not operate the sunroof when roof
bars are installed on the vehicle or
when there is luggage on the roof.
Sunshade
OCN7050029OCN7050029
Use the sunshade to block direct sunlight
coming through the sunroof glass.
Open or close the sunshade by hand.
Information
The sunshade opens automatically when
the sunroof glass is opened, but the
sunshade does not close automatically
when the sunroof glass is closed. Also, only
the sunshade cannot be closed when the
sunroof glass is opened.
NOTICE
Do not pull the sunshade up or down,
or apply excessive force as such action
may damage the sunshade or cause it
to malfunction.
681522)

Convenient Features
5-60

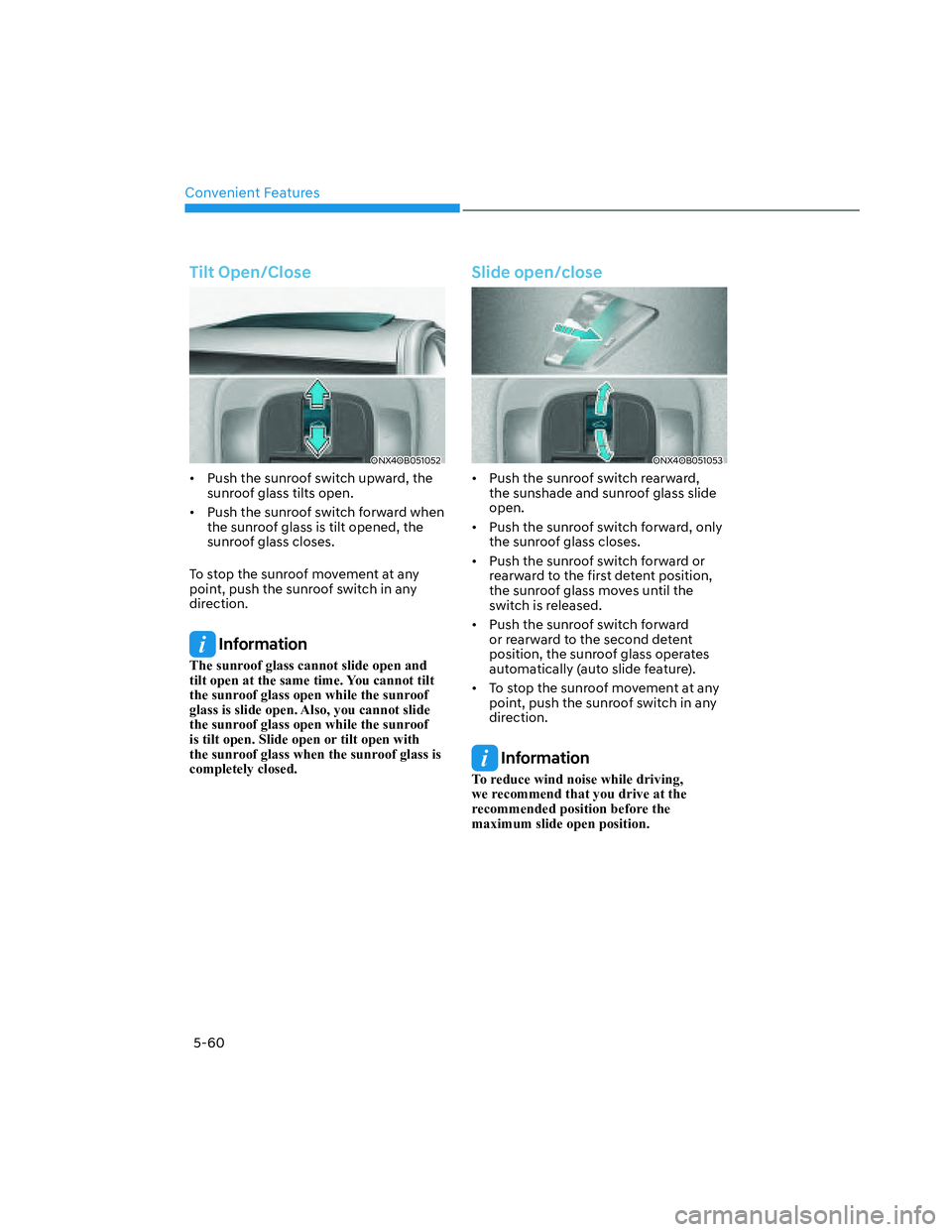

Tilt Open/Close
ONX4OB051052ONX4OB051052
• Push the sunroof switch upward, the
sunroof glass tilts open.
• Push the sunroof switch forward when
the sunroof glass is tilt opened, the
sunroof glass closes.
To stop the sunroof movement at any
point, push the sunroof switch in any
direction.
Information
The sunroof glass cannot slide open and
tilt open at the same time. You cannot tilt
the sunroof glass open while the sunroof
glass is slide open. Also, you cannot slide
the sunroof glass open while the sunroof
is tilt open. Slide open or tilt open with
the sunroof glass when the sunroof glass is
completely closed.
Slide open/close
ONX4OB051053ONX4OB051053
• Push the sunroof switch rearward,
the sunshade and sunroof glass slide
open.
• Push the sunroof switch forward, only
the sunroof glass closes.
• Push the sunroof switch forward or
rearward to the first detent position,
the sunroof glass moves until the
switch is released.
• Push the sunroof switch forward
or rearward to the second detent
position, the sunroof glass operates
automatically (auto slide feature).
• To stop the sunroof movement at any
point, push the sunroof switch in any
direction.
Information
To reduce wind noise while driving,
we recommend that you drive at the
recommended position before the
maximum slide open position.

05
5-61

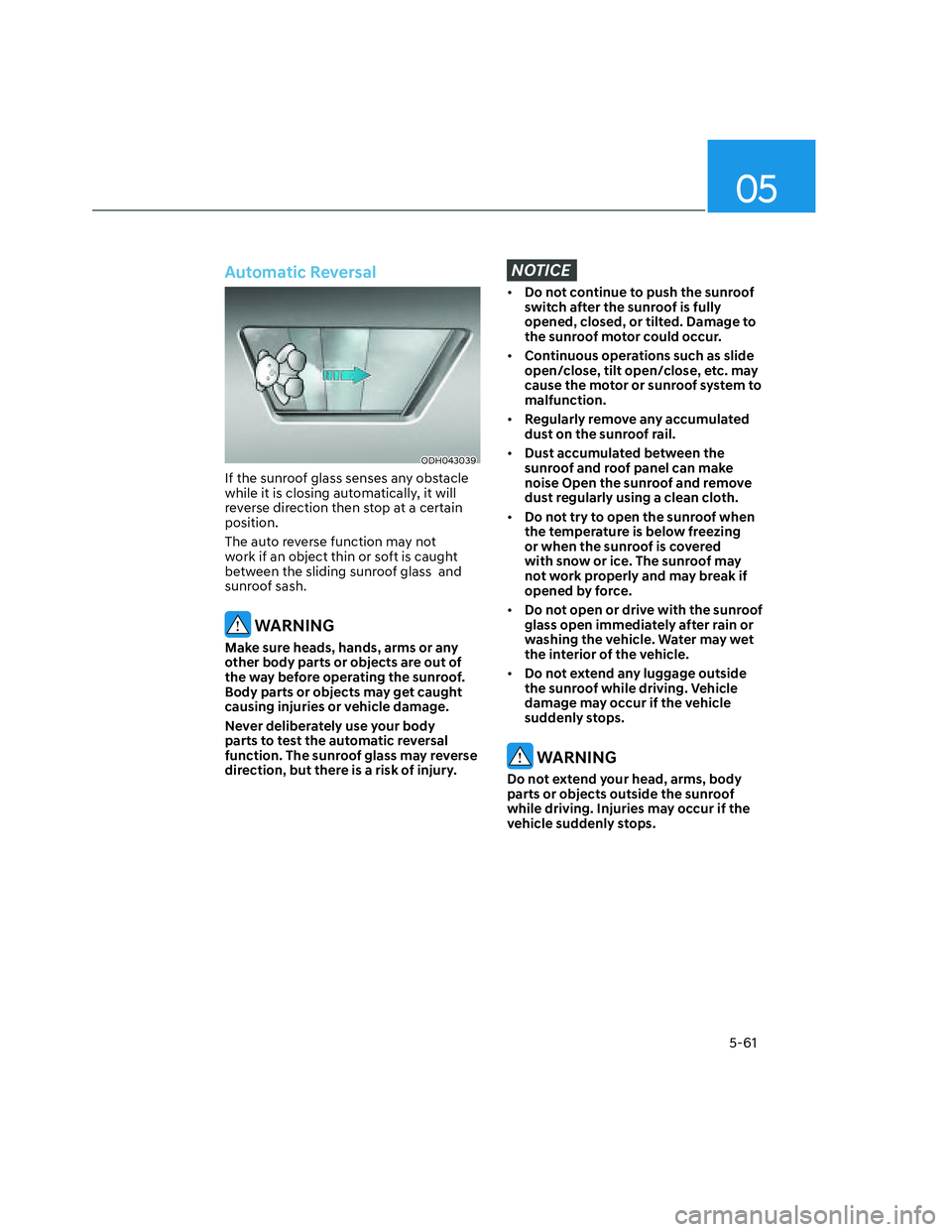

Automatic Reversal
ODH043039ODH043039
If the sunroof glass senses any obstacle
while it is closing automatically, it will
reverse direction then stop at a certain
position.
The auto reverse function may not
work if an object thin or soft is caught
between the sliding sunroof glass and
sunroof sash.
WARNING
Make sure heads, hands, arms or any
other body parts or objects are out of
the way before operating the sunroof.
Body parts or objects may get caught
causing injuries or vehicle damage.
Never deliberately use your body
parts to test the automatic reversal
function. The sunroof glass may reverse
direction, but there is a risk of injury.
NOTICE
• Do not continue to push the sunroof
switch after the sunroof is fully
opened, closed, or tilted. Damage to
the sunroof motor could occur.
• Continuous operations such as slide
open/close, tilt open/close, etc. may
cause the motor or sunroof system to
malfunction.
• Regularly remove any accumulated
dust on the sunroof rail.
• Dust accumulated between the
sunroof and roof panel can make
noise Open the sunroof and remove
dust regularly using a clean cloth.
• Do not try to open the sunroof when
the temperature is below freezing
or when the sunroof is covered
with snow or ice. The sunroof may
not work properly and may break if
opened by force.
• Do not open or drive with the sunroof
glass open immediately after rain or
washing the vehicle. Water may wet
the interior of the vehicle.
• Do not extend any luggage outside
the sunroof while driving. Vehicle
damage may occur if the vehicle
suddenly stops.
WARNING
Do not extend your head, arms, body
parts or objects outside the sunroof
while driving. Injuries may occur if the
vehicle suddenly stops.

Convenient Features
5-62
Resetting the sunroof
ONX4OB051054ONX4OB051054
In some circumstances resetting the
sunroof operation may need to be
performed. Some instances where
resetting the sunroof may be required
include:
• When the 12-volt battery is either
disconnected or discharged
• When the sunroof fuse is replaced
• If the sunroof one-touch AUTO OPEN/
CLOSE operation is not functioning
properlySunroof resetting procedure:
1. It is recommended to perform the
reset procedure with the vehicle
engine running. Start the vehicle in P
(Park).
2. Make sure the sunroof glass is in the
fully closed position. If the sunroof
glass is open, push the switch forward
until the sunroof glass is fully closed.
3. Release the switch when the sunroof
glass is fully closed.
4. Push the switch forward until the
sunroof glass moves slightly. Then
release the switch.
5. Once again push and hold the sunroof
switch forward until the sunroof glass
slides open and close. Do not release
the switch until the operation is
completed. If you release the switch
during operation, start the procedure
again from step 2.
Information
If the sunroof is not reset when the vehicle
battery is disconnected or discharged, or
the sunroof fuse is blown, the sunroof may
not operate normally.
