2. Vehicle Information,
Consumer Information and
Reporting Safety Defects
Exterior Overview (I) ..........................................................................................2-2
Exterior Overview (II) .........................................................................................2-3
Interior Overview ............................................................................................. 2-4
Instrument Panel Overview (I) ......................................................................... 2-5
Instrument Panel Overview (II) ........................................................................ 2-6
Engine Compartment ........................................................................................ 2-7
Dimensions ........................................................................................................ 2-8
Engine ................................................................................................................ 2-8
Bulb Wattage ..................................................................................................... 2-9
Tires and Wheels .............................................................................................. 2-10
Air Conditioning System ................................................................................... 2-11
Gross Vehicle Weight ........................................................................................ 2-11
Recommended Lubricants and Capacities .................................................... 2-12
Recommended SAE Viscosity Number .....................................................................2-13
Vehicle Identification Number (VIN) .............................................................. 2-14
Vehicle Certification Label .............................................................................. 2-14
Tire Specification and Pressure Label ............................................................ 2-14
Engine Number ................................................................................................ 2-15
Refrigerant Label ............................................................................................. 2-15
Consumer Information .................................................................................... 2-16
Reporting Safety Defects ................................................................................ 2-17

2-4
Vehicle Information, Consumer Information and Reporting Safety Defects
1. Inside door handle ................................ 5-34
2. Power window switches ...................... 5-54
3. Power window lock button ...................5-57
4. Outside rearview mirror control
switch .................................................... 5-53
5. Driver door lock switch ........................ 5-35
6. Instrument panel illumination control
switch ...................................................... 4-57. Bed lamp ON/OFF Switch ..................... 5-81
8. ESC OFF Switch .................................... 6-39
9. Steering wheel ...................................... 5-39
10. Steering wheel tilt/telescopic lever .... 5-40
11. Fuse box ................................................ 9-48
12. Hood release lever ................................ 5-64
13. Seat .......................................................... 3-3

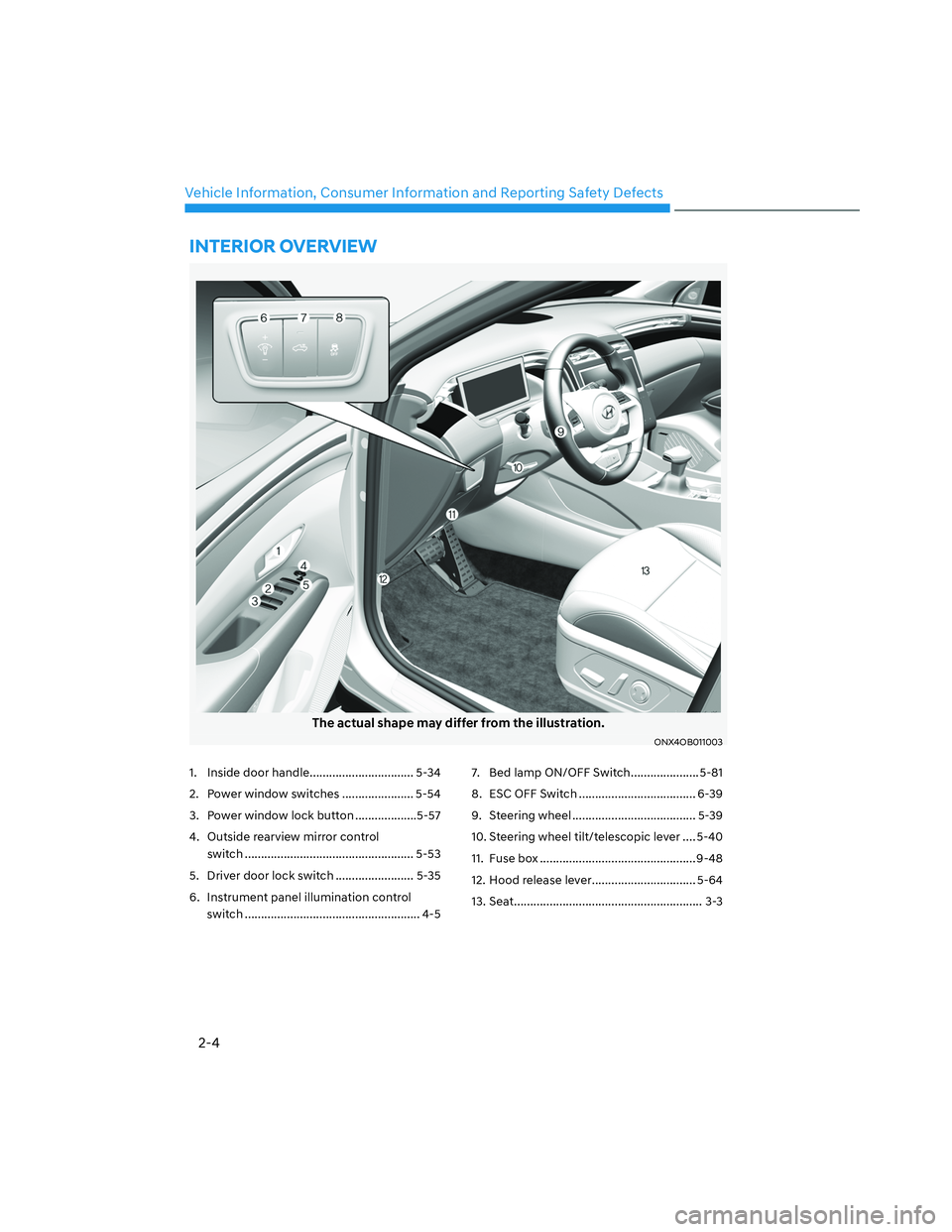

INTERIOR OVERVIEW
The actual shape may differ from the illustration.
ONX4OB011003ONX4OB011003

2-5
02
1. Instrument cluster .................................. 4-4
2. Driver’s front air bag ............................. 3-42
3. Key ignition switch/ ................................ 6-5
Engine Start/Stop button ....................... 6-8
4. Infotainment system ........................... 5-132
5. Hazard warning lamp switch ................. 8-2
6. Climate control system ............... 5-85/5-93
7. Air ventilation seat ................................. 3-18
8. Seat warmer ........................................... 3-16
9. Heated steering wheel ......................... 5-40
10. Transmission shift lever ................ 6-14/6-21
11. DBC button .......................................... 6-4412. Parking/View button ............................ 7-112
13. EPB (Electronic Parking Brake)
switch .................................................... 6-30
14. Auto Hold switch .................................. 6-34
15. AWD lock button ................................... 6-51
16. Drive mode switch ............................... 6-48
17. Passenger’s front air bag ..................... 3-42
18. Glove box .............................................. 5-113
19. USB port ............................................... 5-132
20. Power outlet ......................................... 5-125
21. USB charger ......................................... 5-126
22. Wireless charging system pad ............ 5-127
The actual shape may differ from the illustration.
ONX4OB011004ONX4OB011004
,167580(173$1(/29(59,(:

Vehicle Information, Consumer Information and Reporting Safety Defects
2-8
Items in (mm)
Overall length 195.67 (4,970)
Overall width 75 (1,905)
Overall height 66.73 (1,695)
TreadFront Rear
64.69 (1,643) 64.88 (1,648)
Wheelbase 118.30 (3,005)
ENGINE
EngineDisplacement
cu. in (cc)Bore x Stroke
in. (mm)Firing order No. of cylinders
Smartstream G 2.5 GDI
152.4
(2,497)3.5 x 4
(88.5 x 101.5)1-3-4-2 4, in-line
Smartstream G 2.5 TGDI

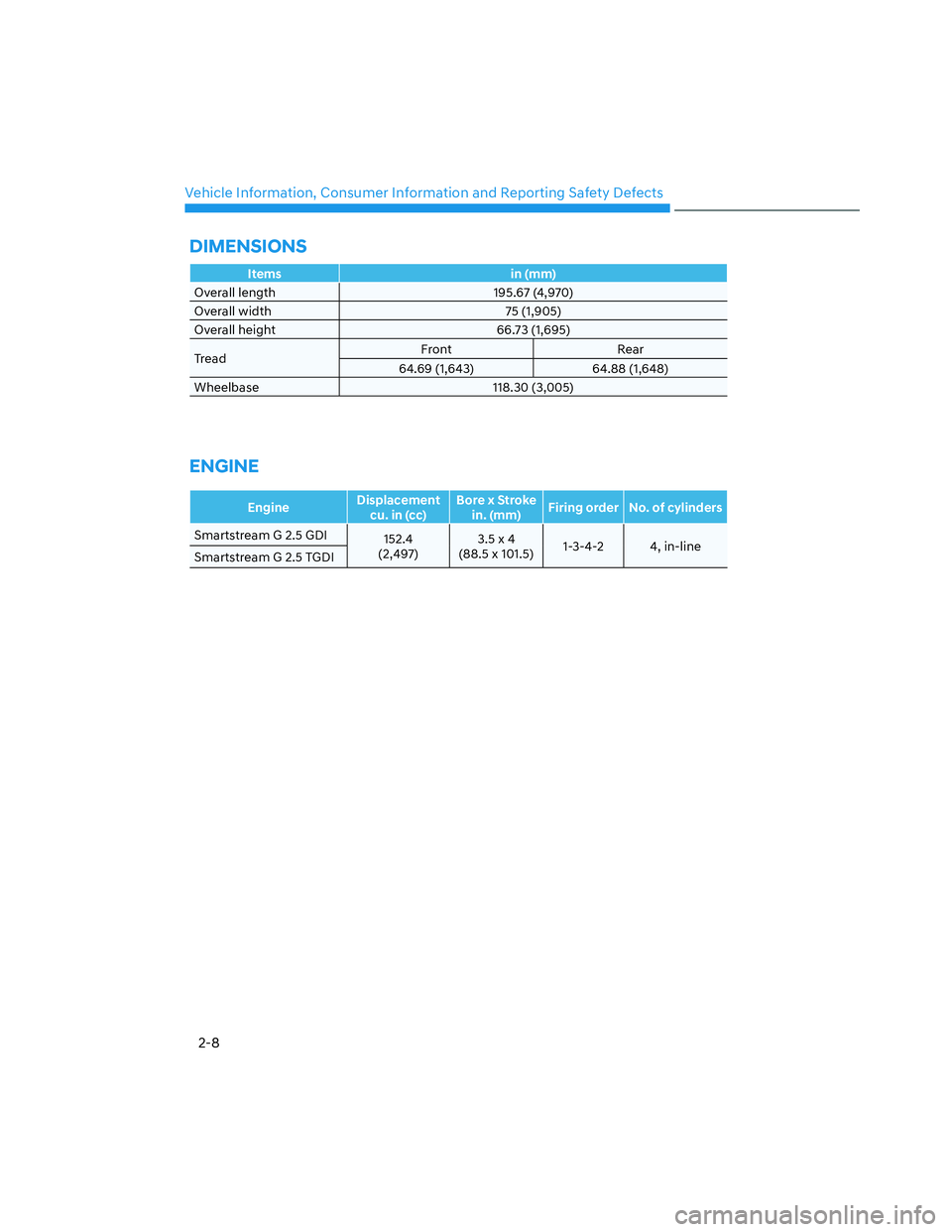

DIMENSIONS

Vehicle Information, Consumer Information and Reporting Safety Defects
2-10
Items Tire sizeWheel
sizeInflation pressure psi (kPa)
Wheel nut
torque lbf·ft
(kgf·m, N·m) Normal load Maximum load
Front Rear Front Rear
Full size tire245/60 R18 7.5J X 18 35 (240)79~94
(11~13)245/50 R20 7.5J X 20
Compact
spare tireT135/80 D18 4.0T x 18 60 (420)
NOTICE
• It is permissible to add 3 psi to the standard tire pressure specification if colder
temperatures are expected soon.
Tires typically lose 1psi (7kPa) for every 12°F temperature drop. If extreme
temperature variations are expected, recheck your tire pressure as necessary to
keep them properly inflated.
• Tire inflation pressures will vary with changes in elevation. If driving in areas of
higher or lower elevation, be sure to check and adjust for proper tire inflation.
CAUTION
• When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
• When replacing tires, ALWAYS use the same size, type, construction and tread
pattern supplied with the vehicle for all tires.

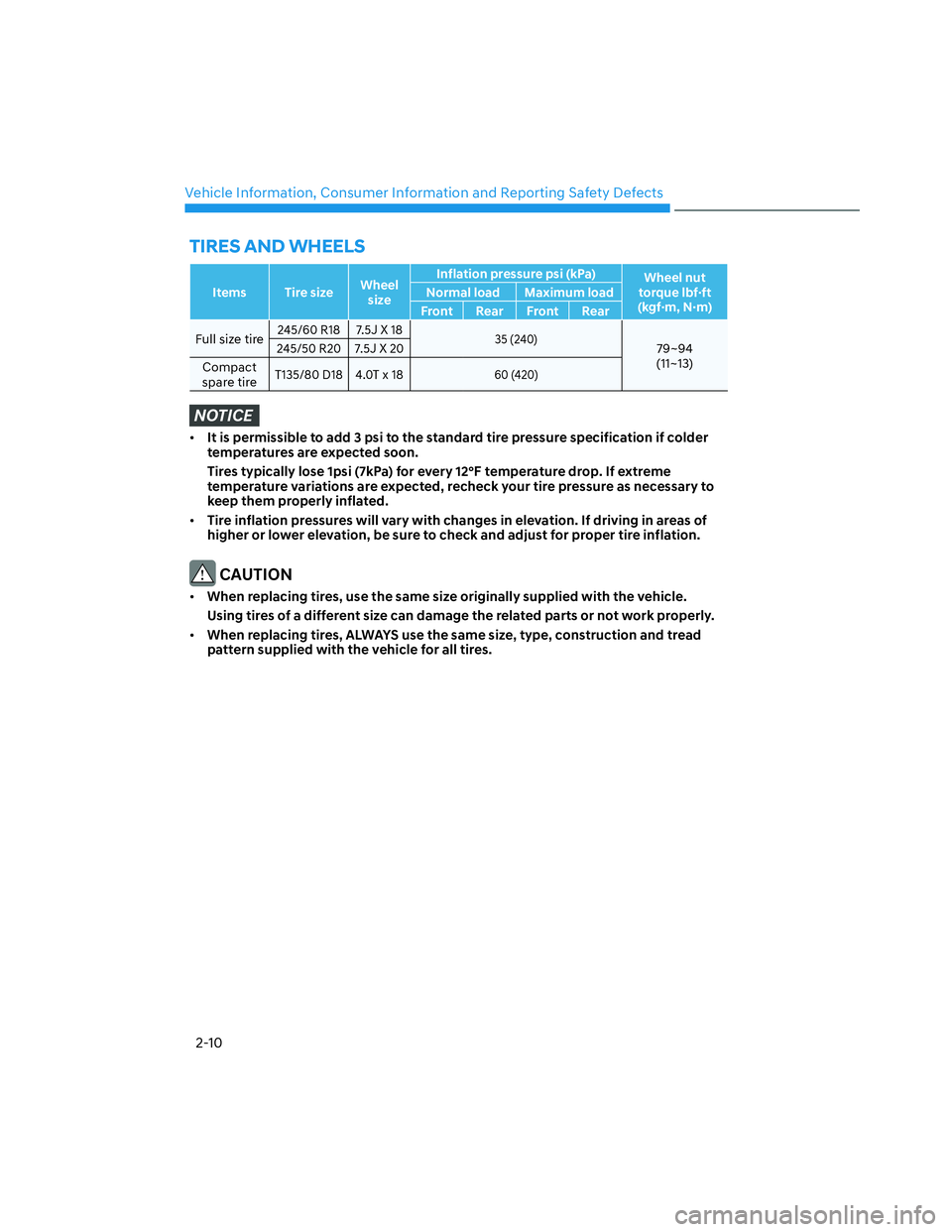

TIRES AND WHEELS

Seats & Safety System
3-2
You will find many safety precautions
and recommendations throughout this
section, and throughout this manual.
The safety precautions in this section are
among the most important.
Always Wear Your Seat Belt
A seat belt is your best protection in all
types of accidents. Air bags are designed
to supplement seat belts, not to replace
them. So even though your vehicle is
equipped with air bags, ALWAYS make
sure you and your passengers wear your
seat belts, and wear them properly.
Restrain All Children
All children under age 13 should ride
in your vehicle properly restrained in a
rear seat, not the front seat. Infants and
small children should be restrained in
an appropriate Child Restraint System.
Larger children should use a booster
seat with the lap/shoulder belt until they
can use the seat belt properly without a
booster seat.
Air Bag Hazards
While air bags can save lives, they can
also cause serious or fatal injuries to
occupants who sit too close to them, or
who are not properly restrained. Infants,
young children, and short adults are at
the greatest risk of being injured by an
inflating air bag. Follow all instructions
and warnings in this manual.
Driver Distraction
Driver distraction presents a serious and
potentially deadly danger, especially for
inexperienced drivers. Safety should be
the first concern when behind the wheel
and drivers need to be aware of the wide
array of potential distractions, such as
drowsiness, reaching for objects, eating,
personal grooming, other passengers,
and using mobile phones.Drivers can become distracted when
they take their eyes and attention off
the road or their hands off the wheel to
focus on activities other than driving.
To reduce your risk of distraction and an
accident:
• Set up your mobile devices (for
example, MP3 players, phones,
navigation units, etc.) ONLY when
your vehicle is parked or safely
stopped.
• ONLY use your mobile device when
allowed by laws and conditions permit
safe use. NEVER text or email while
driving. Most countries have laws
prohibiting drivers from texting. Some
countries and cities also prohibit
drivers from using handheld phones.
• NEVER let the use of a mobile device
distract you from driving. You have a
responsibility to your passengers and
others on the road to always drive
safely, with your hands on the wheel
as well as your eyes and attention on
the road.
Control Your Speed
Excessive speed is a major factor in crash
injuries and deaths. Generally, the higher
the speed, the greater the risk, but
serious injuries can also occur at lower
speeds. Never drive faster than is safe
for current conditions, regardless of the
maximum speed posted.
Keep Your Vehicle In Safe
Condition
Having a tire blowout or a mechanical
failure can be extremely hazardous. To
reduce the possibility of such problems,
check your tire pressures and condition
frequently, and perform all regularly
scheduled maintenance.
IMPORTANT SAFETY PRECAUTIONS

Seats & Safety System
3-4
Safety Precautions
Adjusting the seats so that you are sitting
in a safe and comfortable position plays
an important role for the safety of the
driver and passengers, as much as seat
belts and air bags when in an accident.
WARNING
Do not use a cushion that reduces
friction between the seat and the
passenger. The passenger’s hips may
slide under the lap portion of the seat
belt during an accident or a sudden
stop.
Serious or fatal internal injuries could
result because the seat belt cannot
operate properly.
Air bags
You can take steps to reduce the risk
of being injured by an inflating air bag.
Sitting too close to an air bag greatly
increases the risk of injury in the event
the air bag inflates.
The National Highway Traffic Safety
Administration (NHTSA) recommends
that drivers allow at least 10 inches
(25cm) between the center of the
steering wheel and their chest.
WARNING
To reduce the risk of serious injury or
death from an inflating air bag, take the
following precautions:
• Adjust the driver’s seat as far to the
rear as possible maintaining the
ability to control the vehicle.
• Adjust the front passenger seat as far
to the rear as possible.
• Hold the steering wheel by the rim
with hands at the 9 o’clock and 3
o’clock positions to minimize the risk
of injuries to your hands and arms.
• NEVER place anything or anyone
between you and the air bag.
• Do not allow the front passenger to
place feet or legs on the dashboard
to minimize the risk of leg injuries.
Seat belts
Always fasten your seat belt before
starting any trip. At all times, passengers
should sit upright and be properly
restrained. Infants and small children
must be restrained in appropriate Child
Restraint Systems. Children who have
outgrown a booster seat and adults must
be restrained using the seat belts.
WARNING
Take the following precautions when
adjusting your seat belt:
• NEVER use one seat belt for more
than one occupant.
• Always position the seatback upright
with the lap portion of the seat belt
snug and low across the hips.
• NEVER allow children or small infants
to ride on a passenger’s lap.
• Do not route the seat belt across your
neck, across sharp edges, or reroute
the shoulder strap away from your
body.
• Do not allow the seat belt to become
caught or jammed.

Seats & Safety System
3-6
Manual adjustment
The front seat can be adjusted by using
the levers located underneath the seat
cushion. Before driving, adjust the seat
to the proper position so that you can
easily control the steering wheel, foot
pedals and controls on the instrument
panel.
ONX4030002ONX4030002
Forward and rearward adjustment
To move the seat forward or rearward:
1. Pull up the seat slide adjustment lever
and hold it.
2. Slide the seat to the position you
desire.
3. Release the lever and make sure the
seat is locked in place. Move forward
and rearward without using the lever.
If the seat moves, it is not locked
properly.
ONX4030003ONX4030003
Seatback angle
To recline the seatback:
1. Lean forward slightly and lift up the
seatback lever.
2. Carefully lean back on the seat and
adjust the seatback to the position
you desire.
3. Release the knob and make sure the
seatback is locked in place.
Reclining seatback
Sitting in a reclined position when the
vehicle is in motion can be dangerous.
Even when buckled up, the protections
of your restraint system (seat belts
and/or air bags) is greatly reduced by
reclining your seatback.
WARNING
NEVER ride with a reclined seatback
when the vehicle is moving.
Riding with a reclined seatback
increases your chance of serious or fatal
injuries in the event of a collision or
sudden stop.
Drivers and passengers should ALWAYS
sit well back in their seats, properly
belted, and with the seatbacks upright.
