Vehicle Information, Consumer Information and Reporting Safety Defects
1. Door ....................................................... 5-30
2. Fuel filler door ....................................... 5-64
3. Rear combination lamp........................ 9-63
4. Turn signal lamp, Reverse lamp ........... 9-63
5. Liftgate .................................................. 5-62
6. High mounted stop lamp ..................... 9-65
7. Rear window wiper blade .................... 9-28
8. Rear view camera ................................. 7-99
9. Antenna .................................................5-116
Rear view
The actual shape may differ from the illustration.
OOS010002N

2-5
02
1. Door ....................................................... 5-30
2. Fuel filler door ....................................... 5-64
3. Rear combination lamp........................ 9-63
4. Turn signal lamp, Reverse lamp ........... 9-63
5. Liftgate .................................................. 5-62
6. High mounted stop lamp ..................... 9-65
7. Rear window wiper blade .................... 9-28
8. Rear view camera ................................. 7-99
9. Antenna .................................................5-116
Rear view (N Line)
The actual shape may differ from the illustration.
OOSN010002N

2-6
Vehicle Information, Consumer Information and Reporting Safety Defects
The actual shape may differ from the illustration.
OOS010024N

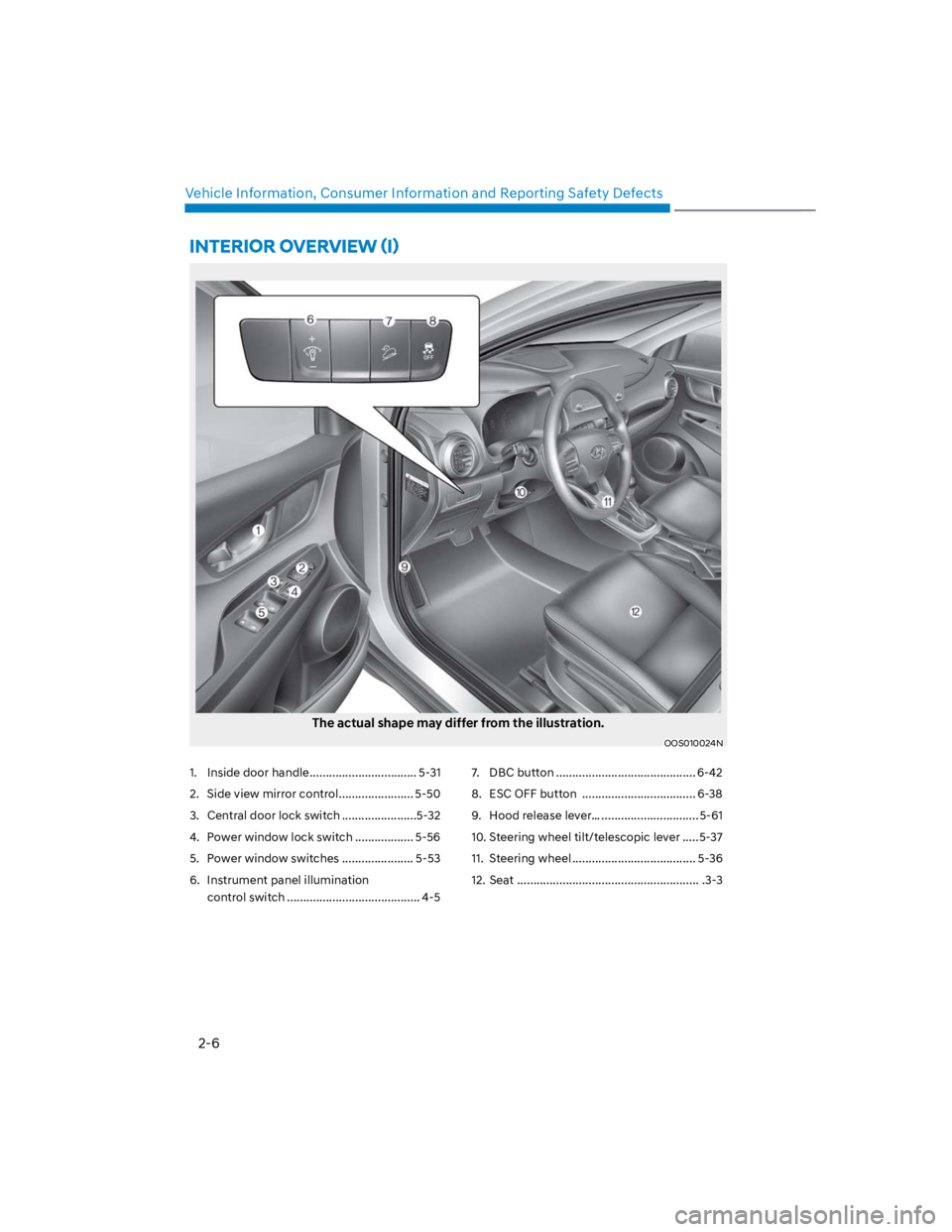

1. Inside door handle ................................. 5-31
2. Side view mirror control ....................... 5-50
3. Central door lock switch .......................5-32
4. Power window lock switch .................. 5-56
5. Power window switches ...................... 5-53
6. Instrument panel illumination
control switch ......................................... 4-5
7. DBC button ........................................... 6-42
8. ESC OFF button ................................... 6-38
9. Hood release lever… .............................. 5-61
10. Steering wheel tilt/telescopic lever .....5-37
11. Steering wheel ...................................... 5-36
12. Seat ........................................................ .3-3

2-7
02
The actual shape may differ from the illustration.
OOS010004N
1. Instrument cluster .................................. 4-4
2. Horn ....................................................... 5-38
3. Driver’s front air bag ............................. 3-43
4. Engine Start/Stop button ....................... 6-8
5. Light control/Turn signals .................... 5-67
6. Wiper/Washer ........................................ 5-77
7. Infotainment system ............................5-116
8. Hazard warning flasher switch .............. 8-2
9. Manual climate control system ............5-81
Automatic climate control system ...... 5-89
10. Passenger’s front air bag ..................... 3-43
11. Glove box .............................................5-104
12. USB Charger........................................5-109
13. Power outlet .........................................5-108
14. Dual clutch transmission shift lever ..... 6-18
Intelligent variable transmission shift
lever ........................................................ 6-13
15. Drive mode button ...............................6-60
16. Heated steering wheel ......................... 5-38
17. Idle stop and go (ISG) OFF button ....... 6-54
18. Seat warmer/Air ventilation seat .......... 3-17
19. 4WD lock button ...................................6-46
20. Parking Safety button………….. .............. 7-113
21. Cup holder ........................................... 5-107
22. Steering wheel audio controls/ ........... 5-117
Bluetooth® wireless technology
hands-free controls ..............................5-118
23. Driving Assist button/ .......................... 7-65
Lane Driving Assist button/ ..................7-30
Vehicle Distance button ....................... 7-65

2-8
Vehicle Information, Consumer Information and Reporting Safety Defects
Smartstream G1.6 T-GDi
Smarstream G2.0 Atkinson
The actual engine compartment in the vehicle may differ from the illustration.
OOS090002K/OOS090001K
1. Engine coolant reservoir .......................9-18
Engine coolant cap ................................9-18
2. Fuse box ................................................ 9-47
3. Battery ................................................... 9-29
4. Brake fluid reservoir .............................. 9-21
5. Air cleaner ............................................. 9-23
6. Engine oil dipstick ................................. 9-15
7. Engine oil filler cap ................................9-16
8. Windshield washer fluid reservoir ....... 9-22
ENGINE COMPARTMENT

02
2-9
Items in. (mm)
Overall length165.55 (4,205)
N Line: 165.94 (4,215)
Overall width 70.86 (1800)
Overall height61.02 (1550) / 61.61 (1565)*1
N Line: 61.42 (1,560) / 61.81 (1,570)*1
Front tread
205/60 R16 62.0 (1575)
215/55 R17 61.53 (1563)
235/45 R1861.37 (1559)
N Line: 61.73 (1,559)
Rear tread
205/60 R16 62.36 (1584)
215/55 R17 61.88 (1572)
235/45 R1861.73 (1568)
N Line: 61.73 (1,568)
Wheelbase 102.36 (2600)
*1 : with roof rack
ENGINE
Engine Smartstream G1.6 T-GDi Smartstrem G2.0 Atkinson
Displacement
cu. in (cc)97.5 (1598) 121.9 (1999)
Bore x Stroke
in. (mm)2.98 X 3.5 (75.6 X 89.0) 3.18 x 3.81 (81.0 x 97.0)
Firing order 1-3-4-2 1-3-4-2
No. of cylinders In-line 4 cylinder In-line 4 cylinder
DIMENSIONS

Vehicle Information, Consumer Information and Reporting Safety Defects
2-10
Light Bulb Bulb Type Wattage
Front
Headlamp
Low (Type A) 9005HL+ 60W
High (Type A) 9005HL+ 60W
Low (Type B) LED LED
High (Type B) LED LED
Turn signal lamp P28/8W 28W
Side marker LED LED
Turn signal lamp (Outside mirror) LED LED
Daytime running lamp (DRL) /
position lampLED LED
Fog lamp HB4 55W
Rear
Rear combination
lamp
Stop/Tail
(Type A)P21/5WSTOP : 21,
TAIL : 5
Tail (Type A) W5W 5W
Stop/Tail
(Type B)LED LED
Turn signalTYPE A:PY21W,
TYPE B:LED
TYPE A:21W,
TYPE B:LED
Reverse lamp P21W 21
Fog lamp PR21W 21
High mounted stop lamp LED LED
Side markerTYPE A:W5W,
TYPE B:LED
TYPE A:5W,
TYPE B:LED
License plate lamp W5W 5
Interior
Map lamp W10W 10
Room lamp (with sunroof) FESTOON 8
Room lamp (without sunroof) FESTOON 10
Sunvisor lamp FESTOON 5
Tailgate room lamp FESTOON 10
Glove box lamp FESTOON 5
BULB WATTAGE

02
2-11

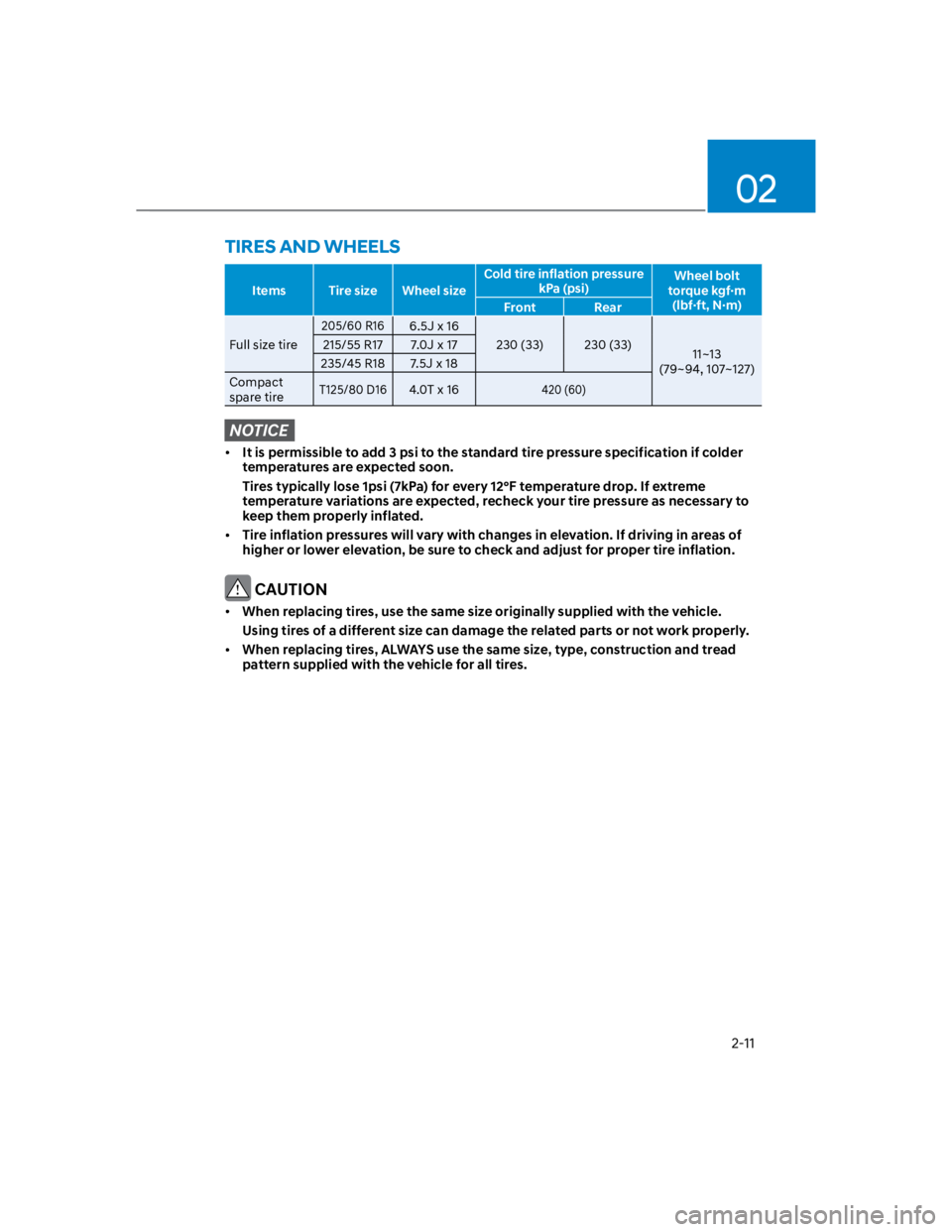

Items Tire size Wheel size
Cold tire inflation pressure
kPa (psi)
Wheel bolt
torque kgf·m
(lbf·ft, N·m)Front Rear
Full size tire
205/60 R16
6.5J x 16
230 (33) 230 (33)11~13
(79~94, 107~127)
215/55 R17 7.0J x 17
235/45 R18 7.5J x 18
Compact
spare tire
T125/80 D16
4.0T x 16
420 (60)
NOTICE
It is permissible to add 3 psi to the standard tire pressure specification if colder
temperatures are expected soon.
Tires typically lose 1psi (7kPa) for every 12°F temperature drop. If extreme
temperature variations are expected, recheck your tire pressure as necessary to
keep them properly inflated.
Tire inflation pressures will vary with changes in elevation. If driving in areas of
higher or lower elevation, be sure to check and adjust for proper tire inflation.
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
When replacing tires, ALWAYS use the same size, type, construction and tread
pattern supplied with the vehicle for all tires.
TIRES AND WHEELS
