09
9-13
CLIMATE CONTROL AIR FILTER
Filter inspection
Replace the filter according to the
Maintenance Schedule.
If the vehicle is operated in the severely
air-polluted cities or on dusty rough
roads for a long period, it should be
inspected more frequently and replaced
earlier. When you, the owner, replace
the climate control air filter, replace it
performing the following procedure,
and be careful to avoid damaging other
components.
Filter replacement
OOS077018
1. With the glove box open, remove the stoppers on both sides.
OOS077017
2. Remove the support strap (1).
OOSEV078005
3. Remove the climate control air filter case while pressing the lock on the
right side of the cover.
4. Replace the climate control air filter.
5. Reassemble in the reverse order of disassembly.
NOTICE
OPD076026
Install a new climate control air filter
in the correct direction with the
arrow symbol (↓) facing downwards,
otherwise, it may be noisy and the
effectiveness of the filter may be
reduced.

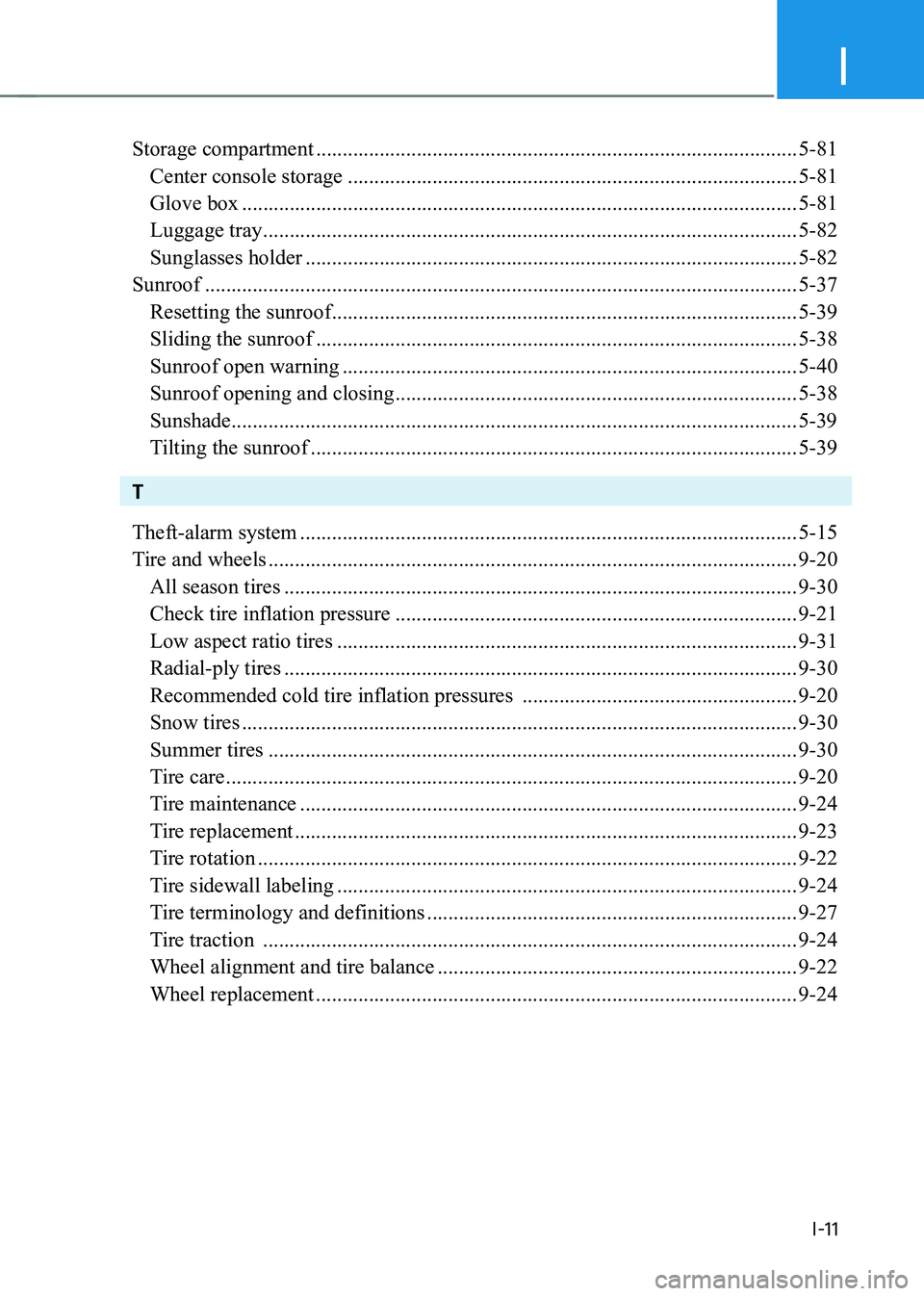

I
I-11
Storage compartment ........................................................................................... 5-81
Center console storage ..................................................................................... 5-81
Glove box ......................................................................................................... 5-81
Luggage tray ..................................................................................................... 5-82
Sunglasses holder ............................................................................................. 5-82
Sunroof ................................................................................................................ 5-37
Resetting the sunroof ........................................................................................ 5-39
Sliding the sunroof ........................................................................................... 5-38
Sunroof open warning ...................................................................................... 5-40
Sunroof opening and closing ............................................................................ 5-38
Sunshade ........................................................................................................... 5-39
Tilting the sunroof ............................................................................................ 5-39
T Theft-alarm system .............................................................................................. 5-15
Tire and wheels .................................................................................................... 9-20
All season tires ................................................................................................. 9-30
Check tire inflation pressure ............................................................................ 9-21
Low aspect ratio tires ....................................................................................... 9-31
Radial-ply tires ................................................................................................. 9-30
Recommended cold tire inflation pressures ....................................................9-20
Snow tires ......................................................................................................... 9-30
Summer tires .................................................................................................... 9-30
Tire care ............................................................................................................ 9-20
Tire maintenance .............................................................................................. 9-24
Tire replacement ............................................................................................... 9-23
Tire rotation ...................................................................................................... 9-22
Tire sidewall labeling ....................................................................................... 9-24
Tire terminology and definitions ...................................................................... 9-27
Tire traction ..................................................................................................... 9-24
Wheel alignment and tire balance .................................................................... 9-22
Wheel replacement ........................................................................................... 9-24
