2022 HYUNDAI I20 ECO mode

5-31
05
OQXI049117OQXI049117
„„ Type A Type A
OQXI049118OQXI049118
„„ Type B Type B
Tripmeter (km or mi.)
A : Tripmeter A
B : Tripmeter B
This mode indicates the distance of
individual trips selected since the last
tripmeter reset.
The meter’s working range is from 0.0
to 9999.9 km. (0.0 to 9999.9 miles).
Pressing the trip mode/reset button for
more than 1 second, when the tripmeter
is being displayed, clears the tripmeter
to zero (0.0).
OQXI049119OQXI049119
Distance to empty (if equipped)
(km or mi.)
This mode indicates the estimated
distance to empty based on the current
fuel in the fuel tank and the amount of
fuel delivered to the engine. When the
remaining distance is below 50 km (30
miles), “---” will be displayed.
The meter’s working range is from 50 to
999 km (30 to 615 miles).

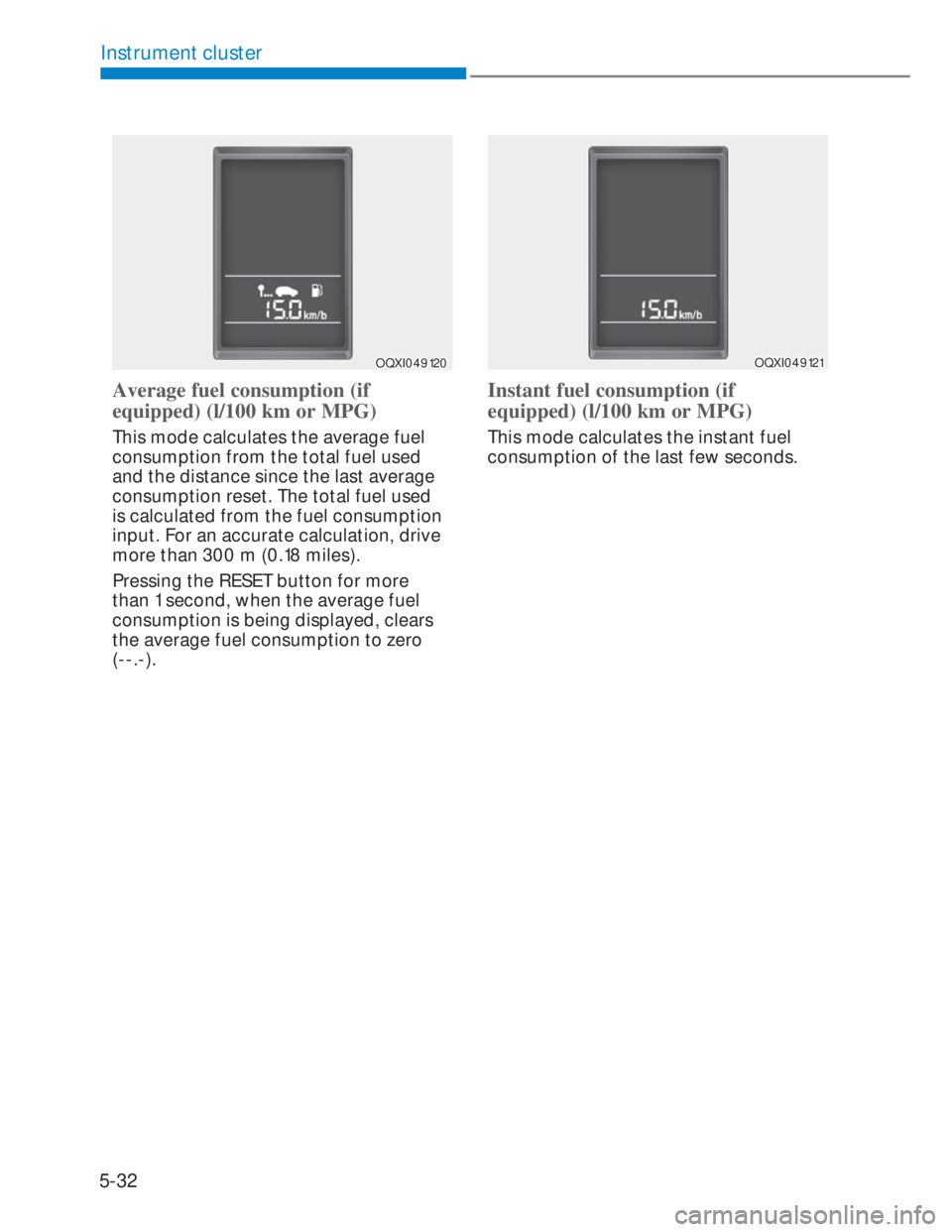

5-32
Instrument cluster
OQXI049120OQXI049120
Average fuel consumption (if
equipped) (l/100 km or MPG)
This mode calculates the average fuel
consumption from the total fuel used
and the distance since the last average
consumption reset. The total fuel used
is calculated from the fuel consumption
input. For an accurate calculation, drive
more than 300 m (0.18 miles).
Pressing the RESET button for more
than 1 second, when the average fuel
consumption is being displayed, clears
the average fuel consumption to zero
(--.-).
OQXI049121OQXI049121
Instant fuel consumption (if
equipped) (l/100 km or MPG)
This mode calculates the instant fuel
consumption of the last few seconds.

5-33
05
NOTICE
• If the vehicle is not on level ground
or the battery power has been
interrupted, the “Distance to empty”
function may not operate correctly.
The trip computer may not register
additional fuel if less than 6 liters
(1.6 gallons) of fuel are added to the
vehicle.
• The fuel consumption and distance to
empty may vary significantly based
on driving conditions, driving habits,
and condition of the vehicle.
• The distance to empty value is an
estimate of the available driving
distance. This may differ from the
actual driving distance available.
OQXI049122OQXI049122
Average speed (km/h or MPH)
This mode calculates the average speed
of the vehicle since the last average
speed reset.
Even if the vehicle is not in motion, the
average speed keeps going while the
engine is running.
Pressing the RESET button for more
than 1 second, when the average speed
is being displayed, clears the average
speed to zero (---).

5-34
Instrument cluster
OQXI049123OQXI049123
Elapsed time (if equipped)
This mode indicates the total time
traveled since the last driving time reset.
Even if the vehicle is not in motion,
the driving time keeps going while the
engine is running.
The meter’s working range is from
00:00~99:59.
Pressing the RESET button for more than
1 second, when the driving time is being
displayed, clears the driving time to zero
(00:00).
Service reminder
OBI3040012OBI3040012
This mode displays the service interval
(mileage).
Digital Speedometer
OBI3040013OBI3040013
This message shows the speed of the
vehicle (km/h, MPH).

5-35
05
Cluster type B
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
i Information
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is
disconnected.
Trip modes
Fuel Economy
• Average Fuel Economy
• Instant Fuel Economy

Accumulated Info
• Tripmeter
• Average Fuel Economy
• Timer

Drive Info
• Tripmeter
• Average Fuel Economy
• Timer

5-36
Instrument cluster
„„Type AType A
OBI3040019OBI3040019
„„Type BType B
To change the trip mode, toggle the
“
, ” switch on the steering wheel.
Fuel economy
OAC3069039TUOAC3069039TU
Average Fuel Economy (1)
• The average fuel economy is
calculated by the total driving distance
and fuel consumption since the last
average fuel economy reset.
• The average fuel economy can be
reset both manually and automatically.Manual reset
To clear the average fuel economy
manually, press the [OK] button on the
steering wheel for more than 1 second
when the average fuel economy is
displayed.
Automatic reset
To automatically reset the average fuel
economy after refueling, select the “Fuel
Econ. Reset” mode in the User Settings
menu on the LCD display.
- After ignition: The average fuel
economy will reset automatically
whenever it has passed 4 hours after
turning OFF the engine.
- After refueling: The average fuel
economy will reset automatically
when driving speed exceeds 1 km/h,
after adding 6 liters (1.6 gallons) of fuel
or more.
i Information
The average fuel economy may be
inaccurate, when the vehicle drives
shorter than 300 meters (0.19 miles) after
turning ON the Engine Start/Stop button.
Instant Fuel Economy (2)
• This mode displays the instant fuel
economy during the last few seconds
when the vehicle speed is more than
10 km/h (6.2 mph).

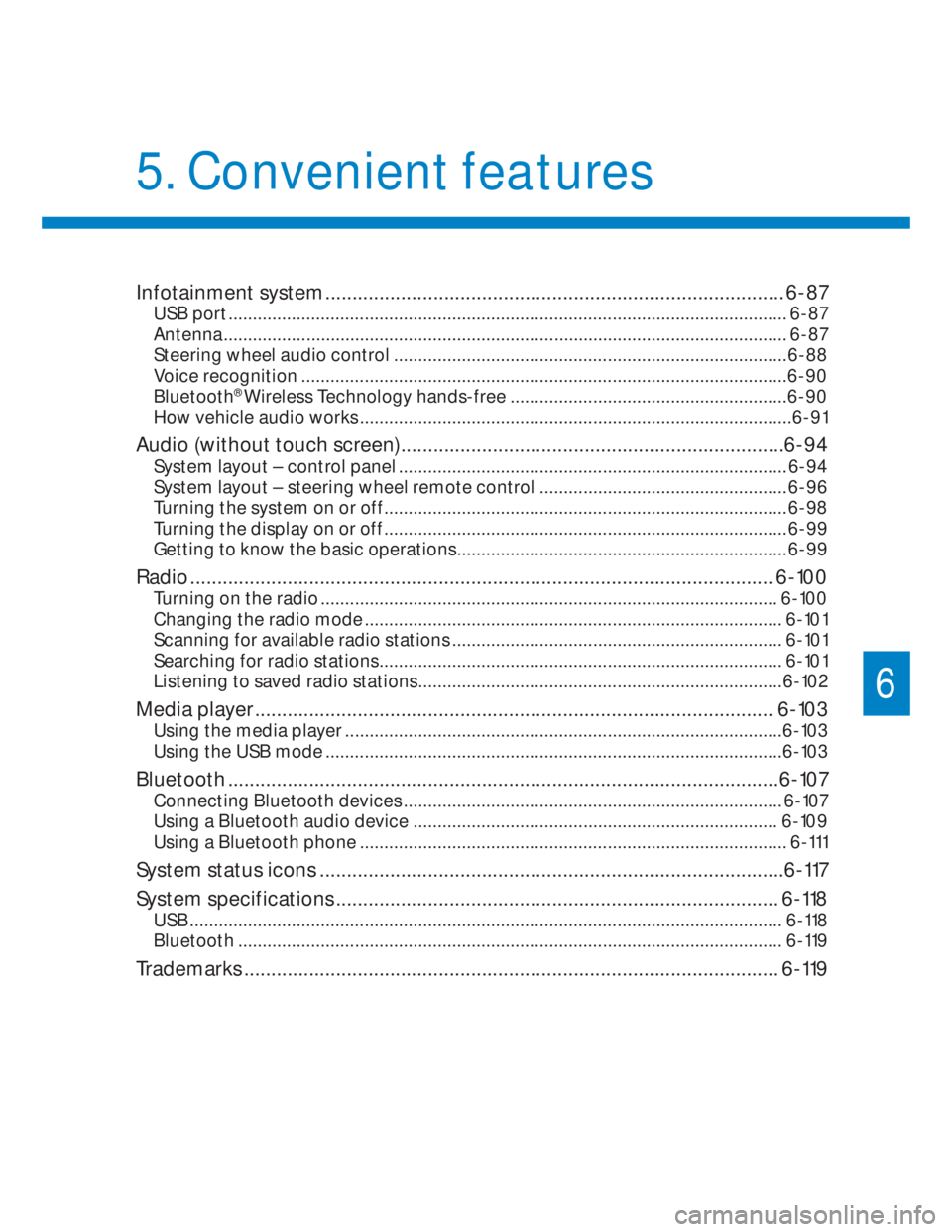

6
5. Convenient features
Infotainment system ..................................................................................... 6-87
USB port ................................................................................................................... 6-87
Antenna .................................................................................................................... 6-87
Steering wheel audio control .................................................................................6-88
Voice recognition ....................................................................................................6-90
Bluetooth
® Wireless Technology hands-free .........................................................6-90
How vehicle audio works
.........................................................................................6-91
Audio (without touch screen) .......................................................................6-94
System layout – control panel ................................................................................ 6-94
System layout – steering wheel remote control
................................................... 6-96
Turning the system on or off ...................................................................................6-98
Turning the display on or off ................................................................................... 6-99
Getting to know the basic operations
.................................................................... 6-99
Radio ............................................................................................................ 6-100
Turning on the radio .............................................................................................. 6-100
Changing the radio mode ...................................................................................... 6-101
Scanning for available radio stations
.................................................................... 6-101
Searching for radio stations................................................................................... 6-101
Listening to saved radio stations...........................................................................6-102
Media player ................................................................................................ 6-103
Using the media player ..........................................................................................6-103
Using the USB mode ..............................................................................................6-103
Bluetooth ......................................................................................................6-107
Connecting Bluetooth devices .............................................................................. 6-107
Using a Bluetooth audio device
........................................................................... 6-109
Using a Bluetooth phone ........................................................................................ 6-111
System status icons ......................................................................................6-117
System specifications
.................................................................................. 6-118
USB .......................................................................................................................... 6-118
Bluetooth ................................................................................................................ 6-119
Trademarks ................................................................................................... 6-119

6-9
06
Unlocking
OBI3050001OBI3050001
To unlock:
1. Carry the Smart Key.
2. Either press the door handle button or
press the Door Unlock button (2) on
the smart key.
3. The doors will unlock. The hazard
warning lights will blink two times.
i Information
• The door handle button will only
operate when the smart key is within 1
m (40 in.) from the outside door handle.
Other people can also open the doors
without the smart key in possession.
• After unlocking the doors, the doors
will lock automatically after 30 seconds
unless a door is opened.
Tailgate unlocking
To unlock:
1. Carry the smart key.
2. Press the Tailgate Unlock button (3)
on the smart key for more than one
second.
3. The hazard warning lights will blink
two times.
Once the tailgate is opened and then
closed, the tailgate/trunk will lock
automatically.
i Information
After unlocking the tailgate, the tailgate
will lock automatically after 30 seconds
unless the tailgate is opened.
Panic button (if equipped)
Press and hold the Panic button (4) for
more than one second. The horn sounds
and hazard warning lights flash for about
30 seconds.
To cancel the panic mode, press any
button on the smart key.
