2022 HYUNDAI I20 ECO mode

6-90
Convenient features
Voice recognition (if equipped)
OBI3050052OBI3050052
A wide range of infotainment functions
can be commanded with voice
recognition (1).
If your vehicle is equipped with
additional navigation, please refer to the
infotainment system manual separately
supplied.
Bluetooth® Wireless Technology
hands-free (if equipped)
OBI3050051OBI3050051
OBI3050050OBI3050050
You can use the phone wirelessly
by using the Bluetooth® Wireless
Technology.
(1) Call / Answer button
(2) Call end button
(3) Microphone
• Audio : For detailed information, refer
to “AUDIO” in this chapter.
• Navigation : Detailed information for
the Bluetooth® Wireless Technology
hands-free is described in the manual
supplied separately.
Depending on the car model above
layout may be vary.

6-98
Convenient features
i Information
- About handling the system
• Do not apply excessive force to the
system. Excessive pressure on the
screen may damage the LCD panel or
the touch panel.
• When cleaning the screen or button
panel, make sure to stop the engine
and use a soft, dry cloth. Wiping the
screen or buttons with a rough cloth or
using solvents (alcohol, benzene, paint
thinner, etc.) may scratch or chemically
damage the surface.
• If you attach a liquid-type air freshener
to the fan louvre, the surface of the
louvre may become deformed due to
the flowing air.
• If you want to change the position of
the installed device, please inquire
with your place of purchase or service
maintenance centre. Technical expertise
is required to install or disassemble the
device.
NOTICE
• If you experience any problems with
the system, contact your place of
purchase or dealer.
• Placing the audio system within an
electromagnetic environment may
result in noise interference.
Turning the system on or off
To turn on the system, start the engine.
• If you do not want to use the system
while driving, you can turn off the
system by pressing the [POWER]
button on the control panel. To use
the system again, press the [POWER]
button again.
After you have turned off the engine, the
system will automatically turn off after a
while or as soon as you open the driver’s
door.
• Depending on the vehicle model or
specifications, the system may turn
off as soon as you turn off the engine.
• When you turn back on the system,
the previous mode and settings will
remain intact.
WARNING
• Some functions may be disabled for
safety reasons while the vehicle is
moving. They work only when the
vehicle stops. Park your vehicle in
a safe location before using any of
them.
• Stop using the system if it
malfunctions, such as no audio
output or display. If you continue
using the system when it is
malfunctioning, it may lead to a fire,
electric shock, or system failure.
i Information
You can turn on the system when the key
ignition switch is placed in the “ACC”
or “ON” position. Using the system for
an extended period without the engine
running drains the battery. If you plan on
using the system for a long time, start the
engine.

6-100
Convenient features
5$',2
Turning on the radio
1. On the control panel, press the
[AUDIO] button.
2. When the mode selection window
displays, turn the [TUNE] knob to
select the desired radio mode and
then press the knob.
FM/AM Mode
(1) Current radio mode
(2) Radio station information
(3) Preset list
Press the [MENU/CLOCK] button on the
control panel to access the following
menu options:
• Autostore: Save radio stations to the
preset list.
• Scan: The system searches for radio
stations with strong radio signals and
plays each radio station for about five
seconds.
• Sound settings: You can change
the settings related to sounds, such
as location where sound will be
concentrated and the output level for
each range.
-Position: Select a location where
sound will be concentrated in the
vehicle. Select Fader or Balance,
turn the [TUNE] knob to select the
desired position, and then press the
knob. To set sound to be centred in
the vehicle, select Centre.
-Equaliser: Adjust the output level
for each sound tone mode.
-Sound experience: Select the
location where sound is focused
in the vehicle between the driver’s
seat and all other seats.
-Speed dependent vol.: Set the
volume to be adjusted automatically
according to your driving speed.
NOTICE
• Depending on vehicle models or
specifications, available options may
vary.
• Depending on the system or
amplifier specifications applied to
your vehicle, available options may
vary.
• Mode popup: Set to display mode
selection window when the [AUDIO]
button is pressed on the control panel.
• Bluetooth remote lock: Even if
Bluetooth remote control application
is connected, if Set Bluetooth remote
lock is enabled. System cannot be
operated via smart phone application.
• Date/Time: You can change the
date and time that are shown on the
system display.
-Set date: Set date to display on the
system display.
-Set time: Set time to display on the
system display.
-Time format: Select to display time
in the 12 hour format or the 24 hour
format.
- Display (Power Off): Set to display
the clock when the system power is
off.
• Language: You can change the
display language.

6-101
06
Changing the radio mode
1. On the control panel, press the
[AUDIO] button.
2. When the mode selection window
displays, turn the [TUNE] knob to
select the desired radio mode and
then press the knob.
• Each time you press the [MODE]
button on the steering wheel, the
radio mode switches to FM X AM
in order.
NOTICE
When the Mode popup is not selected
in [MENU/CLOCK] X Mode popup, press
the [AUDIO] button on the control panel
to change the radio mode.
Each time you press the [AUDIO] button
on the control panel, the radio mode
switches to FM X AM in order.
Scanning for available radio
stations
You can listen to each radio station for
a few seconds to test the reception and
select the one you want.
1. From the radio screen, press the
[MENU/CLOCK] button on the control
panel.
2. When the option selection window
displays, turn the [TUNE] knob to
select Scan, and then press the knob.
• The system searches for radio
stations with strong radio signals
and plays each radio station for
about five seconds.
3. When you find the radio station you
want to listen to, press the [TUNE]
knob.
• You can continue listening to the
selected station.
•
Searching for radio stations
To search for the previous or next
available radio station, press the
[< SEEK] button / [TRACK >] button on
the control panel.
• You can also press and hold the
[< SEEK] button / [TRACK >] button
to search for frequencies quickly.
When you release the button, a radio
station with a strong signal is selected
automatically.
If you know the exact frequency of the
radio station you want to listen to, turn
the [TUNE] knob on the control panel to
change the frequency.

6-105
06
Restarting the current playback
On the control panel after the song has
played for 2 seconds, press the [< SEEK]
button.
• You can also push the Up lever on the
steering wheel.
Playing the previous or next song
To play the previous song on the control
panel within the first 2 seconds of the
current song, press the [< SEEK] button.
To play the next song, press the [TRACK >]
button on the control panel.
• If more than 2 seconds of playback
have elapsed, press the [< SEEK]
button on the control panel twice to
play the previous song.
• You can also push the Up/down lever
on the steering wheel.
NOTICE
Press the [MENU/CLOCK] button on
the control panel to display the mode
selection window, turn the [TUNE] knob
to find the desired song and press the
knob to play the file.
Playing repeatedly
On the control panel, press the [1 RPT]
button. The corresponding mode icon
will be displayed on the screen and the
playing song will be repeated.
Playing in random order
On the control panel, press the
[2 SHFL] button. The shuffle play mode is
activated or deactivated each time you
press it. When you activate the shuffle
mode, the corresponding mode icon will
be displayed on the screen. When shuffle
is active, the available songs will be
played randomly.
NOTICE
Depending on the connected Bluetooth
device or mobile phone, repeat &
shuffle order features may not be
supported.
Searching folders
1. On the control panel, press the
[MENU/CLOCK] button.
2. When the option selection window
displays, turn the [TUNE] knob to
select the Folder list and then press
the knob.
3. Navigate to the desired folder in the
Folder list and then press the [TUNE]
knob.
• The first song in the selected folder
will be played.
i Information
• Start the engine of your vehicle before
connecting a USB device to your
system. Starting the engine with a USB
device connected to the system may
damage the USB device.
• Be careful of static electricity when
connecting or disconnecting a USB
device. A static discharge may cause a
system malfunction.
• Be careful not to let your body or
external objects contact the USB port.
Doing so may cause an accident or a
system malfunction.
• Do not connect and disconnect a USB
connector repeatedly in a short time.
Doing so may cause an error in the
device or a system malfunction.
• Do not use a USB device for purposes
other than playing files. Using USB
accessories for charging or heating may
cause poor performance or a system
malfunction.

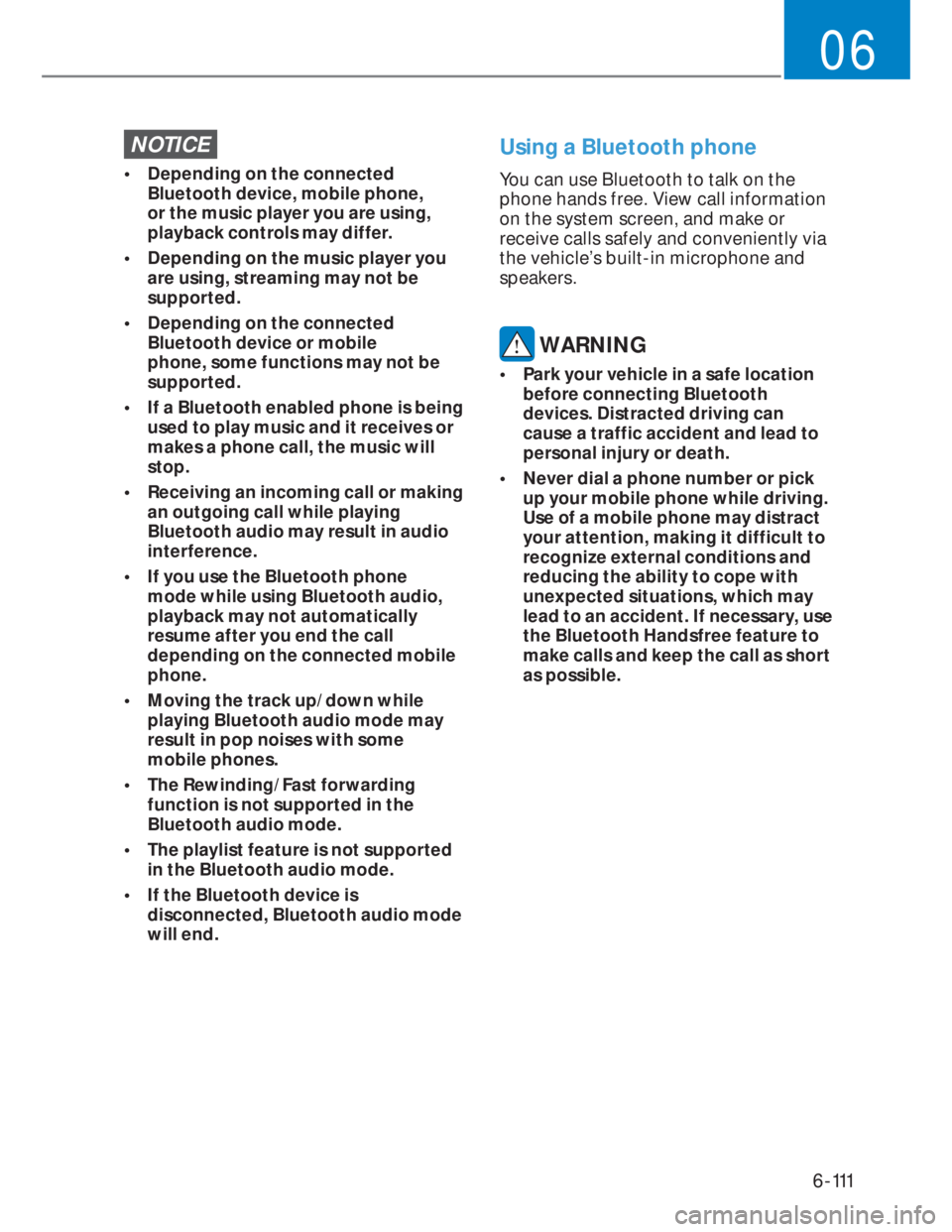

6-111
06
NOTICE
• Depending on the connected
Bluetooth device, mobile phone,
or the music player you are using,
playback controls may differ.
• Depending on the music player you
are using, streaming may not be
supported.
• Depending on the connected
Bluetooth device or mobile
phone, some functions may not be
supported.
• If a Bluetooth enabled phone is being
used to play music and it receives or
makes a phone call, the music will
stop.
• Receiving an incoming call or making
an outgoing call while playing
Bluetooth audio may result in audio
interference.
• If you use the Bluetooth phone
mode while using Bluetooth audio,
playback may not automatically
resume after you end the call
depending on the connected mobile
phone.
• Moving the track up/down while
playing Bluetooth audio mode may
result in pop noises with some
mobile phones.
• The Rewinding/Fast forwarding
function is not supported in the
Bluetooth audio mode.
• The playlist feature is not supported
in the Bluetooth audio mode.
• If the Bluetooth device is
disconnected, Bluetooth audio mode
will end.
Using a Bluetooth phone
You can use Bluetooth to talk on the
phone hands free. View call information
on the system screen, and make or
receive calls safely and conveniently via
the vehicle’s built-in microphone and
speakers.
WARNING
• Park your vehicle in a safe location
before connecting Bluetooth
devices. Distracted driving can
cause a traffic accident and lead to
personal injury or death.
• Never dial a phone number or pick
up your mobile phone while driving.
Use of a mobile phone may distract
your attention, making it difficult to
recognize external conditions and
reducing the ability to cope with
unexpected situations, which may
lead to an accident. If necessary, use
the Bluetooth Handsfree feature to
make calls and keep the call as short
as possible.

7-8
Driving your vehicle
Vehicle with Continuously Variable
Transmission :
1. Make sure the parking brake is applied.
2. Make sure the shift lever is in P (Park)
or N (Neutral).
3. Depress the brake pedal.
4. Turn the ignition switch to the START
position. Hold the key (maximum of
10 seconds) until the engine starts and
release it.
i Information
• Do not wait for the engine to warm up
while the vehicle remains stationary.
Start driving at moderate engine speeds.
(Steep accelerating and decelerating
should be avoided.)
• Always start the vehicle with your foot
on the brake pedal. Do not depress the
accelerator while starting the vehicle.
Do not race the engine while warming it
up.
Starting the diesel engine
To start the diesel engine when the
engine is cold, it has to be pre-heated
and then it has to be warmed up, before
starting to drive.
Vehicle with Manual transmission:
1. Make sure the parking brake is
applied.
2. Make sure the shift lever is in N
(Neutral).
3. Depress the clutch and brake pedals.
4. Turn the ignition switch to the ON
position to pre-heat the engine. The
glow indicator light (
) will
illuminate.
5. When the glow indicator light (
)
goes out, turn the key ignition
switch to the START position. Hold the
key (maximum of 10 seconds) until the
engine starts and release it.
Vehicle with dual clutch transmission:
1. Make sure the parking brake is
applied.
2. Make sure the shift lever is in P (Park).
3. Depress the brake pedal.
4. Turn the ignition switch to the ON
position to pre-heat the engine. The
glow indicator light (
) will
illuminate.
5. When the glow indicator light (
)
goes out, turn the key ignition switch
to the START position. Hold the key
(maximum of 10 seconds) until the
engine starts and release it.

7-24
Driving your vehicle
OAC3069032TUOAC3069032TU
Transmission high temperature
• Under certain conditions, such as
repeated stop-and-go launches on
steep grades, sudden take off or
acceleration, or other harsh driving
conditions, the transmission clutch
temperatures will increase excessively.
• When the clutch is overheated, the
safe protection mode engages and the
gear position indicator on the cluster
blinks with a chime. At this time,
“Transmission temp. is high! Stop
safely” warning message will appear
on the LCD display and driving may
not be smooth.
• If this occurs, pull over to a safe
location, stop the vehicle with the
engine running, apply the brakes
and shift the vehicle to P (Park) with
engine on, and allow the transmission
to cool.
• If you ignore this warning, the driving
condition may become worse. You
may experience abrupt shifts, frequent
shifts, or jerkiness. To return to the
normal driving condition, stop the
vehicle and apply the foot brake or
shift into P (Park). Then allow the
transmission to cool for a few minutes
with engine on, before driving off.
• When possible, drive the vehicle
smoothly.
OAC3069035TUOAC3069035TU
OAC3069063TUOAC3069063TU
OAC3069062TUOAC3069062TU
Transmission overheated
• If the vehicle continues to be driven
and the clutch temperatures reach
the maximum temperature limit, the
“Trans Hot! Park with engine on”
warning will be displayed. When this
occurs the clutch is disabled until the
clutch cools to normal temperatures.
• The warning will display a time to wait
for the transmission to cool.
