2022 HYUNDAI I20 light

2-2
Hyundai Warranty Policy
HYUNDAI NEW VEHICLE WARRANTY
Hyundai Motor India Limited herein-
after called “HMIL”, warrants that
each new Hyundai vehicle sold shall
be free from any defects in material
and workmanship, under normal use
and maintenance, subject to the fol-
lowing terms and conditions.
1. Warranty Period
This warranty for hyundai vehicle
shall exist for a period as per option
selected on page F1 by the first pur-
chaser from the date of delivery
whichsoever is earlier. However the
warranty for CRETA being used for
commercial purpose such as Taxi/
Tourist operation is 36
months/100,000 kilometers from the
date of delivery to the first purchaser
which soever is earlier. This warranty
is transferable to subsequent owner
for the remaining warranty period.
This warranty is applicable only in In-
dia and not transferable to any other
country.
2. What is covered
Except as provided in paragraph 3
hereof, our Authorized Dealers shall
either repair or replace, any Hyundai
genuine part that is acknowledged by
HMIL to be defective in material or
workmanship within the warranty pe-
riod stipulated above, at no cost to
the owner of the Hyundai vehicle for
parts or labour. Such defective parts
which have been replaced will be-
come the property of HMIL
3. What is not covered
This warranty shall not apply to:
▶Normal maintenance services
other than the three free ser-
vices, including without limita-
tion, cleaning and polishing, mi-
nor adjustments, engine tuning,
oil/fluid changes, filters replen-
ishment, fastener retightening,
wheel balancing, wheel align-
ment and tyre rotation etc.
▶Replacement of parts as a result
of normal wear and tear such as
spark plugs, belts, brake pads
and linings, clutch disc/facing,
filters, wiper blades, bulbs, fuses,
etc.
Damage or failure resulting from :
▶Negligence of proper mainte-
nance as required in this Owner’s
Manual and Service Booklet.
▶Misuse, abuse, accident, theft,-
flooding or fire.
▶Use of improper or insufficientfu-
el, fluids or lubricants.
▶Use of parts other than Hyundai
Genuine Parts.
▶Any device and/or accessories-
not supplied by HMIL.
▶Modifications, alterations, tam-
pering or improper repair.
▶Parts used in applications of-
which they were not designed or
not approved by HMIL.
▶Slight irregularities not rec-
ognised as affecting quality or-
function of the vehicle or parts,-
such as slight noise or
vibrations,or items considered-
characteristic of the vehicle.
▶Airborne “fallout”, Industrialfall
out, acid rain, hail and wind-
storms, or other Acts of God.

3-2
Vehicle information
1. Hood .............................................................................................................................................. 6-35
2. Headlight
.......................................................................................................................... 10-77, 10-78
3. Daytime Running Light*or Daytime Running Light/Position light*
....................................... 10-78
4. Front fog light
............................................................................................................................10-80
5. Tires and wheels
........................................................................................................................ 10-50
6. Outside rearview mirror
.............................................................................................................. 6-24
7. Front windshield wiper blades
.................................................................................................. 10-44
8. Windows
.......................................................................................................................................6-26
* : if equipped
(;7(5,2529(59,(:

3-3
03
1. Antenna .........................................................................................................................................6-87
2. Doors............................................................................................................................................. 6-15
3. Fuel filler door
..............................................................................................................................6-39
4. Rear ultrasonic sensors
............................................................................................................... 8-10
5. High mounted stop light
........................................................................................................... 10-85
6. Rear view camera*
....................................................................................................................... 8-6
7. Rear window wiper blade*
........................................................................................................ 10-45
8. Tailgate
.........................................................................................................................................6-36
* : if equipped
(;7(5,2529(59,(:

3-4
Vehicle information
The actual shape may differ from the illustration.
OBI3010003OBI3010003
INTERIOR OVERVIEW
1. Door handle ...................................................................................................................................6-17
2. Outside rearview mirror control switch
..................................................................................... 6-24
3. Outside rearview mirror folding button
..................................................................................... 6-25
4. Central door lock/unlock button
................................................................................................ 6-18
5. Power window switches
..............................................................................................................6-26
6. Power window lock button
.........................................................................................................6-29
7. Headlight leveling device switch
............................................................................................... 6-46
8. Parking/View button
..................................................................................................................... 8-7
9. Electronic Stability Control(ESC) switch
..................................................................................... 7-41
10. Steering wheel
............................................................................................................................6-20
11. Key ignition switch*
...................................................................................................................... 7-5
12. Hood release lever...................................................................................................................... 6-35
13. Seats
..............................................................................................................................................4-4
* : if equipped

3-5
03
The actual shape may differ from the illustration.
OBI3010004OBI3010004
INSTRUMENT PANEL OVERVIEW
1. Lighting control/Turn signals switch ...........................................................................................6-42
2. Driver Assist button
....................................................................................................................... 8-2
3. Instrument cluster
......................................................................................................................... 5-2
4. Horn
.............................................................................................................................................. 6-22
5. Driver’s air bag
.............................................................................................................................4-42
6. Wipers and Washers switch
....................................................................................................... 6-50
7. Steering wheel audio controls*
.................................................................................................. 6-88
8. Engine Start/Stop button*
............................................................................................................ 7-9
9. Shift lever
...................................................................................................................................... 7-15
10. USB port
......................................................................................................................................6-87
11. Power outlet
............................................................................................................................... 6-80
12. Climate control system*
............................................................................................................6-53
13. Infotainment system
..................................................................................................................6-87
14. Hazard warning light button
....................................................................................................... 9-2
15. Passenger’s front air bag
...........................................................................................................4-43
16. Glove box
.................................................................................................................................... 6-78
* : if equipped

3-9
03
BULB WATTAGE
Light bulb Bulb type Wattage
FrontType AHeadlight (Low/High) H19 55/60
Turn signal light PY21W 21
Position light (if equipped) W5W 5
Type BHeadlight (High/Low) LED LED
Turn signal light PY21W 21
Day running light & Position
light(DRL&PSTN)LED LED
Static bending lamp H7 55W 55
Daytime running light (LED) LED LED
Side repeater lamp W5W 5
Fog light (if equipped) HB4 51
RearType ATail light W5W 5
Tail/Stop light P21/5W 5/21
Turn signal light PY21W 21
Back up light W16W 16
Type BTail light LED LED
Stop light LED LED
Turn signal light PY21W 21
Back up light W16W 16
High mounted stop light W5W 5
License plate light W5W 5
InteriorRoom lamp FESTOON 8
Map light FESTOON 8
Luggage room light FESTOON 10
Type A : MFR (Multi Focus Reflector) Headlight

4-6

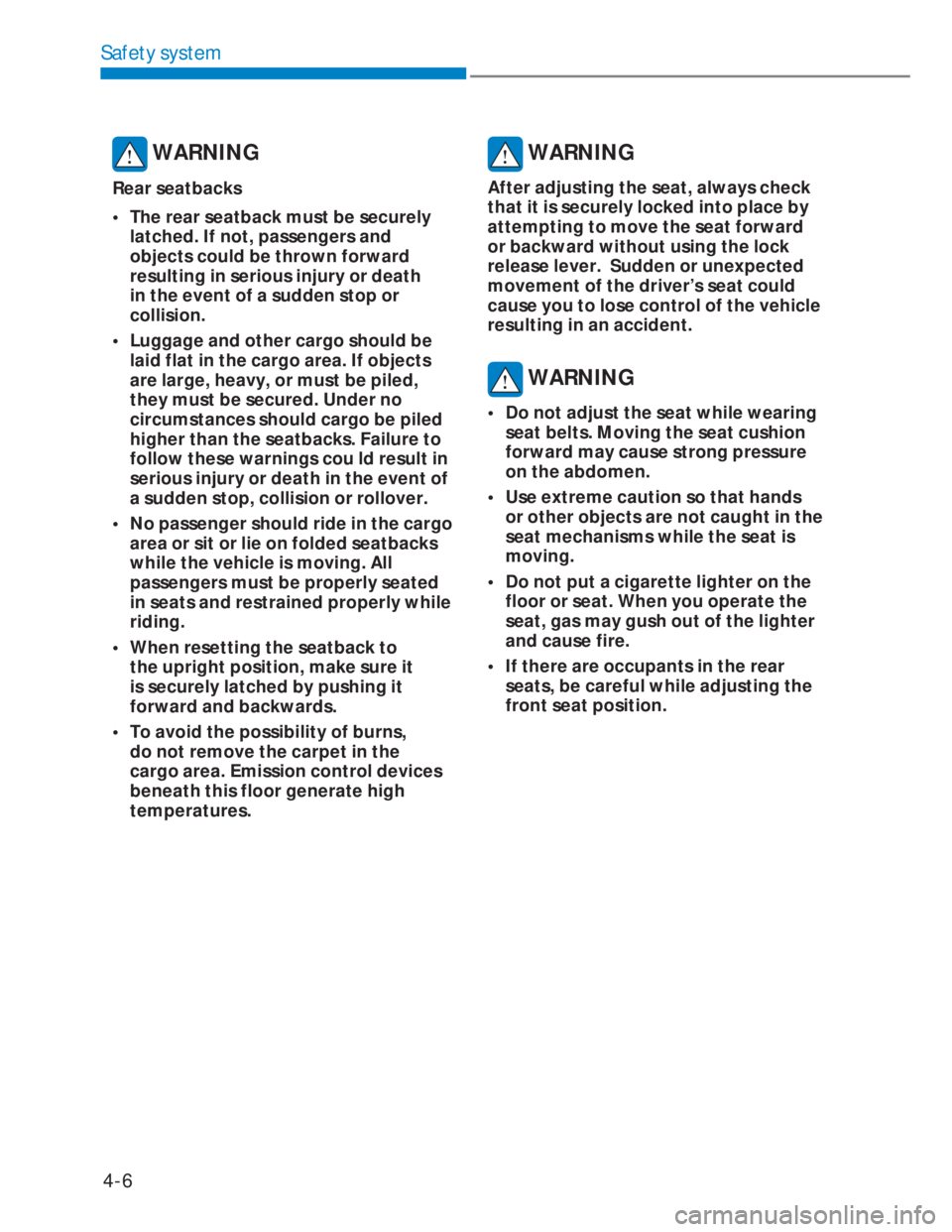

Safety system
WARNING
Rear seatbacks
• The rear seatback must be securely
latched. If not, passengers and
objects could be thrown forward
resulting in serious injury or death
in the event of a sudden stop or
collision.
• Luggage and other cargo should be
laid flat in the cargo area. If objects
are large, heavy, or must be piled,
they must be secured. Under no
circumstances should cargo be piled
higher than the seatbacks. Failure to
follow these warnings cou ld result in
serious injury or death in the event of
a sudden stop, collision or rollover.
• No passenger should ride in the cargo
area or sit or lie on folded seatbacks
while the vehicle is moving. All
passengers must be properly seated
in seats and restrained properly while
riding.
• When resetting the seatback to
the upright position, make sure it
is securely latched by pushing it
forward and backwards.
• To avoid the possibility of burns,
do not remove the carpet in the
cargo area. Emission control devices
beneath this floor generate high
temperatures.
WARNING
After adjusting the seat, always check
that it is securely locked into place by
attempting to move the seat forward
or backward without using the lock
release lever. Sudden or unexpected
movement of the driver’s seat could
cause you to lose control of the vehicle
resulting in an accident.
WARNING
• Do not adjust the seat while wearing
seat belts. Moving the seat cushion
forward may cause strong pressure
on the abdomen.
• Use extreme caution so that hands
or other objects are not caught in the
seat mechanisms while the seat is
moving.
• Do not put a cigarette lighter on the
floor or seat. When you operate the
seat, gas may gush out of the lighter
and cause fire.
• If there are occupants in the rear
seats, be careful while adjusting the
front seat position.

4-7
04

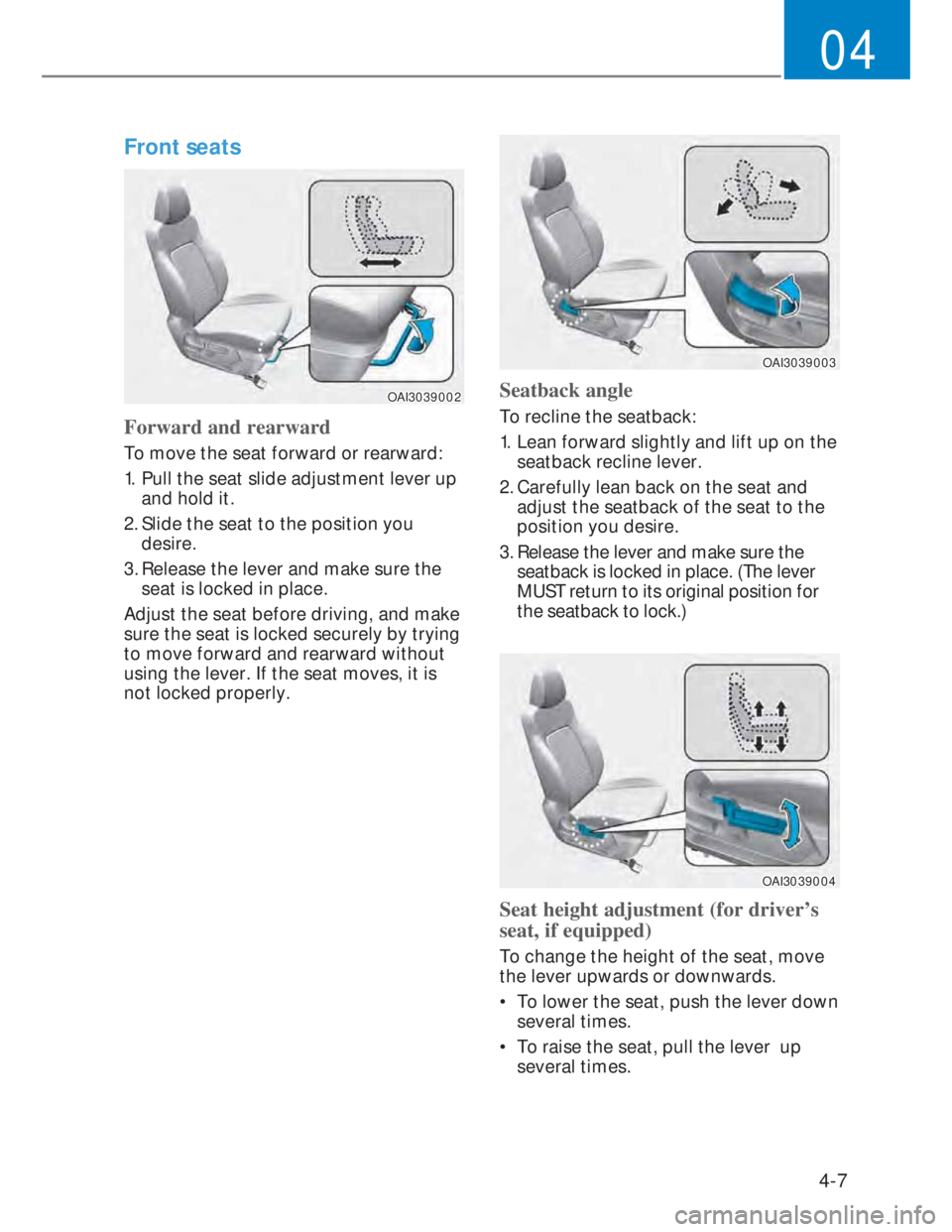

Front seats
OAI3039002OAI3039002
Forward and rearward
To move the seat forward or rearward:
1. Pull the seat slide adjustment lever up
and hold it.
2. Slide the seat to the position you
desire.
3. Release the lever and make sure the
seat is locked in place.
Adjust the seat before driving, and make
sure the seat is locked securely by trying
to move forward and rearward without
using the lever. If the seat moves, it is
not locked properly.
OAI3039003OAI3039003
Seatback angle
To recline the seatback:
1. Lean forward slightly and lift up on the
seatback recline lever.
2. Carefully lean back on the seat and
adjust the seatback of the seat to the
position you desire.
3. Release the lever and make sure the
seatback is locked in place. (The lever
MUST return to its original position for
the seatback to lock.)
OAI3039004OAI3039004
Seat height adjustment (for driver’s
seat, if equipped)
To change the height of the seat, move
the lever upwards or downwards.
• To lower the seat, push the lever down
several times.
• To raise the seat, pull the lever up
several times.
