Immobilizer Indicator Light
This indicator light illuminates:

[When the vehicle detects the
immobilizer in the key with the
ignition switch in the ON position.
- At this time, you can start the engine.
- The indicator light goes off after
starting the engine.
This indicator light blinks:

[When there is a malfunction with the
immobilizer system.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer.
Immobilizer Indicator Light
(with smart key)
(if equipped)
This indicator light illuminates for up to
30 seconds:
When the vehicle detects the smart key
in the vehicle with the Engine Start/Stop
button in the ACC or ON position.
- Once the smart key is detected, you
can start the engine.
- The indicator light goes off after
starting the engine.
This indicator light blinks for a few seconds:
When the smart key is not in the vehicle.
- If the smart key is not detected, you
cannot start the engine.
This indicator light illuminates for 2
seconds and goes off:
If the smart key is in the vehicle and the
Engine Start/Stop button is ON, but the
vehicle cannot detect the smart key.
In this case, have the vehicle inspected
by an authorized HYUNDAI dealer.
This indicator light blinks:
When there is a malfunction with the
immobilizer system.
In this case, have the vehicle inspected
by an authorized HYUNDAI dealer.

Instrument Cluster
4-20
Press clutch pedal to start engine
(for smart key system and manual
transmission)
This warning message is displayed if the
Engine Start/Stop button is in the ACC
position twice by pressing the button
repeatedly without depressing the clutch
pedal.
Depress the clutch pedal to start the
engine.
Key not in vehicle
(for smart key system)
This warning message is displayed if the
smart key is not in the vehicle when you
press the Engine Start/Stop button.
When attempting to start the vehicle,
always have the smart key with you.
Key not detected
(for smart key system)
This warning message is displayed if the
smart key is not detected when you press
the Engine Start/Stop button.
Press START button again
(for smart key system)
This message is displayed if you were
unable to start the vehicle when the
Engine Start/Stop button was pressed.
If this occurs, attempt to start the engine
by pressing the Engine Start/Stop button
again.
If the warning message appears each
time you press the Engine Start/Stop
button, have your vehicle inspected by
an authorized HYUNDAI dealer.
Battery discharging due to external
electrical devices (if equipped)
This message is displayed if the battery
voltage is weak due to any non-factory
electrical accessories (ex. dashboard
camera) while parking. Be careful that
the battery is not discharged.
If the warning message appears after
removing the non-factory electrical
accessories, have the vehicle inspected
by an authorized HYUNDAI dealer.
Press START button with key
(for smart key system)
This warning message is displayed if you
press the Engine Start/Stop button while
the warning message "Key not detected"
is displayed.
At this time, the immobilizer indicator
light blinks.
Check BRAKE SWITCH fuse (for
smart key system and automatic
transmission/intelligent variable
transmission)
This warning message is displayed if the
brake switch fuse is disconnected.
You need to replace the fuse with a new
one before starting the engine.
If that is not possible, you can start the
engine by pressing the Engine Start/
Stop button for 10 seconds in the ACC
position.

5. Convenient Features
Accessing Your Vehicle .................................................................................. 5-4Remote Key ............................................................................................................... 5-4
Smart Key ...................................................................................................................5-7
Immobilizer System ................................................................................................ 5-14
Hyundai Digital Key ................................................................................................. 5-15
Operating Door Locks from Outside the Vehicle .................................................. 5-31
Operating Door Locks from Inside the Vehicle .................................................... 5-33
Automatic Door Lock and Unlock Features .......................................................... 5-35
Child-Protector Rear Door Locks .......................................................................... 5-35
Rear Occupant Alert (ROA) System ....................................................................... 5-36
Steering Wheel ............................................................................................. 5-38Electric Power Steering (EPS) ................................................................................ 5-38
Tilt Steering / Telescope Steering ......................................................................... 5-39
Horn.........................................................................................................................5-40
Mirrors ...........................................................................................................5-41Inside Rearview Mirror ............................................................................................5-41
Side View Mirrors ................................................................................................... 5-49
Windows ........................................................................................................5-51
Power Windows ...................................................................................................... 5-52
Sunroof ......................................................................................................... 5-55Sunroof opening and closing ................................................................................ 5-56
Tilting the sunroof .................................................................................................. 5-57
Sunshade ................................................................................................................ 5-57
Resetting the sunroof ............................................................................................ 5-58
Sunroof open warning ........................................................................................... 5-58
Hood ............................................................................................................. 5-59
Trunk ............................................................................................................. 5-61
Emergency trunk safety release ............................................................................ 5-62
Smart Trunk release ............................................................................................... 5-63
Fuel filler door ..............................................................................................5-66
Exterior Lights ..............................................................................................5-68
Lighting control ......................................................................................................5-68
High beam operation ............................................................................................. 5-69
Turn signals and lane change signals ................................................................... 5-70
Battery saver function ............................................................................................. 5-71
Headlamp delay function ....................................................................................... 5-71
5
CN7 HMA 5.indd5-12020-12-03 9:20:36

Convenient Features
5-14

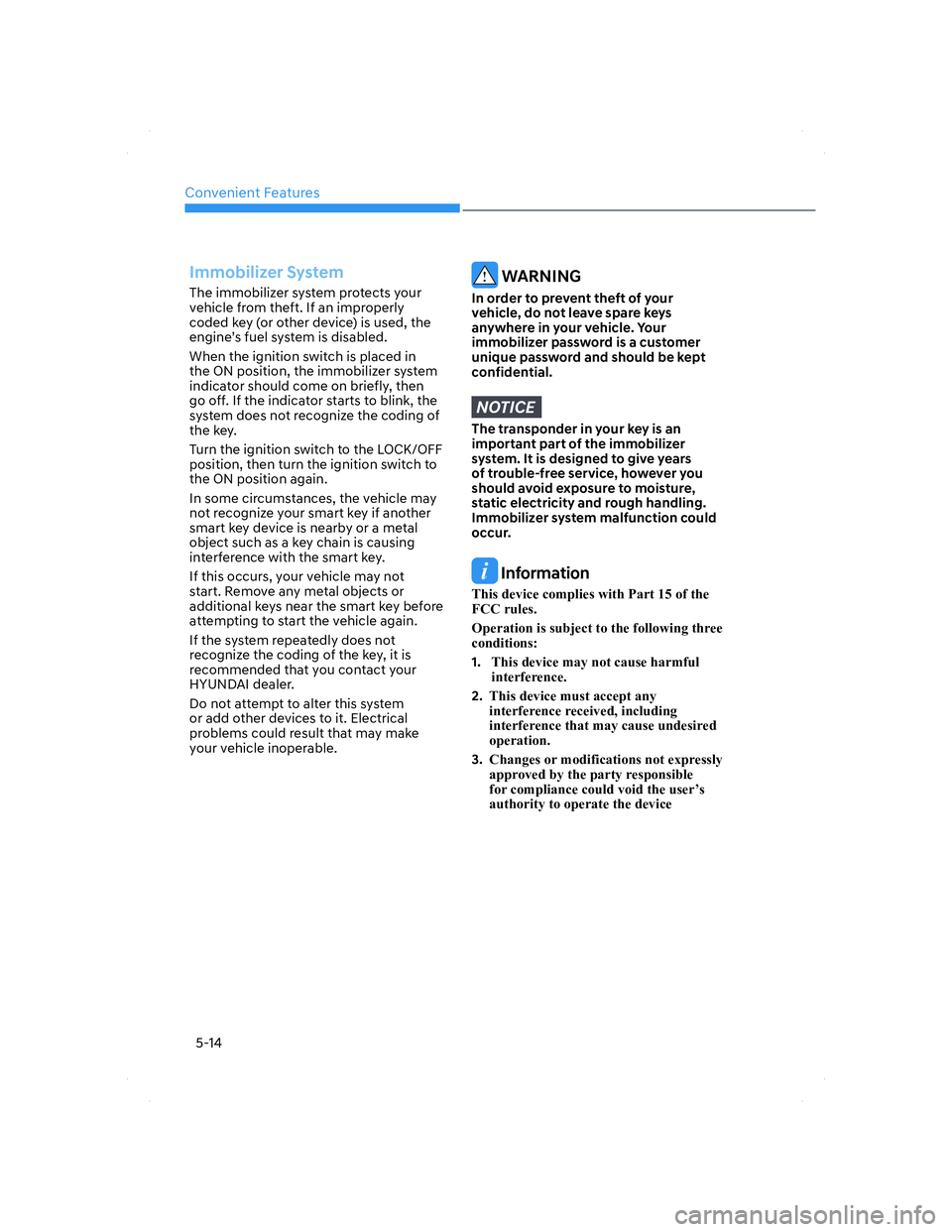

Immobilizer System

The immobilizer system protects your
vehicle from theft. If an improperly
coded key (or other device) is used, the
engine’s fuel system is disabled.
When the ignition switch is placed in
the ON position, the immobilizer system
indicator should come on briefly, then
go off. If the indicator starts to blink, the
system does not recognize the coding of
the key.
Turn the ignition switch to the LOCK/OFF
position, then turn the ignition switch to
the ON position again.
In some circumstances, the vehicle may
not recognize your smart key if another
smart key device is nearby or a metal
object such as a key chain is causing
interference with the smart key.
If this occurs, your vehicle may not
start. Remove any metal objects or
additional keys near the smart key before
attempting to start the vehicle again.
If the system repeatedly does not
recognize the coding of the key, it is
recommended that you contact your
HYUNDAI dealer.
Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your vehicle inoperable. WARNING
In order to prevent theft of your
vehicle, do not leave spare keys
anywhere in your vehicle. Your
immobilizer password is a customer
unique password and should be kept
confidential.
NOTICE
The transponder in your key is an
important part of the immobilizer
system. It is designed to give years
of trouble-free service, however you
should avoid exposure to moisture,
static electricity and rough handling.
Immobilizer system malfunction could
occur.
Information
7KLVGHYLFHFRPSOLHVZLWK3DUWRIWKH
)&&UXOHV
2SHUDWLRQLVVXEMHFWWRWKHIROORZLQJWKUHH
FRQGLWLRQV
1. 7KLVGHYLFHPD\QRWFDXVHKDUPIXO
LQWHUIHUHQFH
2. 7KLVGHYLFHPXVWDFFHSWDQ\
LQWHUIHUHQFHUHFHLYHGLQFOXGLQJ
LQWHUIHUHQFHWKDWPD\FDXVHXQGHVLUHG
RSHUDWLRQ
3. &KDQJHVRUPRGLILFDWLRQVQRWH[SUHVVO\
DSSURYHGE\WKHSDUW\UHVSRQVLEOH
IRUFRPSOLDQFHFRXOGYRLGWKHXVHU
