Convenient Features
5-82
Heating and Air Conditioning
1. Start the engine.
2. Set the mode to the desired position.
To improve the effectiveness of
heating and cooling, select the mode
according to the following:
- Heating:
- Cooling:
3. Set the temperature control to the
desired position.
4. Set the air intake control to fresh
mode or recirculation mode position.
5. Set the fan speed control to the
desired speed.
6. If air conditioning is desired, turn the
air conditioning system on.
When starting the vehicle in cold weather
a more efficient way to heat the passen-
ger compartment is to do the following.
- Turn off or lower the blower, right
after starting the engine.
• Engine temperature is still low and the
air flow from the heater is still cold.
- After a few minutes of engine warm
up, turn on or set the fan to a higher
level and adjust the temperature
setting towards hot.
CN7 HMA 5.indd 5-822020-12-03 9:21:02
Page 225 of 584
05
5-89
Information
OCN7050060OCN7050060
< R X U Y H K L F O H L V I L O O H G Z L W K 5 \ I
D F F R U G L Q J W R W K H U H J X O D W L R Q L Q \ R X U
F R X Q W U \ D W W K H W L P H R I S U R G X F W L R Q < R X F D Q
I L Q G R X W Z K L F K D L U F R Q G L W L R Q L Q J U H I U L J H U D Q W
L V D S S O L H G W R \ R X U Y H K L F O H R Q W K H O D E H O
O R F D W H G L Q V L G H R I W K H K R R G
NOTICE
• The refrigerant system should only
be serviced by trained and certified
technicians to insure proper and safe
operation.
• The refrigerant system should be
serviced in a well-ventilated place.
• The air conditioning evaporator
(cooling coil) shall never be repaired
or replaced with one removed from
a used or salvaged vehicle and new
replacement MAC evaporators shall
be certified (and labeled) as meeting
SAE Standard J2842.
Information
• : K H Q X V L Q J W K H D L U F R Q G L W L R Q L Q J
V \ V W H P P R Q L W R U W K H W H P S H U D W X U H
J D X J H F O R V H O \ Z K L O H G U L Y L Q J X S K L O O V
R U L Q K H D Y \ W U D I I L F Z K H Q R X W V L G H
W H P S H U D W X U H V D U H K L J K $ L U F R Q G L W L R Q L Q J
V \ V W H P R S H U D W L R Q P D \ F D X V H H Q J L Q H
R Y H U K H D W L Q J & R Q W L Q X H W R X V H W K H E O R Z H U
I D Q E X W W X U Q W K H D L U F R Q G L W L R Q L Q J V \ V W H P
R I I L I W K H W H P S H U D W X U H J D X J H L Q G L F D W H V
H Q J L Q H R Y H U K H D W L Q J
• : K H Q R S H Q L Q J W K H Z L Q G R Z V L Q K X P L G
Z H D W K H U D L U F R Q G L W L R Q L Q J P D \ F U H D W H
Z D W H U G U R S O H W V L Q V L G H W K H Y H K L F O H 6 L Q F H
H [ F H V V L Y H Z D W H U G U R S O H W V P D \ F D X V H
G D P D J H W R H O H F W U L F D O H T X L S P H Q W D L U
F R Q G L W L R Q L Q J V K R X O G R Q O \ E H X V H G Z L W K
W K H Z L Q G R Z V F O R V H G
CN7 HMA 5.indd 5-892020-12-03 9:21:05
Page 226 of 584
Convenient Features
5-90
$ L U F R Q G L W L R Q L Q J V \ V W H P R S H U D W L R Q W L S V
• If the vehicle has been parked in
direct sunlight during hot weather,
open the windows for a short time
to let the hot air inside the vehicle
escape.
• After sufficient cooling has been
achieved, switch back from
recirculation mode to fresh mode.
• To help reduce moisture inside of
the windows on rainy or humid
days, decrease the humidity inside
the vehicle by operating the air
conditioning system with the windows
and sunroof closed.
• During air conditioning system
operation, you may occasionally
notice a slight change in engine speed
as the air conditioning compressor
cycles. This is a normal system
operation characteristic.
• Use the air conditioning system
every month only for a few minutes
to ensure maximum system
performance.
• When using the air conditioning
system, you may notice clear water
dripping (or even puddling) on the
ground under the passenger side of
the vehicle. This is a normal system
operation characteristic.
• If you operate the air conditioner
excessively, the difference between
the temperature of the outside air and
that of the windshield could cause
the outer surface of the windshield to
fog up, causing loss of visibility. In this
case, set the mode selection button to
the
position and set the fan speed
control knob to the lowest speed
setting.
System Maintenance
Cabin air filter
OIK047401LOIK047401L[A] : Outside air, [B] : Recirculated air
[C] : Cabin air filter, [D] : Blower
[E] : Evaporator core, [F] : Heater core
The cabin air filter is installed behind
the glove box. It filters the dust or other
pollutants that enter the vehicle through
the heating and air conditioning system.
Have the cabin air filter replaced by an
authorized HYUNDAI dealer according to
the maintenance schedule. If the vehicle
is being driven in severe conditions such
as dusty or rough roads, more frequent
cabin air filter inspections and changes
are required.
If the air flow rate suddenly decreases,
the system should be checked at an
authorized HYUNDAI dealer.
Information
• 5 H S O D F H W K H I L O W H U D F F R U G L Q J W R W K H
0 D L Q W H Q D Q F H 6 F K H G X O H
• , I W K H F D U L V E H L Q J G U L Y H Q L Q V H Y H U H
F R Q G L W L R Q V V X F K D V G X V W \ U R X J K
U R D G V P R U H I U H T X H Q W F D E L Q D L U I L O W H U
L Q V S H F W L R Q V D Q G F K D Q J H V D U H U H T X L U H G
• : K H Q W K H D L U I O R Z U D W H V X G G H Q O \
G H F U H D V H V Z H U H F R P P H Q G W K D W W K H
V \ V W H P E H F K H F N H G E \ D Q D X W K R U L ] H G
+ < 8 1 ' $ , G H D O H U
CN7 HMA 5.indd 5-902020-12-03 9:21:05
Page 230 of 584
Convenient Features
5-94
OCN7050133OCN7050133
Information
1 H Y H U S O D F H D Q \ W K L Q J Q H D U W K H V H Q V R U W R
H Q V X U H E H W W H U F R Q W U R O R I W K H K H D W L Q J D Q G
F R R O L Q J V \ V W H P
Manual heating and air
conditioning
The heating and cooling system can be
controlled manually by pushing buttons
other than the AUTO button. In this case,
the system works sequentially according
to the order of buttons selected. When
pressing any button except the AUTO
button while using automatic operation,
the functions not selected will be
controlled automatically.
1. Start the engine.
2. Set the mode to the desired position.
To improve the effectiveness of
heating and cooling, select the mode
according to the following:
- Heating:
- Cooling:
3. Set the temperature control to the
desired position.
4. Set the air intake control to fresh
mode.
5. Set the fan speed control to the
desired speed.
6. If air conditioning is desired, turn the
air conditioning system on.
7. Press the AUTO button in order to
convert to full automatic control of
the system.
CN7 HMA 5.indd 5-942020-12-03 9:21:06
Page 237 of 584
05
5-101
Air conditioning
HYUNDAI Air Conditioning Systems are
filled with R-1234yf refrigerant.
1. Start the vehicle.
2. Push the air conditioning button.
3. Select the Face Level
mode.
4. Set the air intake control to
Recirculation mode temporarily to
allow the cabin to cool quickly. When
the desired temperature in the cabin
is reached, change the air intake
control back to Fresh mode.
5. Adjust the fan speed control and
temperature control to maintain
maximum comfort.
Information
< R X U Y H K L F O H L V I L O O H G Z L W K 5 \ I
D F F R U G L Q J W R W K H U H J X O D W L R Q L Q \ R X U
F R X Q W U \ D W W K H W L P H R I S U R G X F W L R Q < R X F D Q
I L Q G R X W Z K L F K D L U F R Q G L W L R Q L Q J U H I U L J H U D Q W
L V D S S O L H G W R \ R X U Y H K L F O H R Q W K H O D E H O
O R F D W H G L Q V L G H R I W K H K R R G
NOTICE
• The refrigerant system should only
be serviced by trained and certified
technicians to insure proper and safe
operation.
• The refrigerant system should be
serviced in a well-ventilated place.
• The air conditioning evaporator
(cooling coil) shall never be repaired
or replaced with one removed from
a used or salvaged vehicle and new
replacement MAC evaporators shall
be certified (and labeled) as meeting
SAE Standard J2842.
Information
• : K H Q X V L Q J W K H D L U F R Q G L W L R Q L Q J
V \ V W H P P R Q L W R U W K H W H P S H U D W X U H
J D X J H F O R V H O \ Z K L O H G U L Y L Q J X S K L O O V
R U L Q K H D Y \ W U D I I L F Z K H Q R X W V L G H
W H P S H U D W X U H V D U H K L J K $ L U F R Q G L W L R Q L Q J
V \ V W H P R S H U D W L R Q P D \ F D X V H H Q J L Q H
R Y H U K H D W L Q J & R Q W L Q X H W R X V H W K H E O R Z H U
I D Q E X W W X U Q W K H D L U F R Q G L W L R Q L Q J V \ V W H P
R I I L I W K H W H P S H U D W X U H J D X J H L Q G L F D W H V
H Q J L Q H R Y H U K H D W L Q J
• : K H Q R S H Q L Q J W K H Z L Q G R Z V L Q K X P L G
Z H D W K H U D L U F R Q G L W L R Q L Q J P D \ F U H D W H
Z D W H U G U R S O H W V L Q V L G H W K H Y H K L F O H 6 L Q F H
H [ F H V V L Y H Z D W H U G U R S O H W V P D \ F D X V H
G D P D J H W R H O H F W U L F D O H T X L S P H Q W D L U
F R Q G L W L R Q L Q J V K R X O G R Q O \ E H X V H G Z L W K
W K H Z L Q G R Z V F O R V H G
CN7 HMA 5.indd 5-1012020-12-03 9:21:09
Page 238 of 584
Convenient Features
5-102
$ L U F R Q G L W L R Q L Q J V \ V W H P R S H U D W L R Q W L S V
• If the vehicle has been parked in
direct sunlight during hot weather,
open the windows for a short time
to let the hot air inside the vehicle
escape.
• After sufficient cooling has been
achieved, switch back from
recirculation mode to fresh mode.
• To help reduce moisture inside of
the windows on rainy or humid
days, decrease the humidity inside
the vehicle by operating the air
conditioning system with the windows
and sunroof closed.
• During air conditioning system
operation, you may occasionally
notice a slight change in engine speed
as the air conditioning compressor
cycles. This is a normal system
operation characteristic.
• Use the air conditioning system
every month only for a few minutes
to ensure maximum system
performance.
• When using the air conditioning
system, you may notice clear water
dripping (or even puddling) on the
ground under the passenger side of
the vehicle. This is a normal system
operation characteristic.
• If you operate the air conditioner
excessively, the difference between
the temperature of the outside air and
that of the windshield could cause
the outer surface of the windshield to
fog up, causing loss of visibility. In this
case, set the mode selection button to
the
position and set the fan speed
control knob to the lowest speed
setting.
System Maintenance
Cabin air filter
OIK047401LOIK047401L[A] : Outside air, [B] : Recirculated air
[C] : Cabin air filter, [D] : Blower
[E] : Evaporator core, [F] : Heater core
The cabin air filter is installed behind
the glove box. It filters the dust or other
pollutants that enter the vehicle through
the heating and air conditioning system.
Have the cabin air filter replaced by an
authorized HYUNDAI dealer according to
the maintenance schedule. If the vehicle
is being driven in severe conditions such
as dusty or rough roads, more frequent
cabin air filter inspections and changes
are required.
If the air flow rate suddenly decreases,
the system should be checked at an
authorized HYUNDAI dealer.
Information
• 5 H S O D F H W K H I L O W H U D F F R U G L Q J W R W K H
0 D L Q W H Q D Q F H 6 F K H G X O H
• , I W K H F D U L V E H L Q J G U L Y H Q L Q V H Y H U H
F R Q G L W L R Q V V X F K D V G X V W \ U R X J K
U R D G V P R U H I U H T X H Q W F D E L Q D L U I L O W H U
L Q V S H F W L R Q V D Q G F K D Q J H V D U H U H T X L U H G
• : K H Q W K H D L U I O R Z U D W H V X G G H Q O \
G H F U H D V H V Z H U H F R P P H Q G W K D W W K H
V \ V W H P E H F K H F N H G E \ D Q D X W K R U L ] H G
+ < 8 1 ' $ , G H D O H U
CN7 HMA 5.indd 5-1022020-12-03 9:21:09
Page 240 of 584
Convenient Features
5-104
WARNING
Windshield heating
Do not use the
or position
during cooling operation in extremely
humid weather. The difference between
the temperature of the outside air and
that of the windshield could cause the
outer surface of the windshield to fog
up, causing loss of visibility. In this case,
set the mode selection knob or button
to the
position and fan speed control
knob or button to lower speed.
• For maximum defrost performance,
set the temperature control knob
to the highest temperature setting
(rotated all the way to the right) and
the fan speed control to the highest
setting.
• If warm air to the floor is desired while
defrosting or defogging, set the mode
to the floor-defrost position.
• Before driving, clear all snow and ice
from the windshield, rear window,
side view mirrors, and all side
windows.
• Clear all snow and ice from the
hood and air inlet in the cowl grill
to improve heater and defroster
efficiency and to reduce the
probability of fogging up inside of the
windshield.
Manual climate control system
To defog inside windshield
OCN7050122NOCN7050122N
[A] : Type A, [B] : Type B
1. Select any fan speed except “0”
position.
2. Select the desired temperature.
3. Select the
or position.
4. Fresh mode air will be selected
automatically. Additionally, the
air conditioning (if equipped) will
automatically operate if the mode is
selected to the
position.
If the air conditioning and fresh mode
are not selected automatically, press the
corresponding button manually.
WINDSHIELD DEFROSTING AND DEFOGGING
CN7 HMA 5.indd 5-1042020-12-03 9:21:09

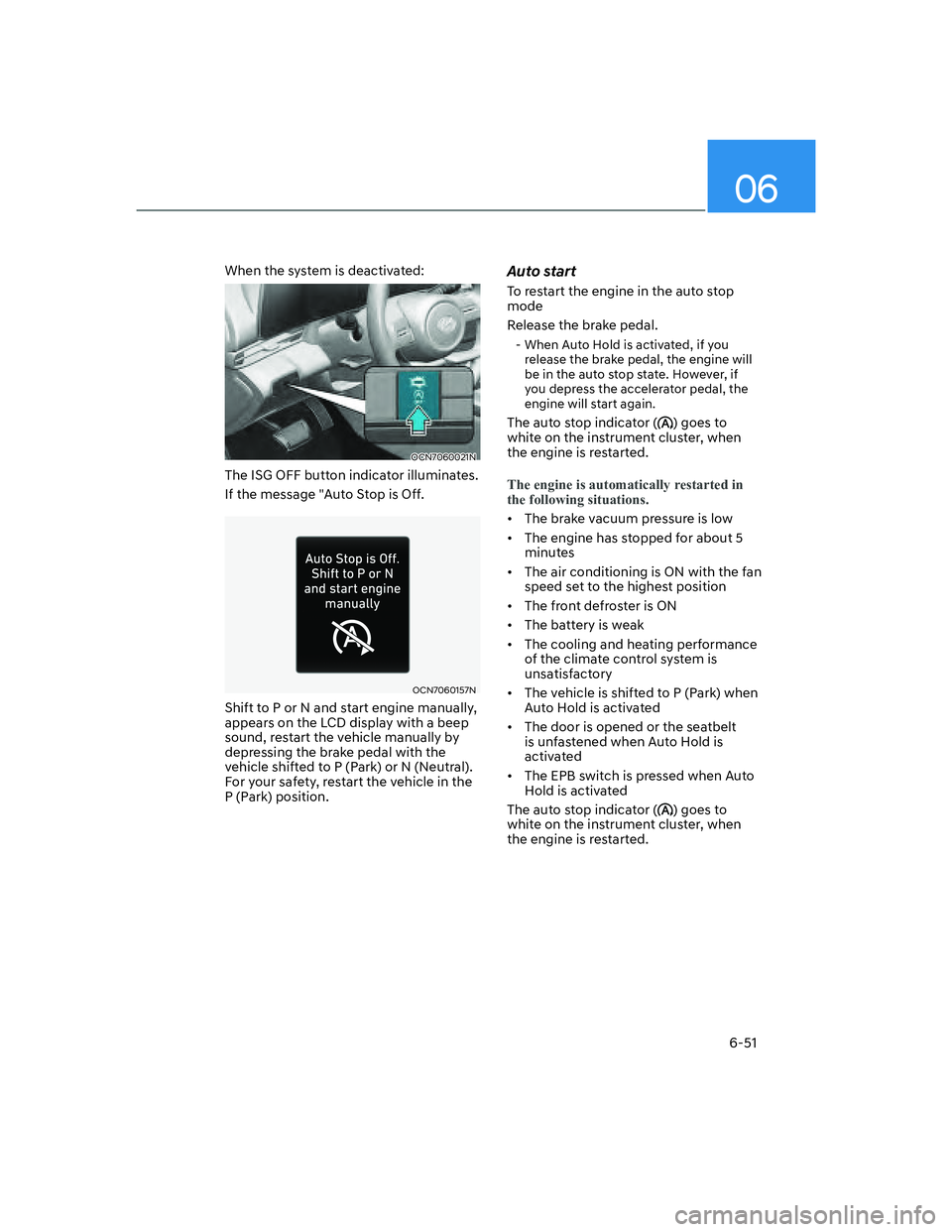

Page 310 of 584
06
6-51
When the system is deactivated:
OCN7060021N
The ISG OFF button indicator illuminates.
If the message "Auto Stop is Off.
OCN7060157N
Shift to P or N and start engine manually,
appears on the LCD display with a beep
sound, restart the vehicle manually by
depressing the brake pedal with the
vehicle shifted to P (Park) or N (Neutral).
For your safety, restart the vehicle in the
P (Park) position.
Auto start
To restart the engine in the auto stop
mode
Release the brake pedal.
- When Auto Hold is activated, if you
release the brake pedal, the engine will
be in the auto stop state. However, if
you depress the accelerator pedal, the
engine will start again.
The auto stop indicator () goes to
white on the instrument cluster, when
the engine is restarted.
The engine is automatically restarted in
the following situations.
[ The brake vacuum pressure is low
[ The engine has stopped for about 5
minutes
[ The air conditioning is ON with the fan
speed set to the highest position
[ The front defroster is ON
[ The battery is weak
[ The cooling and heating performance
of the climate control system is
unsatisfactory
[ The vehicle is shifted to P (Park) when
Auto Hold is activated
[ The door is opened or the seatbelt
is unfastened when Auto Hold is
activated
[ The EPB switch is pressed when Auto
Hold is activated
The auto stop indicator (
) goes to
white on the instrument cluster, when
the engine is restarted.
