2022 HONDA INSIGHT cruise control

7
Quick Reference Guide❚Headlights/Turn Signals (P 184)
❚Fog Lights* (P 188)
❚Lane Keeping Assist System (LKAS) Button
(P 448)
❚Interval Button (P 439)
❚Steering Wheel Adjustments (P 196)
❚Bluetooth® HandsFreeLink ® System Voice Control Buttons (P349)
❚Audio Remote Controls (P 227)
❚Voice Control Buttons (P 255)
❚Deceleration Paddle Selector (−) (P 398)
❚Left Selector Wheel (P 133)
❚ (home) Button (P 133)
❚MAIN Button (P 429)
❚Adaptive Cruise Control (ACC) with Low
Speed Follow Buttons
(P 438)
❚Wipers/Washers (P 192)
❚Deceleration Paddle Selector (+) (P 398)
❚Horn (Press an area around .)
* Not available on all models
22 INSIGHT HMIN-31TXM6300.book 7 ページ ２０２１年２月２４日　水曜日　午後３時４５分

32
Quick Reference Guide
Honda Sensing® (P 415)
Honda Sensing ® is a driver support system
which employs the use of two distinctly
different kinds of sensors, a radar sensor
located at the lower part of the front
bumper and a front sensor camera mounted
to the interior side of the windshield,
behind the rearview mirror.
Front Sensor
Camera The camera is located
behind the rearview
mirror.
Radar Sensor The radar sensor is at
the lower part of the
front bumper.
Collision Mitigation
Braking System
TM
(CMBS
TM) (P 418)
The system can assist you when it
determines there is a possibility of your
vehicle colliding with a vehicle or a
pedestrian detected in front of your vehicle.
The CMBS
TM is designed to alert you when
the potential for a collision is determined, as
well as to reduce your vehicle speed to help
minimize collision severity when a collision is
deemed unavoidable.
Adaptive Cruise Control
(ACC) with Low Speed
Follow
(P428)
Helps maintain a constant vehicle speed and a
set following-interval behind a vehicle
detected ahead of yours and, if the detected
vehicle comes to a stop, can decelerate and
stop your vehicle, without you having to keep
your foot on the brake or the accelerator.
Lane Keeping Assist
System (LKAS)
(P 446)
Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.
Road Departure
Mitigation (RDM) System
(P 454)
Alerts and helps to assist you when the
system detects a possibility of your vehicle
unintentionally crossing over detected lane
markings and/or leaving the roadway
altogether.
Traffic Sign Recognition
System
(P459)
Reminds you of road sign information, such as
the current speed limit your vehicle has just
passed through, showing it on the driver
information interface.
22 INSIGHT HMIN-31TXM6300.book 32 ページ ２０２１年２月２４日　水曜日　午後３時４５分

82
Instrument Panel
Indicators
Deceleration Paddle
Selector Indicator P. 89
1BSLJOH
#SBLF
BOE

#SBLF
4ZTUFN

*OEJDBUPS
3FE

1BSLJOH
#SBLF
BOE

#SBLF
4ZTUFN

*OEJDBUPS
"NCFS

"VUPNBUJD
#SBLF

)PME
4ZTUFN
*OEJDBUPS
"VUPNBUJD
#SBLF
)PME

*OEJDBUPS
*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being performed. They go off a few seconds later or after the power
system has started. If an indicator does not come on or turn off, there may be a malfunction in the corresponding system. To re solve the issue, follow the instructions in
the owner’s manual.
 P. 83
.BMGVODUJPO
*OEJDBUPS

-BNQ
7PMU
#BUUFSZ

$IBSHJOH
4ZTUFN

*OEJDBUPS
"OUJMPDL
#SBLF
4ZTUFN

ABS ) Indicator
Seat Belt Reminder
Indicator
Low Fuel Indicator
Vehicle Stability AssistTM
(VSA®) System Indicator
Vehicle Stability Assist
TM
(VSA®) OFF Indicator
Supplemental Restraint
System Indicator
Auto High-Beam
Indicator
Low Tire Pressure/TPMS
Indicator Electric Power Steering
(EPS) System Indicator
Turn Signal and Hazard
Warning Indicators
Lights On Indicator High Beam Indicator
Fog Light Indicator*
ECON Mode Indicator
System Message Indicator
SPORT
Mode Indicator
Adaptive Cruise Control
( ACC ) with Low Speed
Follow Indicator (Amber)
Lane Keeping Assist
System ( LKAS) Indicator
(Amber)
Safety Support Indicator
(Amber)
Safety Support Indicator
(Green/Gray)
 P. 84
 P. 85
 P. 85
 P. 88
 P. 89
*1
*1 *1

P. 94
*1
*1
Shift Position Indicator P. 89
Transmission System
Indicator P. 90
 P. 91
 P. 91
 P. 92
 P. 92
 P. 95

P. 93
*1
*1
*1
 P. 93
*1 P. 92
 P. 95 
P. 98
*1
 P. 95
 P. 95 
P. 97
 P. 95 
P. 97
 P. 97
 P. 99
 P. 100
 P. 103
*1
Adaptive Cruise Control
(ACC ) with Low Speed
Follow Indicator (Green) P. 99
*1
Lane Keeping Assist
System ( LKAS) Indicator
(Green) P. 99
*1
POWER SYSTEM
Indicator P. 86*1
READY Indicator P. 87
EV Indicator P. 87*1
EV Mode Indicator P. 87*1
*1
Immobilizer System
Indicator P. 96
4FDVSJUZ
4ZTUFN
"MBSN

*OEJDBUPS
 P. 96
*1 *1
* Not available on all models
22 INSIGHT HMIN-31TXM6300.book 82 ページ ２０２１年２月２４日　水曜日　午後３時４５分

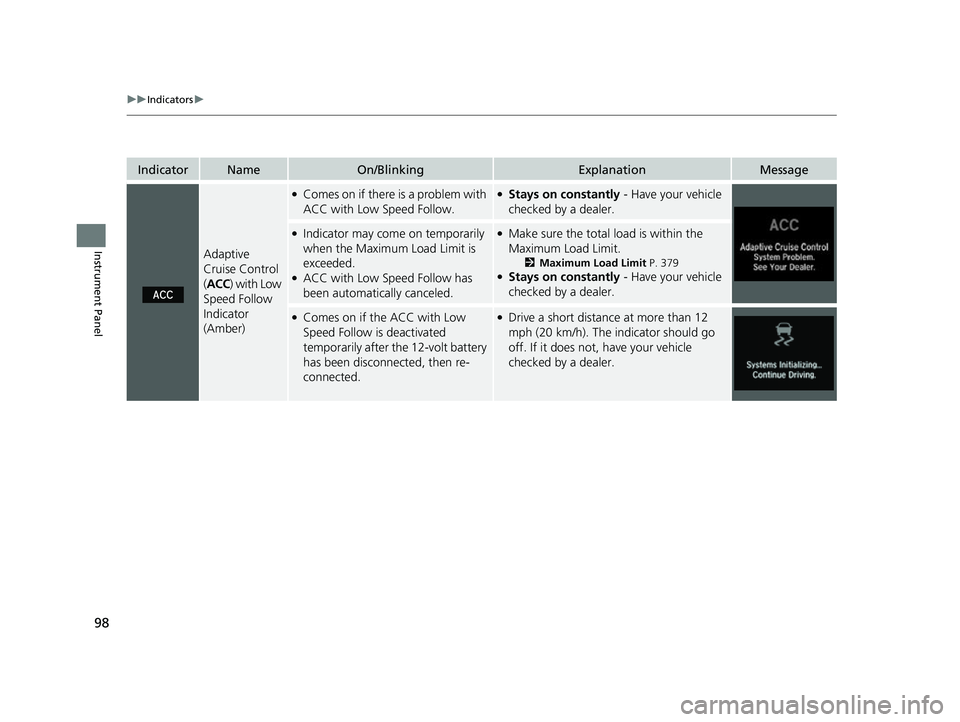

98
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Adaptive
Cruise Control
(ACC ) with Low
Speed Follow
Indicator
(Amber)
●Comes on if there is a problem with
ACC with Low Speed Follow.●Stays on constantly - Have your vehicle
checked by a dealer.
●Indicator may come on temporarily
when the Maximum Load Limit is
exceeded.
●ACC with Low Speed Follow has
been automatically canceled.
●Make sure the total load is within the
Maximum Load Limit.
2 Maximum Load Limit P. 379●Stays on constantly - Have your vehicle
checked by a dealer.
●Comes on if the ACC with Low
Speed Follow is deactivated
temporarily after the 12-volt battery
has been disconnected, then re-
connected.●Drive a short distance at more than 12
mph (20 km/h). The indicator should go
off. If it does not, have your vehicle
checked by a dealer.
22 INSIGHT HMIN-31TXM6300.book 98 ページ ２０２１年２月２４日　水曜日　午後３時４５分

99
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Adaptive
Cruise Control
(ACC ) with Low
Speed Follow
Indicator
(Green)●Comes on when you press the
MAIN button.
2Adaptive Cruise Control (ACC) with
Low Speed Follow P. 428—
Lane Keeping
Assist System
(LKAS )
Indicator
(Amber)●Comes on if there is a problem with
the LKAS.●Stays on constantly - Have your vehicle
checked by a dealer.
Lane Keeping
Assist System
( LKAS )
Indicator
(Green)●Comes on when you press the
MAIN button.
2Lane Keeping Assist System (LKAS)
P. 446—
22 INSIGHT HMIN-31TXM6300.book 99 ページ ２０２１年２月２４日　水曜日　午後３時４５分

119
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears if there is a prob lem with the auto high-
beam.• Manually operate the headlight switch.
• If you are driving with th e high-beam headlights when
this happens, the headlights are changed to low beams.
●Appears when ACC with Lo w Speed Follow has been
automatically canceled.●You can resume the set speed after the condition that
caused ACC with Low Speed Fo llow to cancel improves.
Press the RES/+ button.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 428
●Flashes when the system senses a likely collision with
a vehicle in front of you.●Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)
2Collision Mitigation Braking SystemTM (CMBSTM)
P. 418
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 428
22 INSIGHT HMIN-31TXM6300.book 119 ページ ２０２１年２月２４日　水曜日　午後３時４５分

120
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when ACC with Low Speed Follow is
canceled due to excessive high vehicle speed.●Reduce the speed, then reset ACC with Low Speed
Follow.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 428
●Appears when the speed of the vehicle is too high for
you to set ACC with Low Speed Follow.●Reduce the speed, then set ACC with Low Speed
Follow.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 428
●Appears if ACC with Low Sp eed Follow is canceled
while your vehicle is automatically stopped by ACC
with Low Speed Follow.●Immediately depress the brake pedal.
●Appears when pressing the RES/+ or SET/ − button
while the vehicle is movi ng and the brake pedal is
depressed.●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 428
22 INSIGHT HMIN-31TXM6300.book 120 ページ ２０２１年２月２４日　水曜日　午後３時４５分

121
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the distance between your vehicle
and the vehicle ahead of you is too close while ACC
with Low Speed Follow is in operation.●ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 428
●Appears when pressing the RES/+ or SET/ − button
while the distance between your vehicle and the
vehicle ahead of you is too close.●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 428
●Appears when the park ing brake is applied
automatically while ACC with Low Speed Follow is
in operation.●ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 428
2 Parking Brake P. 468
●Appears when pressing the RES/+ or SET/ − button
while the parking brake is applied.●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 428
2 Parking Brake P. 468
