2022 CADILLAC XT6 Owners Manual

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
408 TECHNICAL DATA
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . . . . . . 408
Service Parts Identification . . . . . . 408
Vehicle Data
Capacities and Specifications . . . . 409
Engine Drive Belt Routing . . . . . . . 411
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on the
driver side of the vehicle. It can be
seen through the windshield from
outside. The Vehicle Identification
Number (VIN) also appears on the
Vehicle Certification label and
certificates of title and registration.
Engine Identification
The eighth character in the VIN is the
engine code. This code identifies the
vehicle's engine, specifications, and
replacement parts. See “Engine
Specifications” underCapacities and
Specifications 0409 for the vehicle's
engine code.
Service Parts Identification
There may be a large barcode on the
certification label on the center pillar
that you can scan for the following
information:
.Vehicle Identification Number (VIN)
.Model designation
.Paint information
.Production options
If there is not a large barcode on this
label, then the same information may
be found on a label under the cargo
floor in the rear compartment.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
TECHNICAL DATA 409
Vehicle Data
Capacities and Specifications
The following approximate capacities are given in metric and English conversions. SeeRecommended Fluids and Lubricants
0 404 for more information.
Application Capacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type and charge amount, see the refrigerant label under thehood. See your dealer for more information.
Engine Cooling System*
I2.0L L4 Engine 10.6 L 11.2 qt
I3.6L V6 Engine 10.6 L 11.2 qt
I3.6L V6 Engine with rear A/C 12.0 L 12.7 qt
Engine Oil with Filter I2.0L L4 Engine 5.0 L 5.3 qt

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
410 TECHNICAL DATA
ApplicationCapacities
Metric English
I3.6L V6 Engine 5.7 L
6.0 qt
Fuel Tank IFront-Wheel Drive 73.4 L
19.4 gal
IAll-Wheel Drive 82.1 L
21.7 gal
Wheel Nut Torque 190Y 140 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this manual.
Recheck fluid level after filling.
*Engine cooling system capacity values are based on the entire cooling system and its components.
Engine Specifications
Engine VIN CodeTransmission Spark Plug Gap
2.0L L4 Engine (LSY) 4Automatic0.65–0.75 mm (0.026–0.030 in)
3.6L V6 Engine (LGX) SAutomatic0.80–0.90 mm (0.031–0.035 in)
Spark plug gaps are preset by the manufacturer. Re-gapping the spark plug is not recommended and can damage the
spark plug.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
TECHNICAL DATA 411
Engine Drive Belt Routing
2.0L L4 Engine
3.6L V6 Engine

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
412 CUSTOMER INFORMATION
Customer
Information
Customer Information
Customer SatisfactionProcedure . . . . . . . . . . . . . . . . . . . . . . . 412
Customer Assistance Offices . . . . 414
Customer Assistance for Text Telephone (TTY) Users . . . . . . . . . 414
Online Owner Center . . . . . . . . . . . . . 415
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . . . 415
Roadside Service . . . . . . . . . . . . . . . . . 416
Scheduling Service Appointments . . . . . . . . . . . . . . . . . . . 417
Courtesy Transportation Program . . . . . . . . . . . . . . . . . . . . . . . . . 418
Collision Damage Repair . . . . . . . . . 419
Publication Ordering Information . . . . . . . . . . . . . . . . . . . . . 421
Radio Frequency Statement . . . . . 421
Reporting Safety Defects
Reporting Safety Defects to the United States Government . . . . . 422
Reporting Safety Defects to the Canadian Government . . . . . . . . . 422
Reporting Safety Defects to General Motors . . . . . . . . . . . . . . . . . 422
Vehicle Data Recording and
Privacy
Vehicle Data Recording andPrivacy . . . . . . . . . . . . . . . . . . . . . . . . . . . 423
Cybersecurity . . . . . . . . . . . . . . . . . . . . . 423
Event Data Recorders . . . . . . . . . . . . 423
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 424
Infotainment System . . . . . . . . . . . . . 424
Customer Information
Customer Satisfaction
Procedure
Your satisfaction and goodwill are
important to your dealer and to
Cadillac. Normally, any concerns with
the sales transaction or the operation
of the vehicle will be resolved by your
dealer's sales or service departments.
Sometimes, however, despite the best
intentions of all concerned,
misunderstandings can occur. If your
concern has not been resolved to your
satisfaction, the following steps
should be taken:
STEP ONE : Discuss your concern
with a member of dealership
management. Normally, concerns can
be quickly resolved at that level. If the
matter has already been reviewed with
the sales, service or parts manager,
contact the owner of your dealership
or the general manager.
STEP TWO : If after contacting a
member of dealership management, it
appears your concern cannot be
resolved by your dealership without

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21

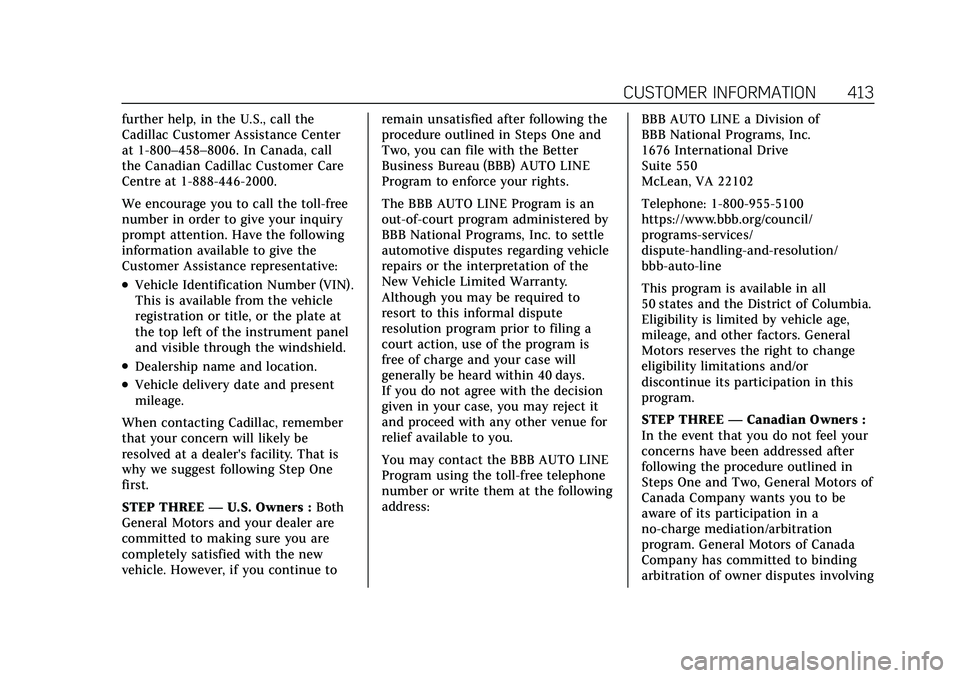

CUSTOMER INFORMATION 413
further help, in the U.S., call the
Cadillac Customer Assistance Center
at 1-800–458–8006. In Canada, call
the Canadian Cadillac Customer Care
Centre at 1-888-446-2000.
We encourage you to call the toll-free
number in order to give your inquiry
prompt attention. Have the following
information available to give the
Customer Assistance representative:
.Vehicle Identification Number (VIN).
This is available from the vehicle
registration or title, or the plate at
the top left of the instrument panel
and visible through the windshield.
.Dealership name and location.
.Vehicle delivery date and present
mileage.
When contacting Cadillac, remember
that your concern will likely be
resolved at a dealer's facility. That is
why we suggest following Step One
first.
STEP THREE —U.S. Owners : Both
General Motors and your dealer are
committed to making sure you are
completely satisfied with the new
vehicle. However, if you continue to remain unsatisfied after following the
procedure outlined in Steps One and
Two, you can file with the Better
Business Bureau (BBB) AUTO LINE
Program to enforce your rights.
The BBB AUTO LINE Program is an
out-of-court program administered by
BBB National Programs, Inc. to settle
automotive disputes regarding vehicle
repairs or the interpretation of the
New Vehicle Limited Warranty.
Although you may be required to
resort to this informal dispute
resolution program prior to filing a
court action, use of the program is
free of charge and your case will
generally be heard within 40 days.
If you do not agree with the decision
given in your case, you may reject it
and proceed with any other venue for
relief available to you.
You may contact the BBB AUTO LINE
Program using the toll-free telephone
number or write them at the following
address:
BBB AUTO LINE a Division of
BBB National Programs, Inc.
1676 International Drive
Suite 550
McLean, VA 22102
Telephone: 1-800-955-5100
https://www.bbb.org/council/
programs-services/
dispute-handling-and-resolution/
bbb-auto-line
This program is available in all
50 states and the District of Columbia.
Eligibility is limited by vehicle age,
mileage, and other factors. General
Motors reserves the right to change
eligibility limitations and/or
discontinue its participation in this
program.
STEP THREE
—Canadian Owners :
In the event that you do not feel your
concerns have been addressed after
following the procedure outlined in
Steps One and Two, General Motors of
Canada Company wants you to be
aware of its participation in a
no-charge mediation/arbitration
program. General Motors of Canada
Company has committed to binding
arbitration of owner disputes involving

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21

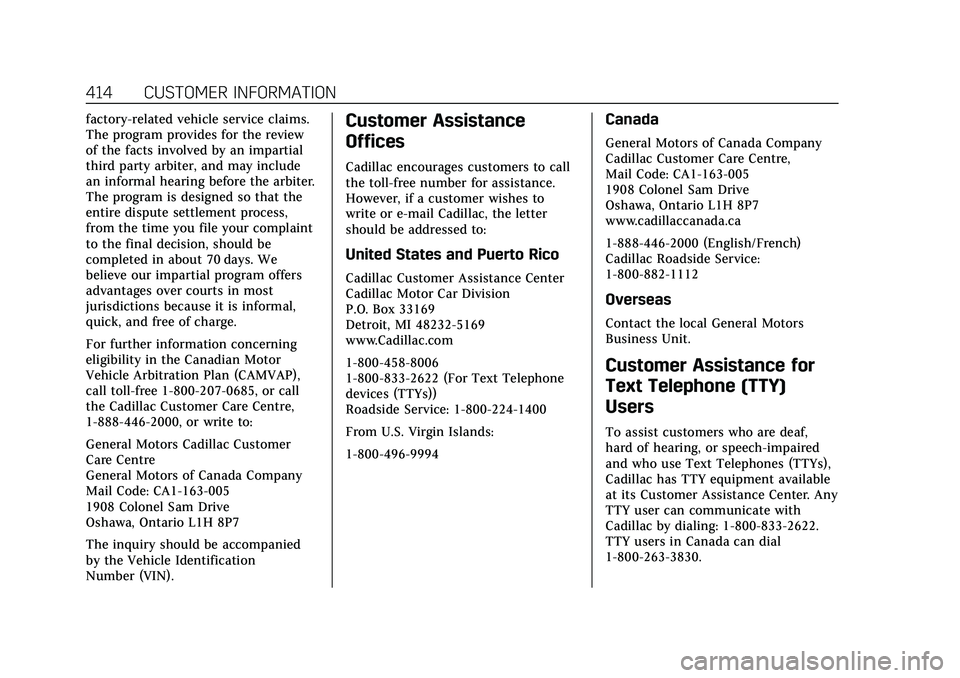

414 CUSTOMER INFORMATION
factory-related vehicle service claims.
The program provides for the review
of the facts involved by an impartial
third party arbiter, and may include
an informal hearing before the arbiter.
The program is designed so that the
entire dispute settlement process,
from the time you file your complaint
to the final decision, should be
completed in about 70 days. We
believe our impartial program offers
advantages over courts in most
jurisdictions because it is informal,
quick, and free of charge.
For further information concerning
eligibility in the Canadian Motor
Vehicle Arbitration Plan (CAMVAP),
call toll-free 1-800-207-0685, or call
the Cadillac Customer Care Centre,
1-888-446-2000, or write to:
General Motors Cadillac Customer
Care Centre
General Motors of Canada Company
Mail Code: CA1-163-005
1908 Colonel Sam Drive
Oshawa, Ontario L1H 8P7
The inquiry should be accompanied
by the Vehicle Identification
Number (VIN).Customer Assistance
Offices
Cadillac encourages customers to call
the toll-free number for assistance.
However, if a customer wishes to
write or e-mail Cadillac, the letter
should be addressed to:
United States and Puerto Rico
Cadillac Customer Assistance Center
Cadillac Motor Car Division
P.O. Box 33169
Detroit, MI 48232-5169
www.Cadillac.com
1-800-458-8006
1-800-833-2622 (For Text Telephone
devices (TTYs))
Roadside Service: 1-800-224-1400
From U.S. Virgin Islands:
1-800-496-9994
Canada
General Motors of Canada Company
Cadillac Customer Care Centre,
Mail Code: CA1-163-005
1908 Colonel Sam Drive
Oshawa, Ontario L1H 8P7
www.cadillaccanada.ca
1-888-446-2000 (English/French)
Cadillac Roadside Service:
1-800-882-1112
Overseas
Contact the local General Motors
Business Unit.
Customer Assistance for
Text Telephone (TTY)
Users
To assist customers who are deaf,
hard of hearing, or speech-impaired
and who use Text Telephones (TTYs),
Cadillac has TTY equipment available
at its Customer Assistance Center. Any
TTY user can communicate with
Cadillac by dialing: 1-800-833-2622.
TTY users in Canada can dial
1-800-263-3830.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
CUSTOMER INFORMATION 415
Online Owner Center
The Cadillac Owner Center (U.S.)
my.cadillac.com
Learn more about your vehicle
features, shop for and manage your
connected services and OnStar plans,
and access diagnostic information
specific to your vehicle.
Membership Benefits
E:Download owner’s manuals and
view vehicle-specific how-to videos.
G: View maintenance schedules,
alerts, and Vehicle Diagnostic
Information. Schedule service
appointments.
I: View service records from your
dealership and add your own.
D: Select a dealer and view
locations, maps, phone numbers, and
hours.
r: Track your vehicle’s warranty
information.
J: View active recalls or search by
Vehicle Identification Number (VIN).
See Vehicle Identification Number (VIN)
0 408.
H:Manage your profile and payment
information. View your GM Rewards
Card earnings and My Cadillac
Rewards points.
F: Chat with online help
representatives.
Visit my.cadillac.com and create an
account today.
Cadillac Owner Centre (Canada)
mycadillac.ca
Visit the Cadillac Owner Centre at
mycadillac.ca (English) or
my.cadillac.ca (French) to access
similar benefits to the U.S. site.
GM Mobility
Reimbursement Program
This program is available to qualified
applicants for cost reimbursement, up
to certain limits, of eligible
aftermarket adaptive equipment
required for the vehicle, such as hand
controls or a wheelchair/scooter lift
for the vehicle.
To learn about the GM Mobility
program, see www.gmmobility.com or
call the GM Mobility Assistance
Center at 1-800-323-9935. Text
Telephone (TTY) users, call
1-800-833-9935.
General Motors of Canada also has a
Mobility program. See
cadillaccanada.ca, or call
1-800-GM-DRIVE (800-463-7483) for
details. TTY users call 1-800-263-3830.
