2022 CADILLAC XT6 Owners Manual

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
80 SEATS AND RESTRAINTS
Recommended Methods for Attaching Child Restraints
Restraint Type Combined Weightof the Child +
Child Restraint Use Only Approved Attachment Methods Shown with an X
LATCH
–Lower
Anchors Only Seat Belt Only LATCH
–Lower
Anchors and Top
Tether Anchor Seat Belt and Top
Tether Anchor
Rear-Facing Child
Restraint Up to
29.5 kg (65 lb) X X
Rear-Facing Child
Restraint Greater than
29.5 kg (65 lb) X
Forward-Facing
Child Restraint Up to
29.5 kg (65 lb) X X
Forward-Facing
Child Restraint Greater than
29.5 kg (65 lb) X
See Securing Child Restraints (With the
Seat Belt in the Rear Seat) 087 or
Securing Child Restraints (With the Seat
Belt in the Front Seat) 089. Child restraints built after March 2014
will be labeled with the specific child
weight up to which the LATCH system
can be used to install the restraint.
The following explains how to attach
a child restraint with these
attachments in the vehicle. Not all vehicle seating positions have
lower anchors. In this case, the seat
belt must be used (with top tether
where available) to secure the child
restraint. See
Securing Child Restraints
(With the Seat Belt in the Rear Seat)
0 87 or
Securing Child Restraints (With the Seat
Belt in the Front Seat) 089.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
SEATS AND RESTRAINTS 81
Lower Anchors
Lower anchors (1) are metal bars built
into the vehicle. There are two lower
anchors for each LATCH seating
position that will accommodate a
child restraint with lower
attachments (2).
Top Tether Anchor
A top tether (3, 4) is used to secure
the top of the child restraint to the
vehicle. A top tether anchor is built
into the vehicle. The top tether
attachment hook (2) on the child
restraint connects to the top tether
anchor in the vehicle in order to
reduce the forward movement and
rotation of the child restraint during
driving or in a crash.
The child restraint may have a single
tether (3) or a dual tether (4). Either
will have a single attachment hook (2)
to secure the top tether to the anchor.Some child restraints with top tethers
are designed for use with or without
the top tether being attached. Others
require the top tether always to be
attached. In Canada, the law requires
that forward-facing child restraints
have a top tether, and that the tether
be attached. Be sure to read and
follow the instructions for your child
restraint.
Lower Anchor and Top Tether
Anchor Locations
To assist in locating the lower
anchors, each seating position with
lower anchors has two labels with the
lower anchor symbol on them, near
the crease between the seatback and
the seat cushion.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21

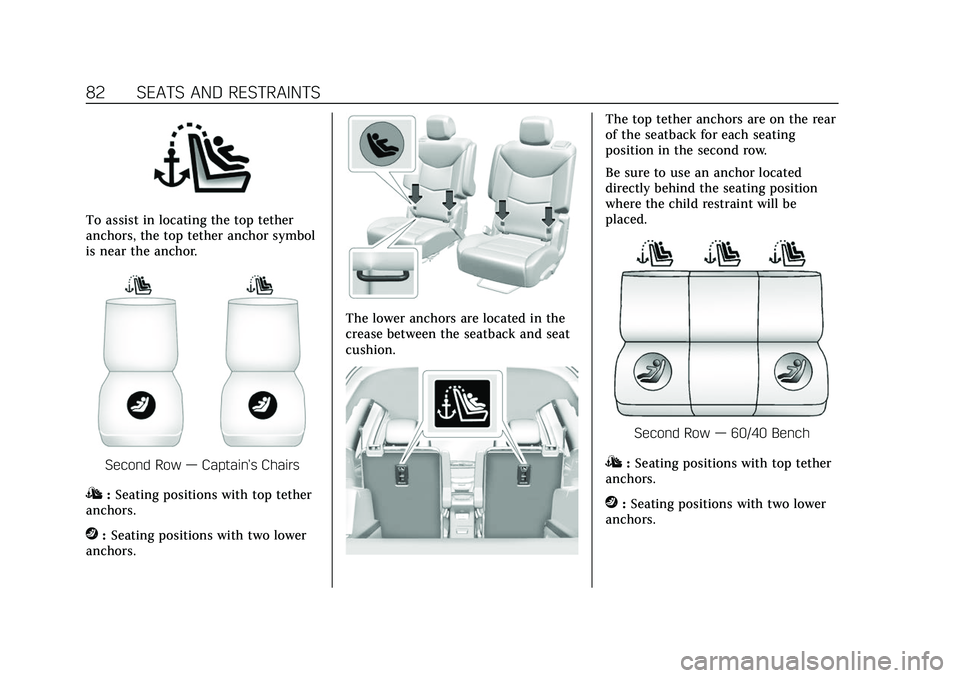

82 SEATS AND RESTRAINTS
To assist in locating the top tether
anchors, the top tether anchor symbol
is near the anchor.
Second Row—Captain ’s Chairs
I:Seating positions with top tether
anchors.
j: Seating positions with two lower
anchors.
The lower anchors are located in the
crease between the seatback and seat
cushion.
The top tether anchors are on the rear
of the seatback for each seating
position in the second row.
Be sure to use an anchor located
directly behind the seating position
where the child restraint will be
placed.
Second Row —60/40 Bench
I:Seating positions with top tether
anchors.
j: Seating positions with two lower
anchors.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
SEATS AND RESTRAINTS 83
The lower anchors are located in the
crease between the seatback and seat
cushion.
The top tether anchors are on the rear
of the seatback for each seating
position in the second row.
Be sure to use an anchor located
directly behind the seating position
where the child restraint will be
placed.
Third Row
I:Seating positions with top tether
anchors.
The top tether anchors are on the rear
of the seatback for each seating
position in the third row.
Be sure to use an anchor located
directly behind the seating position
where the child restraint will be
placed.
For models with a cargo cover, the top
tether anchors are on the back of the
rear seatbacks. Remove the cargo
cover before installing the top tether.
The cargo cover should remain off
while the top tether is in use. Be sure
to use an anchor directly behind the
seating position where the child
restraint will be placed.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
84 SEATS AND RESTRAINTS
Do not secure a child restraint in a
position without a top tether anchor if
a national or local law requires that
the top tether be attached, or if the
instructions that come with the child
restraint say that the top tether must
be attached.
According to accident statistics,
children and infants are safer when
properly restrained in a child restraint
system or infant restraint system
secured in a rear seating position. See
Where to Put the Restraint078 for
additional information.
Securing a Child Restraint
Designed for the LATCH System
{Warning
A child could be seriously injured or
killed in a crash if the child
restraint is not properly attached to
the vehicle using either the LATCH
anchors or the vehicle seat belt.
Follow the instructions that came
with the child restraint and the
instructions in this manual.
{Warning
To reduce the risk of serious or
fatal injuries during a crash, do not
attach more than one child
restraint to a single anchor.
Attaching more than one child
restraint to a single anchor could
cause the anchor or attachment to
come loose or even break during a
crash. A child or others could be
injured.
{Warning
Children can be seriously injured or
strangled if a shoulder belt is
wrapped around their neck. The
shoulder belt can tighten but
cannot be loosened if it is locked.
The shoulder belt locks when it is
pulled all the way out of the
retractor. It unlocks when the
shoulder belt is allowed to go all
the way back into the retractor, but
it cannot do this if it is wrapped
around a child’s neck. If the
(Continued)
Warning (Continued)
shoulder belt is locked and
tightened around a child’s neck, the
only way to loosen the belt is to
cut it.
Buckle any unused seat belts
behind the child restraint so
children cannot reach them. Pull
the shoulder belt all the way out of
the retractor to set the lock, and
tighten the belt behind the child
restraint after the child restraint
has been installed.
Caution
Do not let the LATCH attachments
rub against the vehicle’s seat belts.
This may damage these parts.
If necessary, move buckled seat
belts to avoid rubbing the LATCH
attachments.
Do not fold the rear seatback when
the seat is occupied. Do not fold the
empty rear seat with a seat belt
buckled. This could damage the(Continued)

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
SEATS AND RESTRAINTS 85
Caution (Continued)
seat belt or the seat. Unbuckle and
return the seat belt to its stowed
position, before folding the seat.
If you need to secure more than one
child restraint in the rear seat, see
Where to Put the Restraint 078.
1. Put the child restraint on the seat.
2. Attach and tighten the lower attachments to the lower anchors.
If the child restraint does not have
lower attachments or the desired
seating position does not have
lower anchors, secure the child
restraint with the top tether and
the seat belt. Refer to your child
restraint manufacturer instructions
and the instructions in this
manual.
2.1. Find the lower anchors for the desired seating position.
2.2. To access the lower anchors in the second row, it may help to
recline the seatback.
Third row seatbacks must be
upright before placing the
child restraint on the seat. 2.3. Put the child restraint on
the seat.
2.4. Attach and tighten the lower attachments on the child
restraint to the lower anchors.
If necessary, adjust the angle
of the second row seatback to
achieve a tight installation.
Make sure the second row
bench seatbacks are aligned at
the same angle.
3. If the child restraint manufacturer recommends that the top tether be
attached, attach and tighten the
top tether to the top tether anchor,
if the vehicle has one. Refer to the
child restraint instructions and the
following steps:
3.1. Find the top tether anchor.
3.2. Route, attach, and tighten the top tether according to your
child restraint instructions and
the following instructions:
If the position you are using
does not have a head restraint
and you are using a single
tether, route the tether over
the seatback.
If the position you are using
does not have a head restraint
and you are using a dual
tether, route the tether over
the seatback.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
86 SEATS AND RESTRAINTS
If the position you are using
has an adjustable head
restraint and you are using a
single tether, raise the head
restraint and route the tether
under the head restraint and
in between the head restraint
posts.
If the position you are using
has a fixed headrest or head
restraint and you are using a
single tether, route the tether
around the inboard or
outboard side of the headrest
or head restraint.
If the position you are using
has a fixed or an adjustable
head restraint and you are
using a dual tether, route the
tether around the head
restraint.
If the child restraint is
installed next to a center seat,
make sure the top tether does
not interfere with the center
seating position shoulder belt/
retractor. If it does, find
another suitable seating
position to install the child
restraint.
4. Before placing a child in the child restraint, make sure it is securely
held in place. To check, grasp the
child restraint at the LATCH path
and attempt to move it side to side
and back and forth. There should
be no more than 2.5 cm (1 in) of
movement, for proper installation.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
SEATS AND RESTRAINTS 87
Replacing LATCH System
Parts After a Crash
{Warning
A crash can damage the LATCH
system in the vehicle. A damaged
LATCH system may not properly
secure the child restraint, resulting
in serious injury or even death in a
crash. To help make sure the
LATCH system is working properly
after a crash, see your dealer to
have the system inspected and any
necessary replacements made as
soon as possible.
If the vehicle has the LATCH system
and it was being used during a crash,
new LATCH system parts may be
needed.
New parts and repairs may be
necessary even if the LATCH system
was not being used at the time of the
crash.
Securing Child Restraints
(With the Seat Belt in the
Rear Seat)
When securing a child restraint with
the seat belts in a rear seat position,
study the instructions that came with
the child restraint to make sure it is
compatible with this vehicle.
If the child restraint has the LATCH
system, see Lower Anchors and Tethers
for Children (LATCH System) 079 for
how and where to install the child
restraint using LATCH. If a child
restraint is secured in the vehicle
using a seat belt and it uses a top
tether, see Lower Anchors and Tethers
for Children (LATCH System) 079 for
top tether anchor locations.
Do not secure a child seat in a
position without a top tether anchor if
a national or local law requires that
the top tether be anchored, or if the
instructions that come with the child
restraint say that the top tether must
be anchored. In Canada, the law requires that
forward-facing child restraints have a
top tether, and that the tether be
attached.
If the child restraint or vehicle seat
position does not have the LATCH
system, you will be using the seat belt
to secure the child restraint. Be sure
to follow the instructions that came
with the child restraint.
If more than one child restraint needs
to be installed in the rear seat, be sure
to read
Where to Put the Restraint 078.
1. Put the child restraint on the seat.
2. Pick up the latch plate, and run the lap and shoulder portions of the
vehicle seat belt through or around
the child restraint. The child
restraint instructions will show
you how.
