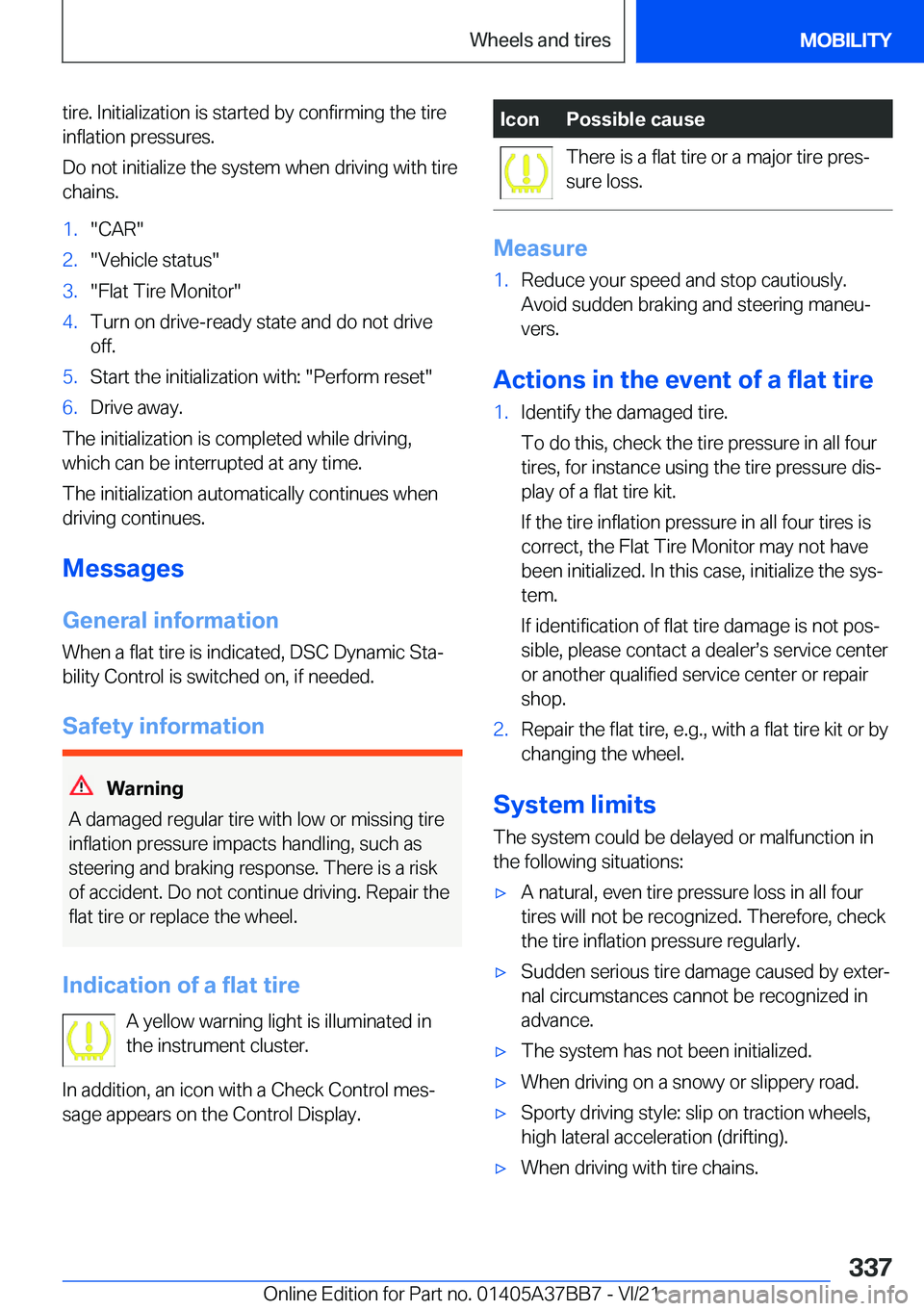

tire.
Initialization
is
started
by
confirming
the
tireinflation
pressures.
Do
not
initialize
the
system
when
driving
with
tire
chains.1."CAR"2."Vehicle
status"3."Flat
Tire
Monitor"4.Turn
on
drive-ready
state
and
do
not
drive
off.5.Start
the
initialization
with:
"Perform
reset"6.Drive
away.
The
initialization
is
completed
while
driving, which
can
be
interrupted
at
any
time.
The
initialization
automatically
continues
when driving
continues.
Messages General
information When
a
flat
tire
is
indicated,
DSC
Dynamic
Sta#j
bility
Control
is
switched
on,
if
needed.
Safety
information
Warning
A
damaged
regular
tire
with
low
or
missing
tire
inflation
pressure
impacts
handling,
such
as steering
and
braking
response.
There
is
a
risk
of
accident.
Do
not
continue
driving.
Repair
the flat
tire
or
replace
the
wheel.
Indication
of
a
flat
tire
A
yellow
warning
light
is
illuminated
in
the
instrument
cluster.
In
addition,
an
icon
with
a
Check
Control
mes#j sage
appears
on
the
Control
Display.
IconPossible
causeThere
is
a
flat
tire
or
a
major
tire
pres#j
sure
loss.
Measure
1.Reduce
your
speed
and
stop
cautiously. Avoid
sudden
braking
and
steering
maneu#j
vers.
Actions
in
the
event
of
a
flat
tire
1.Identify
the
damaged
tire.
To
do
this,
check
the
tire
pressure
in
all
four
tires,
for
instance
using
the
tire
pressure
dis#j
play
of
a
flat
tire
kit.
If
the
tire
inflation
pressure
in
all
four
tires
is
correct,
the
Flat
Tire
Monitor
may
not
have
been
initialized.
In
this
case,
initialize
the
sys#j tem.
If
identification
of
flat
tire
damage
is
not
pos#j sible,
please
contact
a
dealer#ss
service
center
or
another
qualified
service
center
or
repair
shop.2.Repair
the
flat
tire,
e.g.,
with
a
flat
tire
kit
or
by changing
the
wheel.
System
limits
The
system
could
be
delayed
or
malfunction
inthe
following
situations:
'xA
natural,
even
tire
pressure
loss
in
all
fourtires
will
not
be
recognized.
Therefore,
check
the
tire
inflation
pressure
regularly.'xSudden
serious
tire
damage
caused
by
exter#j nal
circumstances
cannot
be
recognized
inadvance.'xThe
system
has
not
been
initialized.'xWhen
driving
on
a
snowy
or
slippery
road.'xSporty
driving
style:
slip
on
traction
wheels,high
lateral
acceleration
(drifting).'xWhen
driving
with
tire
chains.Seite
337Wheels
and
tiresMOBILITY337
Online
Edition
for
Part
no.
01405A37BB7
-
VI/21

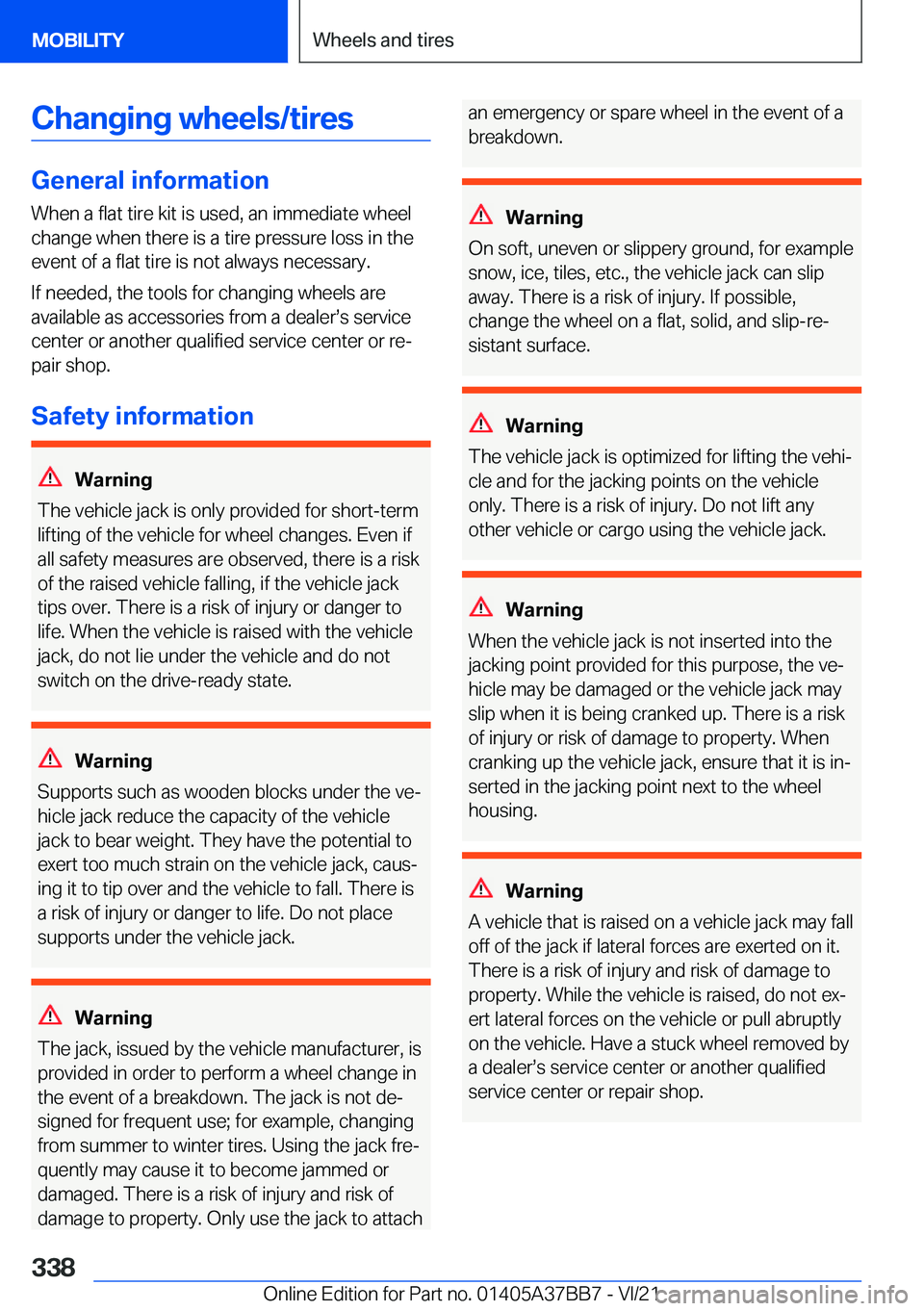

Changing
wheels/tires
General
information
When
a
flat
tire
kit
is
used,
an
immediate
wheel
change
when
there
is
a
tire
pressure
loss
in
the event
of
a
flat
tire
is
not
always
necessary.
If
needed,
the
tools
for
changing
wheels
areavailable
as
accessories
from
a
dealer#ss
service
center
or
another
qualified
service
center
or
re#j
pair
shop.
Safety
information
Warning
The
vehicle
jack
is
only
provided
for
short-term lifting
of
the
vehicle
for
wheel
changes.
Even
if
all
safety
measures
are
observed,
there
is
a
risk of
the
raised
vehicle
falling,
if
the
vehicle
jack
tips
over.
There
is
a
risk
of
injury
or
danger
to
life.
When
the
vehicle
is
raised
with
the
vehicle jack,
do
not
lie
under
the
vehicle
and
do
not
switch
on
the
drive-ready
state.
Warning
Supports
such
as
wooden
blocks
under
the
ve#j hicle
jack
reduce
the
capacity
of
the
vehicle
jack
to
bear
weight.
They
have
the
potential
to
exert
too
much
strain
on
the
vehicle
jack,
caus#j
ing
it
to
tip
over
and
the
vehicle
to
fall.
There
is
a
risk
of
injury
or
danger
to
life.
Do
not
place
supports
under
the
vehicle
jack.
Warning
The
jack,
issued
by
the
vehicle
manufacturer,
is provided
in
order
to
perform
a
wheel
change
in
the
event
of
a
breakdown.
The
jack
is
not
de#j signed
for
frequent
use;
for
example,
changingfrom
summer
to
winter
tires.
Using
the
jack
fre#jquently
may
cause
it
to
become
jammed
or
damaged.
There
is
a
risk
of
injury
and
risk
of
damage
to
property.
Only
use
the
jack
to
attach
an
emergency
or
spare
wheel
in
the
event
of
a breakdown.
Warning
On
soft,
uneven
or
slippery
ground,
for
example snow,
ice,
tiles,
etc.,
the
vehicle
jack
can
slip
away.
There
is
a
risk
of
injury.
If
possible,
change
the
wheel
on
a
flat,
solid,
and
slip-re#j
sistant
surface.
Warning
The
vehicle
jack
is
optimized
for
lifting
the
vehi#j
cle
and
for
the
jacking
points
on
the
vehicle
only.
There
is
a
risk
of
injury.
Do
not
lift
any
other
vehicle
or
cargo
using
the
vehicle
jack.
Warning
When
the
vehicle
jack
is
not
inserted
into
the
jacking
point
provided
for
this
purpose,
the
ve#j
hicle
may
be
damaged
or
the
vehicle
jack
may
slip
when
it
is
being
cranked
up.
There
is
a
risk of
injury
or
risk
of
damage
to
property.
When
cranking
up
the
vehicle
jack,
ensure
that
it
is
in#j
serted
in
the
jacking
point
next
to
the
wheel
housing.
Warning
A
vehicle
that
is
raised
on
a
vehicle
jack
may
fall off
of
the
jack
if
lateral
forces
are
exerted
on
it.
There
is
a
risk
of
injury
and
risk
of
damage
to property.
While
the
vehicle
is
raised,
do
not
ex#jert
lateral
forces
on
the
vehicle
or
pull
abruptly
on
the
vehicle.
Have
a
stuck
wheel
removed
by
a
dealer#ss
service
center
or
another
qualified
service
center
or
repair
shop.
Seite
338MOBILITYWheels
and
tires338
Online
Edition
for
Part
no.
01405A37BB7
-
VI/21

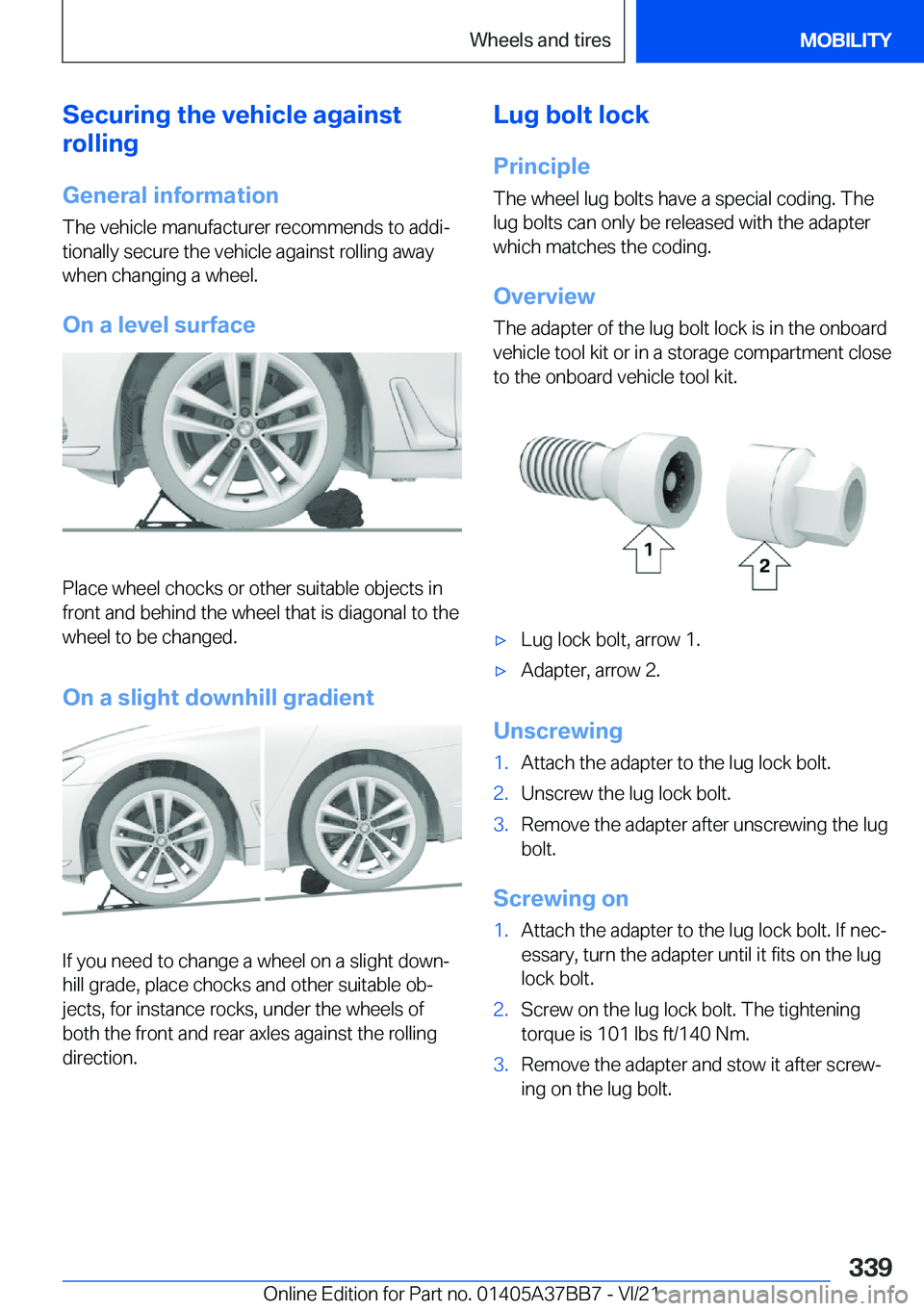

Securing
the
vehicle
against
rolling
General
information The
vehicle
manufacturer
recommends
to
addi#j
tionally
secure
the
vehicle
against
rolling
away
when
changing
a
wheel.
On
a
level
surface
Place
wheel
chocks
or
other
suitable
objects
in
front
and
behind
the
wheel
that
is
diagonal
to
the wheel
to
be
changed.
On
a
slight
downhill
gradient
If
you
need
to
change
a
wheel
on
a
slight
down#j
hill
grade,
place
chocks
and
other
suitable
ob#j
jects,
for
instance
rocks,
under
the
wheels
of
both
the
front
and
rear
axles
against
the
rolling
direction.
Lug
bolt
lock
Principle
The
wheel
lug
bolts
have
a
special
coding.
The
lug
bolts
can
only
be
released
with
the
adapter
which
matches
the
coding.
Overview
The
adapter
of
the
lug
bolt
lock
is
in
the
onboard vehicle
tool
kit
or
in
a
storage
compartment
close
to
the
onboard
vehicle
tool
kit.'xLug
lock
bolt,
arrow
1.'xAdapter,
arrow
2.
Unscrewing
1.Attach
the
adapter
to
the
lug
lock
bolt.2.Unscrew
the
lug
lock
bolt.3.Remove
the
adapter
after
unscrewing
the
lug
bolt.
Screwing
on
1.Attach
the
adapter
to
the
lug
lock
bolt.
If
nec#j
essary,
turn
the
adapter
until
it
fits
on
the
lug lock
bolt.2.Screw
on
the
lug
lock
bolt.
The
tightening
torque
is
101
lbs
ft/140
Nm.3.Remove
the
adapter
and
stow
it
after
screw#j
ing
on
the
lug
bolt.Seite
339Wheels
and
tiresMOBILITY339
Online
Edition
for
Part
no.
01405A37BB7
-
VI/21

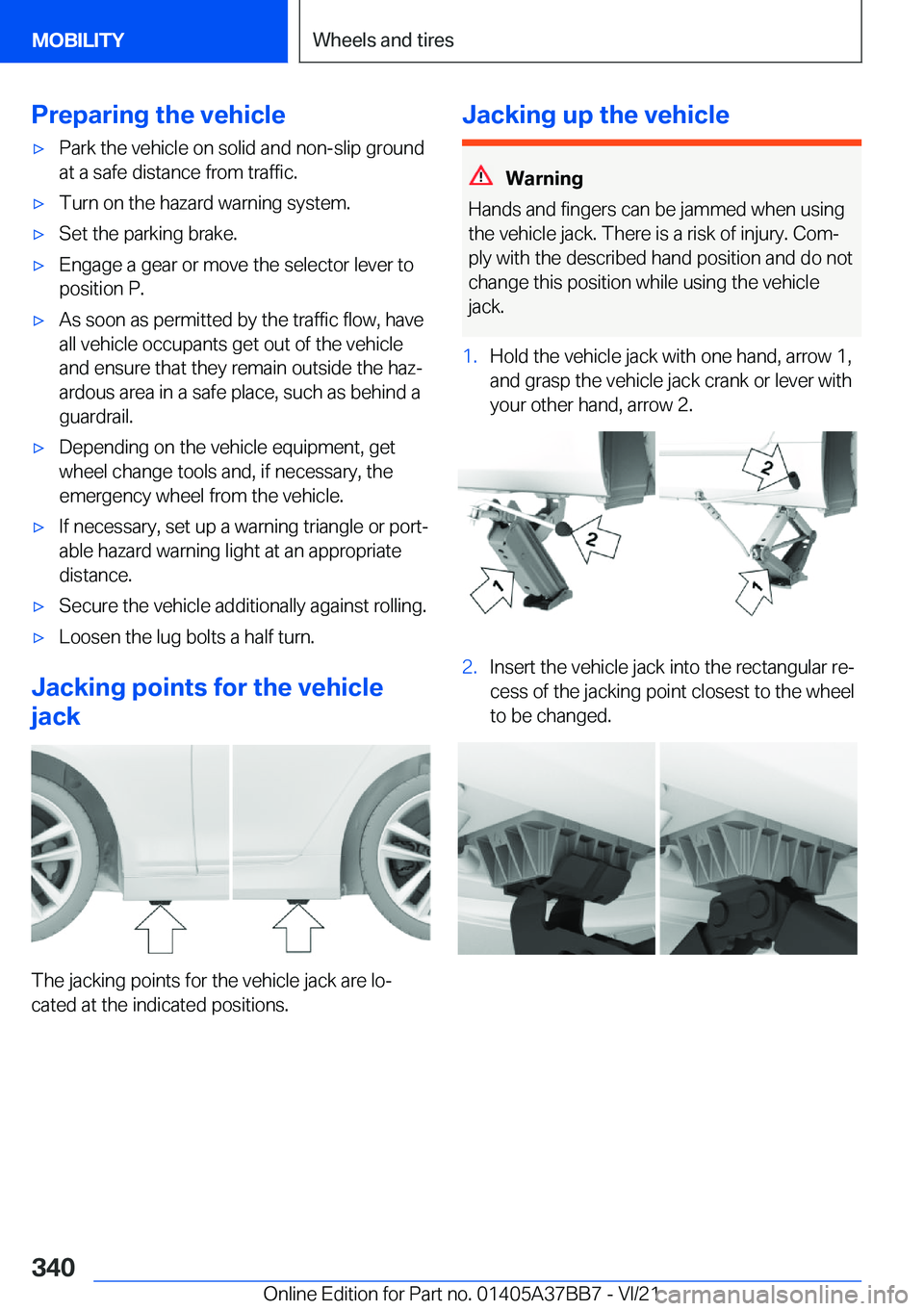

Preparing
the
vehicle'xPark
the
vehicle
on
solid
and
non-slip
groundat
a
safe
distance
from
traffic.'xTurn
on
the
hazard
warning
system.'xSet
the
parking
brake.'xEngage
a
gear
or
move
the
selector
lever
toposition
P.'xAs
soon
as
permitted
by
the
traffic
flow,
have
all
vehicle
occupants
get
out
of
the
vehicle and
ensure
that
they
remain
outside
the
haz#j
ardous
area
in
a
safe
place,
such
as
behind
a
guardrail.'xDepending
on
the
vehicle
equipment,
get
wheel
change
tools
and,
if
necessary,
the
emergency
wheel
from
the
vehicle.'xIf
necessary,
set
up
a
warning
triangle
or
port#j able
hazard
warning
light
at
an
appropriatedistance.'xSecure
the
vehicle
additionally
against
rolling.'xLoosen
the
lug
bolts
a
half
turn.
Jacking
points
for
the
vehicle
jack
The
jacking
points
for
the
vehicle
jack
are
lo#j cated
at
the
indicated
positions.
Jacking
up
the
vehicle
Warning
Hands
and
fingers
can
be
jammed
when
using
the
vehicle
jack.
There
is
a
risk
of
injury.
Com#j
ply
with
the
described
hand
position
and
do
not change
this
position
while
using
the
vehicle
jack.
1.Hold
the
vehicle
jack
with
one
hand,
arrow
1, and
grasp
the
vehicle
jack
crank
or
lever
withyour
other
hand,
arrow
2.2.Insert
the
vehicle
jack
into
the
rectangular
re#jcess
of
the
jacking
point
closest
to
the
wheel
to
be
changed.Seite
340MOBILITYWheels
and
tires340
Online
Edition
for
Part
no.
01405A37BB7
-
VI/21

3.Extend
the
vehicle
jack
by
turning
the
vehicle
jack
crank
or
lever
clockwise.4.Take
your
hand
away
from
the
vehicle
jack
as soon
as
the
vehicle
jack
is
under
load
andcontinue
turning
the
vehicle
jack
crank
orlever
with
one
hand.5.Make
sure
that
the
vehicle
jack
foot
standsvertically
and
at
a
right
angle
beneath
the
jacking
point.6.Make
sure
that
the
vehicle
jack
foot
stands vertically
and
perpendicularly
beneath
the
jacking
point
after
extending
the
vehicle
jack.7.Crank
the
vehicle
up,
until
the
vehicle
jack
is with
the
entire
surface
on
the
ground
and
the
relevant
wheel
is
maximum
1.2
inches/3
cm above
ground.Mounting
a
wheel
Mount
one
emergency
wheel
only,
as
required.1.Unscrew
the
lug
bolts.2.Remove
the
wheel.3.Put
the
new
wheel
or
emergency
wheel
on and
screw
in
at
least
two
lug
bolts
in
a
cross#jwise
pattern
until
hand-tight.
When
non-original
light-alloy
wheels
of
the
vehicle
manufacturer
are
mounted,
the
ac#j
companying
lug
bolts
may
have
to
be
used
as well.4.Hand-tighten
the
remaining
lug
bolts
and
tighten
all
lug
bolts
well
in
a
crosswise
pat#j tern.5.Turn
the
vehicle
jack
crank
counterclockwise
to
retract
the
vehicle
jack
and
lower
the
vehi#j
cle.6.Remove
the
vehicle
jack
and
stow
it
securely.
After
the
wheel
change
1.Tighten
the
lug
bolts
crosswise.
The
tighten#j
ing
torque
is
101
lbs
ft/140
Nm.2.Stow
the
nonworking
wheel
in
the
cargo
area,
if
necessary.3.Check
tire
inflation
pressure
at
the
next
op#j
portunity
and
correct
as
needed.4.Reinitialize
the
Flat
Tire
Monitor.
Reset
the
Tire
Pressure
Monitor
again.5.Check
to
make
sure
the
lug
bolts
are
tight
with
a
calibrated
torque
wrench.6.Have
the
damaged
tire
replaced
at
the
near#j est
dealer's
service
center
or
another
quali#j
fied
service
center
or
repair
shop.Seite
341Wheels
and
tiresMOBILITY341
Online
Edition
for
Part
no.
01405A37BB7
-
VI/21

Engine
compartmentVehicle
features
andoptions
This
chapter
describes
all
standard,
country-spe#jcific
and
optional
features
offered
with
the
series. It
also
describes
features
and
functions
that
are
not
necessarily
available
in
your
vehicle,
e.g.,
dueto
the
selected
options
or
country
versions.
Thisalso
applies
to
safety-related
functions
and
sys#j
tems.
When
using
these
functions
and
systems,
the
applicable
laws
and
regulations
must
be
ob#j
served.

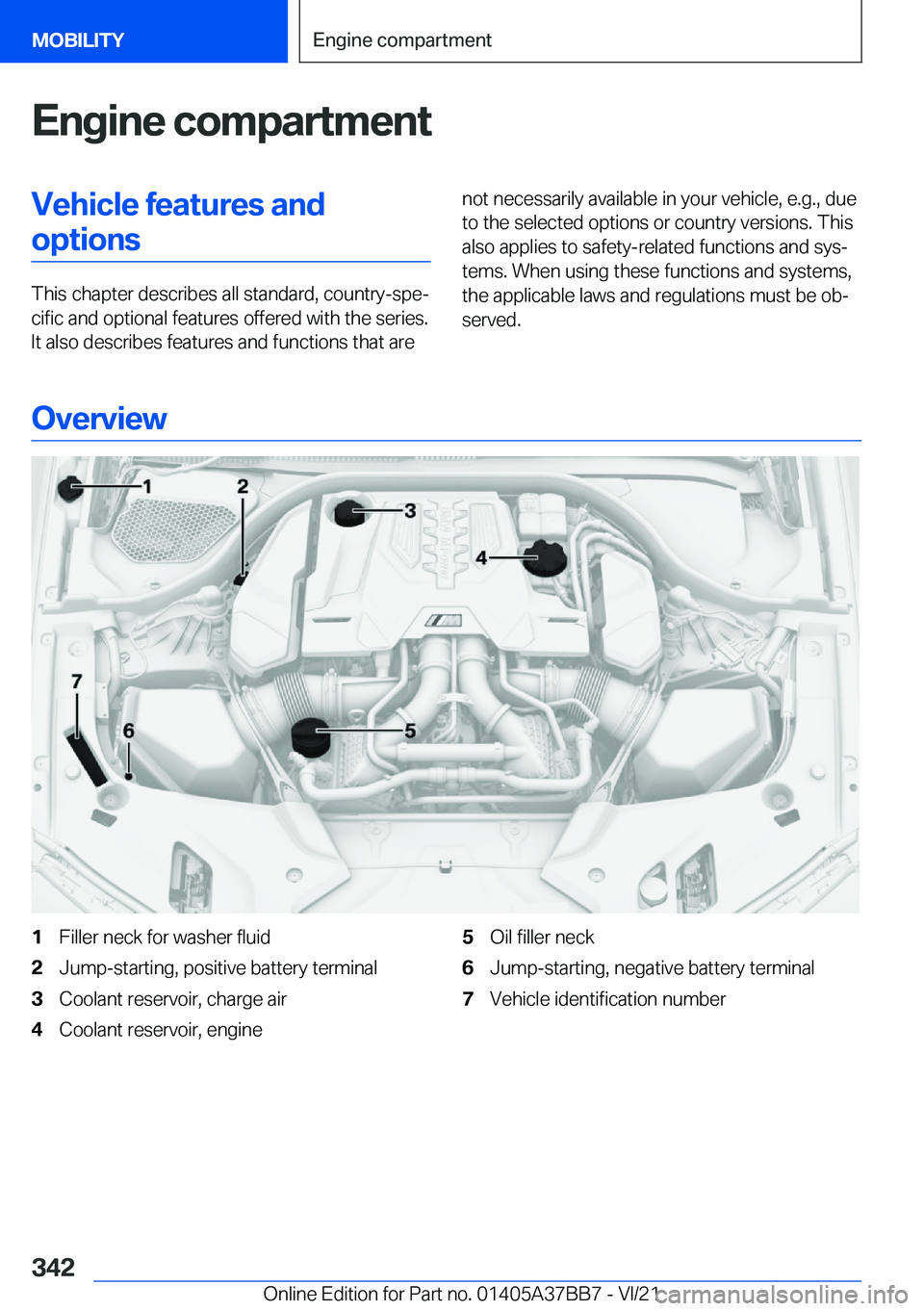

Overview
1Filler
neck
for
washer
fluid2Jump-starting,
positive
battery
terminal3Coolant
reservoir,
charge
air4Coolant
reservoir,
engine5Oil
filler
neck6Jump-starting,
negative
battery
terminal7Vehicle
identification
numberSeite
342MOBILITYEngine
compartment342
Online
Edition
for
Part
no.
01405A37BB7
-
VI/21

Hood
Safety
information
Warning
Improperly
executed
work
in
the
engine
com#j
partment
can
damage
vehicle
components
and impair
vehicle
functions.
There
is
a
risk
of
anaccident
and
damage
to
property.
Have
work
inthe
engine
compartment
performed
by
a
deal#jer#ss
service
center
or
another
qualified
service
center
or
repair
shop.
Warning
The
engine
compartment
accommodates
mov#j
ing
components.
Certain
components
in
the engine
compartment
can
also
move
with
the
vehicle
switched
off,
for
instance
the
radiator
fan.
There
is
a
risk
of
injury.
Do
not
reach
into
the
area
of
moving
parts.
Keep
articles
of
cloth#j
ing
and
hair
away
from
moving
parts.
Warning
There
are
protruding
parts,
for
instance
locking
hook,
on
the
inside
of
the
hood.
There
is
a
risk
of
injury.
If
the
hood
is
open,
pay
attention
to protruding
parts
and
keep
clear
of
these
areas.
Warning
An
incorrectly
locked
hood
can
open
while
driv#j
ing
and
restrict
visibility.
There
is
a
risk
of
acci#j
dent.
Stop
immediately
and
correctly
close
the
hood.
Warning
Body
parts
can
be
jammed
when
opening
and
closing
the
hood.
There
is
a
risk
of
injury.
Make
sure
that
the
area
of
movement
of
hood
is
clear
during
opening
and
closing.
NOTICE
Folded-away
wipers
can
be
jammed
when
the
hood
is
opened.
There
is
a
risk
of
damage
to property,
among
other
potential
damage.
Makesure
that
the
wipers
with
the
wiper
bladesmounted
are
folded
down
onto
the
windshieldbefore
opening
the
hood.
NOTICE
When
the
hood
is
closed,
it
must
engage
on both
sides.
Pressing
again
can
damage
the
hood.
There
is
a
risk
of
damage
to
property, among
other
potential
damage.
Open
the
hood
again
and
then
close
it
energetically.
Avoid
pressing
again.
Opening
hood

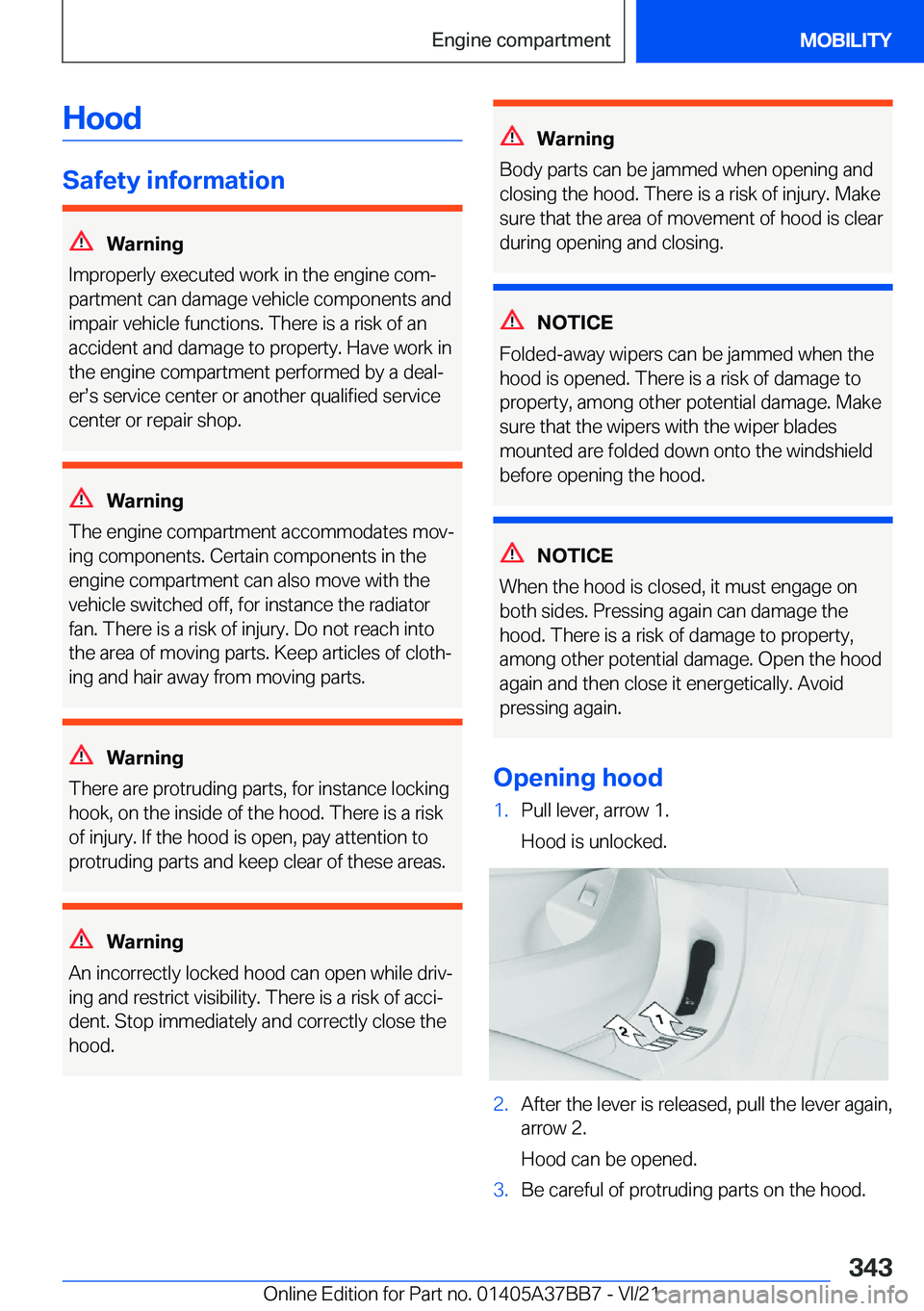

1.Pull
lever,
arrow
1.
Hood
is
unlocked.2.After
the
lever
is
released,
pull
the
lever
again, arrow
2.
Hood
can
be
opened.3.Be
careful
of
protruding
parts
on
the
hood.Seite
343Engine
compartmentMOBILITY343
Online
Edition
for
Part
no.
01405A37BB7
-
VI/21

Closing
the
hood
Energetically
close
the
hood
from
approx.
20
in/50
cm.
The
hood
must
engage
on
both
sides.
Seite
344MOBILITYEngine
compartment344
Online
Edition
for
Part
no.
01405A37BB7
-
VI/21
