2021 TOYOTA 4RUNNER Owners Manual (in English)

5538-2. Customization
8
Vehicle specifications
4RUNNER (U)■
Rear window wiper and washer (
P. 236)
■Power back window ( P. 1 3 1 )
FunctionDefault settingCustomized
setting
Wiper operates automati-
cally when washer is oper-
ated
OnOff – – O
Drip prevention functionOnOff – – O
Wiper operation interval3 seconds
2 seconds
––O
4 seconds
5 seconds
Time elapsed before the
rear wiper storage func-
tion activates
3 seconds
4 seconds––O
5 seconds
6 seconds
FunctionDefault settingCustomized
setting
Vehicles without a smart
key system: Close opera-
tion linked to door lock
operation using a key
OnOff – – O
Vehicles without a smart
key system: Open opera-
tion linked to door unlock
operation using a key
OnOff – – O
Vehicles with a smart key
system: Close operation
linked to door lock opera-
tion using the switch On Off – – O
Vehicles with a smart key
system: Open operation
linked to door unlock oper-
ation using the switch
OnOff – – O
Vehicles with a smart key
system: Time required to
press and hold the switch
before the window begins
to open/close
0.8 seconds
1 second
––O
1.2 seconds
1.4 seconds
123
123

5548-2. Customization
4RUNNER (U)■
Toyota parking assist-sensor* (P. 2 8 5 )
*: If equipped
■
Seat belt reminder ( P. 474)
FunctionDefault settingCustomized
setting
Detection distance of the
rear center sensor Far Near – O O
Buzzer volume Level 2 Level 1 to 3 – O O
FunctionDefault settingCustomized setting
Vehicle speed linked seat
belt reminder buzzerOnOff – – O
123
123

5558-2. Customization
8
Vehicle specifications
4RUNNER (U)■
Multi-information display (
P. 90)
*1: The default setting varies according to countries.
*2: Some status screens cannot be registered (indicated on multi-i nformation
display).
FunctionDefault settingCustomized setting
Language*1EnglishFrenchO–OSpanish
Units*1miles (MPG)km (L/100km)O–O
Eco Driving Indicator LightOnOffO–O
switch settingsAfter startDesired status
screen
*2O–O
Pop-up displayOnOffO–O
123

5568-2. Customization
4RUNNER (U)■
LDA (Lane Departure Alert) (
P. 264)
■PCS (Pre-Collision System) ( P. 254)
FunctionDefault
settingCustomized setting
Alert sensitivityStandardHighO–O
Vehicle sway warning
functionOnOffO–O
Vehicle sway warning
sensitivityStandardLowO–OHigh
123
FunctionDefault
settingCustomized setting
PCS (Pre-Collision Sys-
tem)OnOffO–O
Alert timing
(Middle)
(Far)O–O
(Near)
123

5578-2. Customization
8
Vehicle specifications
4RUNNER (U)
■In the following situations, customize mode will automatically be turned
off.
● A warning message appears after the customize mode screen is di splayed.
● The engine switch is turned to the “LOCK” position (without a s mart key sys-
tem) or the engine switch is turned to OFF (with a smart key sy stem).
● The vehicle begins to move while the customize mode screen is d isplayed.
WARNING
■During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a seri ous health
hazard.
NOTICE
■ During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.

558
4RUNNER (U)
8-3. Items to initialize
Items to initialize
The following item must be initialized for normal system opera-
tion after such cases as the battery being reconnected, or main -
tenance being performed on the vehicle:
ItemWhen to initializeReference
Message indicating mainte-
nance is requiredAfter the maintenance is per-
formedP. 399
Tire pressure warning sys-
tem
• When the tire inflation pres- sure is changed such as
when changing traveling
speed or load weight
• When the tire inflation pres-
sure is changed such as
when the tire size is
changed
• When rotating the tires
• After performing the trans- mitter ID code registration
procedure
P. 425

559
For owners9
4RUNNER (U)Reporting safety defects
for U.S. owners........................ 560
Seat belt instructions for Canadian owners
(in French) ............................... 561
SRS airbag instructions for Canadian owners
(in French) ............................... 563

560
4RUNNER (U)

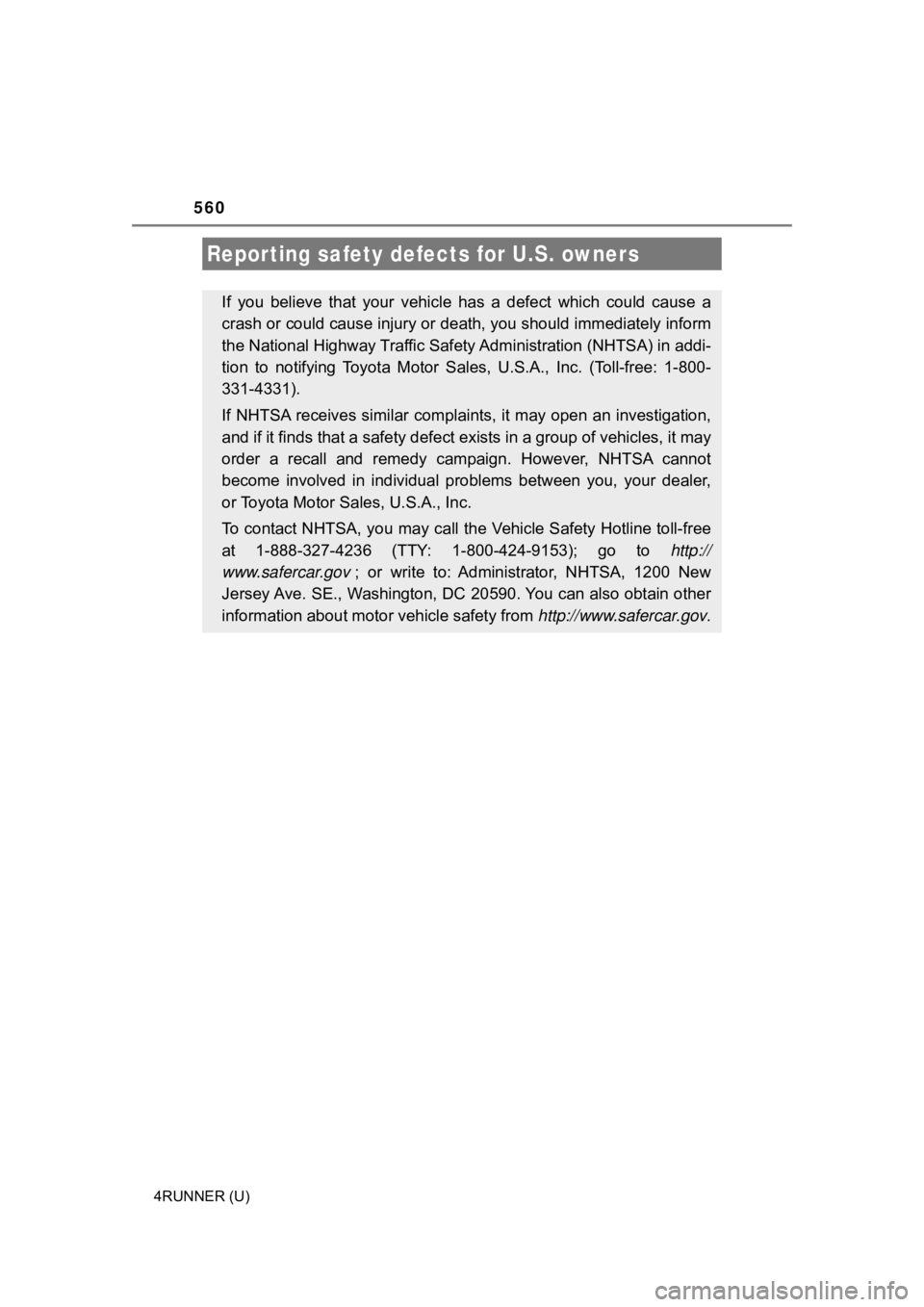

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately in form
the National Highway Traffic Saf ety Administration (NHTSA) in addi-
tion to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free: 1-800-
331-4331).
If NHTSA receives similar complaints, it may open an investigat ion,
and if it finds that a safety de fect exists in a group of vehic les, it may
order a recall and remedy campaign. However, NHTSA cannot
become involved in individual problems between you, your dealer ,
or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll- free
at 1-888-327-4236 (TTY: 1-800-424-9153); go to http://
www.safercar.gov
; or write to: Administrator, NHTSA, 1200 New
Jersey Ave. SE., Washington, DC 20590. You can also obtain other
information about motor vehicle safety from http://www.safercar.gov.
