2021 PEUGEOT BOXER Owners Manual

Page 9 of 212

PEUGEOT BOXER 2021  Owners Manual 7

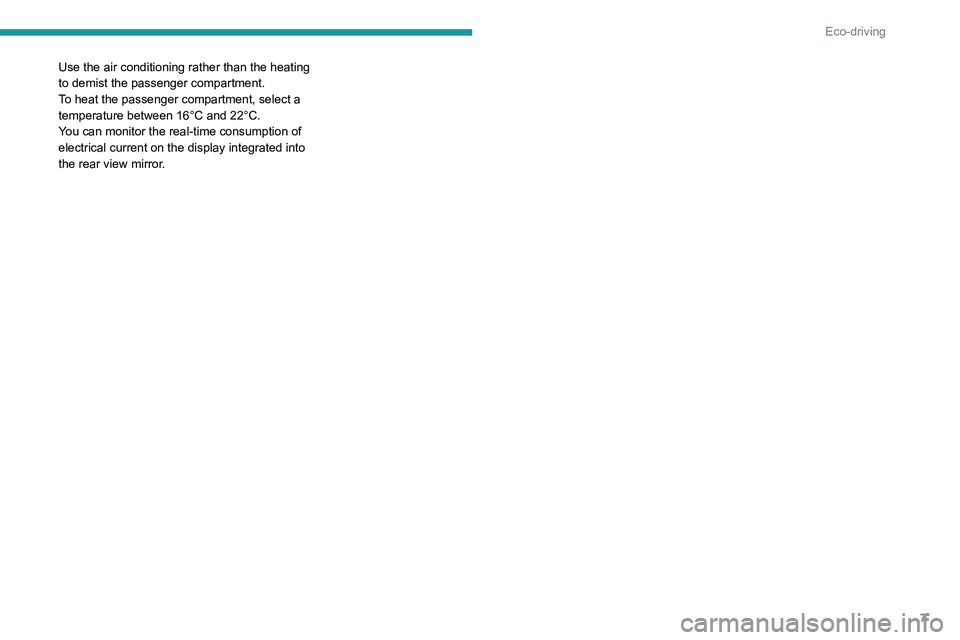

Eco-driving
Use the air conditioning rather than the heating
to demist the passenger compartment.
To heat the passenger compartment, select a
temperature between 16°C and 22°C.
You can monitor t

Page 10 of 212

PEUGEOT BOXER 2021  Owners Manual 8
Instruments
Instrument panel

1.Speedometer (mph or km/h)
2. Display screen
3. Fuel gauge (Diesel)
4. Coolant temperature (Diesel)
5. Rev counter (rpm x 1,000) (Diesel)
Electric vehicles
The fuel

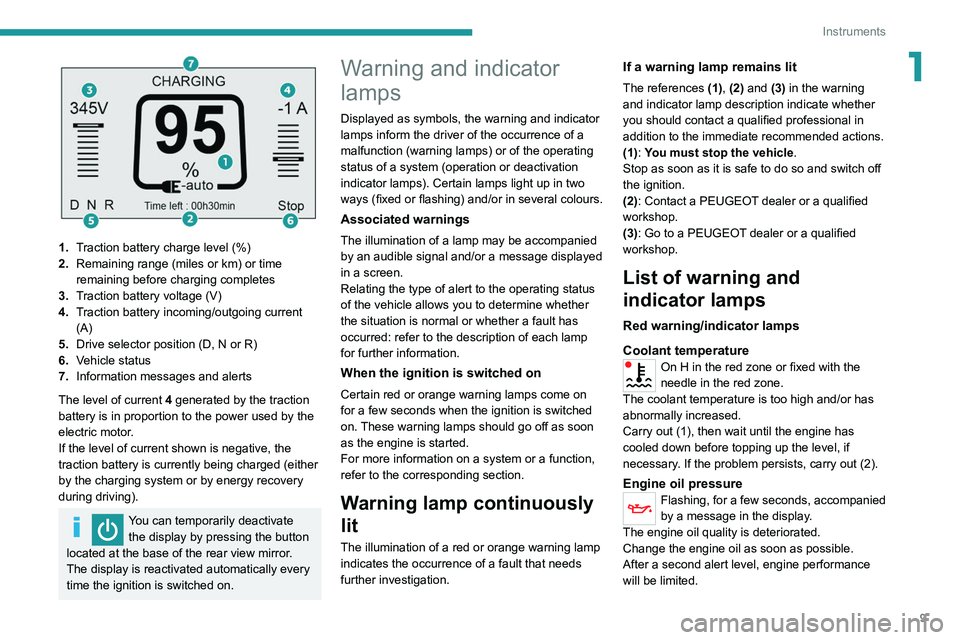

Page 11 of 212

PEUGEOT BOXER 2021  Owners Manual 9
Instruments
1

1.Traction battery charge level (%)
2. Remaining range (miles or km) or time
remaining before charging completes
3. Traction battery voltage (V)
4. Traction battery incoming/outgoin

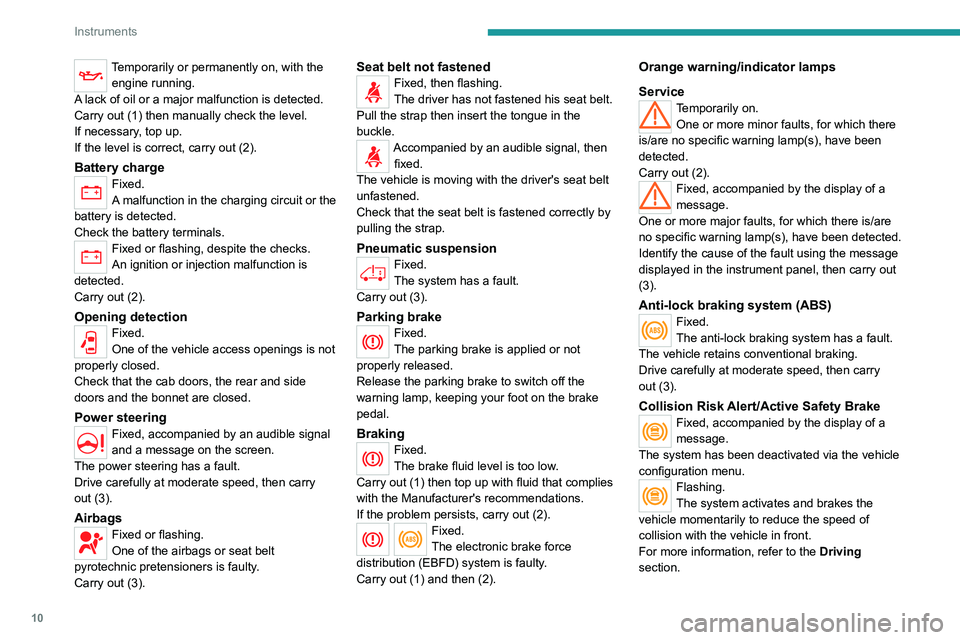

Page 12 of 212

PEUGEOT BOXER 2021  Owners Manual 10
Instruments
Temporarily or permanently on, with the engine running.
A lack of oil or a major malfunction is detected.
Carry out (1) then manually check the level.
If necessary, top up.
If the level

Page 13 of 212

PEUGEOT BOXER 2021  Owners Manual 11
Instruments
1Fixed, accompanied by a message and
an audible signal.
The system has a fault.
Carry out (3).
Fixed.
The system has a fault.
If these warning lamps come on after the engine
is switch

Page 14 of 212

PEUGEOT BOXER 2021  Owners Manual 12
Instruments
Flashing.
The system has a fault.
Carry out (2).
Diesel pre-heaterFixed.
The climatic conditions mean that pre-
heating is necessary.
Wait until the indicator lamp goes off before
star

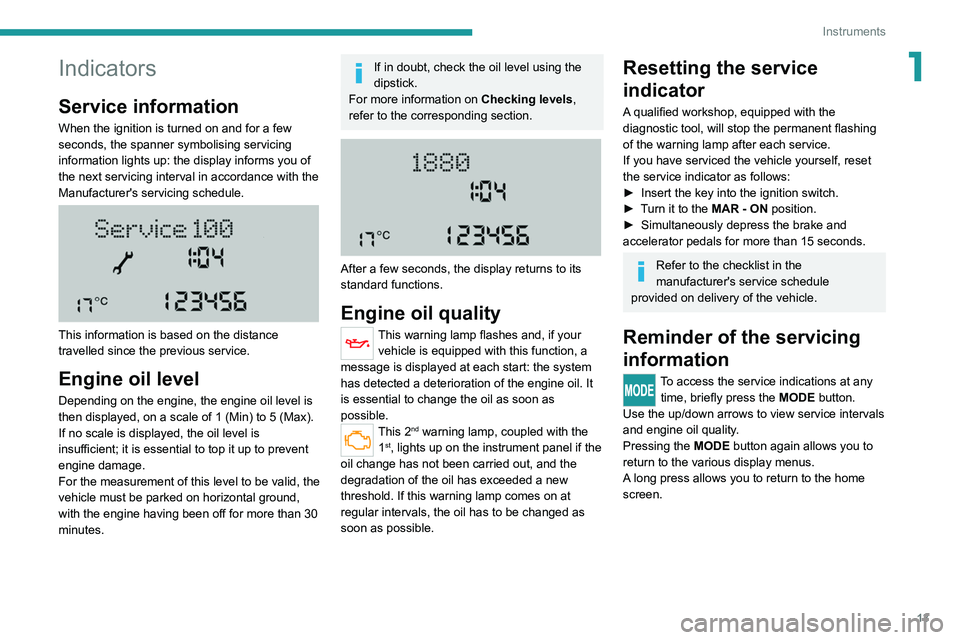

Page 15 of 212

PEUGEOT BOXER 2021  Owners Manual 13
Instruments
1Indicators
Service information
When the ignition is turned on and for a few
seconds, the spanner symbolising servicing
information lights up: the display informs you of
the next ser

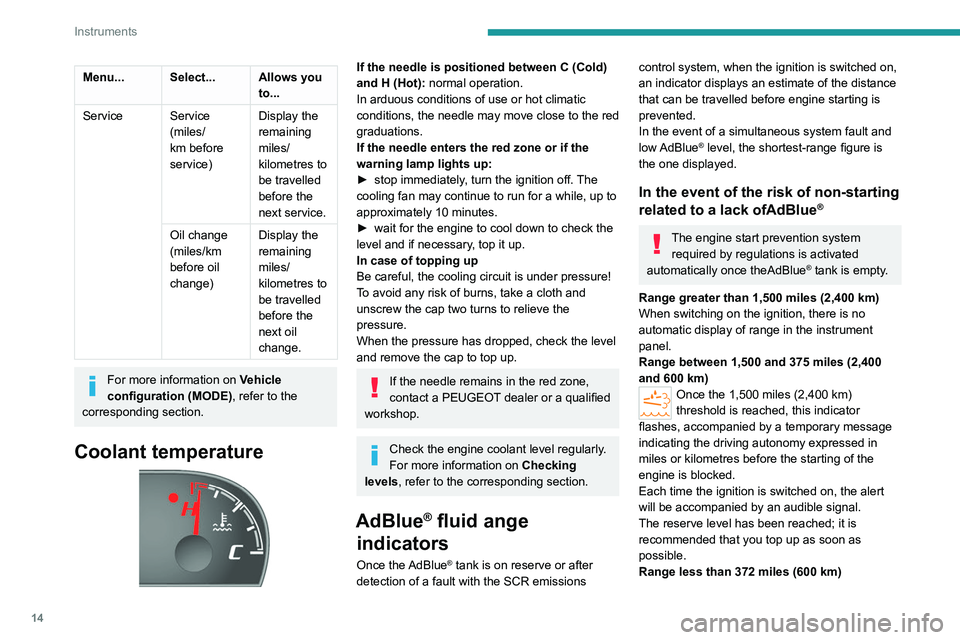

Page 16 of 212

PEUGEOT BOXER 2021  Owners Manual 14
Instruments
Menu... Select... Allows you to...
Service Service  (miles/
km before
service) Display the
remaining
miles/
kilometres to
be travelled
before the
next service.
Oil change
(miles/
