2021 MAZDA MODEL CX-9 Owners Manual

Any of the seat adjustment switches is
operated.
The SET button is pressed.
Programming button 1 or 2 is pressed.
The key lock button or unlock button
is operated.
The vehicle starts moving.
The active driving display is adjusted.
(Using a programmed key)
1. Unlock the doors by pressing a request switch or the key unlock button.
2. After unlocking the doors, the seat
position adjustment begins within 40
seconds of opening the driver's door,
and a beep sounds when the operation
is finished.
3. Make sure the parking brake is on.
4. Make sure the selector lever is in the P position.
5. Start the engine.
6. The active driving display adjustment begins.
NOTE
If there is no driving position movement,
a beep is not heard.
The driving position adjustment is
canceled in the following cases:
Any of the seat adjustment switches is
operated.
The SET button is pressed.
Programming button 1 or 2 is pressed.
The key lock button or unlock button
is operated.
The vehicle starts moving.
The active driving display is adjusted.
Erasing programmed driving positions
(Erasing the driving positions
programmed to the key)
1. Switch the ignition OFF.
2. Press the SET button on the side of the seat until a beep sound is heard 1 time.
3. After the beep sounds, press the key lock button within 5 seconds until a
beep sound is heard 1 time.
NOTE
If a beep sound is heard 3 times, the
operation is canceled.
Essential Safety Equipment
Seats
2-12
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

▼Adjusting the Front Passenger's Seat
Power operation
Seat Slide
(Manual Seat)
To move a seat forward or backward, raise the lever and slide the seat to the desired position
and release the lever.
Make sure the lever returns to its original position and the seat is locked in place by
attempting to push it forward and backward.
(Power Seat)
To slide the seat, move the slide lifter switch on the outside of the seat to the front or back
and hold it. Release the sw itch at the desired position.
Height Adjustment (Power Seat)*
To adjust the seat height, move th e slide lifter switch up or down.
Seat Recline
(Manual Seat)
To change the seatback angle, lean forward slightly while raising the lever. Then lean back
to the desired position and release the lever.
Make sure the lever returns to its original pos ition and the seatback is locked in place by
attempting to push it forward and backward.
(Power Seat)
To change the seatback angle, press the front or rear side of the reclining switch. Release the
switch at the desired position.
Essential Safety Equipment
Seats
*Some models.2-13
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

Lumbar Support Adjustment (Power Seat)*
To increase the seat firmness, press and hold the front part of the switch to the desired
position, then release it.
Press the rear part of the switch to decrease firmness.
Essential Safety Equipment
Seats
2-14*Some models.
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

Second-row Seat (6:4 Split Adjustable-type Bench Seat
Ty p e )
Seat Slide (Forward -back adjustment)
To move a seat forward or backward, raise the lever and slide the seat to the desired position
and release the lever.
Make sure the lever returns to its original position and the seat is locked in place by
attempting to push it forward and backward.
Seat Recline
To change the seatback angle, lean forward slightly while raising the lever. Then lean back
to the desired position and release the lever.
The lever can also be used when flattening down the seats.
Refer to Split Folding the S econd-row Seats on page 2-20.
Make sure the lever returns to its original pos ition and the seatback is locked in place by
attempting to push it forward and backward.
Third-row Seat Access
(Lever)
Pull up the lever on the side of the head rest raint to fold the seatback and slide the seat
forward.
Refer to Third-row Seat Access on page 2-16.
Make sure the lever returns to its original position and the seat is locked in place by
attempting to push it forward and backward.
Essential Safety Equipment
Seats
2-15
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

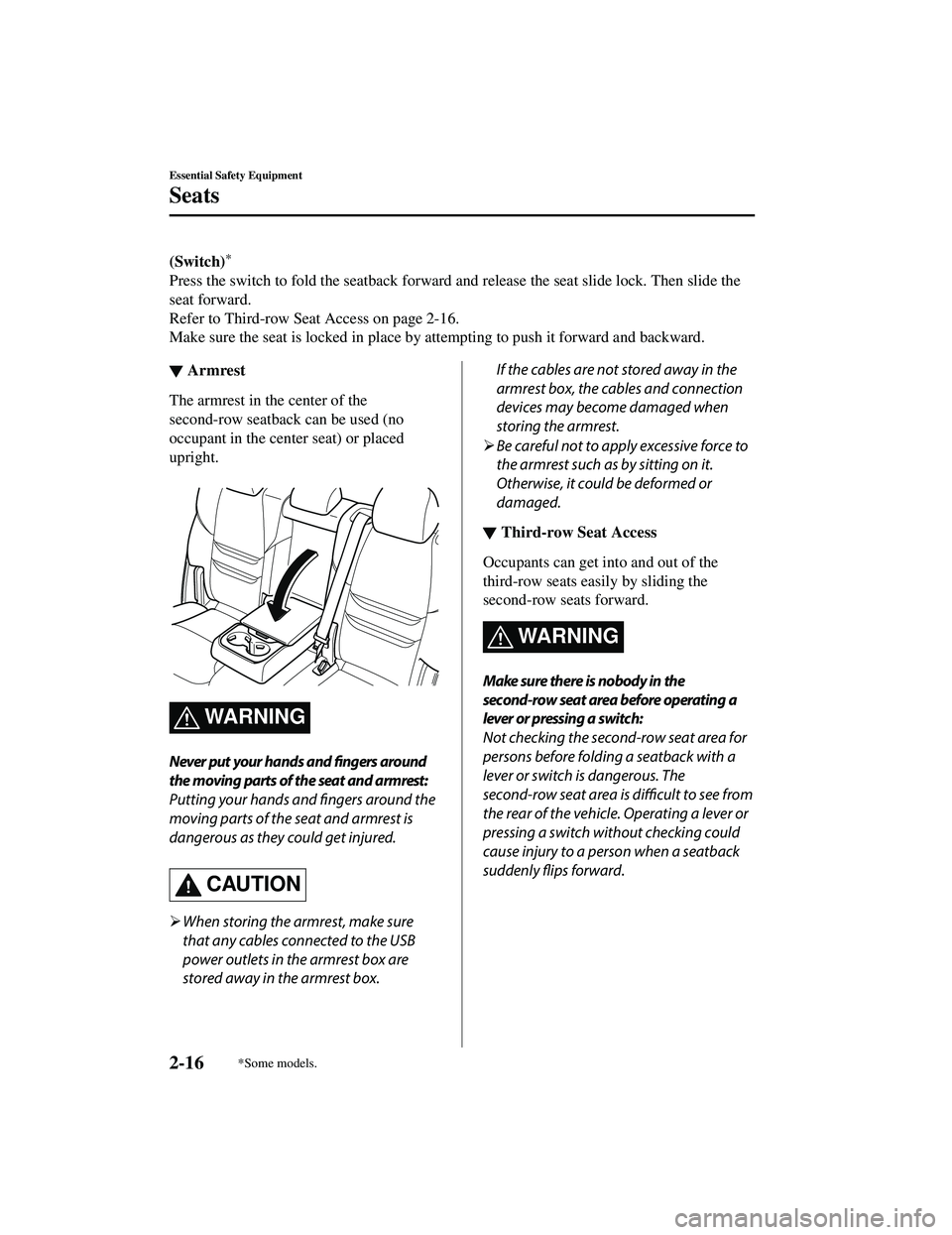

(Switch)*
Press the switch to fold the seatback forward and release the seat slide lock. Then slide the
seat forward.
Refer to Third-row Seat Access on page 2-16.
Make sure the seat is locked in place by attempting to push it forward and backward.
▼ Armrest
The armrest in the center of the
second-row seatback can be used (no
occupant in the center seat) or placed
upright.

WA R N I N G
Never put your hands and fingers around
the moving parts of the seat and armrest:
Putting your hands and fingers around the
moving parts of the seat and armrest is
dangerous as they could get injured.
CAUTION

When storing the armrest, make sure
that any cables connected to the USB
power outlets in the armrest box are
stored away in the armrest box.
If the cables are not stored away in the
armrest box, the cables and connection
devices may become damaged when
storing the armrest.
 Be careful not to apply excessive force to
the armrest such as by sitting on it.
Otherwise, it could be deformed or
damaged.
▼ Third-row Seat Access
Occupants can get into and out of the
third-row seats easily
by sliding the
second-row seats forward.
WA R N I N G
Make sure there is nobody in the
second-row seat area before operating a
lever or pressing a switch:
Not checking the second-row seat area for
persons before foldin g a seatback with a
lever or switch is dangerous. The
second-row seat area is difficult to see from
the rear of the vehicle. Operating a lever or
pressing a switch without checking could
cause injury to a person when a seatback
suddenly flips forward.
Essential Safety Equipment
Seats
2-16*Some models.
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

Do not operate the lever on the side of the
head restraint or press the switch on the
side of the seat under the following
conditions:
Operating the lever on the side of the head
restraint or pressing the switch on the side
of the seat under the following conditions
is dangerous as the seat may move
unexpectedly and cause an injury such as a
foot getting pinched between the seat and
floor.
Occupant is seated in second-row seat


Second-row seatback is folded forward


Child is seated on child restraint in
second-row seat


Essential Safety Equipment
Seats
2-17
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

CAUTION
When operating the seat, be careful not
to get your hand or foot caught, or hit
your head.
 Before moving the second-row seat,
make sure that the head restraint is at
the lowest position. If the second-row
seat is folded forward while the head
restraint is pulled up, there will not be
enough space for getting in or out of the
vehicle which could cause an occupant
to trip and fall resulting in injury.
 Check the position of a front seat before
folding a second-row seatback.
Depending on the position of a front
seat, it may not be possible to fold a
second-row seatback all the way down
because it may hit the seatback of the
front seat which could scratch or
damage the front seat or its pocket.
Remove the head restraint on the
second-row outboard seat if necessary.
Entering/exiting the third-row seat area
1. Lower the head restraint all the way down.
Refer to Head Restraints on page
2-28.
2. (Lever)
Pull up the lever on the side of the
head restraint to unlock the seat, fold
the seatback forward, and slide the seat
forward.
(Switch)
To unlock the seat, press the switch
continuously until a sound is activated,
release it, fold the seatback forward,
and slide the seat forward.
NOTE
When any of the following conditions
is met, a beep sound is activated
continuously and the switch operation
is canceled.
The door on the side where the
switch was operated is closed.
The switch is pressed continuously
for 5 s or more.
The vehicle is being driven.
The selector lever is in a position
other than P, and the parking brake
is off.
The battery has deteriorated.
Essential Safety Equipment
Seats
2-18
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

There is a system problem.
CAUTION
Do not operate the lever on the side of a
second-row seat while the seatback is
folded down and the se at is slid forward.
If the lever is forcefully operated, it could
damage the lever.
 After entering/exiting the third-row seat
area, return the second-row seatback to
its upright position and lock it after
sliding it rearward.
Make sure it is locked by attempting to
lightly move it back and forth.
Otherwise, it could move unexpectedly
and cause injury.
After getting in or out of the vehicle
Move the seatback rearward, slide the seat
rearward, and lock the seat.
Entering/exiting the third-row seat area
with child-restraint system installed
(Right-side seat only)
Access to the third-ro w seats is possible
even when a child-restraint system is
installed to the second-row seat.
(Lever)
Pull up the lever on the side of the head
restraint to lower the front side of the seat
and slide the seat forward.
(Switch)
To unlock the seat, press the switch
continuously until a sound is activated,
release it, fold the seatback forward, and
slide the seat forward.
NOTE
When any of the following conditions is
met, a beep sound is activated
continuously and the switch operation is
canceled.
The door on the side where the switch
was operated is closed.
The switch is pressed continuously for 5
s or more.
The vehicle is being driven.
The selector lever is in a position other
than P, and the parking brake is off.
The battery has deteriorated.
Essential Safety Equipment
Seats
2-19
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44
