2021 MAZDA MODEL CX-9 Owners Manual

Functionnumber Function*1
5When the ignition is switched ON
and the selector lever is shifted from
park (P) to any other gear position, all
the doors and the liftgate lock auto
‐
matically.
When the selector lever is shifted to
park (P) while the ignition is switched
ON, all the doors and the liftgate un ‐
lock automatically.
6 All the doors and th
e liftgate lock au‐
tomatically when the vehicle speed is
about 20 km/h (12 mph) or more.
When the selector lever is shifted to
park (P) while the ignition is switched
ON, all the doors and the liftgate un ‐
lock automatically.
*1 Other settings for the auto door lock function are available at an Authorized Mazda Dealer. For
details consult an Authorized Mazda Dealer.
Refer to the Settings section in the Mazda
Connect Owner's Manual.
Settings can be changed using the
following procedure.
1. Safely park the vehicle. All doors andthe liftgate must remain closed.
2. Switch the ignition ON.
3. Press and hold the lock side of the driver's door-lock switch within 20
seconds of switching the ignition ON,
and make sure a beep sound is heard
about eight seconds afterwards.
4. Refer to the auto lock/unlock function setting table, determine the function
number for the desired setting. Press
the unlock side of the driver's
door-lock switch the same number of
times as the selected function number
(Ex. If you select function 2, press the
unlock side of the switch only 2 times).
5. Three seconds after the function setting has been changed, a beep sound
will beep in the amount of the selected
function number. (Ex. Function
number 3 = 3 beep sounds)
NOTE
The doors and the liftgate cannot be
locked or unlocked while the setting
function is being performed.
The procedure can be cancelled by
pressing the lock side of the driver's
door-lock switch.
▼Locking, Unlocking with Door-Lock
Knob
Operation from inside
To lock any door from the inside, press the
door-lock knob.
To unlock, pull it outward.
Before Driving
Doors and Locks
3-18
CX-9_8JK1-EA-20G_Edition6_old
2021-12-8 9:30:44

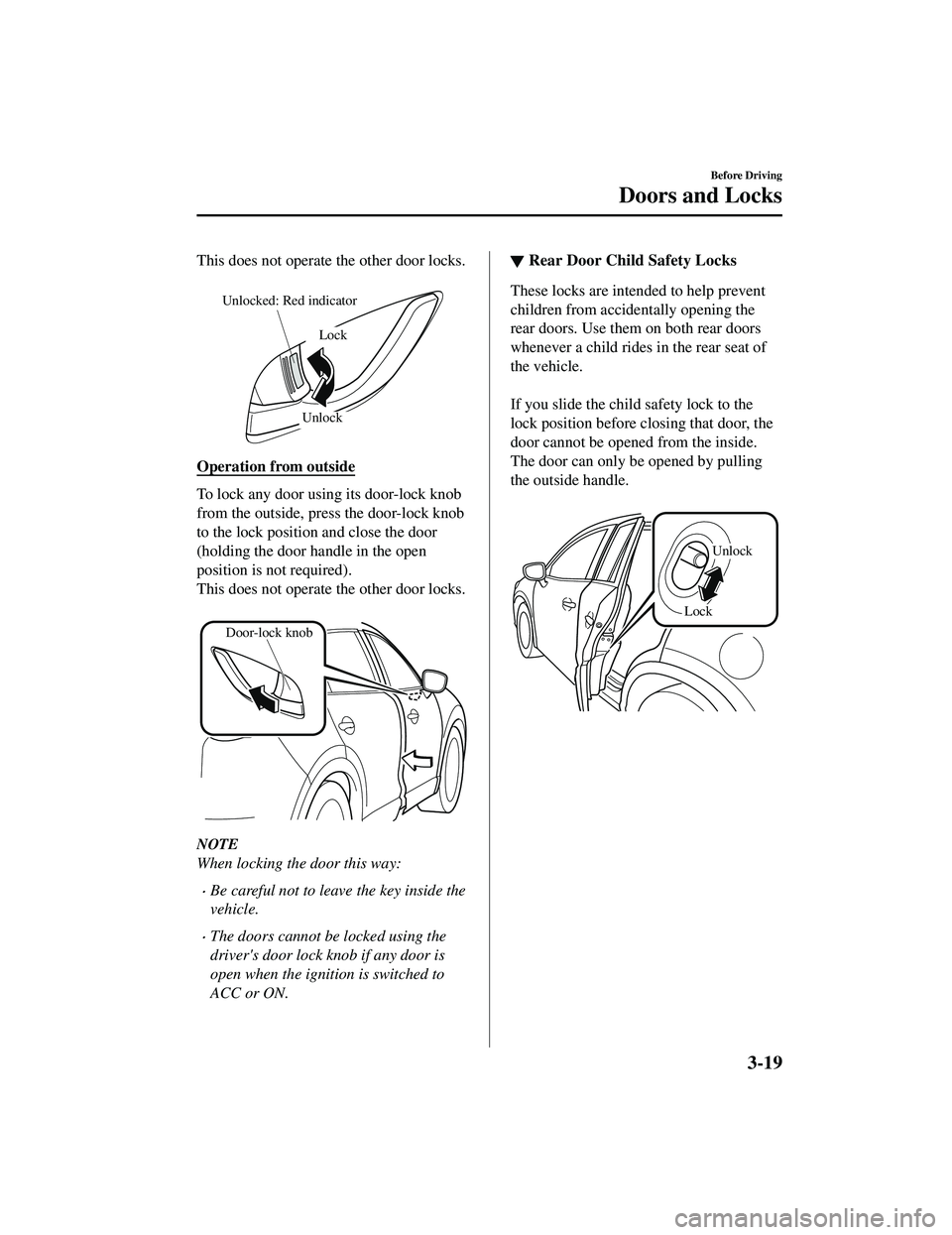

This does not operate the other door locks.

Lock
Unlock
Unlocked: Red indicator
Operation from outside
To lock any door using its door-lock knob
from the outside, press the door-lock knob
to the lock position and close the door
(holding the door handle in the open
position is not required).
This does not operat
e the other door locks.

Door-lock knob
NOTE
When locking the door this way:
Be careful not to leave the key inside the
vehicle.
The doors cannot be locked using the
driver's door lock knob if any door is
open when the igni tion is switched to
ACC or ON.
▼ Rear Door Child Safety Locks
These locks are intended to help prevent
children from accidentally opening the
rear doors. Use them on both rear doors
whenever a child rides in the rear seat of
the vehicle.

If you slide the child
safety lock to the
lock position before closing that door, the
door cannot be opened from the inside.
The door can only be opened by pulling
the outside handle.

Lock Unlock
Before Driving
Doors and Locks
3-19
CX-9_8JK1-EA-20G_Edition6_old
2021-12-8 9:30:44

Liftgate
WA R N I N G
Never allow a person to ride in the luggage
compartment:
Allowing a person to ride in the luggage
compartment is dangerous. The person in
the luggage compartment could be
seriously injured or killed during sudden
braking or a collision.
Do not drive with the liftgate open:
Exhaust gas in the cabin of a vehicle is
dangerous. An open liftgate in a moving
vehicle will cause exhaust gas to be drawn
into the cabin. This gas contains CO
(carbon monoxide), which is colorless,
odorless, and highly poisonous, and it can
cause loss of consciousness and death.
Moreover, an open liftgate could cause
occupants to fall out in an accident.
Do not stack or leave loaded luggage
unsecured in the luggage compartment:
Otherwise, the luggage may move or
collapse, resulting in injury or an accident.
In addition, do not load luggage higher
than the seatbacks. It may affect the side or
rear field of view.
CAUTION
Before opening the liftgate, remove any
snow and ice accumulation on it.
Otherwise, the liftgate could close under
the weight of the snow and ice resulting
in injury.
Be careful when opening/closing the
liftgate during strong winds. If a strong
gust blows against the liftgate, it could
close suddenly resulting in injury.
 Fully open the liftgate and make sure
that it stays open. If the liftgate is only
opened partially, it could slam shut by
vibration or wind gusts resulting in
injury.
 When loading or unloading luggage in
the luggage compartment, turn off the
engine. Otherwise, you could get burned
by the heat of the exhaust gas.
 Be careful not to apply excessive force to
the damper stay on the liftgate such as
by putting your hand on the stay.
Otherwise, the damper stay may bend
and
affect the liftgate operation.
Damper stay

Do not modify or replace the liftgate
damper stay. Consult an Authorized
Mazda Dealer if a liftgate damper stay is
deformed or damaged for reasons such
as a collision or if there is some other
problem.
▼ Opening and Closing the Liftgate
Opening the liftgate with Electric
liftgate opener
Unlock the doors and liftgate, then press
the electric liftgate opener on the liftgate
Before Driving
Doors and Locks
3-20
CX-9_8JK1-EA-20G_Edition6_old
2021-12-8 9:30:44

and raise the liftgate when the latch
releases.
For the power liftgate operation, refer to
Power Liftgate on page 3-22.
Electric liftgate
opener
NOTE
(With the advanced keyless function)
A locked liftgate can also be opened
while the key is being carried.
When opening the liftgate with the doors
and the liftgate locked, it may require a
few seconds for the liftgate latch to
release after the electric liftgate opener
is pressed.
The liftgate can be closed when the
doors are locked with the key left in the
vehicle. However, to prevent locking the
key in the vehicle, the liftgate can be
opened by pressing the electric liftgate
opener. If the liftgate cannot be opened
despite doing this procedure, first push
the liftgate completely closed, then press
the electric liftgate opener to fully open
the liftgate.
When the liftgate latch is released by
pressing the electric liftgate opener, the
liftgate raises slightly. If the liftgate is
not operated for a certain period of
time, the liftgate cannot be raised.
To o p e n
Press the electric liftgate opener again.
To c l o s e
To close the liftgate from its slightly
raised position, open it first by pressing
the electric liftgate opener, then close it
after waiting at least 1 second.
If the liftgate is not fully closed, the
driver is notified by a warning indicated
in the instrument cluster.
If the vehicle battery is dead or there is
a malfunction in the electrical system
and the liftgate cannot be unlocked, the
liftgate can be opened by performing the
emergency procedure.
Refer to When Liftgate Cannot be
Opened on page 7-52.
Closing the liftgate
Lower the liftgate slowly using the liftgate
handle, then push the liftgate closed using
both hands.
Do not slam it. Pull up on the liftgate to
make sure it is secure.
For the power liftgate operation, refer to
Power Liftgate on page 3-22.
Liftgate handle
NOTE
Confirm that the liftgate is securely closed.
The liftgate, move it without pressing the
electric liftgate opener to verify that the
liftgate has not been left ajar.
Before Driving
Doors and Locks
3-21
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

▼Power Liftgate*
The power liftgate opens/closes
electrically by operating the switches in
the vehicle or the buttons on the keyless
entry system transmitter.
WA R N I N G
Be sure to watch the power liftgate as it
opens or closes, and make sure that it
closes completely:
Opening or closing the power liftgate while
not watching it move is dangerous.
Because of unseen obstacles and the
jam-safe feature, a liftgate may not close
completely and, if le
ft unnoticed, could
result in serious injury or death if an
occupant were to fall out of the vehicle.
Always be sure that the area around the
liftgate is clear before activating it.
Always confirm the safety of the area
around the power liftgate before operating
it electrically.
Not checking the area around the liftgate
for people before operating it using the
power liftgate switch or the button on the
keyless entry system is dangerous. A person
could become caught between the liftgate
and an obstruction while it is opening
electrically or between the liftgate and
vehicle while it is closing electrically,
resulting in an accident and serious injury.
Never allow children to operate the power
liftgate system:
Allowing children to operate the power
liftgate switch and the keyless entry system
is dangerous. Children are not aware of the
dangers of people getting fingers and
hands caught in a moving liftgate. If
someone's neck, head or hands get caught
in a closing door, it could result in death or
serious injury.
CAUTION
 When closing the power liftgate, make
sure there are no foreign objects around
the striker. If foreign objects are
obstructing the striker, the liftgate may
not close properly.
Striker
Do not install accessories to the power
liftgate other than specified accessories.
Otherwise, it cannot be opened/closed
automatically and could result in a
malfunction.
 Be careful when switching the power
liftgate from electrical to manual
operation. The power liftgate may open/
close unexpectedly depending on its
position which could result in injury.
Before Driving
Doors and Locks
3-22*Some models.
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

NOTE
Do not apply unnecessary force to the
power liftgate when it is opening/closing
electrically. Unnecessary force on the
liftgate may cause it to reverse direction
of movement automatically. Also, it
could result in a malfunction.
The power liftgate may not open/close
electrically if the vehicle is parked on an
incline, or there is strong wind, or the
liftgate is laden with snow.
If a power liftgate system fuse has
blown, the liftgate cannot be opened
using the power liftgate switch or the
electric liftgate opener. Use the
emergency lever to open the liftgate.
Fully close the power liftgate before
disconnecting the vehicle battery. If the
battery is disconnect ed with the liftgate
open, it cannot be opened or closed
automatically after the battery is
reconnected. If this happens, fully close
the liftgate manually to restore the auto
full open/close function.
If the liftgate is snow-laden, remove the
snow before operating the power
liftgate. Operating the power liftgate
with excessive forc e applied to the
liftgate may damage the liftgate.
Operation using the transmitter
Press the power liftgate button for one
second or longer. The hazard warning
lights flash twice and the liftgate opens/
closes after the beep sounds.
Refer to Transmitter on page 3-5.
NOTE
When the ignition is switched ON, the
transmitter does not operate.
When opening the liftgate by pressing
the power liftgate button on the
transmitter, the liftgate can be opened
even when it is locked.
If the power liftgate button on the
transmitter is pressed while the liftgate
is opening/closing electrically, the beep
is activated and the liftgate stops. When
pressing the power liftgate button again,
the liftgate moves in the reverse
direction.
Operation using each switch
Operation conditions
Opening the liftgate
If the vehicle has satisfied all the
following operation conditions, the power
liftgate can be opened using the power
function.
All doors and the liftgate are unlocked.
The ignition is swit ched OFF, or the
selector lever is in P with the ignition
switched ON.
Closing the liftgate
The ignition is swit ched OFF, or the
selector lever is in P with the ignition
switched ON.
NOTE
If the vehicle moves with the selector
lever shifted to a position other than P
while the liftgate is opening/closing
electrically, the liftgate moves as
follows:
While opening electrically
Before Driving
Doors and Locks
3-23
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

The buzzer is activated, and the liftgate
moves in the reverse direction
automatically and closes. When the
selector lever is shifted to P, you can
resume the power liftgate operation
using the switches.
While closing electrically
The buzzer is activated, but the liftgate
continues closing.
Operation from the driver's seat (To
open/close)
Press the power liftgate switch for about
one second or longer while the liftgate is
in the fully closed/open position. The
hazard warning lights flash twice and the
liftgate opens/closes fully after the beep
sound is heard.
Power liftgate
switch
Operation from outside (To open)
Press the electric liftgate opener on the
liftgate and raise the liftgate. The hazard
warning lights flash twice and the liftgate
opens automatically after the beep sound
is heard.
(With the advanced keyless function)
Electric liftgate
opener
Operation from outside (To close)
Press the power liftgate close switch while
the liftgate is fully opened. The hazard
warning lights flash twice and the liftgate
closes automatically after the beep sound
is heard.
Power liftgate
close switch
NOTE
If the power liftgate switch/power liftgate
close switch is pressed or the electric
liftgate opener is operated while the
liftgate is opening/clos ing electrically, the
beep sound is heard and the liftgate stops.
Then, it reverses when any of the switches
are pressed again.
Before Driving
Doors and Locks
3-24
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44

Hands-free liftgate*
When the hands-free liftgate sensor on the
center bottom of the rear bumper detects
foot movement (kick-activated liftgate),
the liftgate opens/closes automatically.
The liftgate can be opened/closed even
with both hands full, such as when
carrying baggage.
Operation conditions
Do the kicking motion with your foot
when all of the following conditions are
met while the vehicle is stopped.
(When ignition is switched OFF)
You are carrying the transmitter.
The hands-free liftgate is on.
(When ignition is switched ON)
You are carrying the transmitter.
The hands-free liftgate is on.
The selector lever is in the P position.
How to do the kicking motion
A: About 30 cm (12 in) B: About 10 cm (3.9 in)
A
B
1. Stand at the position about 30 cm (12 in) behind the center of the rear
bumper.
2. Move your foot to the position about 10 cm (3.9 in) from the center bottom
of the rear bumper.
3. Move your foot away from under the bumper within about 1 second after
moving it under the bumper.
When the kicking motion is done
correctly, the hazard warning lights flash 2
times, a beep sound is activated, and the
liftgate opens/closes automatically. Be
careful not to contact the liftgate.

If the kicking motion is done while the
liftgate is opening/closing automatically,
the liftgate will stop. If the kicking motion
is done again, the liftgate moves in the
direction opposite to the direction it was
moving before it stopped.
CAUTION
 Do not do the kicking motion while
wearing footwear such as sandals, or
with your bare foot. If your foot contacts
the hot exhaust pipe, it could cause
serious burns.
 Do not do the kicking motion while the
area where you are standing is unstable
such as a slope or icy road. Otherwise,
you could fall down, resulting in injury.
 Do not paint the rear bumper or install
any add-on equipment to it. Otherwise,
the hands-free liftgate sensor may not
operate normally.
Before Driving
Doors and Locks
*Some models.3-25
CX-9_8JK1-EA-20G_Edition6_old 2021-12-8 9:30:44
