Page 25 of 32
22
Upper Display (Shortcut Menu)
The upper touch-screen display (upper display) provides the information, the view monitor system or
the navigation map (if so equipped).
To control the upper display, use the touch-screen, the Infiniti controller
or the steering
wheel switches .
WITHOUT NAVIGATION (if so equipped)
With no item selected, press the OK button
on the Infiniti controller
or steering wheel switch to display the shortcut menu on the upper display. The
shortcut menu will provide options such as:
• Audio Source
•
Audio List
•
Call Hist
ory
•
Phonebook
• Display ed Feature
•
Cust
omize This Menu
•
T
urn ALC ON/Turn ALC OFF
WITH NAVIGATION (if so equipped)
With the current vehicle location displayed on the map screen, press the OK button
on the Infiniti
controller or steering wheel switch to display the shortcut menu on the upper display.
Selecting the shortcut menu key
on the map screen will also display the shortcut menu . The
shortcut menu will provide options such as:
•
Audio Source
•
Audio List
•
Call Hist
ory
•
Phonebook
•
Canc
el Route
•
P
oints of Interest
•
Save Location
•
Split
Map Views
•
Cust
omize This Menu
•
T
urn ALC ON/Turn ALC OFF
Please see your INFINITI InTouch™ Owner’s Manual for important safety information, system limitations, and additional operating and
feature information.
Page 26 of 32
23
The ICC system is designed to maintain a
selected distance from the vehicle in front
of you and reduce the speed to match a
slower vehicle ahead.
VEHICLE-TO-VEHICLE
DISTANCE CONTROL MODE
•
T
o turn on the vehicle-to-vehicle (ICC)
cruise control mode, quickly push and
release the MAIN switch
.
•
T
o increase the distance to the
vehicle ahead to be maintained by
the ICC system, push the distance
switch
until the display shows the
desired set distance, which is shown
by the number of lines on the set
distance indicator
.
•
When a
vehicle is detected
ahead, a vehicle ahead detection
indicator
will illuminate and your
vehicle will reduce the speed to match the slower vehicle.
CONVENTIONAL (FIXED SPEED) CRUISE CONTROL MODE
•
T
o turn on the conventional (fixed speed) cruise control mode, push and hold
the MAIN switch
for longer than about 1.5 seconds.
Please see your Owner’s Manual for important safety information, system limitations, and additional
operating and feature information.
SETTING A CRUISING SPEED
•
Push the cruise c
ontrol ON-OFF switch
to turn
on the system.
•
With the
vehicle at the desired speed, push down the
control switch
to SET to enable cruise control.
•
The cruising speed c
an be adjusted to a higher or lower
speed by toggling the control switch
up or down.
CANCELING THE PRESET SPEED
•
Push the CANCEL switch
or tap the brake pedal.
Please see your Owner’s Manual for important safety information, system
limitations, and additional operating and feature information.
Cruise Control (if so equipped)Intelligent Cruise Control (ICC)
(if so equipped)
Page 27 of 32
24
Blind Spot Warning (BSW)
(if so equipped)
• The Blind Spo t Warning (BSW) can help alert
the driver of other vehicles in the blind spot area
when changing lanes.
TURNING BLIND SPOT WARNING ON OR OFF
• BSW can be turned on or off through the “Driver
Assistance” section of the lower display.
Please see your Owner’s Manual for important safety information, system
limitations, and additional operating and feature information.
Lane Departure Warning (LDW)
(if so equipped)
Lane Departure Warning (LDW) warns you if the vehicle is beginning
to leave the traveling lane.
• LDW is activated at speeds of 45 mph (70 km/h) and above and the
lane markings are clear.
•
I
f a front wheel passes over a lane marking, LDW will warn
you through a visual alert
and an
intermittent vibration in the steering wheel
for up to 1.5 seconds.
•
The Dynamic driv
er assistance switch
is
located on the steering wheel.
TURNING LANE DEPARTURE
WARNING ON OR OFF
• LDW can be turned on or off through the “Driver
Assistance” section of the lower display.
Please see your Owner’s Manual for important safety information, system limitations, and additional operating
and feature information.
Page 28 of 32
Page 29 of 32
Page 30 of 32
Page 31 of 32
Page 32 of 32

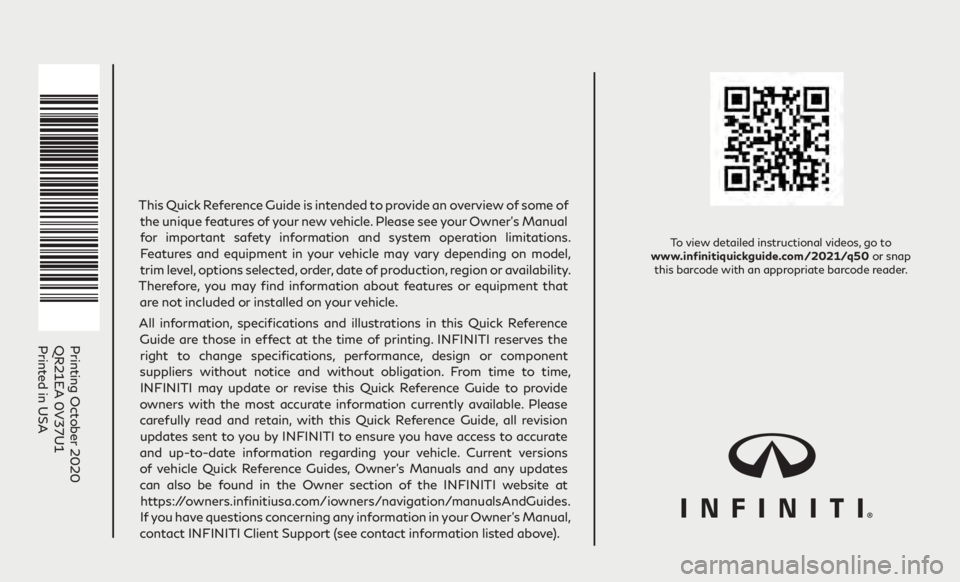

To view detailed instructional videos, go to
www.infinitiquickguide.com/2021/q50 or snap this barcode with an appropriate barcode reader.
Printing October 2020
QR21EA 0V37U1
Printed in USA
This Quick Reference Guide is intended to provide an overview of some of
the unique features of your new vehicle. Please see your Owner’s Manual
for important safety information and system operation limitations. Features and equipment in your vehicle may vary depending on model,
trim level, options selected, order, date of production, region or availability.
Therefore, you may find information about features or equipment that are not included or installed on your vehicle.
All information, specifications and illustrations in this Quick Reference Guide are those in effect at the time of printing. INFINITI reserves the right to change specifications, performance, design or component
suppliers without notice and without obligation. From time to time, INFINITI may update or revise this Quick Reference Guide to provide
owners with the most accurate information currently available. Please
carefully read and retain, with this Quick Reference Guide, all revision updates sent to you by INFINITI to ensure you have access to accurate
and up-to-date information regarding your vehicle. Current versions of vehicle Quick Reference Guides, Owner’s Manuals and any updates
can also be found in the Owner section of the INFINITI website at
https://owners.infinitiusa.com/iowners/navigation/manualsAndGuides.
If you have questions concerning any information in your Owner’s Manual,
contact INFINITI Client Support (see contact information listed above).
