2021 HYUNDAI KONA EV relay

7-49
7
Maintenance

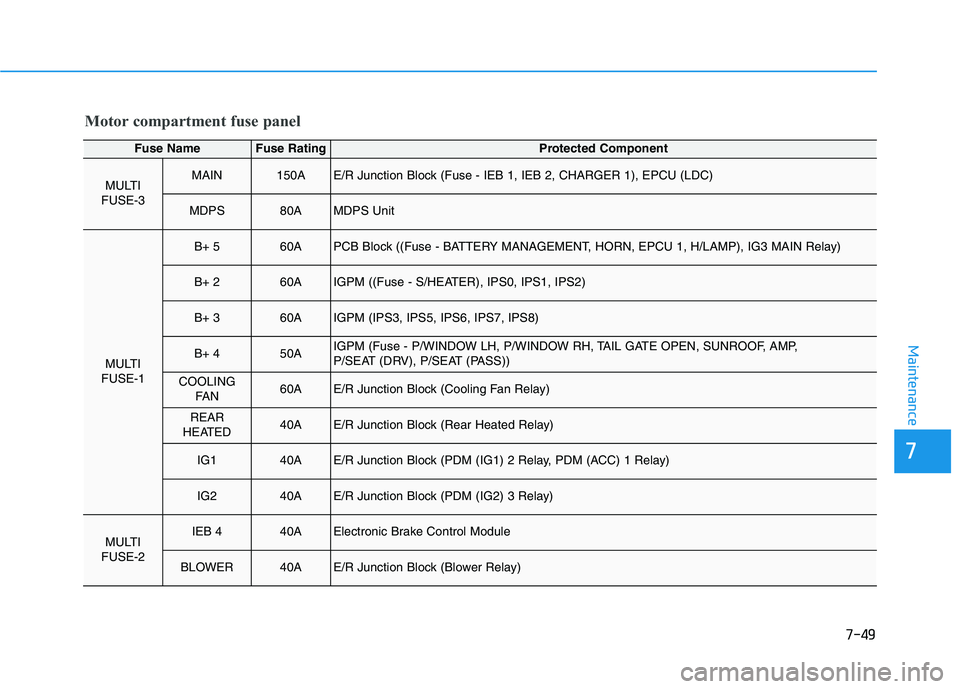

Motor compartment fuse panel
Fuse NameFuse RatingProtected Component
MULTI
FUSE-3MAIN150AE/R Junction Block (Fuse - IEB 1, IEB 2, CHARGER 1), EPCU (LDC)
MDPS80AMDPS Unit
MULTI
FUSE-1
B+ 560APCB Block ((Fuse - BATTERY MANAGEMENT, HORN, EPCU 1, H/LAMP), IG3 MAIN Relay)
B+ 260AIGPM ((Fuse - S/HEATER), IPS0, IPS1, IPS2)
B+ 360AIGPM (IPS3, IPS5, IPS6, IPS7, IPS8)
B+ 450AIGPM (Fuse - P/WINDOW LH, P/WINDOW RH, TAIL GATE OPEN, SUNROOF, AMP,
P/SEAT (DRV), P/SEAT (PASS))
COOLING
FA N60AE/R Junction Block (Cooling Fan Relay)
REAR
HEATED40AE/R Junction Block (Rear Heated Relay)
IG140AE/R Junction Block (PDM (IG1) 2 Relay, PDM (ACC) 1 Relay)
IG240AE/R Junction Block (PDM (IG2) 3 Relay)
MULTI
FUSE-2IEB 440AElectronic Brake Control Module
BLOWER40AE/R Junction Block (Blower Relay)

7-50
Maintenance

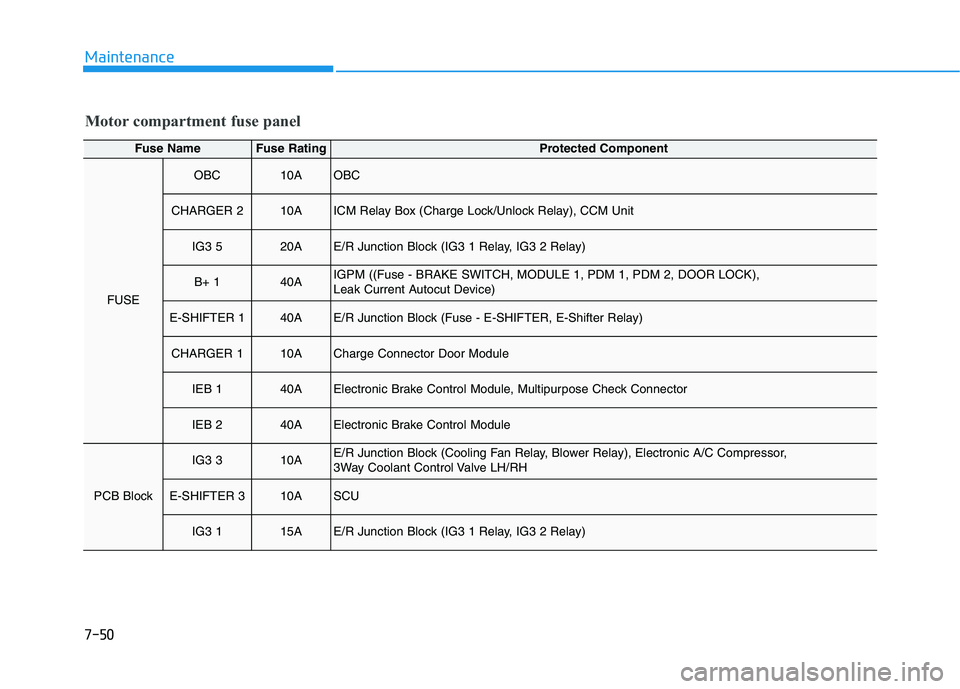

Motor compartment fuse panel
Fuse NameFuse RatingProtected Component
FUSE
OBC10AOBC
CHARGER 210AICM Relay Box (Charge Lock/Unlock Relay), CCM Unit
IG3 520AE/R Junction Block (IG3 1 Relay, IG3 2 Relay)
B+ 140AIGPM ((Fuse - BRAKE SWITCH, MODULE 1, PDM 1, PDM 2, DOOR LOCK),
Leak Current Autocut Device)
E-SHIFTER 140AE/R Junction Block (Fuse - E-SHIFTER, E-Shifter Relay)
CHARGER 110ACharge Connector Door Module
IEB 140AElectronic Brake Control Module, Multipurpose Check Connector
IEB 240AElectronic Brake Control Module
PCB Block
IG3 310AE/R Junction Block (Cooling Fan Relay, Blower Relay), Electronic A/C Compressor,
3Way Coolant Control Valve LH/RH
E-SHIFTER 310ASCU
IG3 115AE/R Junction Block (IG3 1 Relay, IG3 2 Relay)

7-51
7
Maintenance

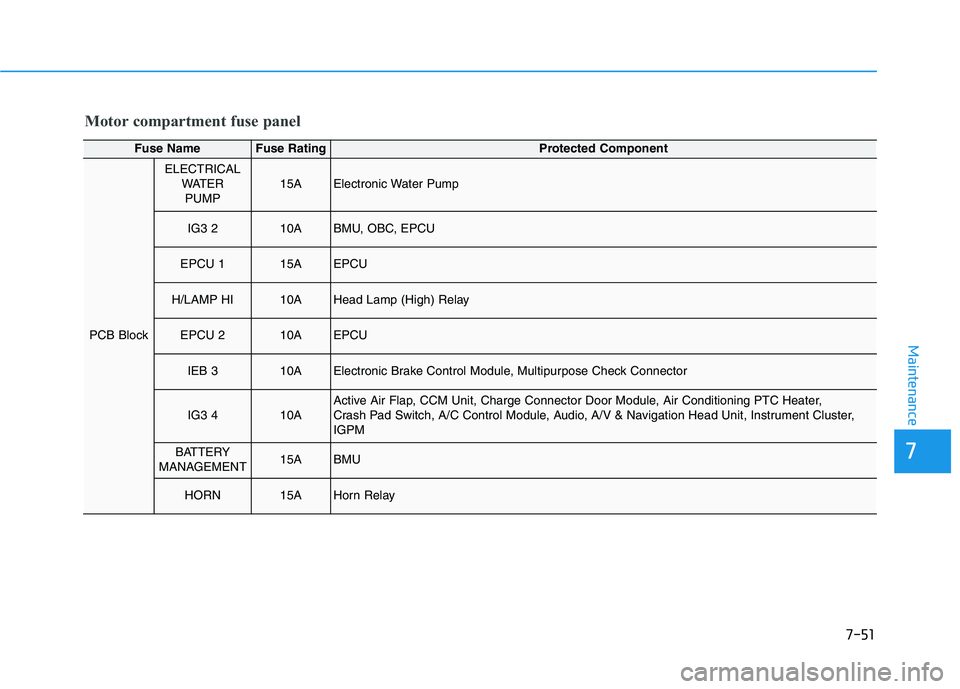

Motor compartment fuse panel
Fuse NameFuse RatingProtected Component
PCB Block
ELECTRICAL
WATER
PUMP15AElectronic Water Pump
IG3 210ABMU, OBC, EPCU
EPCU 115AEPCU
H/LAMP HI10AHead Lamp (High) Relay
EPCU 210AEPCU
IEB 310AElectronic Brake Control Module, Multipurpose Check Connector
IG3 410AActive Air Flap, CCM Unit, Charge Connector Door Module, Air Conditioning PTC Heater,
Crash Pad Switch, A/C Control Module, Audio, A/V & Navigation Head Unit, Instrument Cluster,
IGPM
BATTERY
MANAGEMENT15ABMU
HORN15AHorn Relay

7-52
Maintenance
Motor compartment fuse panel
(Battery terminal cover)
Inside the fuse/relay box cover, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle; the information is accurate at
the time of printing. When you inspect
the fuse panel in your vehicle, refer to
the fuse panel label.
i
OOSEV078019
OPD076065
After checking the fuse panel in the motor compartment, securely
install the cover. If it is not securely latched, electrical failure may occur
from water contact.
NOTICE
