2021 HYUNDAI KONA EV display

6-15
What to do in an emergency
6

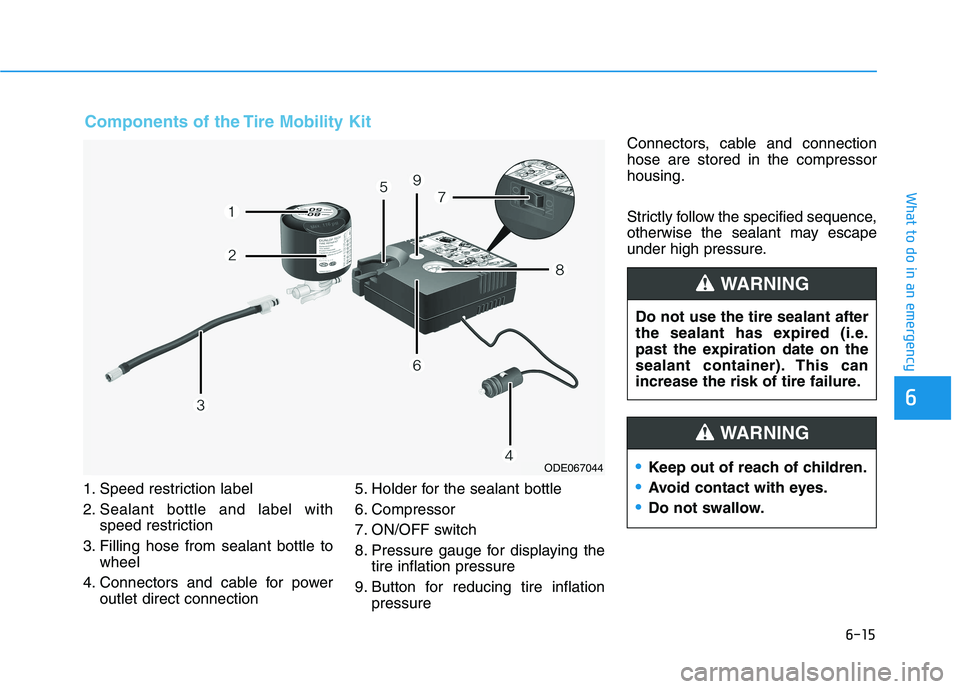

1. Speed restriction label
2. Sealant bottle and label with
speed restriction
3. Filling hose from sealant bottle to
wheel
4. Connectors and cable for power
outlet direct connection5. Holder for the sealant bottle
6. Compressor
7. ON/OFF switch
8. Pressure gauge for displaying the
tire inflation pressure
9. Button for reducing tire inflation
pressureConnectors, cable and connection
hose are stored in the compressor
housing.
Strictly follow the specified sequence,
otherwise the sealant may escape
under high pressure.
Components of the Tire Mobility Kit
ODE067044
Do not use the tire sealant after
the sealant has expired (i.e.
past the expiration date on the
sealant container). This can
increase the risk of tire failure.
WARNING
Keep out of reach of children.
Avoid contact with eyes.
Do not swallow.
WARNING

7-31
7
Maintenance
Tire speed ratings
The chart below lists many of the dif-
ferent speed ratings currently being
used for passenger car tires. The
speed rating is part of the tire size
designation on the sidewall of the
tire. This symbol corresponds to that
tire’s designed maximum safe oper-
ating speed.
3. Checking tire life (TIN : Tire
Identification Number)
Any tires that are over six years old,
based on the manufacturing date,
(including the spare tire) should be
replaced by new ones. You can find
the manufacturing date on the tire
sidewall (possibly on the inside of the
wheel), displaying the DOT Code.
The DOT Code is a series of num-
bers on a tire consisting of numbers
and English letters. The manufactur-
ing date is designated by the last four
digits (characters) of the DOT code.
DOT : XXXX XXXX OOOO
The front part of the DOT means a
plant code number, tire size and
tread pattern and the last four num-
bers indicate week and year manu-
factured.
For example:
DOT XXXX XXXX 1420 represents
that the tire was produced in the 14th
week of 2020.
4. Tire ply composition and
material
The number of layers or plies of rub-
ber-coated fabric in the tire. Tire
manufacturers also must indicate the
materials in the tire, which include
steel, nylon, polyester, and others.
The letter "R" means radial ply con-
struction; the letter "D" means diago-
nal or bias ply construction; and the
letter "B" means belted-bias ply con-
struction.
5. Maximum permissible infla-
tion pressure
This number is the greatest amount
of air pressure that should be put in
the tire. Do not exceed the maximum
permissible inflation pressure. Refer
to the Tire and Loading Information
label for recommended inflation
pressure.
Speed
Rating
SymbolMaximum Speed
S 112 mph (180 km/h)
T 118 mph (190 km/h)
H 130 mph (210 km/h)
V 149 mph (240 km/h)
W 168 mph (270 km/h)
Y186 mph (300 km/h)

7-45
7
Maintenance
Fuse NameFuse RatingProtected Component
INTERIOR
LAMP7.5AGlove Box Lamp, Vanity Lamp LH/RH, Room Lamp, Overhead Console Lamp,
Wiresess Charger Unit, Luggage Lamp
MEMORY 27.5AVess Unit (Speaker), Electronic Refrigerant Reduced Pressure Valve
B/ALARM
HORN10ANot Used
MEMORY 110AA/C Control Module, Head Up Display, Instrument Cluster, BCM, Rain Sensor
SPARE20ASpare
AMP30AAMP
MODULE 67.5ASmart Key Control Module, BCM
MDPS7.5AMDPS Unit
MODULE 17.5AActive Air Flap, Hazard Switch, Data Link Connector, ICM Relay Box (Outside Mirror Folding/Unfolding Relay)
MODULE 77.5AFront Air Ventilation Seat Module, Front Seat Warmer Module
A/BAG IND7.5AInstrument Cluster, A/C Control Module
BRAKE
SWITCH7.5AStop Lamp Switch, Smart Key Control Module
Instrument panel fuse panel

7-46
Maintenance
Fuse NameFuse RatingProtected Component
START7.5ASmart Key Control Module, EPCU
CLUSTER7.5AHead Up Display, Instrument Cluster
DOOR LOCK20ADoor Lock Relay, Door Unlock Relay, ICM Relay Box (Two Turn Unlock Relay)
PDM 27.5AStart/Stop Button Switch
FCA10AForward Collision Avoidance Assist Unit
S/HEATER20AFront Seat Warmer Module, Front Air Ventilation Seat Module
SPARE20ASpare
A/C7.5AA/C Control Module, Cluster Ionizer
PDM 115ASmart Key Control Module
E-SHIFTER10AShift Select Switch (SBW), Front Console Switch
AIR BAG15ASRS Control Module, Passenger Occupant Detection Sensor
IG125APCB Block(FUSE : IEB 3, EPCU 2)
Instrument panel fuse panel

I-4
Cluster ionizer ...............................................................3-136
Coat hook ......................................................................3-145
Combined instrument, see instrument cluster ................3-46
Consumer information ......................................................8-9
Coolant ............................................................................7-12
Cruise control system .....................................................5-89
Cup holder.....................................................................3-139
Curtain air bags ...............................................................2-51
Dashboard illumination, see instrument panel
illumination ...................................................................3-47
Dashboard, see instrument cluster ..................................3-46
Daytime Running Light (DRL) ......................................3-99
Declaration of conformity .............................................5-75
Defogging (Windshield) ...............................................3-132
Defroster .......................................................................3-135
Rear window defroster .............................................3-135
Defrosting (Windshield) ...............................................3-132
Dimensions .......................................................................8-2
Display illumination, see instrument panel illumination ..3-47
Displays, see instrument cluster .....................................3-46
Distance to empty ..........................................................3-51
Door locks .......................................................................3-10
Auto door lock/unlock features ..................................3-13
Central door lock switch ............................................3-12
Child-protector rear door lock....................................3-14Drinks holders, see cup holders ....................................3-139
Drive mode system ........................................................5-48
Driver Attention Warning (DAW) .................................5-83
Driver's air bag................................................................2-49
Driving at night .............................................................5-113
Driving in flooded areas ...............................................5-114
Driving in the rain .........................................................5-113
Electric Power Steering (EPS) ........................................3-16
Electric vehicle specifications ..........................................8-2
Electrochromic mirror (ECM) with HomeLink
®system,
compass and Blue Link®..............................................3-20
Electronic Parking Brake (EPB) .....................................5-30
Electronic Stability Control (ESC) .................................5-42
Emergency towing ..........................................................6-23
EPB (Electronic Parking Brake) .....................................5-30
EV dive motor compartment ............................................7-3
EV drive motor compartment ...........................................1-6
Explanation of scheduled maintenance items .................7-11
Exterior care....................................................................7-63
Exterior overview
Front view ....................................................................1-2
Rear view......................................................................1-3
Index
D
E

I-5
Flat tire
Tire Mobility Kit (TMK)............................................6-14
Floor mat anchor(s).......................................................3-145
Fluid
Brake fluid ..................................................................7-13
Washer fluid ...............................................................7-14
Forward Collision-Avoidance Assist (FCA)...................5-49
Front seat adjustment ........................................................2-6
Manual adjustment .......................................................2-7
Power adjustment .........................................................2-9
Seatback pocket ..........................................................2-12
Front seat head restraints
Adjusting the height up and down .............................2-17
Removal/Reinstall ......................................................2-18
Front windshield washers .............................................3-112
Front windshield wipers................................................3-110
Fuse switch .....................................................................7-41
Fuse/relay panel description
Battery terminal cover ................................................7-52
Instrument panel fuse panel .......................................7-43
Motor compartment fuse panel ..................................7-48
Fuses ...............................................................................7-39
Fuse switch .................................................................7-41
Fuse/relay panel description .......................................7-43
Instrument panel fuse replacement.............................7-40
Motor compartment panel fuse replacement..............7-41
Multi fuse ...................................................................7-42Glove box......................................................................3-137
Gross vehicle weight.........................................................8-5
Hazard warning flasher .....................................................6-2
Hazardous driving conditions .......................................5-112
Head restraint ..................................................................2-16
Front seat head restraints............................................2-17
Rear seat Head restraints ............................................2-19
Headlamp delay function ..............................................3-105
Headlamp position ........................................................3-100
Headlight bulb replacement ............................................7-55
Head-up display ..............................................................3-96
Display information....................................................3-98
Display setting ............................................................3-98
ON/OFF switch ..........................................................3-97
Heated steering wheel .....................................................3-18
Heater ............................................................................3-119
Height adjustment ...........................................................2-27
High Beam Assist (HBA) system .................................3-101
High beam operation.....................................................3-101
Highway driving ...........................................................5-114
Hill-start Assist Control (HAC) ......................................5-47
Hood................................................................................3-41
Horn ................................................................................3-18
How to use this manual ....................................................F-6
I
Index
F
H
G

I-6
If the vehicle stalls at a crossroad or crossing ..................6-2
If the vehicle stalls while driving .....................................6-2
If the vehicle will not start ................................................6-3
If you have a flat tire ......................................................6-13
If you have a flat tire while driving ..................................6-3
Immobilizer system...........................................................3-8
Important safety precautions.............................................2-2
Air bag hazards ............................................................2-2
Always wear your seat belt ..........................................2-2
Control your speed .......................................................2-3
Driver distraction..........................................................2-2
Keep your vehicle in safe condition.............................2-3
Restrain all children .....................................................2-2
In case of emergency while driving..................................6-2
Indicator light..................................................................3-53
Inside rearview mirror ....................................................3-19
Instrument cluster ...........................................................3-46
Assist mode ................................................................3-80
Gauges and meters .....................................................3-48
Instrument panel illumination ....................................3-47
LCD display control ...................................................3-78
LCD display messages ...............................................3-65
LCD display modes ....................................................3-79
Master warning mode .................................................3-81
Regenerative braking level indicator .........................3-52Shift indicator .............................................................3-52
Shift indicator pop-up ................................................3-52
Smart ECO pedal guide..............................................3-53
Trip computer mode ...................................................3-80
User settings mode .....................................................3-82
Warning and indicator lights ......................................3-53
Instrument panel fuse replacement .................................7-40
Instrument panel overview ...............................................1-5
Interior care .....................................................................7-68
Interior features
Bottle holder .............................................................3-139
Cargo area cover.......................................................3-147
Clock ........................................................................3-144
Coat hook .................................................................3-145
Cup holder ................................................................3-139
Floor mat anchor(s) ..................................................3-145
Luggage net (holder) ................................................3-146
Power outlet..............................................................3-141
Sunvisor ....................................................................3-140
USB charger .............................................................3-142
Wireless cellular phone charging system .................3-142
Interior lamp AUTO cut................................................3-107
Interior lights.................................................................3-107
Front lamps...............................................................3-107
Interior lamp AUTO cut ...........................................3-107
Luggage compartment lamp .....................................3-108
Rear lamp .................................................................3-108
Vanity mirror lamp ...................................................3-109
Interior overview...............................................................1-4
Index
I

I-7
Jump starting .....................................................................6-4
Label
Refrigerant label ...........................................................8-8
Tire sidewall labeling .................................................7-29
Tire specification and pressure label ............................8-8
Vehicle certification label .............................................8-7
Lane change signals ......................................................3-104
Lane Keeping Assist (LKA) ..........................................5-76
Lap/shoulder belt ............................................................2-26
LCD display
Assist mode ................................................................3-80
Assist mode ................................................................3-80
LCD display modes ....................................................3-79
Master warning mode .................................................3-81
Quick guide help ........................................................3-82
Trip computer mode ...................................................3-80
Turn By Turn (TBT) mode.........................................3-80
User settings mode .....................................................3-82
LCD display control
Assist mode ................................................................3-80
LCD display modes ....................................................3-79
User settings mode .....................................................3-82LCD display messages
Driving info display ...................................................3-65
Aux. Battery Saver+ used while parked ....................3-73
Battery discharging due to external electrical devices .3-66
Charge immediately. Power limited ...........................3-74
Charging door open ....................................................3-72
Charging stopped. Check the AC/DC charger ...........3-72
Charging stopped. Check the cable connection .........3-73
Check Blind-Spot Collision Warning (BCW) system.3-69
Check brake light ......................................................3-69
Check BRAKE SWITCH fuse ...................................3-66
Check cornering lamp ................................................3-69
Check Driver Attention Warning (DAW) system ......3-70
Check electric vehicle system ....................................3-77
Check Forward Collision Avoidance Assist system...3-69
Check headlight ..........................................................3-68
Check headlight LED .................................................3-69
Check High Beam Assist (HBA) system ...................3-69
Check Lane Keep Assist (LKA) system ....................3-70
Check regenerative brakes /
Stop vehicle and check regenerative brakes ............3-74
Check Smart Cruise Control System ........................3-70
Check turn signal........................................................3-69
Check virtual engine sound ........................................3-77
Door, Hood, Liftgate open indicator .........................3-67
EV battery Overheated! Stop vehicle.........................3-75
Heated steering wheel turned off ...............................3-68
Key not detected .........................................................3-66
I
Index
J
L
