2021 HYUNDAI IONIQ ELECTRIC Owners Manual

5-79
Driving your vehicle
5

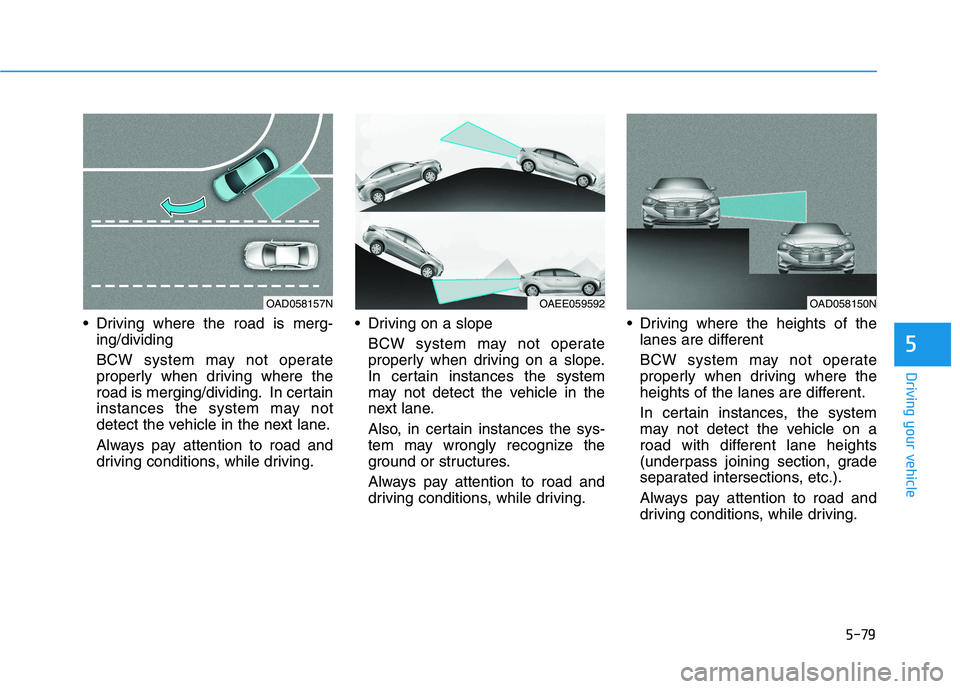

Driving where the road is merg-ing/dividing
BCW system may not operate
properly when driving where the
road is merging/dividing. In certain
instances the system may not
detect the vehicle in the next lane.
Always pay attention to road and
driving conditions, while driving. Driving on a slope
BCW system may not operate
properly when driving on a slope.
In certain instances the system
may not detect the vehicle in the
next lane.
Also, in certain instances the sys-
tem may wrongly recognize the
ground or structures.
Always pay attention to road and
driving conditions, while driving. Driving where the heights of the
lanes are different
BCW system may not operate
properly when driving where the
heights of the lanes are different.
In certain instances, the system
may not detect the vehicle on a
road with different lane heights
(underpass joining section, grade
separated intersections, etc.).
Always pay attention to road and
driving conditions, while driving.
OAEE059592OAD058157NOAD058150N

5-80
Driving your vehicle

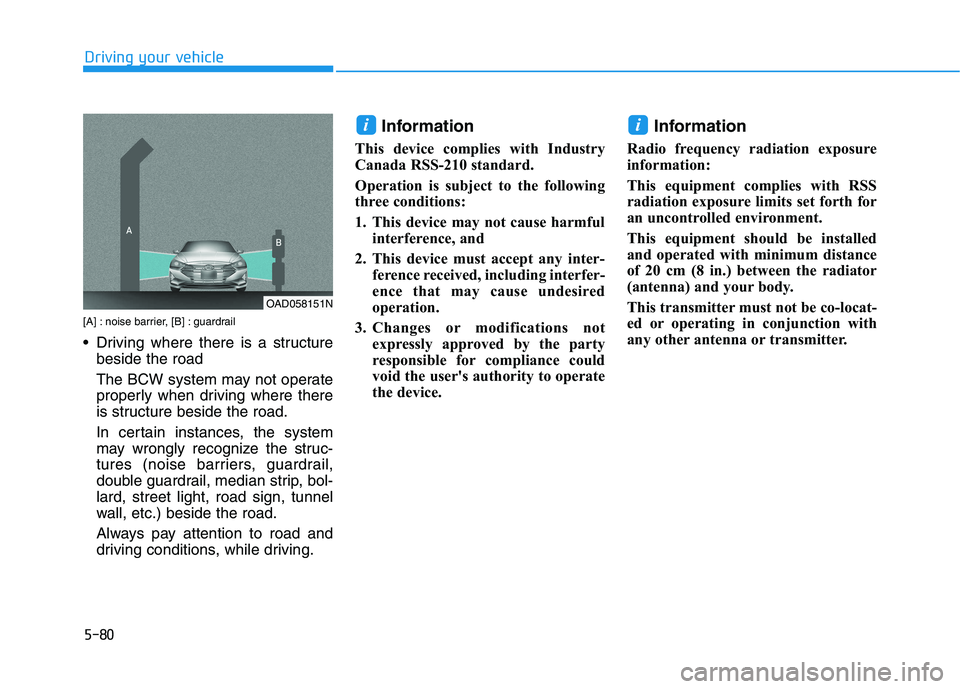

[A] : noise barrier, [B] : guardrail
Driving where there is a structurebeside the road
The BCW system may not operate
properly when driving where there
is structure beside the road.
In certain instances, the system
may wrongly recognize the struc-
tures (noise barriers, guardrail,
double guardrail, median strip, bol-lard, street light, road sign, tunnel
wall, etc.) beside the road.
Always pay attention to road and
driving conditions, while driving. Information
This device complies with Industry
Canada RSS-210 standard.
Operation is subject to the following
three conditions:
1. This device may not cause harmful interference, and
2. This device must accept any inter- ference received, including interfer-
ence that may cause undesired
operation.
3. Changes or modifications not expressly approved by the party
responsible for compliance could
void the user's authority to operate
the device. Information
Radio frequency radiation exposure
information:
This equipment complies with RSS
radiation exposure limits set forth for
an uncontrolled environment.
This equipment should be installed
and operated with minimum distance
of 20 cm (8 in.) between the radiator
(antenna) and your body.
This transmitter must not be co-locat-
ed or operating in conjunction with
any other antenna or transmitter.
ii
OAD058151N

5-81
Driving your vehicle
5

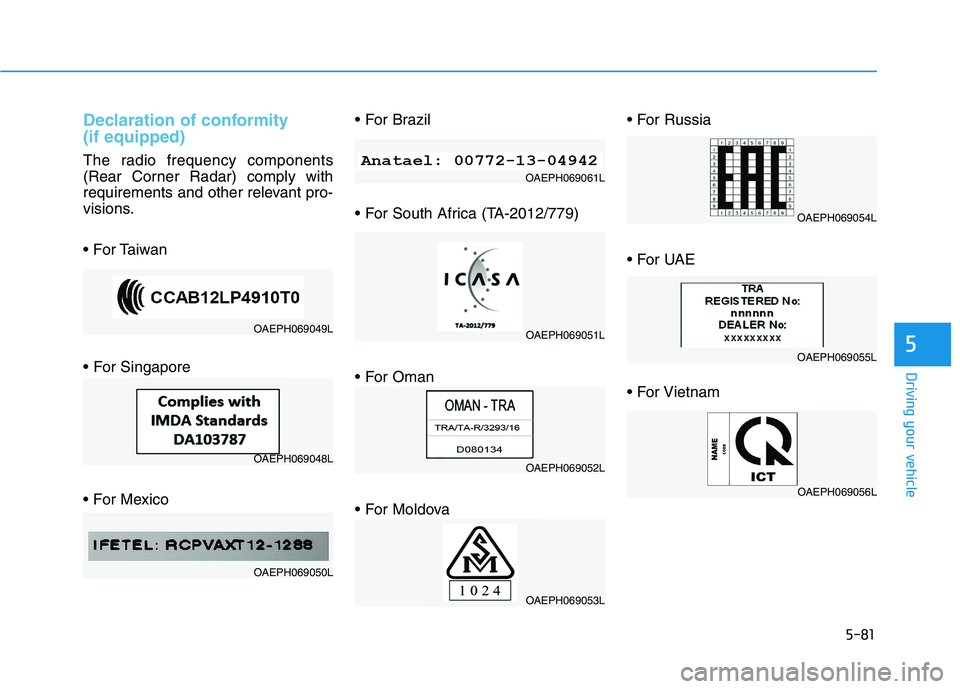

Declaration of conformity (if equipped)
The radio frequency components
(Rear Corner Radar) comply with
requirements and other relevant pro-
visions.








OAEPH069049L
OAEPH069048L
OAEPH069050L
OAEPH069061L
OAEPH069051L
OAEPH069052L
OAEPH069053L
OAEPH069054L
OAEPH069055L
OAEPH069056L

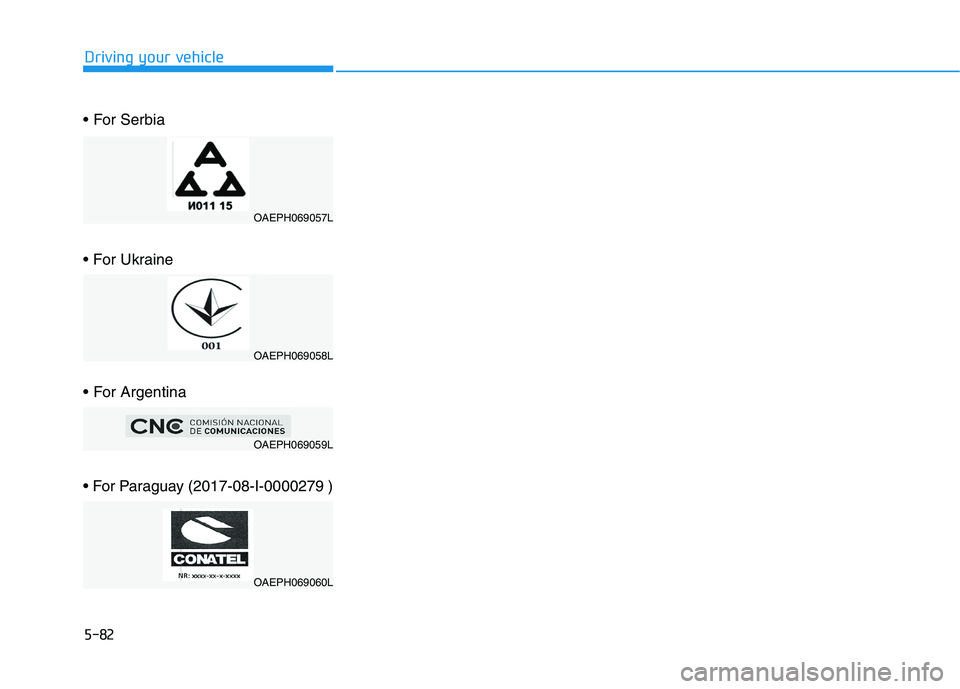

5-82
Driving your vehicle




OAEPH069057L
OAEPH069058L
OAEPH069059L
OAEPH069060L

5-83
Driving your vehicle
5

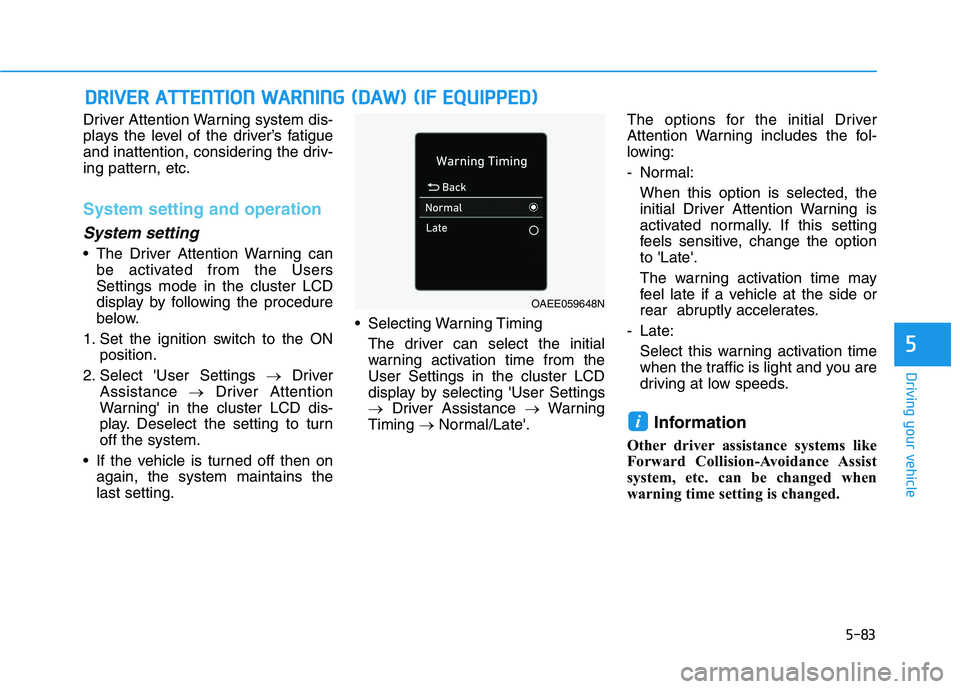

Driver Attention Warning system dis-
plays the level of the driver’s fatigue
and inattention, considering the driv-
ing pattern, etc.
System setting and operation
System setting
The Driver Attention Warning canbe activated from the Users Settings mode in the cluster LCD
display by following the procedure
below.
1. Set the ignition switch to the ON position.
2. Select 'User Settings Driver
Assistance Driver Attention
Warning' in the cluster LCD dis-
play. Deselect the setting to turnoff the system.
If the vehicle is turned off then on again, the system maintains thelast setting. Selecting Warning Timing
The driver can select the initialwarning activation time from theUser Settings in the cluster LCD
display by selecting 'User Settings
Driver Assistance Warning
Timing Normal/Late'. The options for the initial Driver
Attention Warning includes the fol-
lowing:
- Normal:
When this option is selected, the
initial Driver Attention Warning is
activated normally. If this setting
feels sensitive, change the optionto 'Late'.
The warning activation time may
feel late if a vehicle at the side or
rear abruptly accelerates.
- Late: Select this warning activation time
when the traffic is light and you are
driving at low speeds.
Information
Other driver assistance systems like
Forward Collision-Avoidance Assist
system, etc. can be changed when
warning time setting is changed.
i
DD RRIIVV EERR AA TTTT EENN TTIIOO NN WW AARRNN IINN GG (( DD AA WW )) (( IIFF EE QQ UUIIPP PPEEDD ))
OAEE059648N

5-84
Driving your vehicle

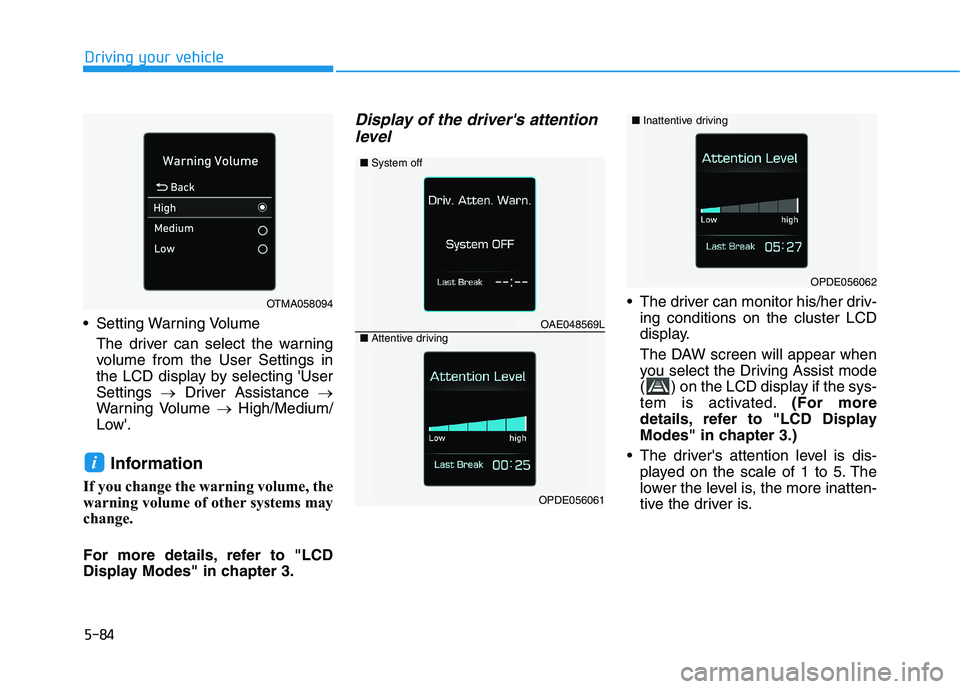

Setting Warning VolumeThe driver can select the warning
volume from the User Settings in
the LCD display by selecting 'UserSettings Driver Assistance
Warning Volume High/Medium/
Low'.
Information
If you change the warning volume, the
warning volume of other systems may
change.
For more details, refer to "LCD
Display Modes" in chapter 3.
Display of the driver's attention level
The driver can monitor his/her driv- ing conditions on the cluster LCD
display.
The DAW screen will appear when
you select the Driving Assist mode
( ) on the LCD display if the sys-
tem is activated. (For more
details, refer to "LCD Display
Modes" in chapter 3.)
The driver's attention level is dis- played on the scale of 1 to 5. The
lower the level is, the more inatten-
tive the driver is.
i
OPDE056062
■System off
OAE048569L■Attentive driving
OPDE056061
OTMA058094
■ Inattentive driving

5-85
Driving your vehicle
5

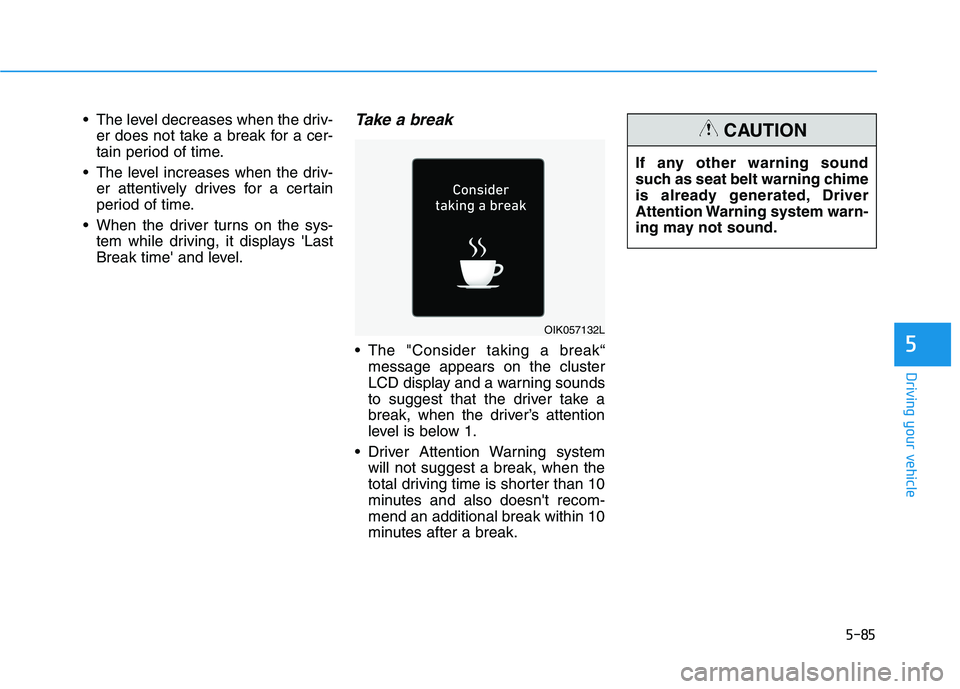

The level decreases when the driv-er does not take a break for a cer-
tain period of time.
The level increases when the driv- er attentively drives for a certain
period of time.
When the driver turns on the sys- tem while driving, it displays 'Last
Break time' and level.Take a break
The "Consider taking a break“message appears on the cluster
LCD display and a warning sounds
to suggest that the driver take a
break, when the driver’s attention
level is below 1.
Driver Attention Warning system will not suggest a break, when the
total driving time is shorter than 10
minutes and also doesn't recom-mend an additional break within 10
minutes after a break.
OIK057132L If any other warning sound
such as seat belt warning chime
is already generated, Driver
Attention Warning system warn-
ing may not sound.
CAUTION

5-86
Driving your vehicle
Resetting the system
The last break time is set to 00:00and the driver's attention level is
set to 5 (very attentive) when the
driver resets Driver Attention
Warning system.
Driver Attention Warning system resets the last break time to 00:00
and the driver's attention level to 5
in the following situations.
- The vehicle is turned OFF.
- The driver unfastens the seat beltand then opens the driver's door.
- The vehicle is stopped for more than 10 minutes.
Driver Attention Warning system operates again, when the driver
restarts driving.
System standby
Driver Attention Warning system
enters the ready status and displays
the 'Standby' screen in the following
situations.
- The front view camera does notdetect the lane.
- Driving speed over 180 km/h (110 mph).
System malfunction
Check Driver Attention Warning
(DAW) system
When the "Check Driver Attention
Warning (DAW) system" warning
message appears, the system is not
working properly. In this case, we
recommend that you have the vehi-
cle inspected by an authorized
HYUNDAI dealer.
OIK057133NOIK057134N
